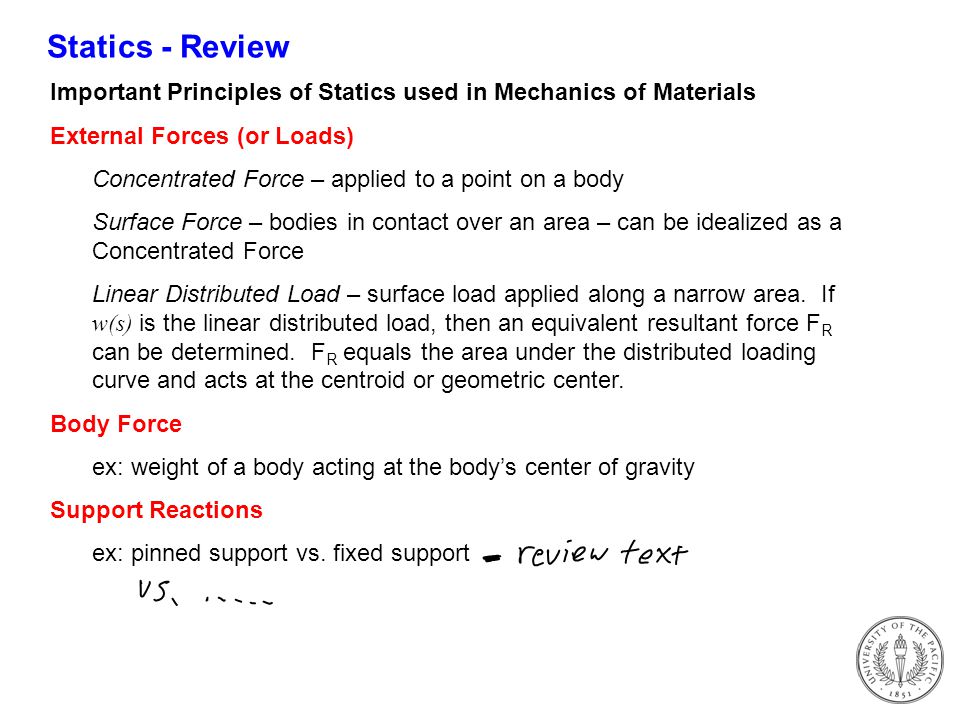

1. Statics - Review Important Principles of Statics used in Mechanics of Materials External Forces (or Loads) Concentrated Force – applied to a point on a body Surface Force – bodies in contact over an area – can be idealized as a Concentrated Force Linear Distributed Load – surface load applied along a narrow area. If w(s) is the linear distributed load, then an equivalent resultant force F R can be determined. F R equals the area under the distributed loading curve and acts at the centroid or geometric center. Body Force ex: weight of a body acting at the body’s center of gravity Support Reactions ex: pinned support vs. fixed support

2. Equations of Equilibrium Balance of forces and moments – three dimensions Balance of forces and moments – coplanar case Draw Free-Body Diagrams (F.B.D.’s) to help determine forces & moments!

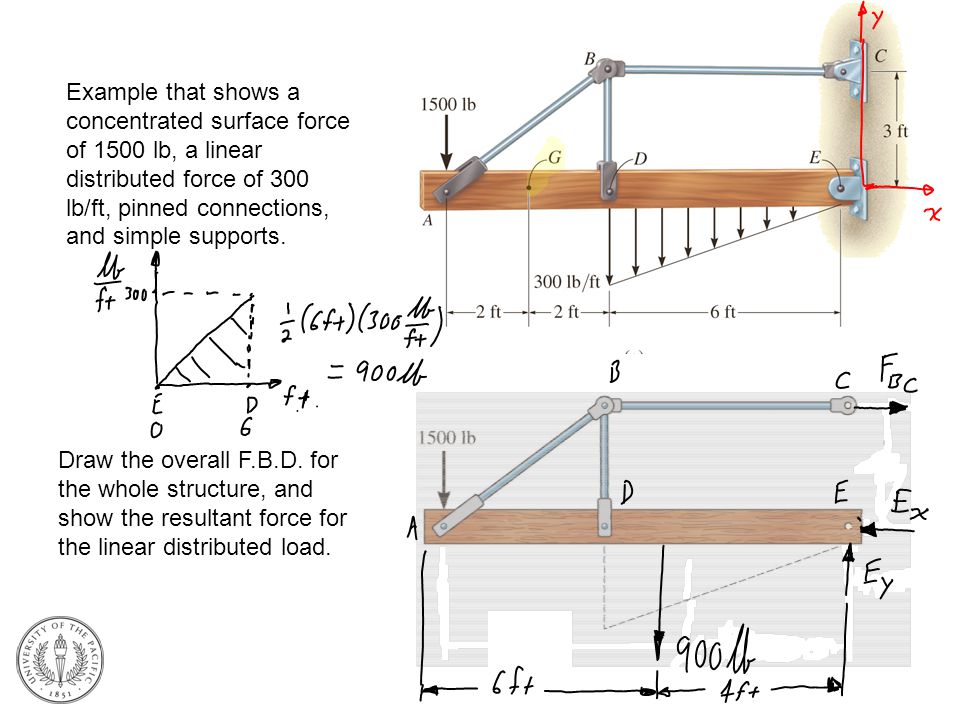

3. Example that shows a concentrated surface force of 1500 lb, a linear distributed force of 300 lb/ft, pinned connections, and simple supports. Draw the overall F.B.D. for the whole structure, and show the resultant force for the linear distributed load.

4. What would the overall F.B.D. look like if the wooden beam is embedded or fixed in the wall? When compared to the beam that is pinned to the wall, would the wooden beam deflect more or less if it is fixed in the wall?

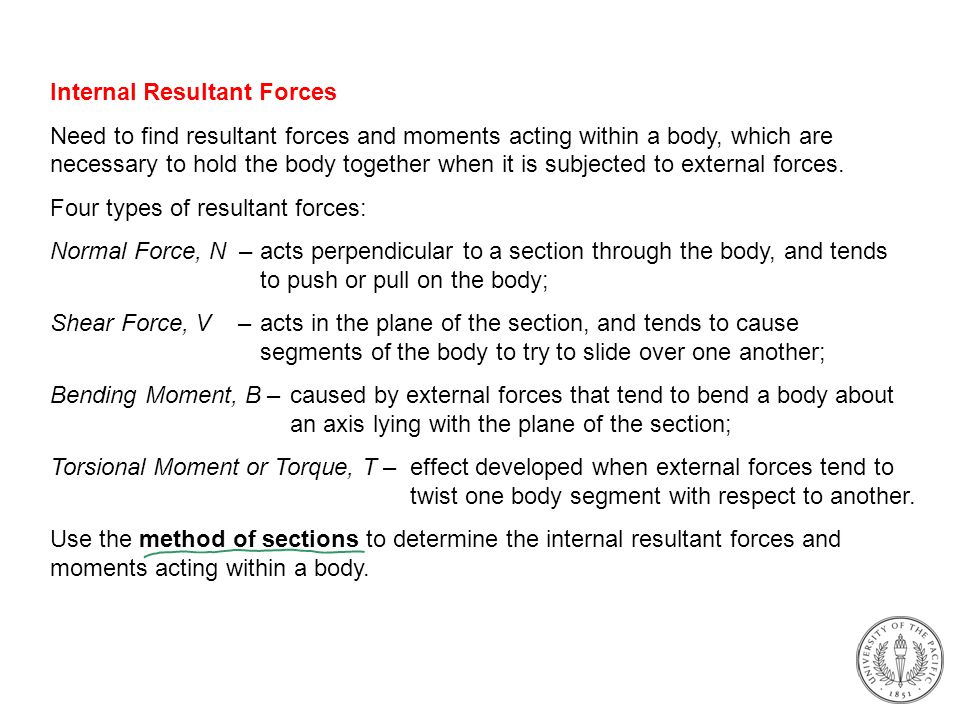

5. Internal Resultant Forces Need to find resultant forces and moments acting within a body, which are necessary to hold the body together when it is subjected to external forces. Four types of resultant forces: Normal Force, N –acts perpendicular to a section through the body, and tends to push or pull on the body; Shear Force, V – acts in the plane of the section, and tends to cause segments of the body to try to slide over one another; Bending Moment, B – caused by external forces that tend to bend a body about an axis lying with the plane of the section; Torsional Moment or Torque, T – effect developed when external forces tend to twist one body segment with respect to another. Use the method of sections to determine the internal resultant forces and moments acting within a body.

6. What would the internal forces and moments look like at point G of the wooden beam? Draw a F.B.D. of segment AG.

7. (1) Basic Definitions (2) Force (3) Resolution of a Force (3-D) (4) Resultant (5) Moments (6) Equivalent Systems of Forces (Rigid Bodies) (7) Particle Equilibrium (8) Equilibrium of a Rigid Body Basic Equations Free-Body-Diagrams Supports and Corresponding Reactions Rigid Bodies Subjected to Concurrent Forces Determinacy Two and Three Force Members (9) Trusses Internal Determinacy of Trusses Simple Methods of Analysis for Trusses Method of Sections Method of Joints (10) Frames Solution Process (a) Find Reactions (b) Break Structure into Parts (c) Look for Two Force Members (d) Find Joint Reactions Internal Determinacy of Frames (11) Internal Forces and Moments in Multi- Force Members (12) Cables and Pulleys (13) Friction (14) Centroid of Lengths, Areas, Volumes (15) Center of Gravity of a Mass (16) Other Properties of Areas Moments of Inertia of an Area Parallel Axis Theorem Radius of Gyration of an Area Polar Moment of Inertia of an Area Product of Inertia of an Area Topical Outline from Prof. Estrada’s Review of Statics

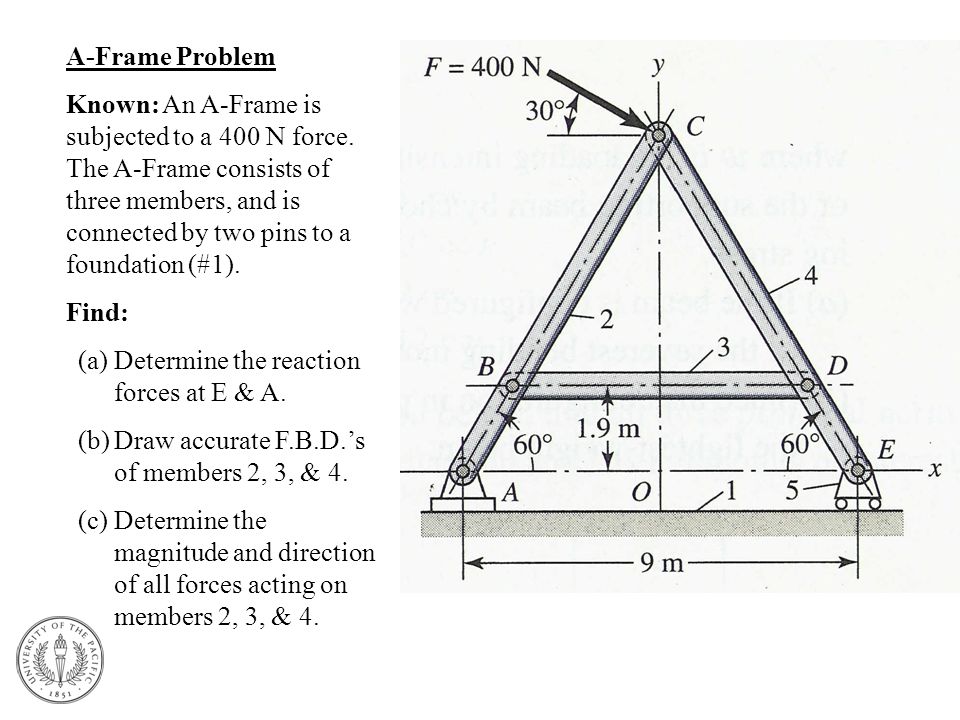

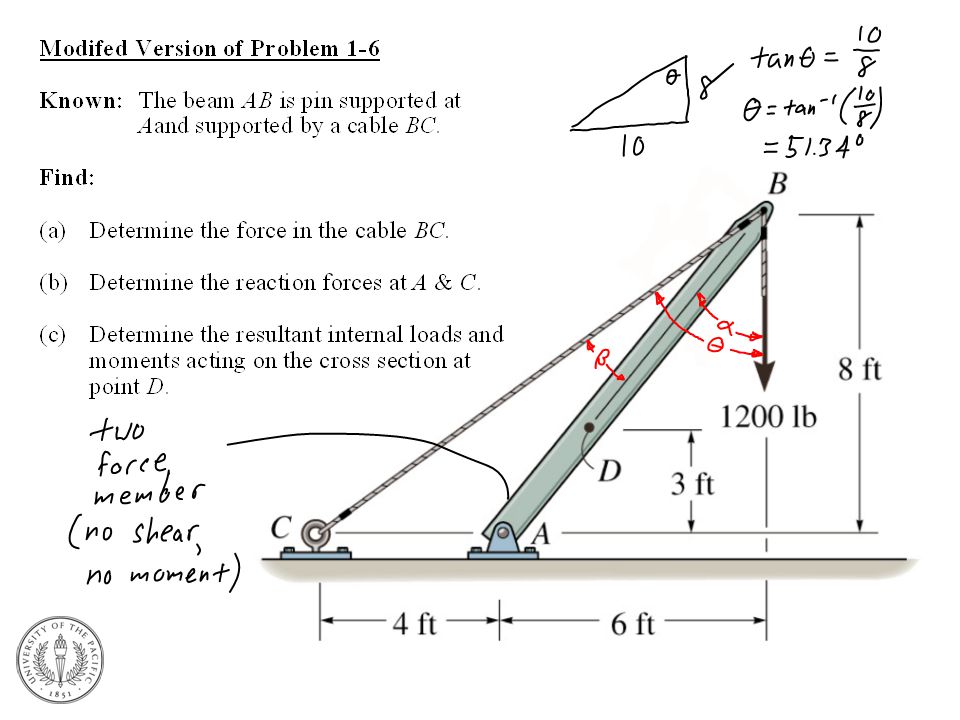

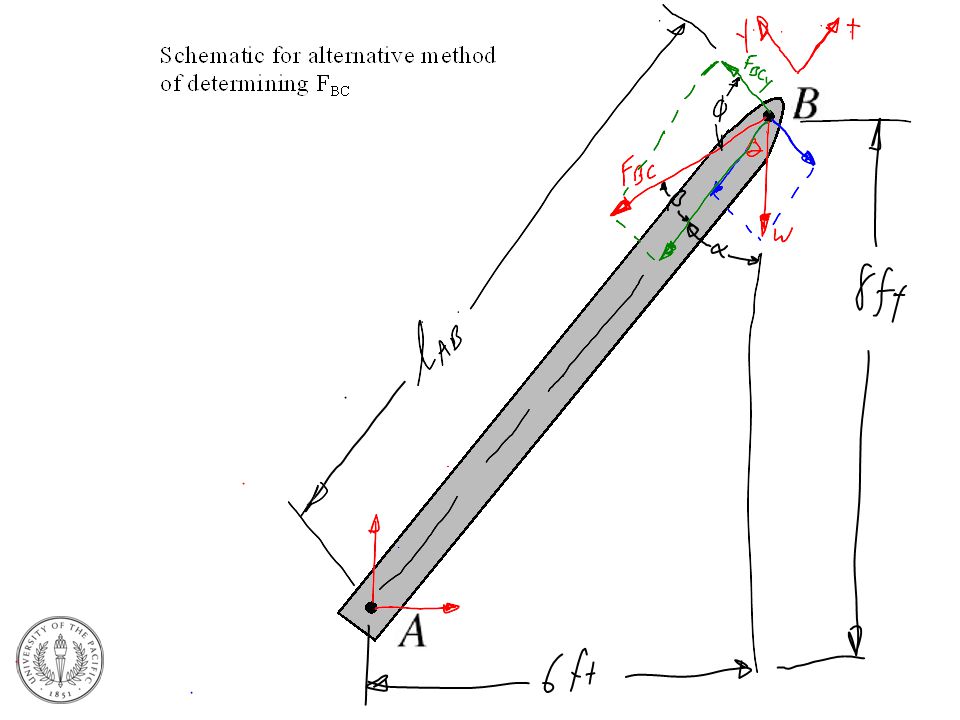

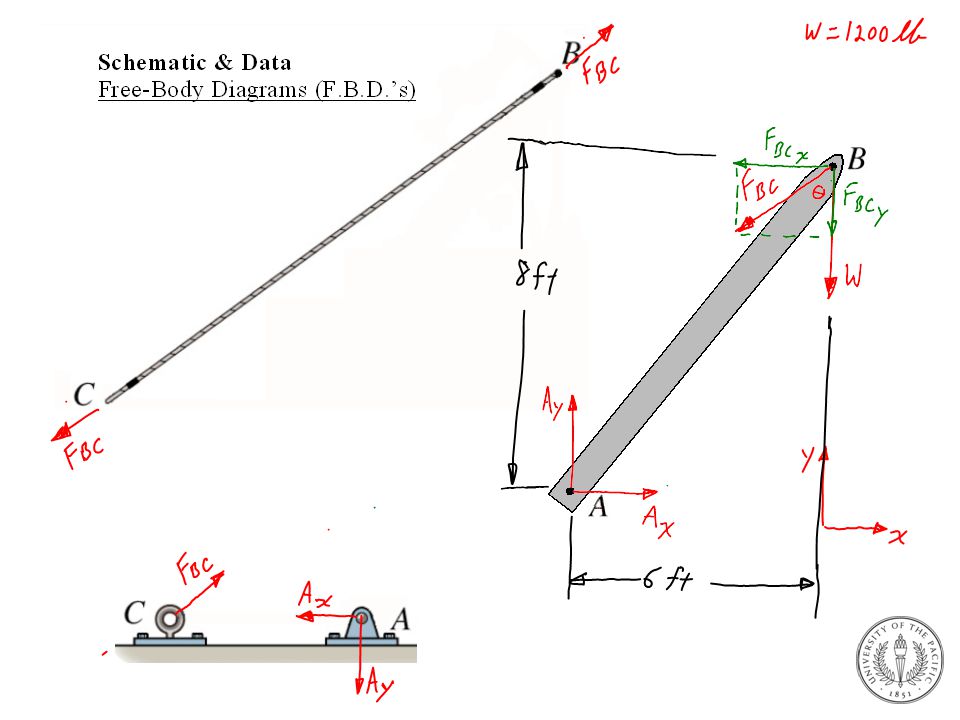

12. A-Frame Problem Known:An A-Frame is subjected to a 400 N force. The A-Frame consists of three members, and is connected by two pins to a foundation (#1). Find: (a)Determine the reaction forces at E & A. (b)Draw accurate F.B.D.’s of members 2, 3, & 4. (c)Determine the magnitude and direction of all forces acting on members 2, 3, & 4.
