1. ADVANCES IN WIND PROFILER RADAR ~~~~~~~~~~~~~~~~~~

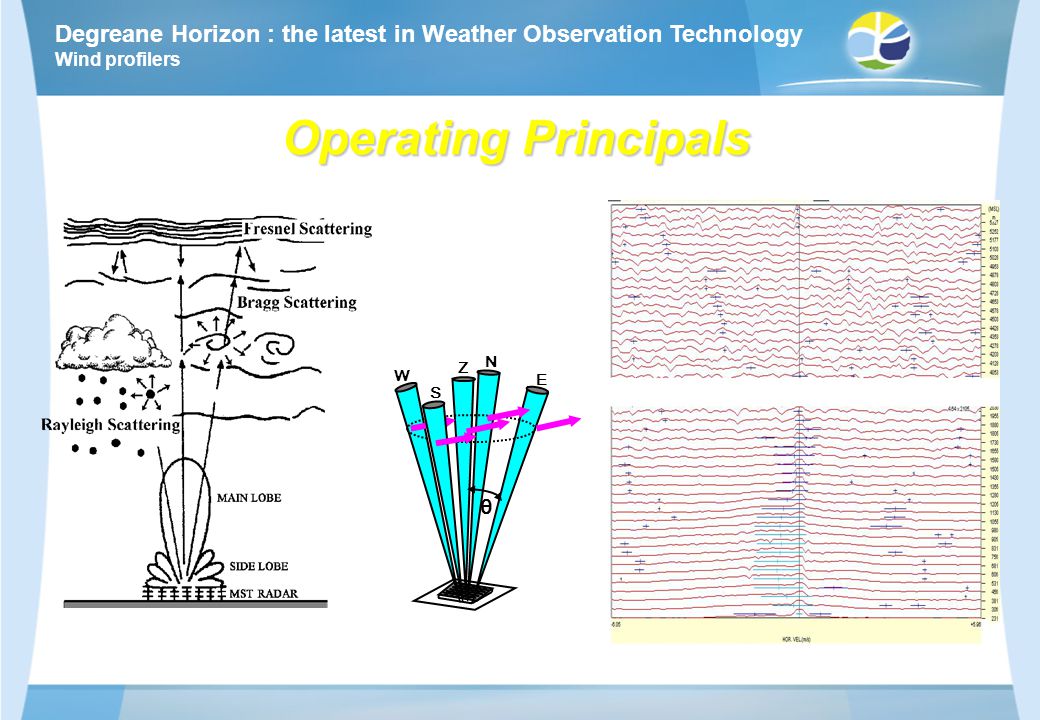

2. Operating Principals Wind profilers Degreane Horizon : the latest in Weather Observation Technology Z E W S N θ

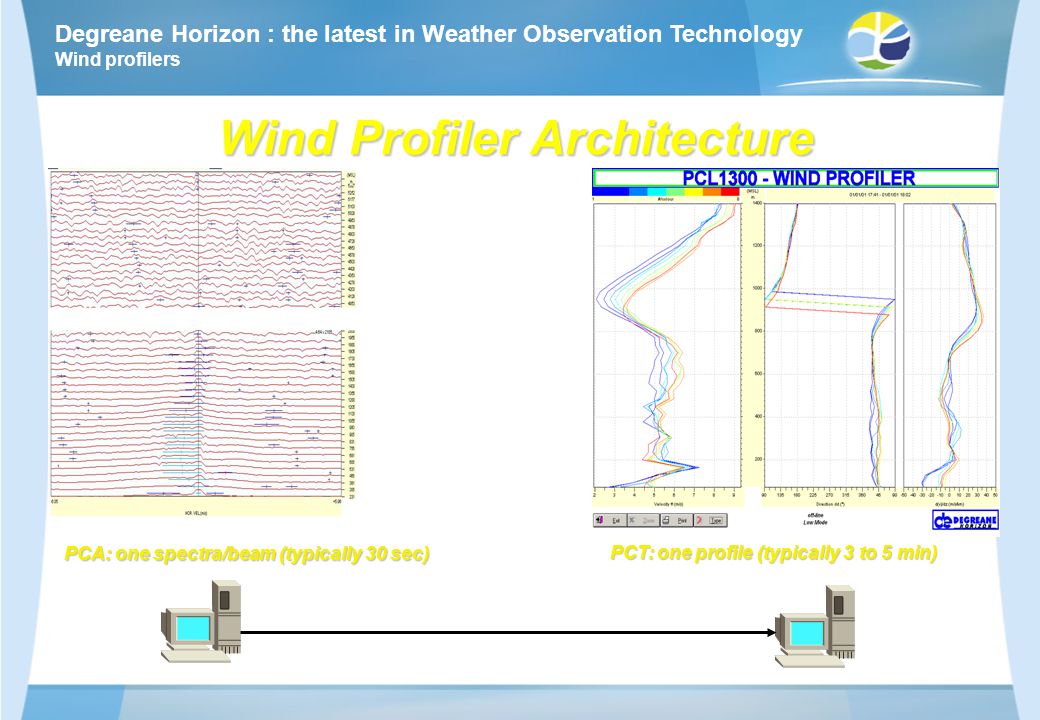

3. Wind Profiler Architecture Wind profilers Degreane Horizon : the latest in Weather Observation Technology PCA: one spectra/beam (typically 30 sec) PCT: one profile (typically 3 to 5 min)

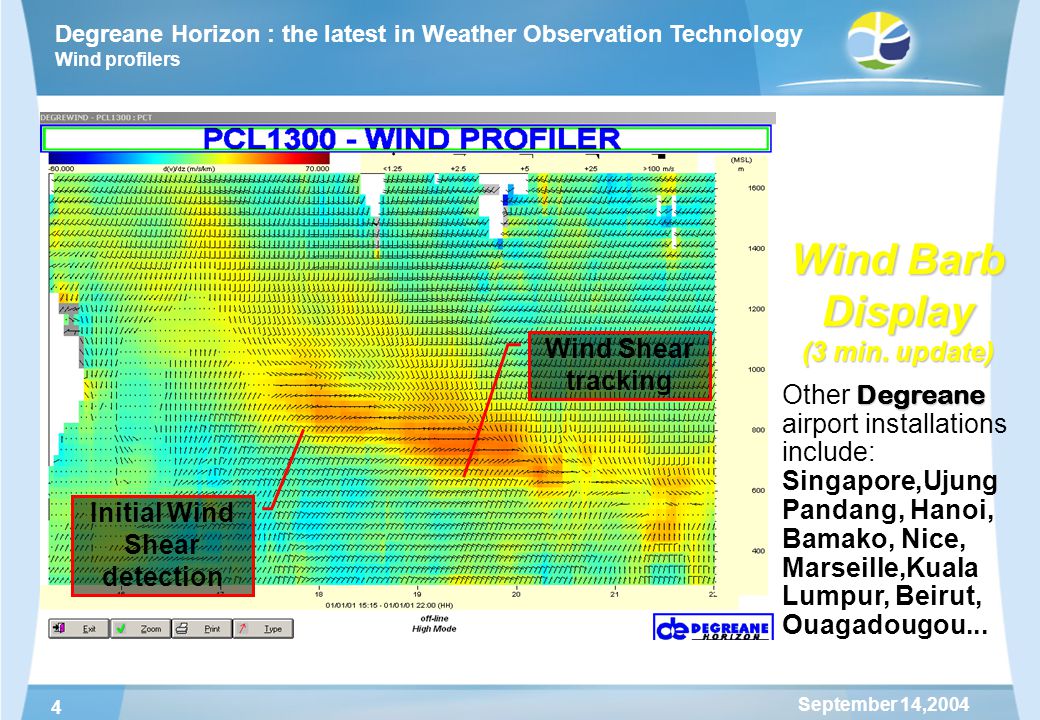

4. Wind profilers 4 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology Wind Barb Display (3 min. update) Degreane Other Degreane airport installations include: Singapore,Ujung Pandang, Hanoi, Bamako, Nice, Marseille,Kuala Lumpur, Beirut, Ouagadougou... Wind Shear tracking Initial Wind Shear detection

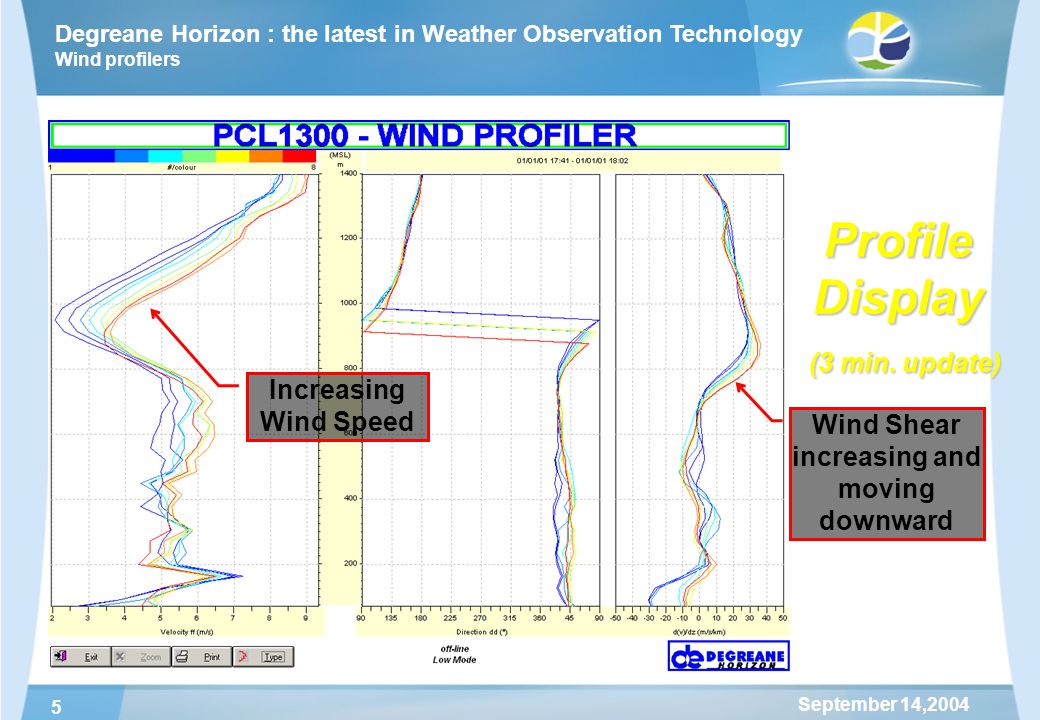

5. Wind profilers 5 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology Profile Display (3 min. update) Increasing Wind Speed Wind Shear increasing and moving downward

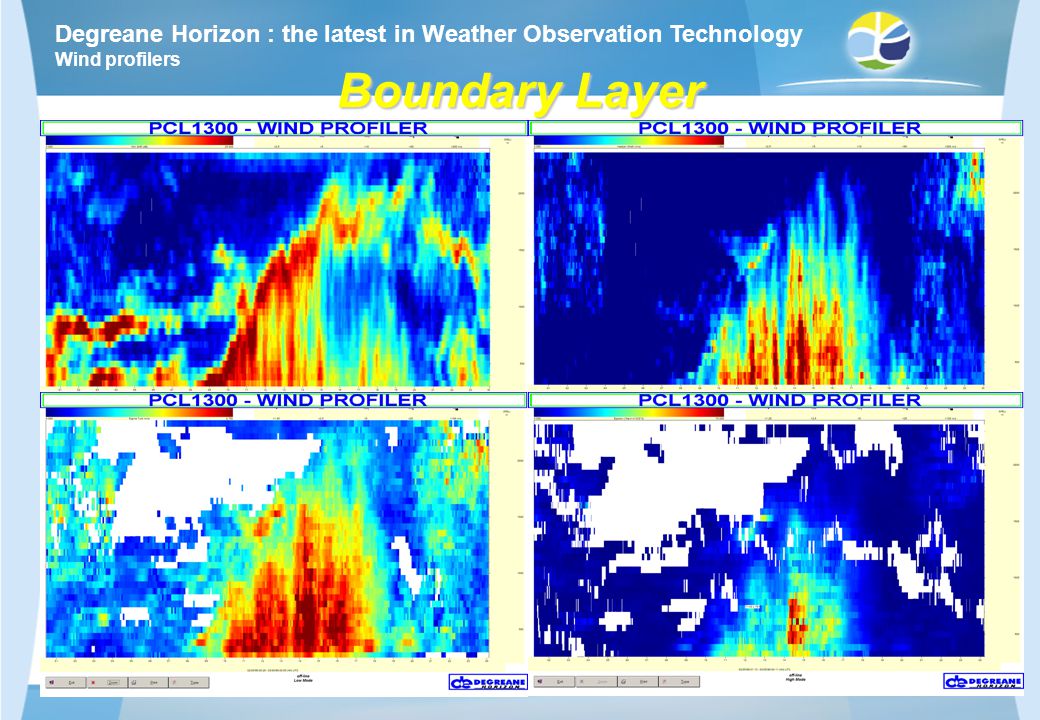

6. Boundary Layer Wind profilers Degreane Horizon : the latest in Weather Observation Technology

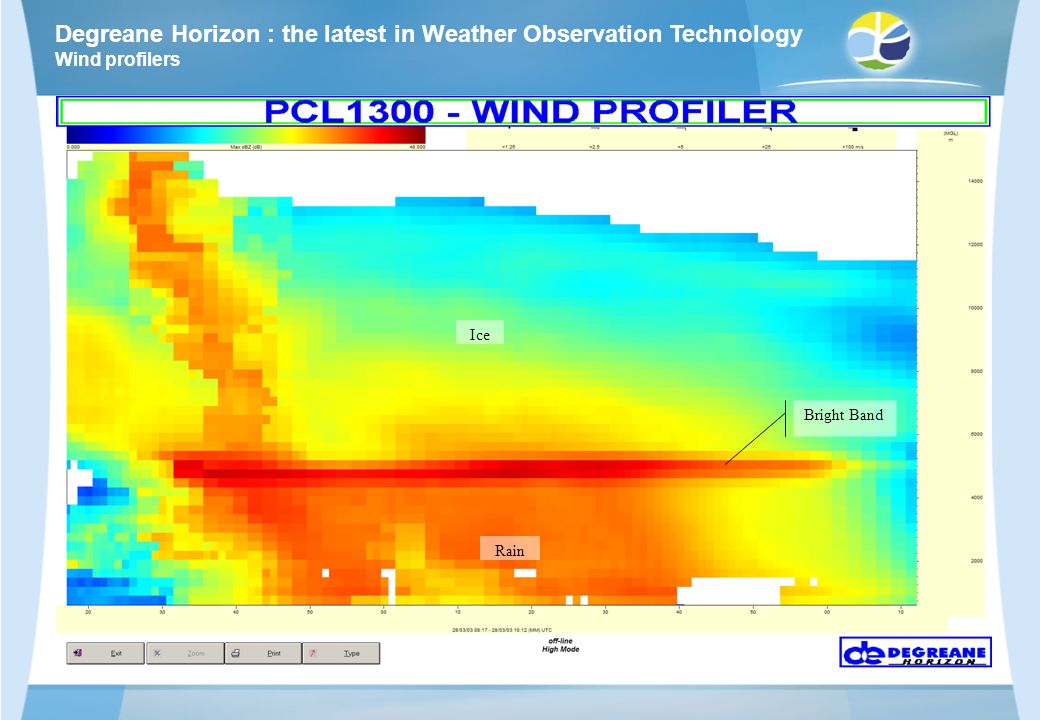

7. Wind profilers Degreane Horizon : the latest in Weather Observation Technology Rain Ice Bright Band

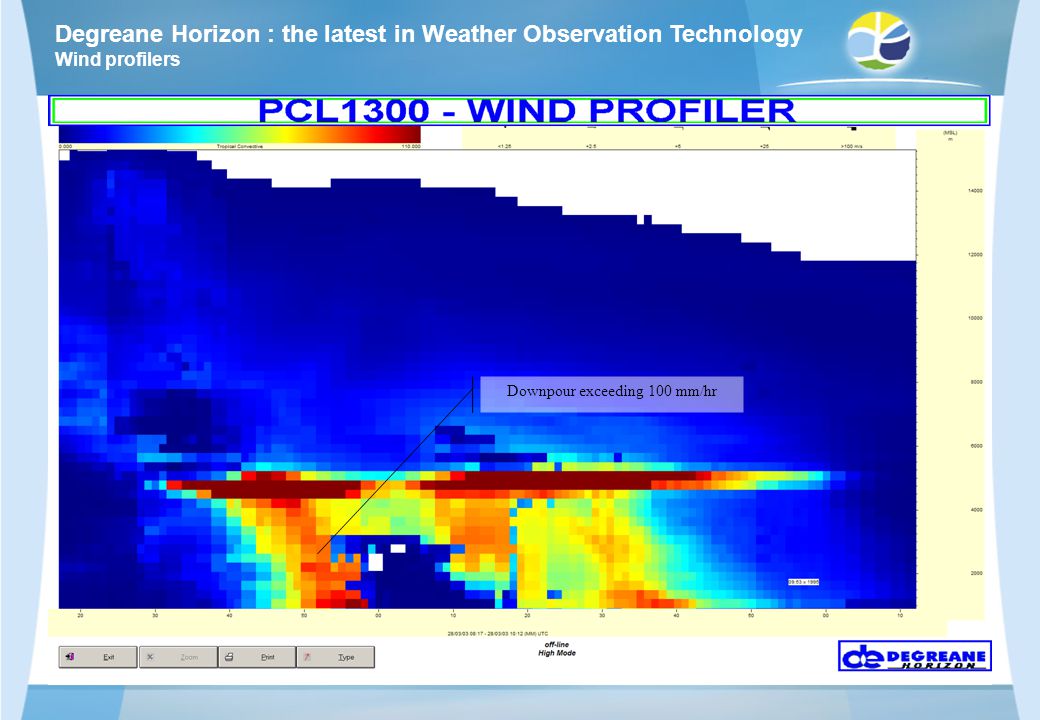

8. Wind profilers Degreane Horizon : the latest in Weather Observation Technology Downpour exceeding 100 mm/hr

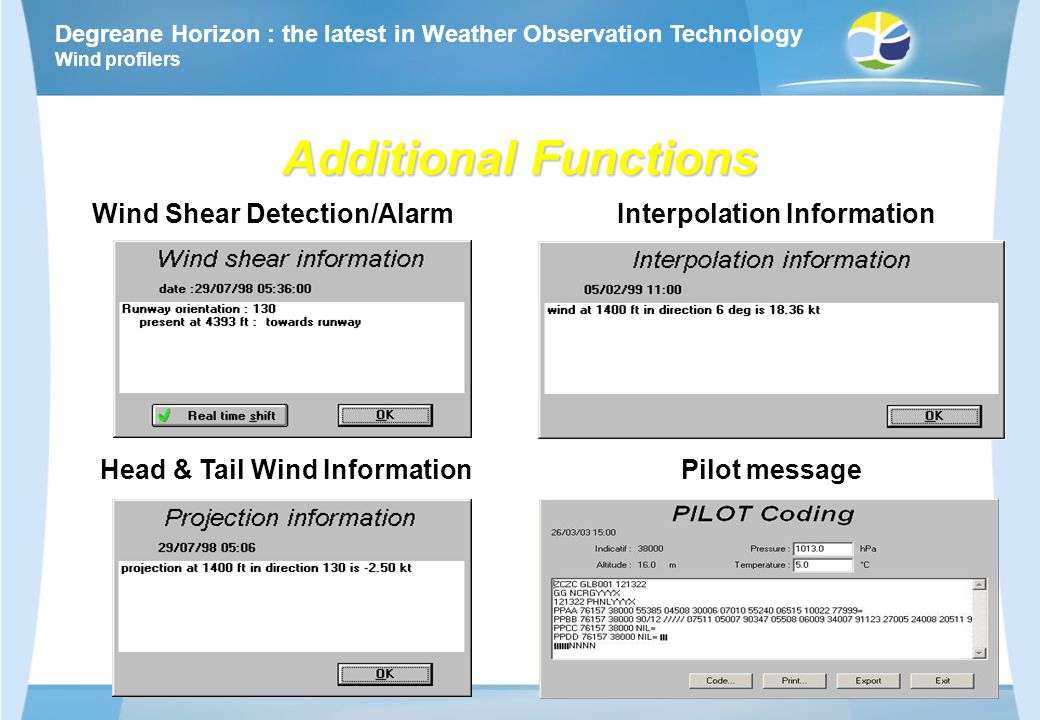

9. Wind Shear Detection/AlarmInterpolation Information Head & Tail Wind InformationPilot message Additional Functions Wind profilers Degreane Horizon : the latest in Weather Observation Technology

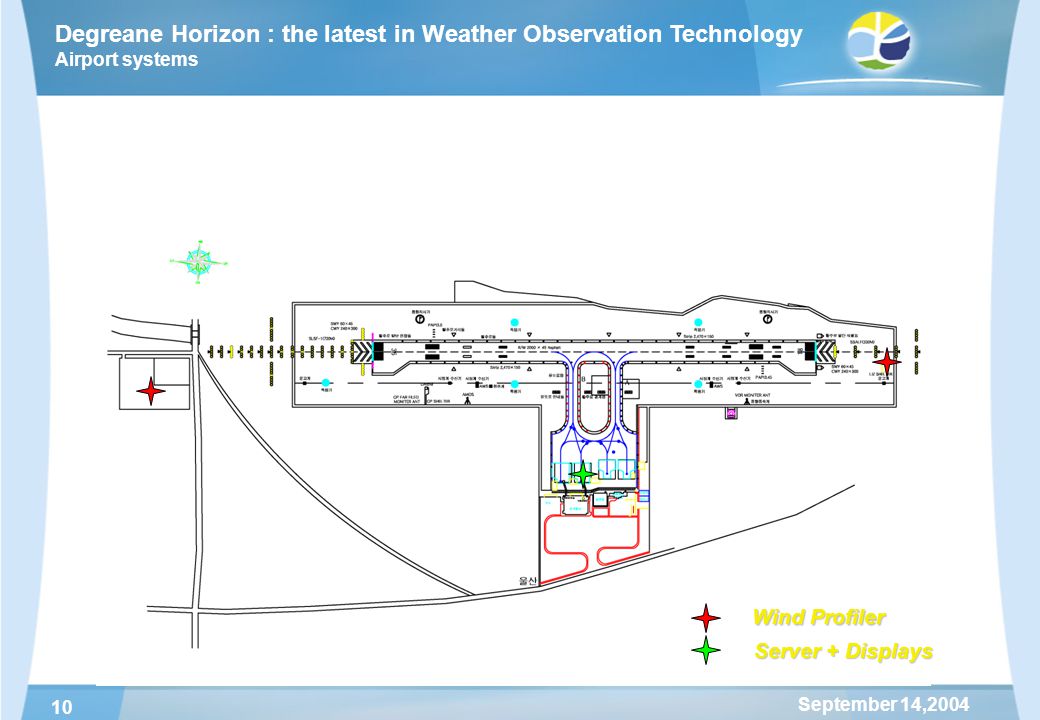

10. Airport systems 10 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology Wind Profiler Server + Displays

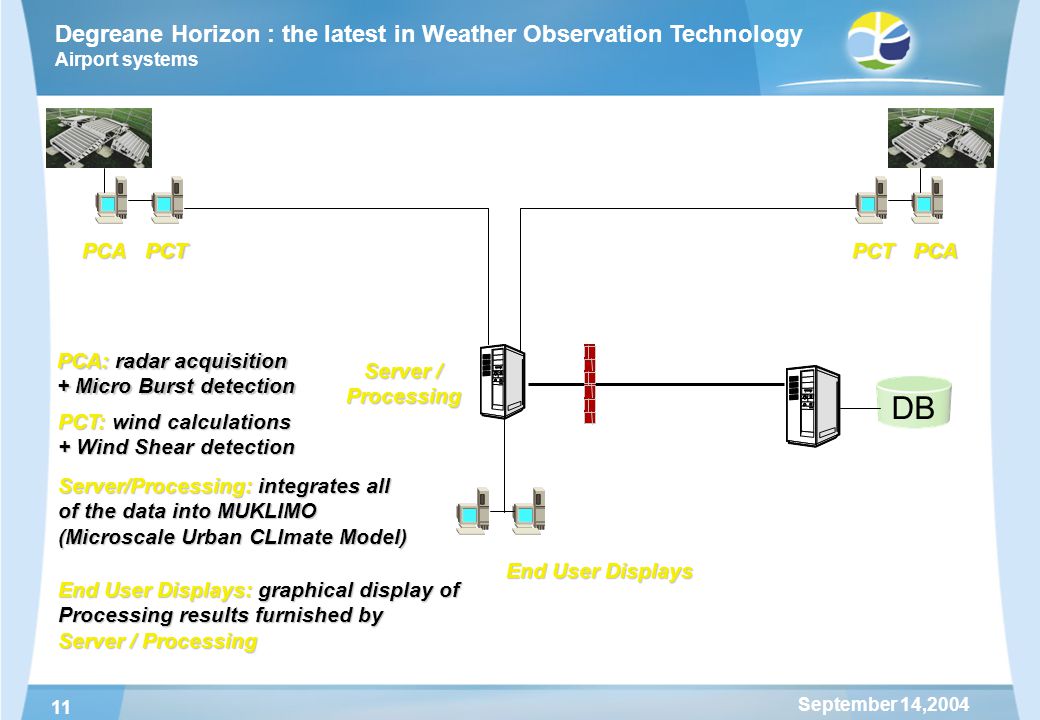

11. Airport systems 11 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology PCAPCT End User Displays Server / Processing PCAPCT DB PCA: radar acquisition + Micro Burst detection PCT: wind calculations + Wind Shear detection Server/Processing: integrates all of the data into MUKLIMO (Microscale Urban CLImate Model) End User Displays: graphical display of Processing results furnished by Server / Processing

12. Airport systems 12 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology PCAPCT End User Displays Server / Processing PCAPCT DB AMOS

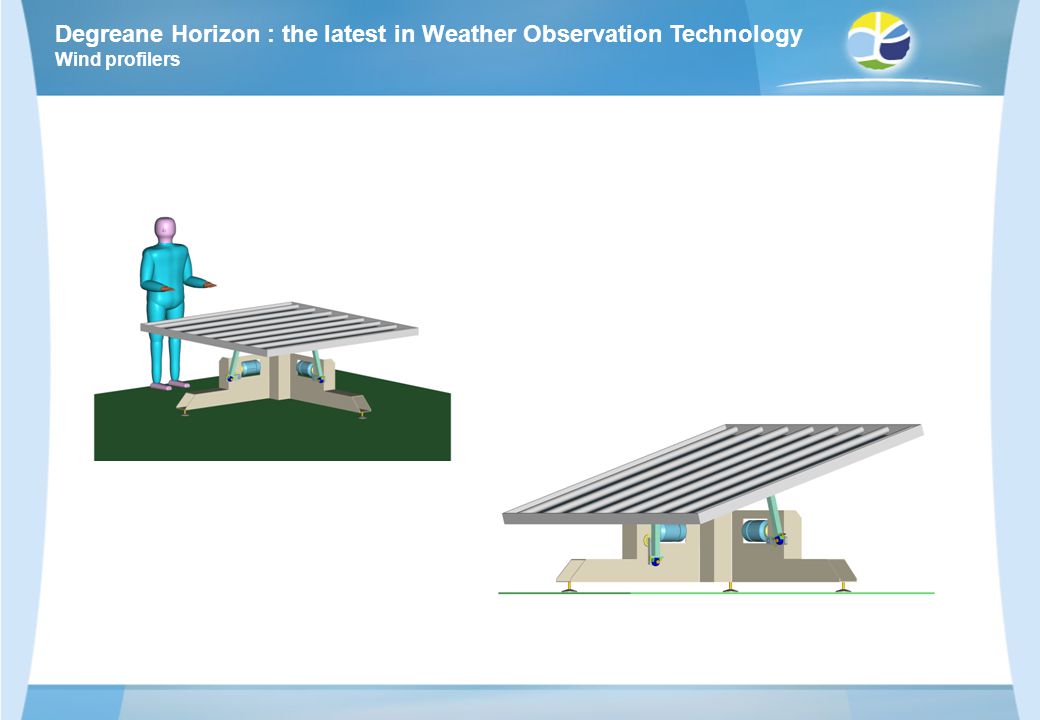

13. Wind profilers Degreane Horizon : the latest in Weather Observation Technology

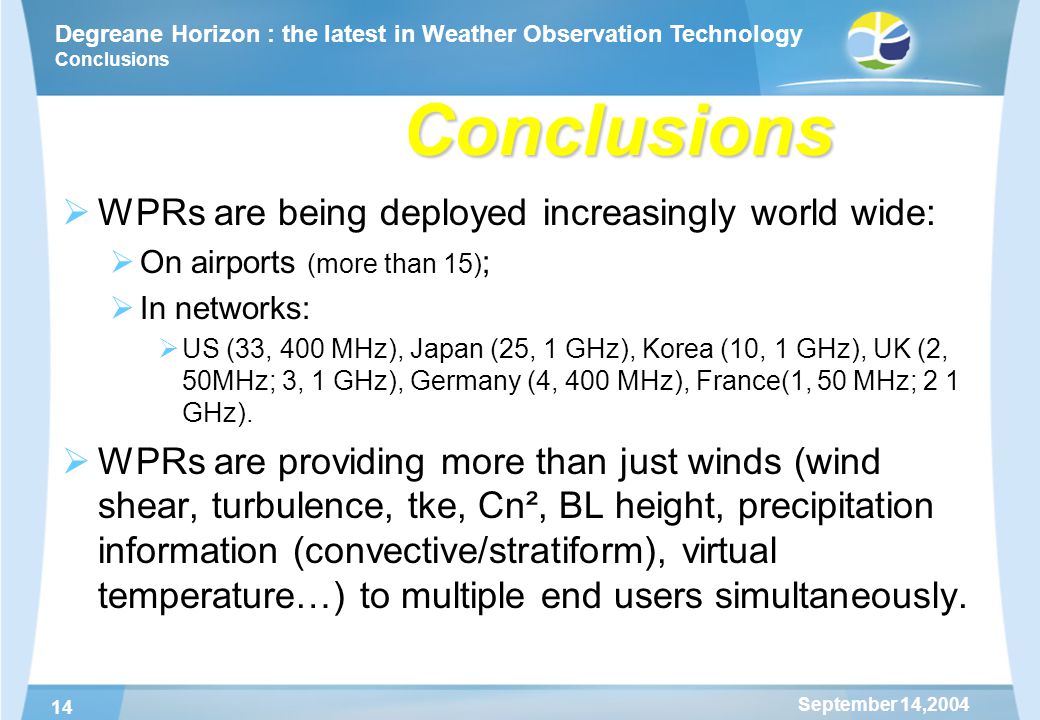

14. Conclusions 14  WPRs are being deployed increasingly world wide:  On airports (more than 15) ;  In networks:  US (33, 400 MHz), Japan (25, 1 GHz), Korea (10, 1 GHz), UK (2, 50MHz; 3, 1 GHz), Germany (4, 400 MHz), France(1, 50 MHz; 2 1 GHz).  WPRs are providing more than just winds (wind shear, turbulence, tke, Cn², BL height, precipitation information (convective/stratiform), virtual temperature…) to multiple end users simultaneously. September 14,2004 Degreane Horizon : the latest in Weather Observation Technology Conclusions

15. Conclusion 15 September 14,2004 Degreane Horizon : the latest in Weather Observation Technology Thank You for your Attention
