1. SILSOE RESEARCH INSTITUTE Using the wavelet transform to elucidate complex spatial covariation of environmental variables Murray Lark

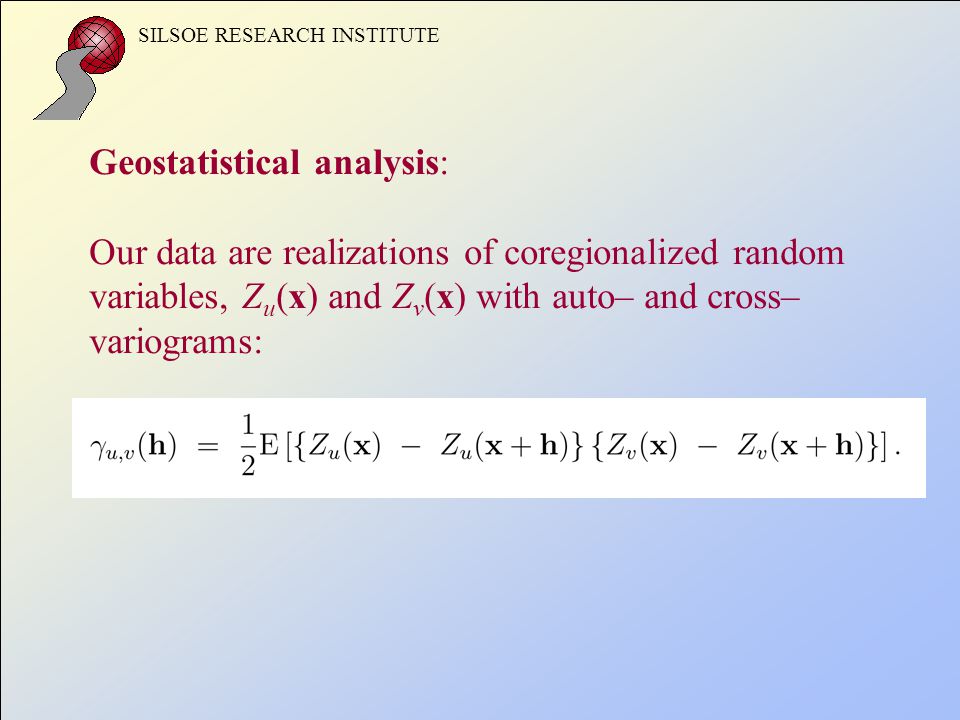

2. SILSOE RESEARCH INSTITUTE Geostatistical analysis: Our data are realizations of coregionalized random variables, Z u (x) and Z v (x) with auto– and cross– variograms:

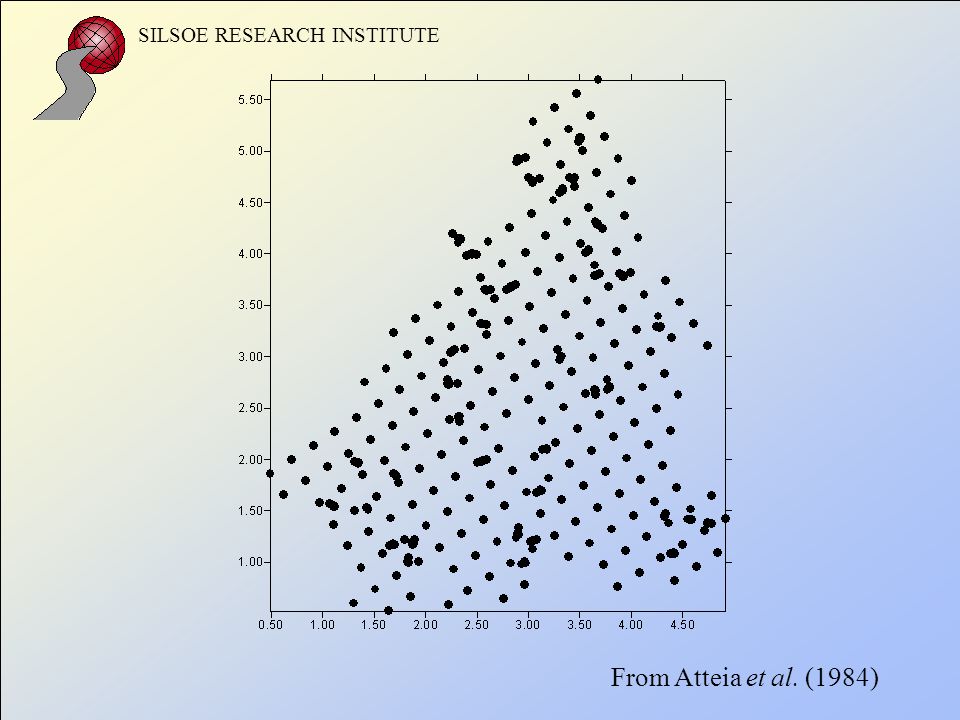

3. SILSOE RESEARCH INSTITUTE From Atteia et al. (1984)

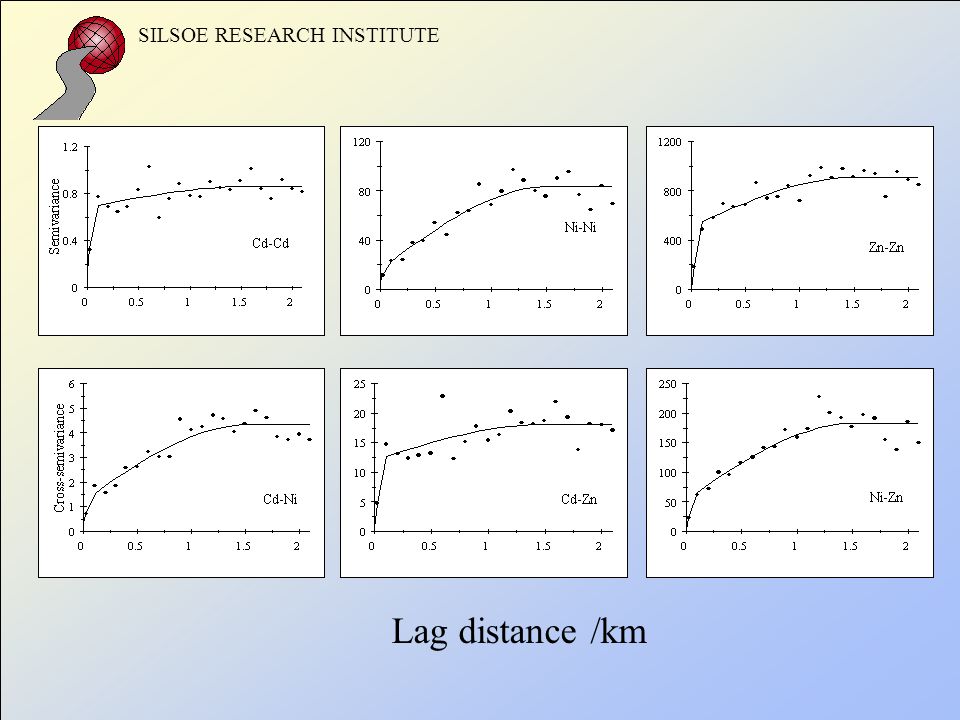

4. SILSOE RESEARCH INSTITUTE Lag distance /km

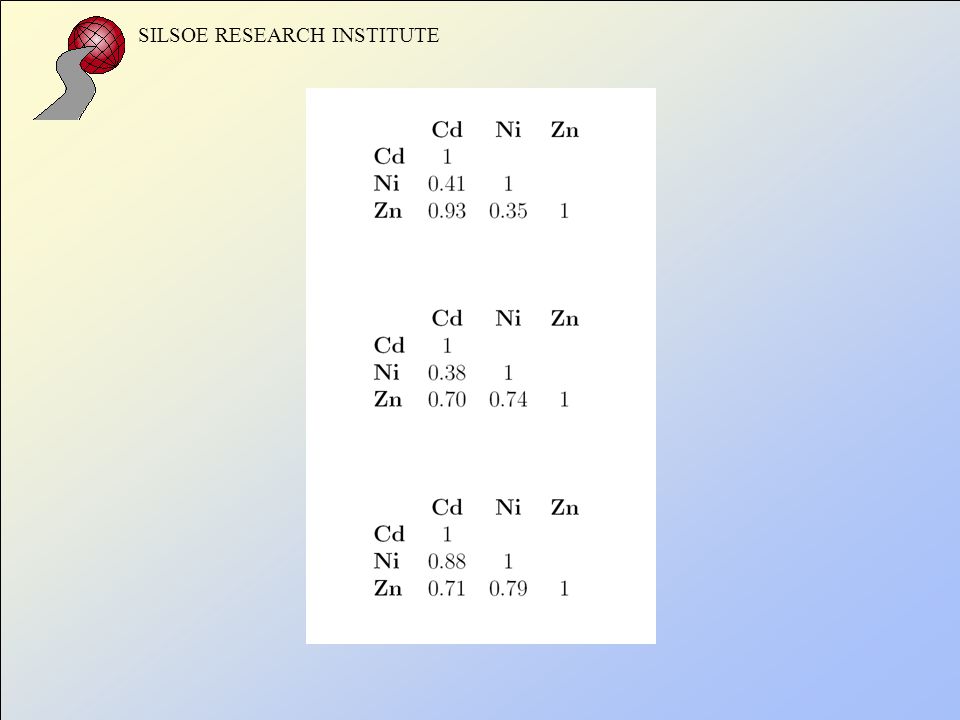

5. SILSOE RESEARCH INSTITUTE

6. Assumptions intrinsic stationarity, including the requirement that the variogram may be defined as a function of lag only: A motivation for considering the wavelet transform.

7. SILSOE RESEARCH INSTITUTE The wavelet transform. The basis functions (wavelets) have a narrow support and so provide a local analysis

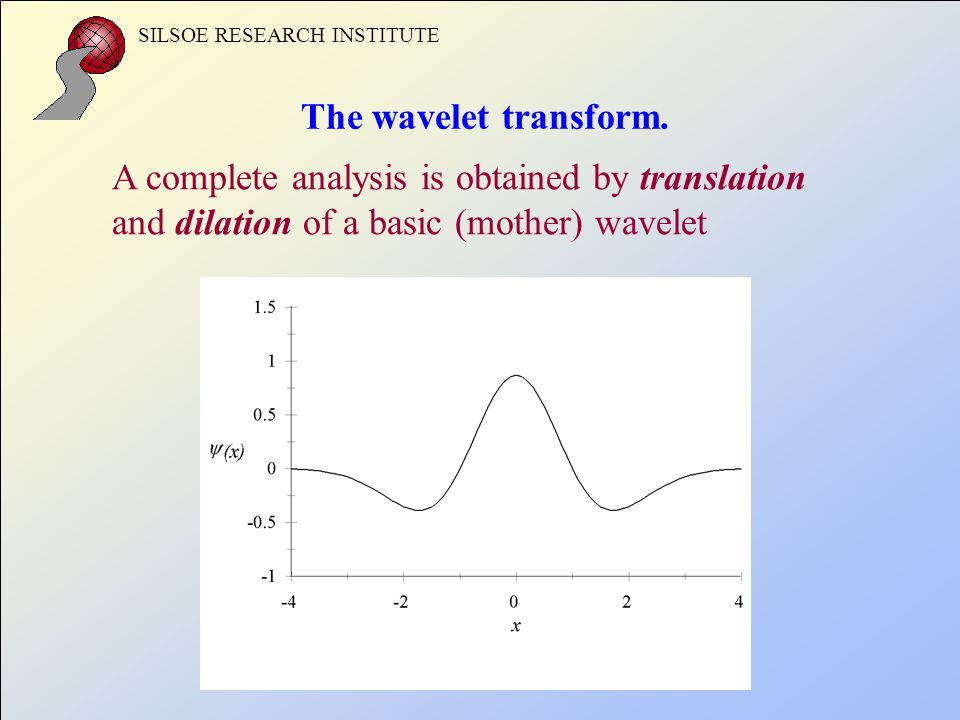

8. SILSOE RESEARCH INSTITUTE A complete analysis is obtained by translation and dilation of a basic (mother) wavelet The wavelet transform.

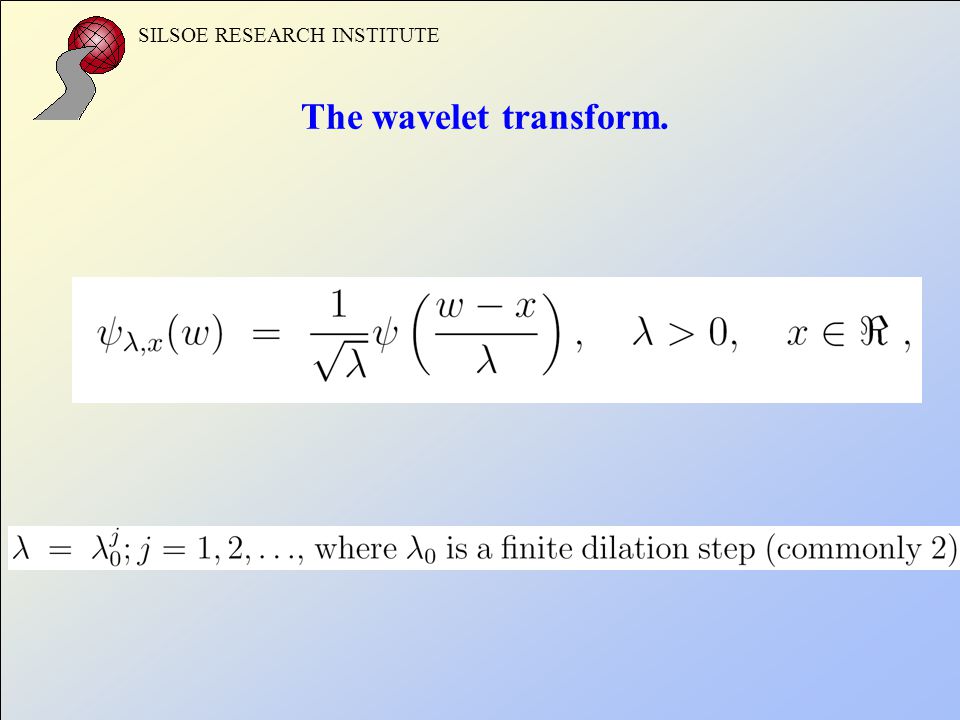

9. SILSOE RESEARCH INSTITUTE The wavelet transform.

10. SILSOE RESEARCH INSTITUTE

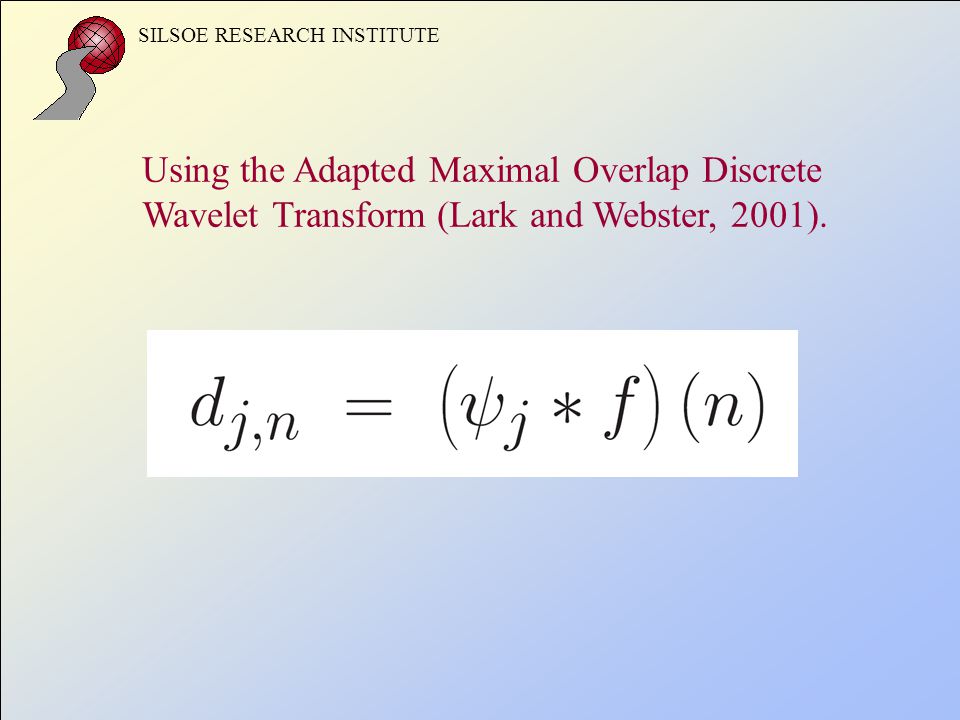

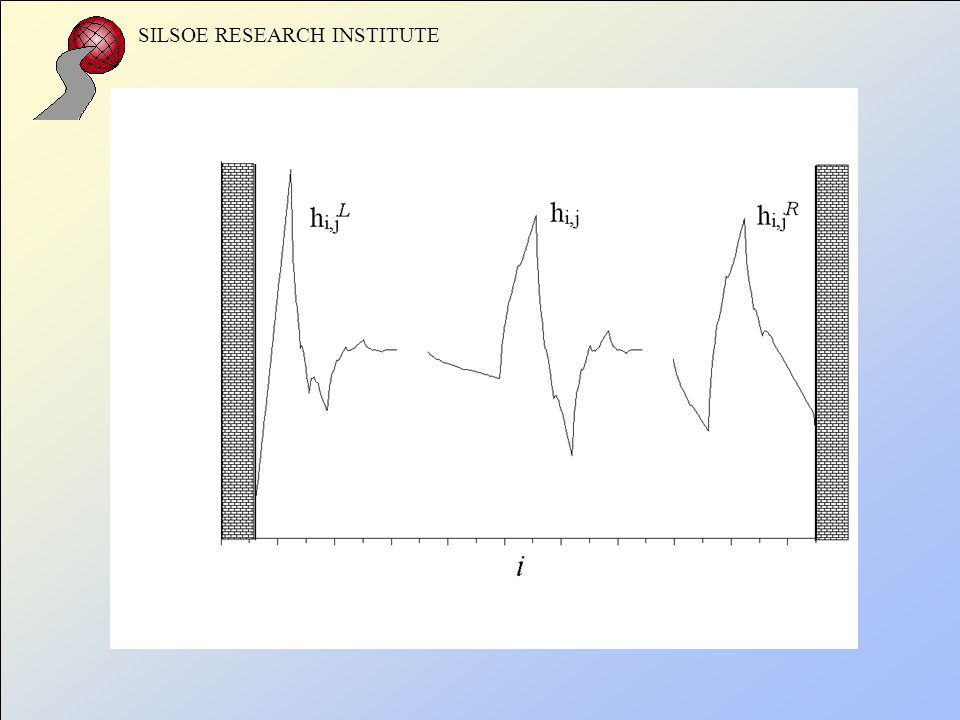

11. Using the Adapted Maximal Overlap Discrete Wavelet Transform (Lark and Webster, 2001).

12. SILSOE RESEARCH INSTITUTE

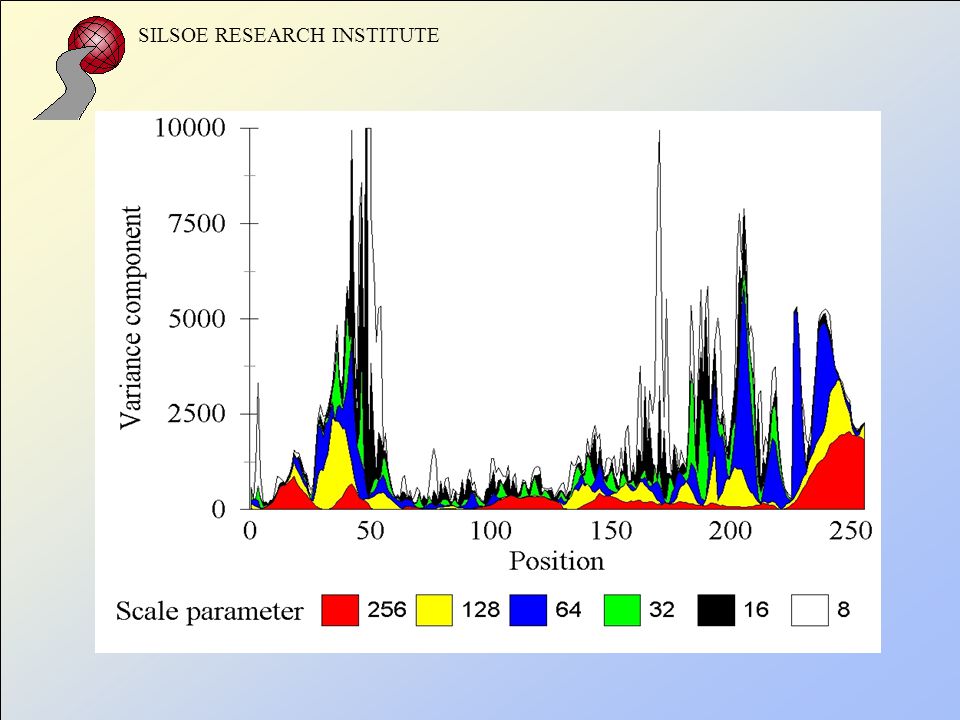

13. AMODWT partitions variance and covariance by scale.

14. SILSOE RESEARCH INSTITUTE

15. Wavelet correlations of N 2 O emissions and soil organic carbon content

16. SILSOE RESEARCH INSTITUTE Wavelet correlations of N 2 O emissions and soil pH

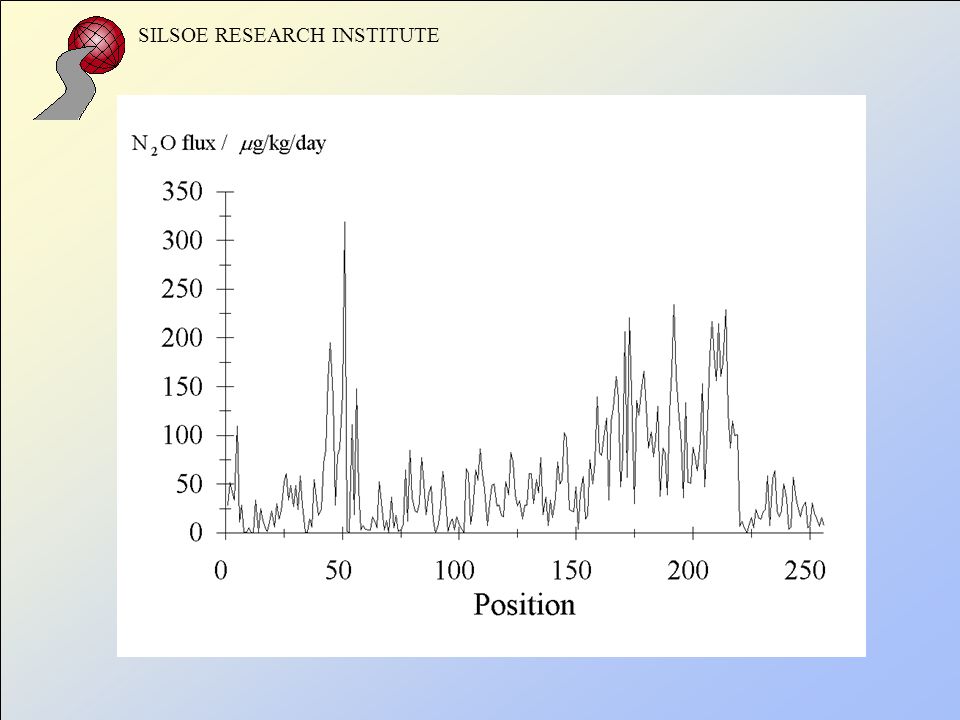

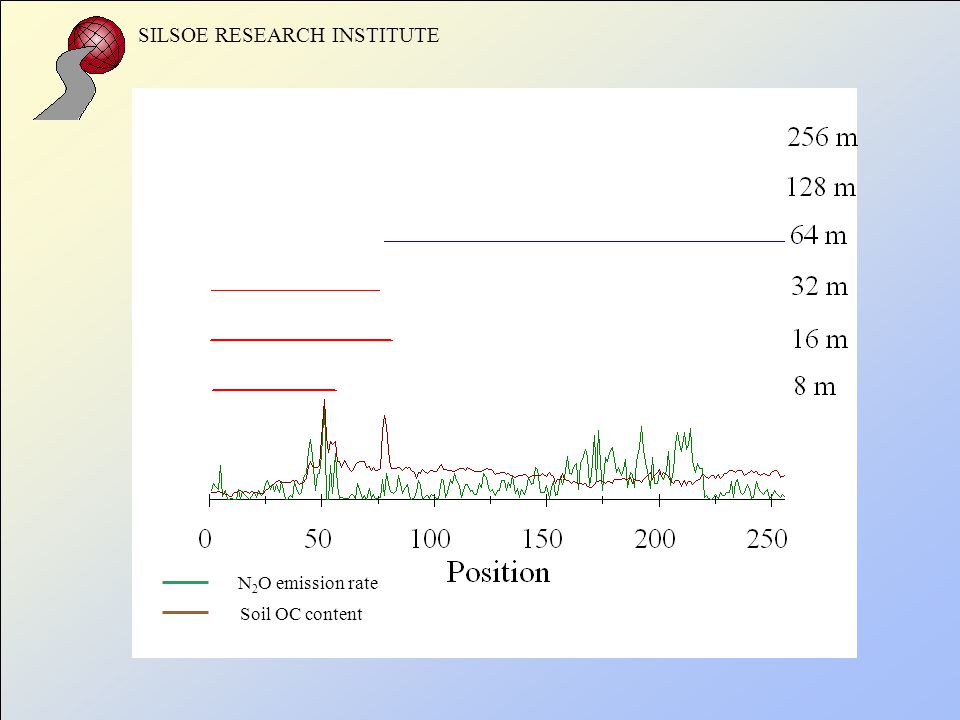

17. SILSOE RESEARCH INSTITUTE N 2 O emission rate Soil OC content

18. SILSOE RESEARCH INSTITUTE N 2 O emission rate as measured N 2 O emission rate predicted by a mechanistic model

19. SILSOE RESEARCH INSTITUTE Conclusions. 1.The wavelet transform allows us to identify scale- and location-dependency in the relationships between variables. 2.No assumptions of stationarity are invoked. 3.The analysis can give insight into spatially complex relationships and into the performance of process models.
