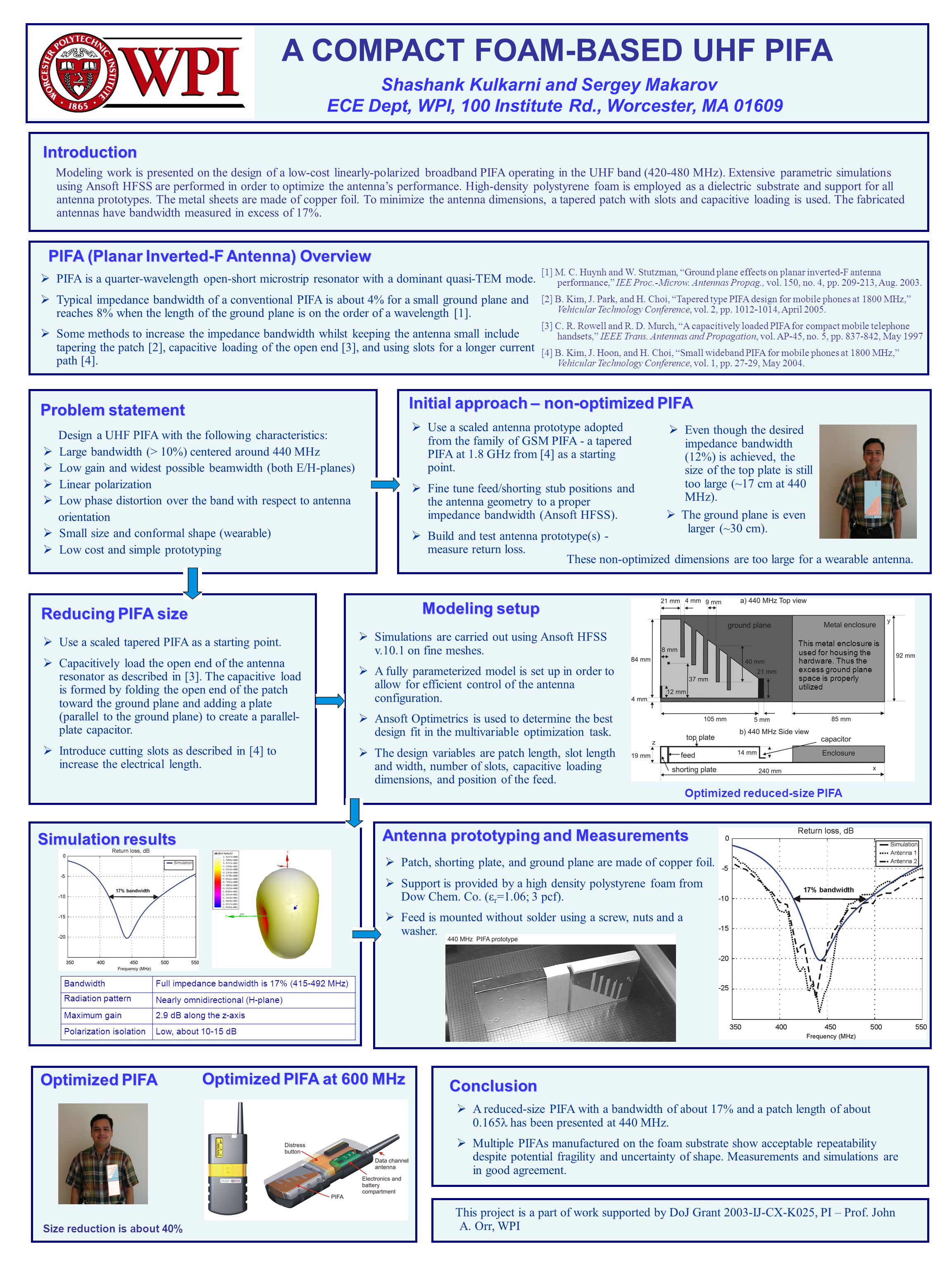

1. A COMPACT FOAM-BASED UHF PIFA Shashank Kulkarni and Sergey Makarov ECE Dept, WPI, 100 Institute Rd., Worcester, MA 01609 Introduction Modeling work is presented on the design of a low-cost linearly-polarized broadband PIFA operating in the UHF band (420-480 MHz). Extensive parametric simulations using Ansoft HFSS are performed in order to optimize the antenna’s performance. High-density polystyrene foam is employed as a dielectric substrate and support for all antenna prototypes. The metal sheets are made of copper foil. To minimize the antenna dimensions, a tapered patch with slots and capacitive loading is used. The fabricated antennas have bandwidth measured in excess of 17%. PIFA (Planar Inverted-F Antenna) Overview  PIFA is a quarter-wavelength open-short microstrip resonator with a dominant quasi-TEM mode.  Typical impedance bandwidth of a conventional PIFA is about 4% for a small ground plane and reaches 8% when the length of the ground plane is on the order of a wavelength [1].  Some methods to increase the impedance bandwidth whilst keeping the antenna small include tapering the patch [2], capacitive loading of the open end [3], and using slots for a longer current path [4]. [1] M. C. Huynh and W. Stutzman, “Ground plane effects on planar inverted-F antenna performance,” IEE Proc.-Microw. Antennas Propag., vol. 150, no. 4, pp. 209-213, Aug. 2003. [2] B. Kim, J. Park, and H. Choi, “Tapered type PIFA design for mobile phones at 1800 MHz,” Vehicular Technology Conference, vol. 2, pp. 1012-1014, April 2005. [3] C. R. Rowell and R. D. Murch, “A capacitively loaded PIFA for compact mobile telephone handsets,” IEEE Trans. Antennas and Propagation, vol. AP-45, no. 5, pp. 837-842, May 1997 [4] B. Kim, J. Hoon, and H. Choi, “Small wideband PIFA for mobile phones at 1800 MHz,” Vehicular Technology Conference, vol. 1, pp. 27-29, May 2004. Design a UHF PIFA with the following characteristics:  Large bandwidth (> 10%) centered around 440 MHz  Low gain and widest possible beamwidth (both E/H-planes)  Linear polarization  Low phase distortion over the band with respect to antenna orientation  Small size and conformal shape (wearable)  Low cost and simple prototyping Problem statement Reducing PIFA size Reducing PIFA size  Use a scaled tapered PIFA as a starting point.  Capacitively load the open end of the antenna resonator as described in [3]. The capacitive load is formed by folding the open end of the patch toward the ground plane and adding a plate (parallel to the ground plane) to create a parallel- plate capacitor.  Introduce cutting slots as described in [4] to increase the electrical length. Initial approach – non-optimized PIFA  Use a scaled antenna prototype adopted from the family of GSM PIFA - a tapered PIFA at 1.8 GHz from [4] as a starting point.  Fine tune feed/shorting stub positions and the antenna geometry to a proper impedance bandwidth (Ansoft HFSS).  Build and test antenna prototype(s) - measure return loss. These non-optimized dimensions are too large for a wearable antenna.  Even though the desired impedance bandwidth (12%) is achieved, the size of the top plate is still too large (~17 cm at 440 MHz).  The ground plane is even larger (~30 cm). Modeling setup  Simulations are carried out using Ansoft HFSS v.10.1 on fine meshes.  A fully parameterized model is set up in order to allow for efficient control of the antenna configuration.  Ansoft Optimetrics is used to determine the best design fit in the multivariable optimization task.  The design variables are patch length, slot length and width, number of slots, capacitive loading dimensions, and position of the feed. Antenna prototyping and Measurements  Patch, shorting plate, and ground plane are made of copper foil.  Support is provided by a high density polystyrene foam from Dow Chem. Co. (ε r =1.06; 3 pcf).  Feed is mounted without solder using a screw, nuts and a washer. Simulation results Optimized PIFA Conclusion Conclusion  A reduced-size PIFA with a bandwidth of about 17% and a patch length of about 0.165 has been presented at 440 MHz.  Multiple PIFAs manufactured on the foam substrate show acceptable repeatability despite potential fragility and uncertainty of shape. Measurements and simulations are in good agreement. Optimized reduced-size PIFA Size reduction is about 40% This metal enclosure is used for housing the hardware. Thus the excess ground plane space is properly utilized This project is a part of work supported by DoJ Grant 2003-IJ-CX-K025, PI – Prof. John A. Orr, WPI BandwidthFull impedance bandwidth is 17% (415-492 MHz) Radiation pattern Nearly omnidirectional (H-plane) Maximum gain2.9 dB along the z-axis Polarization isolationLow, about 10-15 dB Optimized PIFA at 600 MHz
