1© Copyright 2011 EMC Corporation. All rights reserved. EMC RECOVERPOINT/ CLUSTER ENABLER FOR MICROSOFT FAILOVER CLUSTER
2

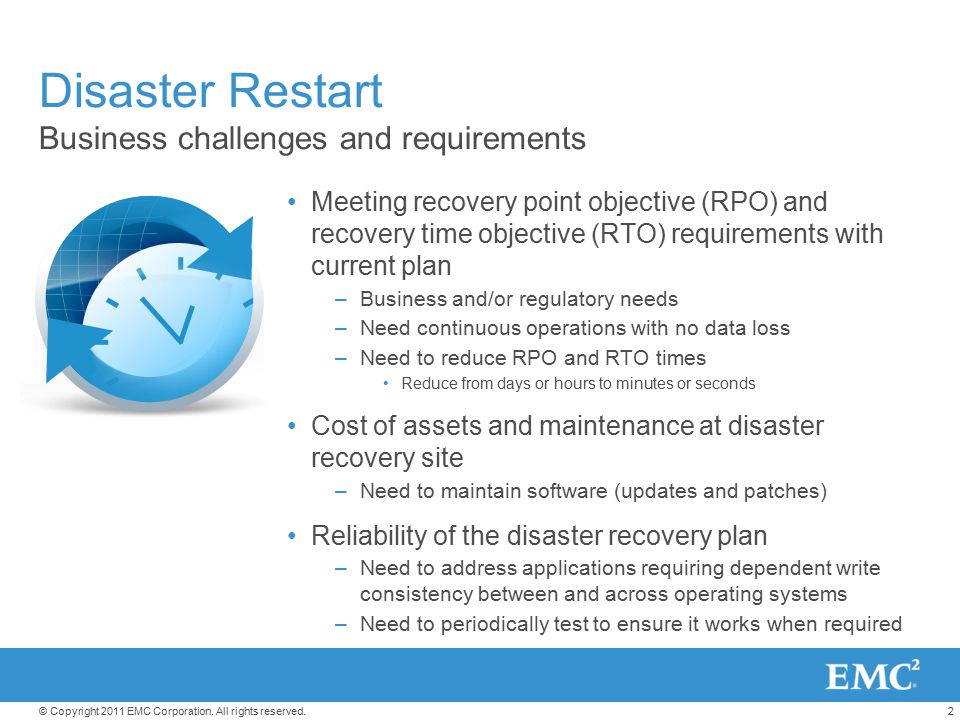

2© Copyright 2011 EMC Corporation. All rights reserved. Disaster Restart Business challenges and requirements Meeting recovery point objective (RPO) and recovery time objective (RTO) requirements with current plan –Business and/or regulatory needs –Need continuous operations with no data loss –Need to reduce RPO and RTO times Reduce from days or hours to minutes or seconds Cost of assets and maintenance at disaster recovery site –Need to maintain software (updates and patches) Reliability of the disaster recovery plan –Need to address applications requiring dependent write consistency between and across operating systems –Need to periodically test to ensure it works when required
3

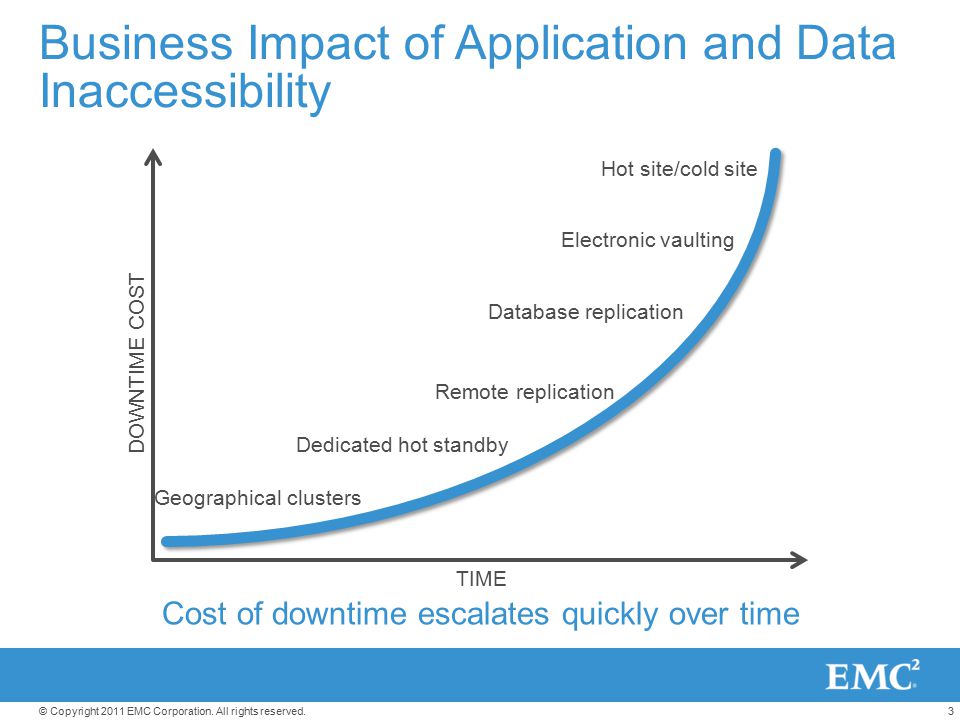

3© Copyright 2011 EMC Corporation. All rights reserved. Business Impact of Application and Data Inaccessibility Cost of downtime escalates quickly over time Dedicated hot standby Database replication Electronic vaulting Hot site/cold site Remote replication Geographical clusters TIME DOWNTIME COST
4

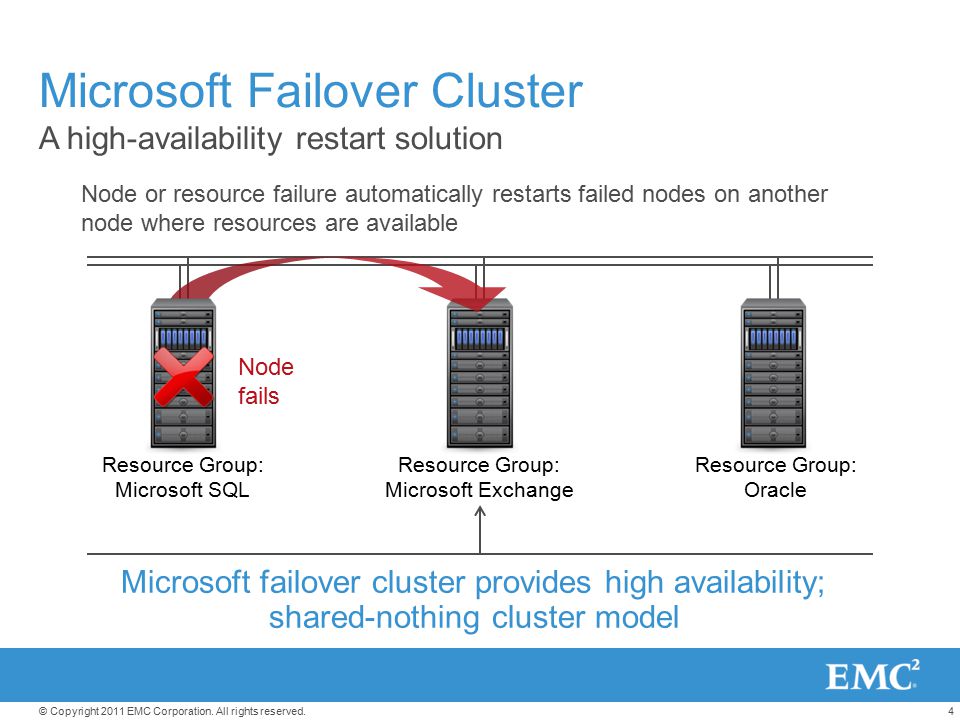

4© Copyright 2011 EMC Corporation. All rights reserved. Microsoft Failover Cluster A high-availability restart solution Node or resource failure automatically restarts failed nodes on another node where resources are available Microsoft failover cluster provides high availability; shared-nothing cluster model Resource Group: Microsoft SQL Resource Group: Microsoft Exchange Resource Group: Oracle Node fails
5

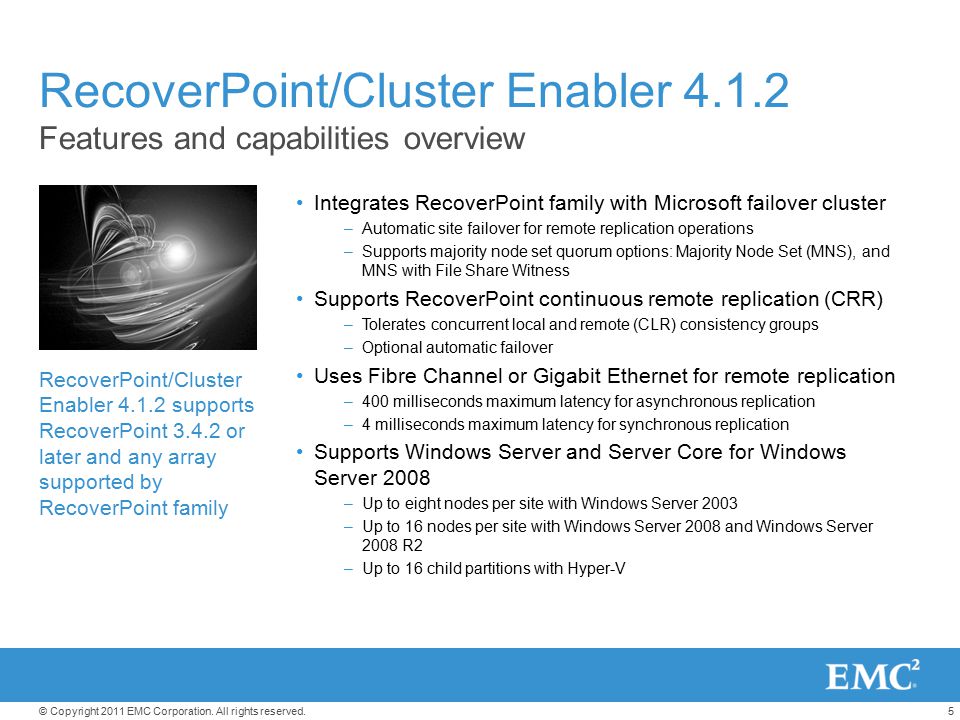

5© Copyright 2011 EMC Corporation. All rights reserved. RecoverPoint/Cluster Enabler 4.1.2 Features and capabilities overview Integrates RecoverPoint family with Microsoft failover cluster –Automatic site failover for remote replication operations –Supports majority node set quorum options: Majority Node Set (MNS), and MNS with File Share Witness Supports RecoverPoint continuous remote replication (CRR) –Tolerates concurrent local and remote (CLR) consistency groups –Optional automatic failover Uses Fibre Channel or Gigabit Ethernet for remote replication –400 milliseconds maximum latency for asynchronous replication –4 milliseconds maximum latency for synchronous replication Supports Windows Server and Server Core for Windows Server 2008 –Up to eight nodes per site with Windows Server 2003 –Up to 16 nodes per site with Windows Server 2008 and Windows Server 2008 R2 –Up to 16 child partitions with Hyper-V RecoverPoint/Cluster Enabler 4.1.2 supports RecoverPoint 3.4.2 or later and any array supported by RecoverPoint family
6

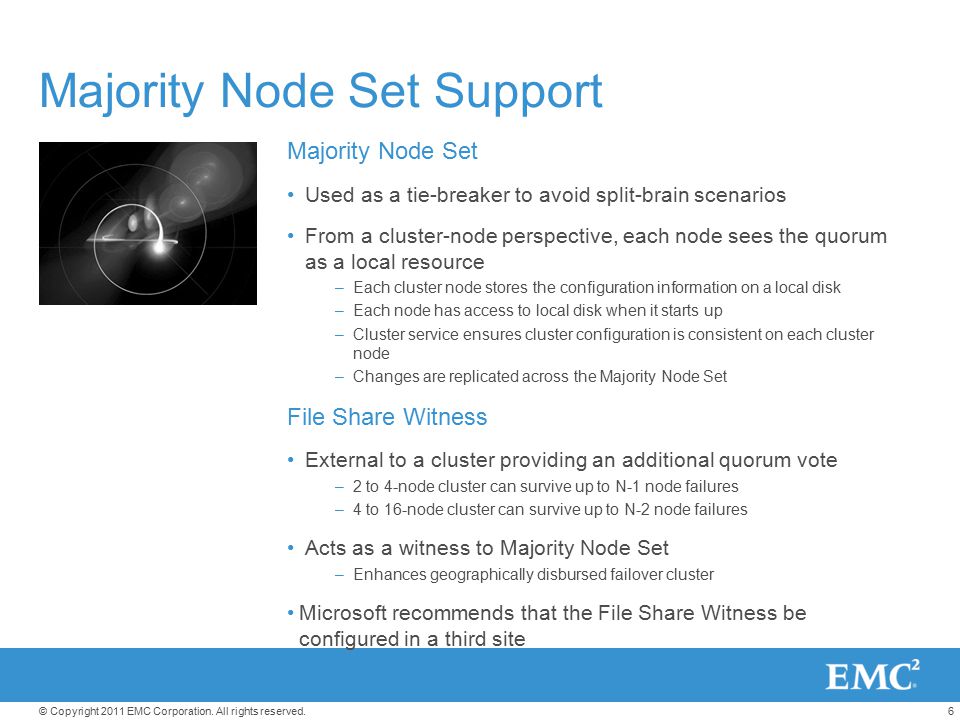

6© Copyright 2011 EMC Corporation. All rights reserved. Majority Node Set Support Majority Node Set Used as a tie-breaker to avoid split-brain scenarios From a cluster-node perspective, each node sees the quorum as a local resource –Each cluster node stores the configuration information on a local disk –Each node has access to local disk when it starts up –Cluster service ensures cluster configuration is consistent on each cluster node –Changes are replicated across the Majority Node Set File Share Witness External to a cluster providing an additional quorum vote –2 to 4-node cluster can survive up to N-1 node failures –4 to 16-node cluster can survive up to N-2 node failures Acts as a witness to Majority Node Set –Enhances geographically disbursed failover cluster Microsoft recommends that the File Share Witness be configured in a third site
7
7© Copyright 2011 EMC Corporation. All rights reserved. RecoverPoint/Cluster Enabler for Microsoft Failover Cluster Failover cluster supports 16 nodes with Windows Server 2003/2008 using Majority Node Set with and without File Share Witness Site B Site A RecoverPoint File Share Witness with RecoverPoint/CE installed Private Interconnect LAN/WAN Cluster nodes with RecoverPoint/CE installed
8

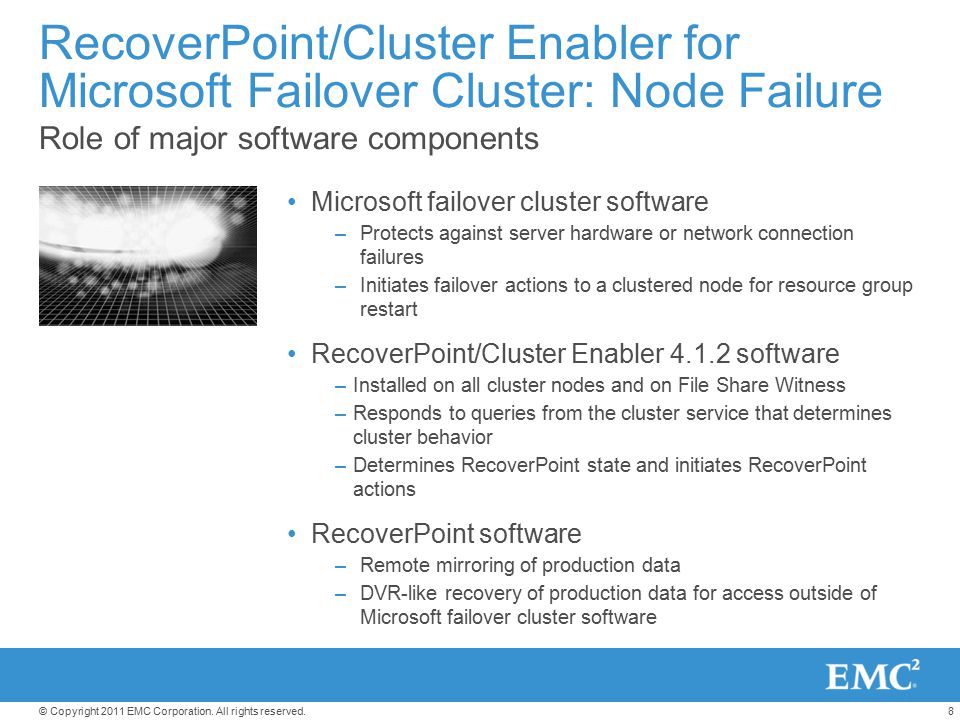

8© Copyright 2011 EMC Corporation. All rights reserved. RecoverPoint/Cluster Enabler for Microsoft Failover Cluster: Node Failure Role of major software components Microsoft failover cluster software –Protects against server hardware or network connection failures –Initiates failover actions to a clustered node for resource group restart RecoverPoint/Cluster Enabler 4.1.2 software –Installed on all cluster nodes and on File Share Witness –Responds to queries from the cluster service that determines cluster behavior –Determines RecoverPoint state and initiates RecoverPoint actions RecoverPoint software –Remote mirroring of production data –DVR-like recovery of production data for access outside of Microsoft failover cluster software
9

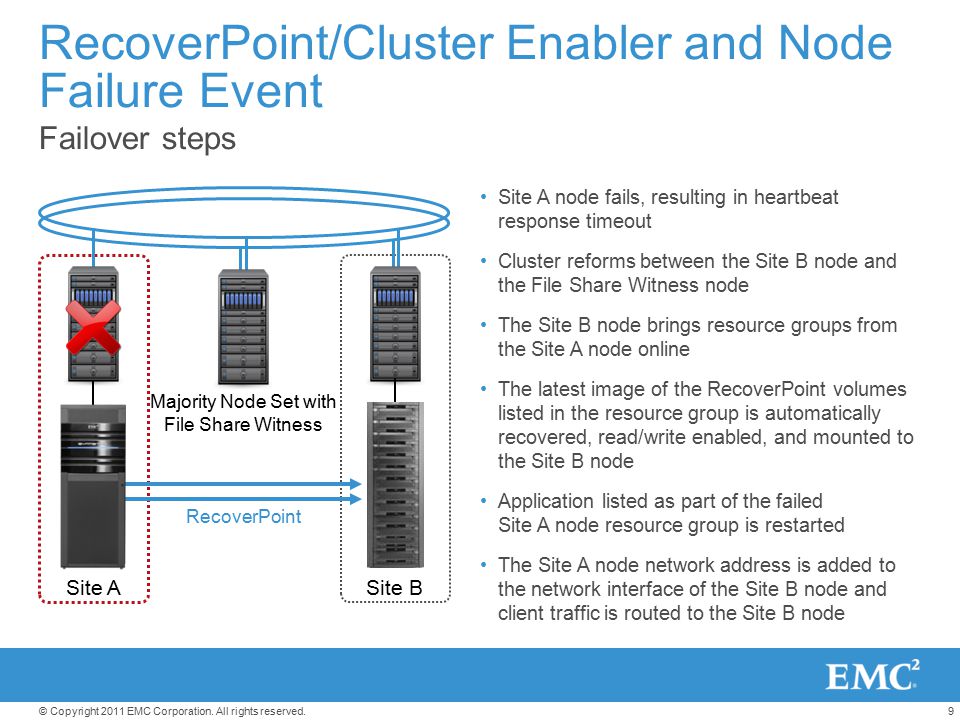

9© Copyright 2011 EMC Corporation. All rights reserved. RecoverPoint/Cluster Enabler and Node Failure Event Site A node fails, resulting in heartbeat response timeout Cluster reforms between the Site B node and the File Share Witness node The Site B node brings resource groups from the Site A node online The latest image of the RecoverPoint volumes listed in the resource group is automatically recovered, read/write enabled, and mounted to the Site B node Application listed as part of the failed Site A node resource group is restarted The Site A node network address is added to the network interface of the Site B node and client traffic is routed to the Site B node Failover steps Site A Site B RecoverPoint Majority Node Set with File Share Witness
10

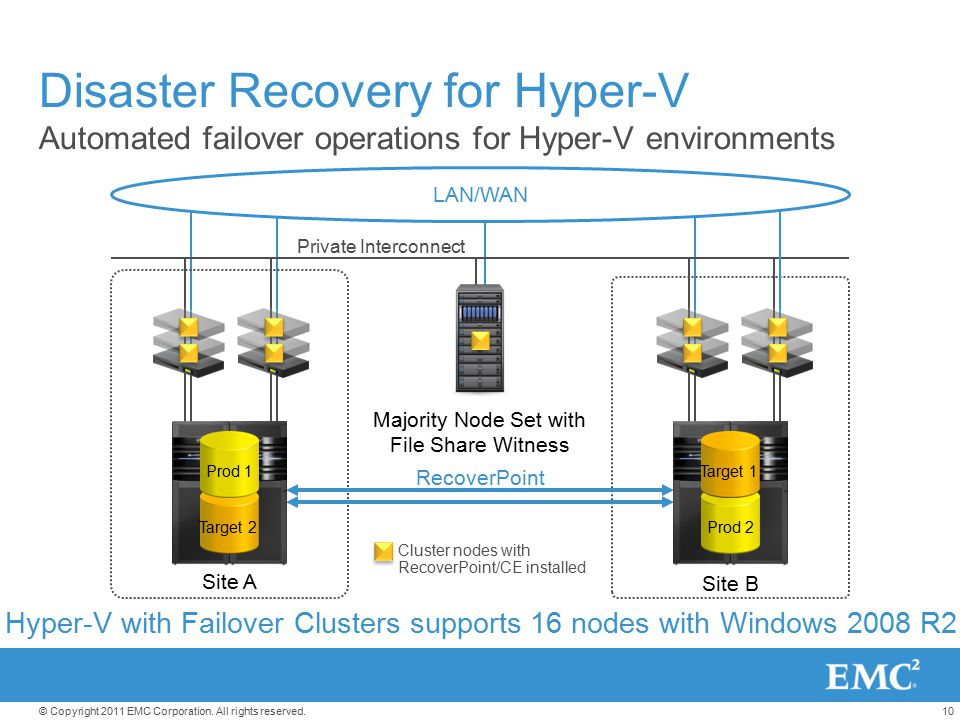

10© Copyright 2011 EMC Corporation. All rights reserved. Disaster Recovery for Hyper-V Automated failover operations for Hyper-V environments Hyper-V with Failover Clusters supports 16 nodes with Windows 2008 R2 Site B Site A RecoverPoint Majority Node Set with File Share Witness Private Interconnect LAN/WAN Cluster nodes with RecoverPoint/CE installed Target 2 Prod 1Prod 2 Target 1
11

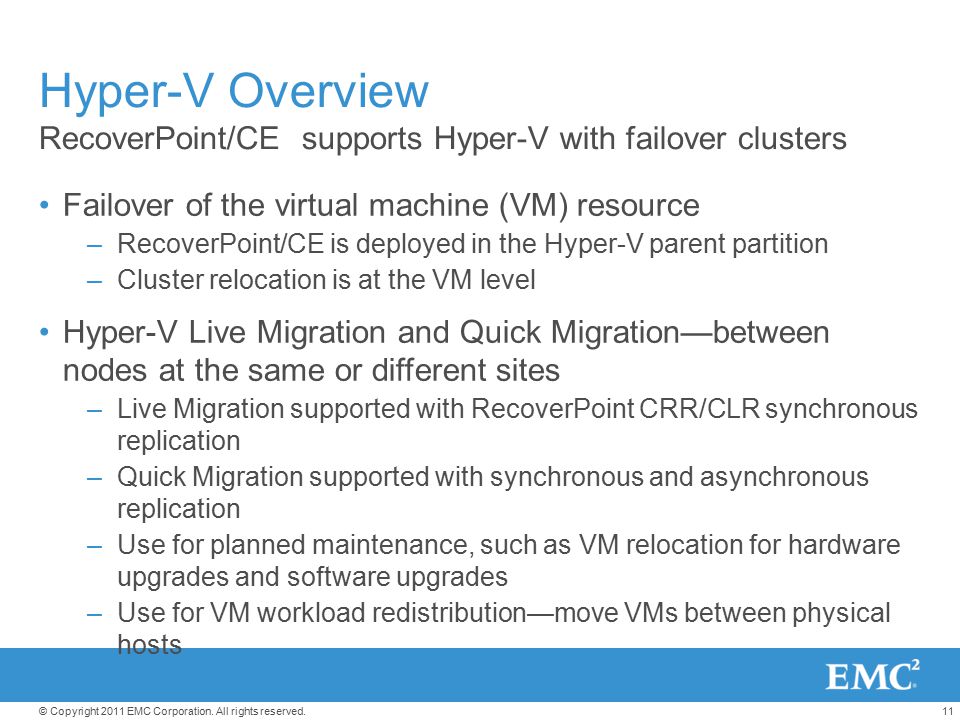

11© Copyright 2011 EMC Corporation. All rights reserved. Hyper-V Overview RecoverPoint/CE supports Hyper-V with failover clusters Failover of the virtual machine (VM) resource –RecoverPoint/CE is deployed in the Hyper-V parent partition –Cluster relocation is at the VM level Hyper-V Live Migration and Quick Migration—between nodes at the same or different sites –Live Migration supported with RecoverPoint CRR/CLR synchronous replication –Quick Migration supported with synchronous and asynchronous replication –Use for planned maintenance, such as VM relocation for hardware upgrades and software upgrades –Use for VM workload redistribution—move VMs between physical hosts
12
12© Copyright 2011 EMC Corporation. All rights reserved. Hyper-V Virtual Machine Failure Event Site A Hyper-V physical node fails, resulting in heartbeat response timeout Cluster reforms between the Site B node and the File Share Witness node The Site B node brings Hyper-V virtual machine resource groups from the Site A node online RecoverPoint target volumes for consistency groups listed in affected resource groups are recovered and mounted to the Site B node Virtual machines listed as part of the failed Site A node resource group are restarted The Site A node network address is added to the network interface of the Site B node and client traffic is routed to the Site B node Failover steps with RecoverPoint/Cluster Enabler VMs can failover within and between failover cluster nodes Site A Site B RecoverPoint Majority Node Set with File Share Witness
13
13© Copyright 2011 EMC Corporation. All rights reserved. Hyper-V Live Migration RecoverPoint CRR synchronous replication Planned hardware maintenance on physical server requires moving virtual machine(s) to another physical server Majority Node Set with File Share Witness R2 R1 Site A R1 R2 Site B
14
14© Copyright 2011 EMC Corporation. All rights reserved. Multi-Array Support Each named cluster group’s associated devices reside in a single RecoverPoint consistency group of the same name File Share Witness with RecoverPoint/CE installed RecoverPoint Devices for Cluster Group1 Devices for Cluster Group2 Cluster nodes with RecoverPoint/CE installed WAN
15
15© Copyright 2011 EMC Corporation. All rights reserved. Microsoft Failover Clusters Deployed with Oracle on Windows RecoverPoint Majority Node Set with File Share Witness Target 2 Prod 1Prod 2 Target 1 Network Oracle
16
16© Copyright 2011 EMC Corporation. All rights reserved. Benefits of RecoverPoint/Cluster Enabler Provides rapid site restart with RecoverPoint –Automatic site failover for common disruptions, including complete site disasters and server, storage, or network- related failures Minimizes site failback time with RecoverPoint –Only changes are replicated to resynchronize the primary cluster storage system Provides multi-array support –One cluster can span multiple storage arrays at the same or different sites –Different clusters can share storage arrays Supports heterogeneous storage arrays –A mix of arrays can be used –Storage arrays do not have to be identical between sites
