1 22/5/2006 EMBIO Meeting 1 EMBIO Meeting Vienna, 2006 Heidelberg Group IWR, Computational Molecular Biophysics, University of Heidelberg Kei Moritsugu MD simulation analysis of interprotein vibrations and boson peak Kinetic characterization of temperature-dependent protein internal motion by essential dynamics Langevin model of protein dynamics

2 Langevin Model of Protein Dynamics EMBIO Meeting Vienna, May 22, 2006 IWR, University of Heidelberg Kei Moritsugu and Jeremy C. Smith -Introduction Dynamical model for understanding protein dynamics Langevin equation -Direct application of Langevin dynamics: Velocity autocorrelation function model -Extension of the Langevin model: Coordinate autocorrelation function model

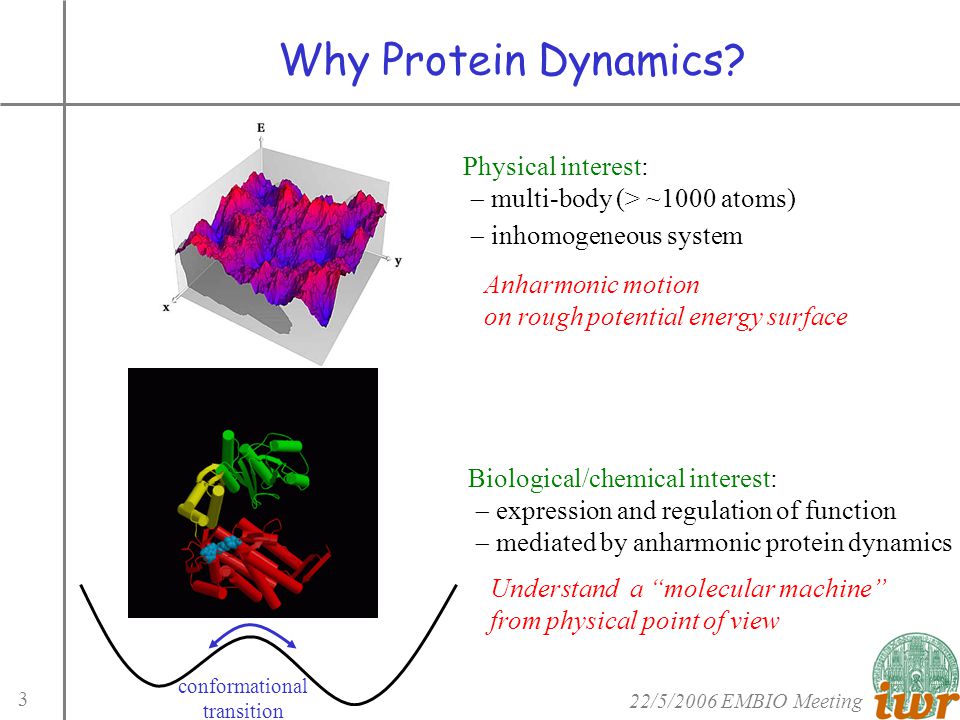

3 22/5/2006 EMBIO Meeting 3 Physical interest:  multi-body (> ~1000 atoms)  inhomogeneous system Why Protein Dynamics? Anharmonic motion on rough potential energy surface Understand a “molecular machine” from physical point of view Biological/chemical interest:  expression and regulation of function  mediated by anharmonic protein dynamics conformational transition

4 22/5/2006 EMBIO Meeting 4 Protein Dynamics: How to Analyze? Molecular Dynamics Simulation Neutron Scattering Experiment - low resolution - large, complex system with surrounding environments Dynamical Model Data Analysis Simplification - harmonic approximation - two-state jump model - Langevin model …. - atomic motions with fs-ns timescales - limited time <  s, system size < ~100 Å Settles et.al., Faraday Discussion 193, 269 (1996) Model Parameters Protein Dynamics

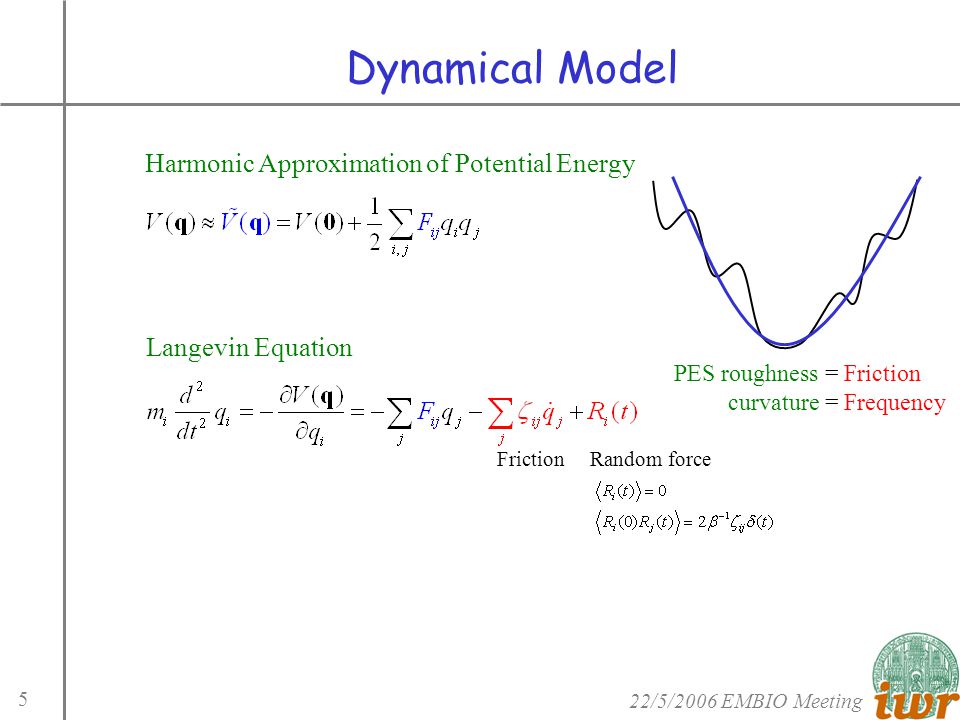

5 22/5/2006 EMBIO Meeting 5 Dynamical Model Langevin Equation Random forceFriction PES roughness = Friction curvature = Frequency Harmonic Approximation of Potential Energy

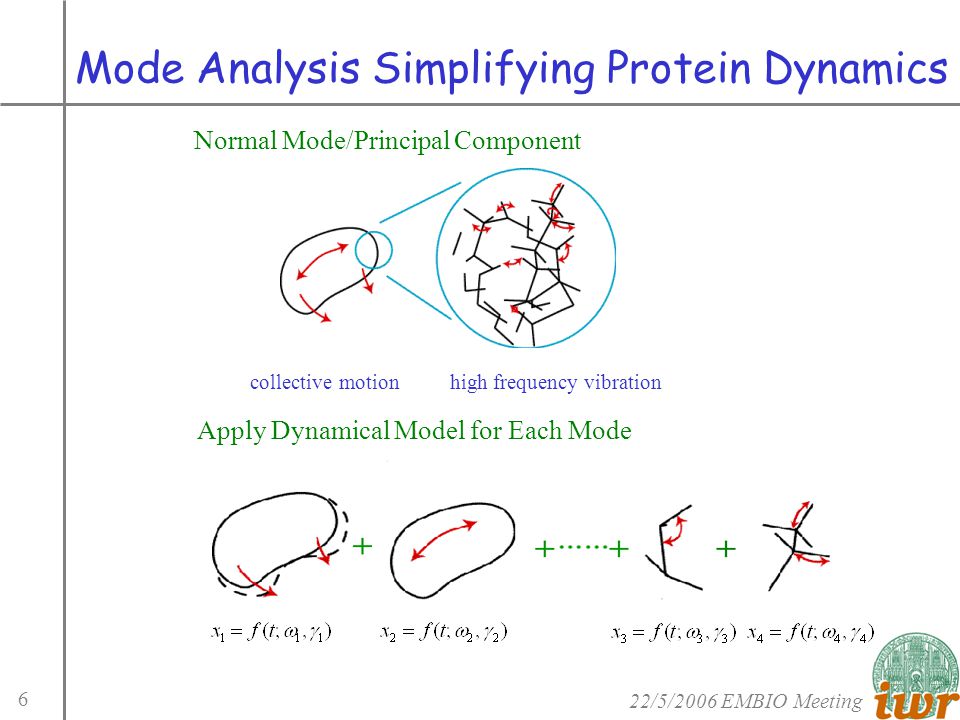

6 22/5/2006 EMBIO Meeting 6 Mode Analysis Simplifying Protein Dynamics Normal Mode/Principal Component Apply Dynamical Model for Each Mode collective motionhigh frequency vibration

7 22/5/2006 EMBIO Meeting 7 Calculations of Langevin Parameters MD SimulationsNormal Mode Analysis 120 K in vacuum 300 K in solution Temperature dependence Solvent effects Velocity Autocorrelation Function (VACF) Model  n,  nn by each normal mode, n Langevin Parameters

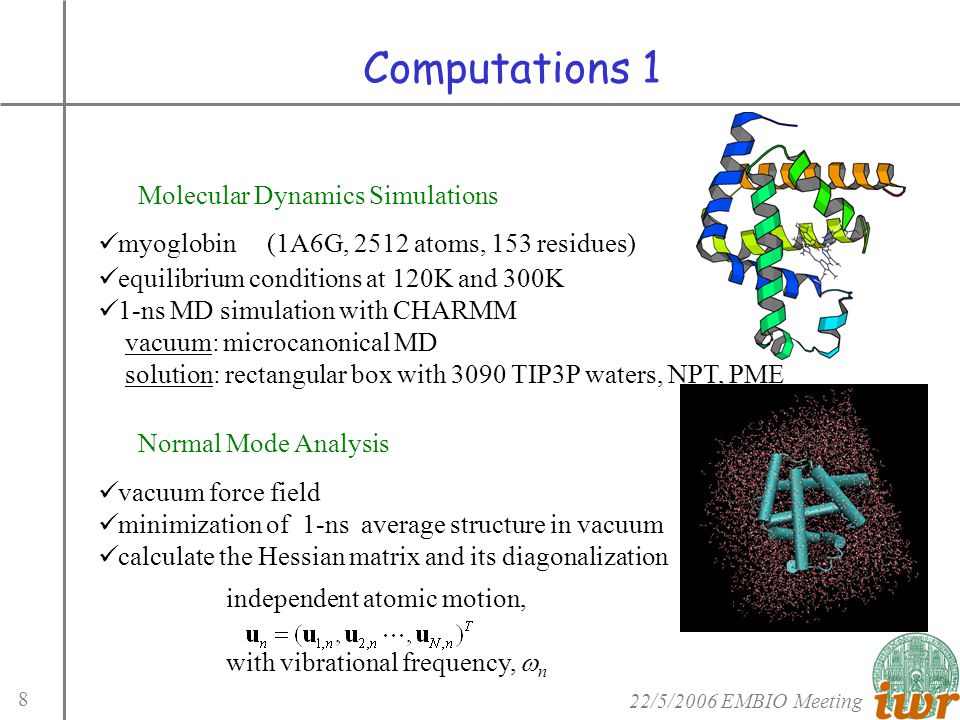

8 22/5/2006 EMBIO Meeting 8 Computations 1 Molecular Dynamics Simulations Normal Mode Analysis myoglobin (1A6G, 2512 atoms, 153 residues) equilibrium conditions at 120K and 300K 1-ns MD simulation with CHARMM vacuum: microcanonical MD solution: rectangular box with 3090 TIP3P waters, NPT, PME vacuum force field minimization of 1-ns average structure in vacuum calculate the Hessian matrix and its diagonalization independent atomic motion, with vibrational frequency,  n

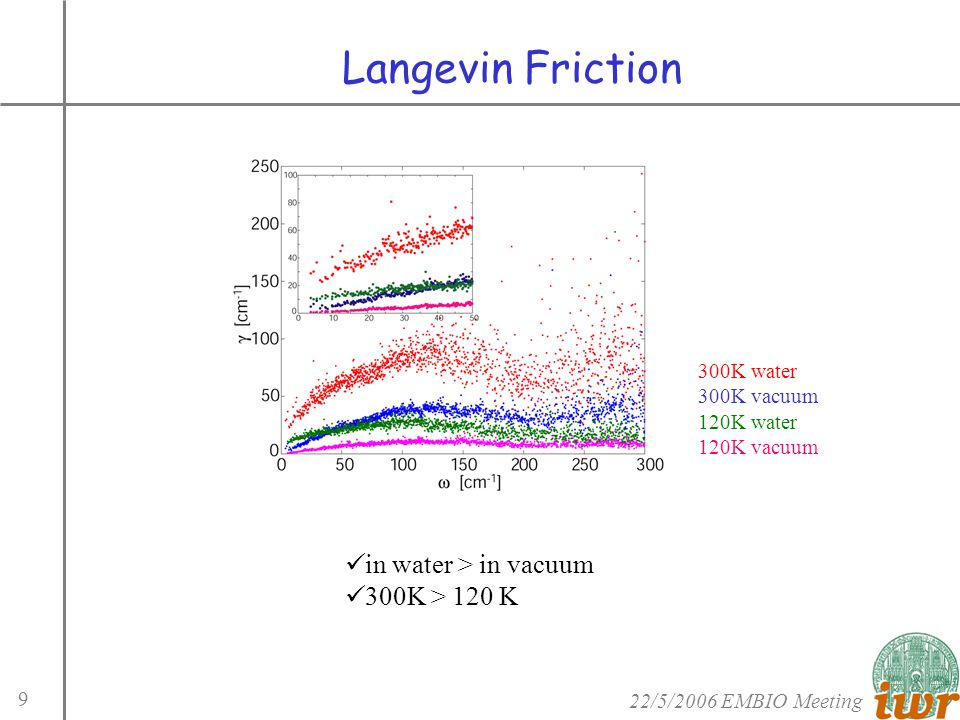

9 22/5/2006 EMBIO Meeting 9 Langevin Friction in water > in vacuum 300K > 120 K 300K water 300K vacuum 120K water 120K vacuum

10 22/5/2006 EMBIO Meeting 10 Langevin Frequency  (anharmonicity) < 0 : low  >  high  300 K > 120 K  (solvation) > 0 : low  >  high  300 K = 120 K

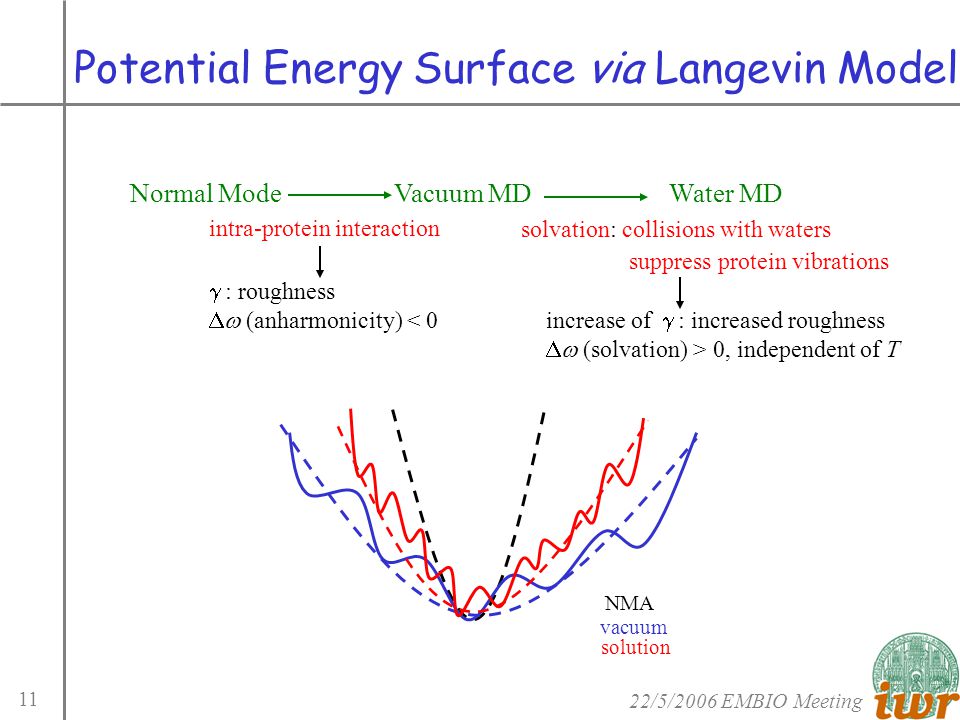

11 22/5/2006 EMBIO Meeting 11 Potential Energy Surface via Langevin Model NMA vacuum solution  : roughness  (anharmonicity) < 0 intra-protein interaction solvation: collisions with waters suppress protein vibrations increase of  : increased roughness  (solvation) > 0, independent of T Normal ModeWater MDVacuum MD

12 22/5/2006 EMBIO Meeting 12 Dynamic Structure Factors MD Trajectory Langevin Model Langevin Model + Diffusion 120K water 120K vacuum 300K water 300K vacuum q = 2Å -1

13 22/5/2006 EMBIO Meeting 13 Conclusion 1 Langevin model via VACF Protein vibrational dynamics Friction:  anharmonicity low  > high  high T > low T increase via solvation Frequency shift:  (anharmonicity) < 0  (solvation) > 0  S vib (q,  )

14 22/5/2006 EMBIO Meeting 14 Modified Model for Diffusion Extended Langevin model 1) CACF model 2) Add diffusional contribution vibration t x(t)x(t) v(t)v(t) diffusion PCA mode 1PCA mode 100 PCA mode 1PCA mode 100 300K water

15 22/5/2006 EMBIO Meeting 15 Probabilistic Vibration/Diffusion Model diffusion Langevin vibration   Coordinate Autocorrelation Function (CACF) Model PCA mode 1PCA mode 100 MD model MD model

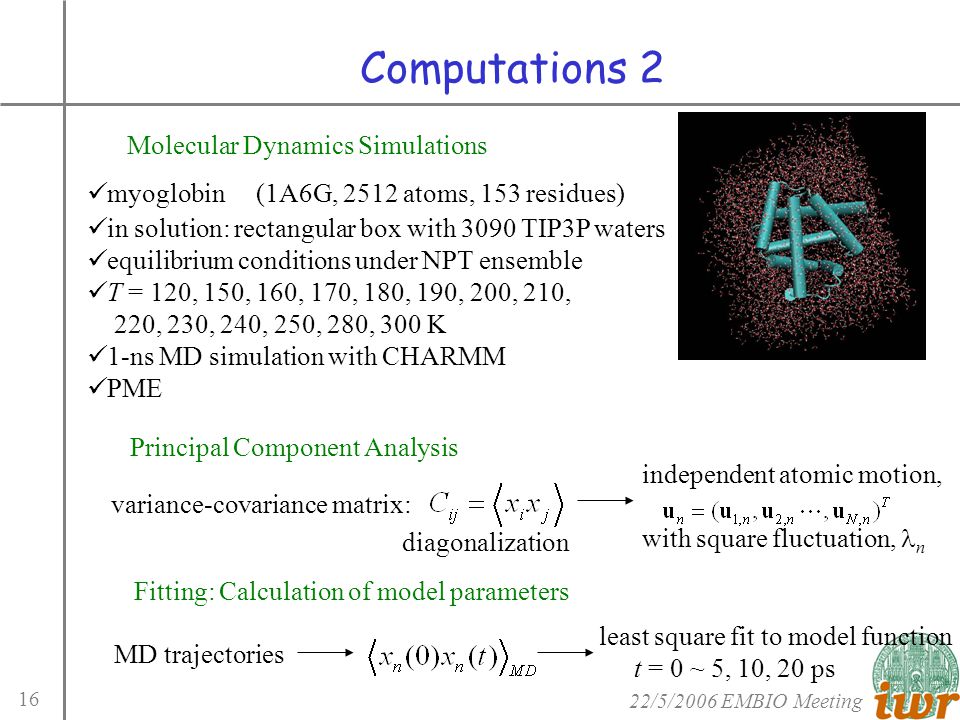

16 22/5/2006 EMBIO Meeting 16 Computations 2 Molecular Dynamics Simulations myoglobin (1A6G, 2512 atoms, 153 residues) in solution: rectangular box with 3090 TIP3P waters equilibrium conditions under NPT ensemble T = 120, 150, 160, 170, 180, 190, 200, 210, 220, 230, 240, 250, 280, 300 K 1-ns MD simulation with CHARMM PME Principal Component Analysis Fitting: Calculation of model parameters variance-covariance matrix: independent atomic motion, with square fluctuation, n MD trajectories least square fit to model function t = 0 ~ 5, 10, 20 ps diagonalization

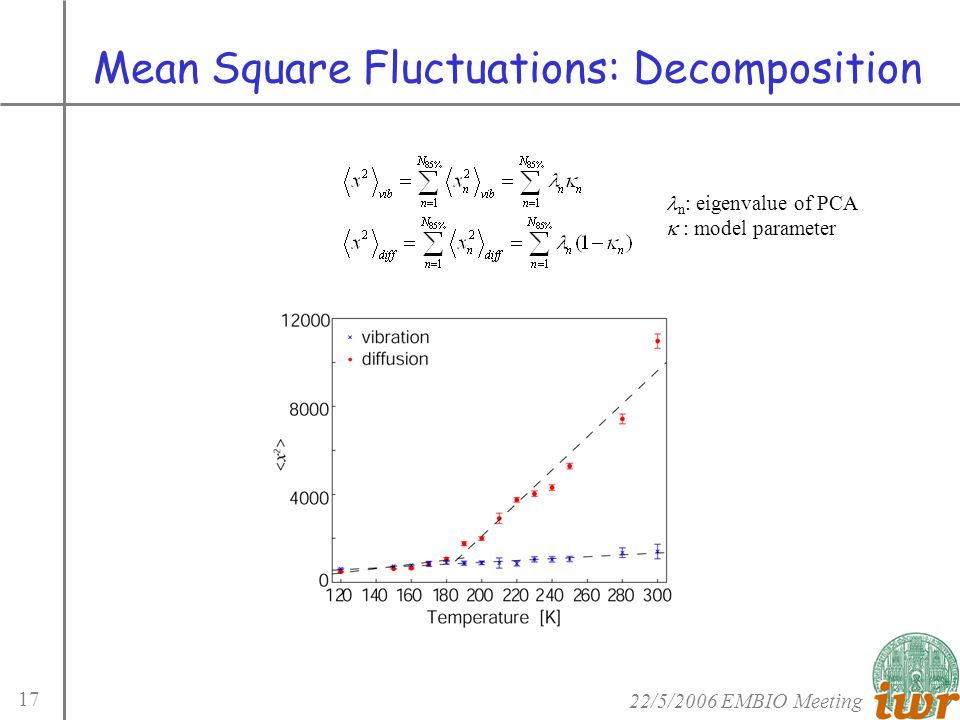

17 22/5/2006 EMBIO Meeting 17 Mean Square Fluctuations: Decomposition n : eigenvalue of PCA  : model parameter

18 22/5/2006 EMBIO Meeting 18 Temperature Dependence: Dynamical Transition Vibrational FrictionVibrational FrequencyRatio of Vibration

19 22/5/2006 EMBIO Meeting 19 Height of Vibrational Potential Wells via Model 230 K 250 K 280 K 300 K for  < 1

20 22/5/2006 EMBIO Meeting 20 Diffusion Constant via Model k Kramers Rate Theory MD Kramers theory : diffusion on 1D lattice kkk ~~

21 22/5/2006 EMBIO Meeting 21 S(q,w) MD CACF model VACF model q = 2Å -1 300 K in water

22 22/5/2006 EMBIO Meeting 22 Conclusion 2 Langevin-vibration&diffusion model via CACF Protein dynamics Simulation-based probabilistic description Vibration: linear scheme with T  v  Diffusion: nonlinear scheme with T ,  v,  Diffusion constant via the present model using Kramers theory S(q,  )

23 22/5/2006 EMBIO Meeting 23 Acknowledgement Thanks for your attention! Vandana Kurkal-Siebert Fellowship by JSPS
