1. Making Full Use of Chinese Speech Corpora Thomas Fang Zheng Center of Speech Technology State Key Laboratory of Intelligent Technology and Systems Tsinghua University http://sp.cs.tsinghua.edu.cn/ Beijing d-Ear Technologies Co., Ltd. http://www.d-Ear.com Oct. 2, 2003 O-COCOSDA, Oct. 1-3, 2003 Sentosa, Singapore

2. Your Partner in the Century of Speech 2 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

3. Your Partner in the Century of Speech 3 Purpose of Speech Corpora ItemDescriptionPercentage 1. Speech/ speaker recognition system development, evaluation, sentence comprehension and summarization, speech recognition, speaker recognition 73% 2. Speech synthesis system development, prosodic analysis11% 3. Acoustic analysis acoustic analysis, speech coding9% 4. Sentence analysis syntactic and semantic analysis5% 5. Speech/ language education speech and language education2%

4. Your Partner in the Century of Speech 4 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

5. Your Partner in the Century of Speech 5 Factors to be considered in data creation (1)  The language.  Language: e.g., Chinese or English  Dialectal background (e.g., for Chinese) :-  Putonghua or standard Chinese ( 普通话 );  Mandarin ( 官话， Northern China);  Wu ( 吴语， Southern Jiangsu, Zhejiang, and Shanghai);  Yue ( 粤语， Guangdong, Hong Kong, Nanning Guangxi);  Min ( 闽南话， Fujian, Shantou Guangdong, Haikou Hainan, Taipei Taiwan);  Hakka ( 客家话， Meixian Guangdong, Hsin-Chu Taiwan);  Xiang ( 湘， Hunan);  Gan ( 赣， Jiangxi);  Hui ( 徽， Anhui); and  Jin ( 晋， Shanxi).  Special for Chinese :-  Simplified Chinese  Traditional Chinese

6. Your Partner in the Century of Speech 6

7. 7 太湖片 台州片台州片 瓯江片 ？ 处衢片 苏沪嘉小片 江淮官话 徽语 宣州片 杭州小片 林绍小片

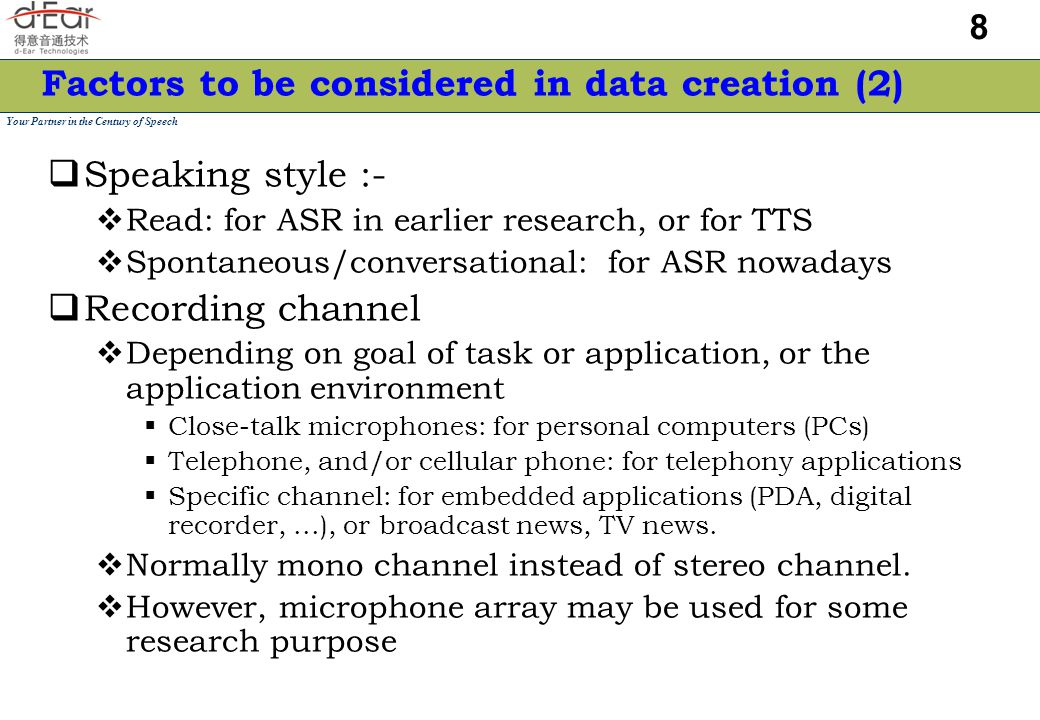

8. Your Partner in the Century of Speech 8 Factors to be considered in data creation (2)  Speaking style :-  Read: for ASR in earlier research, or for TTS  Spontaneous/conversational: for ASR nowadays  Recording channel  Depending on goal of task or application, or the application environment  Close-talk microphones: for personal computers (PCs)  Telephone, and/or cellular phone: for telephony applications  Specific channel: for embedded applications (PDA, digital recorder,...), or broadcast news, TV news.  Normally mono channel instead of stereo channel.  However, microphone array may be used for some research purpose

9. Your Partner in the Century of Speech 9 Factors to be considered in data creation (3)  Sampling rate :-  8 kHz: for the telephone/mobile-phone channel where the bandwidth is about 3.4 kHz  16 kHz: for the close-talk microphone PC channel though the bandwidth is higher than 8 kHz.  Sampling precision :-  16 bits, normally.  8-bit A-law or Miu-law (13-bit wide after decompression).  Signal-to-Noise Ratio (SNR) level:  Was/is often collected in a good environment (clean speech database).  For noise-related research, noisy data obtained via :-  Noises (NOISEX 92) mixed with clean speech;  Collected in real-world noisy environments.

10. Your Partner in the Century of Speech 10 Factors to be considered in data creation (4)  Number of speakers and Speaker balance:  The more, the better: with a good speaker diversity, according to :-  Gender;  Age;  Education;  Birthplace (or dialectal background);  Occupation;  and so on.  Corpus size:  Measured by either the number of speakers or the length of valid speech in hour, or both.

11. Your Partner in the Century of Speech 11 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

12. Your Partner in the Century of Speech 12 Data Creation  Purposes for ASR corpus :-  Acoustic training - Training Set  Speech recognition evaluation (testing) - Testing Set  Categories of ASR corpus :-  Read speech;  Spontaneous/conversational speech.  Design of a speech database before creation :-  Aspects as mentioned above:  language, speaking style, recording channel, sampling rate and precision, and corpus size: according to the application/task background;  SNR levels, number of speakers and the speaker balance: for diversity consideration.  Speaking content balance - for content diversity consideration, to provide a good training set,  For read speech, the balance could be on a basis of –phone, di-phone, tri-phone, and so on; –IF, di-IF, tri-IF, syllable, di-syllable, tri-syllable for Chinese  For spontaneous speech, topics design.

13. Your Partner in the Century of Speech 13 Data Creation – Read Speech (1)  Though spontaneous ASR is becoming one of the research focuses, the read speech database collection is still necessary.  A high quality read speech corpus is helpful to train a good initial acoustic model, and then  In spontaneous ASR, pronunciation modelling techniques as well as pronunciation lexicons are adopted to get a practically good acoustic model finally.

14. Your Partner in the Century of Speech 14 Data Creation – Read Speech (2)  Goal of read speech corpus design is often to balance the speech recognition units (modelling units), so as to cover as many co-articulations as possible using a set of sentences as small as possible.  Such a minimal sentence set can be used for not only the training of acoustic models but also the speaker adaptation.

15. Your Partner in the Century of Speech 15 Data Creation – Read Speech (3)  Sentence design example.  Goal is to choose 6,000 sentences (about 0.75%) from 800,000 sentences taken from the People's Daily with a balanced di-IF distribution.  Several criteria:  Natural selection - randomly. Almost natural di-IF distribution.  Restraining high-frequency di-IFs (RHF). To restrain those high-frequency di-IFs from occurring more frequently so that each di-IF occurs almost equally to well train the acoustic model.  Encouraging low-frequency di-IFs (ELF). As an alternative, to encourage those low-frequency di-IFs as frequently as possible. # of occurring times of any di-IF should be greater than a doable pre-defined threshold.

16. Your Partner in the Century of Speech 16 Data Creation – Read Speech (4) (a)(b) In this example, all seen di-IFs are sorted in an ascending order of their occurring counts in the mother set. The occurring count as a function of the di-IF order is shown in the above Figure: (a), the first 90% di-IFs, and (b), the next 10% di-IFs.

17. Your Partner in the Century of Speech 17 Data Creation – Read Speech (5)  RHF:  helpful to make distribution as close to the average curve as possible  It cannot guarantee a minimal occurring count for those less frequently seen di-IFs.  ELF:  Guarantee a minimal occurring count so that data is enough to train the models for those less frequently seen units  Will lead to relatively big occurring counts for those most frequently seen di-IFs though the distribution is close to natural.  It is expected that a good result can be achieved by combining both the RHF and the ELF strategies.

18. Your Partner in the Century of Speech 18 Data Creation – Read Speech (6)  Quality control is very important, for read speech database, there could be three steps:  Self-check  Cross-check  Final-review

19. Your Partner in the Century of Speech 19 Data Creation – Spontaneous/Conversational Speech (1)  In spontaneous (casual) speech or conversational (dialogue) speech  More spontaneous speech phenomena (phonetically and acoustically)  Richer spoken language phenomena (linguistically)  Man-Man dialogue different from Man-Machine dialogue

20. Your Partner in the Century of Speech 20 Data Creation – Spontaneous/Conversational Speech (2)  Three kinds of scenarios should be considered  Spontaneous (Casual):  Giving speech or talking about something  Man-Machine conversation:  Leaving a voice message : leaving a voice message is not a true conversation mode, but it is important in telephony speech.  Man-Machine dialogue : given a simulated service provider, the speaker can inquire about whatever he/she wants in the following domains: –Hotel/ticket reservations –Telephone number inquiries –Stock prices inquiries –Weather inquiries –City route map inquiries –Telephone-based shopping/ordering –...

21. Your Partner in the Century of Speech 21 Data Creation – Spontaneous/Conversational Speech (3)  Three kinds of scenarios should be considered  Spontaneous (Casual):  Man-Machine conversation:  Man-Man conversation:  Inquiring : given a service provider, the speaker can inquire about whatever he/she wants [ recording " by stealth", legal issue very important ]  Chatting : chatting could be happening between two recruited speakers given a topic (example topics in the following table)

22. Your Partner in the Century of Speech 22 Data Creation – Spontaneous/Conversational Speech (4) TopicSub-topicsTopicSub-Topics Sports general basketball football the game of go table tennis tennis Olympic games... Lifestyle family work and study education traffic telecommunication going abroad drinking and smoking habits and customs language and dialects friendship and love shopping for and buying houses... Politics & Economy general international relations terrorism economic globalization... Entertainment general film review movie and teleplay stars Chinese Spring Festival get-togethers comic dialogue travel and tourism... Technologies computer networking company cloning...

23. Your Partner in the Century of Speech 23 Data Creation - Recording  Example for collecting chatting speech data PBX - Private Branch (telephone) eXchange PSTN - Public Switched Telephone Network

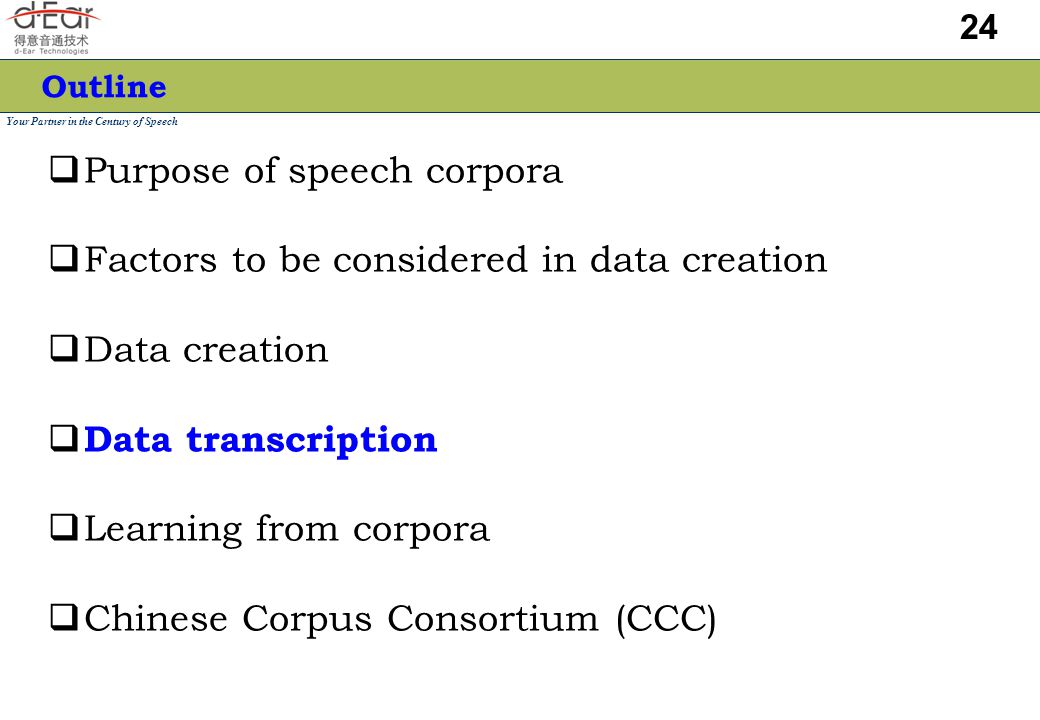

24. Your Partner in the Century of Speech 24 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

25. Your Partner in the Century of Speech 25 Data Transcription – Symbol (1)  Two major groups of information in need of transcription  phonetic information  base form - giving canonical pronunciation;  surface form - giving the observed (actual) pronunciation.  linguistic information  Symbol Set  International Phonetic Alphabet (IPA) - can be used to accurately represent the actual pronunciation of the utterance, but not machine readable;  Speech Assessment Methods Phonetic Alphabet (SAMPA) – machine readable;  For Chinese, machine-readable IPA symbols adapted for Chinese languages from SAMPA, and named as SAMPA-C.  In SAMPA-C, there are :-  23 phonologic consonants,  9 phonologic vowels, and  10 kinds of sound change marks.

26. Your Partner in the Century of Speech 26 Data Transcription - Symbol (2) - Chinese C/V in SAMPA-C ConsonantsVowels Pinyin [IPA]SAMPA-CPinyin [IPA]SAMPA-CPinyin [IPA]SAMPA-C b [ p ]pz [ ts ]tsa [ ]A p [ pH ]p_hc [ tsH ]ts_ho [ o ]o m [ m ]ms [ s ]se [ ]7 f [ f ]fzh [ t© ]ts`i [ i ]i d [ t ]tch [ t©H ]ts_h`u [ u ]u t [ tH ]t_hsh [ © ]s`ü [ y ]y n [ n ]nr [ ¸ ]z`ii [ ¡ ]i\ (a)n [ n ]_nj [ t» ]ts\iii [ Ÿ ]i` l [ l ]lq [ t»H ]ts\_her [ Ä ]@` g [ k ]kx [ » ] k [kH ]k_h ? ? h [ x ]X ng [ Ð ]N

27. Your Partner in the Century of Speech 27 Data Transcription - Symbol (3) - Phonological Vowels in SAMPA-C Phoneme Allophone (IPA) SAMPA-C Phoneme Allophone (IPA) SAMPA-C PinyinIPAPinyinIPA a A a ai II i A a_" I I A J j Q E ïŸ i` P { ¡ i\ o oO ou u U U U U u u U u W w È @ Ʋ v\ e7ü YY y e e á H E E_rer Ä Ä @` È @

28. Your Partner in the Century of Speech 28 Data Transcription - Symbol (4) - Sound Changes in SAMPA-C ClassificationsSAMPA-C Examples IPASAMPA-CExplanation 鼻 化 Nasalized ~ a‹ A~'a' is nasalized 央 化 Centralized _" Eƒ e_"'e' is centeralized 清 化 Voiceless _u n% n_u'n' is voiceless 浊 化 Voiced _v dŒ d_v'd' is voiced 圆唇化 More Rounded _O f_O'f' is more rounded 成音节 Syllabic = M='M' is syllabic 喉 化 Pharyngealized _?\ t/ A_?\'A' is pharyngealized 送 气 Aspirated/Breathy _h a! a_h'a' is more breathy 增 音 Inserted (+) (+N)'N' is inserted 减 音 Deleted (-) (i-)'i' is deleted.

29. Your Partner in the Century of Speech 29 Data Transcription – Transcription Layer (1)  Should cover :-  the base form and the surface form, as well as  some linguistic and non-linguistic information.

30. Your Partner in the Century of Speech 30 Data Transcription – Transcription Layer (2)  Transcription Layers include :-  Chinese character layer : sentences in Chinese character (without word boundary information), or in Chinese word (with word boundary information). The Chinese character could be either traditional or simplified.  Non-Chinese words should also be labeled, for example, they can be enclosed in {}.  Additionally, paralinguistic and non-linguistic phenomena could also be transcribed (See Table 7 for more details).  Here is an example. –{hi} 你怎么也 LA ( w/o word boundary info ) or –{hi} 你 / 怎么 / 也 / LA ( w word boundary info )

31. Your Partner in the Century of Speech 31 Data Transcription – Transcription Layer (3)  Transcription Layers include :-  Chinese character layer  Canonical Chinese Pinyin layer : pronunciation is given in canonical Chinese Pinyin (or Chinese syllable).  Alternatively in Chinese IF.  The Pinyin (or Final) here can be either toned or toneless.  Similarly, non-Chinese words, paralinguistic phenomena and non-linguistic phenomena could also be transcribed.  The example is as follows: –{hi} ni3 zen3 me0 ye2 LA ( toned Pinyins ) or –{hi} n i3 z en3 m e0 ie2 LA ( toned IFs )

32. Your Partner in the Century of Speech 32 Data Transcription – Transcription Layer (4)  Transcription Layers include :-  Chinese character layer  Canonical Chinese Pinyin layer  Surface form Chinese IF layer : pronunciation in Chinese IF roughly. To be more accurate, a super set of the canonical Chinese IF set should be defined, for example the generalized IF (GIF) set.  For Chinese, the tones are often changed in spoken language, known as tone-sandhi. There are some rules for tone-sandhi. –For example, 33 => 23  Depending on tone of following character, tone for character " 一 /yi1/", " 七 /qi1/", " 八 /ba1/", or " 不 /bu4/" will also change, which is different from the ordinary tone change (quasi-canonical tone). –For example " 一个 /yi 2 ge4/".  To reflect such tone-sandhi rules, following the Pinyin of such a character is a two-digit tone string where the first digit is the original canonical tone while the second the tone-sandhi. –For example, " 一个 /yi 12 ge4/".

33. Your Partner in the Century of Speech 33 Data Transcription – Transcription Layer (5)  Transcription Layers include :-  Chinese character layer  Canonical Chinese Pinyin layer  Surface form Chinese IF layer  Surface form SAMPA-C layer : Alternatively, the SAMPA-C symbols can be used to provide more accurate surface form transcription (the observed tone is mostly attached to the SAMPA-C sequence of each Final).

34. Your Partner in the Century of Speech 34 Data Transcription – Transcription Layer (6)  An example on how to transcribe in the Semi-Syllable layer for Wu- Dialect Chinese corpus  The Surface Form Semi-Syllable Tier. The initials and finals are in either the Putonghua IF set or in the Wu Dialect IF set. The observed tone is attached to the Final. Special symbols are:  Prefix “+”:an insertion of the following IF;  Prefix “-”:an deletion of the following IF;  Prefix “#”:indicating a change of the following IF caused by Wu dialect;  Prefix “*”:indicating a change of the following IF caused by mispronunciation (mistake);  Postfix “_v”:indicating a voiced consonant due to the co-articulation, which is different from Wu Dialect specific voiced consonants.  Retroflexed “_r”:indicating the tongue with retroflexed gesture, which is transcribed as “hua_r1”.  Paralinguistic phenomena and non-linguistic phenomena.  Tone-sandhi.

35. Your Partner in the Century of Speech 35 Data Transcription – Transcription Layer (7)  Transcription Layers include :-  Chinese character layer  Canonical Chinese Pinyin layer  Surface form Chinese IF layer  Surface form SAMPA-C layer  Miscellaneous layer :-  Non-speech information is provided in this layer.  Those spontaneous phonetic phenomena and spoken language phenomena (paralinguistic or non-linguistic) are also given in this layer.

36. Your Partner in the Century of Speech 36 Data Transcription – Transcription Layer (8) 1 Para-linguistic Lengthening ( 拉长 ) LE<LE> 2 Breathing ( 吸气、喘气 ) BR<BR> 3 Laughing ( 笑 ) LA<LA> 4 Crying ( 哭 ) CR<CR> 5 Coughing ( 咳嗽 ) CO<CO> 6 Disfluency ( 不联贯 ) DS<DS> 7 Error ( 口误 ) ER<ER> 8 Silence (long) ( 长时间静音 ) SI<SI> 9 Murmur/Uncertain segment ( 不清发音 ) UC<UC> 10 Modal/Exclamation ( 语其次 / 感叹词 ) MO<MO> 11 Smack ( 咂嘴音 ) SM<SM> 12 Non-Chinese ( 非汉语 ) NC<NC> 13 Sniffle ( 吸鼻子 ) SN<SN> 14 Yawn ( 打哈欠 ) YA<YA> 15 Overlap ( 重叠发音 ) OV<OV> 16 Interjection ( 插话 ) IN<IN> 17 Deglutition ( 吞咽音 ) DE<DE> 18 Hawk ( 清嗓子 ) HA<HA> 19 Sneezing ( 打喷嚏 ) SE<SE> 20 Filled Pause ( 填充停顿 ) FP<FP> 21 Trill ( 颤音 ) TR<TR> 22 Whisper ( 耳语 ) WH<WH> 23 Non-linguistics Noise ( 噪音 ) NS<NS> 24 Steady Noise ( 平稳噪音 ) TN<TN> 25 Beep ( 电话忙音 ) BP<BP> XX< : start point XX> : end point

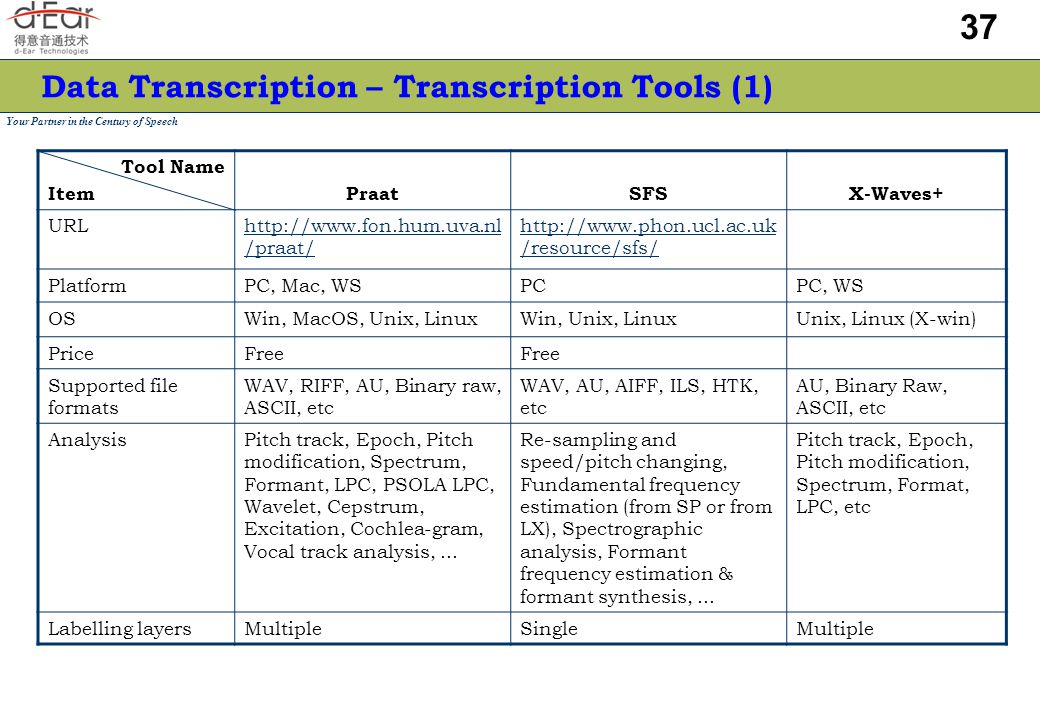

37. Your Partner in the Century of Speech 37 Data Transcription – Transcription Tools (1) Tool Name ItemPraatSFSX-Waves+ URLhttp://www.fon.hum.uva.nl /praat/ http://www.phon.ucl.ac.uk /resource/sfs/ PlatformPC, Mac, WSPCPC, WS OSWin, MacOS, Unix, LinuxWin, Unix, LinuxUnix, Linux (X-win) PriceFree Supported file formats WAV, RIFF, AU, Binary raw, ASCII, etc WAV, AU, AIFF, ILS, HTK, etc AU, Binary Raw, ASCII, etc AnalysisPitch track, Epoch, Pitch modification, Spectrum, Formant, LPC, PSOLA LPC, Wavelet, Cepstrum, Excitation, Cochlea-gram, Vocal track analysis,... Re-sampling and speed/pitch changing, Fundamental frequency estimation (from SP or from LX), Spectrographic analysis, Formant frequency estimation & formant synthesis,... Pitch track, Epoch, Pitch modification, Spectrum, Format, LPC, etc Labelling layersMultipleSingleMultiple

38. Your Partner in the Century of Speech 38 Data Transcription – Transcription Tools (2)

39. Your Partner in the Century of Speech 39 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

40. Your Partner in the Century of Speech 40 Learning from Corpora  Databases exist not only for acoustic model training and system assessment.  Knowledge can be learned from the speech corpus, especially for the spontaneous speech corpus.  What can be learned from the corpus includes the phonetic knowledge that can be used to improve the acoustic model, and  The linguistic knowledge that can be used for the natural language processing and understanding.

41. Your Partner in the Century of Speech 41 Learning from Corpora - Knowledge for PM (1)  In spontaneous speech, two kinds of differences between canonical IFs and their surface forms if the deletion and insertion are not considered.  Sound change from one IF to a SAMPA-C sequence close to its canonical IF (forming a part of the GIF set);  Phone change directly from one IF to another quite different IF or GIF.  Definition of the GIF set: find all possible SAMPA-C sequences of all IFs in the database.  Example:  By searching in the CASS corpus, we initially obtain a GIF set containing over 140 possible SAMPA-C sequences (pronunciations) of IFs;  Some of them are least frequently observed sound variability forms therefore they are merged into the most similar canonical IFs;  Finally we have 86 GIFs.

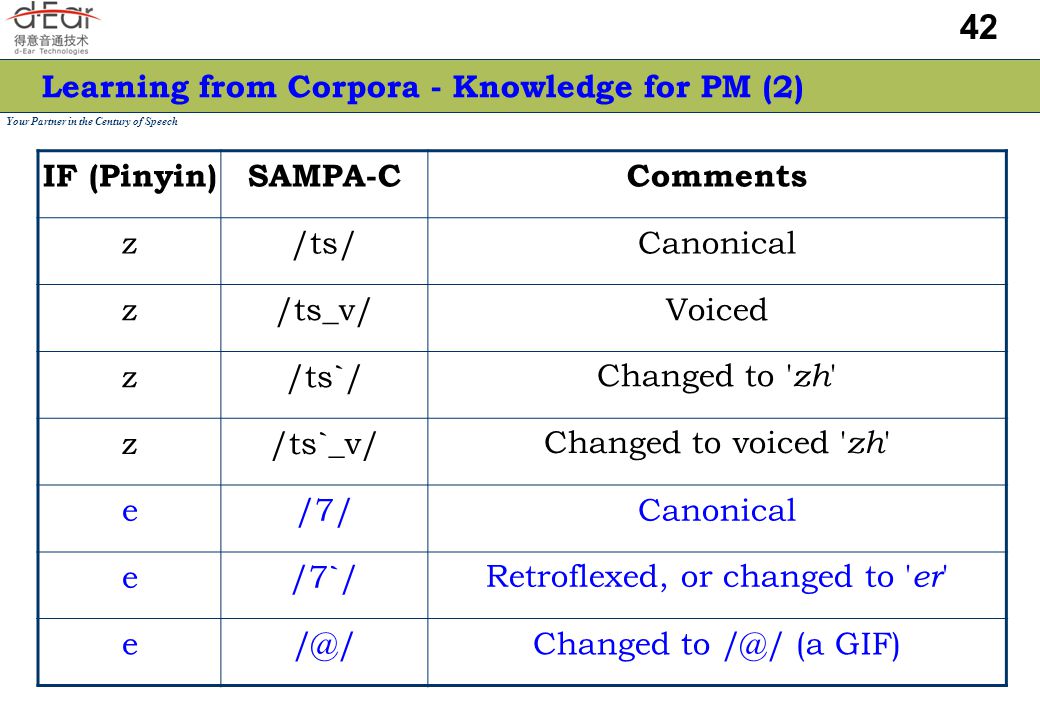

42. Your Partner in the Century of Speech 42 Learning from Corpora - Knowledge for PM (2) IF (Pinyin)SAMPA-CComments z/ts/Canonical z/ts_v/Voiced z/ts`/Changed to ' zh ' z/ts`_v/Changed to voiced ' zh ' e/7/Canonical e/7`/Retroflexed, or changed to ' er ' e/@/Changed to /@/ (a GIF)

43. Your Partner in the Century of Speech 43 Learning from Corpora - Knowledge for PM (3)  Probabilistic GIFs output probability given an IF, i.e., P ( GIF | IF )  GIF N-Grams, including unigram P ( GIF ), bigram P ( GIF 2 | GIF 1) and trigram P ( GIF 3 |GIF 1,GIF 2),  For spontaneous ASR, a multi-pronunciation lexicon is necessary to reflect the pronunciation variation. Can be learned form the database: P ( GIF 1, GIF 2 | Syllable ).  Such a lexicon is called a probabilistic multi- entry syllable-to-GIF lexicon.

44. Your Partner in the Century of Speech 44 Learning from Corpora - Knowledge for PM (4) Syllable (Pinyin) Initial (SAMPA-C) Final (SAMPA-C) Output Probability chang ts`_hAN0.7850 chang ts`_h_vAN0.1215 chang ts`_vAN0.0280 chang AN0.0187 chang z`AN0.0187 chang iAN0.0093 chang ts_hAN0.0093 chang ts`_hUN0.0093

45. Your Partner in the Century of Speech 45  Probabilistic Pronunciation Modeling Theory  Recognizer goal  K * =argmax K P ( K | A ) = argmax K P ( A | K ) P ( K )  Applying independent assumption  P ( A | K ) =  n P ( a n | k n )  Pronunciation modeling part – via introducing surface s  P ( a | k ) =  s P ( a | k, s ) P ( s | k )  Symbols  a : Acoustic signal, k : IF, s : GIF  A, K, S : corresponding string AMLM Refined AM Output Prob. Learning from Corpora - Knowledge for PM (5)

46. Your Partner in the Century of Speech 46 Learning from Corpora - Knowledge for PM (6) Experimental results

47. Your Partner in the Century of Speech 47 Learning from Corpora - Knowledge for NLP (1)  Spoken Language Phenomena :-  The courtesy items / sentences inessential for semantic analysis. C: 喂，你好，请问是中关村航空客运代理处么 ? Hi, hello, could you tell me...?  Simple repetitions because of the pondering or thinking when speaking. C: 我问一下那个四月三十呃四月三十号北京到...... 30th April... 30th April...  Semantic repetitions for emphasis. C: 请问那个周四就是四月三十号北京到...... Thursday... 30th April...  Speech corrections or repairs. C: 呃，那个什么星期三，呃，星期四的去南京的机票还有吗？... Wednesday... Thursday...

48. Your Partner in the Century of Speech 48 Learning from Corpora - Knowledge for NLP (2)  Spoken Language Phenomena (2) :-  Ellipsis in the context. C: 我问一下那个四月三十呃四月三十号到福州的机票最后一班还有吗 ? (Asking if there are tickets available for the last flight from the departure city to the arrival city, on the departure date.) O: 只有一班有。 ("Only one flight with ticket available") C: 那个那五月一号的下午三点有么？ (How about the flight at a departure time on another departure date?)  Constituents appearing in any order (as long as sufficient information is given)  C:... 五点二十五国航飞深圳的... (Time, airline code, location and some other items can appear in any order)  Constituents appearing in reverse order C:... 的机票 多少钱 得 ? How much cost (Normal order: “ 得 ” “ 多少钱 ” )

49. Your Partner in the Century of Speech 49 Learning from Corpora - Knowledge for NLP (3)  Spoken Language Phenomena (3) :-  Parol (verbal idioms) or unnecessary terms. C: 那，那个八点二十那个是去什么机场的呀？ ( “ 那 ” / ” 那个 ” is somewhat similar to “ uhm ” )  And long sentences with all required information. Or additional explanation following the previous sentence. C: 哎，您好，这样那个我订一张 (one) 那个明天 (tomorrow) 下午 (afternoon) 五点 (5 o ’ clock) 四十五 (45) 去北京 (from Beijing) 到上海 (to Shanghai) 的那个机票 (ticket) 的。 O:... C: 您给我看一下有没有 (is there) 北京到湛江 (from Beijing to Zhanjiang) 的 (ticket) ？二十九 (29th) 、三十号 (30th)?

50. Your Partner in the Century of Speech 50 Learning from Corpora - Knowledge for NLP (4)  Based on the above information, 4 types of parsing rules are proposed for robust spoken language understanding.

51. Your Partner in the Century of Speech 51 Learning from Corpora - Knowledge for NLP (5)  Robust rule type 0:  some crucial information are not allowed to be mixed/inserted by other terms, e.g. personal ID no. ( 身 份证号码 )  up-tying ( 苛刻型 ) rules

52. Your Partner in the Century of Speech 52 Learning from Corpora - Knowledge for NLP (6)  Robust rule type 1:  contrarily, some utterances are allowed to be inserted with recognized garbage/fillers, or some other meaningless parts, e.g. “ 星期啊三嗯星期四 ”  by-passing ( 跳跃型 ) rules

53. Your Partner in the Century of Speech 53 Learning from Corpora - Knowledge for NLP (7)  Robust rule type 2:  some information, such as time, city names, plane types etc., can appear in any order  up-messing ( 无序型 ) rules

54. Your Partner in the Century of Speech 54 Learning from Corpora - Knowledge for NLP (8)  Robust rule type 3:  some phrases/constituents, such as “ 是 … 吗 ”, may contain other constituents in between, e.g. “ 是到北京吗 ”, “ 是两张吗 ”  over-crossing ( 交叉型 ) rules

55. Your Partner in the Century of Speech 55 Learning from Corpora - Knowledge for dialectal ASR (1)  Dialect-related Chinese Syllable Mapping (CSM).  Word-independent CSM: e.g. in Southern Chinese, Initial mappings include zh  z, ch  c, sh  s, n  l, and so on, and Final mappings include eng  en, ing  in, and so on;  Word-dependent CSM: e.g. in dialectal Chuan Chinese, the pinyin ' guo 2' is changed into ' gui 0' in word ' 中国 (China)' but only the tone is changed in word ' 过去 (past)'.

56. Your Partner in the Century of Speech 56 Learning from Corpora - Knowledge for dialectal ASR (2)  The CSM could be N →1, 1→ N, or crossed.

57. Your Partner in the Century of Speech 57 Learning from Corpora - Knowledge for dialectal ASR (3)  The CSM is not exact. For any mapping A  B, it is mostly that the resulted pronunciation is not B exactly, but something quite similar to B, more similar to B than to any other syllable. Bi is a variation of B, such as :- nasalization, centralization, voiced, voiceless, rounding, syllabic, pharyngrealization, aspiration

58. Your Partner in the Century of Speech 58 Learning from Corpora - Knowledge for dialectal ASR (4)  Lexical: a dialect-related lexicon containing two parts :-  A common part shared by standard Chinese and most dialectal Chinese languages (over 50k words), and  A dialect-related part (several hundreds). And in this lexicon:  each word has one pinyin string for standard Chinese pronunciation and a kind of representation for dialectal Chinese pronunciation, and  each of those dialect-related words is corresponding to a word in the common part with the same meaning

59. Your Partner in the Century of Speech 59 Learning from Corpora - Knowledge for dialectal ASR (5)  For each word in the lexicon  Word-dependent CSM syllable –Add a parallel pinyin string, with word-independent CSM pinyin unchanged 中国： Putonghua:zhong guo added:zhong gui  For each pronunciation representation of a word in the lexicon  Word-independent CSM syllable –Add a parallel initial/final arc 中国： { (zh | z) (ong) (g) (uo) } | { (zh | z) (ong) (g) (ui) } 精神： (j) (ing | in) (sh | s) (en | eng)

60. Your Partner in the Century of Speech 60 Learning from Corpora - Knowledge for dialectal ASR (6)

61. Your Partner in the Century of Speech 61 Learning from Corpora - Knowledge for dialectal ASR (7) Dialectal Chinese Speech Recognition Framework Standard Chinese Speech Recognizer + Dialectal Chinese Speech Recognizer Dialectal Chinese Related Knowledge & Resources

62. Your Partner in the Century of Speech 62 Learning from Corpora - Knowledge for dialectal ASR (8) Dialectal Chinese Speech Recognition Framework AM Adapter Acoustic Regulator LM Adapter Pronunciation Modeling (PM) Techniques: Accents & Spontaneous Speech Toned-Syllable Mappings: Word-Independent/-Dependent Dialect-Related Lexical Entry Replacement Rules Language Post-Processing Algorithms Standard Chinese Speech Recognizer

63. Your Partner in the Century of Speech 63 Outline  Purpose of speech corpora  Factors to be considered in data creation  Data creation  Data transcription  Learning from corpora  Chinese Corpus Consortium (CCC)

64. Your Partner in the Century of Speech 64 Chinese Corpus Consortium (CCC) (1)  Speech and text databases are very important to the research and development in the areas of automatic speech recognition, text-to-speech, natural language processing and etc.  And there have been several consortiums or associations devoting themselves in collecting and distributing such data resources, such as  the Linguistic Data Consortium (LDC 1992),  the European Language Resources Association (ELRA 1995), and  The Gengo Shigen Kyouyuukikou Language Resource Consortium (GSK 1999).  We also need such a consortium or association for the Chinese language.

65. Your Partner in the Century of Speech 65 Chinese Corpus Consortium (CCC) (2)  After communications and discussions for a long time, now CCC is coming out soon.  CCC will provide corpora for, but not limited to :-  Chinese ASR,  TTS,  NLP,  perception analysis,  phonetics analysis,  linguistic analysis,  and so on.  Corpora could be :-  speech and text,  read and spontaneous,  wideband and narrowband,  Putonghua, dialectal Chinese and Chinese dialects,  clean and with noise, and  of any other kinds which are helpful to the foresaid purposes.

66. Your Partner in the Century of Speech 66 Chinese Corpus Consortium (CCC) (3)  CCC in more international: Mainland China, Hong Kong, Singapore, Japan, USA, [Taiwan], [Europe].  CCC is open to the speech and language research and development society.  More details can be found in the CCC web site (http://www.d-Ear.com/CCC/).http://www.d-Ear.com/CCC/

67. Thomas Fang Zheng fzheng@sp.cs.tsinghua.edu.cn fzheng@d-Ear.com fzheng@sp.cs.tsinghua.edu.cn fzheng@d-Ear.com Q/A
