1. CS533 Concepts of OS Class 16 ExoKernel by Constantia Tryman

2. CS533 - Concepts of Operating Systems 2 Motivation for Exokernel Problems with general purpose abstractions:  overhead cost for features that are needed  hide information from applications  increase of complexity because of good performance problems  limit functionality of applications: no efficiency and flexibility

3. CS533 - Concepts of Operating Systems 3 ExoKernel Overview  Separate resource protection and management  Securely multiplex hw resources to application- specific Library OS  Exo exports hw resources through: o Secure binding o Visible source revocation o Abort protocol

4. CS533 - Concepts of Operating Systems 4 Exokernel Architecture

5. CS533 - Concepts of Operating Systems 5 Functionalities  Library OS: o Implement own system objects and policies o Uses low-level exokernel interfaces o Implements higher-level abstractions o Can define special-purpose implementations for best performance and functionality o Can be specialized, extended, or replaced of abstractions  Exokernel: o Multiplexes and exports physical resources securely through low-level primitive

6. CS533 - Concepts of Operating Systems 6 Library OS  Simple implementation  Kernel crossings are small  Provide portability and compatibility  To reduce space by libraries  support for shared libraries and dynamic linking

7. CS533 - Concepts of Operating Systems 7 Exokernel Backward Compatibility  Binary emulation of OS and programs  Implementing its hardware abstraction layer on top of exokernel  re-implementing OS’s abstraction on top of exokernel

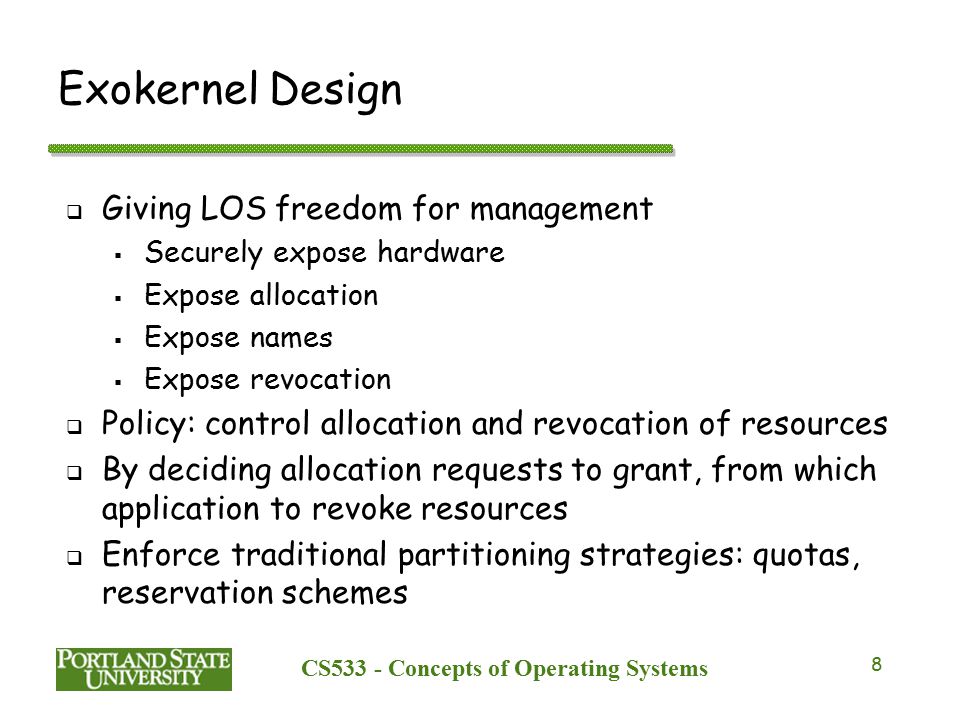

8. CS533 - Concepts of Operating Systems 8 Exokernel Design  Giving LOS freedom for management  Securely expose hardware  Expose allocation  Expose names  Expose revocation  Policy: control allocation and revocation of resources  By deciding allocation requests to grant, from which application to revoke resources  Enforce traditional partitioning strategies: quotas, reservation schemes

9. CS533 - Concepts of Operating Systems 9 Protection Tasks:  Tracking ownership of resources  Ensuring protection by guarding all resources usage and binding points  Revoking access to resources Techniques:  Secure bindings  Visible revocation  Abort protocol

10. CS533 - Concepts of Operating Systems 10 Secure Bindings 3 Approaches:  Hardware mechanism  Software caching  Downloading application code

11. CS533 - Concepts of Operating Systems 11 Hardware Mechanism  TLB entry: translation virtual-to-physical address o TLB fault – TLB load into kernel at bind time Used multiple time at access time o At low level protection  File Server o Can buffer data in memory pages o Grant access to authorized applications o Checking w/o info of authorization mechanism  Frame Buffer HW o Associate ownership tag at each pixel o Application can access frame buffer HW directly, since HW checks ownership tag when I/O loaded

12. CS533 - Concepts of Operating Systems 12 Software Caching  Large SW TLB o Cache address that are not in HW TLB

13. CS533 - Concepts of Operating Systems 13 Download code into Kernel  Invoked in every access/event to determine ownership and actions for kernel  Eliminate expensive kernel crossings  Execution without scheduling  Protection done by o type-safe language, o interpretation and o sandboxing  Ex: ASHs

14. CS533 - Concepts of Operating Systems 14 Multiplexing Physical Memory  When LOS allocate physical memory page, exo creates secure binding, checks capabilities  Reducing number of secure bindings by SW TLB  Exo: guards TLB loads and DMA capabilities  LOS: visible deallocation  flush TLB mappings queue DMA request  Example of HW mechanism and SW caching

15. CS533 - Concepts of Operating Systems 15 Multiplexing the Network  HW: virtual circuit in ATM to bind streams to applications  SW: message demultiplexing by packet filters  Example of downloading code

16. CS533 - Concepts of Operating Systems 16 Downloading Code  Application-specific Sage Handlers (ASHs)  Initiate message (roundtrip latency low)  Initiate control at message reception time  No waiting on message reception  No pre-bind buffer location for message  Xen?  Disco?

17. CS533 - Concepts of Operating Systems 17 Visible Resource Revocation 1. Invisible: deallocate resources without application involvement 1. Perform better when revocations occur frequently 2. Visible: requires interaction with LOS o LOS can avoid saving state and registers that are not live  LOS handle revocation for quick resource deallocation

18. CS533 - Concepts of Operating Systems 18 Abort Protocol  For failed LOS response to revocation requests  Kill LOS and associated applications (rejected)  Exokernel will break existing secure bindings to resources and inform LOS  Done by repossession vector

19. CS533 - Concepts of Operating Systems 19 Aegis and ExOS  Aegis o Exports processor, physical memory, TLB, exceptions, and interrupts  ExOS o Implements processes, virtual memory, user-level exceptions, interprocess abstractions, network protocols  Experimental Methodologies o Exokernel can be efficient o Low-level, secure multiplexing of hw resources implemented efficiently o Traditional OS abstraction implemented efficiently at appl o Applications can create special-purpose implementations of abstractions

20. CS533 - Concepts of Operating Systems 20 Aegis: Exokernel  Support set of primitive operations of privileged instructions (pseudo-instruction)  Efficient because: o Keep track of ownership is simple o Kernel provides little functionality: small and lean o Caching secure binding in SW TLB for efficient TLB misses o Downloading packet filters and dynamic code generation for efficient secure binding to network

21. CS533 - Concepts of Operating Systems 21 ExOS: Library OS  IPC: LRPC  Virtual memory  Remote communication: ASHs

22. CS533 - Concepts of Operating Systems 22 Protected Control Transfers  Is an efficient implementation of IPC abstractions  Steps: o Change PC to callee o Donate current time slice o Install required elements of callee’s processor context 1. Asynchronous: gives remainder current time slice 2. Synchronous: donate current time slice  Properties: o Atomic o No overwrite on application-visible registers by exokernel  No protection check  Single-threaded  Yield primitive: donate remainder current time slice to another

23. CS533 - Concepts of Operating Systems 23 ASHs Performance

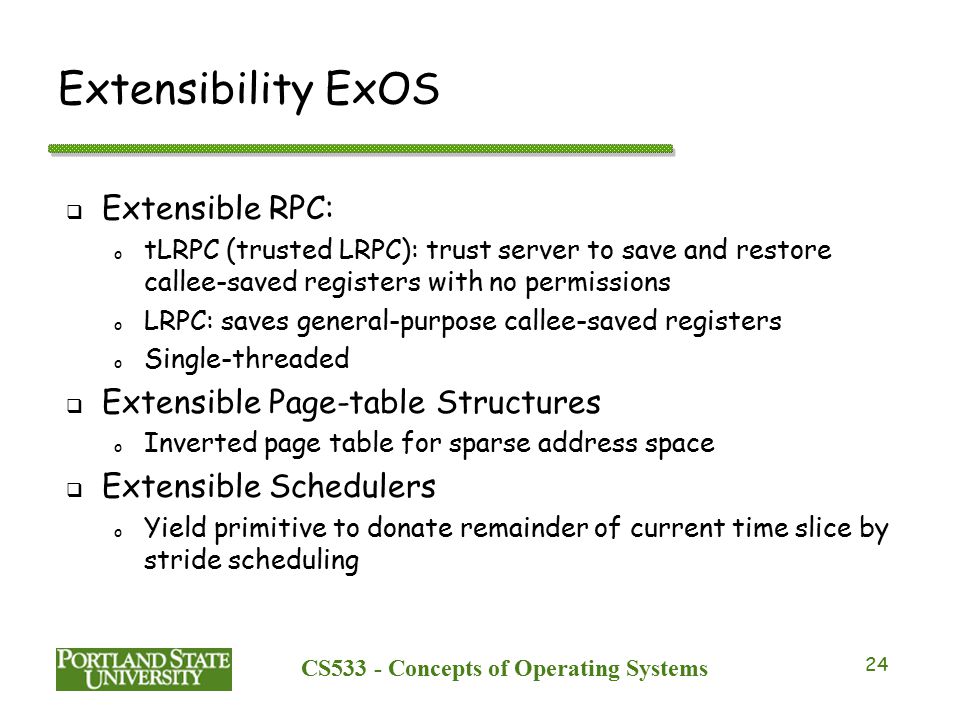

24. CS533 - Concepts of Operating Systems 24 Extensibility ExOS  Extensible RPC: o tLRPC (trusted LRPC): trust server to save and restore callee-saved registers with no permissions o LRPC: saves general-purpose callee-saved registers o Single-threaded  Extensible Page-table Structures o Inverted page table for sparse address space  Extensible Schedulers o Yield primitive to donate remainder of current time slice by stride scheduling

25. CS533 - Concepts of Operating Systems 25 Conclusion  Exo securely multiplexes HW resources among appls  LOS implements higher-level abstractions and define special-purpose implementation for best performance and functionality  Simplicity and limited primitives allow for efficiency implementation  Exo primitives are fast, low-level secure multiplexing is efficient  Traditional OS abstraction implemented at appl-level  Applications can create special-purpose implementation of abstractions by modifying library
