1. Apartado 4433 4007-001 Porto Codexwww.inescporto.pt tel (351)22 209 4000fax (351)22 208 4172 October 17th, 2001 Lab IP Communication Networks and Services Telecommunications and Multimedia Unit

2. 17/Oct/2001Lab IP2 Physical Architecture Control Network north westeast south skyrack

3. 17/Oct/2001Lab IP3 Physical Architecture Core Network 192.168.50.10 west east south north 192.168.50.20 192.168.50.40 192.168.50.30

4. 17/Oct/2001Lab IP4 Physical Architecture Traffic Generation / Detection west east south north

5. 17/Oct/2001Lab IP5 Booting (root file system) / /etc /var /root /tmp / /etc /var /root /tmp / /etc /var /root /tmp / /etc /var /root /tmp /tftpboot/norte /tftpboot/oeste /tftpboot/este /tftpboot/sul NFS west east south north

6. 17/Oct/2001Lab IP6 Booting (common directories) /usr /lib /opt /home /bin /sbin /usr /lib /opt /home /bin /sbin / usr /lib /opt /home /bin /sbin /usr /lib /opt /home /bin /sbin /usr /lib /opt /home /bin /sbin NFS west east south north

7. 17/Oct/2001Lab IP7 Logical Architecture north west south east 192.168.10.10 192.168.10.20 192.168.40.10 192.168.40.20 192.168.30.10 192.168.30.20 192.168.20.10 192.168.20.20

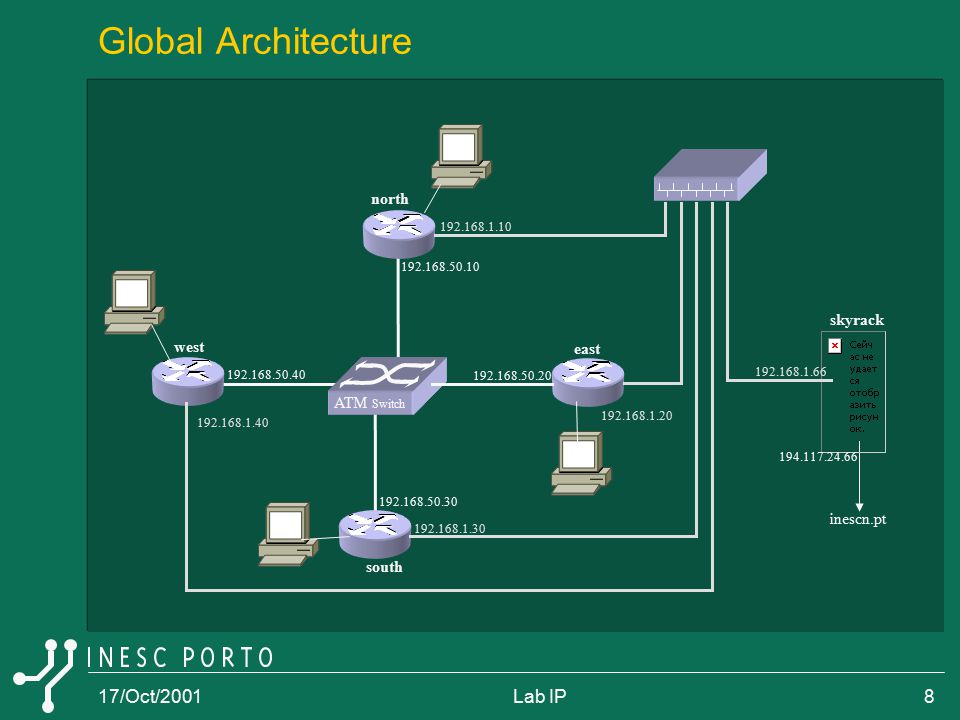

8. 17/Oct/2001Lab IP8 Global Architecture ATM Switch north east south west 192.168.50.10 192.168.50.20 192.168.50.30 192.168.50.40 192.168.1.66 inescn.pt 194.117.24.66 192.168.1.20 192.168.1.10 192.168.1.30 192.168.1.40 skyrack

9. 17/Oct/2001Lab IP9 north west south east 192.168.50.10 fec0::2::10 192.168.50.30 fec0::1::30 192.168.50.20 fec0::3::20 192.168.100.100 fec0::2::100 192.168.50.30 fec0::1::30 192.168.50.10 fec0::2::10 192.168.50.20 fec0::3::20 Mobile IPv6

10. 17/Oct/2001Lab IP10 north west south east 192.168.50.10 fec0::2::10 192.168.50.30 fec0::1::30 192.168.50.20 fec0::3::20 192.168.50.30 fec0::1::30 192.168.50.10 fec0::2::10 192.168.50.20 fec0::3::20 192.168.100.100 fec0::2::100 Mobile IPv6

11. 17/Oct/2001Lab IP11 north west south east 192.168.50.10 192.168.50.40 192.168.50.20 192.168.30.31 20 30 192.168.30.31 30 Network Management Station 192.168.30.31 192.168.55.30 NMS NMS uses snmp commands over the control network 192.168.30.31 192.168.30.10 192.168.10.10 192.168.10.11 OUT LABEL = 20 IP = 192.168.30.0 IN LABEL = 20 OUT LABEL =30 IN LABEL = 30 192.168.55.40 atm0 atm1 atm0 eth1 eth0 MPLS

12. 17/Oct/2001Lab IP12 192.168.100.10 192.168.100.100 192.168.120.100 192.168.110.10 192.168.110.100 192.168.120.10 north east south Software:  SDR, Session Directory  VIC, Videoconferencing Tool  RAT, Robust Audio Tool  WB, Whiteboard IP Multicast Routing IETF Videoconference

13. 17/Oct/2001Lab IP13 west south east 192.168.50.40 192.168.50.30 UMTS terminal requires end-to-end QoS RSVP reserves resources in Net Elem IP traffic control shapes IP flow UMTS terminal Server RSVP Daemon Queueing Disciplines Class Based Queueing Class Based Queueing Token Bucket Flow Token Bucket Flow PATH Msg RESV Msg north 192.168.50.10 IP over UMTS - RSVP/ Traffic Control trial

14. 17/Oct/2001Lab IP14 192.168.31.32 192.168.10.10 192.168.31.31 Wireless Videoconference 192.168.10.11 192.168.100.20 east north south IP Multicast Routing 192.168.100.10 Software:  SDR, Session Directory  VIC, Videoconferencing Tool  RAT, Robust Audio Tool  WB, Whiteboard 802.11
