1. Dependence: Theory and Practice Allen and Kennedy, Chapter 2 Liza Fireman

2. Optimizations  On scalar machines, the principal optimizations are register allocation, instruction scheduling, and reducing the cost of array address calculations.  The optimization process in parallel computers includes finding parallelism in a sequential code.  Parallel tasks perform similar operations on different elements of the data arrays.

3. Fortran Loops DO I=1,N A(I)=B(I)+C ENDDO A(1:N)=B(1:N)+C

4. Fortran Loops DO I=1,N A(I+1)=A(I)+B(I) ENDDO A(2:N+1)=A(1:N)+B(1:N)

5. Bernstein’s conditions  When is it safe to run two tasks R1 and R2 in parallel? If none of the following holds: 1.R1 writes into a memory location that R2 reads 2.R2 writes into a memory location that R1 reads 3.Both R1 and R2 write to the same memory location

6. Assumption  The compiler must have the ability to determine whether two different iterations access the same memory location.

7. Data dependence S 1 PI = 3.14 S 2 R = 5.0 S 3 AREA = PI * R ** 2  Data dependences from S 1 and S 2 to S 3.  No execution constraint between S 1 and S 2. S 1 S 2 S 3 S 2 S 1 S 3 ✔ ✔ S2S2 S3S3 S1S1

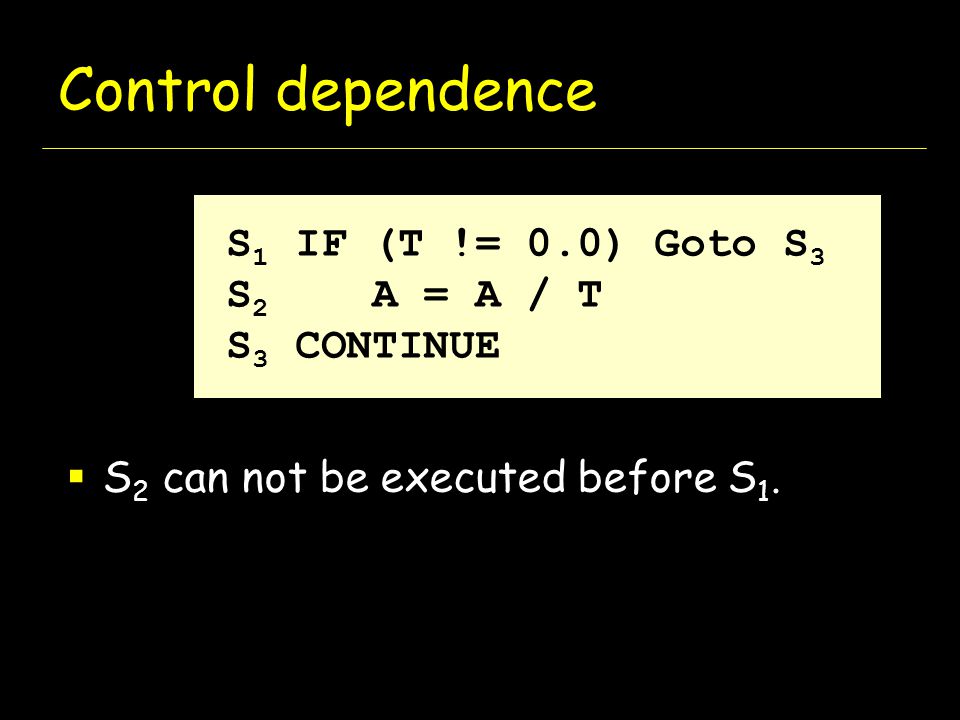

8. Control dependence S 1 IF (T != 0.0) Goto S 3 S 2 A = A / T S 3 CONTINUE  S 2 can not be executed before S 1.

9. Data dependence  We can not interchange loads and stores to the same location.  There is a Data dependence between S 1 and S 2 iff (1) S 1 and S 2 access the same memory location and at least one of the stores into it (2) there is a feasible run-time execution path from S 1 to S 2.

10.  True dependence (RAW(  Antidependence (WAR) S 1 X = … S 2 … = X S 1 … = X S 2 X = … S1S2S1S2 S 1  -1 S 2 S1S1 S2S2  S1S1 S2S2  -1

11.  Output dependence (WAW) S 1 X = … S 2 X = … S 1 X = 3 … S 3 X = 5 S 4 W = X * Y S1S1 S2S2 oo S1oS2S1oS2

12. DO I=1,N S A(I+1)=A(I)+B(I) ENDDO DO I=1,N S A(I+2)=A(I)+B(I) ENDDO S 

13. Iteration number  When I=L the iteration number is 1.  When I=L+S the iteration number is 2.  When I=L+J*S the iteration number is J+1. DO I=L,U,S … ENDDO

14. Nesting level In a loop nest, the nesting level of a specific loop is equal to the number of loop that enclose it. DO I=1,N DO J=1,M DO K=1,L S A(I+1,J,K)=A(I,J,K)+10 ENDDO

15. Iteration Vector Given a nest of n loops, the iteration vector of particular iteration is a vector i={i 1,i 2,…i n } where i k 1≤k≤n represents the iteration number for the loop at nesting level k. DO I=1,2 DO J=1,3 S … ENDDO S[(2,1)] {(1,1),(1,2), (1,3),(2,1), (2,2),(2,3)}

16. Iteration Vector – Lexicographic order Iteration i precedes iteration j, denoted i < j, iff (1) i[1:n-1] < j[1:n-1] Or (2) i[1:n-1]=j[1:n-1] and i n < j n

17. Loop dependence There exists a dependence from statement S1 to S2 in a common nest of loops iff there exist two iteration vectors i and j such that (1) i < j or i = j and there is a path from S1 to S2 in the body of the loop (2) S1 accesses memory location M on iteration i and S2 accesses M on iteration j (3) one of these accesses is a write

18. Transformations  A transformation is “safe” if the transformed program has the same “meaning”.  The transformation should have no effect of the outputs.  A reordering transformation is any program transformation that merely changes the order of execution, without adding or deleting any executions of any statements.

19. Transformations – cont.  A reordering transformation does not eliminate dependences  It can change the ordering of the dependence but it will lead to incorrect behavior  A reordering transformation preserves a dependence if it preserves the relative execution order of the source and sink of that dependence.

20. Fundamental Theorem of Dependence Any reordering transformation that preserves every dependence in a program preserves the meaning of that program  A transformation is said to be valid for the program to which it applies if it preserves all dependences in the program.

21. Example L 0 DO I=1,N L 1 DO J=1,2 S 0 A(I,J)=A(I,J)+B ENDDO S 1 T=A(I,1) S 2 A(I,1)=A(I,2) S 3 A(I,2)=T ENDDO

22. Distance Vector  Consider a dependence in a loop nest of n loops oStatement S 1 on iteration i is the source of the dependence oStatement S 2 on iteration j is the sink of the dependence  The distance vector is a vector of length n d(i,j) such that: d(i,j) k = j k - i k  Note that the iteration vectors are normalized.

23. Example DO J=1,10 DO I=1,99 S 1 A(I,J)=B(I,J)+X S 2 C(I,J)=A(100-I,J)+Y ENDDO There are total of 50 different distances for true dependences from S 1 to S 2 And 49 distances for anti-dependences from S 2 to S 1

24. Direction Vector Suppose that there is a dependence from statement S 1 on iteration i of a loop nest of n loops and statement S 2 on iteration j, then the dependence direction vector is D(i,j) is defined as a vector of length n such that “ 0 “=” if d(i,j) k = 0 “>” if d(i,j) k < 0 D(i,j) k =

25. Distance and Direction Vectors - Example DO I=1,N DO J=1,M DO K=1,L S A(I+1,J,K-1)=A(I,J,K)+10 ENDDO S has a true dependence on itself Distance Vector: (1, 0, -1) Direction Vector: ( ) S 

26. Distance and Direction Vectors – cont.  A dependence cannot exist if it has a direction vector whose leftmost non "=" component is not "<" as this would imply that the sink of the dependence occurs before the source.

27. Direction Vector Transformation  Let T be a transformation that is applied to a loop nest and that does not rearrange the statements in the body of the loop. Then the transformation is valid if, after it is applied, none of the direction vectors for dependences with source and sink in the nest has a leftmost non- “=” component that is “>”.  Follows from Fundamental Theorem of Dependence: oAll dependences exist oNone of the dependences have been reversed

28. Loop-carried Dependence Statement S 2 has a loop-carried dependence on statement S 1 if and only if S 1 references location M on iteration i, S 2 references M on iteration j and d(i,j) > 0 (that is, D(i,j) contains a “<” as leftmost non “=” component). In other words, when S 1 and S 2 execute on different iterations. DO I=1,N S 1 A(I+1)=F(I) S 2 F(I+1)=A(I) ENDDO

29. Level of Loop-carried Dependence  Level of a loop-carried dependence is the index of the leftmost non-“=” of D(i,j) for the dependence.  A level-k dependence between S 1 and S 2 is denoted by S 1  k S 2 DO I=1,N DO J=1,M DO K=1,L S A(I,J,K+1)=A(I,J,K)+10 ENDDO Direction vector for S1 is (=, =, <) Level of the dependence is 3 S 33

30. Loop-carried Transformations  Any reordering transformation that does not alter the relative order of any loops in the nest and preserves the iteration order of the level-k loop preserves all level-k dependences.  Proof: –D(i, j) has a “<” in the k th position and “=” in positions 1 through k-1  Source and sink of dependence are in the same iteration of loops 1 through k-1  Cannot change the sense of the dependence by a reordering of iterations of those loops

31. Loop-carried Transformations – cont. DO I=1,N S 1 A(I+1)=F(I) S 2 F(I+1)=A(I) ENDDO DO I=1,N S 1 F(I+1)=A(I) S 2 A(I+1)=F(I) ENDDO

32. DO I=1,N DO J=1,M DO K=1,L S A(I,J,K+1)=A(I,J,K)+10 ENDDO DO I=1,N DO J=M,1 DO K=1,L S A(I,J,K+1)=A(I,J,K)+10 ENDDO

33. Loop-independent Dependence Statement S 2 has a loop-independent dependence on statement S 1 if and only if there exist two iteration vectors i and j such that: 1) Statement S 1 refers to memory location M on iteration i, S 2 refers to M on iteration j, and i = j. 2) There is a control flow path from S 1 to S 2 within the iteration. In other words, when S 1 and S 2 execute on the same iteration.

34. Loop-independent Dependence - Example  S 2 depends on S 1 with a loop independent dependence is denoted by S 1   S 2  Note that the direction vector will have entries that are all “=” for loop independent dependences DO I=1,N S 1 A(I)=... S 2...=A(I) ENDDO S1S1 S2S2 ∞∞

35. Loop-independent Dependence - Example DO I=1,9 S 1 A(I)=... S 2...=A(10-I) ENDDO

36. Loop-independent Dependence - Example DO I=1,10 S 1 A(I)=... ENDDO DO I=1,10 S 2...=A(20-I) ENDDO

37. Loop-independent Dependence Transformation  If there is a loop-independent dependence from S 1 to S 2, any reordering transformation that does not move statement instances between iterations and preserves the relative order of S 1 and S 2 in the loop body preserves that dependence.  Follows from Fundamental Theorem of Dependence: oAll dependences exist oNone of the dependences have been reversed

38. Simple Dependence Testing DO I 1 =L 1,U 1,S 1 DO I 2 =L 2,U 2,S 2... DO I n =L n,U n,S n S 1 A(f 1 (i 1,…,i n ),…, f m (i 1,i n ))=... S 2...=A(g 1 (i 1,…i n ),…,g m (i 1,…i n )) ENDDO... ENDDO

39. Loop-independent Dependence Transformation A dependence exists from S 1 to S 2 if and only if there exist values of a and b such that (1) a is lexicographically less than or equal to b and (2) the following system of dependence equations is satisfied: f i (a) = g i (b) for all i, 1  i  m

40. Simple Dependence Testing: Delta Notation  Notation represents index values at the source and sink  Iteration at source denoted by: I 0  Iteration at sink denoted by: I 0 +  I  Forming an equality gets us: I 0 + 1 = I 0 +  I  Solving this gives us:  I = 1  Carried dependence with distance vector (1) and direction vector (<) DO I=1,N S A(I+1)=A(I)+B ENDDO

41. Simple Dependence Testing: Delta Notation DO I=1,100 DO J=1,100 DO K=1,100 S A(I+1,J,K)=A(I,J,K+1)+10 ENDDO I 0 + 1 = I 0 +  I; J 0 = J 0 +  J; K 0 = K 0 +  K + 1  I=1;  J=0;  K=-1 Corresponding direction vector: ( )

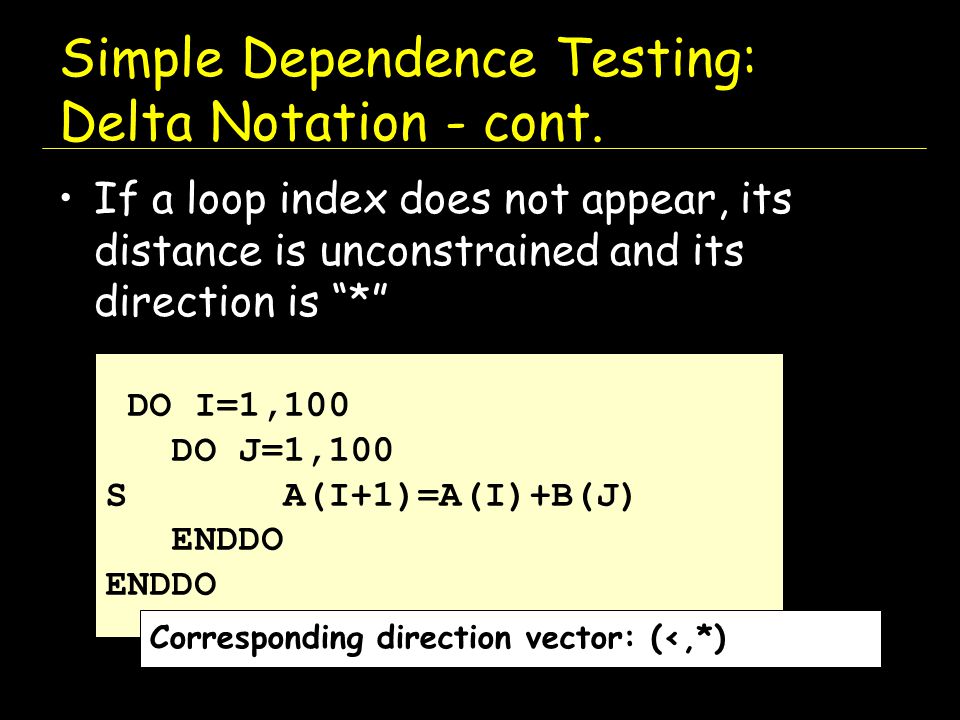

42. Simple Dependence Testing: Delta Notation - cont. If a loop index does not appear, its distance is unconstrained and its direction is “*” DO I=1,100 DO J=1,100 S A(I+1)=A(I)+B(J) ENDDO Corresponding direction vector: (<,*)

43. Simple Dependence Testing: Delta Notation – cont. DO J=1,100 DO I=1,100 S A(I+1)=A(I)+B(J) ENDDO Corresponding direction vector: (*,<) (*,, <) } (>, <) denotes a level 1 antidependence with direction vector ( )

44. Parallelization and Vectorization It is valid to convert a sequential loop to a parallel loop if the loop carries no dependence. DO I=1,N X(I)=X(I)+C ENDDO X(1:N)=X(1:N)+C ✔

45. Parallelization and Vectorization DO I=1,N X(I+1)=X(I)+C ENDDO X(2:N+1)=X(1:N)+C ✘

46. Loop Distribution  Can statements in loops which carry dependences be vectorized? DO I=1,N S 1 A(I+1)=B(I)+C S 2 D(I)=A(I)+E ENDDO S1S2S1S2 DO I=1,N S 1 A(I+1)=B(I)+C ENDDO DO I=1,N S 2 D(I)=A(I)+E ENDDO A(2:N+1)=B(1:N)+C D(1:N)=A(1:N)+E

47. Loop Distribution – cont.  Loop distribution fails if there is a cycle of dependences DO I=1,N S 1 A(I+1)=B(I)+C S 2 B(I+1)=A(I)+E ENDDO S 1  1 S 2 and S 2  1 S 1 S1S1 S2S2  

48. Example DO I=1,100 S 1 X(I)=Y(I)+10 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J+1,K)=B(J)+C(J,K) ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO

49. DO I=1,100 S 1 X(I)=Y(I)+10 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J,K+1)=A(J+1,N)+10 ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO Advanced Vectorization Algorithm – cont. S1S1 S2S2 S3S3 S4S4 11 1010 1010 1010 ∞∞  2,  1,  1 -1  1,  1 -1  1 -1 11 ∞∞

50. Simple Vectorization Algorithm procedure vectorize (L, D) // L is the maximal loop nest // D is the dependence graph for statements in L find the set {S 1, S 2,..., S m } of maximal strongly-connected components in D reducing each S i to a single node compute the dependence graph naturally induced use topological sort for i = 1 to m do begin if S i is a dependence cycle then generate a DO-loop around the statements in S i ; else directly rewrite S i vectorized with respect to every loop containing it; end end vectorize

51. DO I=1,100 S 1 X(I)=Y(I)+10 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J,K+1)=B(J)+C(J,K) ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO Simple Vectorization Algorithm – cont. 1010 1010 1010 S1S1 S2S2 S3S3 S4S4 11 ∞∞  2,  1,  1 -1  1,  1 -1  1 -1 11 ∞∞

52. DO I=1,100 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J,K+1)=B(J)+C(J,K) ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO X(1:100)=Y(1:100)+10 Simple Vectorization Algorithm – cont. 1010 1010 1010 S1S1 S2S2 S3S3 S4S4 11 ∞∞  2,  1,  1 -1  1,  1 -1  1 -1 11 ∞∞

53. Problems With Simple Vectorization DO I=1,N DO J=1,M S A(I+1,J)=A(I,J)+B ENDDO Dependence from S to itself with d(i, j) = (1,0) DO I=1,N S A(I+1,1:M)=A(I,1:M)+B ENDDO The simple algorithm does not capitalize on such opportunities S 11

54. Advanced Vectorization Algorithm procedure codegen(R, k, D); // R is the region for which we must generate code. // k is the minimum nesting level of possible parallel loops. // D is the dependence graph among statements in R.. find the set {S 1, S 2,..., S m } of maximal strongly-connected components inD restricted to R; reduce each Si to a single node and compute the dependence graph induced use topological sort for i = 1 to m do begin if S i is cyclic then begin generate a level-k DO statement; let D i be the dependence graph S i eliminating all dependence edges that are at level k codegen (R i, k+1, D i ); generate the level-k ENDDO statement; end else generate a vector statement for S i in r(S i )-k+1 dimensions, where r(S i ) is the number of loops containing Si; end

55. Advanced Vectorization Algorithm – cont. DO I=1,100 S 1 X(I)=Y(I)+10 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J,K+1)=B(J)+C(J,K) ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO

56. DO I=1,100 S 1 X(I)=Y(I)+10 DO J=1,100 S 2 B(J)=A(J,N) DO K=1,100 S 3 A(J,K+1)=A(J+1,N)+10 ENDDO S 4 Y(I+J)=A(J+1,N) ENDDO Advanced Vectorization Algorithm – cont. S1S1 S2S2 S3S3 S4S4 11 1010 1010 1010 ∞∞  2,  1,  1 -1  1,  1 -1  1 -1 11 ∞∞

57. DO I=1,100 codegen({S2,S3,S4},2) ENDDO X(1:100)=Y(1:100)+10 Advanced Vectorization Algorithm – cont. 1010 1010 1010 S1S1 S2S2 S3S3 S4S4 11 ∞∞  2,  1,  1 -1  1,  1 -1  1 -1 11 ∞∞

58. DO I=1,100 codegen({S2,S3,S4},2) ENDDO X(1:100)=Y(1:100)+10 Advanced Vectorization Algorithm – cont. S2S2 S3S3 S4S4 ∞∞ 22 ∞∞

59. DO I=1,100 DO J=1,100 codegen({S2,S3},3) ENDDO Y(I+1:I+100)=A(2:101,N) ENDDO X(1:100)=Y(1:100)+10 Advanced Vectorization Algorithm – cont. S2S2 S3S3 S4S4 ∞∞ 22 ∞∞

60. DO I=1,100 DO J=1,100 B(J) = A(J,N) A(J+1,1:100)=B(J)+C(J,1:100) ENDDO Y(I+1:I+100)=A(2:101,N) ENDDO X(1:100)=Y(1:100)+10 S2S2 S3S3 ∞∞
