1 April 23, 2008 Astro 890 Detectors Wide, High, Deep, and Sensitive

2 April 23, 2008Astro 890 The Plan Wax poetic (and silly) about the landscape Get real and focus on stuff I actually know something about Photon Detection Ways of organizing large numbers of Pixels Processing signal ADCs System Examples of real detectors

3 April 23, 2008Astro 890 Radar Detector Radon Detector Smoke Detector Lie Detector Leak Detector Snake Detector Paul said talk about Detectors

4 April 23, 2008Astro 890 Even if I stop being silly… Neutrino Detector? Cosmic Ray Detector? Photon Detector? Yeah, Photon, that’s the one

5 April 23, 2008Astro 890 Still a Tall Order DC to Daylight doesn’t cut it –(daylight is only 10 15 Hz) ~10 8 Hz to 2x10 28 Hz 4 x10 -7 to 10 14 eV (~100 ergs)

6 April 23, 2008Astro 890 Stick to what you know? We “do” ground based optical/NIR instruments –Ground based means to atmospheric cutoff at ~300 nm (3000 Å) caused by O 3 in upper atmosphere. –NIR, for us, means to 2.5 µ or J H and K bands. At any longer wavelength the background fills the wells so fast additional hardware is required for real time co-adding.

7 April 23, 2008Astro 890 First Astronomical CCD Picture Fairchild 100x100 CCD, 1974

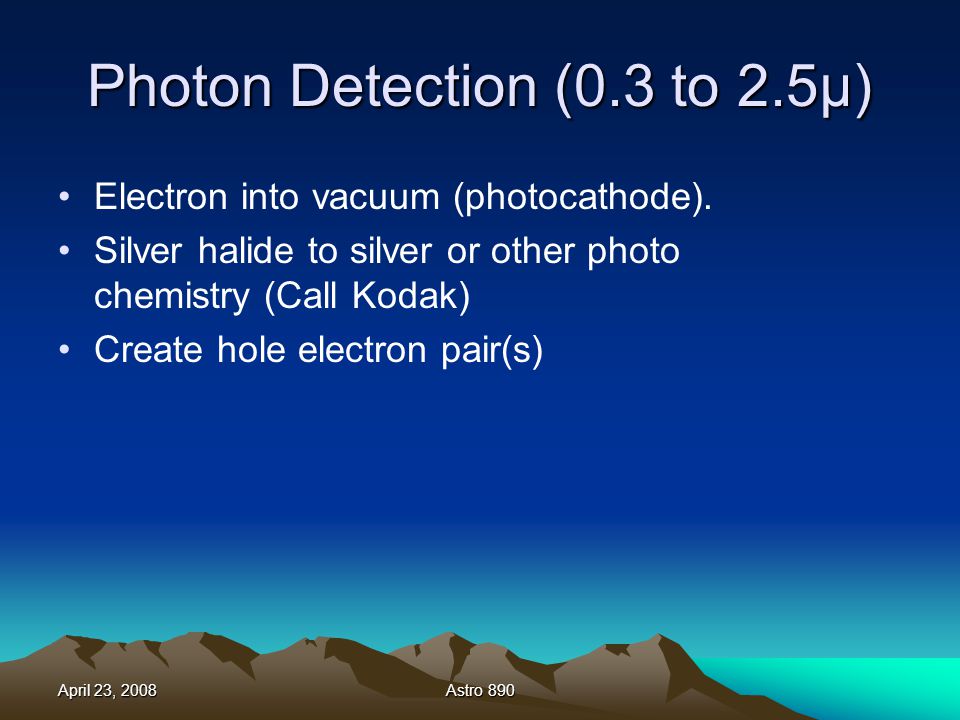

8 April 23, 2008Astro 890 Photon Detection (0.3 to 2.5µ) Electron into vacuum (photocathode). Silver halide to silver or other photo chemistry (Call Kodak) Create hole electron pair(s)

9 April 23, 2008Astro 890 Silicon Works Great up to ~1µm 1µ=1.24 eV Si band gap =1.1 eV Beyond that … –InSb out to ~5 µ –HgCdTe which can be tuned to 2.5 µ, 5 µ or even 12 µ

10 April 23, 2008Astro 890 Avoid Solid State Physics at all Cost

11 April 23, 2008Astro 890 Care for (half of) the Pair Don’t let it spend any time in an area with a lot of holes (electrons) Move a packet of them around without loss

12 April 23, 2008Astro 890 QE (DQE) Get Photon into detector –Fresnel losses, Si has index of 3.4! R~30% Anti-reflection coatings can help –Semi-transparent electrodes. Losses ~50% This is the main reason for thinning. Recombines near surface P channel has field in the right direction Not letting it get out of detector –Si becomes transparent much beyond 1µ

13 April 23, 2008Astro 890 Absorption length in Si

14 April 23, 2008Astro 890 Moving charge Two ways, really the same –Make a moving potential well (CCD) –Make an array of switches (Most IR detectors)

15 April 23, 2008Astro 890 CCD wells Buried “channel stops” to define columns Array of insulated electrodes to define pixels Additional array of electrodes to shift a line at a time

16 April 23, 2008Astro 890 132 Output 1 3 2 132132 CCDs 3 Phase Serial Register

17 April 23, 2008Astro 890 Three 2D Archtectures CCD with Parallel and Serial shifts CCD with only Parallels and an output per column X-Y array of switches

18 April 23, 2008Astro 890 RAIN (PHOTONS) BUCKETS (PIXELS) VERTICAL CONVEYOR BELTS (CCD COLUMNS) HORIZONTAL CONVEYOR BELT ( SERIAL REGISTER ) MEASURING CYLINDER (OUTPUT AMPLIFIER) CCD Analogy

19 April 23, 2008Astro 890 Exposure finished, buckets now contain samples of rain.

20 April 23, 2008Astro 890 Conveyor belt starts turning and transfers buckets. Rain collected on the vertical conveyor is tipped into buckets on the horizontal conveyor.

21 April 23, 2008Astro 890 Vertical conveyor stops. Horizontal conveyor starts up and tips each bucket in turn into the measuring cylinder.

22 April 23, 2008Astro 890 ` After each bucket has been measured, the measuring cylinder is emptied, ready for the next bucket load.

23 April 23, 2008Astro 890

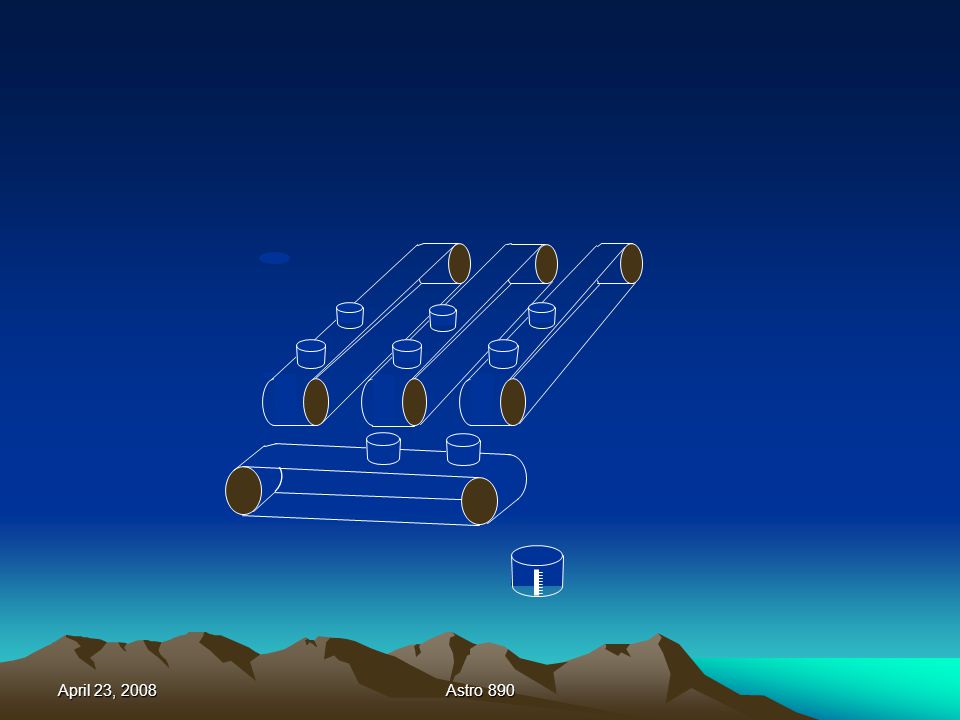

24 April 23, 2008Astro 890

25 April 23, 2008Astro 890

26 April 23, 2008Astro 890

27 April 23, 2008Astro 890

28 April 23, 2008Astro 890

29 April 23, 2008Astro 890 A new set of empty buckets is set up on the horizontal conveyor and the process is repeated.

30 April 23, 2008Astro 890

31 April 23, 2008Astro 890

32 April 23, 2008Astro 890

33 April 23, 2008Astro 890

34 April 23, 2008Astro 890

35 April 23, 2008Astro 890

36 April 23, 2008Astro 890

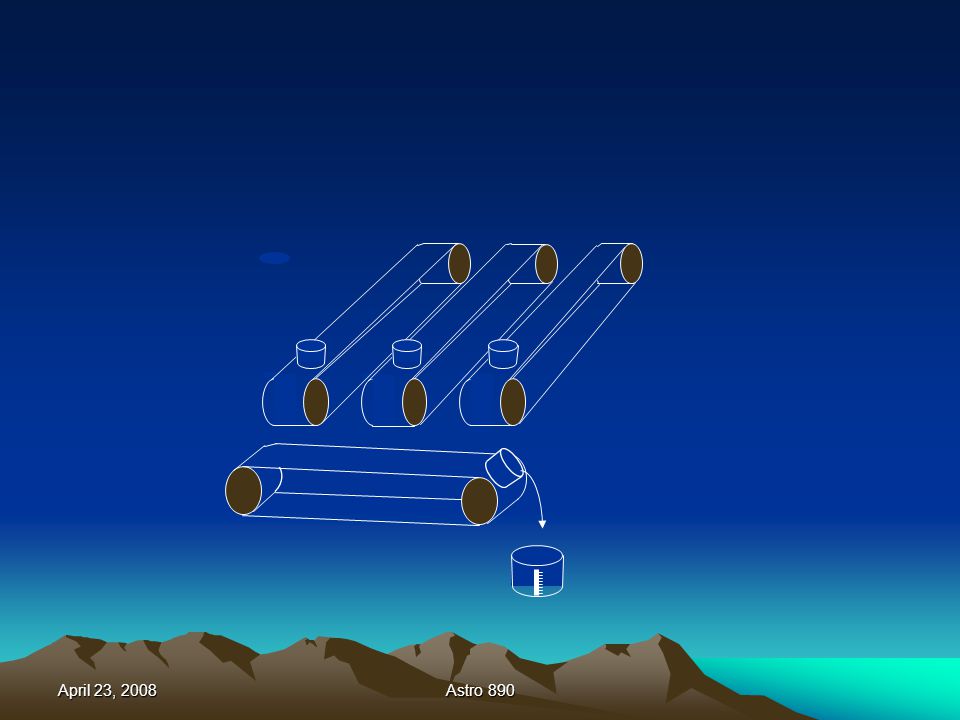

37 April 23, 2008Astro 890

38 April 23, 2008Astro 890

39 April 23, 2008Astro 890

40 April 23, 2008Astro 890

41 April 23, 2008Astro 890

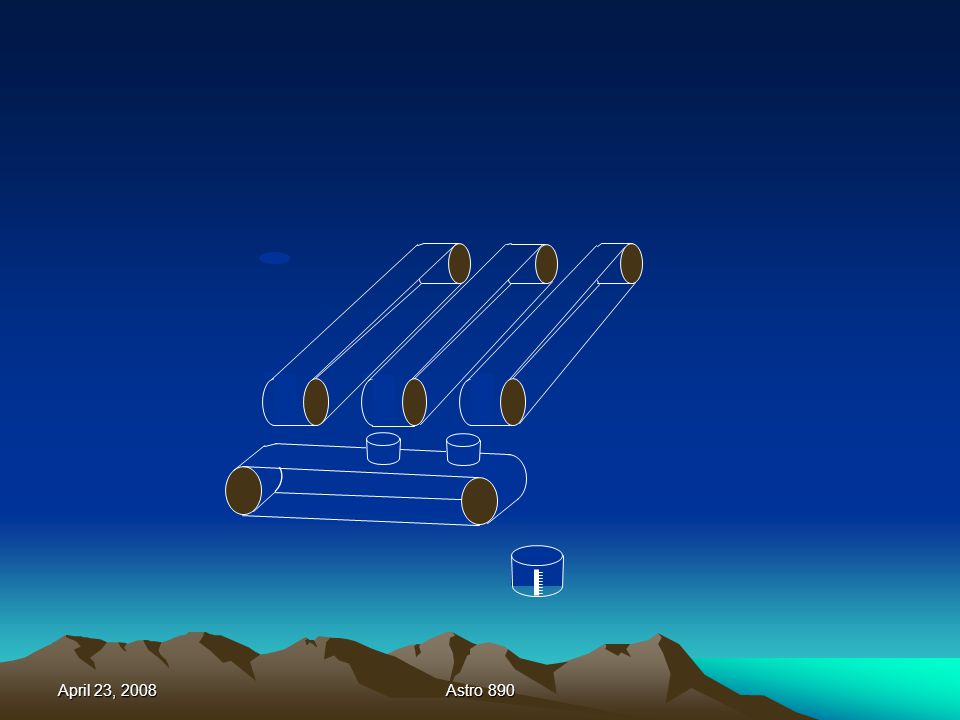

42 April 23, 2008Astro 890

43 April 23, 2008Astro 890

44 April 23, 2008Astro 890

45 April 23, 2008Astro 890

46 April 23, 2008Astro 890 Eventually all the buckets have been measured, the CCD has been read out.

47 April 23, 2008Astro 890 Q=CV V=Q/C High responsivity means very small C 1cm x 1cm x 1mm ~ 1pF (10^-12 F) Good CCDs now have node capacity of ~10 fF (10^-14F) →10 µV/electron

48 April 23, 2008Astro 890 Turning Charge Packet into a Voltage

49 April 23, 2008Astro 890 IR array Architecture

50 April 23, 2008Astro 890 Signal Processing 1 “kTC” noise –Any time you reset a capacitor the resulting voltage is uncertain by √kTC. –Good CCD will have C~10 -14 F, T~150K, noise ~30 electrons RMS –Must use “dual slope integrator” or “double correlated sampling” (DCS) to reject kTC noise. –DCS also rejects “noise” at any frequency less than 1/ (integration time)

51 April 23, 2008Astro 890 Dual slope Integrator

52 April 23, 2008Astro 890 Signal Processing 2 Optimal S/N for White Noise is Simple differential averager (aka dual slope integrator) As with all white noise problems S/N grows as √t where t is the integration time Noise from amplifiers is always 1/f like If 1/f knee is below 1/t then noise is essentially White If 1/f knee is well above 1/t and noise is really 1/f then S/N is independent of t.

53 April 23, 2008Astro 890 Dark Current (silicon) Room Temperature ~1/40 eV Band gap ~1.2 eV Leads to a dark current of ~20pA/cm 2 Or about 300 electrons/second for 15µ x 15µ pixel. Must cool, typically 190K for 1 electron/hour, although surface effects can cause problems. 2.5 µ HcCdTe requires 77K or lower

54 April 23, 2008Astro 890 The next step Systems have typically had 16 bit ADC Not enough resolution for low noise CCDs with a full well of 200,000 electrons 18 bit ADCs now work (and are a lot cheaper than old style 16 bit units)

55 April 23, 2008Astro 890 Telescopes are harsh Fiber optic coupling between telescope focus and computers helps with noise problems Old=120 Mbits/sec, New=2 Gbits/sec

56 April 23, 2008Astro 890 System (Warm Part) Computer “Sequencer” –Generates clock patterns –Receives data from the cold –Fiber interface

57 April 23, 2008Astro 890 System (Cold Part) Head Electronics –Drive electronics for detector –Signal processing and analog to digital conversion –Fiber interface

58 April 23, 2008Astro 890 Real World Detectors 800 x 800 Texas Instruments, Original HST detector 3 x 8 k e2v, Worlds Largest IR array in Barbie Coffin
