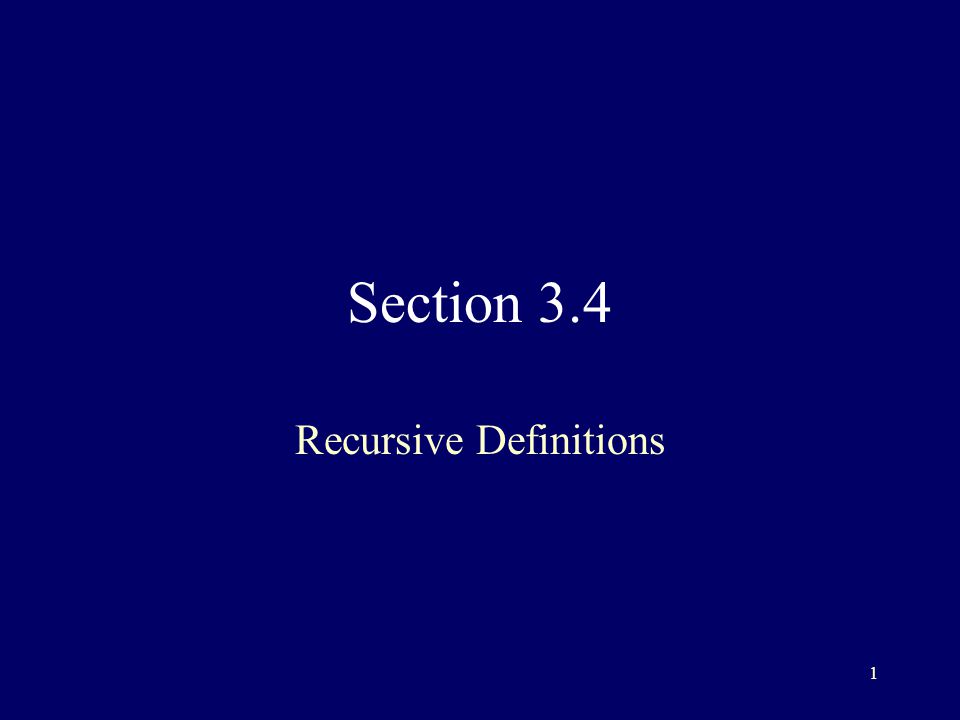

1 1 Section 3.4 Recursive Definitions

2 2 Recursion Recursion is the process of defining an object in terms of itself Technique can be used to define sequences, functions and sets To recursively define a sequence: –give first term –give rule for defining subsequent terms from previous terms

3 3 Recursively Defined Functions Specify f(0) Give a rule for finding f from f’s value at smaller integers

4 4 Example 1 Define f recursively by: f(0) = 3 f(n+1) = 2(f(n)) + 3 Find f(1), f(2), f(3) and f(4) f(1) = 2(f(0)) + 3 = 9 f(2) = 2(f(1)) + 3 = 21 f(3) = 2(f(2)) + 3 = 45 f(4) = 2(f(3)) + 3 = 93

5 5 Example 2: give a recursive definition of the factorial function Define f(0): f(0) = 1 Define rule for f(n+1) from f(n): –Since (n+1)! = n!(n+1) –then f(n+1) = (n+1)(f(n)) For example, to find f(5) = 5! Do: f(5) = 5(f(4)) = 5(4(f(3))) = 5(4(3(f(2)))) = 5(4(3(2(f(1))))) = 5(4(3(2(1(f(0))))))) = 5*4*3*2*1*1 = 120

6 6 Example 3 Give recursive definition for the sum of the first n positive integers Define f(0) = 0 Then f(n+1) = n+1+f(n) Thus f(4), for example, is: 4+f(3) = 4+3+f(2) = 4+3+2+f(1) = 4+3+2+1+f(0) = 4+3+2+1+0 = 10

7 7 Example 4 Give recursive definition of a n where a is a non-zero real number and n is a non- negative integer Define a 0 = 1 Then define a n+1 = a(a n ) So x 5 = x(x 4 ) = x(x(x 3 )) = x(x(x(x 2 ))) = x(x(x(x(x 1 )))) = x(x(x(x(x(x 0 ) = x*x*x*x*x*1

8 8 Example 5: summation Give a recursive definition of: n  ak ak k=0 Basis: n  a k = a 0 k=0 Inductive: n+1 n  a k = a n+1 +  a k k=0

9 9 Example 6 Give recursive definition of P m (n), product of integer m and non-negative integer n Basis: P m (0) = 0 Inductive: P m (n+1) = P m (n) + m So, for example, 4*3 = P 4 (3) = P 4 (2)+4 = P 4 (1)+4+4 = P 4 (0)+4+4+4 = 0+4+4+4 = 12

10 10 Fibonacci numbers Fibonacci numbers are defined by: f 0 = 0, f 1 = 1, f n = f n-1 + f n-2 where n=2,3,4 … Sof 2 = f 1 + f 0 = 1 f 3 = f 2 + f 1 = 2 f 4 = f 3 + f 2 = 3 f 5 = f 4 + f 3 = 5 f 6 = f 5 + f 4 = 8etc.

11 11 Example 7: Fibonacci numbers The recursive definition of Fibonacci numbers can be used to prove many properties of these numbers. For example: f n >  n-2 where  = (1 +  5) / 2 whenever n  3 Let P(n) = f n >  n-2 ; we wish to show that P(n) is true for n  3

12 12 Example 7 Note that:   3-2 )  2 = ((1+  5)/2)((1+  5)/2) = (1+2  5+5)/4 = (2(  5+3))/(2*2) = (3 +  5) / 2 (3 +  5) / 2  4-2 ) So P(n) is true for n=3 and n=4

13 13 Example 7 Assume P(k) is true, so f k >  k-2 for all integers k with 3 <= k <= n, with n  4 Show P(n+1) is true: f n+1 >  n-1 By the quadratic formula: x=(-b  b 2 -4ac)/2a  is a solution for x 2 -x-1=0 so  2 =  + 1

14 14 Example 7 Thus,  n-1 =  2 (  n-3 ) = (  +1)  n-3 =  (  n-3 ) +1(  n-3 ) = (  n-2 +  n-3 ) By the inductive hypothesis, if n  5, it follows that f n-1 >  n-3, f n >  n-2 So we have: f n+1 = (f n + f n-1 ) > (  n-2 +  n-3 ) =  n-1, completing the proof

15 15 Example 8 Prove that f 1 +f 3 + … +f 2n-1 = f 2n whenever n is a positive integer Basis: f 1 = f 2*1 true, since f 1 = f 2 = 1 We want to prove: f 1 +f 3 + … f 2n-1 +f 2n+1 =f 2(n+1)

16 16 Example 8 Assume P(n) is true; then: f 1 +f 3 + … f 2n-1 +f 2n+1 = f 2n + f 2(n+1) f 2n + f 2(n+1) = f 2n+2 Recall the definition of Fibonacci numbers: f n = f n-1 + f n-2 So the theorem is true

17 17 Recursively defined sets Sets may be recursively defined as follows: –an initial collection of elements is given –rules used to construct elements of the set from other elements are given Such sets are well-defined, and theorems about them can be proved using their recursive definitions

18 18 Example 9 S is recursively defined by: 3  S (x+y)  S if x  S and y  S Show that S is the set of all positive integers divisible by 3

19 19 Example 9: Proof Let A = {x | x is divisible by 3} (or, x=3n) To prove A=S, show that A  S and S  A Proving A  S by mathematical induction: –P(n): 3n belongs to S –Basis: 3*1  S - true by definition of S –Inductive: Since we already know 3  S (by definition), and (3n+3)  S (also by definition) and 3n+3 = 3(n+1), A  S is proven

20 20 Example 9: Proof To prove S  A, use recursive definition of S: –Basis: 3  S (by definition) –Since 3 = 3*1, all elements specified by the definition’s basis step are divisible by 3 To complete proof, must show all integers generated by using second part of definition of S are in A

21 21 Example 9: Proof To do this, show that x+y is in A when x  S and y  S and x  A and y  A If x  A and y  A, 3|x and 3|y - so 3|(x+y) This completes the proof

22 22 Well-formed Formulae Common application of the recursive definition of sets Example: well-formed formulae of variables, numerals and operators from {+,-,*,/,  } are defined by: –x is a well-formed formula is x is a numeral or variable; –(f+g), (f-g), (f*g), (f/g) and (f  g) are well-formed formulae if f and g are well-formed formulae

23 23 Application of well-formed formulae Using this definition, we can define any infix expression For example, x and 5 are well-formed formulae So (x+5), (x*5), etc. are well-formed formulae And (x+5) / (x*5) is a well-formed formula

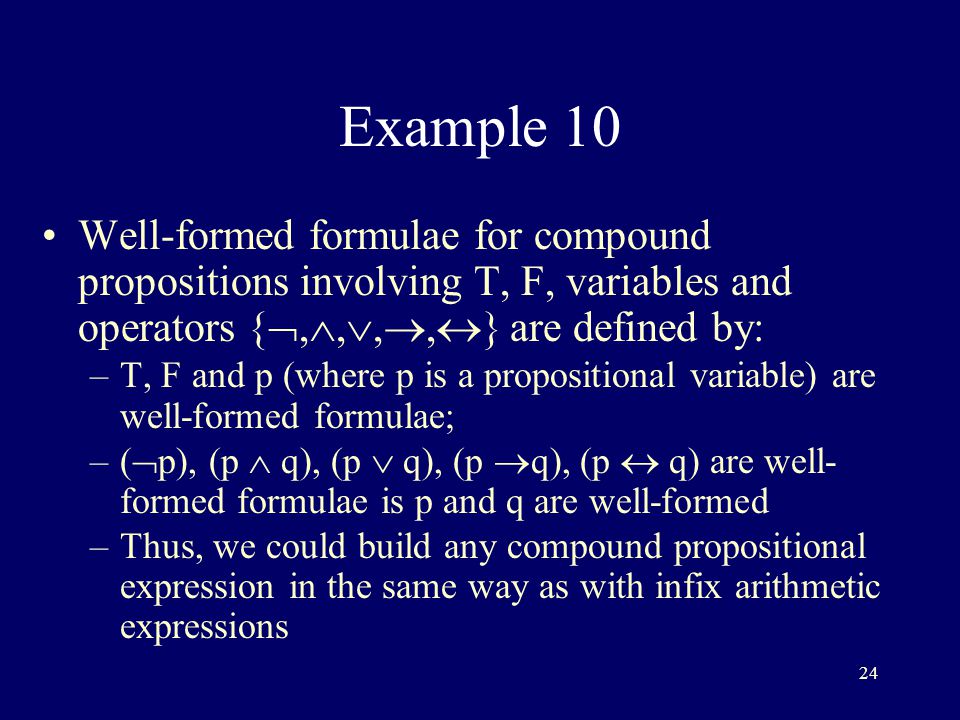

24 24 Example 10 Well-formed formulae for compound propositions involving T, F, variables and operators { , , , ,  } are defined by: –T, F and p (where p is a propositional variable) are well-formed formulae; –(  p), (p  q), (p  q), (p  q), (p  q) are well- formed formulae is p and q are well-formed –Thus, we could build any compound propositional expression in the same way as with infix arithmetic expressions

25 25 Recursive definition of strings The set  * of strings over the alphabet  can be recursively defined by: –   * where is the empty string and –wx   * whenever w   * and x   Translation: –empty strings belong to the set of strings –can produce new strings by concatenating strings from the set of strings with symbols from the alphabet

26 26 Recursive definition of strings Can also recursively define the length of strings; if l(w) is the length of string w, then: –l( ) = 0 –l(wx) = l(w)+1 if w   * and x   Can use these definitions in proofs

27 27 Example 11 Prove that l(xy) = l(x) + l(y) where x   * and y   * Basis: P( ) –show l(x ) = l(x)+l( ) for x  * –since l( ) = 0, l(x)+l( ) = l(x), so l(x ) is true

28 28 Example 11 Inductive step: –Assume P(y) is true; show that this implies P(ya) is true where a   –Need to show l(xya) = l(x) + l(ya) –By recursive definition of l(w), we have l(xya)=l(xy+1) and l(ya) = l(y)+1 –By inductive hypothesis, l(xy)=l(x)+l(y) –So we conclude l(xya)=l(x)+l(y)+1 = l(x)+l(ya)

29 29 Section 3.3 Recursive Definitions - ends -
