12-17 February 2007 Winter Workshop on Nuclear Dynamics STAR identified particle measurements at large transverse momenta in Cu+Cu collisions at RHIC Richard.

Published by Modified over 8 years ago

Similar presentations

Presentation on theme: "12-17 February 2007 Winter Workshop on Nuclear Dynamics STAR identified particle measurements at large transverse momenta in Cu+Cu collisions at RHIC Richard."— Presentation transcript:

1 12-17 February 2007 Winter Workshop on Nuclear Dynamics STAR identified particle measurements at large transverse momenta in Cu+Cu collisions at RHIC Richard Hollis for the STAR collaboration

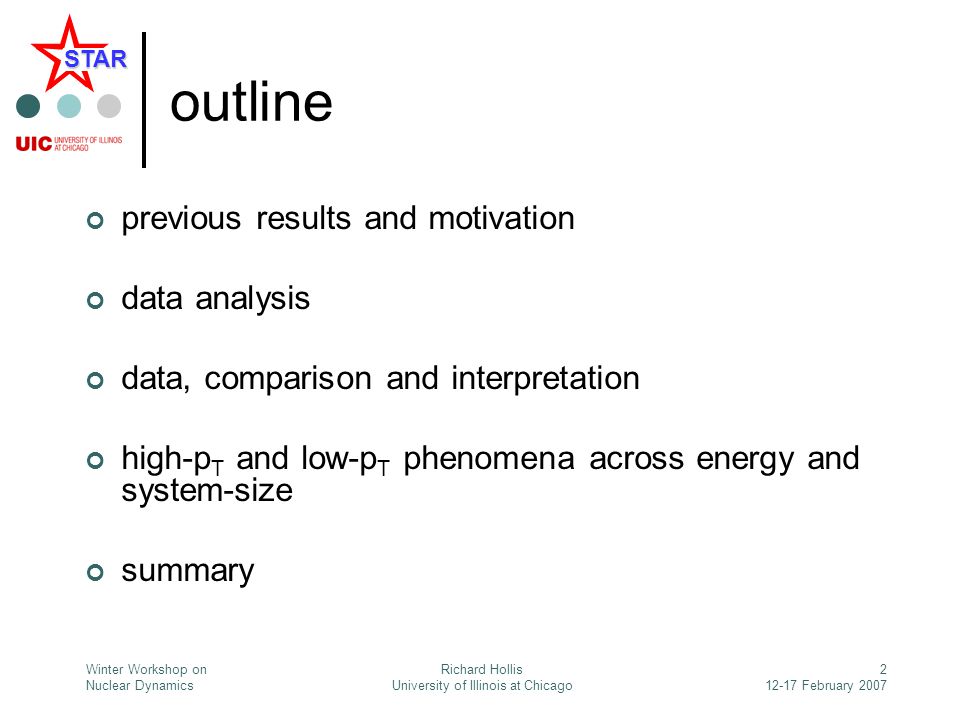

2 STAR 2 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics outline previous results and motivation data analysis data, comparison and interpretation high-p T and low-p T phenomena across energy and system-size summary

3 STAR 3 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics previous results and motivation

4 STAR 4 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics two effects: relative to p+p collisions spectral suppression B/M enhancement in Au+Au effect are turned on and off dependent on centrality how can one understand these effects? system size dependence energy* dependence * discussed in the previous talk by Bedanga Phys.Rev.Lett. 91 (2003) 072304 Phys.Rev.Lett. 97 (2006) 152301 Phys.Lett. B637 (2006) 161 previous results: inclusive spectra & B/M ratio

5 STAR 5 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics motivation: 1. why high-p T ? why do we look at high-p T ? cartoon showing the relative effects of N part and N coll scaling calculable by pQCD

6 STAR 6 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics motivation: 2. why identified particles? why do we look at identified particles? at high-p T affords insight into gluon and quark jet production gluon jets produce more baryons than quark jets a probe relative energy loss for quark and gluon jets expected, but not seen Phys.Lett. B606 (2005) 303

7 STAR 7 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics motivation: 3. why Cu+Cu? smaller system-size is Central Cu+Cu ~ Central Au+Au? or Central Cu+Cu ~ Peripheral Au+Au? observe path length effects of energy loss with Cu+Cu can explore the turn on of the suppression Phys.Lett. B639 (2006) 38 p T >6GeV/c

8 STAR 8 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data analysis

9 STAR 9 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: analysis analysis summary low-p T (0.2<p T <1.2) energy loss in TPC clear particle separation low- to intermediate-p T (0.2<p T <3.0) TOF clear particle separation high-p T (p T >2.5) relativistic rise of energy loss in TPC statistical separation

10 STAR 10 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: analysis @ low-p T analysis summary direct identification from separated bands at low-p T 4-gaus fits determine the yield  -, e -, K -,pbar data are then corrected for feed-down track efficiency Negative Particles

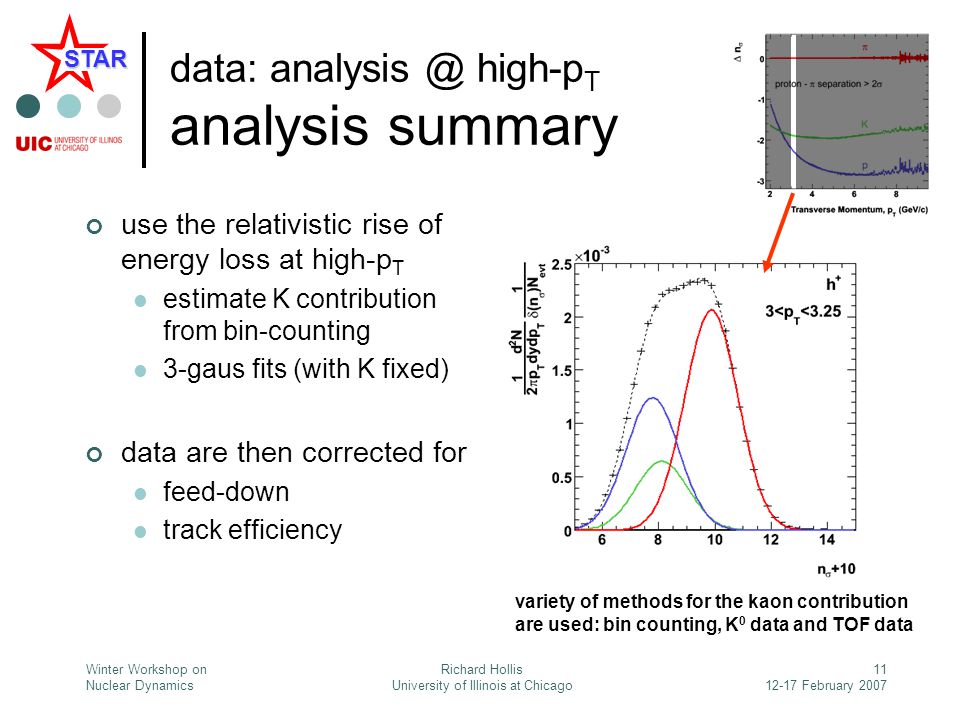

11 STAR 11 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: analysis @ high-p T analysis summary use the relativistic rise of energy loss at high-p T estimate K contribution from bin-counting 3-gaus fits (with K fixed) data are then corrected for feed-down track efficiency variety of methods for the kaon contribution are used: bin counting, K 0 data and TOF data

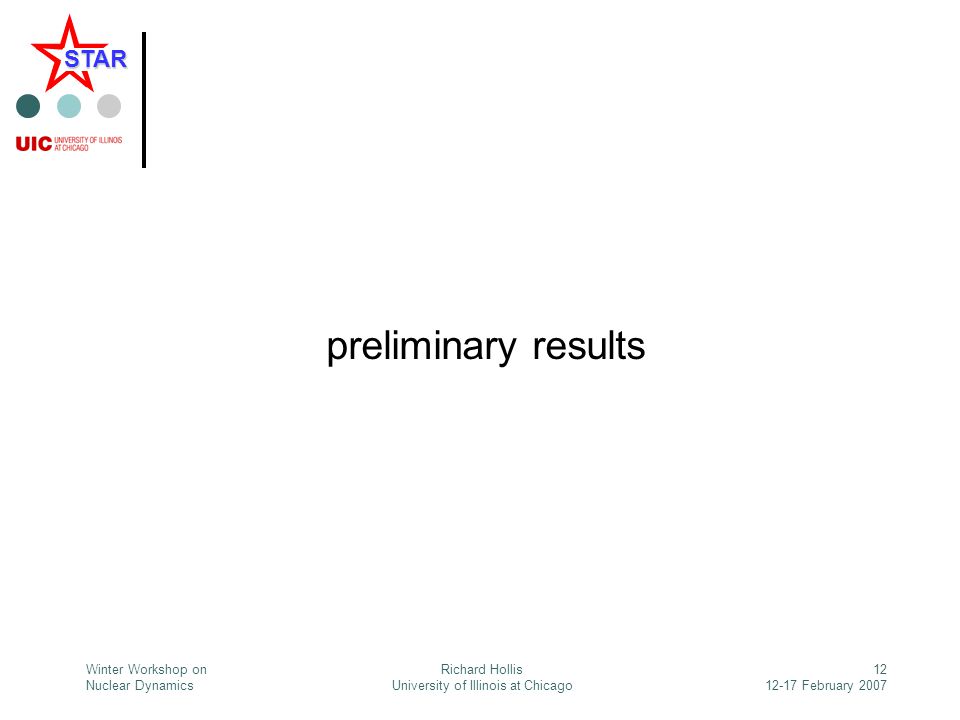

12 STAR 12 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics preliminary results

13 STAR 13 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: preliminary results spectra 1<p T <2 GeV/c gap will be filled by TOF - analysis underway in STAR  spectra proton spectra

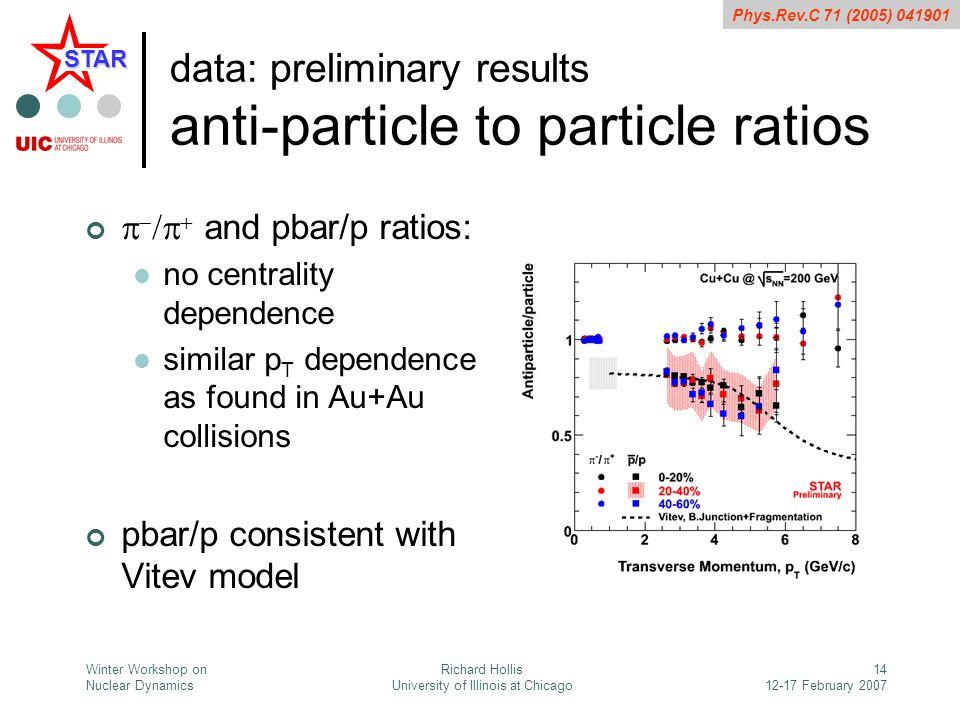

14 STAR 14 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: preliminary results anti-particle to particle ratios     and pbar/p ratios: no centrality dependence similar p T dependence as found in Au+Au collisions pbar/p consistent with Vitev model Phys.Rev.C 71 (2005) 041901

15 STAR 15 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: preliminary results nuclear modification factor systematic differences in R AA between  and p data  data are flatter with p T (at high-p T ) p data have a weak centrality dependence

16 STAR 16 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: preliminary results proton/pion ratios baryon/meson enhancement intermediate-p T enhancement in baryon production is observed maximal enhancement at p T ~2GeV/c centrality independent for p T >5GeV/c Phys.Lett. B37 (2006) 161

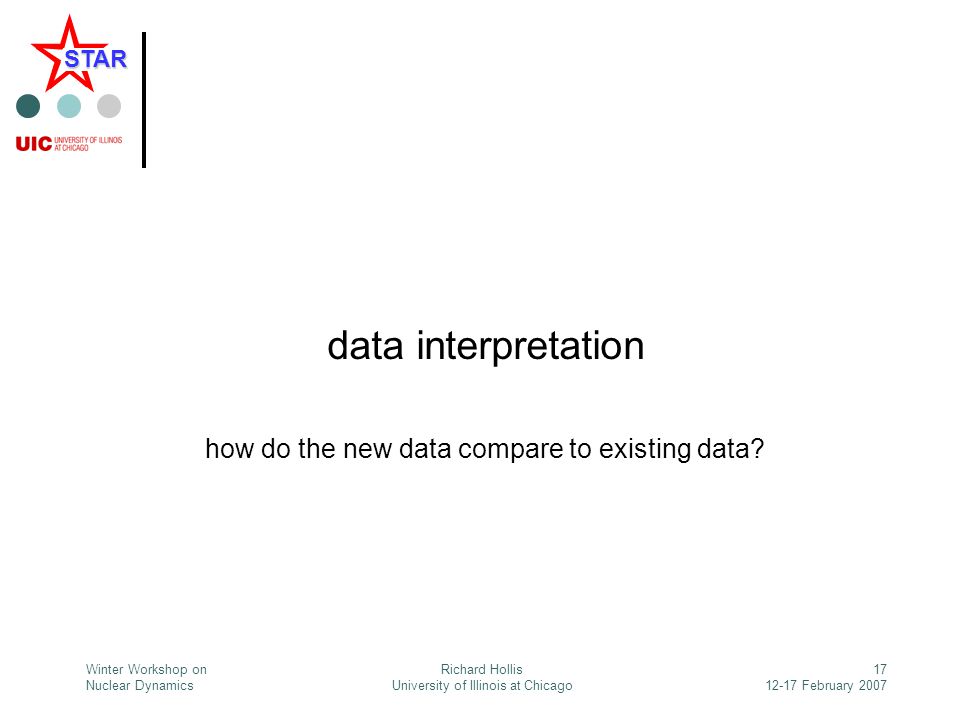

17 STAR 17 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data interpretation how do the new data compare to existing data?

18 STAR 18 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics Cu+Cu data: questions: how do Cu+Cu and Au+Au compare? fractional cross-section number of collisions/participant number of particles produced (N ch at mid-rapidity) i.e. Cu+Cu (0-20%) =? Au+Au (0-20%) or Cu+Cu (N part ) =? Au+Au (N part )* or Cu+Cu (N ch ) =? Au+Au (N ch ) * Note that from a Glauber Model calculation, the functional form of N coll is the same for Au+Au and Cu+Cu collisions

19 STAR 19 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison nuclear modification factor Cross-sectionN part similar dependence for same N part Phys.Rev.Lett. 97 (2006) 152301 Phys.Lett. B37 (2006) 161

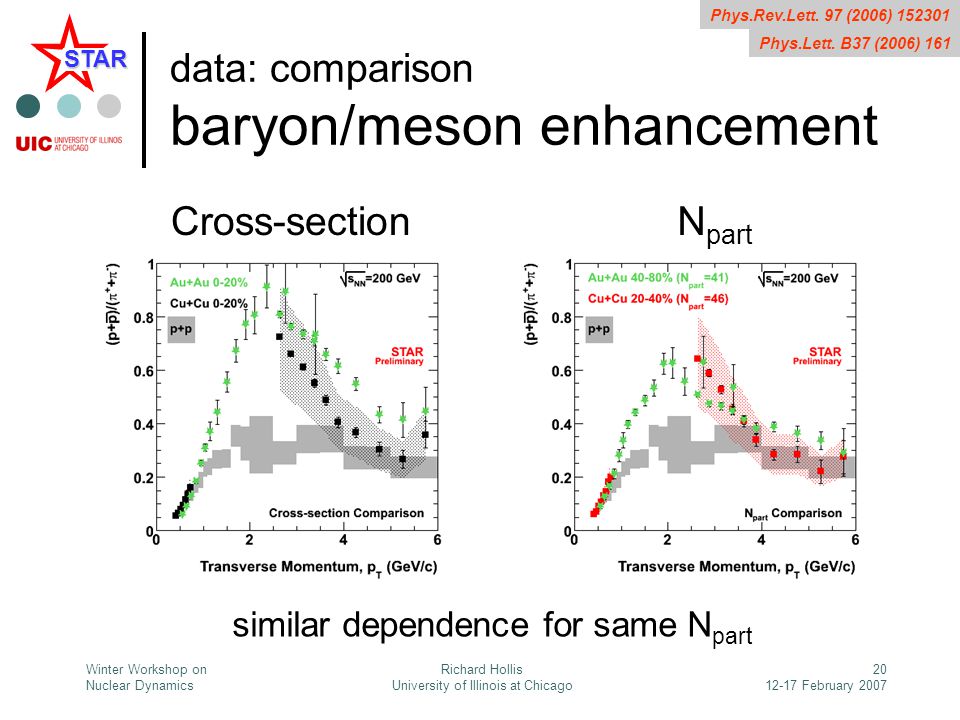

20 STAR 20 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison baryon/meson enhancement Cross-sectionN part similar dependence for same N part Phys.Lett. B37 (2006) 161 Phys.Rev.Lett. 97 (2006) 152301

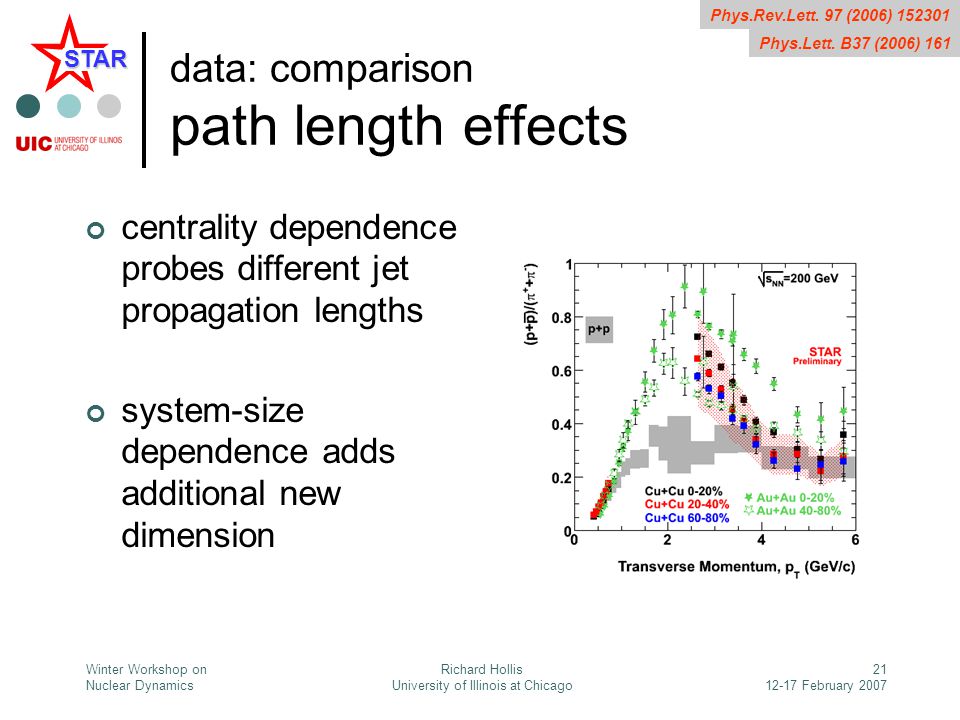

21 STAR 21 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison path length effects centrality dependence probes different jet propagation lengths system-size dependence adds additional new dimension Phys.Lett. B37 (2006) 161 Phys.Rev.Lett. 97 (2006) 152301

22 STAR 22 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison path length effects enhancement of baryons gluon jets are more easily propagated? more gluon jets initially produced or induced for more central data? need further differential analysis to investigate this versus reaction plane? current statistics too limited for this analysis Phys.Lett. B37 (2006) 161 Phys.Rev.Lett. 97 (2006) 152301

23 STAR 23 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison observed scaling properties at low-p T Mean-p T Kinetic Freeze-out temperature for same energy: scaling observed for same N part energy dependence: scaling observed with N ch A.Iordanova, QM2006 poster

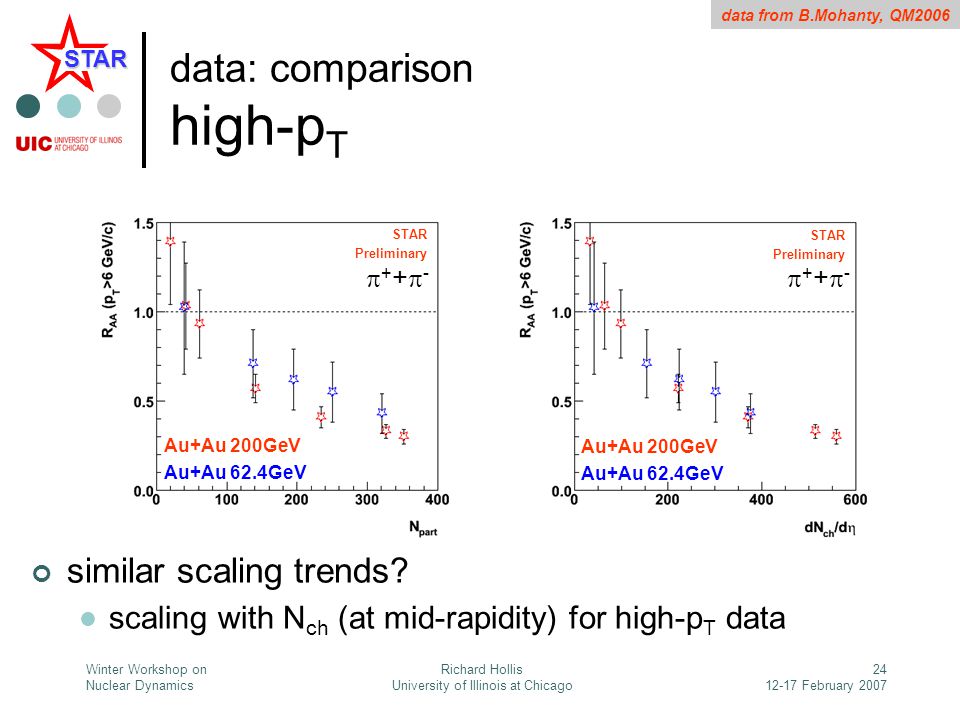

24 STAR 24 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics data: comparison high-p T similar scaling trends? scaling with N ch (at mid-rapidity) for high-p T data data from B.Mohanty, QM2006 STAR Preliminary STAR Preliminary Au+Au 200GeV Au+Au 62.4GeV Au+Au 200GeV Au+Au 62.4GeV ++-++- ++-++-

25 STAR 25 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics summary we have a systematic data sample of identified  and p(p) measured at RHIC systematic effects are observed versus the system size of the collision  suppression at large transverse momenta (R AA ) for larger system sizes (i.e. more central data) enhanced p/  ratio at intermediate p T N ch scaling for low- and high-p T particles further differential measurements are needed to help determine the precise nature of the collision dynamics

26 STAR 26 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics auxiliary slides

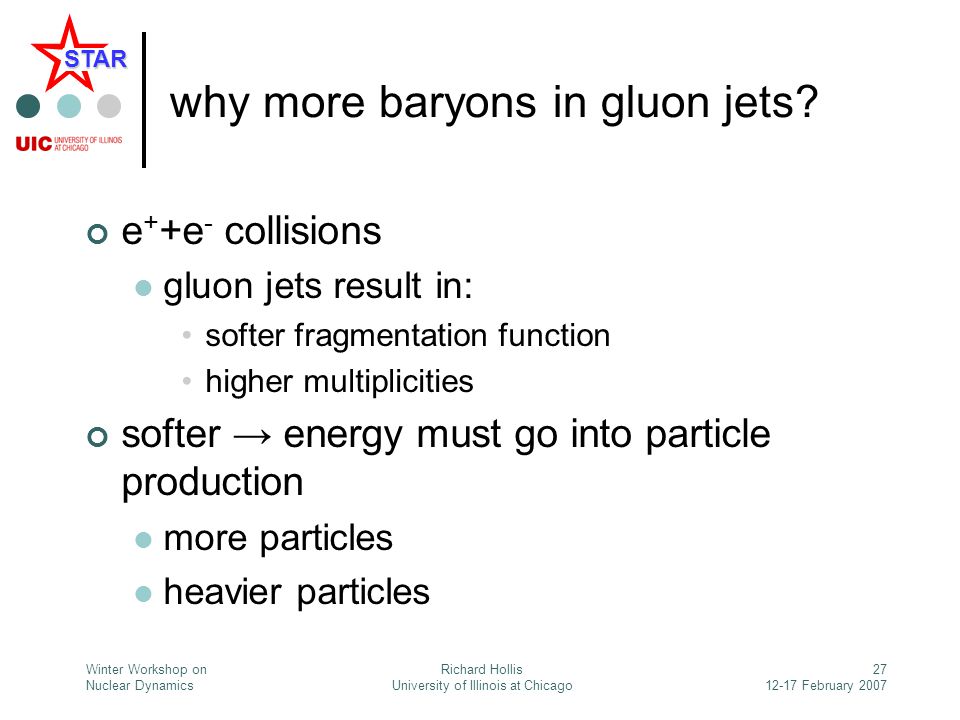

27 STAR 27 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics why more baryons in gluon jets? e + +e - collisions gluon jets result in: softer fragmentation function higher multiplicities softer → energy must go into particle production more particles heavier particles

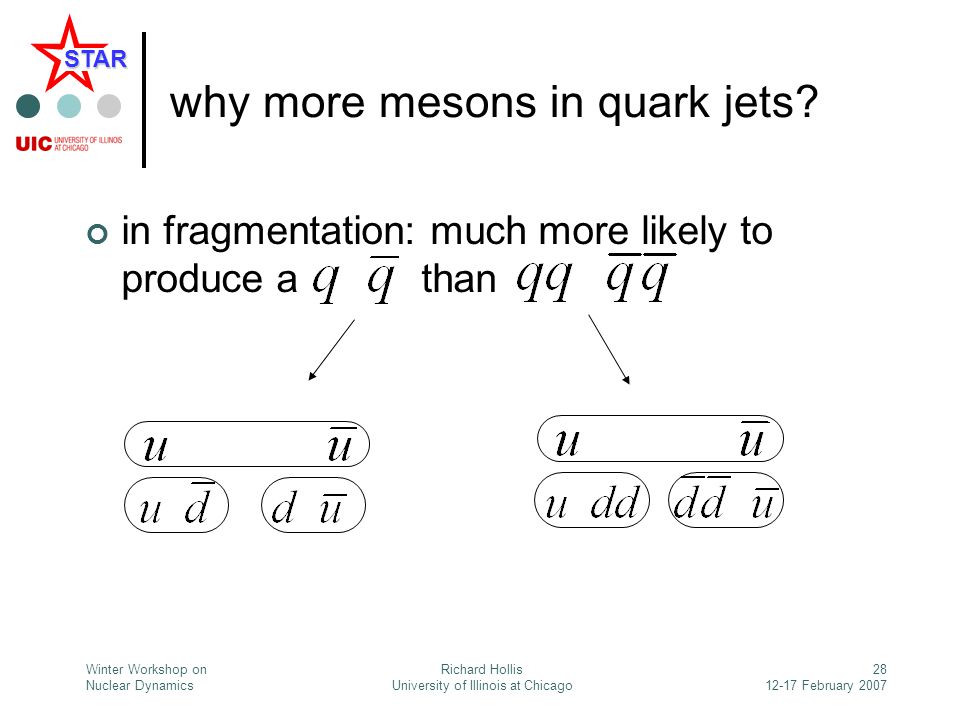

28 STAR 28 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics why more mesons in quark jets? in fragmentation: much more likely to produce a than

29 STAR 29 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics recombination and fragmentation competing processes: recombination fragmentation high-p T dominated by fragmentation? intermediate-p T dominated by recombination? Figs from B. Muller: nucl-th/0404015, R. Fries: QM 2004, PRL 90 202303 (2003) DATA and FITS Thermal Exponential pQCD power-law

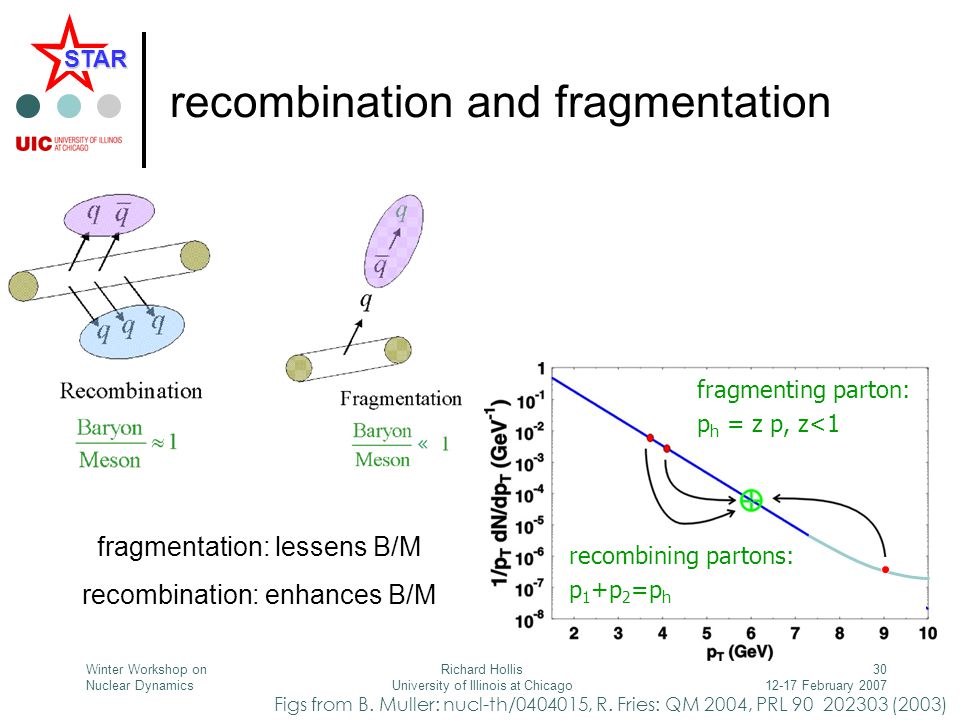

30 STAR 30 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics recombination and fragmentation Figs from B. Muller: nucl-th/0404015, R. Fries: QM 2004, PRL 90 202303 (2003) fragmenting parton: p h = z p, z<1 recombining partons: p 1 +p 2 =p h fragmentation: lessens B/M recombination: enhances B/M

31 STAR 31 12-17 February 2007 Richard Hollis University of Illinois at Chicago Winter Workshop on Nuclear Dynamics comparison of data comparison of PHENIX low- to intermediate-p T to STAR high-p T data note: PHENIX: 0-10% Central STAR: 0-20% Central

Download ppt "12-17 February 2007 Winter Workshop on Nuclear Dynamics STAR identified particle measurements at large transverse momenta in Cu+Cu collisions at RHIC Richard."
