2. 7 Jul 2005 AST 2010: Chapter 41 Radiation & Spectra

3. Lite Question What does it mean to see something?

4. 7 Jul 2005AST 2010: Chapter 43 Astronomy and Light (1) Most of the celestial objects studied in astronomy are completely beyond human reach Astronomers gain information about them almost exclusively through the light and other kinds of radiation received from them Light is the most familiar form of radiation, which is a general term for electromagnetic waves Because of this fact, astronomers have devised many techniques to decode as much as possible the information that is encoded in the often very- faint rays of light from celestial objects

5. 7 Jul 2005AST 2010: Chapter 44 Astronomy and Light (2) If this “cosmic code” can be deciphered, we can learn an enormous amount about astronomical objects (their composition, motion, temperature, and much more) without having to leave the Earth or its immediate environment! To uncover such information, astronomers must be able to analyze the light they receive One of astronomers’ most powerful tools in analyzing light is spectroscopy This is a technique of dispersing (spreading out) the light into its different constituent colors (or wavelengths) and analyzing the spectrum, which is the array of colors

6. 7 Jul 2005AST 2010: Chapter 45 Astronomy and Light (3) Physicists have found that light and other types radiation are generated by processes at the atomic level Thus, to appreciate how light is generated and behaves, we must first become familiar with how atoms work Our exploration will focus on one particular component of an atom, called electric charge Many objects have not only mass, but also an additional property called electric charge, which can be traced to the atoms that the objects are made of

7. 7 Jul 2005AST 2010: Chapter 46 Detour: the Atom and the Nucleus Each atom consists of a core, or nucleus, containing positively charged protons and neutral neutrons, and negatively charged electrons surrounding the nucleus

8. 7 Jul 2005AST 2010: Chapter 47 Detour: Isotopes of Hydrogen The hydrogen atom is the simplest, consisting of only one proton and one electron Although most hydrogen atoms have no neutrons at all, some may contain a proton and one or two neutrons in the nucleus The different hydrogen nuclei with different numbers of neutrons are called isotopes of hydrogen

9. Electric Charge In the vicinity of an electric charge, another charge feels a force of attraction or repulsion This is true regardless of whether the charges are at rest or in motion relative to each other There are two kinds of charge: positive and negative Like charges repel, and unlike charges attract If the charges are in motion relative to each other, another force arises, which is called magnetism Although magnetism was well known for millennia, not until the 19th century did scientist understand that it was caused by moving charges Thus, the electric charge is responsible for both electricity and magnetism

10. 7 Jul 2005AST 2010: Chapter 49 Electric and Magnetic Fields In physics, the word field (or force field) is used to describe the action of forces that one object exerts on other distant objects For example, the Earth produces a gravitational field in the space around it that controls the Moon’s orbit about Earth, although they do not come directly into contact Thus, a stationary electric charge produces an electric field around it, whereas a moving electric charge produces both an electric field and a magnetic field Similarly, a magnet is surrounded by a magnetic field

11. 7 Jul 2005AST 2010: Chapter 410 James Clerk Maxwell (1) Maxwell (1831-1879), born and educated in Scotland, unified the rules governing electricity and magnetism into a coherent theory It describes the intimate relationship between electricity and magnetism with only a few elegant formulas Also, it allows us to understand the nature and behavior of light Before Maxwell proposed his theory, many experiments had shown that changing magnetic fields could generate electric fields

12. 7 Jul 2005AST 2010: Chapter 411 James Clerk Maxwell (2) Maxwell’s theory led to a hypothesis: If a changing magnetic field can create an electric field, then a changing electric field can create a magnetic field The consequences of his hypothesis: Changing electric and magnetic fields should trigger each other The changing fields should spread out like a wave and travel through space at a speed equal to the speed of light Maxwell’s conclusion: Light is one form of a family of possible electric and magnetic disturbances which travel and are called electromagnetic radiation or electromagnetic waves Experiments later confirmed Maxwell’s prediction

13. Lite Question What other waves do you know?

14. 7 Jul 2005AST 2010: Chapter 413 Electromagnetic Radiation Electromagnetic (EM) radiation has some of the characteristics that other types of waves have, such as wavelength, frequency, and speed (see next slide), as well as energy Unlike most other kinds of waves, however, EM waves can travel through empty space (vacuum) Sound waves cannot travel through vacuum Also unlike other types of waves, light and other EM waves travel in empty space (vacuum) at the same speed, which is the speed of light The speed of light is 299,800 kilometers/second This number is usually abbreviated as c

15. 7 Jul 2005AST 2010: Chapter 414 Wave Characteristics The wavelength () is the size of one cycle of the wave in space It is also the distance from one crest (or one trough) to the next Common units for are meter (m), nanometer (nm), and angstrom (A) The frequency (f) of the wave indicates the number of wave cycles that pass per second The unit for frequency is hertz (Hz) The speed (v) of the wave indicates how fast it propagates through space Common units for v are m/s, km/hour, and miles/hour v = f x

16. Electromagnetic Wave The electric and magnetic fields of an EM wave oscillate at right angles to each other and the combined wave moves in a direction perpendicular to both of the electric- and magnetic-field oscillations Animation

17. Visible Spectrum Visible light (the EM radiation that the human eye detects) has a range of wavelengths from 4,000 angstroms to 7,000 angstroms (or from 400 nm to 700 nm) 1 angstrom = 10 -10 meter Different wavelengths of light are perceived by the eye as different colors White light is a combination of all the colors SimulationsSimulations for combining light of different colors When light rays pass from one transparent medium (or a vacuum) to another, they are bent or refracted The refraction angle depends on the wavelength (color) In other words, light rays of different colors are bent differently Simulation

18. Dispersion by Refraction The separation of light into its various colors is called dispersion White light passing through a prism undergoes dispersion into different colors What is produced is a rainbow-colored band of light called a continuous spectrum Simulation First discovered by Newton

19. 7 Jul 2005AST 2010: Chapter 418 EM Radiation Carries Energy Objects in the universe send us an enormous range of EM radiation The types of radiation, from the highest to lowest energy, are Gamma rays X-rays Ultraviolet (UV) Visible light Infrared (IR) Radio waves Microwaves are high-energy radio waves

20. Electromagnetic Spectrum The EM spectrum is the entire range of wavelengths of EM radiation, including the visible spectrum Simulation

21. Visible Light Since the speed of light is v = c = 3 x 10 8 m/s, the formula v = f x becomes c = f x c = f x  can be rewritten as f = c/ or = c/f Thus, light with a larger wavelength has a lower frequency, and light with a smaller wavelength has a higher frequency In the visible spectrum, red colors have the largest wavelengths (lowest frequencies), whereas blue and violet colors have the smallest wavelengths (highest frequencies)

22. 7 Jul 2005AST 2010: Chapter 421 Electromagnetic Radiation Reaching Earth Not all wavelengths of light from space make it to Earth’s surface Only long-wave ultraviolet (UV), visible, parts of the infrared (IR), and most radio waves reach the surface More IR reaches elevations above 9,000 feet (2,765 meters) The blocking of gamma rays, X-rays, and most UV by the Earth’s atmosphere is good for the preservation of life on the planet but poses an obstacle to astronomers studying the sky in these bands Consequently, astronomers unable to detect these types of radiation from celestial objects using ground- based instruments must perform their observations from high mountaintops, high-flying airplanes, and spacecraft

23. 7 Jul 2005AST 2010: Chapter 422 Electromagnetic Spectrum & Earth’s Atmosphere

24. Lite Question Is light a wave or a particle?

25. 7 Jul 2005AST 2010: Chapter 424 Continuous Spectrum This is a continuous band of the colors of the rainbow, one color smoothly blending into the next A continuous spectrum is formed whenever a solid, liquid, or very-dense gas gives off radiation

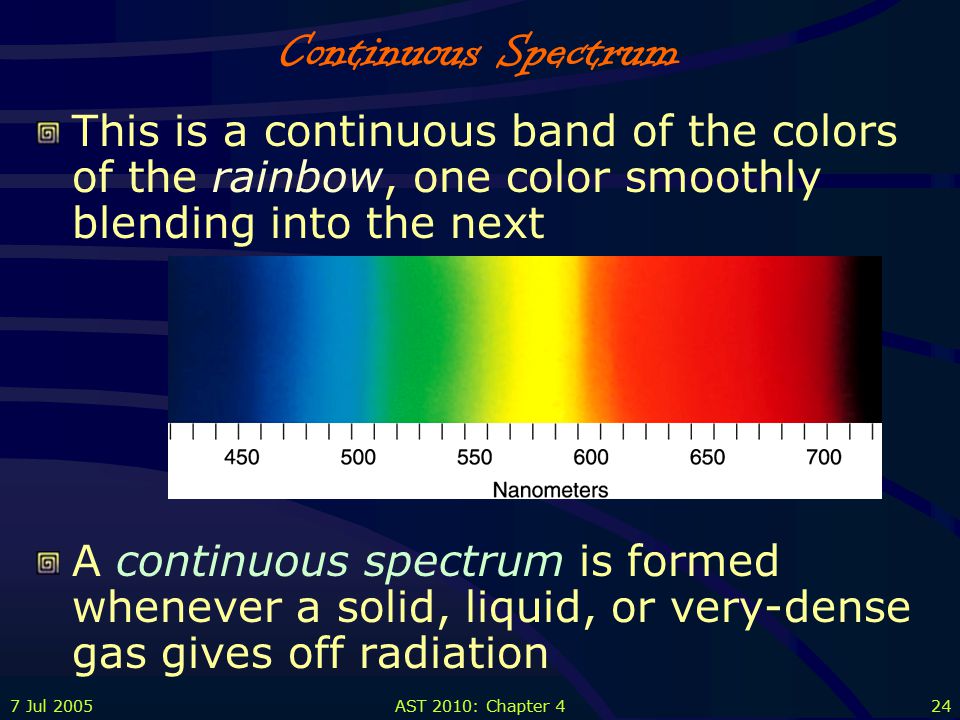

26. 7 Jul 2005AST 2010: Chapter 425 Max Planck’s Photon Planck (1858-1947) discovered that if one considers light as packets of energy called photons, one can accurately explain the shape of continuous spectra A photon is the particle of electromagnetic radiation Bizarre though it may be, light is both a particle and a wave Whether light behaves like a wave or like a particle depends on how the light is observed This depends on the experimental setup!

27. 7 Jul 2005AST 2010: Chapter 426 Albert Einstein’s Photon Energy Interpretation A few years after Planck's discovery, Einstein (1879-1955) found a very simple relationship between the energy of a light wave (photon) and its frequency (f) Energy of light = h × f Here h = 6.63 × 10 -34 J·sec is a universal constant of nature called Planck's constant Alternatively, energy of light = (h × c)/ Thus, a high-energy EM wave has a high frequency and a small wavelength

28. 7 Jul 2005AST 2010: Chapter 427 Blackbody Radiation A blackbody is an idealized object which absorbs all the electromagnetic radiation that falls on it, reflecting none of the incoming radiation In other words, a blackbody is a perfect absorber of radiation and, therefore, “appears black” When a blackbody is heated, it emits EM radiation very efficiently at all wavelengths A blackbody is thus an excellent emitter of radiation Though no real object is a perfect blackbody, most celestial bodies behave very much like a blackbody when it comes to emitting radiation In other words, they produce radiation spectra that are very similar to the spectrum of blackbody radiation Therefore, understanding the blackbody spectrum allows us to understand the radiation from celestial objects

29. Blackbody Spectrum (1) These graphs show that the higher the temperature of a blackbody, the shorter the wavelength at which maximum power is emitted Power is the amount of energy released per second Simulation The wavelength ( max ) at which maximum power is emitted by a blackbody is related to its kelvin temperature (T) by max = 3 x 10 6 /T This relationship is known as Wien’s law

30. 7 Jul 2005AST 2010: Chapter 429 Blackbody Spectrum (2) These graphs also show that a blackbody (BB) at a higher temperature emits more power at all wavelengths than does a cooler BB The total power emitted per unit area (F) by a BB is proportional to its kelvin temperature (T) raised to the fourth power, namely F  T 4 This is known as the Stefan-Boltzmann law

31. Star Color and Temperature Lessons learned from blackbody radiation can be used to estimate the temperature of stars and other celestial bodies Thus, the dominant color and the brightness of a body can give us some idea about its temperature

32. 7 Jul 2005AST 2010: Chapter 431 Line Spectra (1) If a thin (low density) gas is heated until it glows with its own light, the spectrum is not continuous, but consists of a series of separate bright lines called emission lines The lines imply that the atoms of the gas can emit only certain discrete wavelengths (colors) of light The gas of each particular element (such as hydrogen, or sodium) produces an emission line spectrum that has a specific pattern of lines unique to that element and thus serves as its unique spectral signature No two elements have the same patterns

33. 7 Jul 2005AST 2010: Chapter 432 Line Spectra (2) A close examination of the spectra from the Sun and other stars reveals that the rainbow of colors in their spectra has many dark lines called absorption lines The combination of dark lines and continuous spectrum is called the absorption line spectrum The underlying continuous spectrum is produced by the hotter and denser gas in the stars’ inner layers The dark lines are produced by the cooler and thinner gas in the stars’ outer layers, and imply that the atoms of the gas can absorb only certain discrete wavelengths (colors) of light The gas of a particular element can produce both emission and absorption line-spectra

34. Absorption & Emission Line Spectra

35. 7 Jul 2005AST 2010: Chapter 434 Three Kinds of Spectra Since each element has its own spectral signature in the pattern of absorption or emission lines we observe, spectral analyses can reveal some information about the composition of the Sun and other stars

36. The Bohr Atom Niels Bohr (1885-1962) developed a model of the atom that provided the explanation for line spectra in the early 20th century In the model, an electron can be found only in energy orbits of certain sizes Also, if the electron moves from one orbit to another, it must absorb or emit energy The absorbed or emitted energy can be in the form of a photon or an energy exchange with another atom Simulation This model sounded outlandish, but numerous experiments confirmed its validity

37. 7 Jul 2005AST 2010: Chapter 436 Bohr’s Model of the Atom The massive but small positively-charged protons and massive but small neutral neutrons are found in the tiny nucleus The small negatively-charged electrons move around the nucleus in certain specific orbits (energies) An electron is much lighter than a proton or neutron In a neutral atom the number of electrons equals the number of protons The arrangement of an atom's energy orbits depends on the number of protons and neutrons in the nucleus and the number of electrons orbiting the nucleus Each type of atom has its own unique arrangement of the energy orbits and, therefore, produces its own unique pattern of emission or absorption lines

38. 7 Jul 2005AST 2010: Chapter 437 How Emission Line is Produced

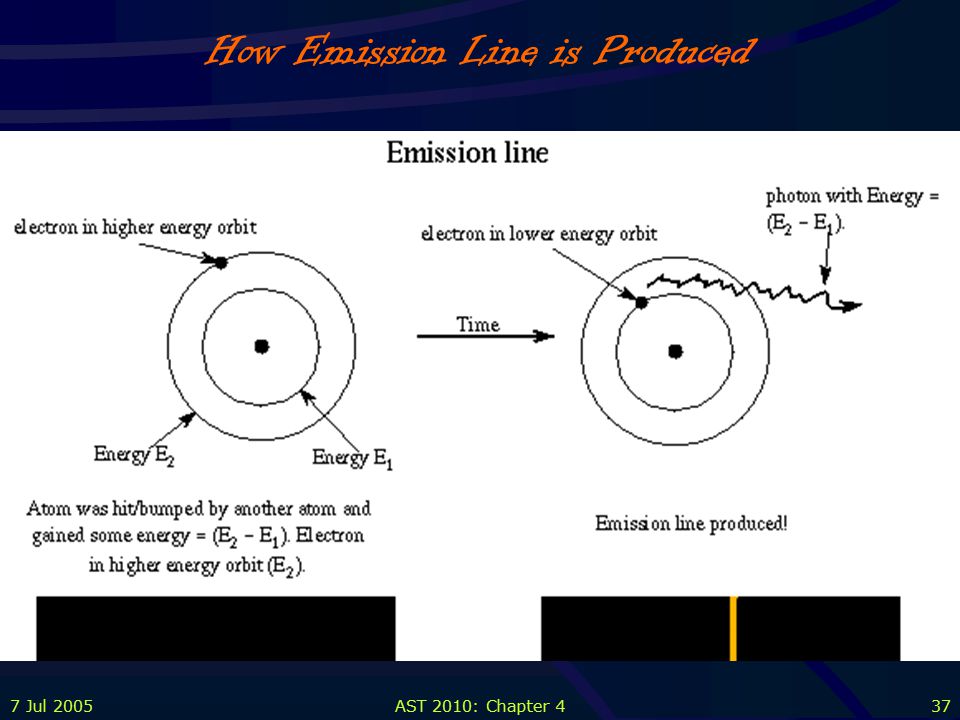

39. 7 Jul 2005AST 2010: Chapter 438 Spectral Signatures of Hydrogen & Helium

40. 7 Jul 2005AST 2010: Chapter 439 How Absorption Line is Produced

41. 7 Jul 2005AST 2010: Chapter 440 Doppler Effect When Source and Observer are in Relative Motion

42. No Doppler Effect When Source and Observer are not in Relative Motion AnimationsAnimations (for sound waves)

43. 7 Jul 2005AST 2010: Chapter 442 Doppler Effect in Radar Guns

44. 7 Jul 2005AST 2010: Chapter 443 Doppler Shift in Spectra
