1. CS 717: Programming for Fault-tolerance Keshav Pingali Cornell University

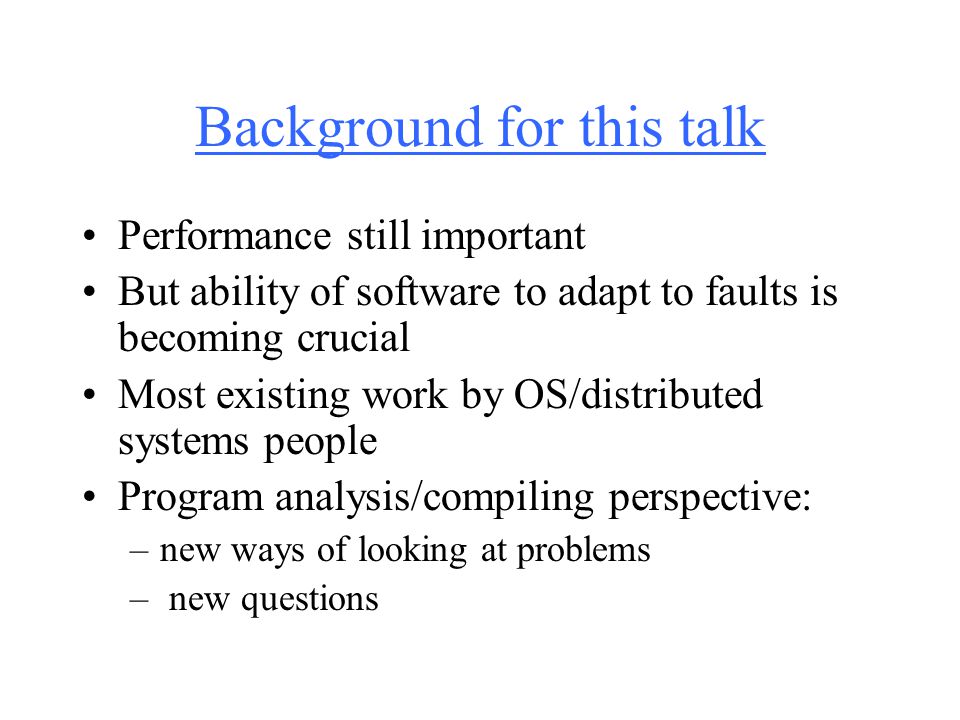

2. Background for this talk Performance still important But ability of software to adapt to faults is becoming crucial Most existing work by OS/distributed systems people Program analysis/compiling perspective: –new ways of looking at problems – new questions

3. Computing Model Message-passing (MPI) Fixed number of processes Abstraction: process actions –compute –send(m,r) //send message m to process r –receive(s) //receive message from process s –receive_any() //receive message from any process FIFO channels between processes

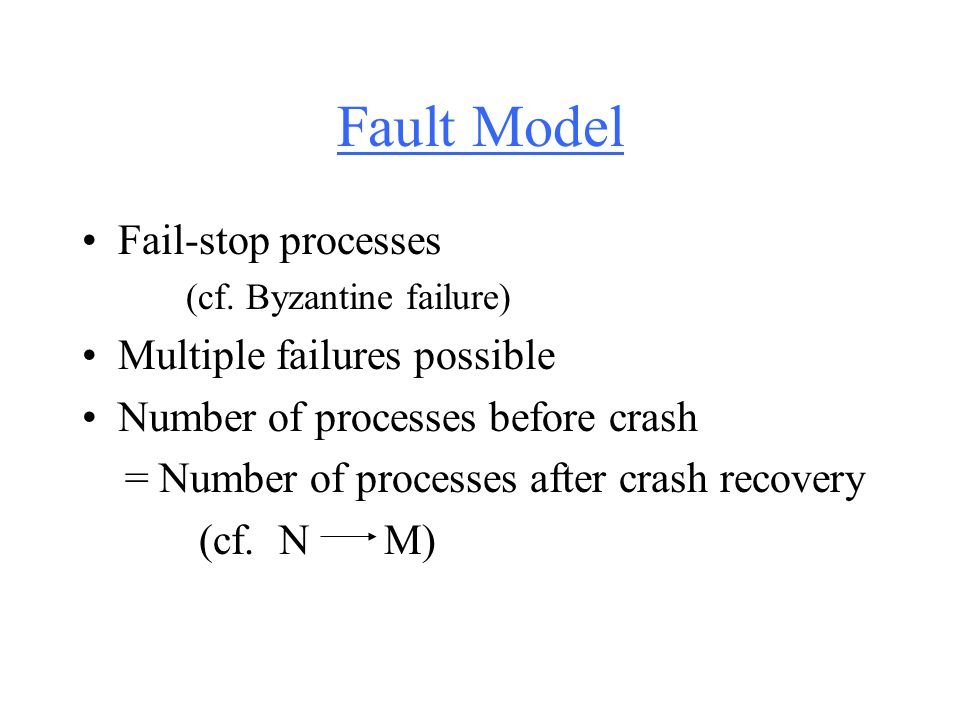

4. Fault Model Fail-stop processes (cf. Byzantine failure) Multiple failures possible Number of processes before crash = Number of processes after crash recovery (cf. N M)

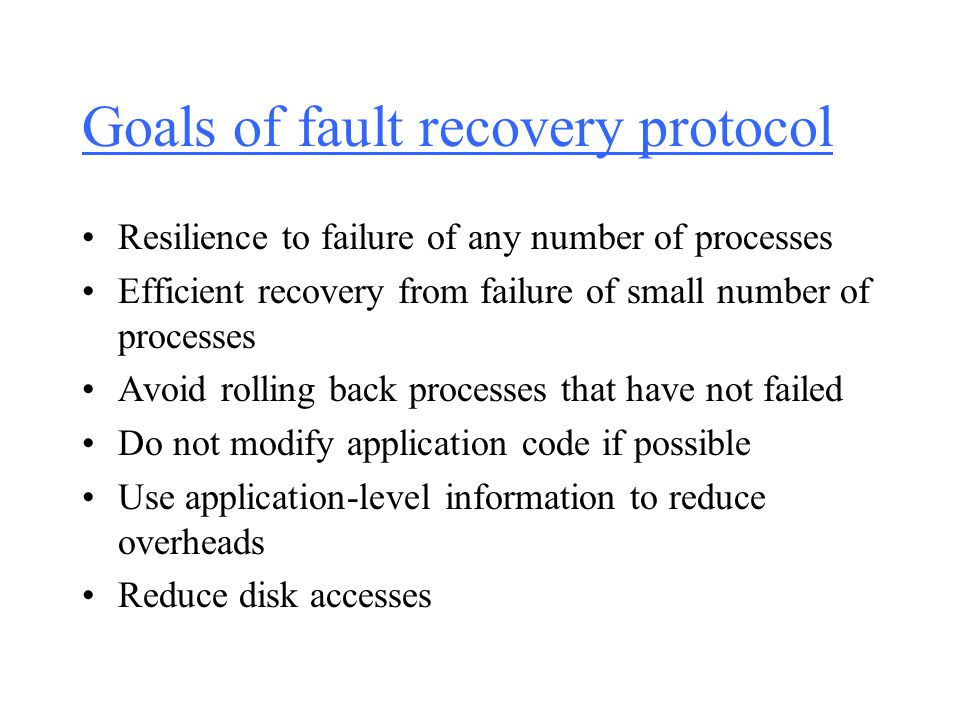

5. Goals of fault recovery protocol Resilience to failure of any number of processes Efficient recovery from failure of small number of processes Avoid rolling back processes that have not failed Do not modify application code if possible Use application-level information to reduce overheads Reduce disk accesses

6. Mechanisms Stable storage: –disk –survives process crashes –accessible to surviving processes Volatile log: –RAM associated with process –evaporates when process fails Piggybacking: –protocol information hitched onto application messages

7. Key idea: causality (Lamport) Execution events: compute, send, receive Happened-before relation on execution events: e1 < e2 –e1,e2 done by same process, and e1 was done before e2 –e1 is send and e2 is matching receive –transitivity: there exists ek such that e1 < ek and ek < e2 Intuition: like coarse-grain dependence information a b c de f P Q R a b c d e f z z

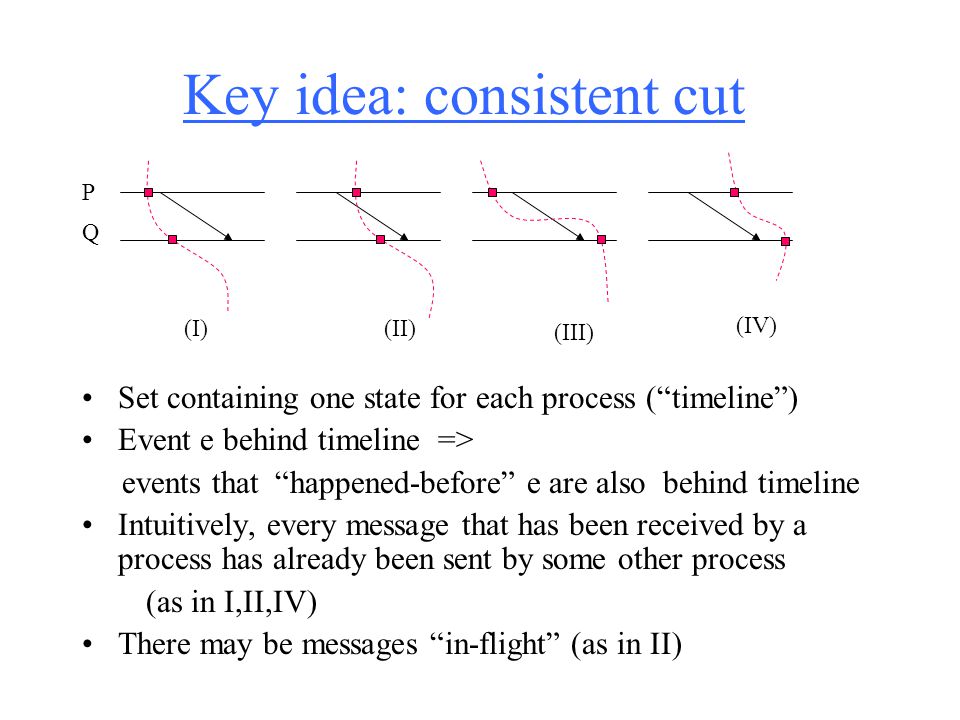

8. Key idea: consistent cut Set containing one state for each process (“timeline”) Event e behind timeline => events that “happened-before” e are also behind timeline Intuitively, every message that has been received by a process has already been sent by some other process (as in I,II,IV) There may be messages “in-flight” (as in II) P Q (I)(II) (III) (IV)

9. Classification of recovery protocols Recovery Protocols Check-pointing Message-logging UncoordinatedCoordinated BlockingNon-blocking each process saves its state independently of others hardware/software barrier distributed snap-shot log messages and replay processes co-operatively save distributed state save state on stable storage

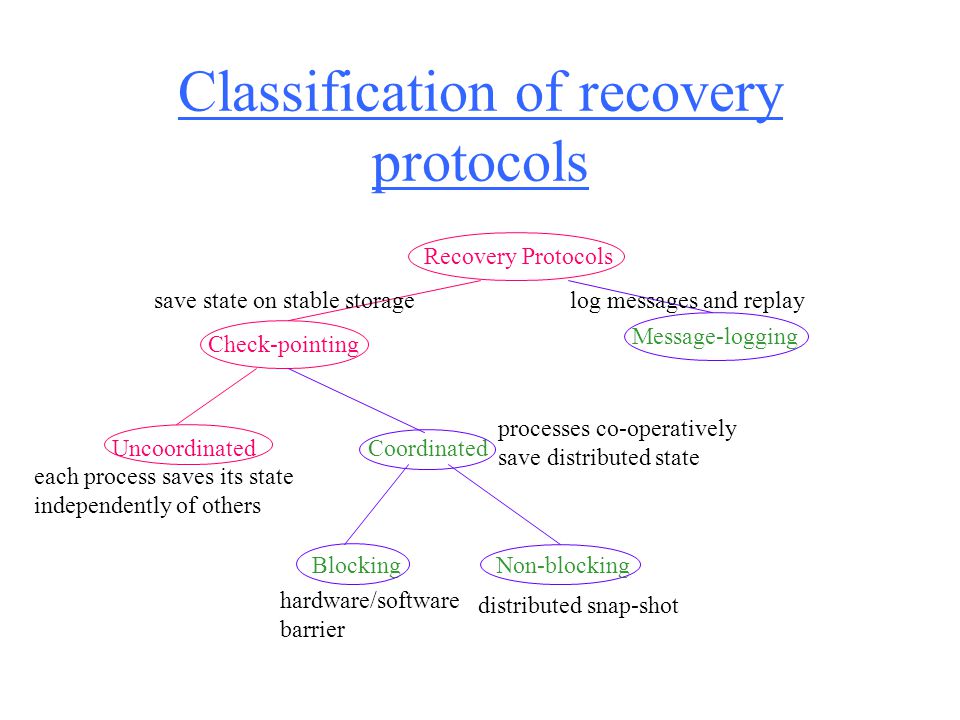

10. Classification of recovery protocols Recovery Protocols Check-pointing Message-logging UncoordinatedCoordinated BlockingNon-blocking each process saves its state independently of others hardware/software barrier distributed snap-shot log messages and replay processes co-operatively save distributed state save state on stable storage

11. Uncoordinated Checkpointing Each process saves its state independently of other processes Each process numbers its checkpoints starting at 0 Upon failure of any process, all processes cooperate to find “recovery line” (consistent cut + in-flight messages) m m+1 nn+1 Consistent cuts: {m,n}, {m,n+1},{m+1,n+1} Not consistent cuts: {m+1,n} P Q :checkpoints

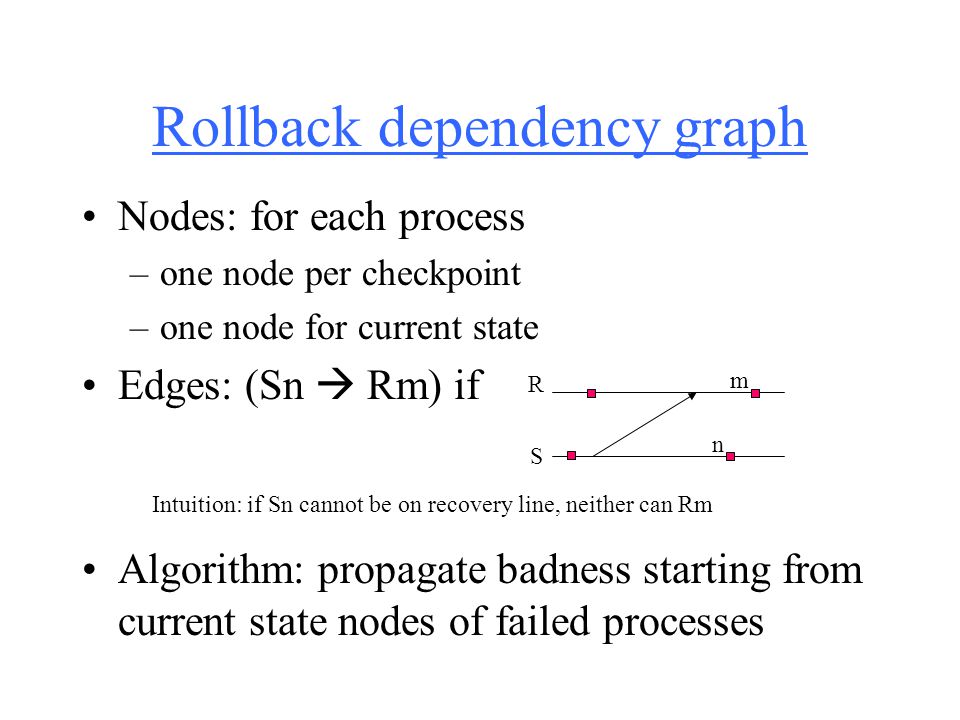

12. Rollback dependency graph Nodes: for each process –one node per checkpoint –one node for current state Edges: (Sn  Rm) if Algorithm: propagate badness starting from current state nodes of failed processes m n R S Intuition: if Sn cannot be on recovery line, neither can Rm

13. Example 00 01 0203 10111213 20212223 30313233 00 01 0203 10111213 2021 22 23 30313233 X X 00 01 03 10111213 2021 22 23 30313233 (a) Time-line (b) Roll-back dependence graph © Propagation of badness : state on recovery line 02 X X X X P0 P1 P2 P3

14. Protocol Each process maintains “next-checkpoint-#” –Incremented when checkpoint is taken Send: piggyback “next-checkpoint-#” on message Receive/receive_any: save (Q,data,n) in log At checkpoint: –save local state and log on stable storage –empty log SOS from a process: –Send current log to recovery manager –Wait to be informed about where to rollback to –Rollback In-flight messages: omitted from talk n P Q (data,n)

15. Discussion Easy to modify our algorithm to find recovery line with no in-flight messages No messages or coordination required to take local checkpoints Protocol can boot-strap on any algorithm for saving uniprocessor state Cascading rollback possible Discarding local checkpoints: requires finding current recovery line (global coordination…) One process fails => all processes may be rolled back

16. Classification of recovery protocols Recovery Protocols Check-pointing Message-logging UncoordinatedCoordinated BlockingNon-blocking each process saves its state independently of others hardware/software barrier distributed snap-shot log messages and replay processes co-operatively save distributed state save state on stable storage

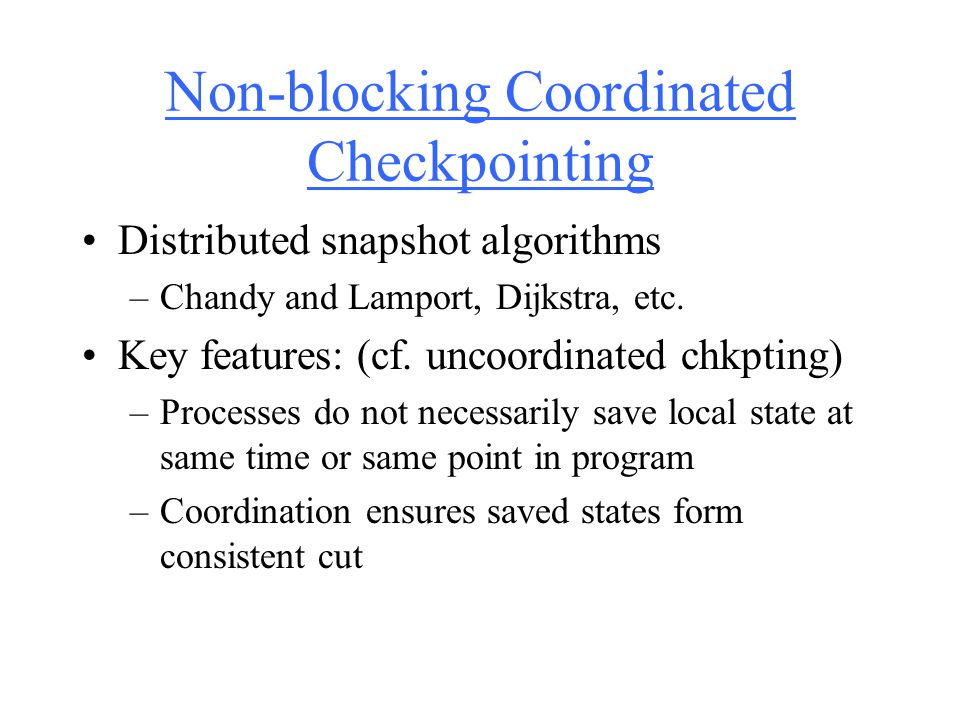

17. Non-blocking Coordinated Checkpointing Distributed snapshot algorithms –Chandy and Lamport, Dijkstra, etc. Key features: (cf. uncoordinated chkpting) –Processes do not necessarily save local state at same time or same point in program –Coordination ensures saved states form consistent cut

18. Chandy/Lamport algorithm Process graph –Static –Forms strongly connected component Some process is “checkpoint coordinator” –Initiates taking of snapshot –Detects when all processes have completed local checkpoints –Advances global snapshot number Coordination is done using marker tokens sent along process graph channels

19. Protocol (simplified) Coordinator –Saves its local state –Sends marker tokens on all outgoing edges Other processes –When first marker is received, save local state and send marker tokens on all outgoing channels. All processes –Subsequent markers are simply eaten up. –Once markers have been received on all input channels, inform coordinator that local checkpoint is done. Coordinator –once all processes are done, advances snapshot number

20. Example

21. Sketch of correctness proof P must have sent marker on channel P  Q before it sent application message d Q must have received marker before it received d So Q must have taken checkpoint before receiving d  anti-causal message like d cannot exist d P Q Can anti-causal message d exist?

22. Discussion Easy to modify protocol to save in-flight messages with local check-point No cascading roll-back Number of coordination messages = |E| + |N| Discarding snapshots is easy One process fails  all processes roll back

23. Classification of recovery protocols Recovery Protocols Check-pointing Message-logging UncoordinatedCoordinated BlockingNon-blocking each process saves its state independently of others hardware/software barrier distributed snap-shot log messages and replay processes co-operatively save distributed state save state on stable storage

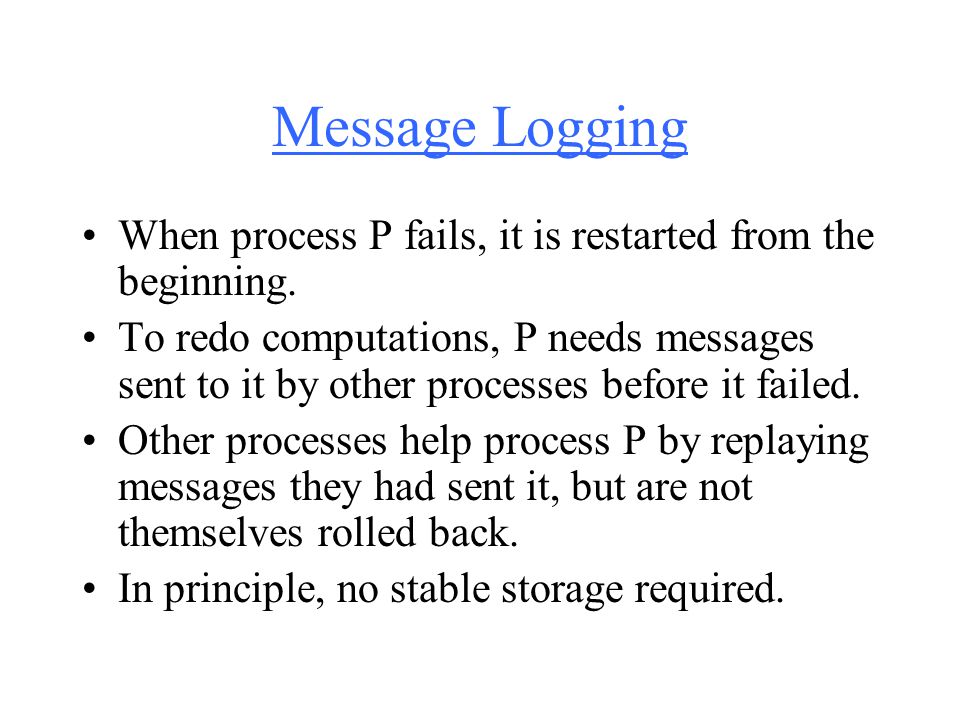

24. Message Logging When process P fails, it is restarted from the beginning. To redo computations, P needs messages sent to it by other processes before it failed. Other processes help process P by replaying messages they had sent it, but are not themselves rolled back. In principle, no stable storage required.

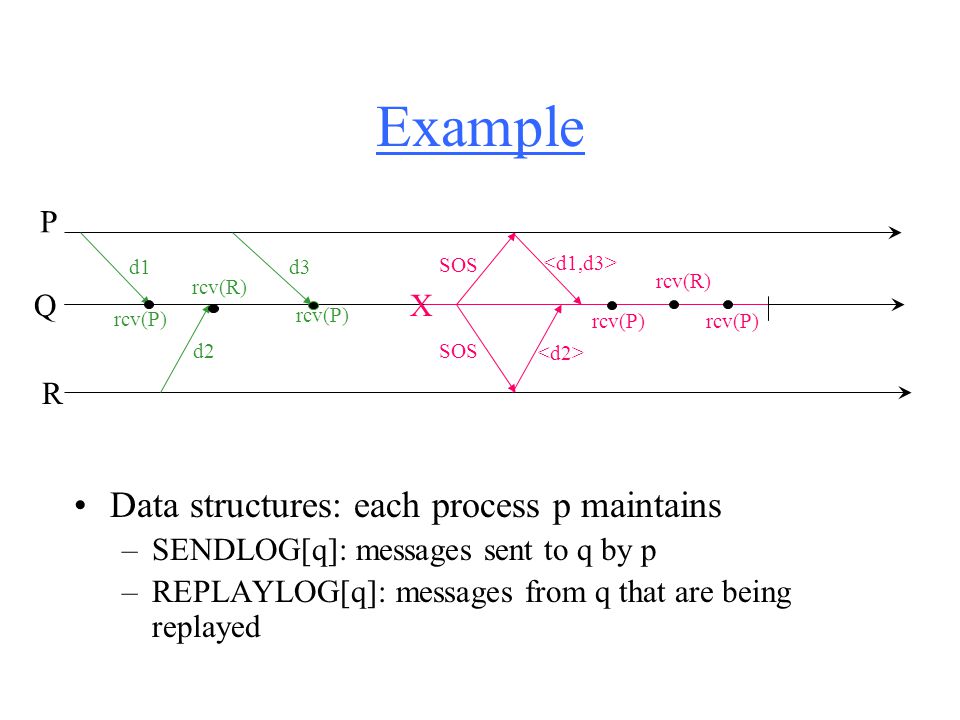

25. Example Data structures: each process p maintains –SENDLOG[q]: messages sent to q by p –REPLAYLOG[q]: messages from q that are being replayed rcv(P) rcv(R) rcv(P) rcv(R) rcv(P) SOS d1d3 d2 XQ R P

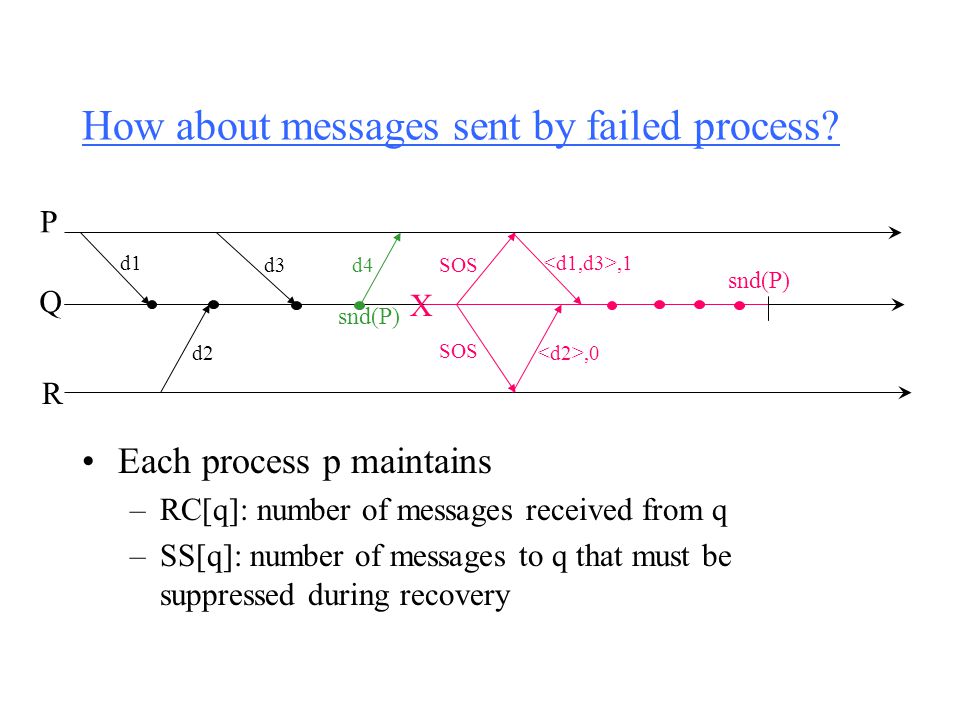

26. How about messages sent by failed process? Each process p maintains –RC[q]: number of messages received from q –SS[q]: number of messages to q that must be suppressed during recovery SOS,1,0 X R P snd(P) d4 d1 d3 d2 Q

27. Protocol Each process p maintains –SENDLOG[q]: messages sent to q –RC[q]: # of messages received from q –REPLAYLOG[q]: messages from q that are being replayed during recovery of p –SS[q]:# of messages to q that must be suppressed during recovery of p

28. Protocol (contd) Send(q,d): –Append d to SENDLOG[q] –If (SS[q] > 0) then SS[q]--; else MPI_SEND(…); Receive(q): –If (REPLAYLOG[q] is empty) then {MPI_RECEIVE(…); RC[q]++;} else getNext(REPLAYLOG[q]);

29. Protocol (contd) SOS(q): –MPI_SEND(…,q, ) –SS[q] = 0;

30. Protocol(contd) Fail: –for each other process q do {REPLAYLOG[q] = SENDLOG[q] = empty; SS[q] = RC[q] = 0; MPI_SEND(..,q,SOS); } for each other process q do {discard application messages till you get SOS response; update REPLAYLOG[q],SS[q],RC[q] from response; } start execution from initial state;

31. Problem with receive_any Process Q uses receive_any’s to receive d1 from P first and d2 from R next Then it sends message to T containing data that might depend on receipt order of these messages During recovery, Q does not know what choices it made before failure d1 d2 rcv?() SOS,0 <>,1 rcv?() P Q R T X

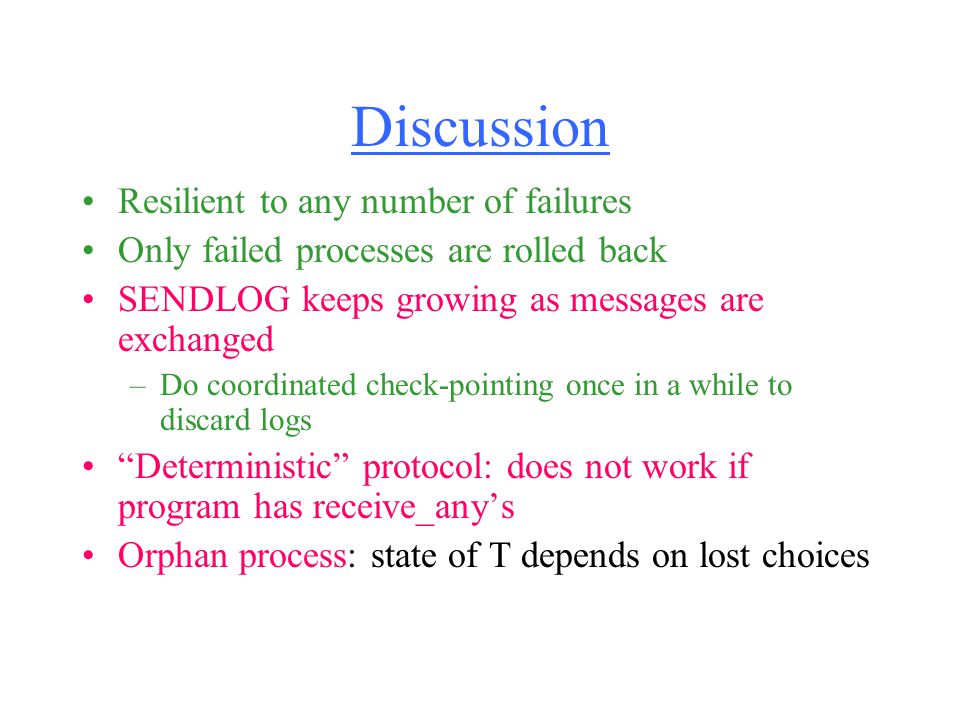

32. Discussion Resilient to any number of failures Only failed processes are rolled back SENDLOG keeps growing as messages are exchanged –Do coordinated check-pointing once in a while to discard logs “Deterministic” protocol: does not work if program has receive_any’s Orphan process: state of T depends on lost choices

33. Solutions Pessimistic protocol: no orphans – process saves non-deterministic choices on stable storage before sending any message Optimistic protocol: (Bacon/Strom/Yemeni) –during recovery, find orphans and kill them off Causal logging: no orphans –piggyback choices on outgoing messages –ensures receiving process knows all choices it is causally dependent on

34. Example Message carries all choices it is causally dependent on Optimization: avoid resending same information A B P Q R ? ? ?

35. Discussion Piggybacked choices on incoming messages are stored in log Log also stores choices made by process Optimized protocol sends incremental choice log on outgoing messages Resilient to any number of failures –any process affected by my choices knows my choices and sends them to me if I fail –if no process knows what choices I made, I am free to choose differently when I recover

36. Trade-off between resilience and overhead Suppose resilience needs only for f (< N) failures –stop propagating choice once choice has been logged in f+1 processes Hard problem –how do we know in a distributed system that some piece of information has been sent to at least f+1 processes….. FBL protocols (Alvisi/Marzullo)

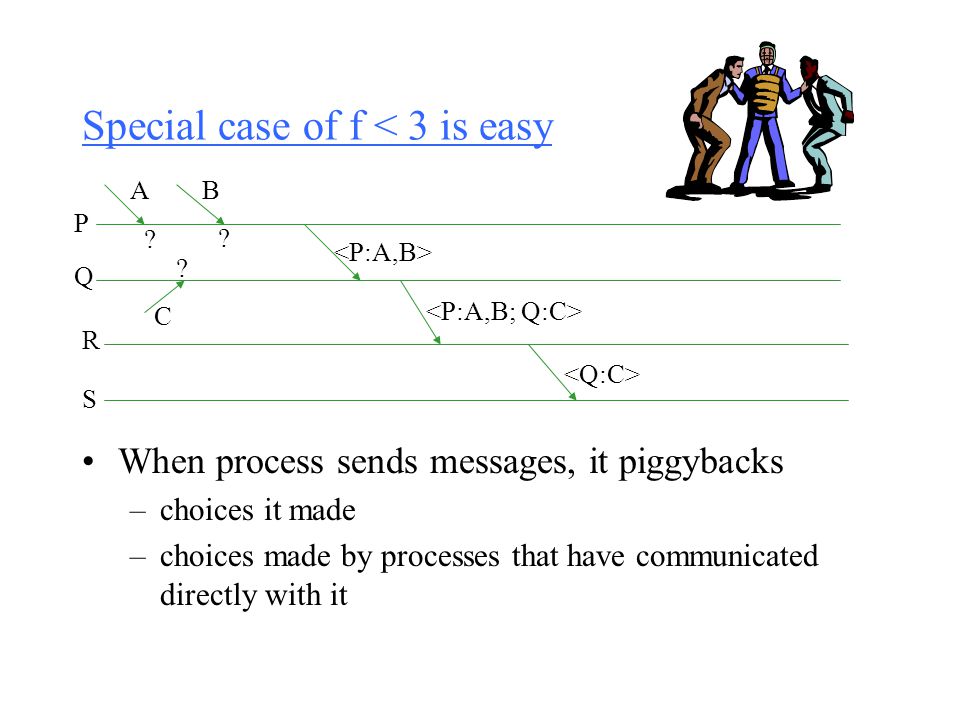

37. Special case of f < 3 is easy When process sends messages, it piggybacks –choices it made –choices made by processes that have communicated directly with it ? ? ? AB P Q R S C

38. Discussion Check-pointing + logging: –check-pointing gives resilience to any number of failures but rolls back all processes –logging gives optimized resilience to small number of failures –check-pointing reduces size of logs Overhead in tracking non-deterministic choices in receive_any’s may be substantial

39. Research Questions

40. (1) How much non-determinism needs to be tracked in scientific programs? Many uses of receive_any are actually deterministic in a “global” sense. (see next slide) These choices need not be tracked.

41. Deterministic uses of receive_any Implementation of reduction operations –No need to track choices Stateless servers –compute server –read-only data look-up Other patterns? ? ? d1 d2 d1+d2 ? ?

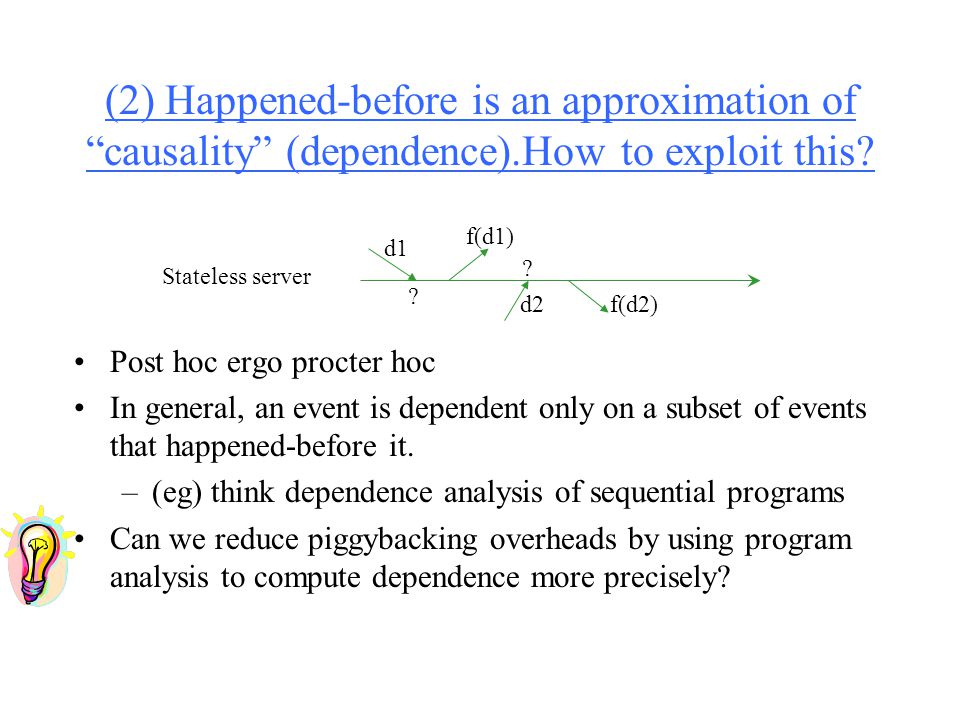

42. (2) Happened-before is an approximation of “causality” (dependence).How to exploit this? Post hoc ergo procter hoc In general, an event is dependent only on a subset of events that happened-before it. –(eg) think dependence analysis of sequential programs Can we reduce piggybacking overheads by using program analysis to compute dependence more precisely? ? ? Stateless server d1 f(d1) d2f(d2)

43. (3) Recovery program need not be same as source program. Can we compile an optimized “recovery script” for the case of single process failure? During recovery, suppress not only messages that were already sent by failed process but also the associated computations if possible ? ? Stateless server d1 f(d1) d2f(d2)

44. (4) Recovery with different number of processes Requires application intervention Some connection with load-balancing (“load-imbalancing”) Virtualization of names

45. (5) How do we extend this to active-message and shared-memory models? Active-messages: one-sided communication (as in Blue Gene) Shared-memory: –connection with memory consistency models –acquire/release etc. have no direct analog in message-passing recovery model

46. (6) How do we handle Byzantine failures? –Fail-stop behavior is idealization In reality, processes may corrupt state, send bad data etc. –How do we detect and correct such problems? –Redundancy is key, but TMR is too blunt an instrument. –Generalize approaches like check-sums, Hamming codes, etc. Fault-tolerant BLAS: Dongarra et al, Van de Geijn

47. d E(d) Encode f f Decode f(E(d)) f(d) Simple integrity test tells you if f(E(d) is OK
