1. Importance-Driven Time-Varying Data Visualization Chaoli Wang, Hongfeng Yu, Kwan-Liu Ma University of California, Davis

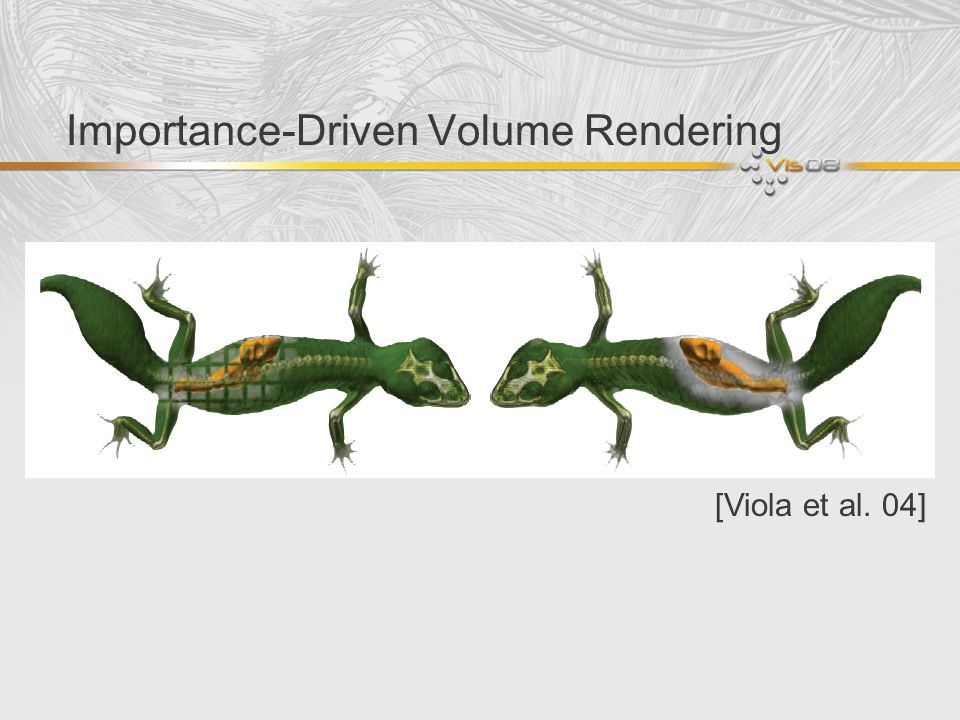

2. Importance-Driven Volume Rendering [Viola et al. 04]

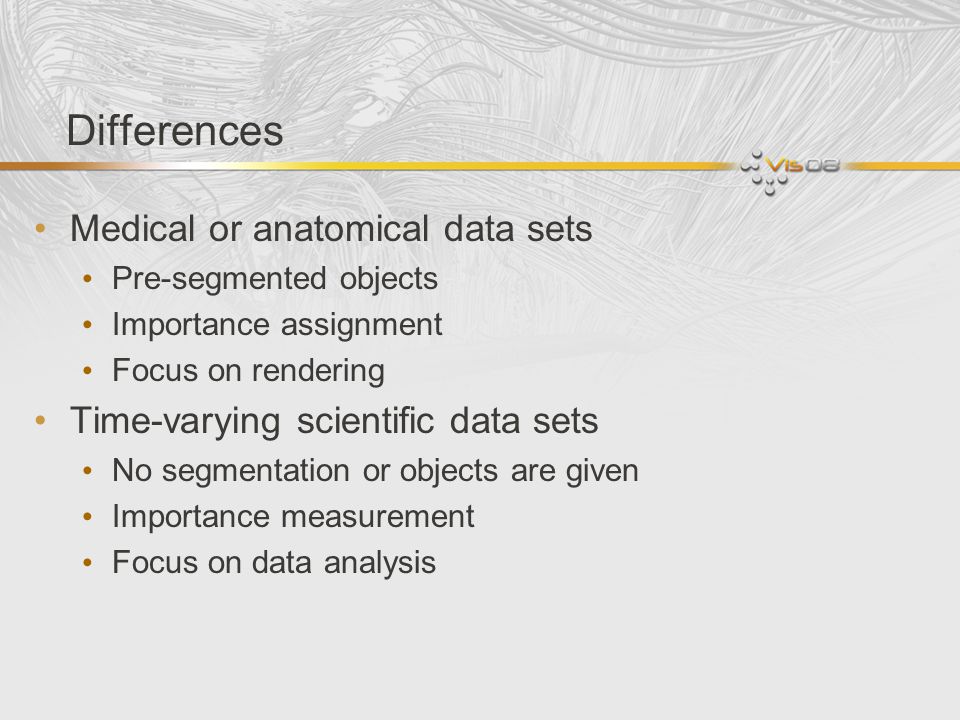

3. Differences Medical or anatomical data sets Pre-segmented objects Importance assignment Focus on rendering Time-varying scientific data sets No segmentation or objects are given Importance measurement Focus on data analysis

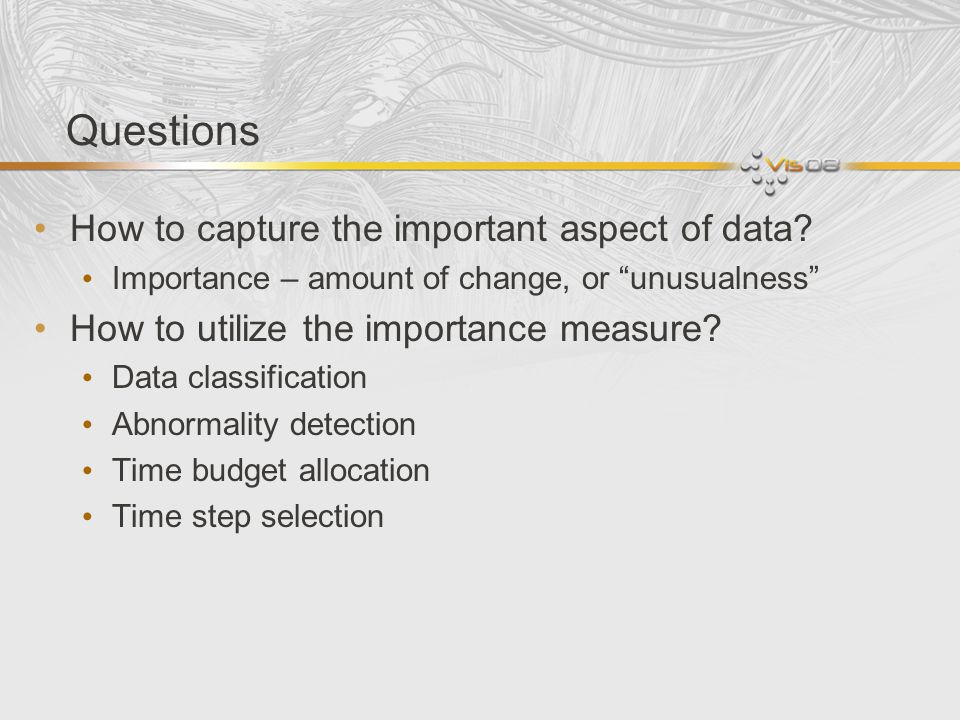

4. Questions How to capture the important aspect of data? Importance – amount of change, or “unusualness” How to utilize the importance measure? Data classification Abnormality detection Time budget allocation Time step selection

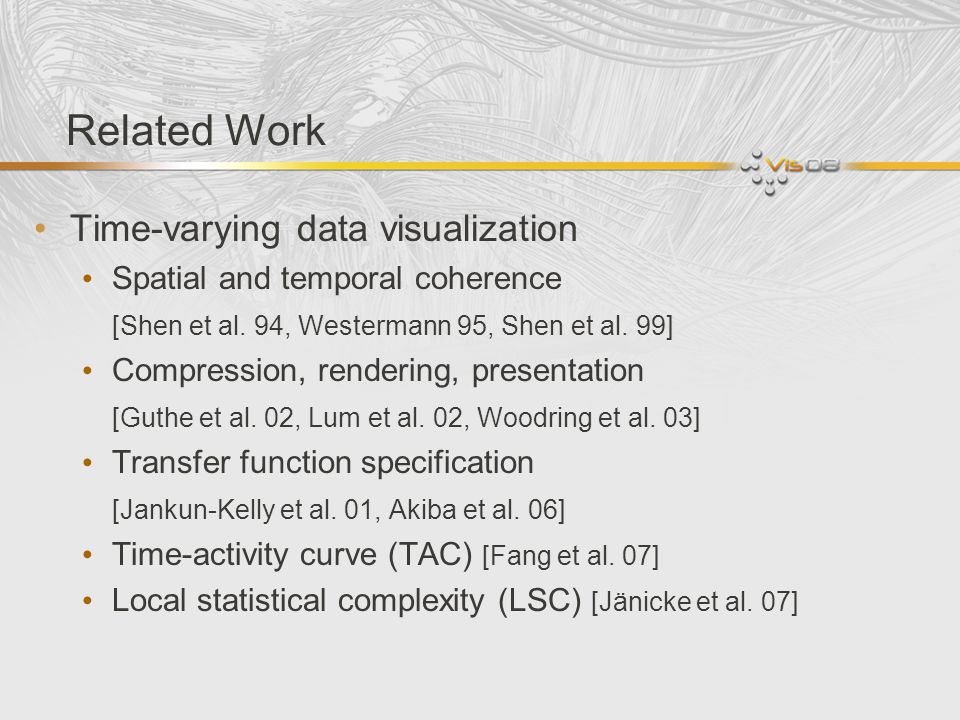

5. Related Work Time-varying data visualization Spatial and temporal coherence [Shen et al. 94, Westermann 95, Shen et al. 99] Compression, rendering, presentation [Guthe et al. 02, Lum et al. 02, Woodring et al. 03] Transfer function specification [Jankun-Kelly et al. 01, Akiba et al. 06] Time-activity curve (TAC) [Fang et al. 07] Local statistical complexity (LSC) [Jänicke et al. 07]

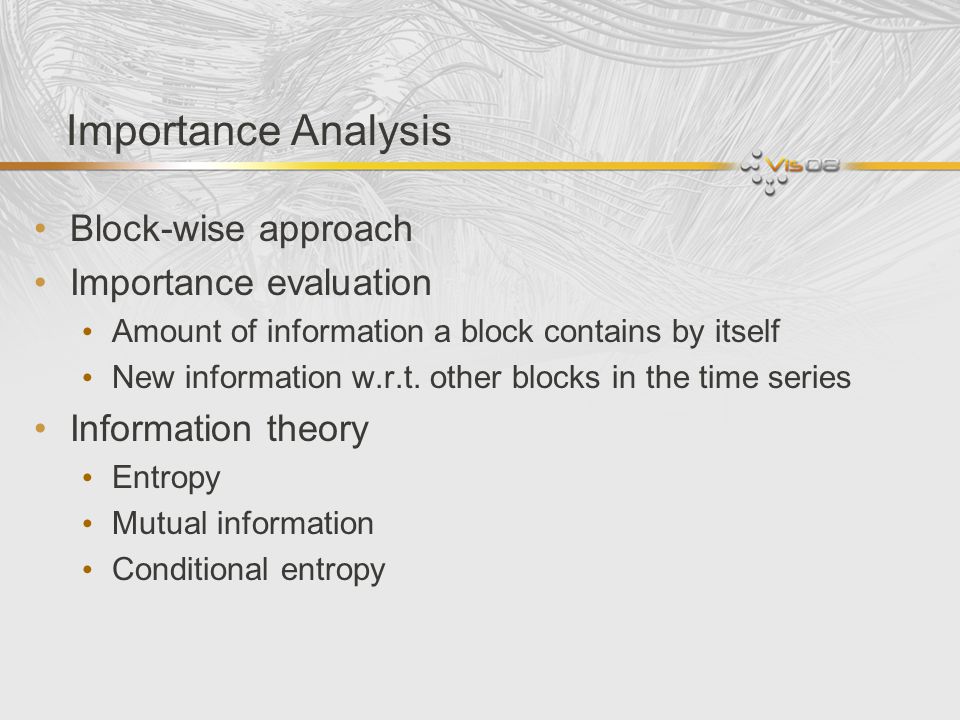

6. Importance Analysis Block-wise approach Importance evaluation Amount of information a block contains by itself New information w.r.t. other blocks in the time series Information theory Entropy Mutual information Conditional entropy

7. Information Theory Entropy Mutual information Conditional entropy p(x), p(y) : Marginal probability distribution function p(x,y) : Joint probability distribution function

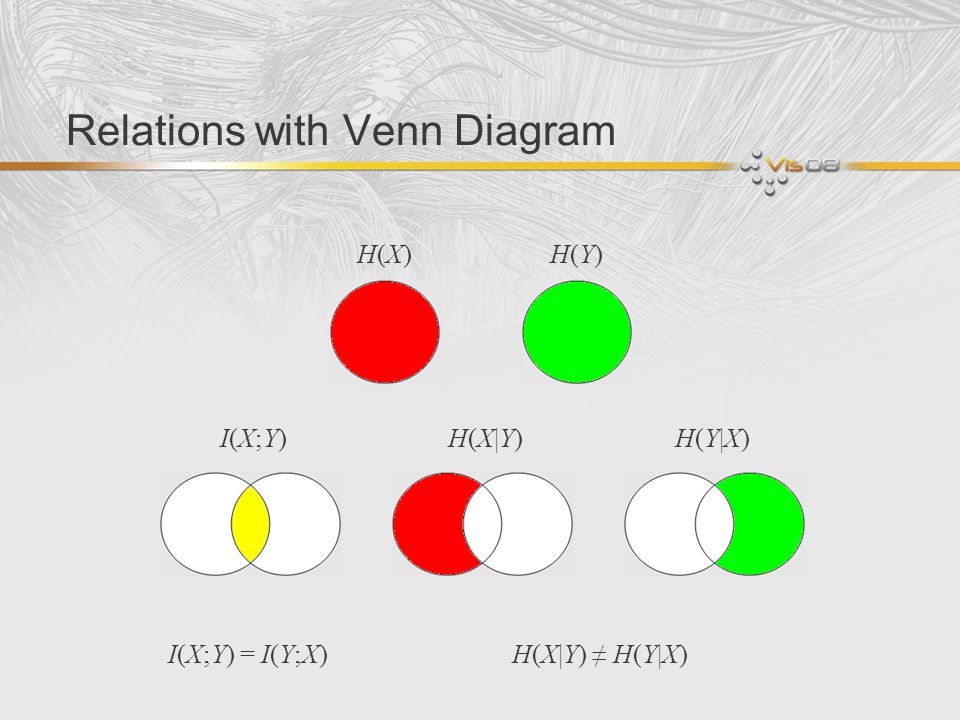

8. Relations with Venn Diagram H(X)H(X)H(Y)H(Y) I(X;Y)I(X;Y)H(X|Y)H(X|Y)H(Y|X)H(Y|X) I(X;Y) = I(Y;X)H(X|Y) ≠ H(Y|X)

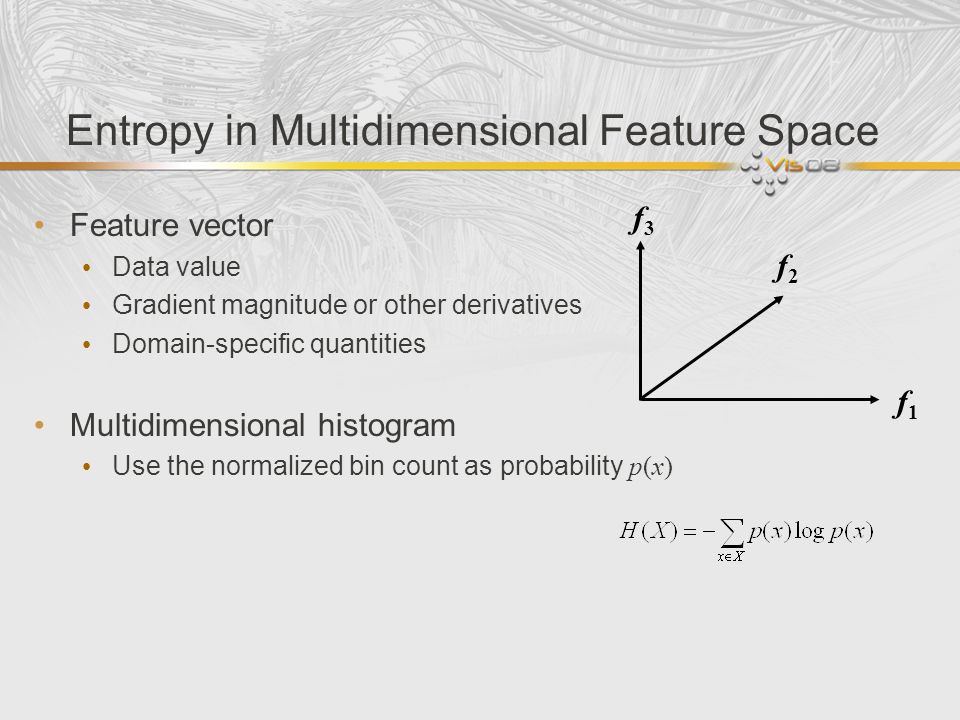

9. Entropy in Multidimensional Feature Space Feature vector Data value Gradient magnitude or other derivatives Domain-specific quantities Multidimensional histogram Use the normalized bin count as probability p(x) f1f1 f3f3 f2f2

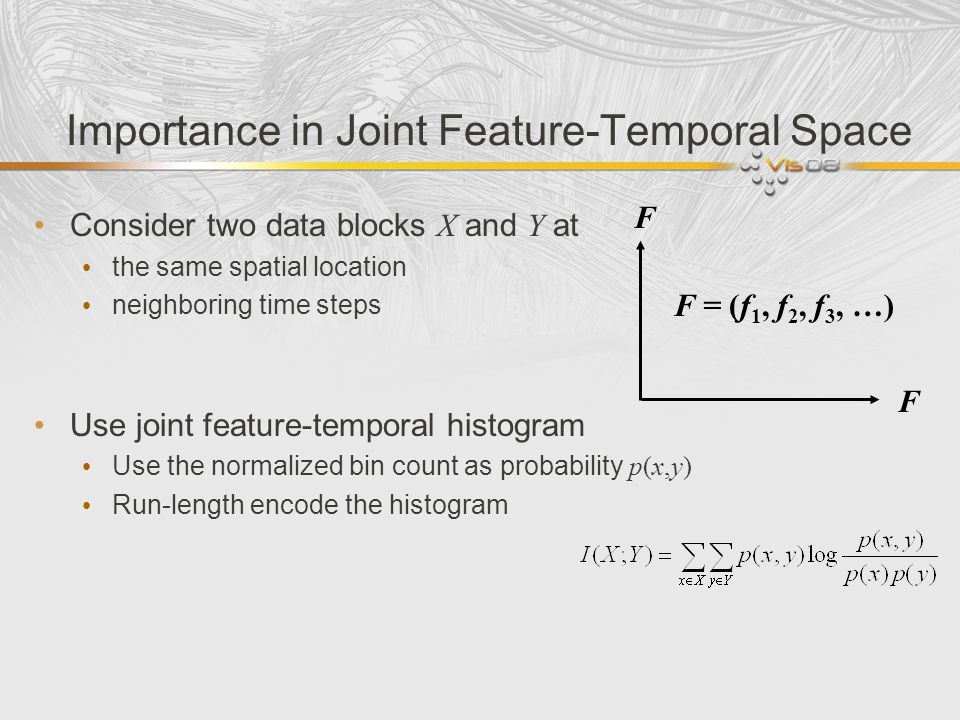

10. Importance in Joint Feature-Temporal Space Consider two data blocks X and Y at the same spatial location neighboring time steps Use joint feature-temporal histogram Use the normalized bin count as probability p(x,y) Run-length encode the histogram F F F = (f 1, f 2, f 3, …)

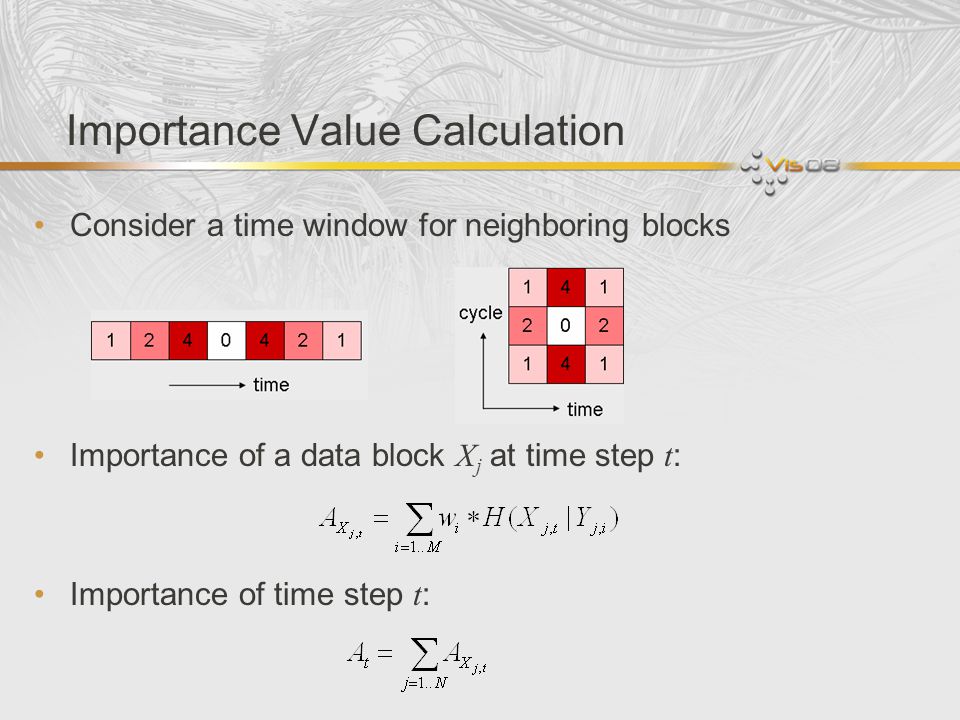

11. Importance Value Calculation Consider a time window for neighboring blocks Importance of a data block X j at time step t : Importance of time step t :

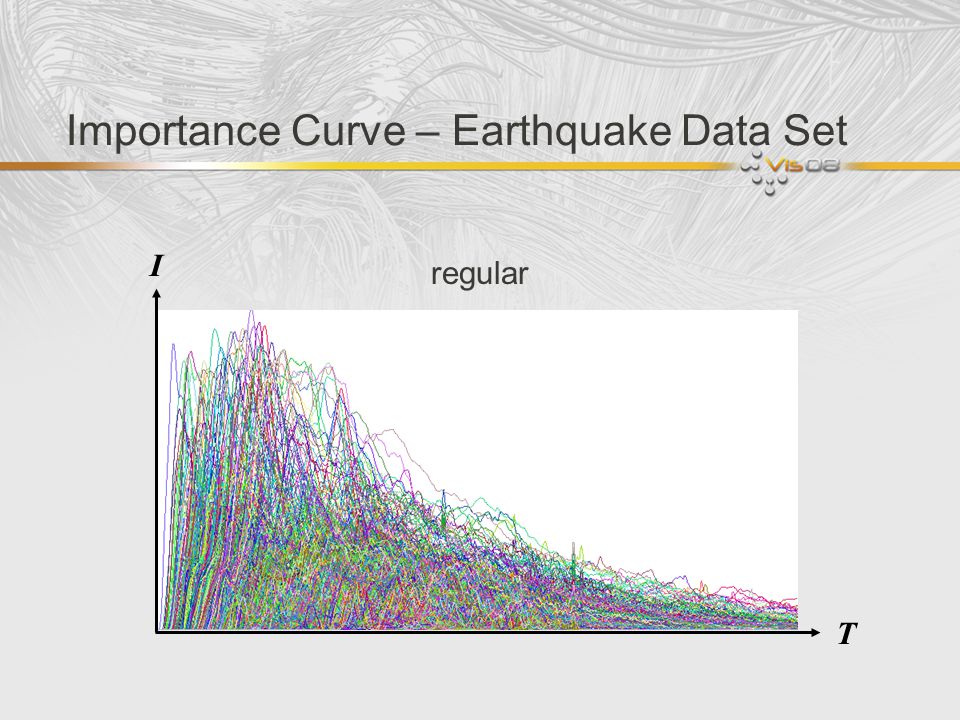

12. Importance Curve – Earthquake Data Set T I regular

13. Importance Curve – Climate Data Set T I periodic

14. Importance Curve – Vortex Data Set T I turbulent

15. Clustering Importance Curves Hybrid k -means clustering [Kanungo et al. 02] Lloyd’s algorithm Local search by swapping centroids Avoid getting trapped in local minima

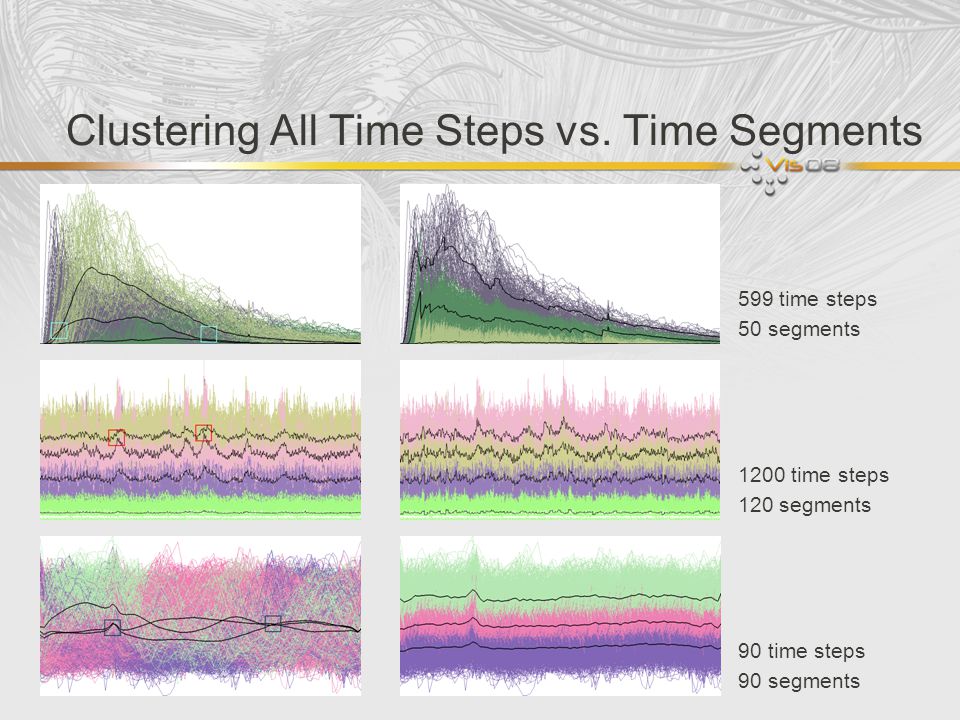

16. Clustering All Time Steps vs. Time Segments 599 time steps 50 segments 1200 time steps 120 segments 90 time steps 90 segments

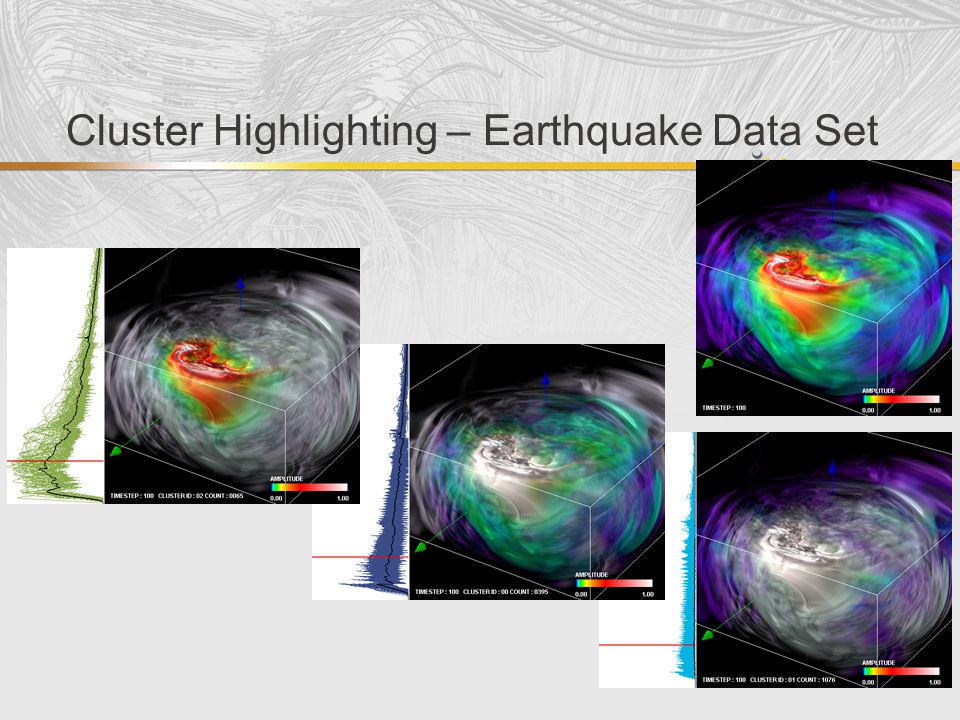

17. Cluster Highlighting – Earthquake Data Set

18. Cluster Highlighting – Hurricane Data Set

19. Cluster Highlighting – Climate Data Set

20. Cluster Highlighting – Vortex Data Set

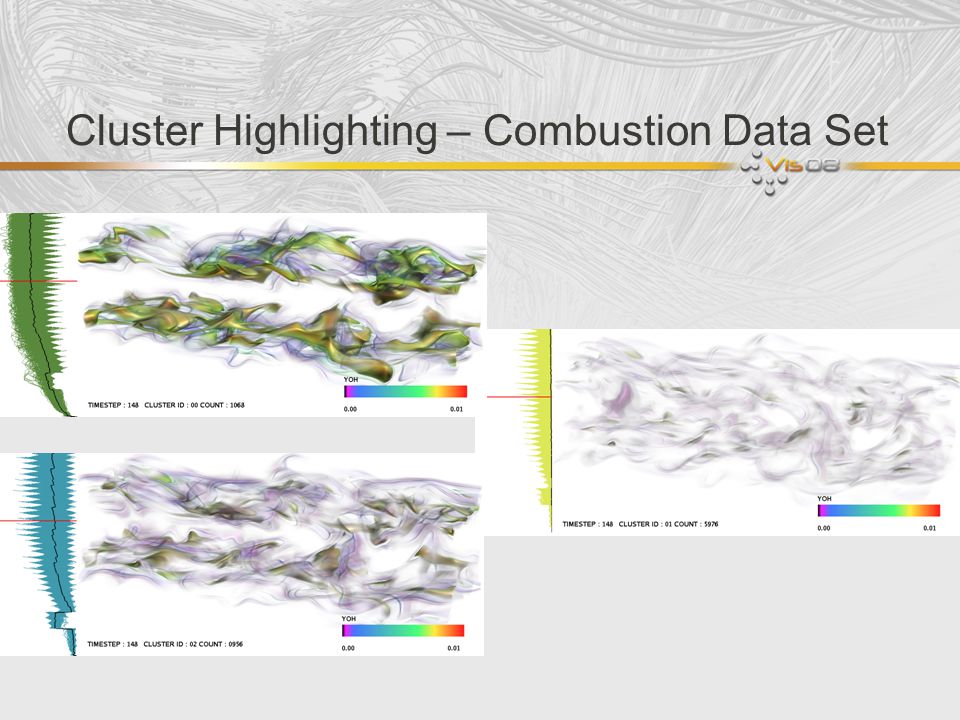

21. Cluster Highlighting – Combustion Data Set

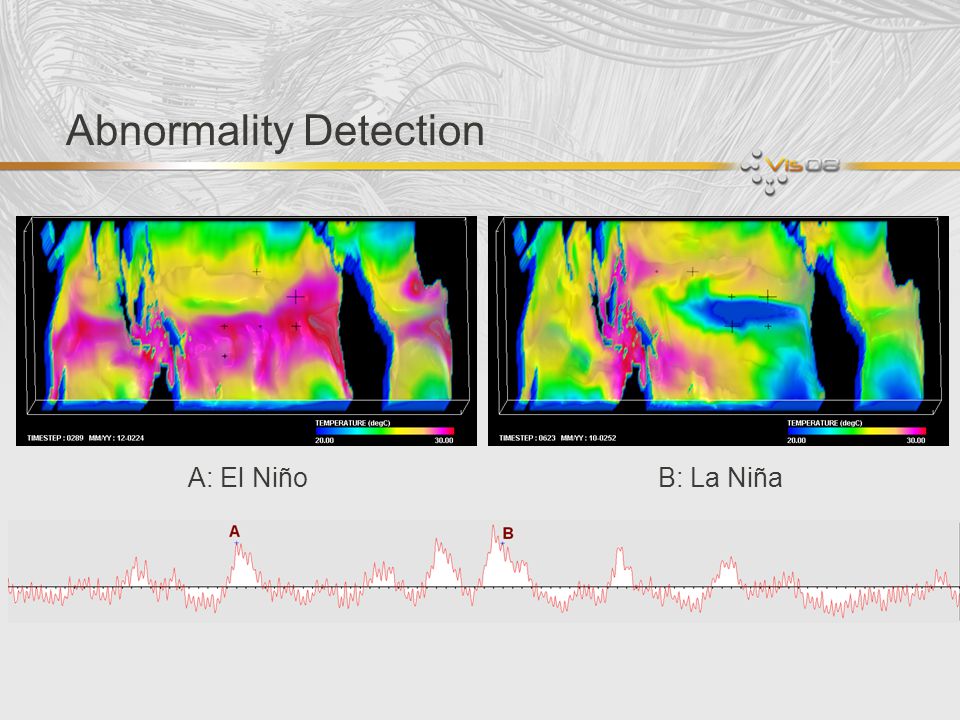

22. Abnormality Detection A: El NiñoB: La Niña

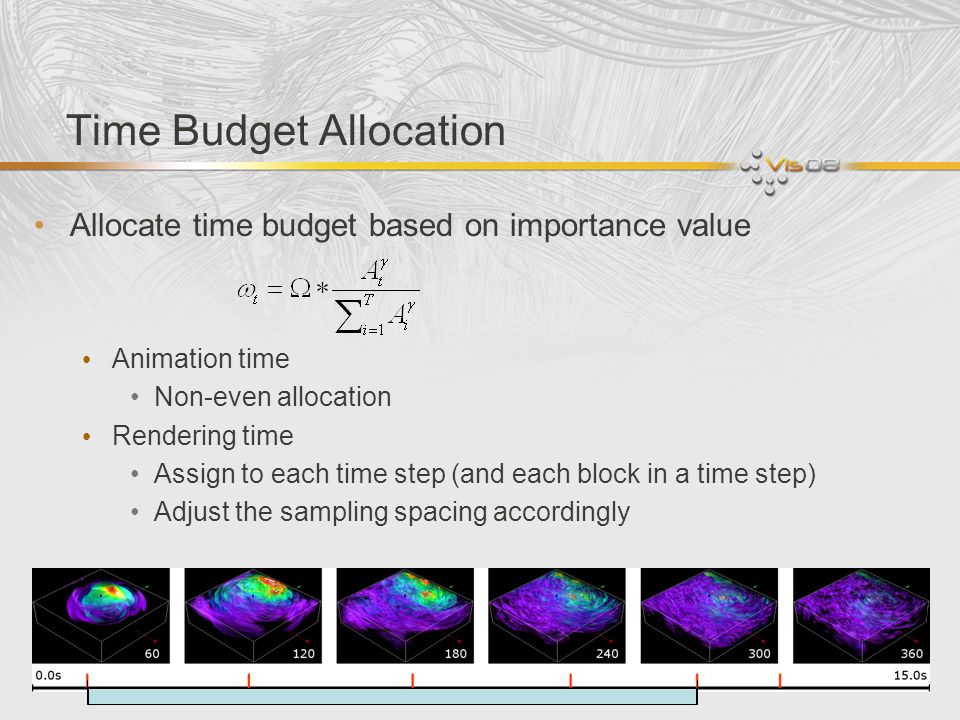

23. Time Budget Allocation Allocate time budget based on importance value Animation time Non-even allocation Rendering time Assign to each time step (and each block in a time step) Adjust the sampling spacing accordingly

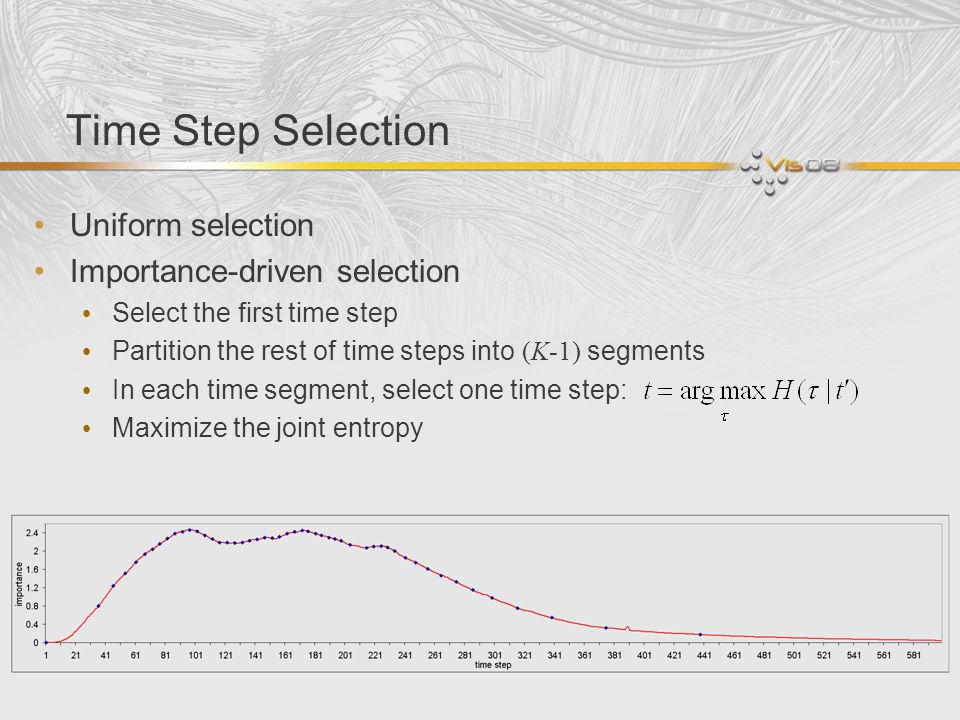

24. Time Step Selection Uniform selection Importance-driven selection Select the first time step Partition the rest of time steps into (K-1) segments In each time segment, select one time step: Maximize the joint entropy

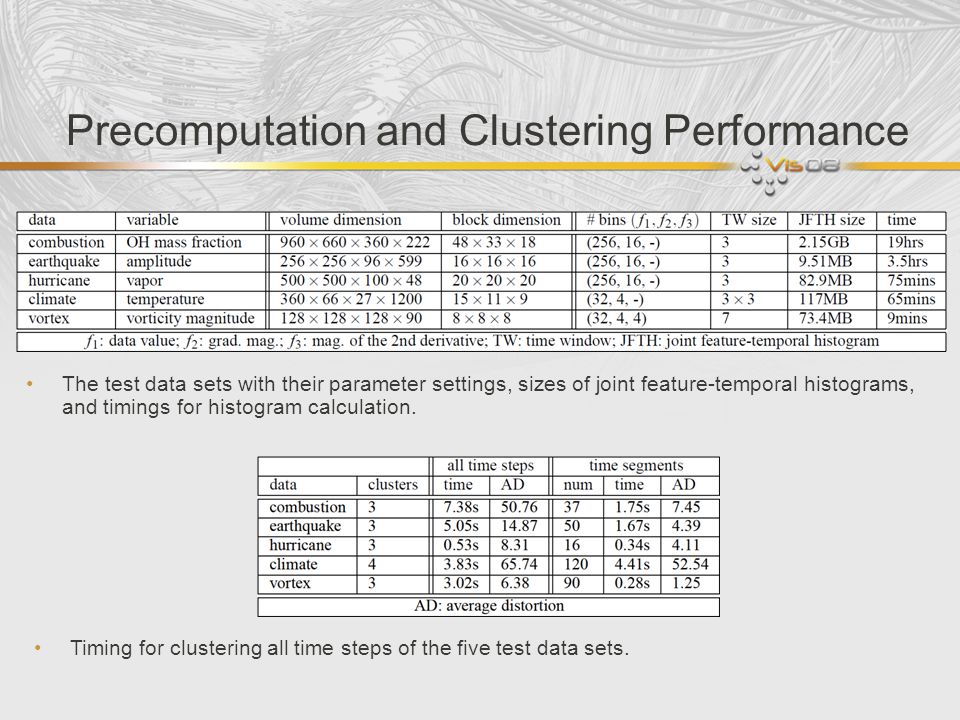

25. Precomputation and Clustering Performance The test data sets with their parameter settings, sizes of joint feature-temporal histograms, and timings for histogram calculation. Timing for clustering all time steps of the five test data sets.

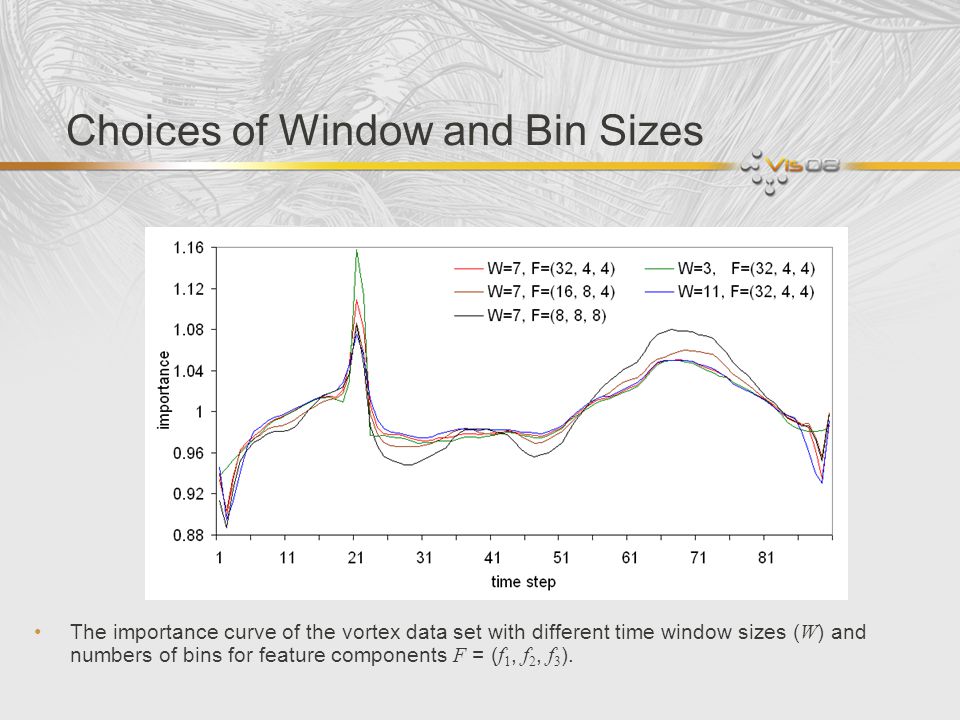

26. Choices of Window and Bin Sizes The importance curve of the vortex data set with different time window sizes ( W ) and numbers of bins for feature components F = ( f 1, f 2, f 3 ).

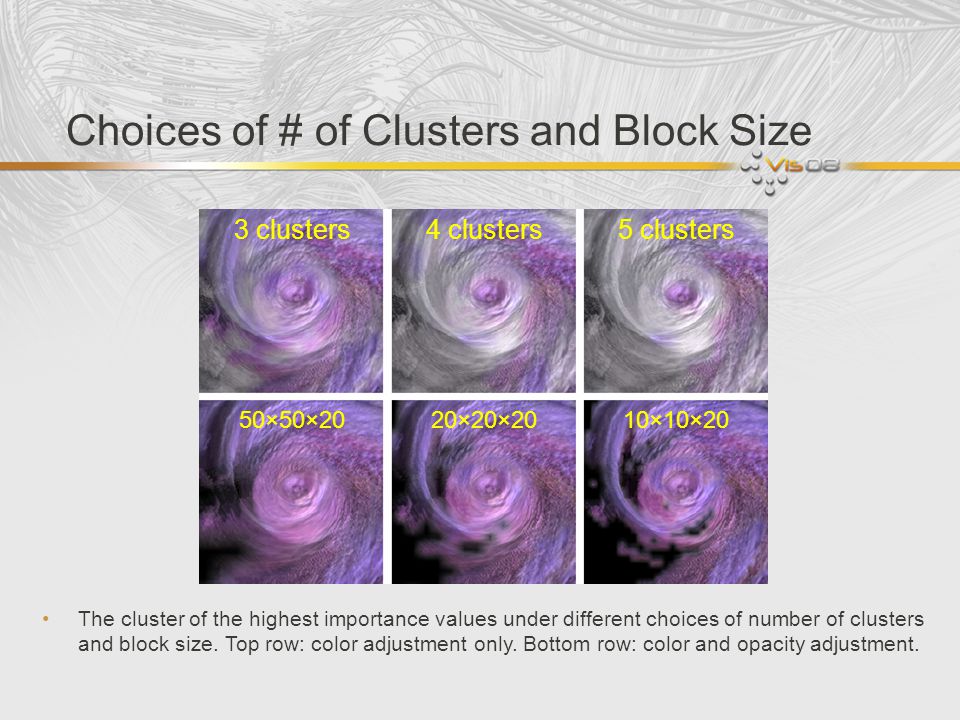

27. Choices of # of Clusters and Block Size The cluster of the highest importance values under different choices of number of clusters and block size. Top row: color adjustment only. Bottom row: color and opacity adjustment. 3 clusters4 clusters5 clusters 50×50×2020×20×2010×10×20

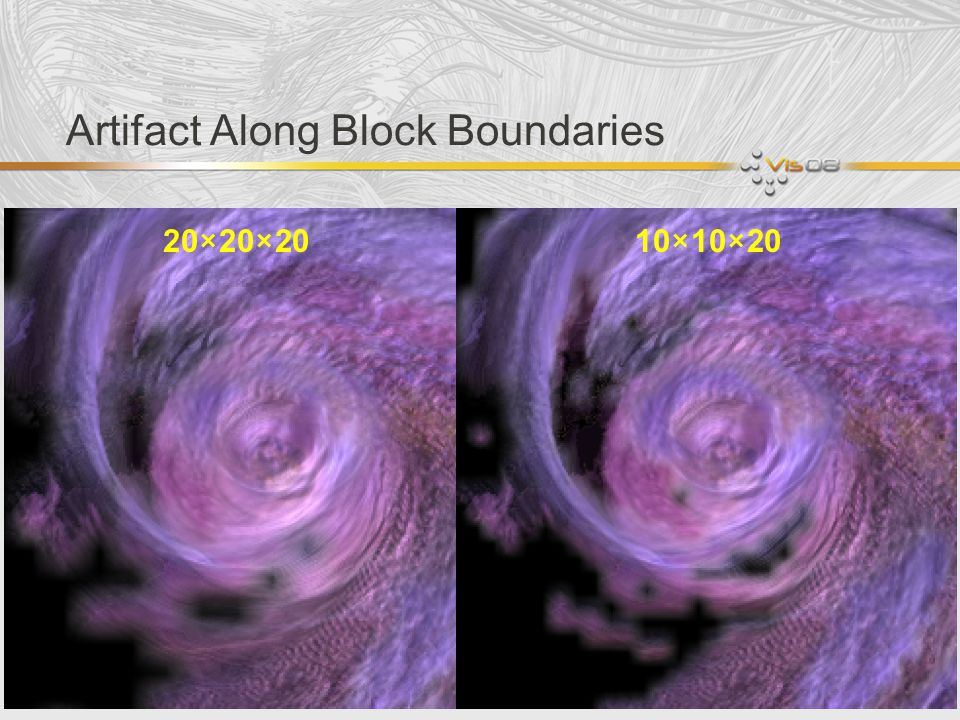

28. Artifact Along Block Boundaries 20×20×2010×10×20

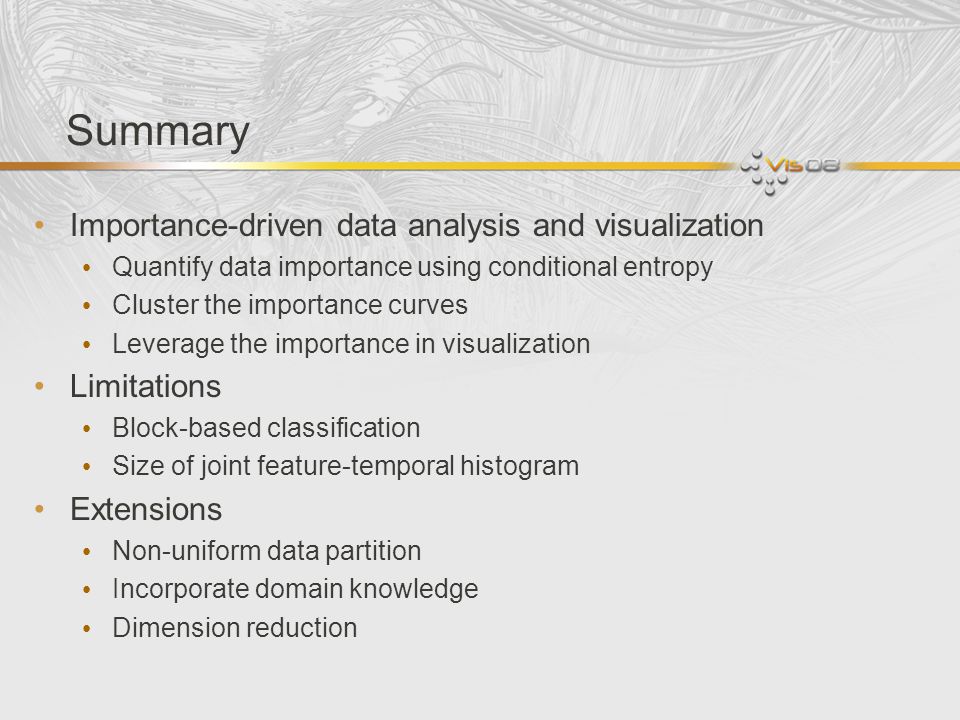

29. Summary Importance-driven data analysis and visualization Quantify data importance using conditional entropy Cluster the importance curves Leverage the importance in visualization Limitations Block-based classification Size of joint feature-temporal histogram Extensions Non-uniform data partition Incorporate domain knowledge Dimension reduction

30. Acknowledgements NSF CCF-0634913, CNS- 0551727, OCI-0325934, OCI-0749227, and OCI-0749217 DOE SciDAC Program DE-FC02-06ER25777, DE-FG02-08ER54956, and DE-FG02- 05ER54817 Data sets Combustion: Jacqueline H. Chen, SNL Climate: Andrew T. Wittenberg, NOAA Earthquake: CMU quake group Hurricane: NSF, IEEE Visualization 2004 Contest
