1. SOA, EDA, ECM and more Discover a pragmatic architecture for an intelligent enterprise, to maximize impact on the business Patrice Bertrand Software Architect

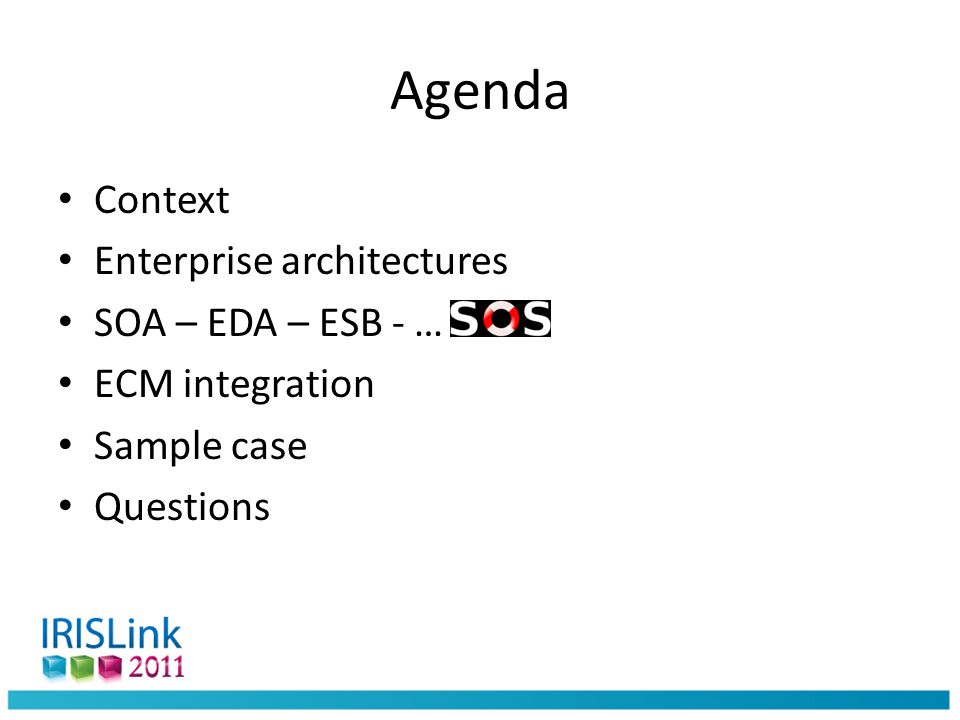

2. Agenda Context Enterprise architectures SOA – EDA – ESB - … SOS! ECM integration Sample case Questions

3. The context New IT projects rarely start in an empty context: – Business applications – CRM – File servers – Databases – Workflow engines – Web servers – Portal –…–… Organizations tend to change frequently – Organisational changes – Mergers & Acquisitions – Outsourcing –…–… IT evolves quickly – New products – New standards – New technologies

4. The proposed approach We need an architecture which: – Is capable of supporting all the required services – Is flexible (from the IT and the organization perspective) – Is scalable – Is evolutive and will last! Everything can change but the architecture itself must stay!

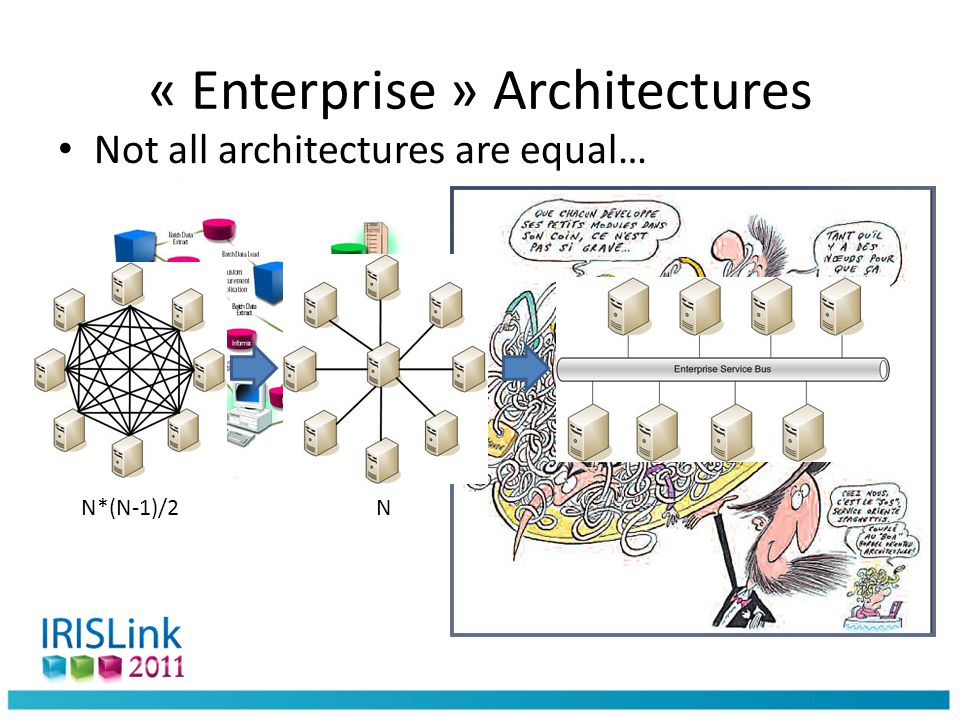

5. « Enterprise » Architectures Not all architectures are equal… N*(N-1)/2N

6. SOA/EDA: definitions Service-oriented architecture (SOA) – Set of design principles for design and integration – Packages functionality as a suite of interoperable services – Services can be used within multiple separate systems from several business domains → Loosely coupled → Synchronous architecture (request/response style) Event-driven architecture (EDA) – Software architecture pattern – Production, detection, consumption of, and reaction to events. → Decoupled → Asynchronous (publish/subscribe style) SOA and EDA are different but complement each other...

7. The ESB: combining the best of both worlds The Enterprise Service Bus typically provides: – A distributed services architecture, which includes a lightweight container model for hosting integration components as remote services – An enterprise messaging backbone for reliable delivery of messages between applications and services – XML data transformation – Service orchestration and intelligent routing of messages based on their content – A flexible security framework – A management infrastructure that lets you configure, deploy, monitor, and manage your remote services Enterprise Service Bus: Theory in Practice (O'Reilly)

8. SOA and EDA complementarity SOA: Vertical Request/reply Transactional EDA: Horizontal Workflow type Large processes ESB

9. Integrating ECM Integrating ECM into the enterprise means: – Acquisition: acquire content from many sources and many modes (push, pull, scheduled) – Processing: transform, aggregate, index, repurpose, replicate content – Delivery: syndicate or publish in multiple formats over multiple channels – Integration: integrate with other information sources to enrich content

10. ECM integration possibilities All major ECM products offer some SOA/EDA integration support: – CMIS (REST) – SOAP Webservices – JCR (JSR 170) connectors – APIs… and coding – Webdav, FTP, watch folders,… Check what your ECM supports

11. ECM, SOA and EDA: an example Poll an external ftp or mailbox for scanned images Perform OCR and extract data Transform this content into PDF/A Store PDF in the content repository for retention Send data to a business application Legacy application archives the produced documents in the content repository Acquisition Poll FTPPoll mailbox Processing OCRExtractionTransformation Delivery Archive Send to business Integration Process content for storage

12. References

13. Questions?

14. Thank you!
