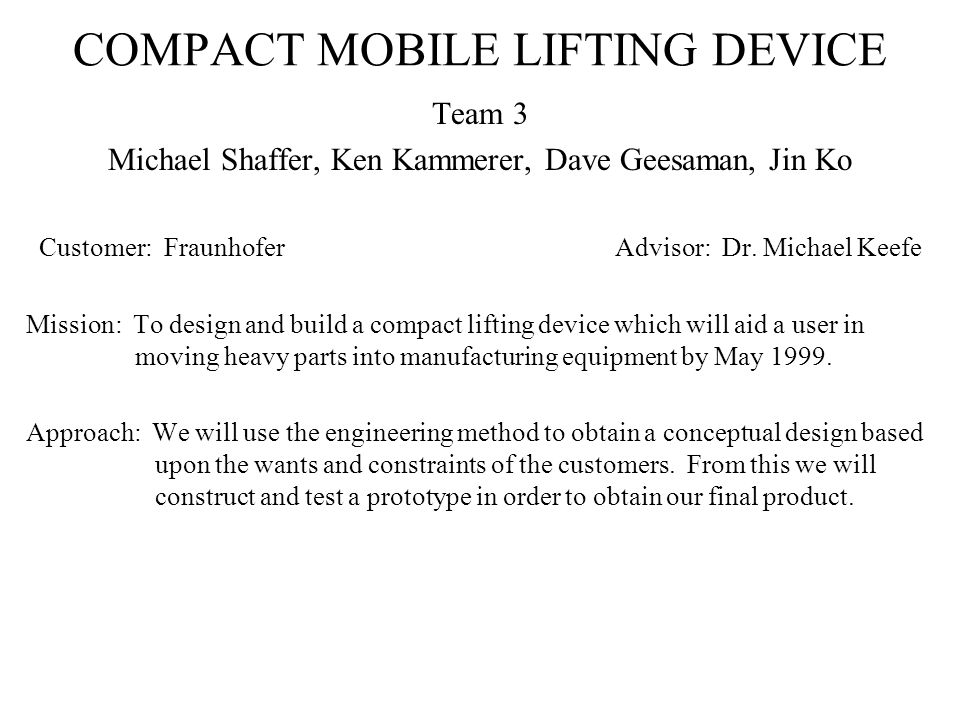

1. COMPACT MOBILE LIFTING DEVICE Team 3 Michael Shaffer, Ken Kammerer, Dave Geesaman, Jin Ko Customer: FraunhoferAdvisor: Dr. Michael Keefe Mission: To design and build a compact lifting device which will aid a user in moving heavy parts into manufacturing equipment by May 1999. Approach: We will use the engineering method to obtain a conceptual design based upon the wants and constraints of the customers. From this we will construct and test a prototype in order to obtain our final product.

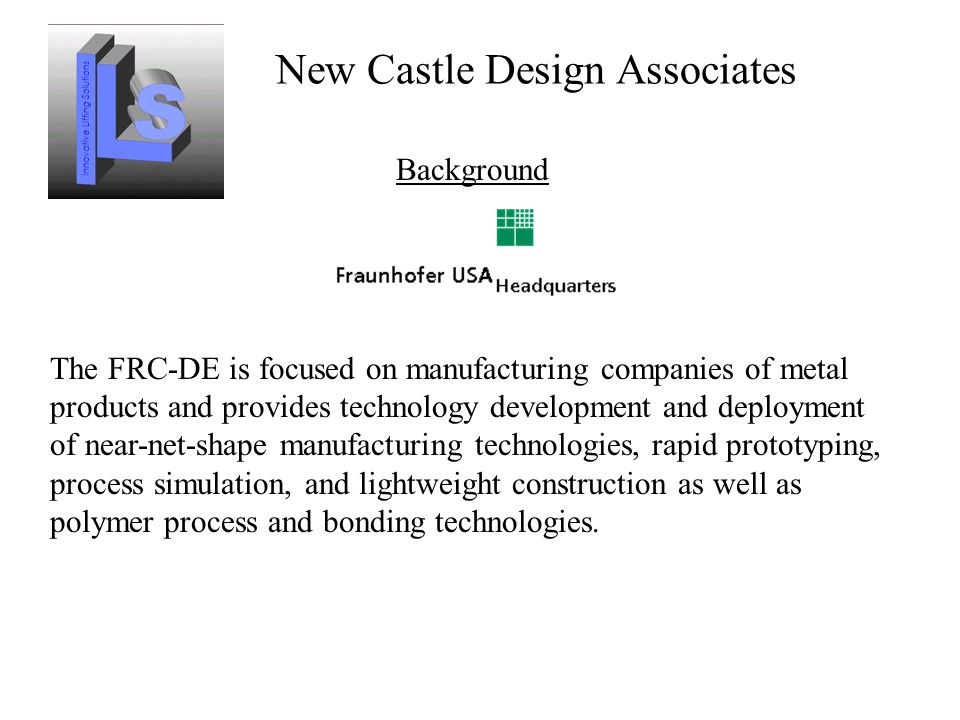

2. Background The FRC-DE is focused on manufacturing companies of metal products and provides technology development and deployment of near-net-shape manufacturing technologies, rapid prototyping, process simulation, and lightweight construction as well as polymer process and bonding technologies. New Castle Design Associates

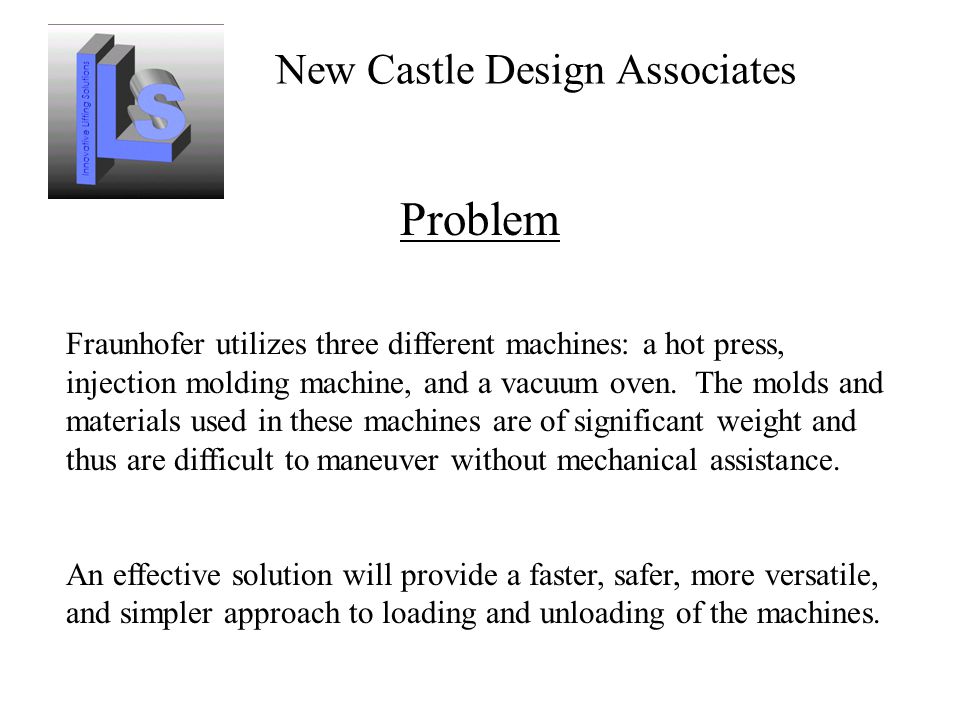

3. Problem Fraunhofer utilizes three different machines: a hot press, injection molding machine, and a vacuum oven. The molds and materials used in these machines are of significant weight and thus are difficult to maneuver without mechanical assistance. An effective solution will provide a faster, safer, more versatile, and simpler approach to loading and unloading of the machines.

4. New Castle Design Associates MISSION To design and build a compact lifting device which will aid a user in moving heavy parts into manufacturing equipment by May 1999.

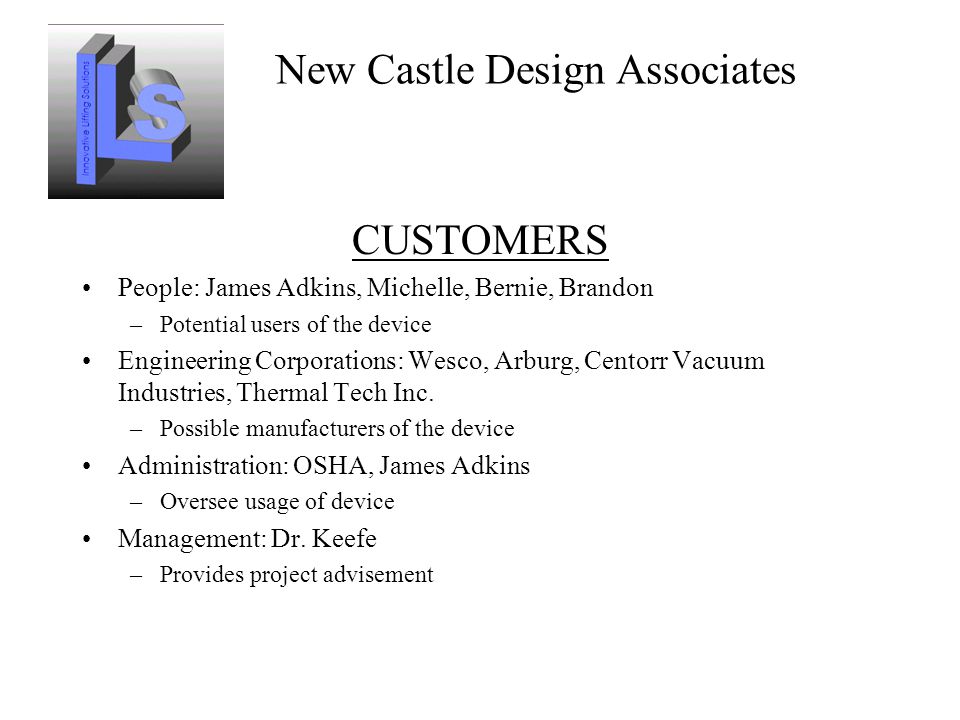

5. New Castle Design Associates CUSTOMERS People: James Adkins, Michelle, Bernie, Brandon –Potential users of the device Engineering Corporations: Wesco, Arburg, Centorr Vacuum Industries, Thermal Tech Inc. –Possible manufacturers of the device Administration: OSHA, James Adkins –Oversee usage of device Management: Dr. Keefe –Provides project advisement

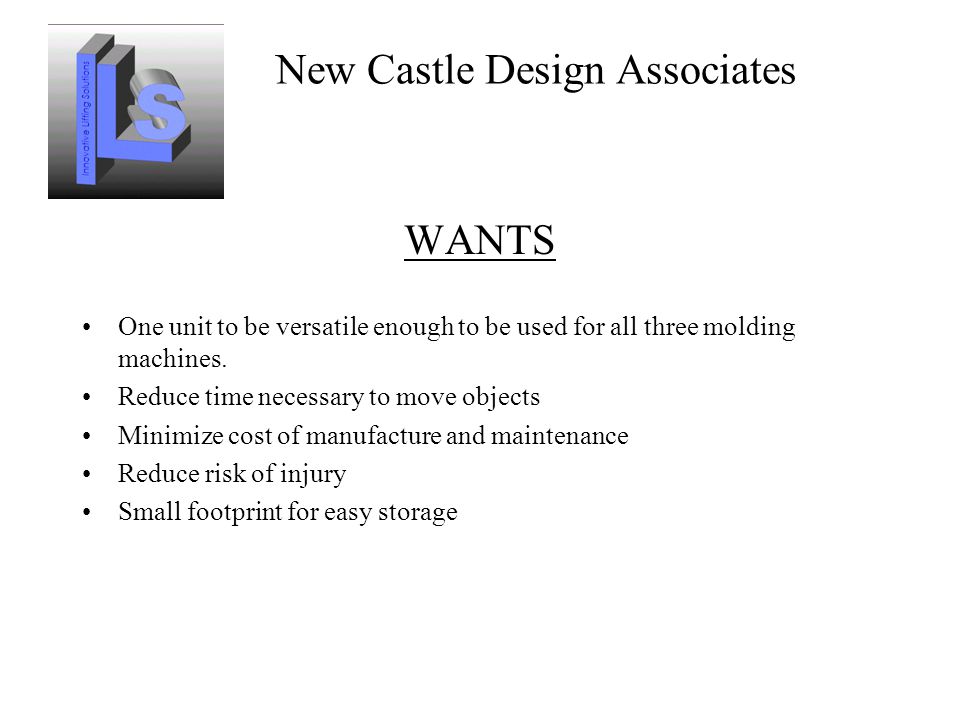

6. New Castle Design Associates WANTS One unit to be versatile enough to be used for all three molding machines. Reduce time necessary to move objects Minimize cost of manufacture and maintenance Reduce risk of injury Small footprint for easy storage

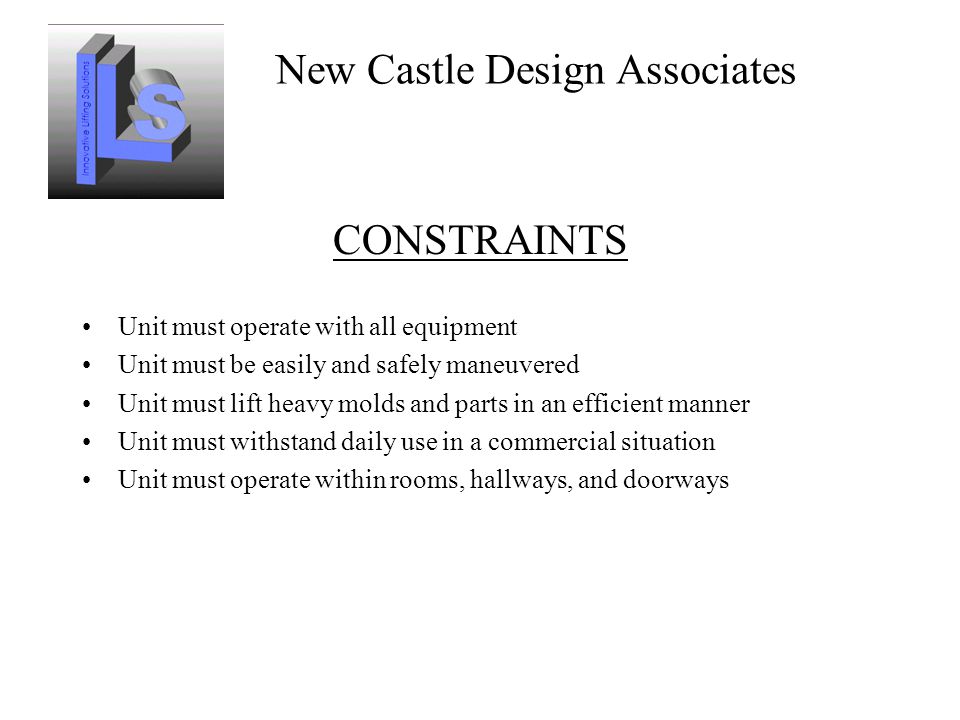

7. New Castle Design Associates CONSTRAINTS Unit must operate with all equipment Unit must be easily and safely maneuvered Unit must lift heavy molds and parts in an efficient manner Unit must withstand daily use in a commercial situation Unit must operate within rooms, hallways, and doorways

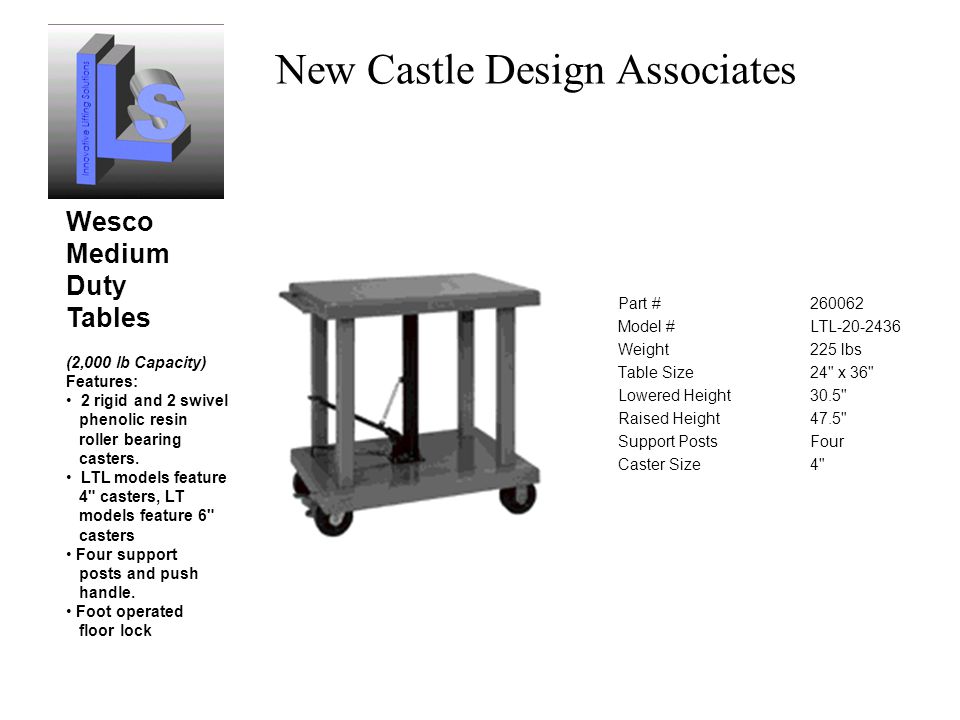

8. New Castle Design Associates Part # 260062 Model # LTL-20-2436 Weight 225 lbs Table Size 24" x 36" Lowered Height 30.5" Raised Height 47.5" Support Posts Four Caster Size 4" Wesco Medium Duty Tables (2,000 lb Capacity) Features: 2 rigid and 2 swivel phenolic resin roller bearing casters. LTL models feature 4" casters, LT models feature 6" casters Four support posts and push handle. Foot operated floor lock

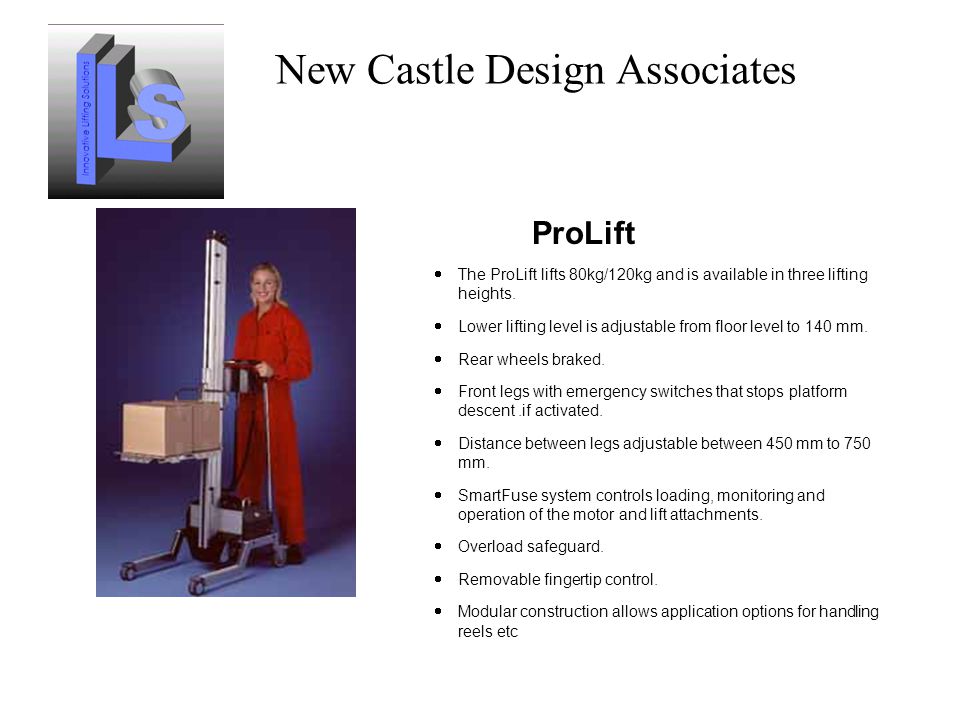

9. New Castle Design Associates ProLift  The ProLift lifts 80kg/120kg and is available in three lifting heights.  Lower lifting level is adjustable from floor level to 140 mm.  Rear wheels braked.  Front legs with emergency switches that stops platform descent.if activated.  Distance between legs adjustable between 450 mm to 750 mm.  SmartFuse system controls loading, monitoring and operation of the motor and lift attachments.  Overload safeguard.  Removable fingertip control.  Modular construction allows application options for handling reels etc

10. New Castle Design Associates YALE® POWERED CHAIN HOISTS SEL--- 1/4 and 1/2-tons. Standard lifts of 10 and 20 feet. Top hook suspension only. Overload limiting device standard. 115 or 230V, single phase voltage only. Compact unit weighs less than 25 lbs. Designed for light duty applications.

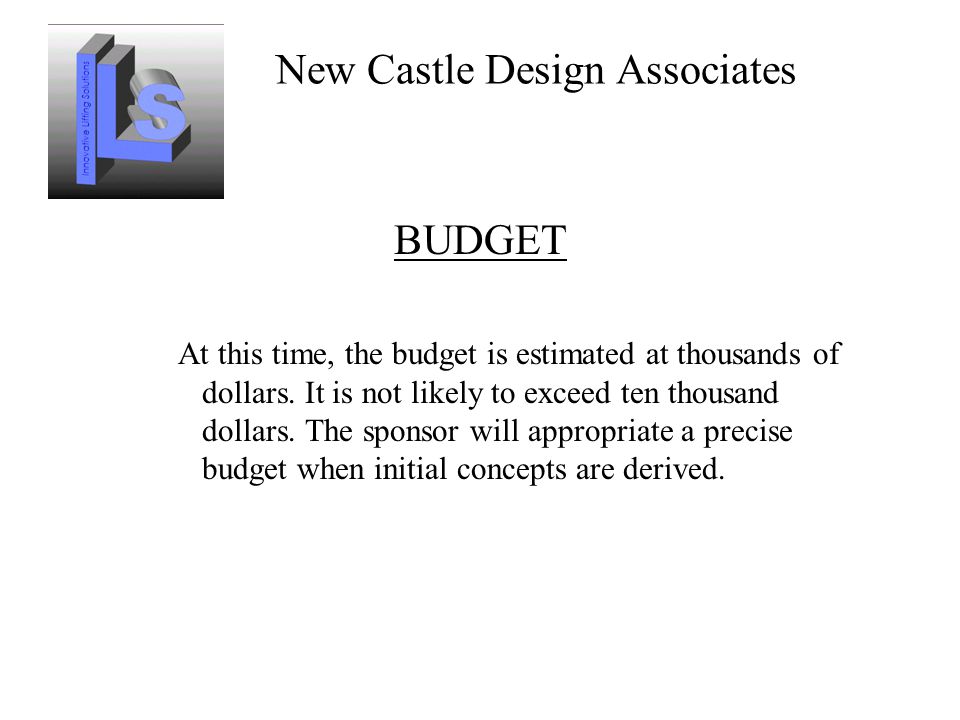

11. New Castle Design Associates BUDGET At this time, the budget is estimated at thousands of dollars. It is not likely to exceed ten thousand dollars. The sponsor will appropriate a precise budget when initial concepts are derived.
