1. Passive traffic measurement Capturing actual Internet packets in order to measure: –Packet sizes –Traffic volumes –Application utilisation –Resource utilisation –Network monitoring –Traffic characterisation Commercial products and freeware software –HP openview, NetPredict, tcpdump

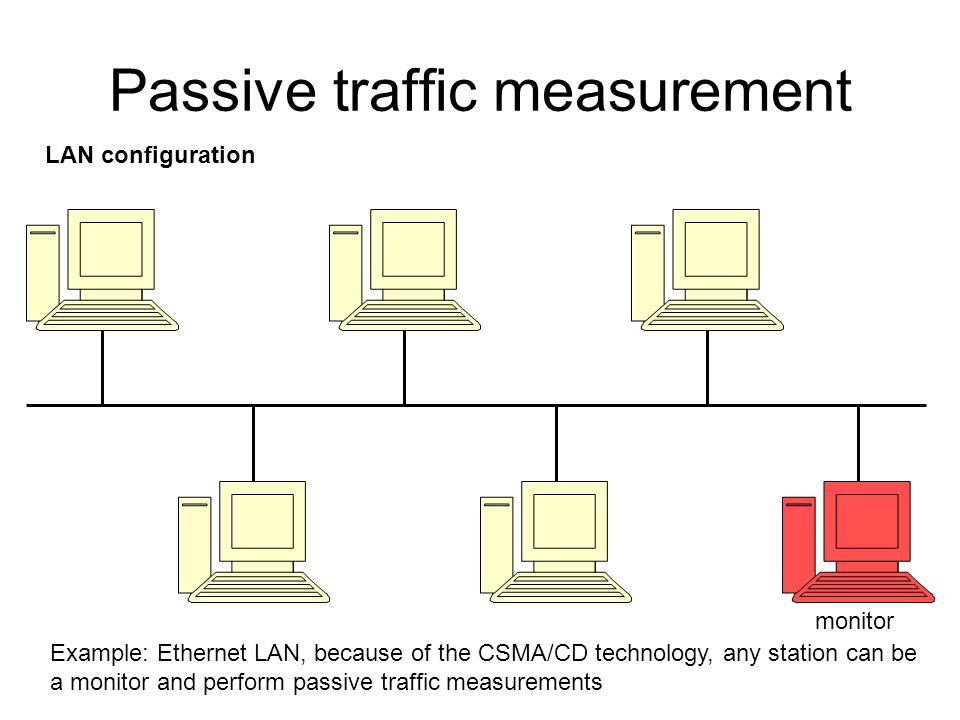

2. Passive traffic measurement monitor Example: Ethernet LAN, because of the CSMA/CD technology, any station can be a monitor and perform passive traffic measurements LAN configuration

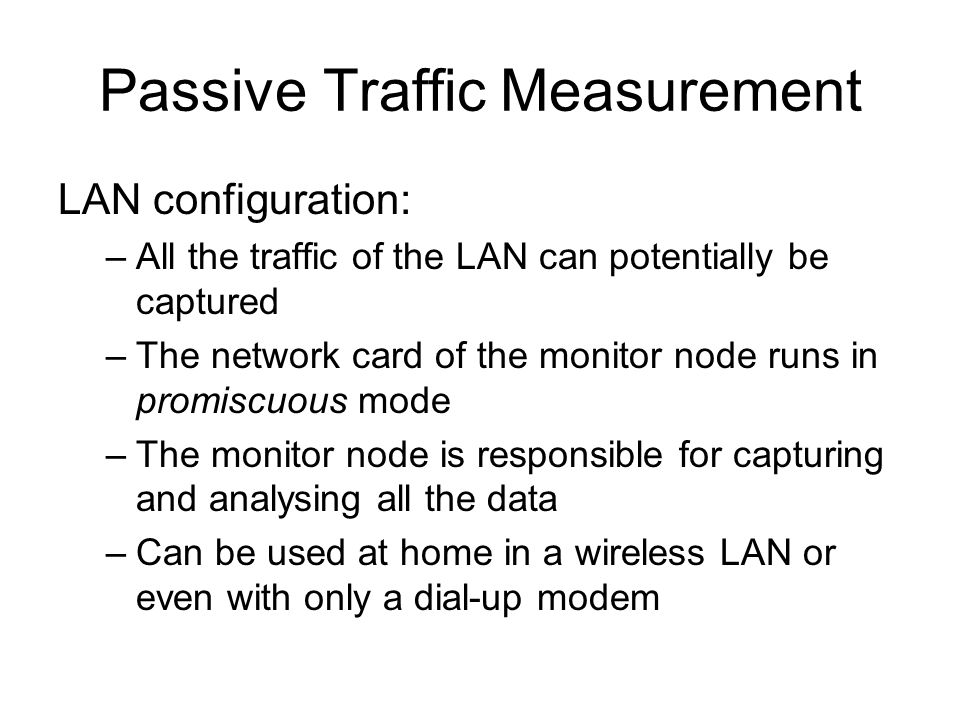

3. Passive Traffic Measurement LAN configuration: –All the traffic of the LAN can potentially be captured –The network card of the monitor node runs in promiscuous mode –The monitor node is responsible for capturing and analysing all the data –Can be used at home in a wireless LAN or even with only a dial-up modem

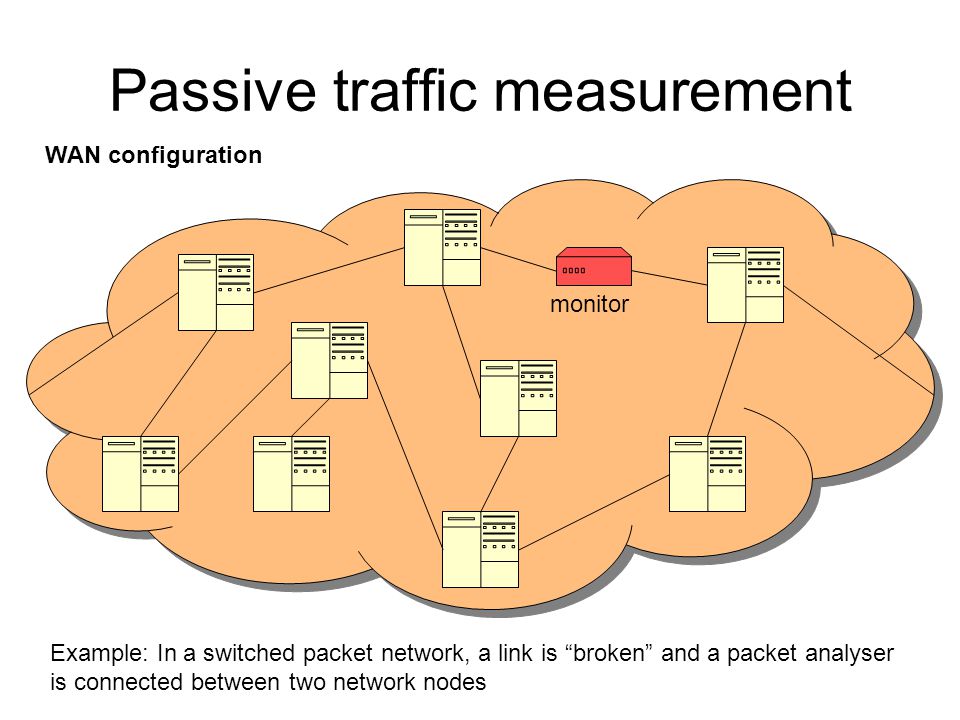

4. Passive traffic measurement Example: In a switched packet network, a link is “broken” and a packet analyser is connected between two network nodes WAN configuration monitor

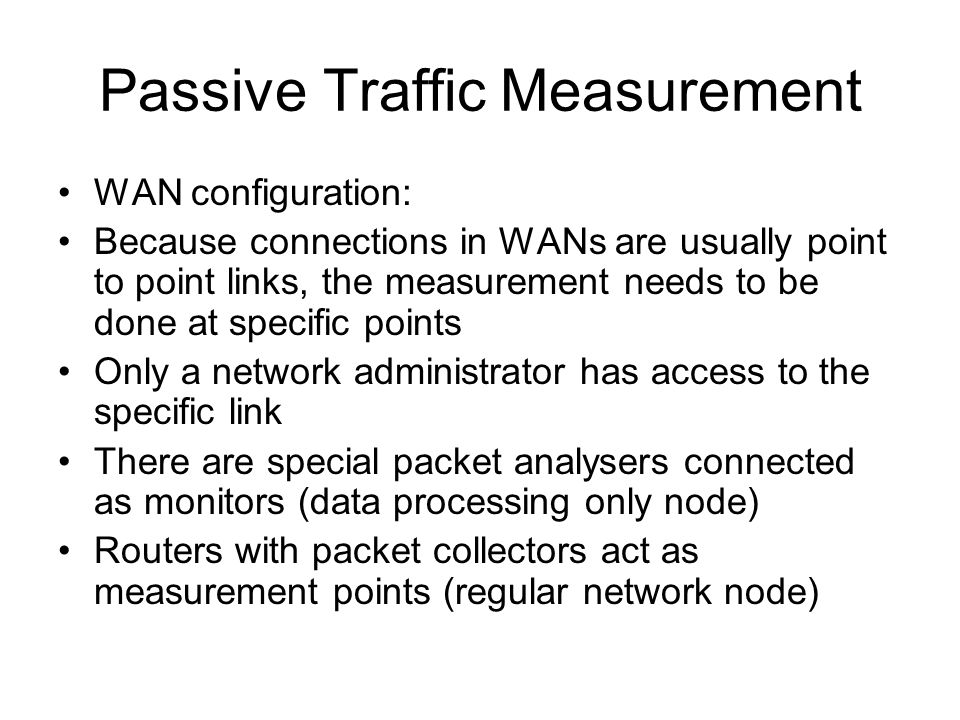

5. Passive Traffic Measurement WAN configuration: Because connections in WANs are usually point to point links, the measurement needs to be done at specific points Only a network administrator has access to the specific link There are special packet analysers connected as monitors (data processing only node) Routers with packet collectors act as measurement points (regular network node)

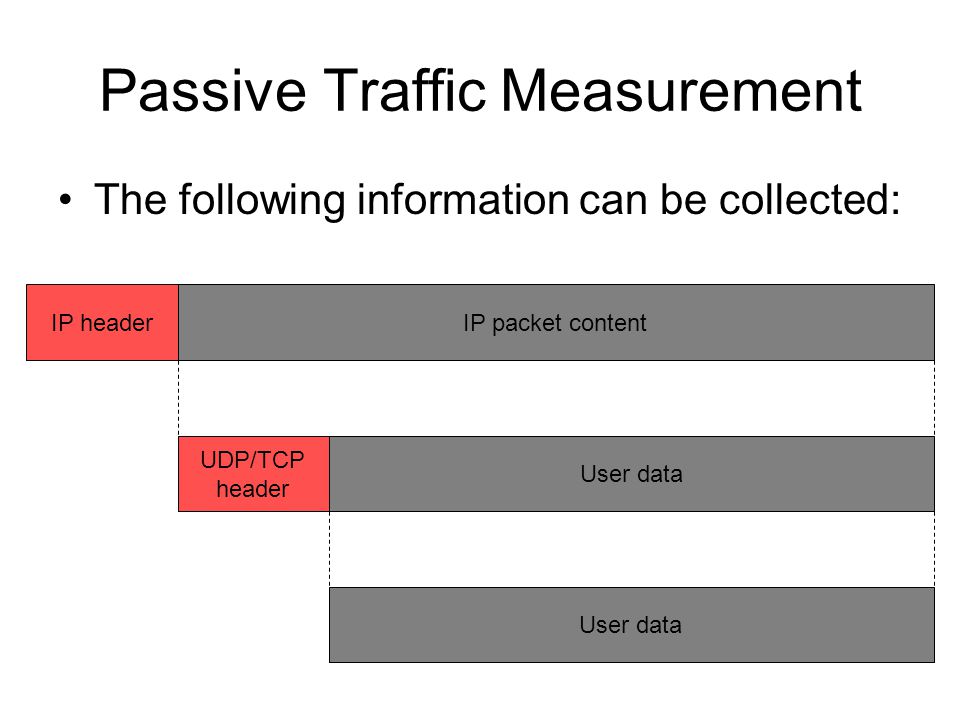

6. Passive Traffic Measurement The following information can be collected: IP packet content User data IP header UDP/TCP header

7. Passive Traffic Measurements Information that can be collected: Through IP header: –Source IP address –Destination IP address –Packet size Through TCP/UDP header: –Source port –Destination port General utilisation of the LAN or WAN link

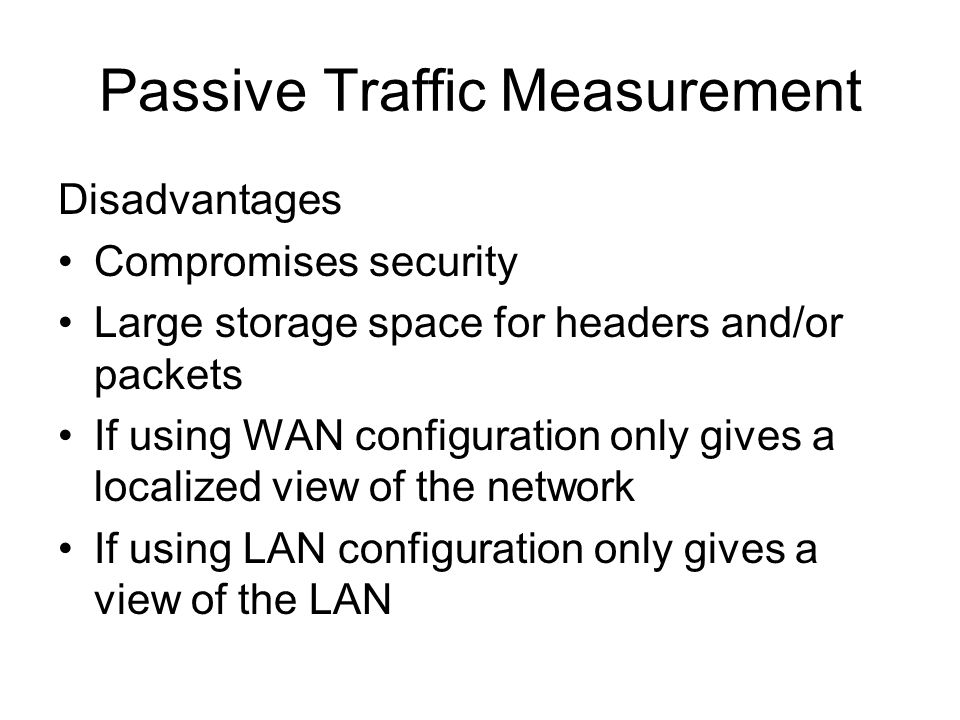

8. Passive Traffic Measurement Disadvantages Compromises security Large storage space for headers and/or packets If using WAN configuration only gives a localized view of the network If using LAN configuration only gives a view of the LAN

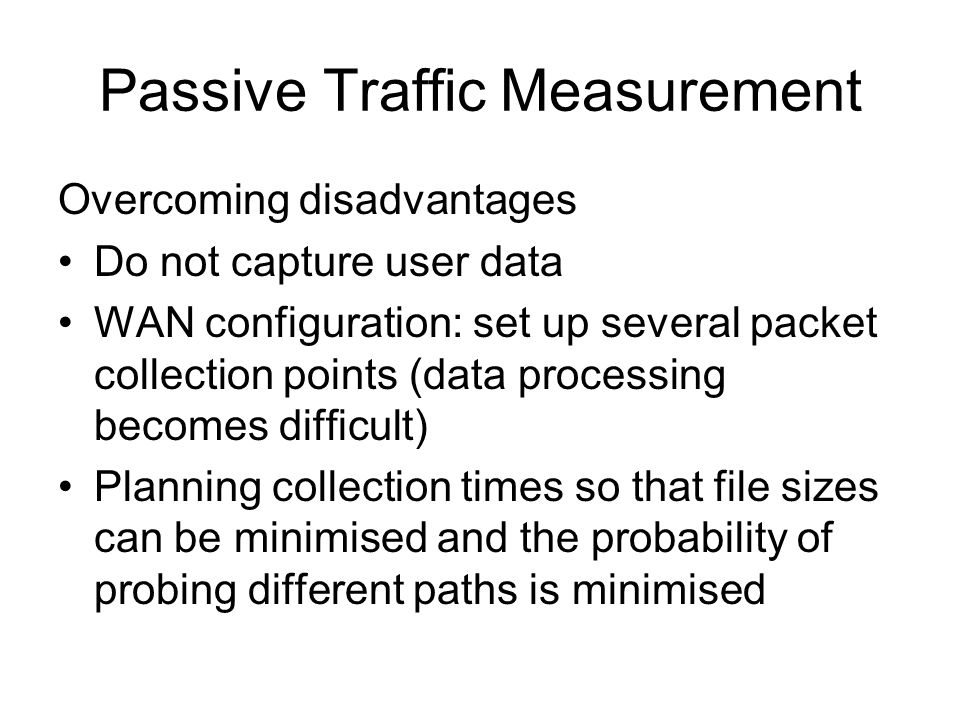

9. Passive Traffic Measurement Overcoming disadvantages Do not capture user data WAN configuration: set up several packet collection points (data processing becomes difficult) Planning collection times so that file sizes can be minimised and the probability of probing different paths is minimised

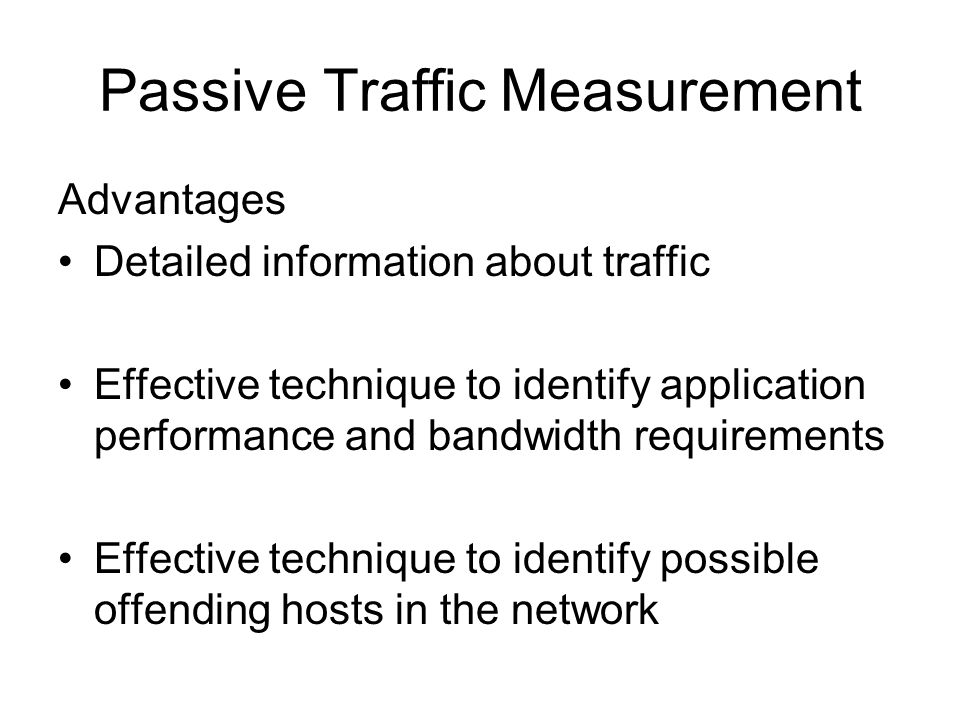

10. Passive Traffic Measurement Advantages Detailed information about traffic Effective technique to identify application performance and bandwidth requirements Effective technique to identify possible offending hosts in the network

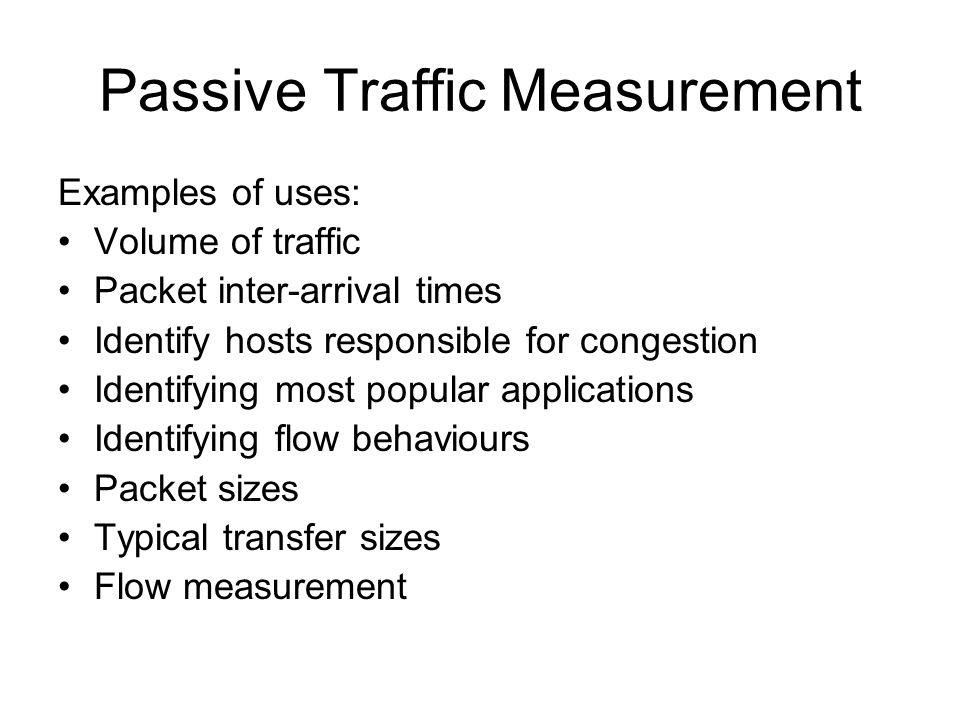

11. Passive Traffic Measurement Examples of uses: Volume of traffic Packet inter-arrival times Identify hosts responsible for congestion Identifying most popular applications Identifying flow behaviours Packet sizes Typical transfer sizes Flow measurement

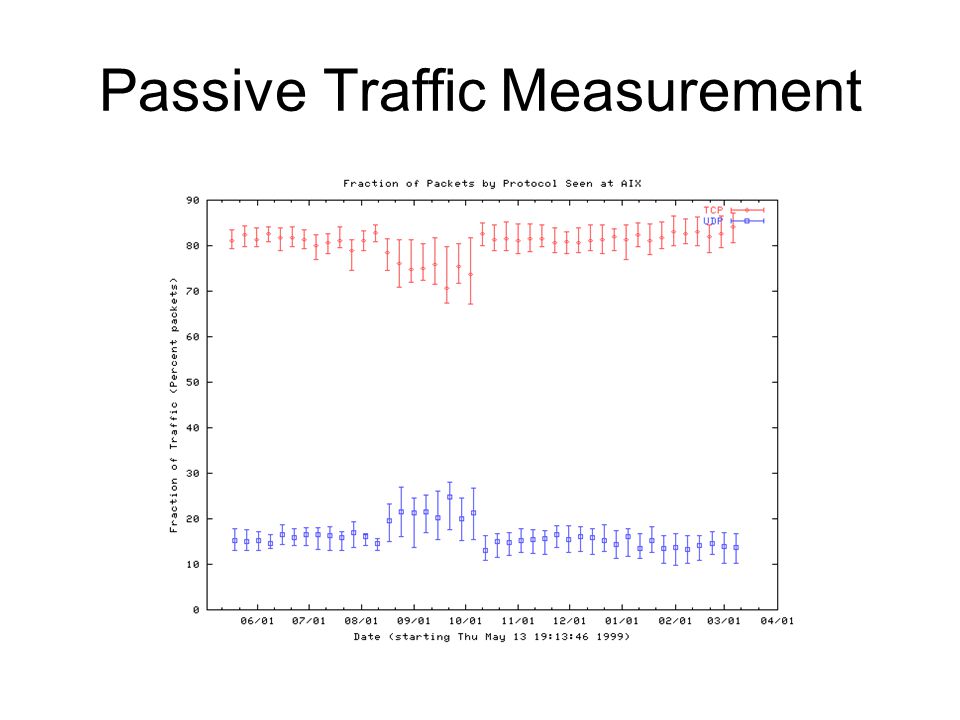

12. Passive Traffic Measurement

14. Active traffic measurement Resources Well known port numbers: http://www.iana.org/assignments/port-numbers Trends in Wide Area IP Traffic Patterns http://www.caida.org/outreach/papers/200 0/AIX0005/AIX0005.html CAIDA Internet Data -- Passive Data Sources http://www.caida.org/data/passive/

15. Summary Passive traffic measurement –Able to measure specific protocol related data –Used to monitor, plan and estimate current and future use of networks –It does not provide with a global view of the network Traffic characterisation is important because it helps us to understand exactly how human activities affect networks in particular and the Internet in general.
