1. 01/21/2004Campo1 Pedal Mania -a pedal power generation system- Melanie Campo and Mandi Fournier

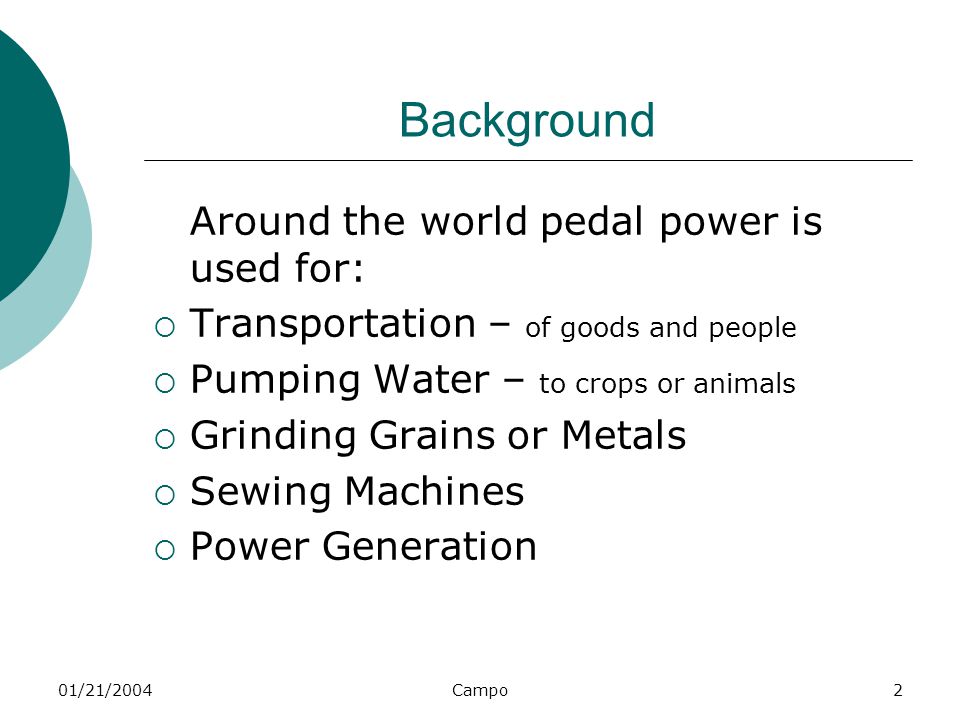

2. 01/21/2004Campo2 Background Around the world pedal power is used for:  Transportation – of goods and people  Pumping Water – to crops or animals  Grinding Grains or Metals  Sewing Machines  Power Generation

3. 01/21/2004Campo3 Problem To develop a portable educational tool that allows first hand experience of power production to operate standard AC and DC devices.

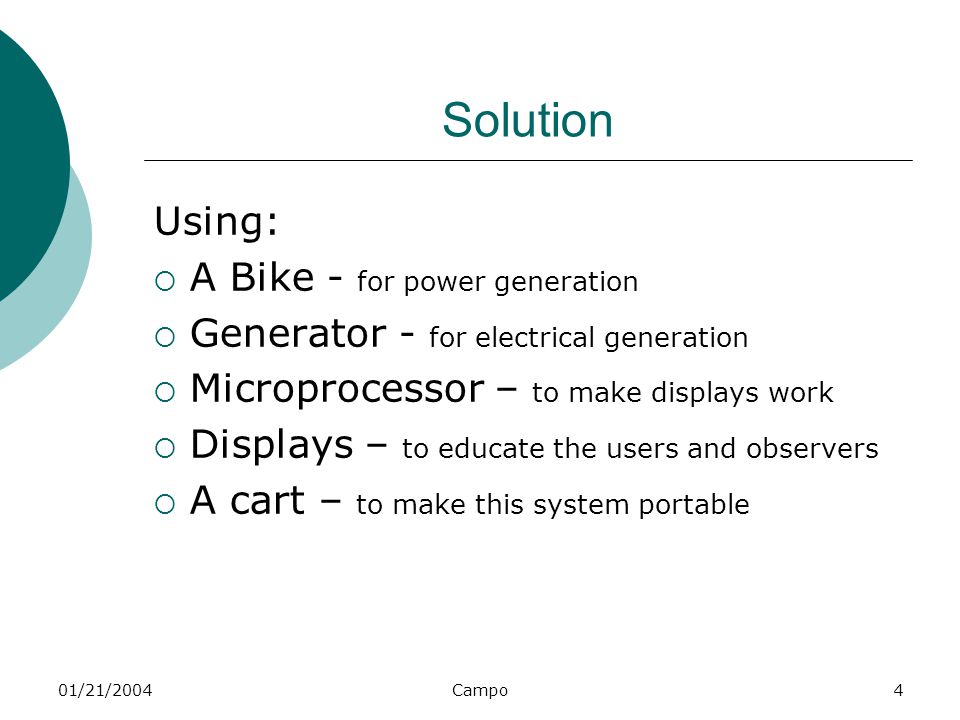

4. 01/21/2004Campo4 Solution Using:  A Bike - for power generation  Generator - for electrical generation  Microprocessor – to make displays work  Displays – to educate the users and observers  A cart – to make this system portable

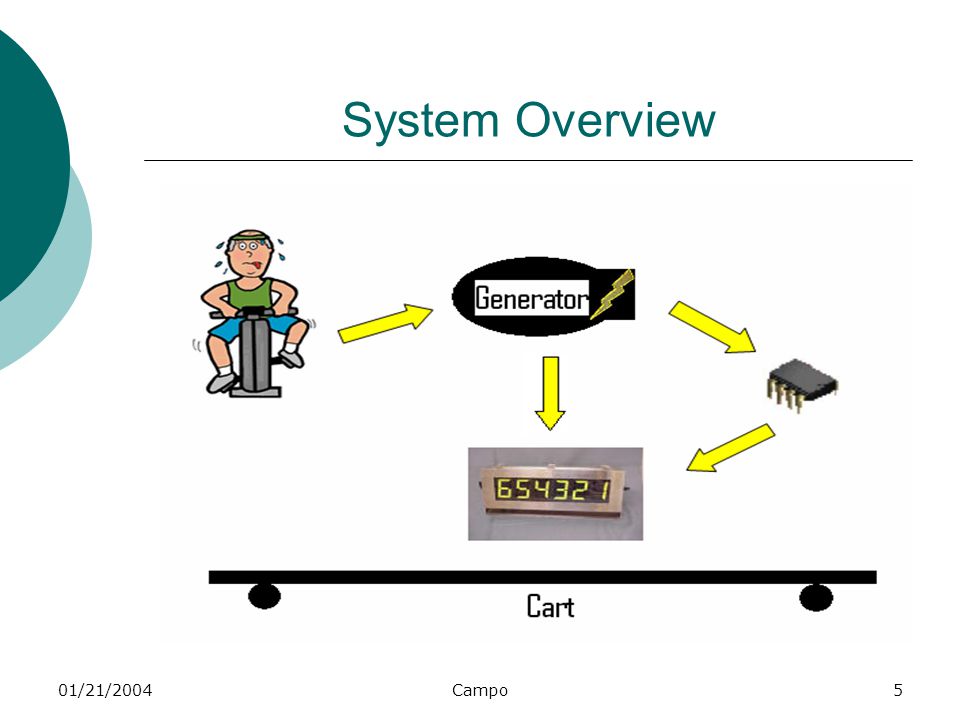

5. 01/21/2004Campo5 System Overview

6. 01/21/2004Campo6 Cart

7. 01/21/2004Campo7 Gear Ratio Calc from bike to alternator

8. 01/21/2004Campo8 Solution being Pursued

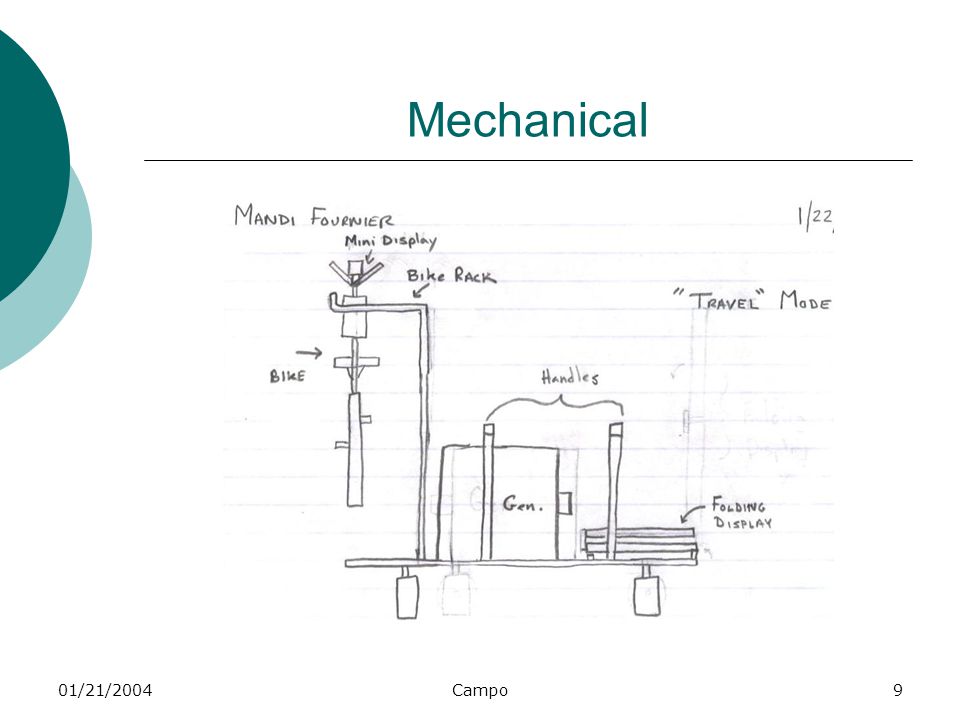

9. 01/21/2004Campo9 Mechanical

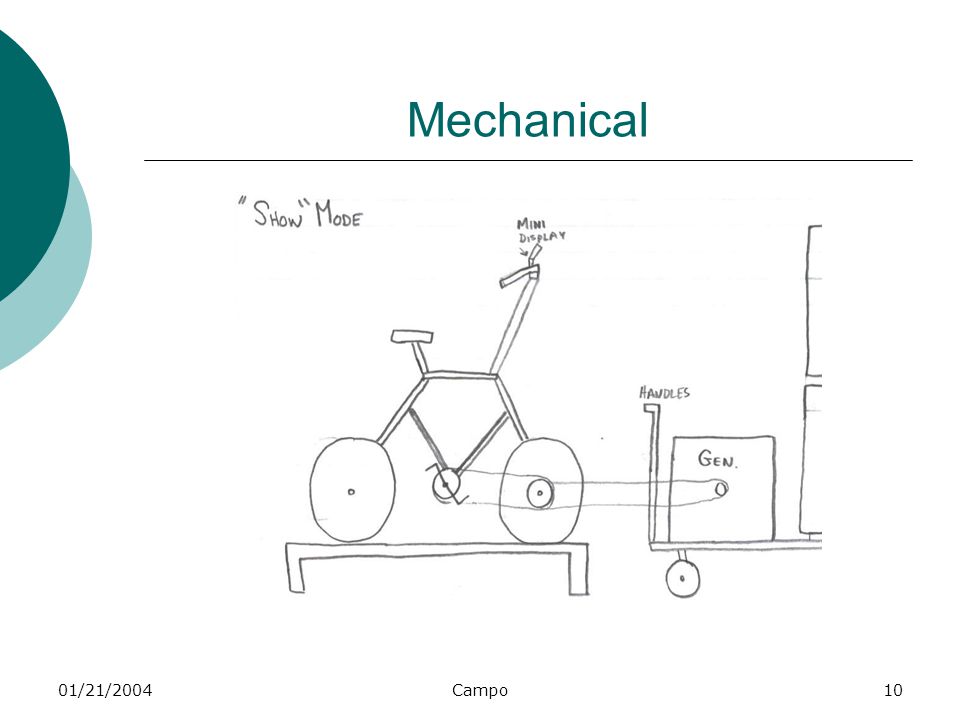

10. 01/21/2004Campo10 Mechanical

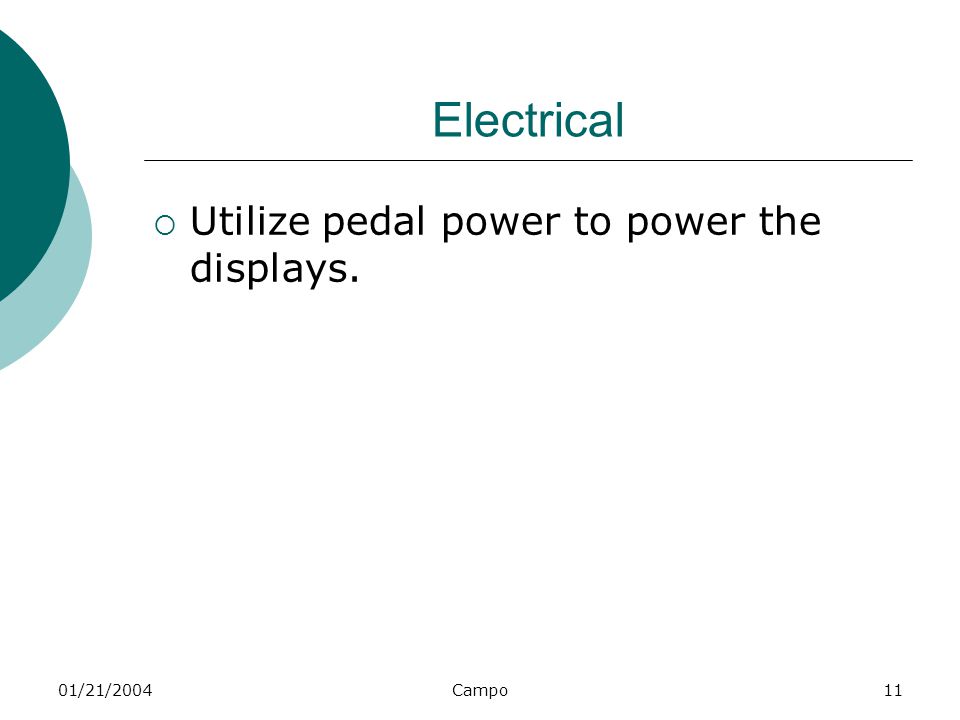

11. 01/21/2004Campo11 Electrical  Utilize pedal power to power the displays.

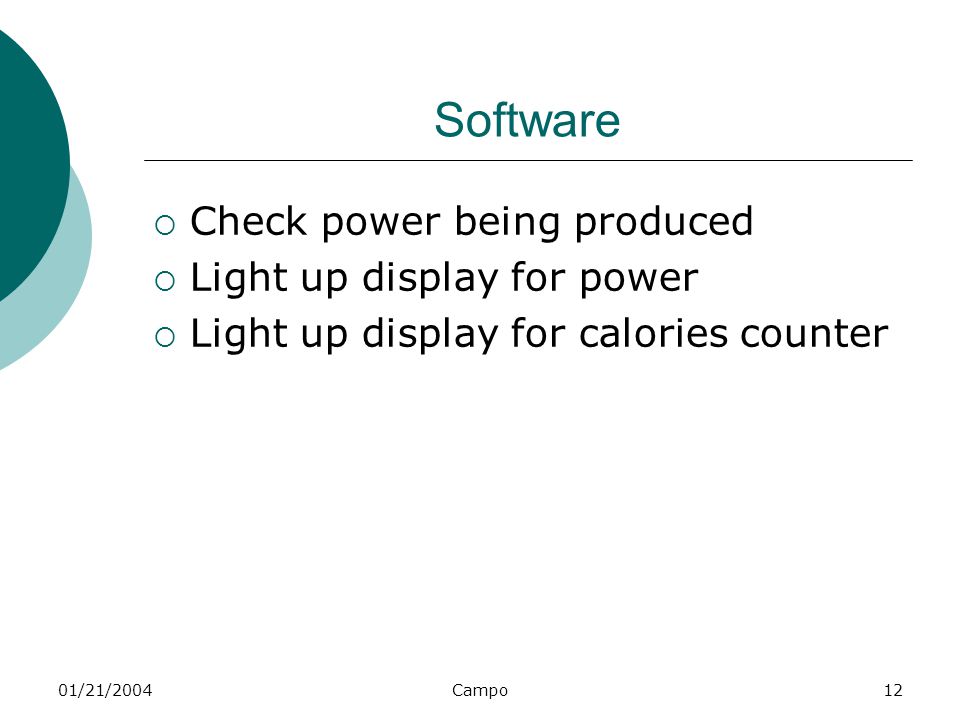

12. 01/21/2004Campo12 Software  Check power being produced  Light up display for power  Light up display for calories counter

13. 01/21/2004Campo13 Future Tests  Power from bike to generator  Stabilizing power from generator  Converting from “show” mode to “travel/storage” mode  Programming for calorie display  Programming for power display

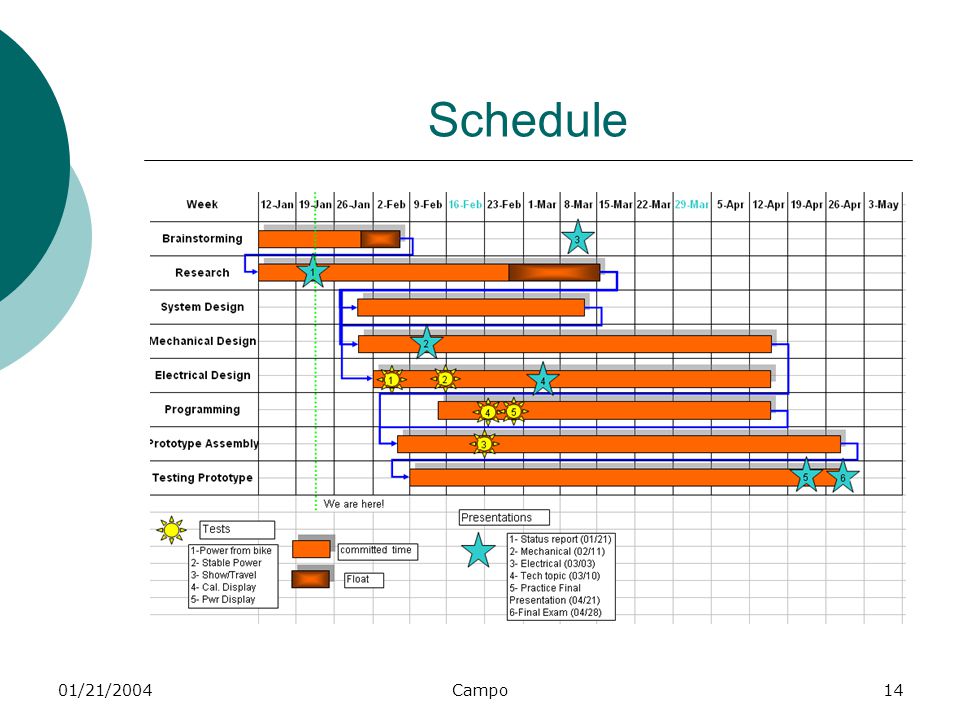

14. 01/21/2004Campo14 Schedule

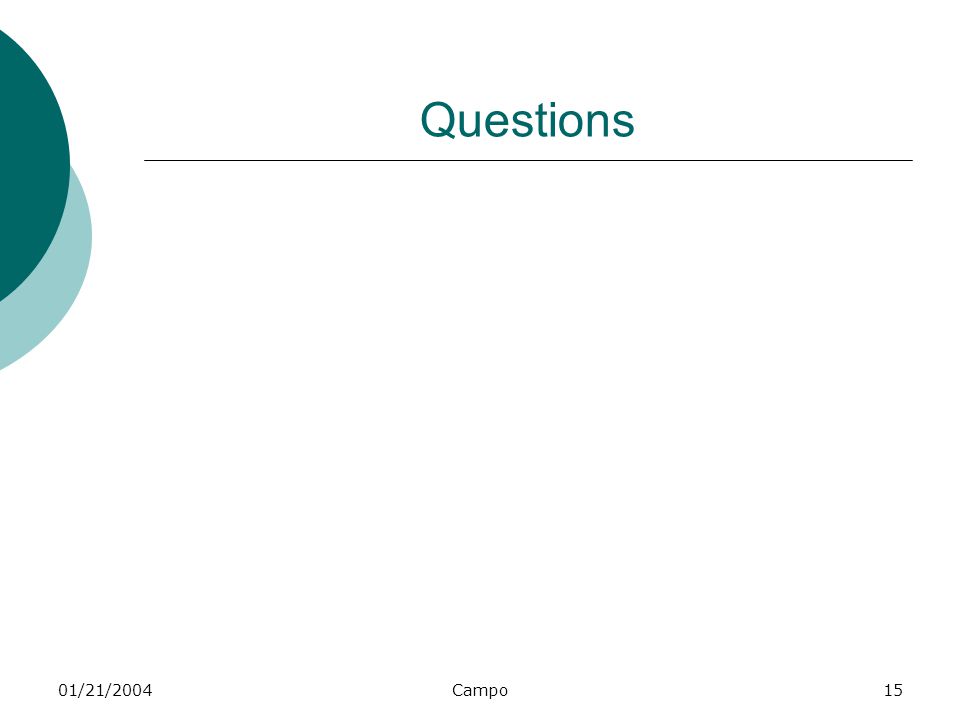

15. 01/21/2004Campo15 Questions
