1. Security Engineering Security Computer Science Tripos part 2 Ross Anderson

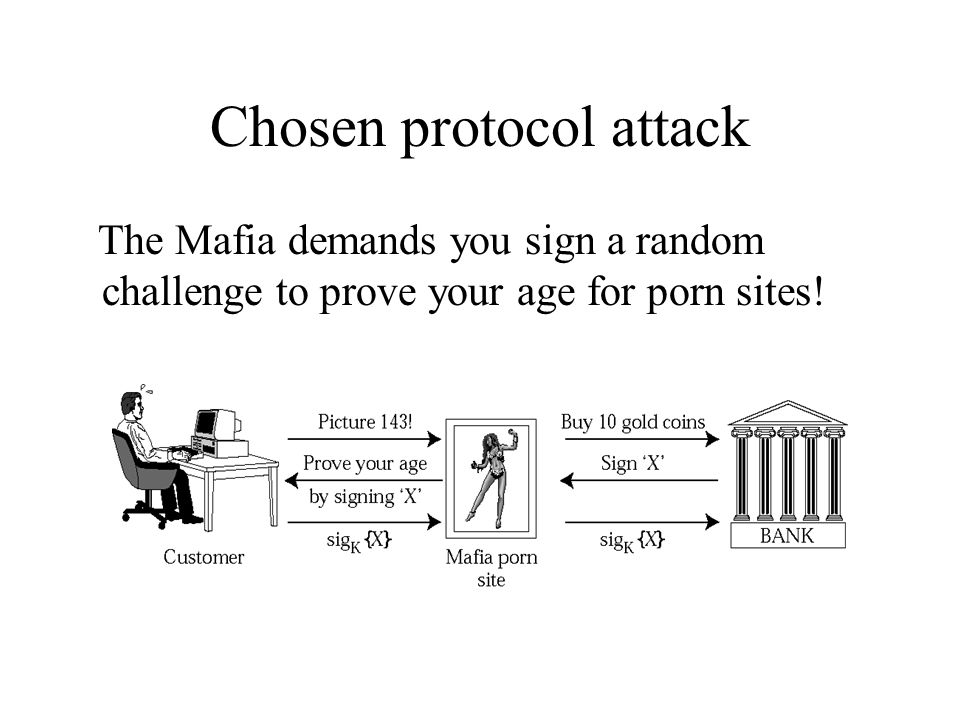

2. Chosen protocol attack The Mafia demands you sign a random challenge to prove your age for porn sites!

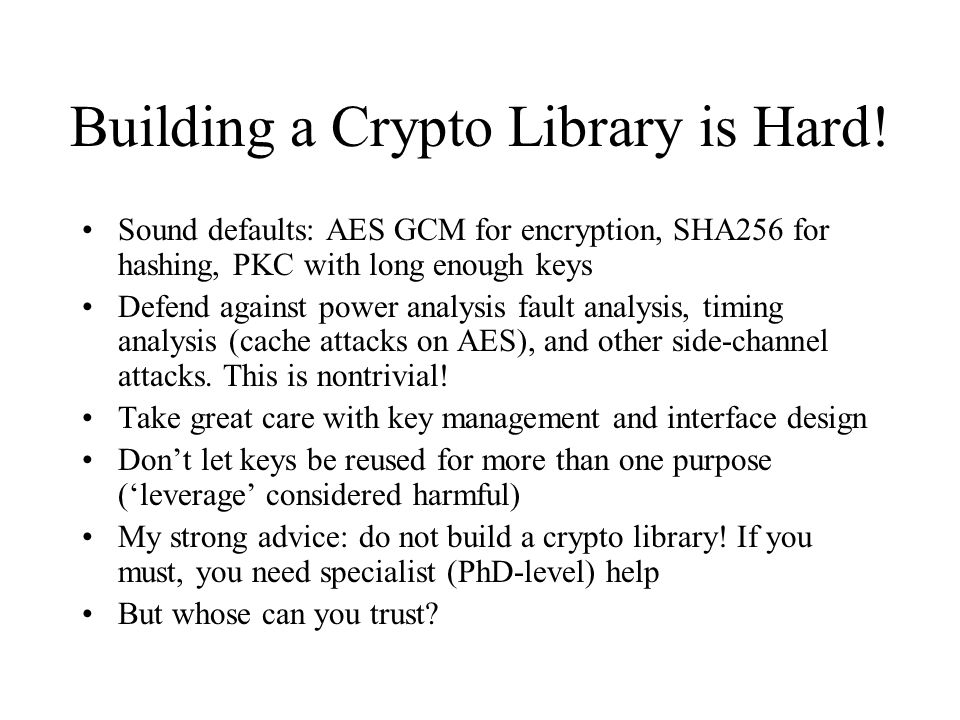

4. Building a Crypto Library is Hard! Sound defaults: AES GCM for encryption, SHA256 for hashing, PKC with long enough keys Defend against power analysis fault analysis, timing analysis (cache attacks on AES), and other side-channel attacks. This is nontrivial! Take great care with key management and interface design Don’t let keys be reused for more than one purpose (‘leverage’ considered harmful) My strong advice: do not build a crypto library! If you must, you need specialist (PhD-level) help But whose can you trust?

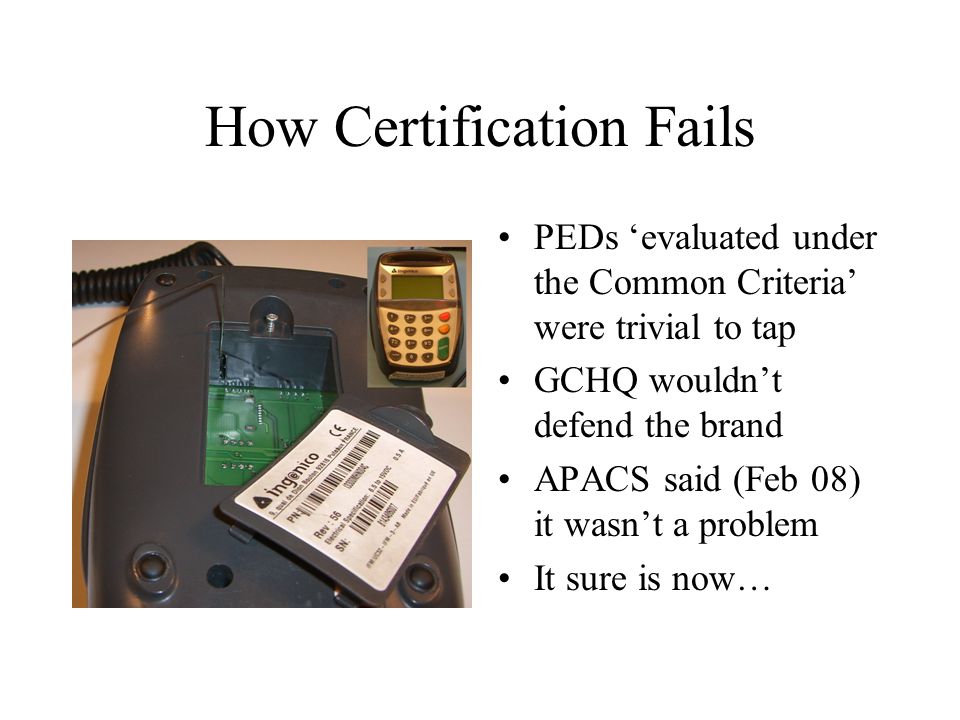

5. How Certification Fails PEDs ‘evaluated under the Common Criteria’ were trivial to tap GCHQ wouldn’t defend the brand APACS said (Feb 08) it wasn’t a problem It sure is now…

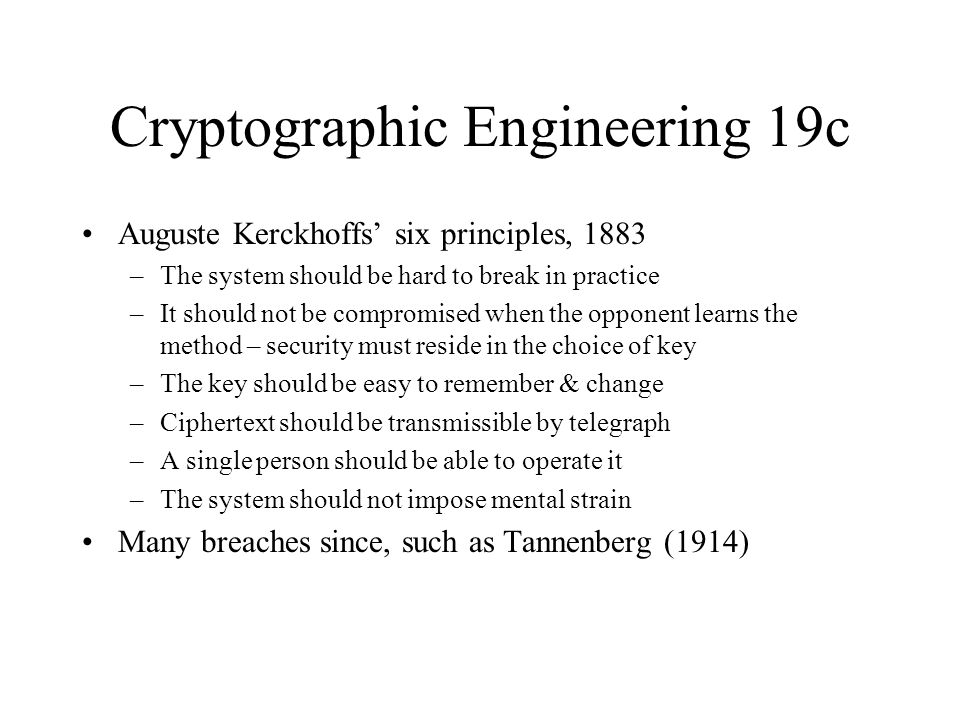

6. Cryptographic Engineering 19c Auguste Kerckhoffs’ six principles, 1883 –The system should be hard to break in practice –It should not be compromised when the opponent learns the method – security must reside in the choice of key –The key should be easy to remember & change –Ciphertext should be transmissible by telegraph –A single person should be able to operate it –The system should not impose mental strain Many breaches since, such as Tannenberg (1914)

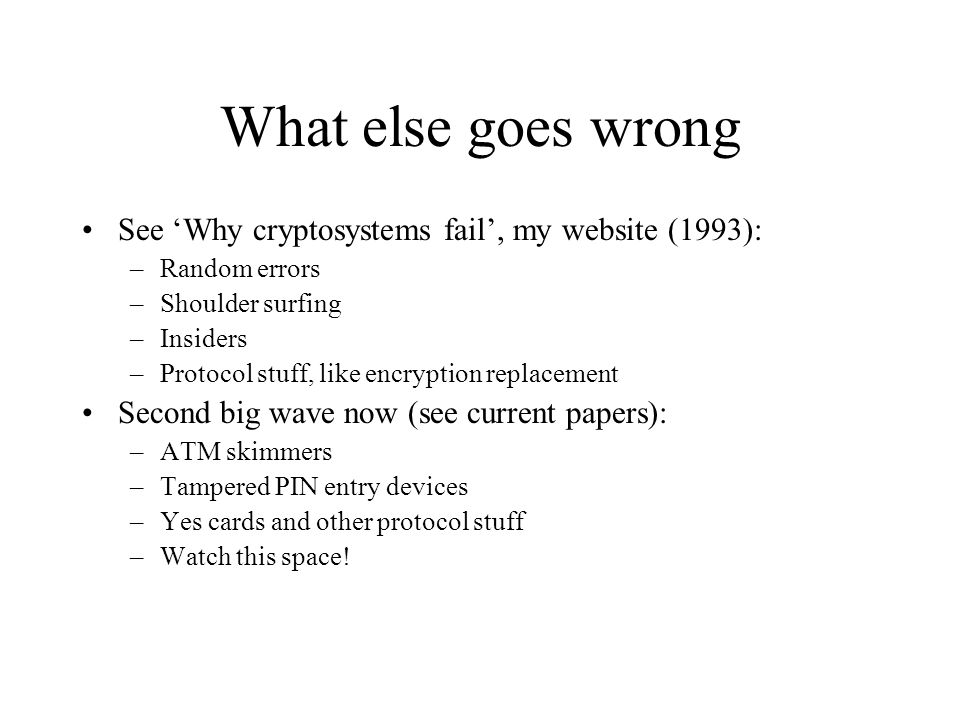

7. What else goes wrong See ‘Why cryptosystems fail’, my website (1993): –Random errors –Shoulder surfing –Insiders –Protocol stuff, like encryption replacement Second big wave now (see current papers): –ATM skimmers –Tampered PIN entry devices –Yes cards and other protocol stuff –Watch this space!

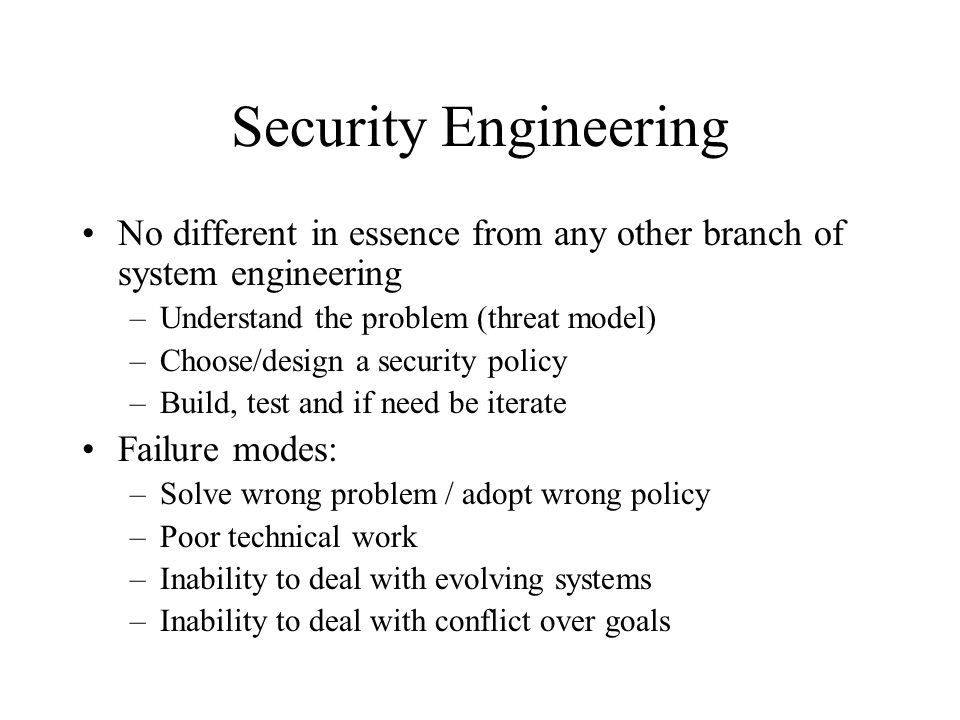

8. Security Engineering No different in essence from any other branch of system engineering –Understand the problem (threat model) –Choose/design a security policy –Build, test and if need be iterate Failure modes: –Solve wrong problem / adopt wrong policy –Poor technical work –Inability to deal with evolving systems –Inability to deal with conflict over goals

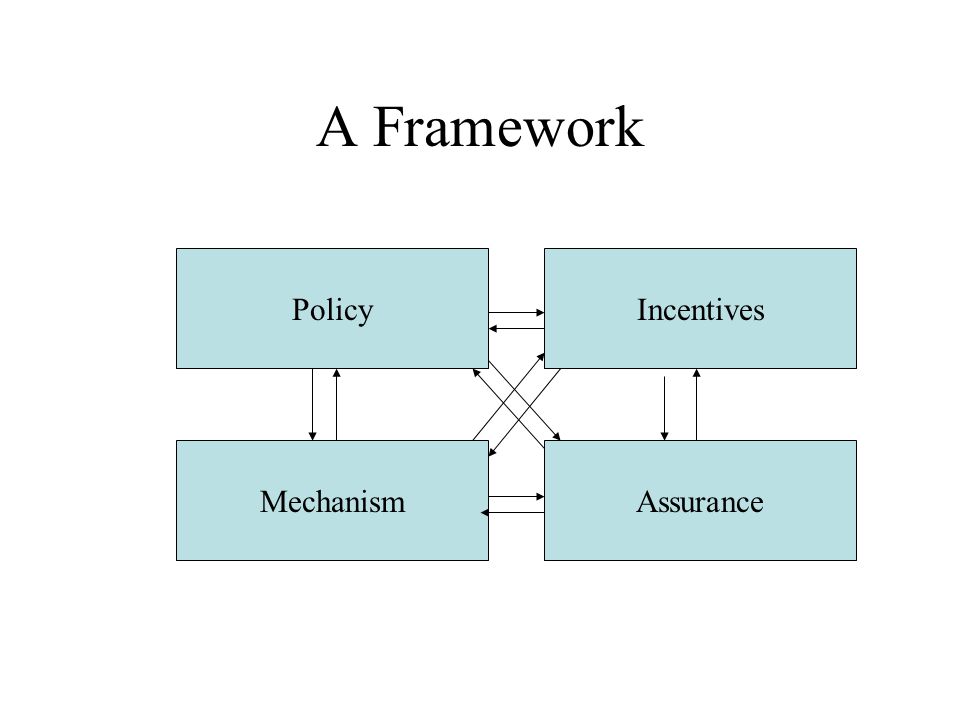

9. A Framework Policy Assurance Incentives Mechanism

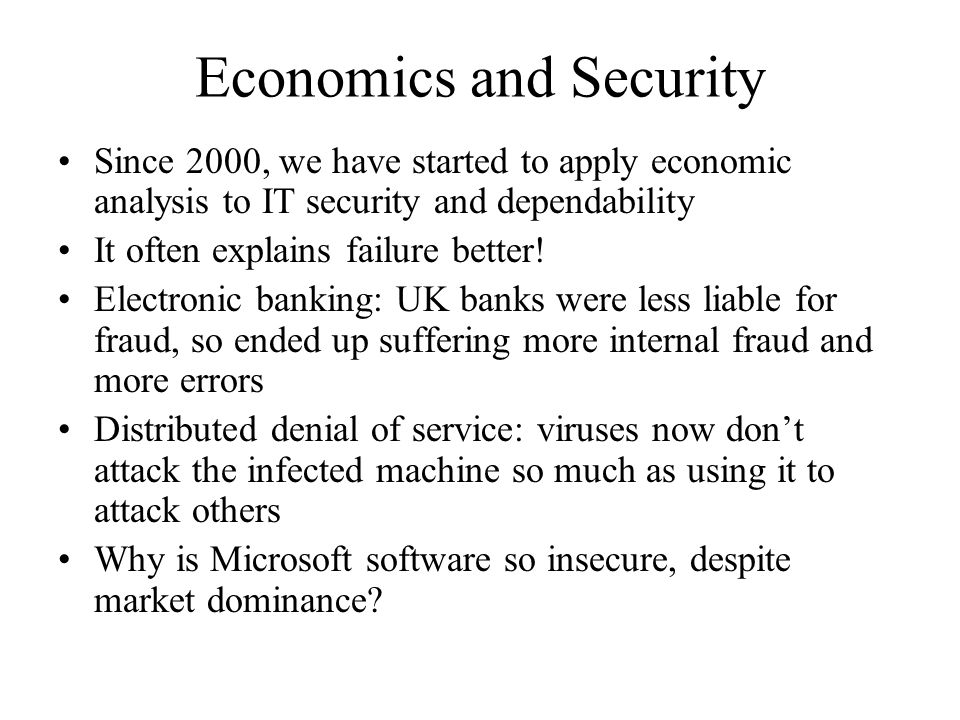

10. Economics and Security Since 2000, we have started to apply economic analysis to IT security and dependability It often explains failure better! Electronic banking: UK banks were less liable for fraud, so ended up suffering more internal fraud and more errors Distributed denial of service: viruses now don’t attack the infected machine so much as using it to attack others Why is Microsoft software so insecure, despite market dominance?

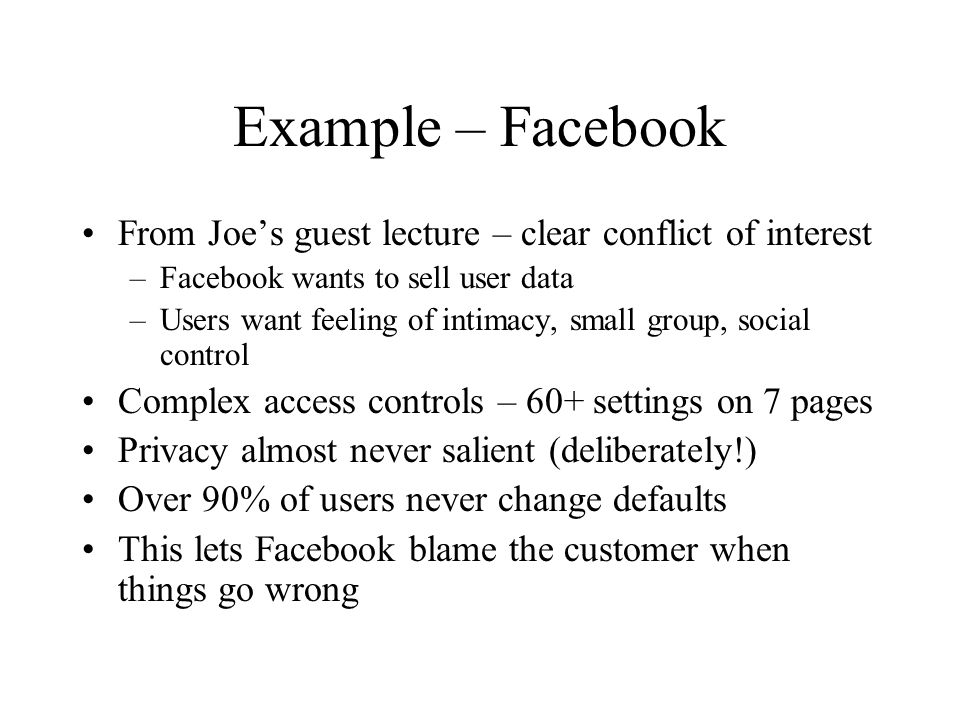

11. Example – Facebook From Joe’s guest lecture – clear conflict of interest –Facebook wants to sell user data –Users want feeling of intimacy, small group, social control Complex access controls – 60+ settings on 7 pages Privacy almost never salient (deliberately!) Over 90% of users never change defaults This lets Facebook blame the customer when things go wrong

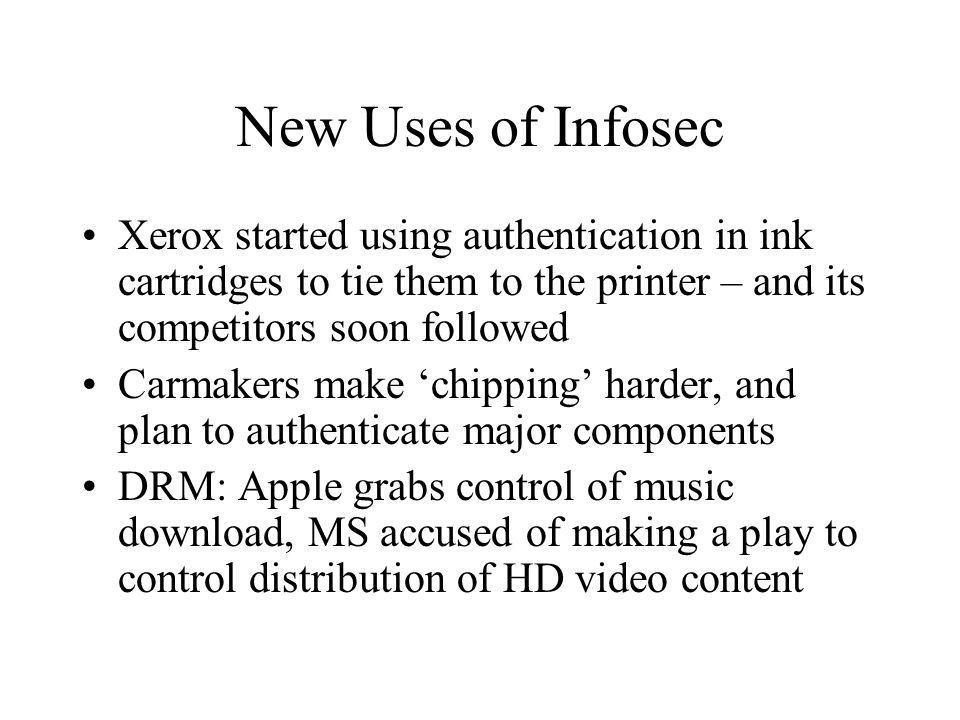

12. New Uses of Infosec Xerox started using authentication in ink cartridges to tie them to the printer – and its competitors soon followed Carmakers make ‘chipping’ harder, and plan to authenticate major components DRM: Apple grabs control of music download, MS accused of making a play to control distribution of HD video content

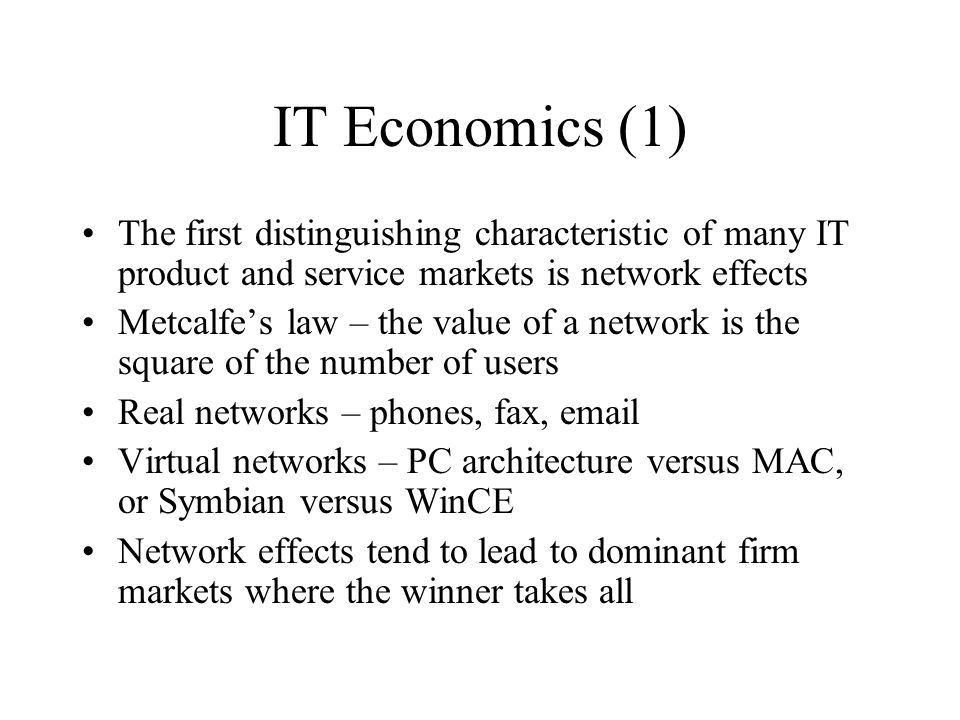

13. IT Economics (1) The first distinguishing characteristic of many IT product and service markets is network effects Metcalfe’s law – the value of a network is the square of the number of users Real networks – phones, fax, email Virtual networks – PC architecture versus MAC, or Symbian versus WinCE Network effects tend to lead to dominant firm markets where the winner takes all

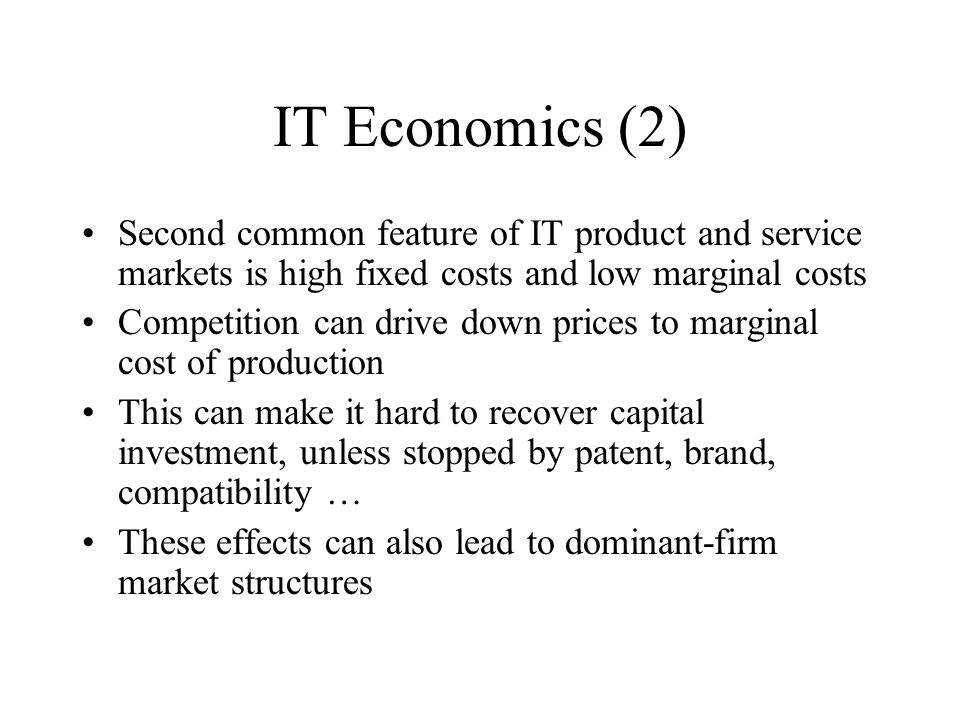

14. IT Economics (2) Second common feature of IT product and service markets is high fixed costs and low marginal costs Competition can drive down prices to marginal cost of production This can make it hard to recover capital investment, unless stopped by patent, brand, compatibility … These effects can also lead to dominant-firm market structures

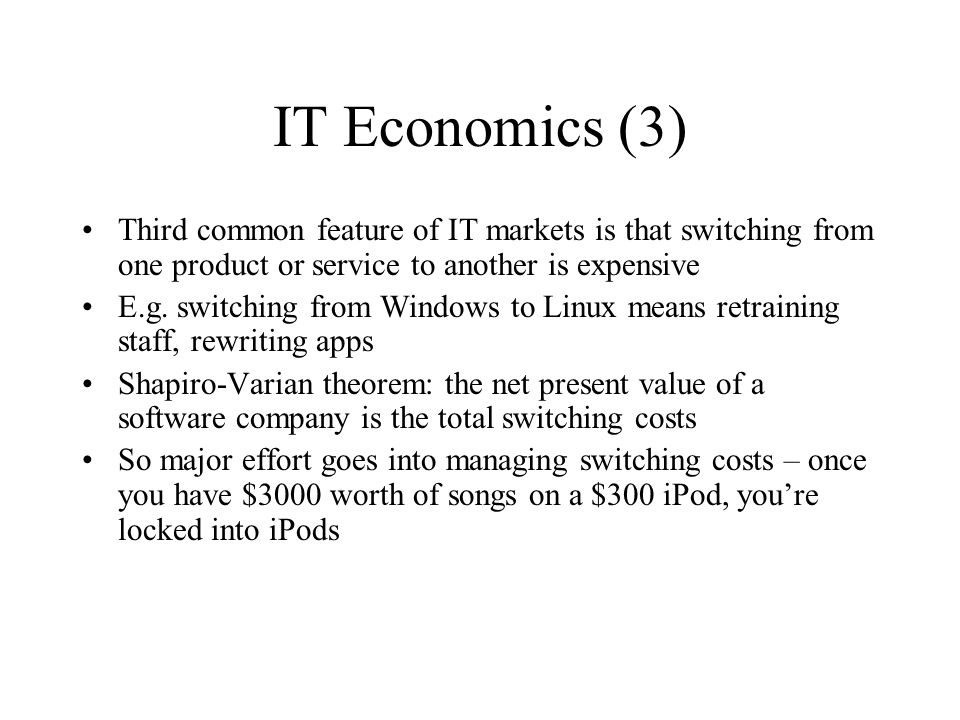

15. IT Economics (3) Third common feature of IT markets is that switching from one product or service to another is expensive E.g. switching from Windows to Linux means retraining staff, rewriting apps Shapiro-Varian theorem: the net present value of a software company is the total switching costs So major effort goes into managing switching costs – once you have $3000 worth of songs on a $300 iPod, you’re locked into iPods

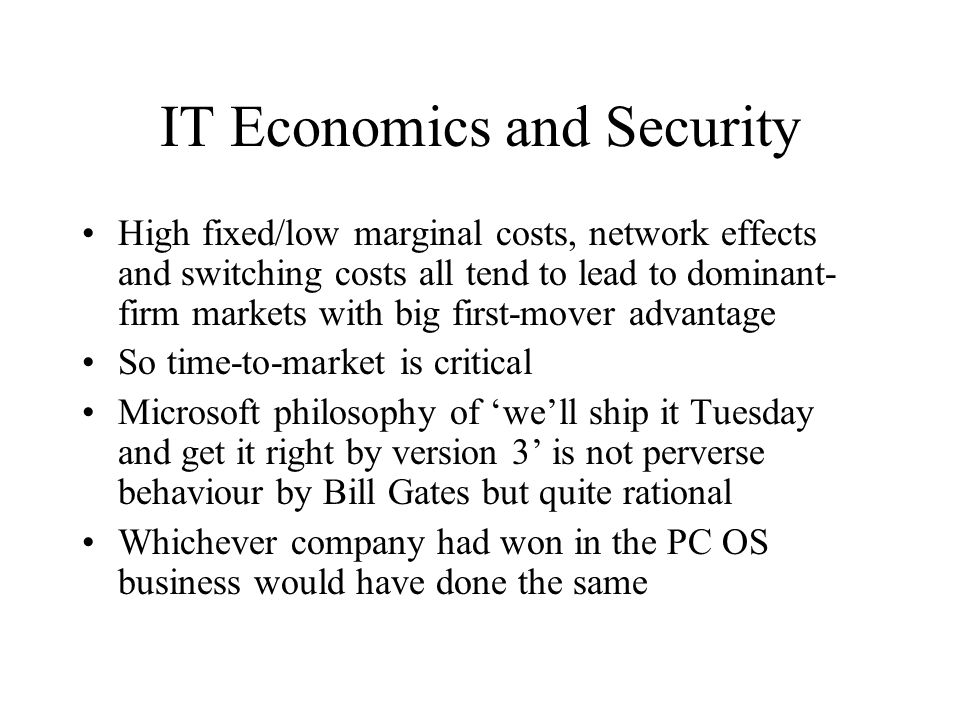

16. IT Economics and Security High fixed/low marginal costs, network effects and switching costs all tend to lead to dominant- firm markets with big first-mover advantage So time-to-market is critical Microsoft philosophy of ‘we’ll ship it Tuesday and get it right by version 3’ is not perverse behaviour by Bill Gates but quite rational Whichever company had won in the PC OS business would have done the same

17. IT Economics and Security (2) When building a network monopoly, you must appeal to vendors of complementary products That’s application software developers in the case of PC versus Apple, or of Symbian versus Palm, or of Facebook versus Myspace Lack of security in earlier versions of Windows made it easier to develop applications So did the choice of security technologies that dump costs on the user (SSL, not SET) Once you’ve a monopoly, lock it all down!

18. Why are so many security products ineffective? Recall from 1b Akerlof’s Nobel-prizewinning paper, ‘The Market for Lemons’ Suppose a town has 100 used cars for sale: 50 good ones worth $2000 and 50 lemons worth $1000 What is the equilibrium price of used cars? If $1500, no good cars will be offered for sale … Started the study of asymmetric information Security products are often a ‘lemons market’

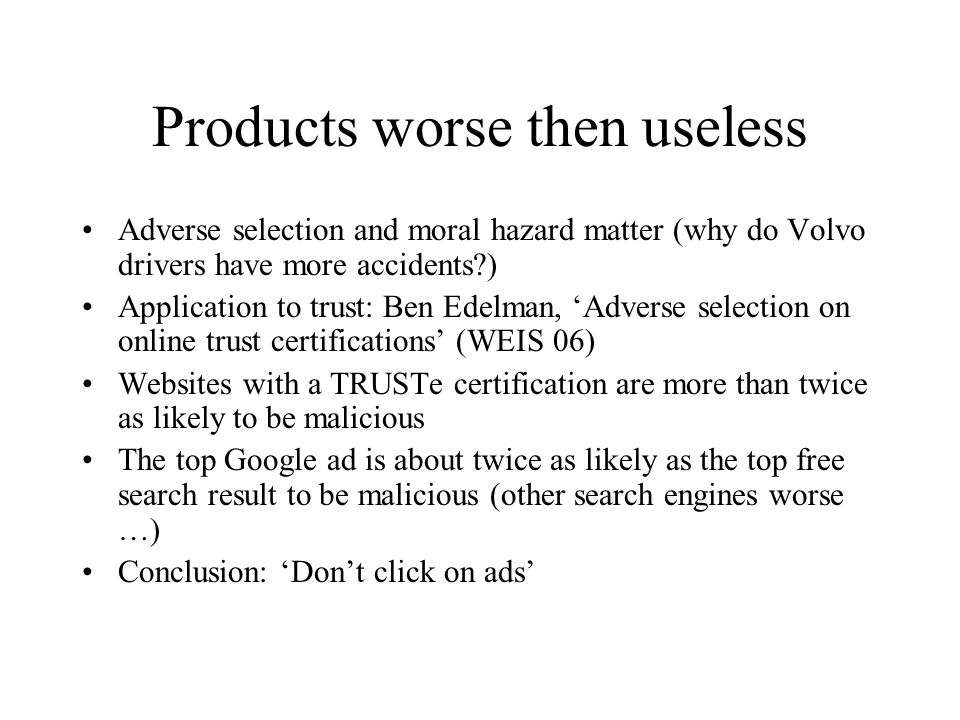

19. Products worse then useless Adverse selection and moral hazard matter (why do Volvo drivers have more accidents?) Application to trust: Ben Edelman, ‘Adverse selection on online trust certifications’ (WEIS 06) Websites with a TRUSTe certification are more than twice as likely to be malicious The top Google ad is about twice as likely as the top free search result to be malicious (other search engines worse …) Conclusion: ‘Don’t click on ads’

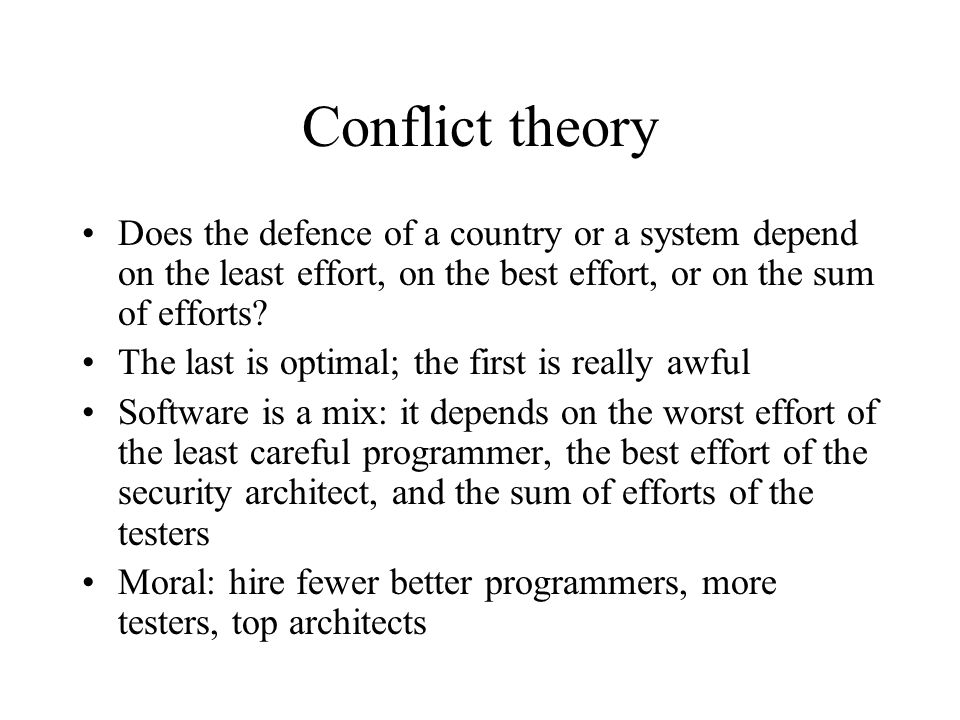

20. Conflict theory Does the defence of a country or a system depend on the least effort, on the best effort, or on the sum of efforts? The last is optimal; the first is really awful Software is a mix: it depends on the worst effort of the least careful programmer, the best effort of the security architect, and the sum of efforts of the testers Moral: hire fewer better programmers, more testers, top architects

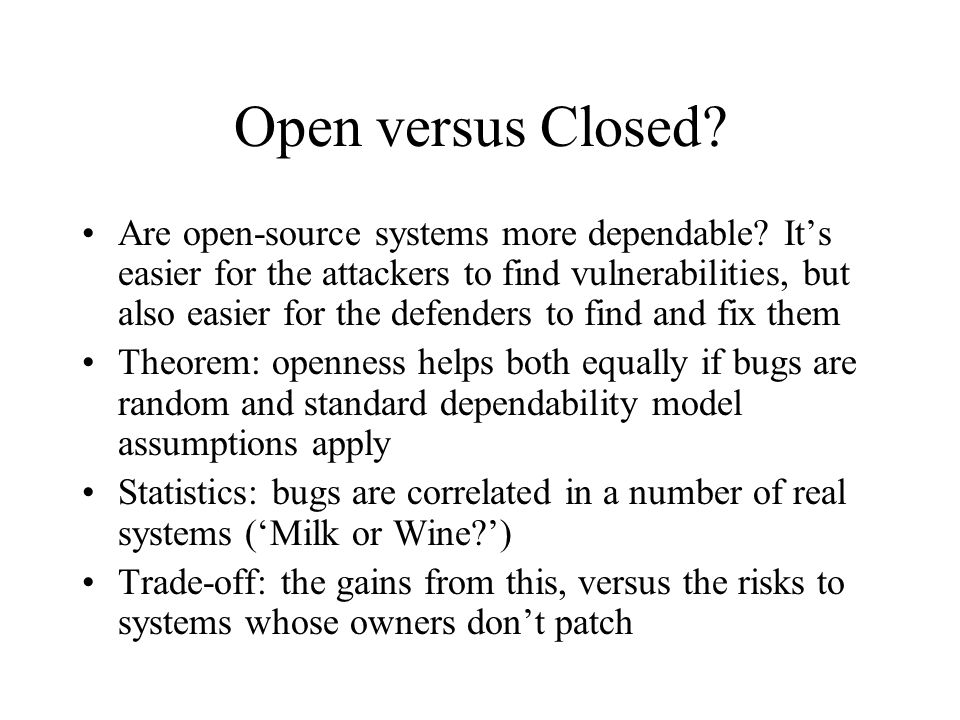

21. Open versus Closed? Are open-source systems more dependable? It’s easier for the attackers to find vulnerabilities, but also easier for the defenders to find and fix them Theorem: openness helps both equally if bugs are random and standard dependability model assumptions apply Statistics: bugs are correlated in a number of real systems (‘Milk or Wine?’) Trade-off: the gains from this, versus the risks to systems whose owners don’t patch

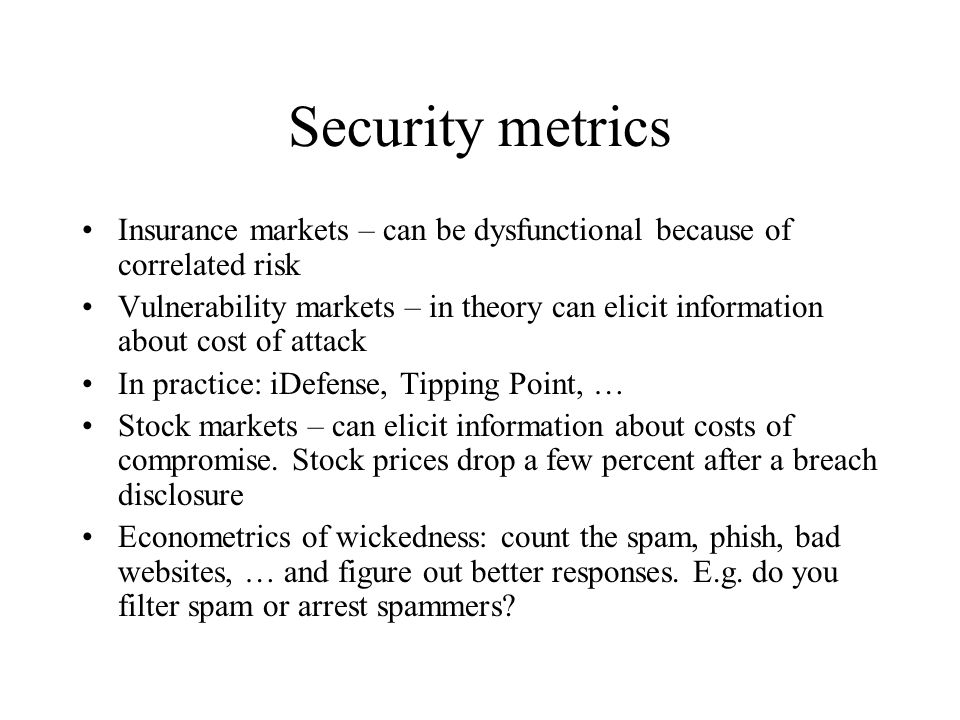

22. Security metrics Insurance markets – can be dysfunctional because of correlated risk Vulnerability markets – in theory can elicit information about cost of attack In practice: iDefense, Tipping Point, … Stock markets – can elicit information about costs of compromise. Stock prices drop a few percent after a breach disclosure Econometrics of wickedness: count the spam, phish, bad websites, … and figure out better responses. E.g. do you filter spam or arrest spammers?

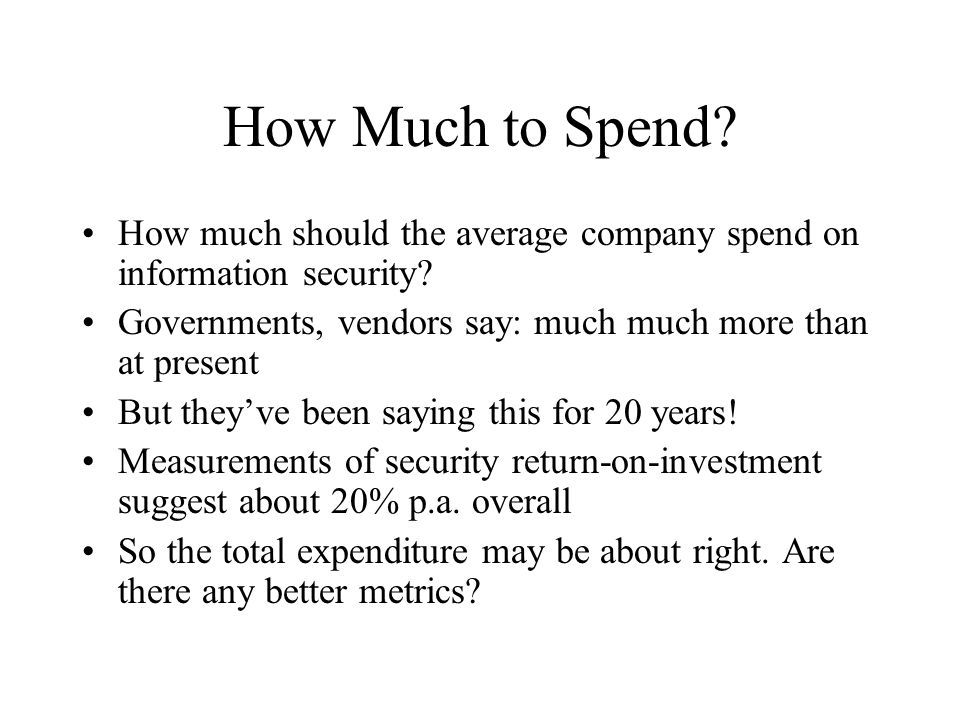

23. How Much to Spend? How much should the average company spend on information security? Governments, vendors say: much much more than at present But they’ve been saying this for 20 years! Measurements of security return-on-investment suggest about 20% p.a. overall So the total expenditure may be about right. Are there any better metrics?

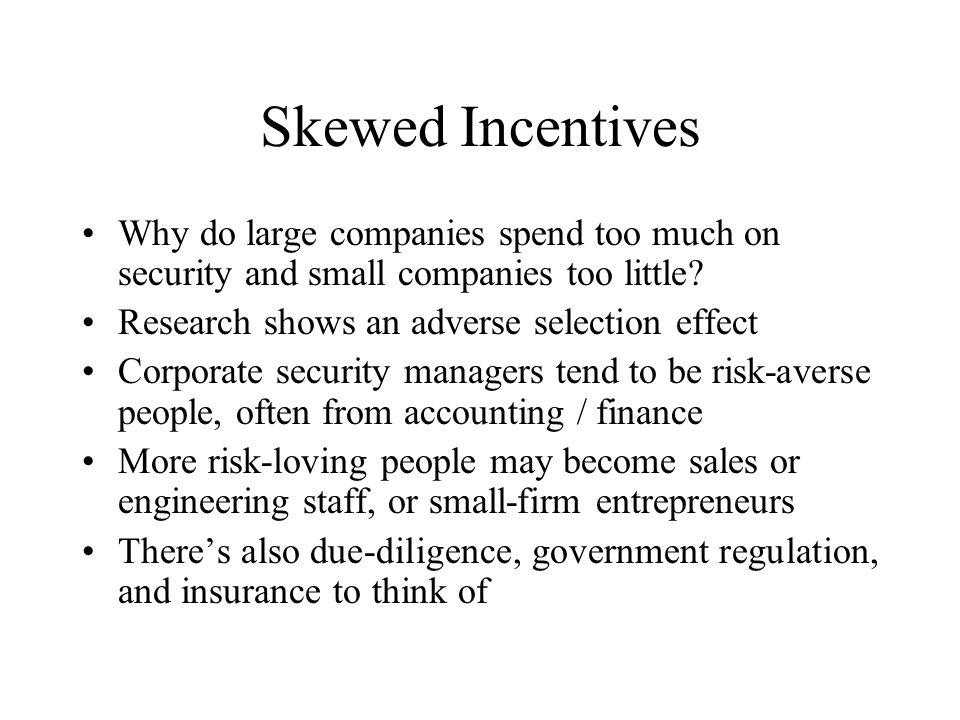

24. Skewed Incentives Why do large companies spend too much on security and small companies too little? Research shows an adverse selection effect Corporate security managers tend to be risk-averse people, often from accounting / finance More risk-loving people may become sales or engineering staff, or small-firm entrepreneurs There’s also due-diligence, government regulation, and insurance to think of

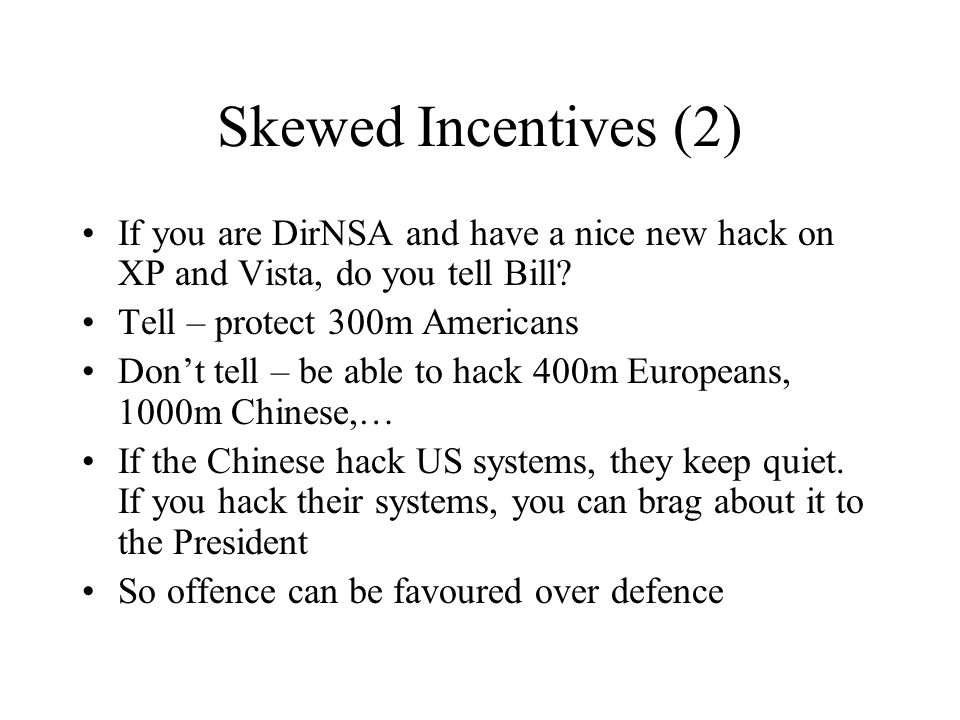

25. Skewed Incentives (2) If you are DirNSA and have a nice new hack on XP and Vista, do you tell Bill? Tell – protect 300m Americans Don’t tell – be able to hack 400m Europeans, 1000m Chinese,… If the Chinese hack US systems, they keep quiet. If you hack their systems, you can brag about it to the President So offence can be favoured over defence

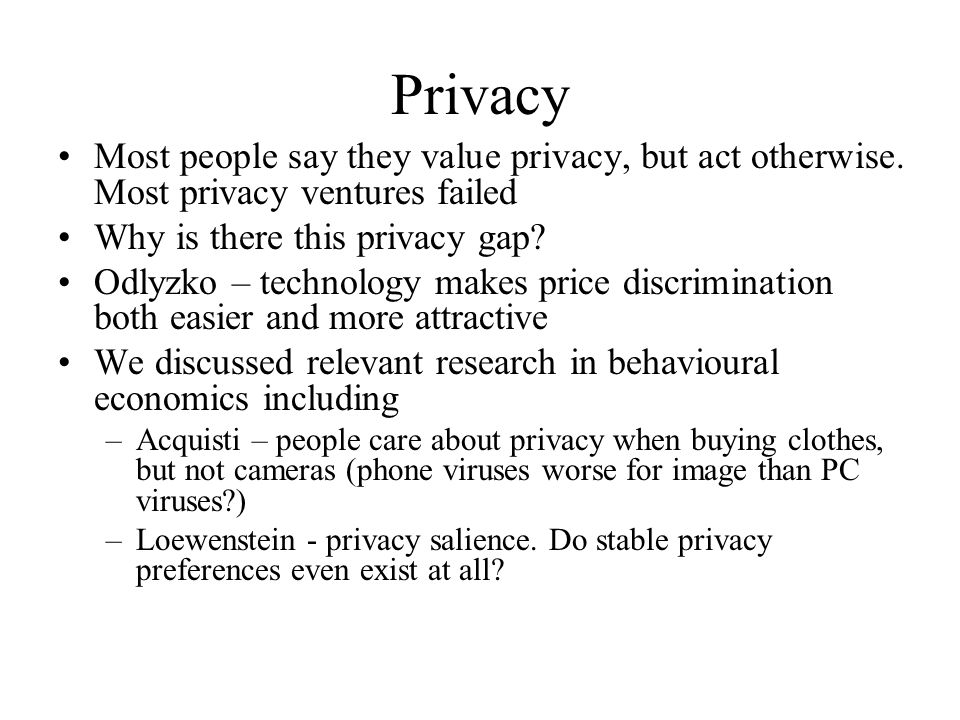

26. Privacy Most people say they value privacy, but act otherwise. Most privacy ventures failed Why is there this privacy gap? Odlyzko – technology makes price discrimination both easier and more attractive We discussed relevant research in behavioural economics including –Acquisti – people care about privacy when buying clothes, but not cameras (phone viruses worse for image than PC viruses?) –Loewenstein - privacy salience. Do stable privacy preferences even exist at all?

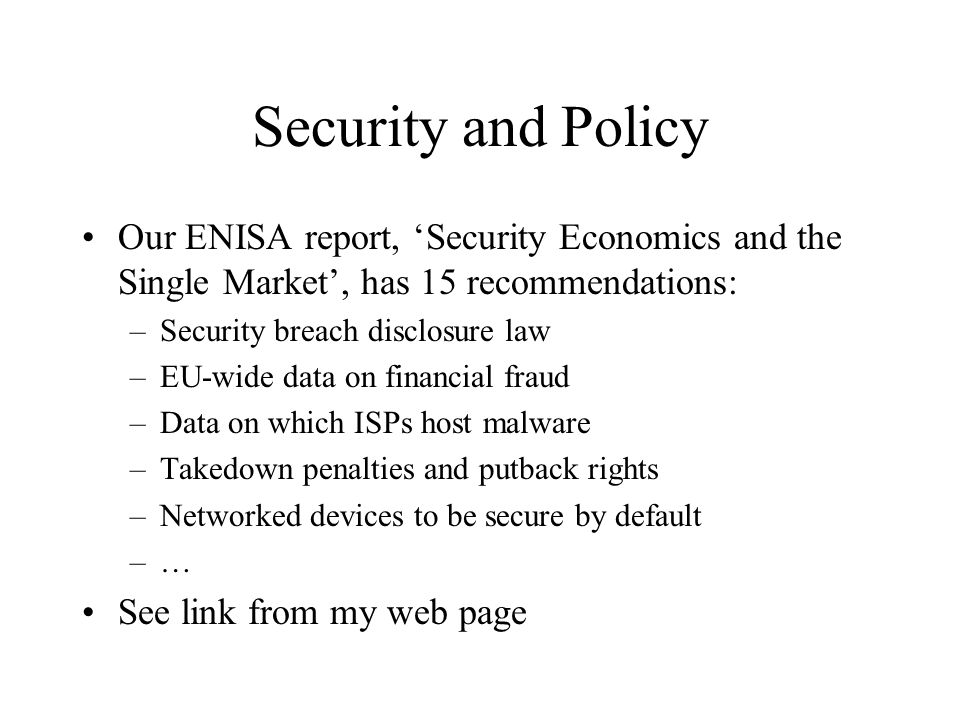

27. Security and Policy Our ENISA report, ‘Security Economics and the Single Market’, has 15 recommendations: –Security breach disclosure law –EU-wide data on financial fraud –Data on which ISPs host malware –Takedown penalties and putback rights –Networked devices to be secure by default –… See link from my web page

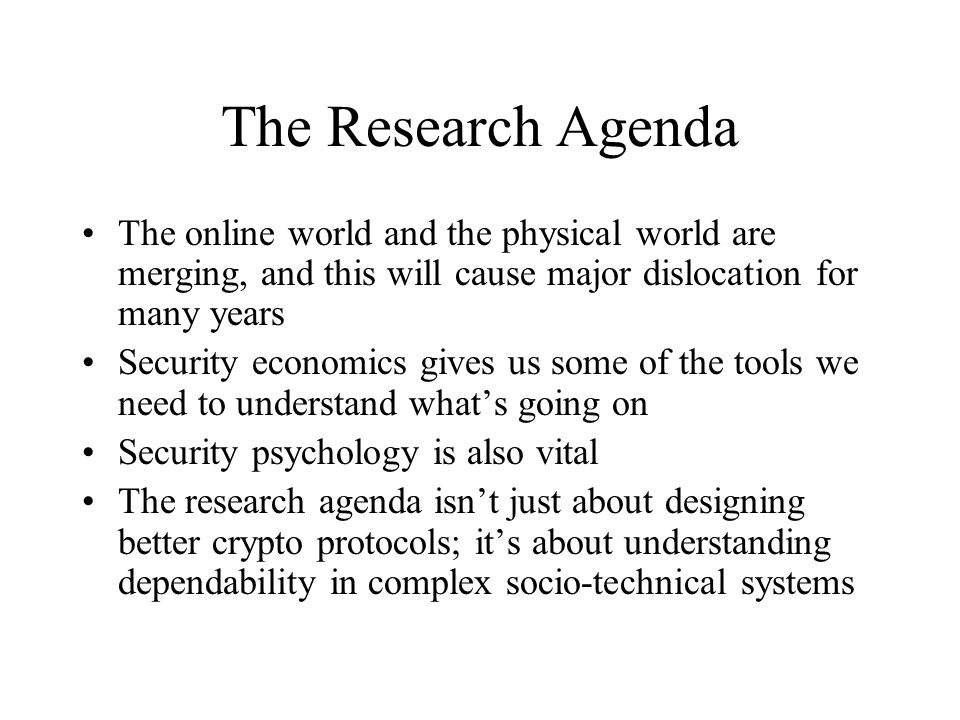

28. The Research Agenda The online world and the physical world are merging, and this will cause major dislocation for many years Security economics gives us some of the tools we need to understand what’s going on Security psychology is also vital The research agenda isn’t just about designing better crypto protocols; it’s about understanding dependability in complex socio-technical systems

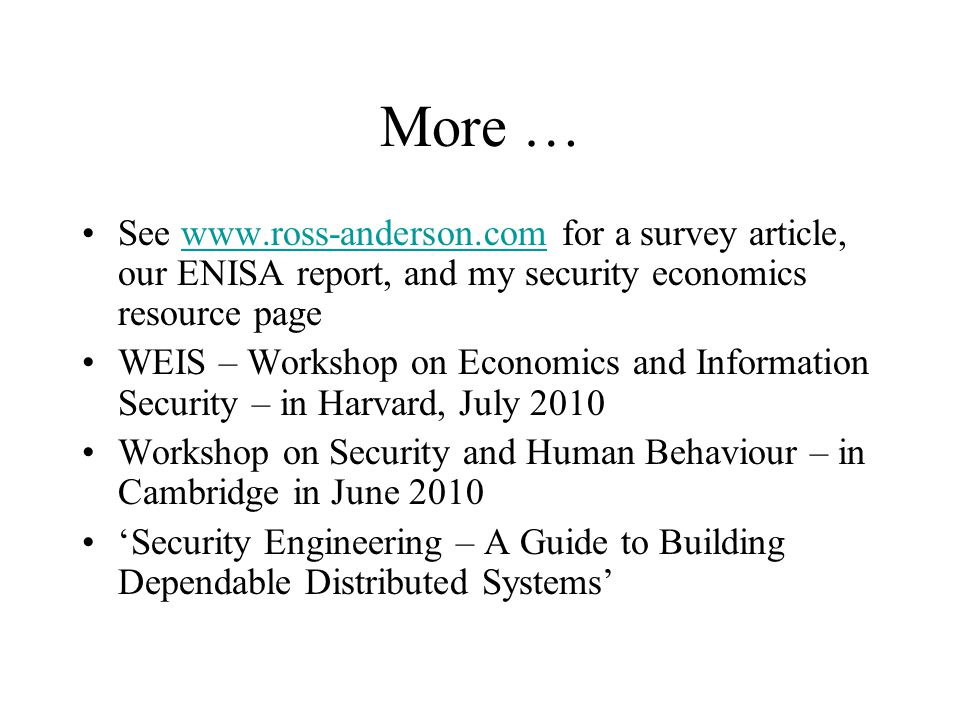

29. More … See www.ross-anderson.com for a survey article, our ENISA report, and my security economics resource pagewww.ross-anderson.com WEIS – Workshop on Economics and Information Security – in Harvard, July 2010 Workshop on Security and Human Behaviour – in Cambridge in June 2010 ‘Security Engineering – A Guide to Building Dependable Distributed Systems’
