1. 1 Pedagogical Review on Solar Cycles King-Fai Li Caltech GPS, YL Yung Group Jan 17, 2007

2. 2 Outline ► What are solar cycles? ► How are they related to climate? ► Our group ’ s efforts

3. 3 What are solar cycles? ► First observed in the time series of sunspot number

4. 4 Solar and Heliospheric Observatory (SOHO) ► Michelson Doppler Imager (MDI)   Ni I 6768 Å solar absorption line from the photosphere. ► Extreme ultraviolet Imaging Telescope (EIT)   171, 195, 284, and 304 Å, corresponding to light produced by highly ionized Fe-XI/X, XII, XV, and He-II;   Corona emissions

5. 5 MDI

6. 6

7. 7

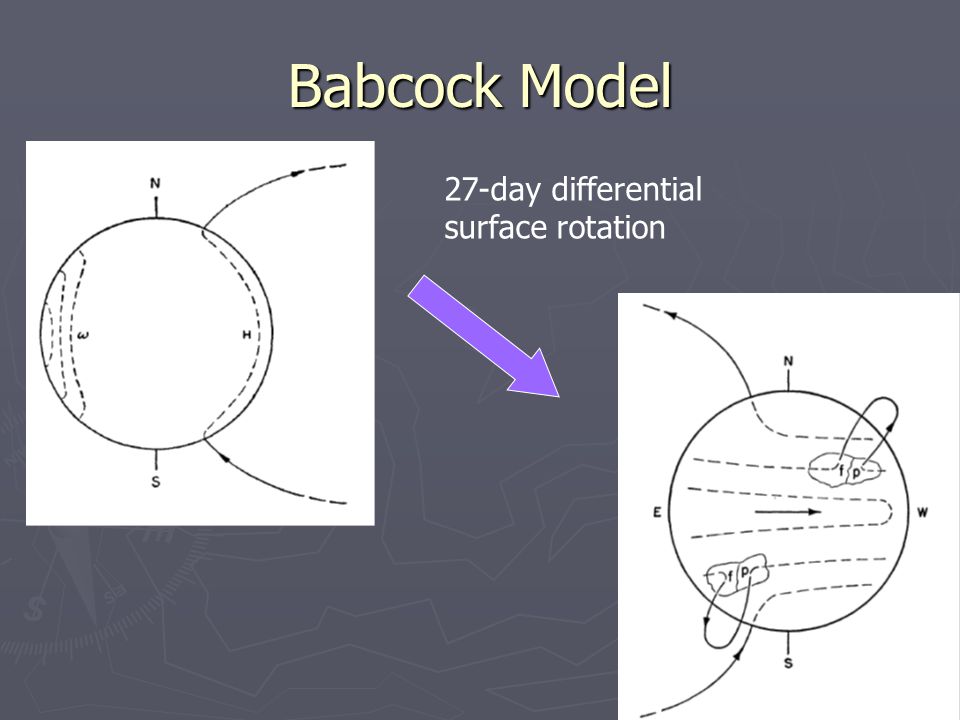

8. 8 Babcock Model 27-day differential surface rotation

9. 9 ► Total Spectral Irradiances Direct Observations  ~0.1% change in the 11-yr solar cycle

10. 10 Direct Observations ► F10.7 cm radio flux Blue: 90-day average

11. 11 ► Lyman-a line (1215 Å) Direct Observations  ~72% change in the 11-yr solar cycle

12. 12 ► Mg-II core-to-wing index (2800 Å) ► Active and passive sunspot projected areas Direct Observations (More … )

13. 13 How are they related to climate? Y L Yung ’ s Talk in CUHK, 2004

14. 14

15. 15

16. 16 How much is due to the solar cycle effect?

17. 17 Empirical Data in Ozone Columns

18. 18 Solar Cycles and Climate ► ► Corti et al. (1999): External perturbation changes only the occurrence frequency of the natural modes due to the non-linearity of the system. ► ► QBO and Annular Modes are two examples of natural modes.

19. 19 Our group ’ s effort ► Solar cycle – Northern/Southern Annular Modes interactions from NCEP Reanalysis data; ► Solar cycle – QBO interactions from THIN AIR model; ► Solar cycles on atmospheric chemical species from observations over Table Mountain + Caltech/JPL photochemical Model ► Variability of Fraunhofer structures in the spectra (~3080 Å) observed over Table Mountain.

20. 20 Fraunhofer lines Measured on ground

21. 21 Fraunhofer lines

22. 22 Limb Spectra from Table Mountain 2005/6/13 2005/9/23 OH absorption lines We have discovered some time-varying asymmetry between east and west limb Fraunhofer structures!

23. 23 Summary ► What are solar cycles? ► How are they related to climate? ► Our group ’ s efforts  To distinguish between natural variabilities and anthropogenic effects on climate  To analysis the asymmetry between Fraunhofer structures at the solar limbs

24. 24 References ► ► Babcock, H.W., The Topology of the Sun's Magnetic Field and the 22-YEAR Cycle, Astrophys. J., 133, 572-587, 1961 ► ► Camp, C. D., M. S. Roulston, and Y. L. Yung, Temporal and Spatial Patterns of the Interannual Variability of Total Ozone in the Tropics, J. Geophys. Res., 108(D20), 4643, 2003. ► ► Corti, S., F. Molteni, and T. N. Palmer, Signature of recent climate change in frequencies of natural atmospheric circulation regimes, Nature, 398(6730), 799-802, 1999. ► Pap, J. M., Periodicities of Solar Irradiance and Solar Activity Indices, I, Solar Physics, 129, 165-189,1990. ► ► Rind, D., The Sun's Role in Climate Variations, Science, 296, 673 (2002).
