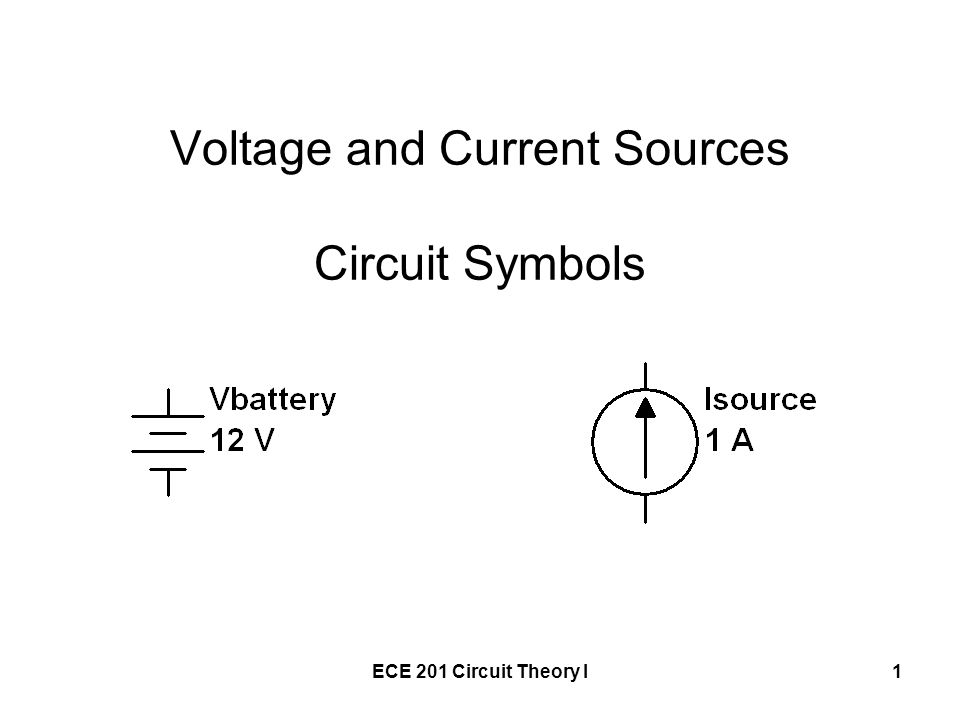

1. ECE 201 Circuit Theory I1 Voltage and Current Sources Circuit Symbols

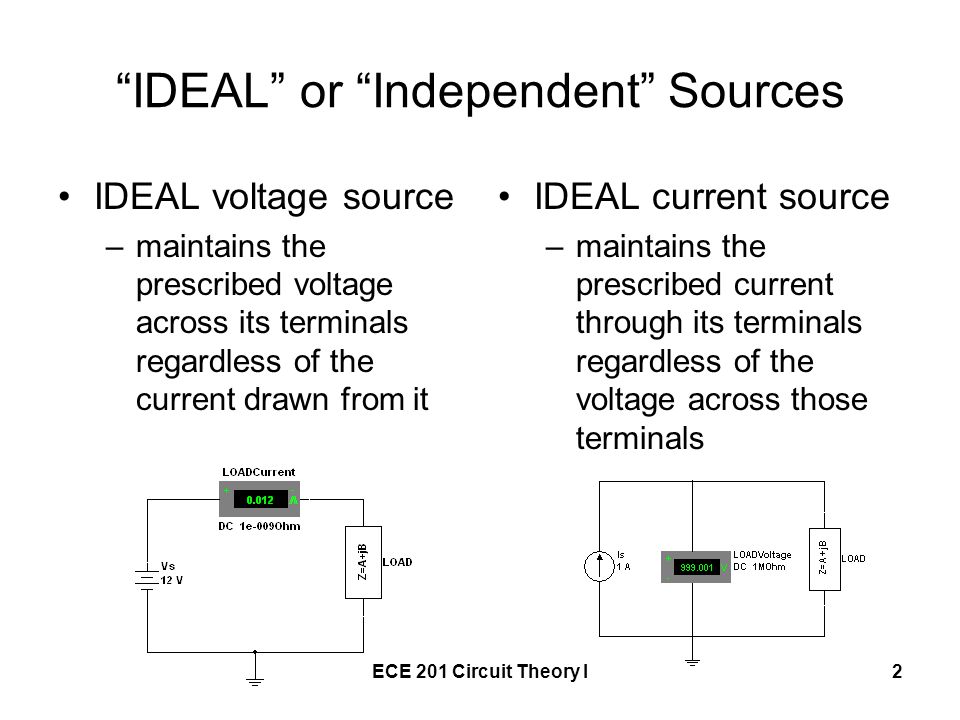

2. ECE 201 Circuit Theory I2 “IDEAL” or “Independent” Sources IDEAL voltage source –maintains the prescribed voltage across its terminals regardless of the current drawn from it IDEAL current source –maintains the prescribed current through its terminals regardless of the voltage across those terminals

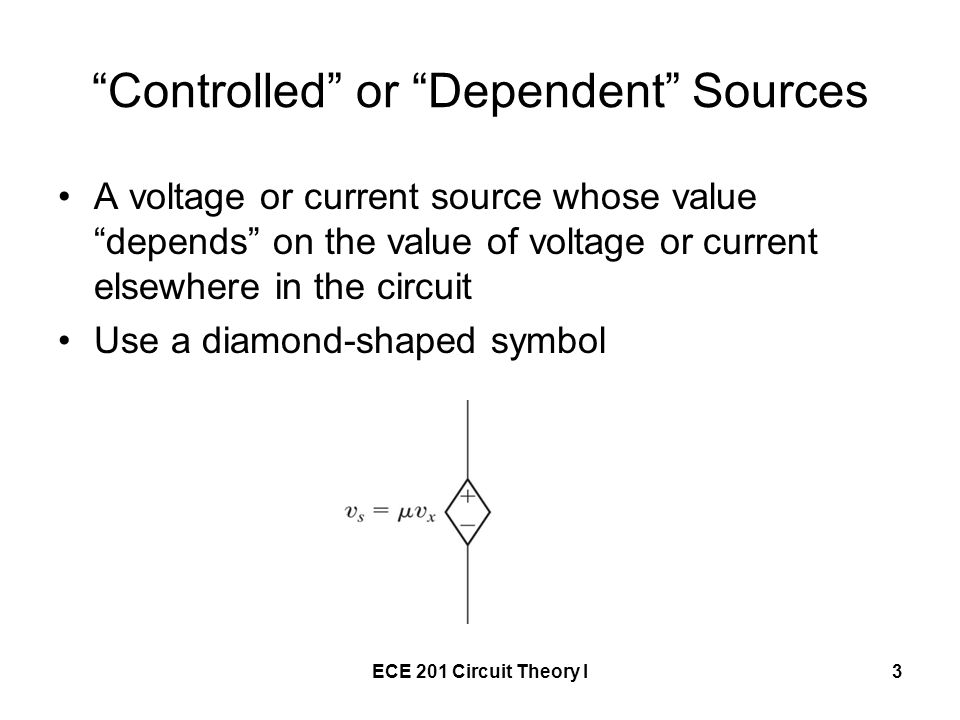

3. ECE 201 Circuit Theory I3 “Controlled” or “Dependent” Sources A voltage or current source whose value “depends” on the value of voltage or current elsewhere in the circuit Use a diamond-shaped symbol

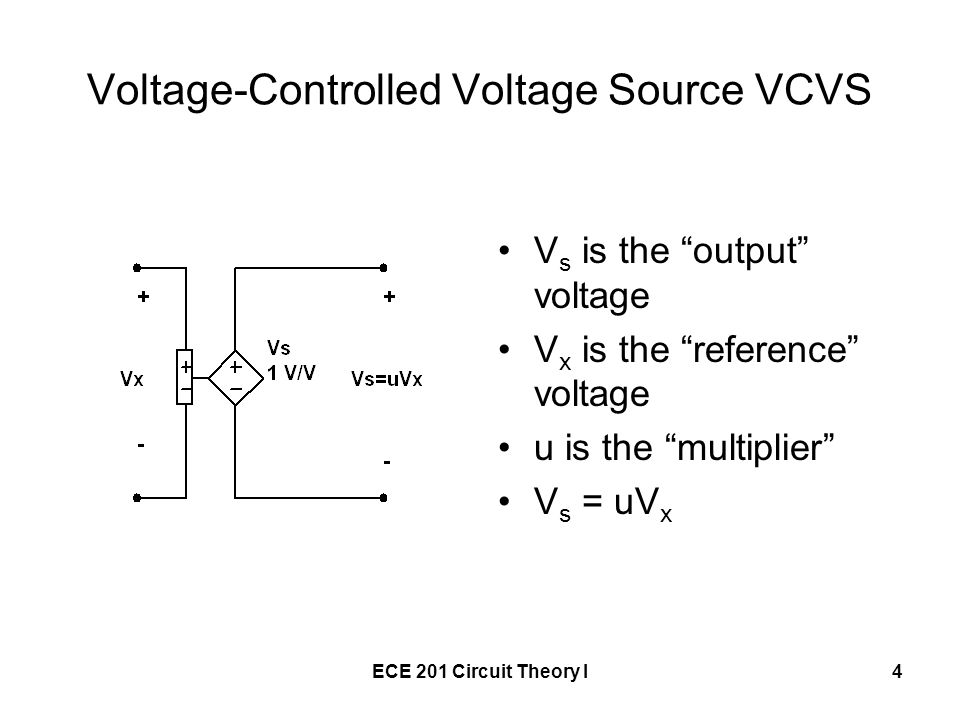

4. ECE 201 Circuit Theory I4 Voltage-Controlled Voltage Source VCVS V s is the “output” voltage V x is the “reference” voltage u is the “multiplier” V s = uV x

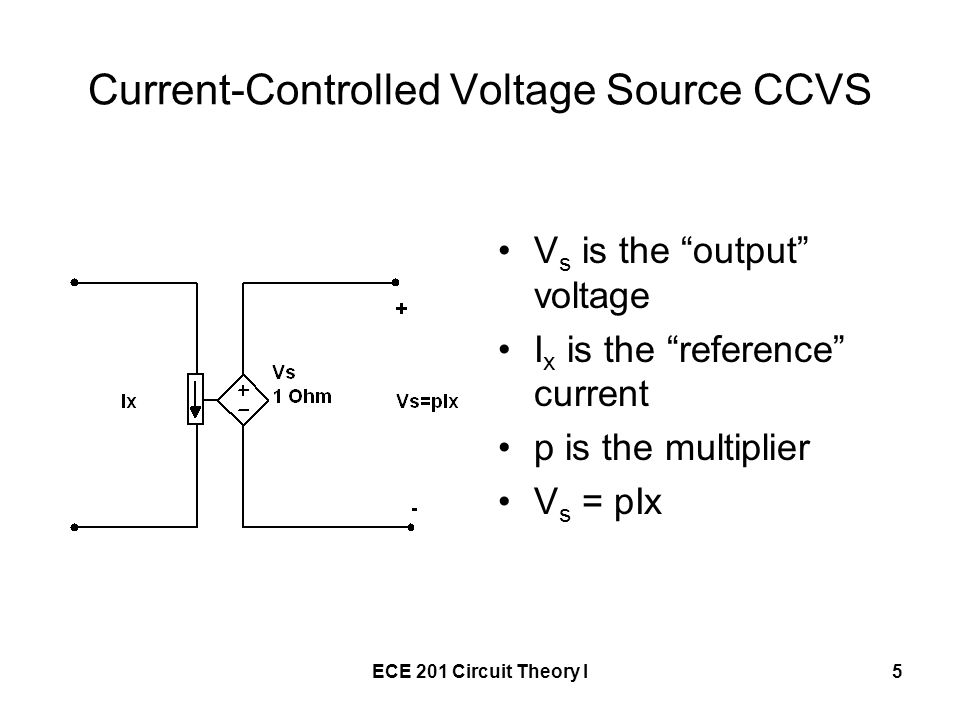

5. ECE 201 Circuit Theory I5 Current-Controlled Voltage Source CCVS V s is the “output” voltage I x is the “reference” current p is the multiplier V s = pIx

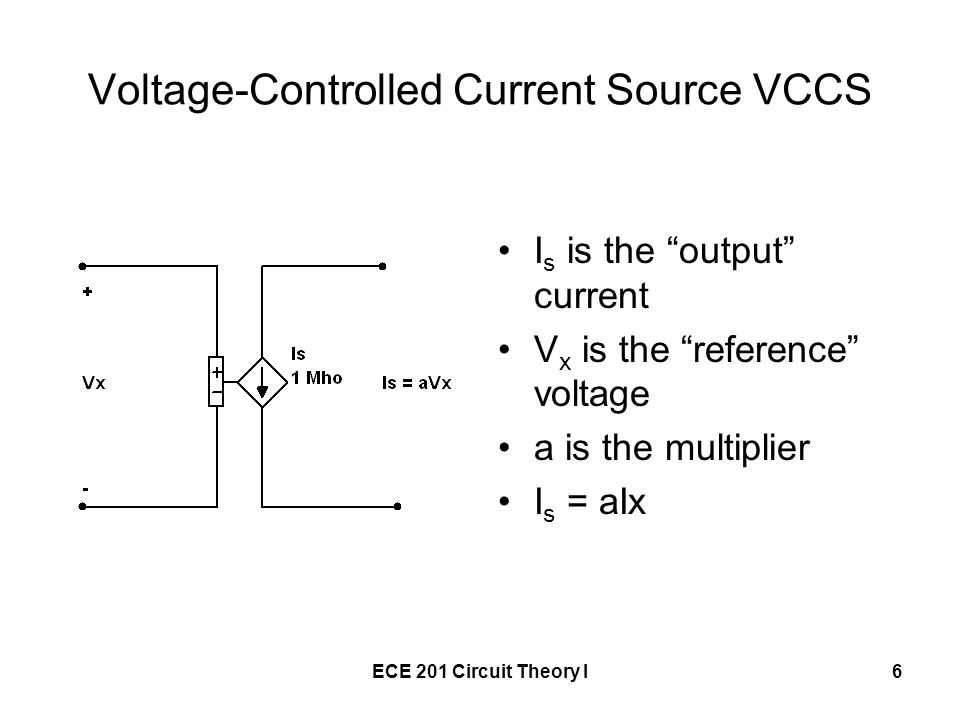

6. ECE 201 Circuit Theory I6 Voltage-Controlled Current Source VCCS I s is the “output” current V x is the “reference” voltage a is the multiplier I s = aIx

7. ECE 201 Circuit Theory I7 Current-Controlled Current Source CCCS I s is the “output” current I x is the “reference” current b is the multiplier I s = bIx

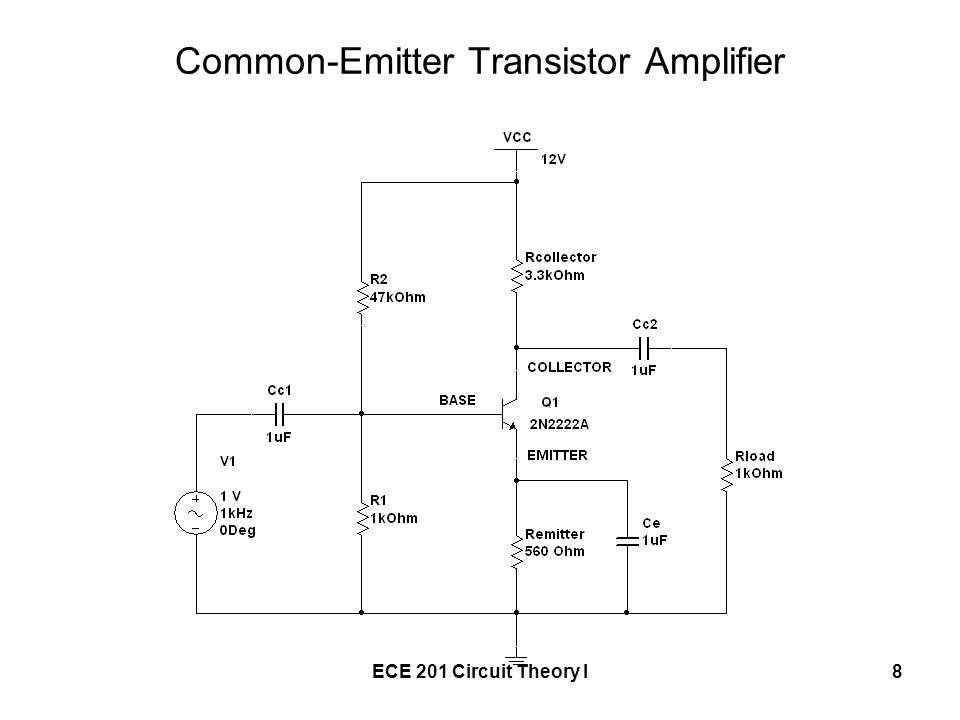

8. ECE 201 Circuit Theory I8 Common-Emitter Transistor Amplifier

9. ECE 201 Circuit Theory I9 The transistor and its equivalent circuit

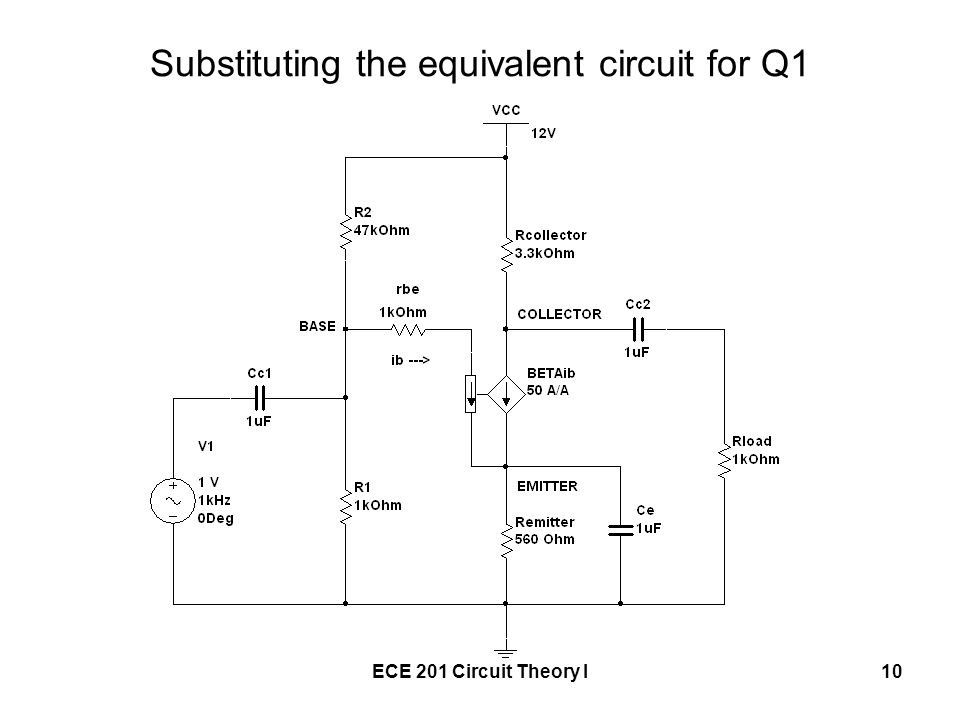

10. ECE 201 Circuit Theory I10 Substituting the equivalent circuit for Q1

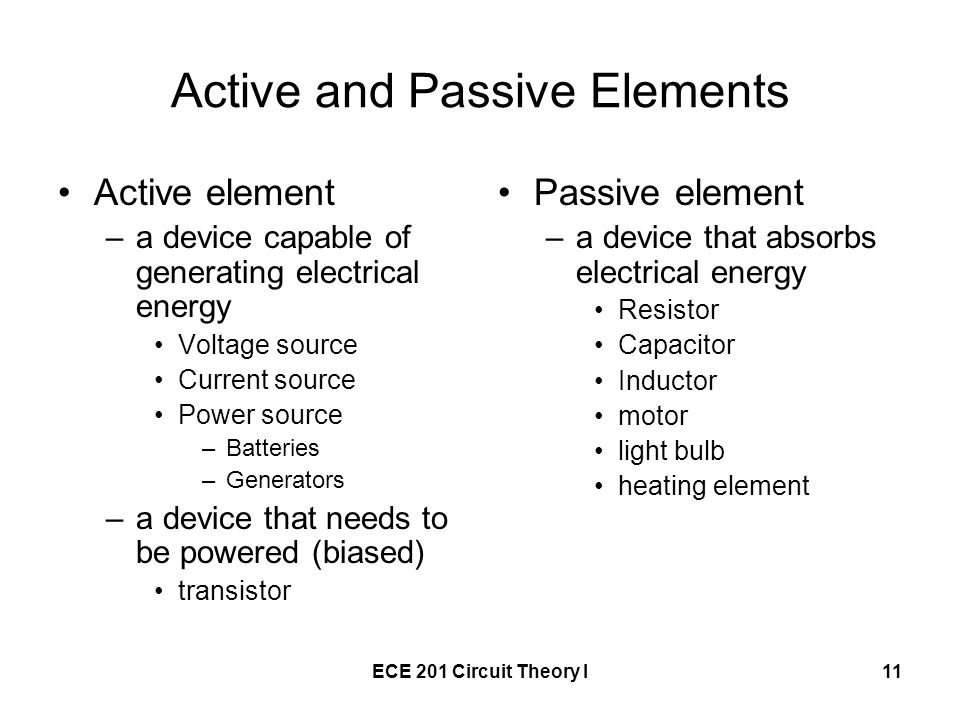

11. ECE 201 Circuit Theory I11 Active and Passive Elements Active element –a device capable of generating electrical energy Voltage source Current source Power source –Batteries –Generators –a device that needs to be powered (biased) transistor Passive element –a device that absorbs electrical energy Resistor Capacitor Inductor motor light bulb heating element
