# Fig. 17-11 The net work done by the system in the process aba is –500 J.

## Presentation on theme: "Fig. 17-11 The net work done by the system in the process aba is –500 J."— Presentation transcript:

Fig. 17-11 The net work done by the system in the process aba is –500 J.

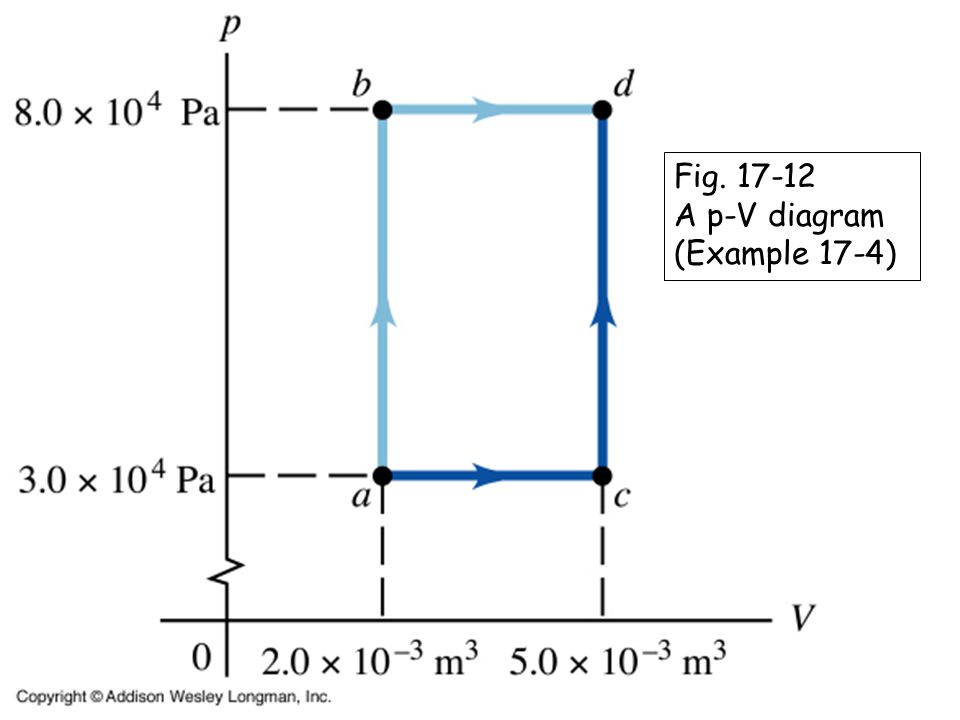

Fig. 17-12 A p-V diagram (Example 17-4)

KINDS OF THERMODYNAMIC PROCESSES ADIABATIC – NO HEAT TRANSFER; Q = 0;  U = -W ISOCHORIC – CONSTANT VOLUME;  U = Q ISOBARIC – CONSTANT PRESSURE; W = p (V 2 – V 1 ) ISOTHERMAL – CONSTANT TEMPERATURE; only for ideal gas  U = 0, Q = W The First Law of Thermodynamics Q =  U + W or  U = Q - W

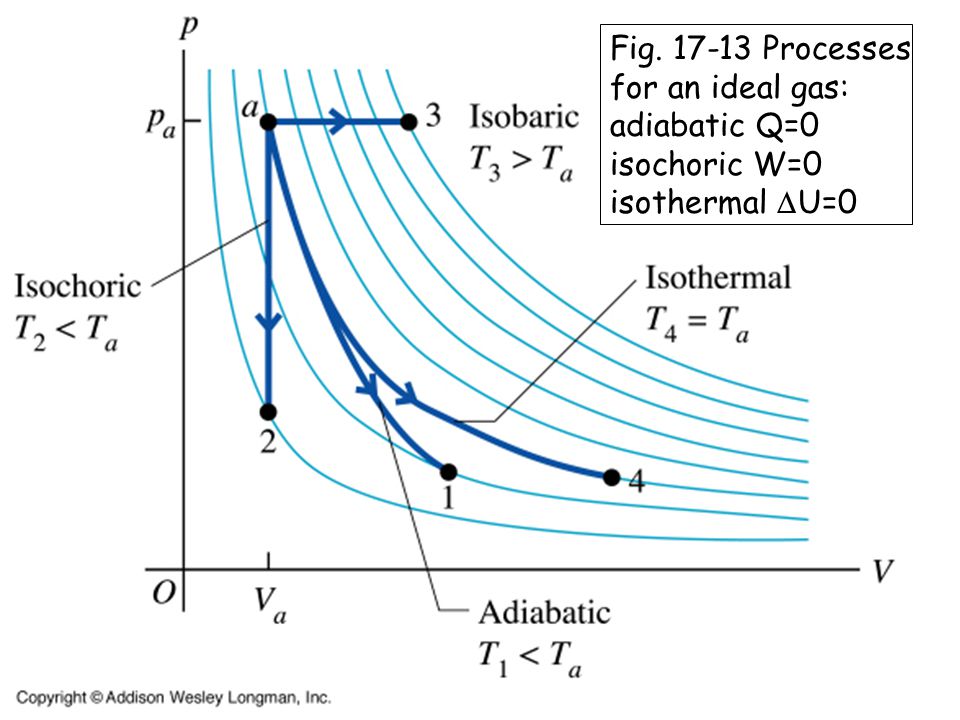

Fig. 17-13 Processes for an ideal gas: adiabatic Q=0 isochoric W=0 isothermal  U=0

Fig. 17-14 The internal energy of an ideal gas depends only on its temperature, not on its pressure of volume.

Fig. 17-15 Raising the temperature of an ideal gas by various processes Q =  U + W and  U = f(T) Isochoric W=0 so Q=  U Isobaric Q =  U + p(V 2 -V 1 )
