1. Chapter 6 Production

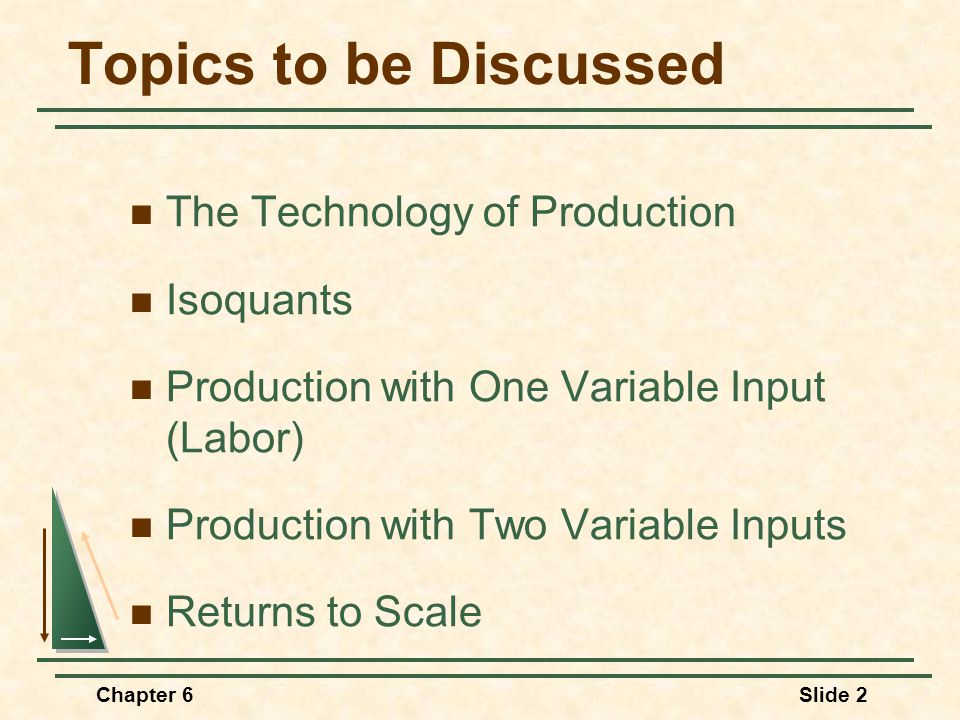

2. Chapter 6Slide 2 Topics to be Discussed The Technology of Production Isoquants Production with One Variable Input (Labor) Production with Two Variable Inputs Returns to Scale

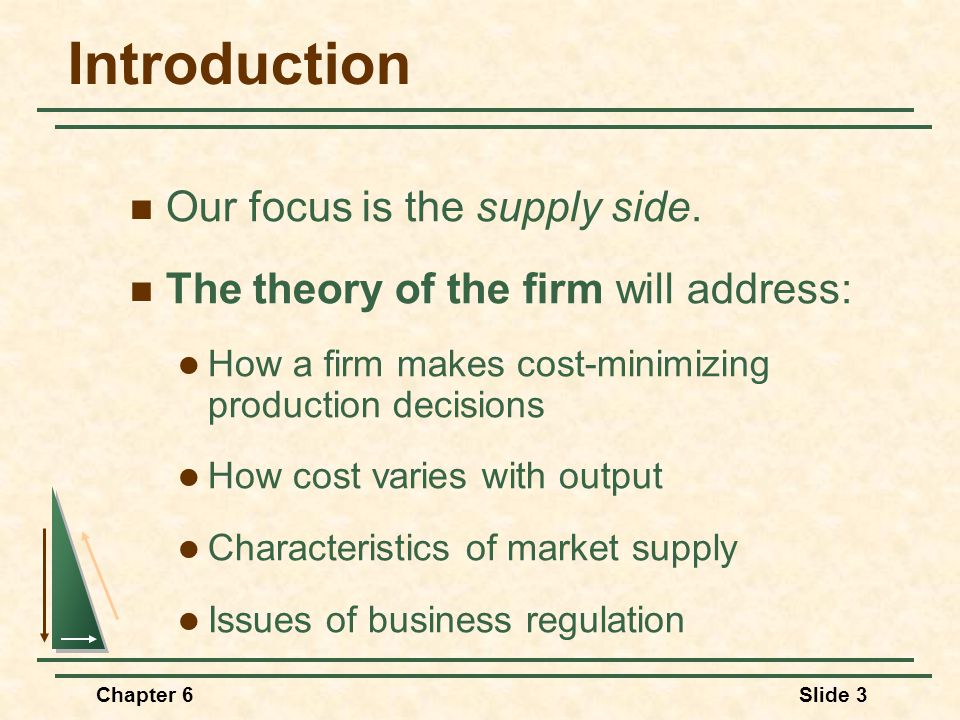

3. Chapter 6Slide 3 Introduction Our focus is the supply side. The theory of the firm will address: How a firm makes cost-minimizing production decisions How cost varies with output Characteristics of market supply Issues of business regulation

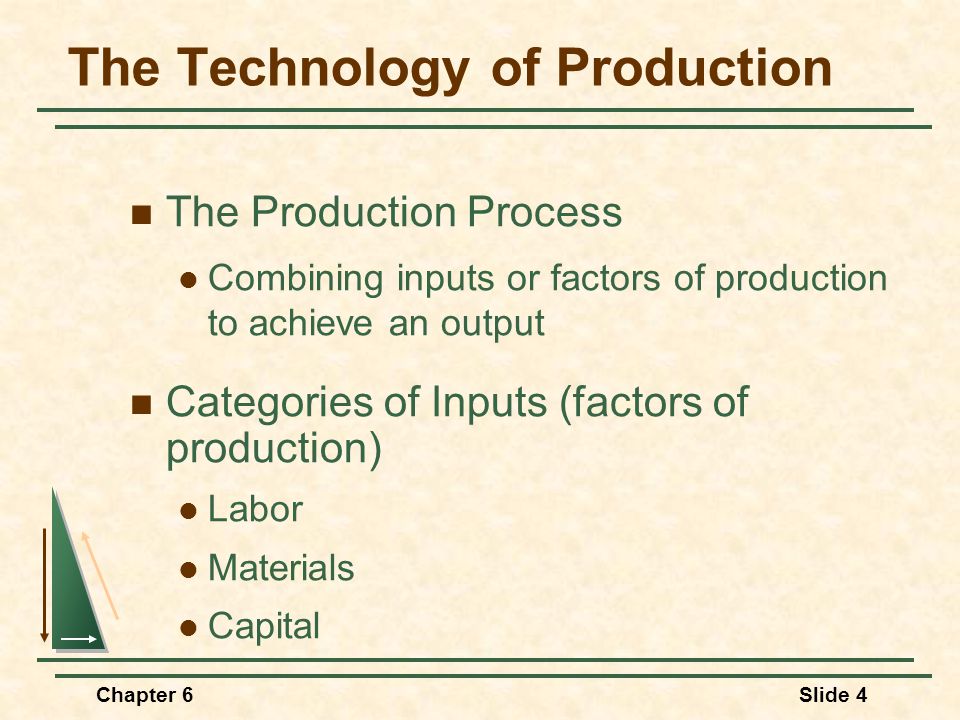

4. Chapter 6Slide 4 The Technology of Production The Production Process Combining inputs or factors of production to achieve an output Categories of Inputs (factors of production) Labor Materials Capital

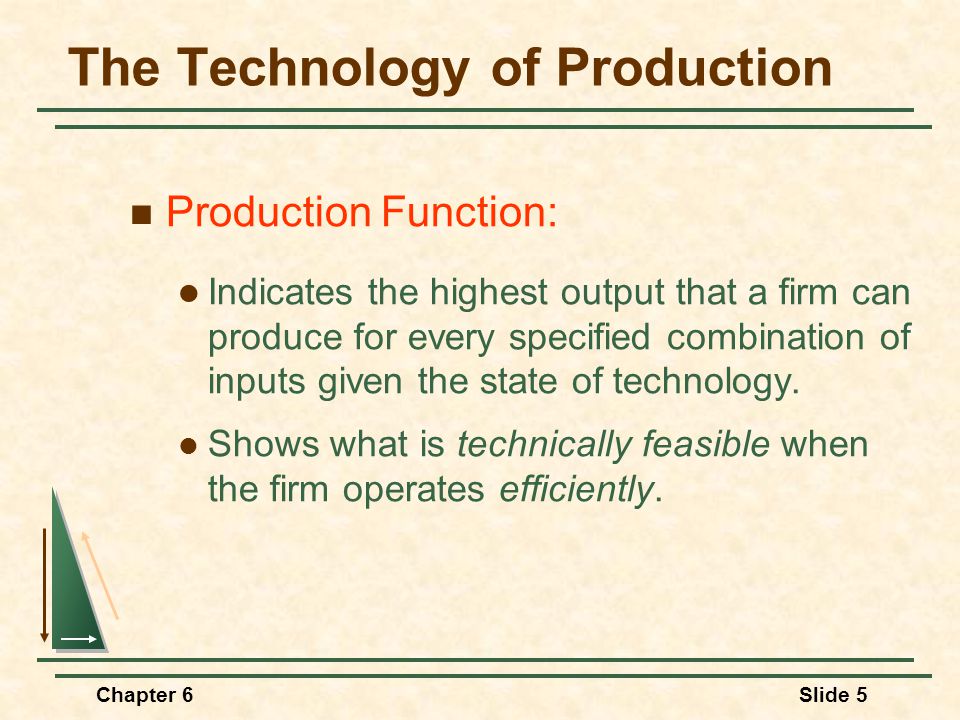

5. Chapter 6Slide 5 The Technology of Production Production Function: Indicates the highest output that a firm can produce for every specified combination of inputs given the state of technology. Shows what is technically feasible when the firm operates efficiently.

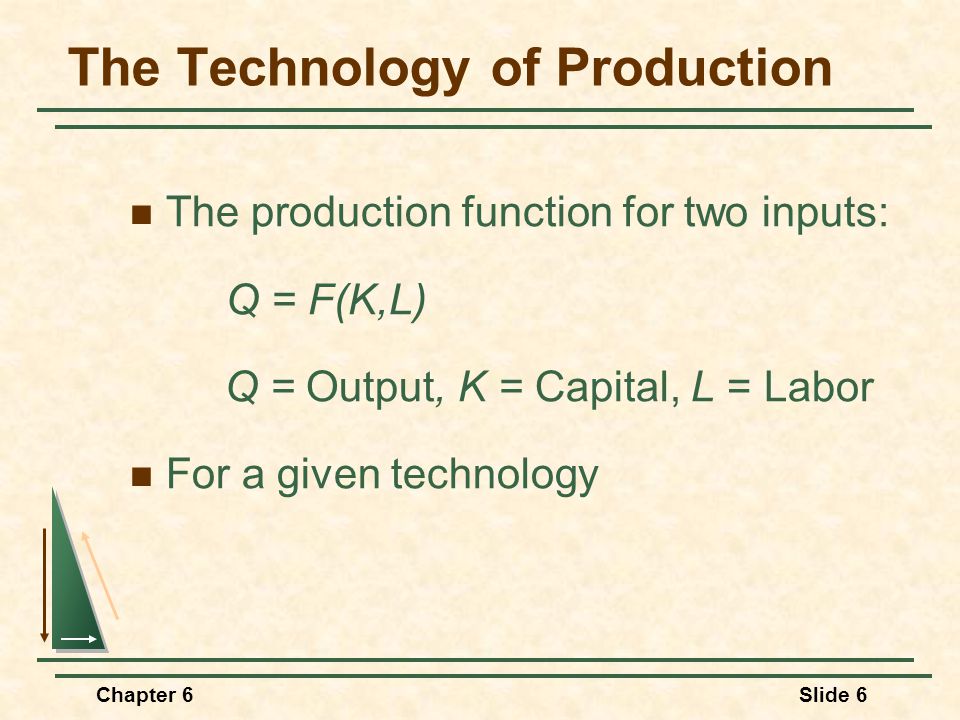

6. Chapter 6Slide 6 The Technology of Production The production function for two inputs: Q = F(K,L) Q = Output, K = Capital, L = Labor For a given technology

7. Chapter 6Slide 7 Isoquants Assumptions Food producer has two inputs  Labor (L) & Capital (K)

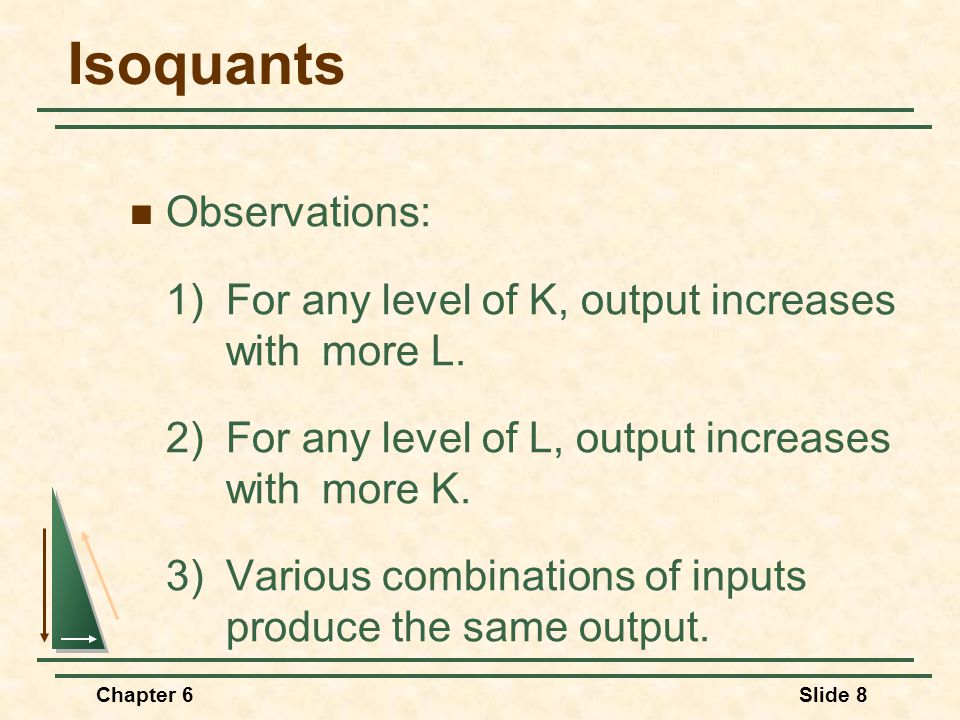

8. Chapter 6Slide 8 Isoquants Observations: 1) For any level of K, output increases with more L. 2)For any level of L, output increases with more K. 3)Various combinations of inputs produce the same output.

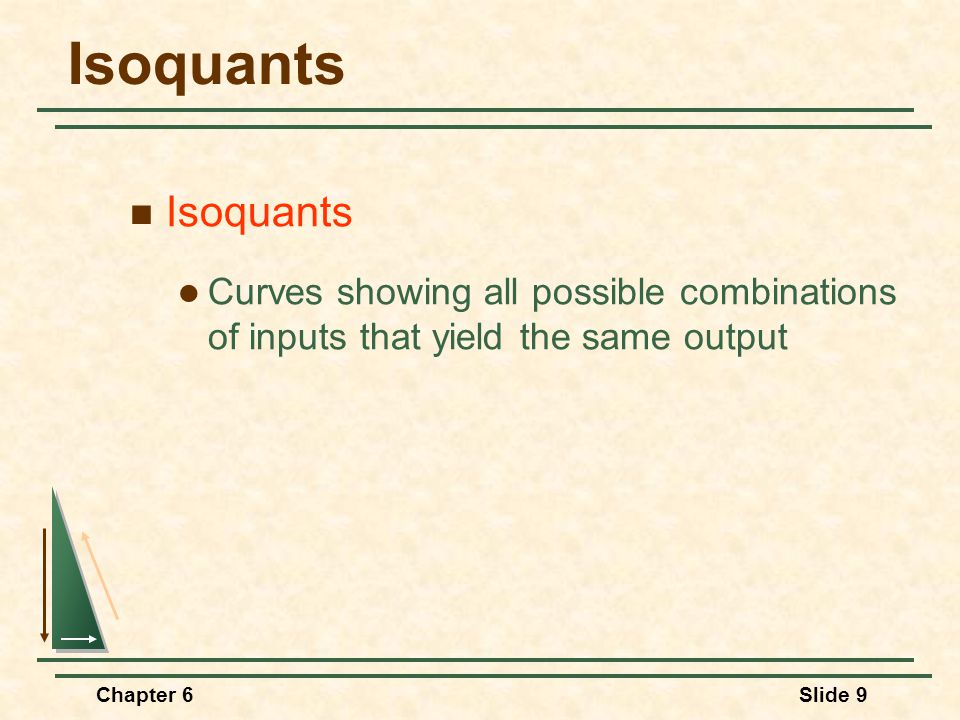

9. Chapter 6Slide 9 Isoquants Curves showing all possible combinations of inputs that yield the same output

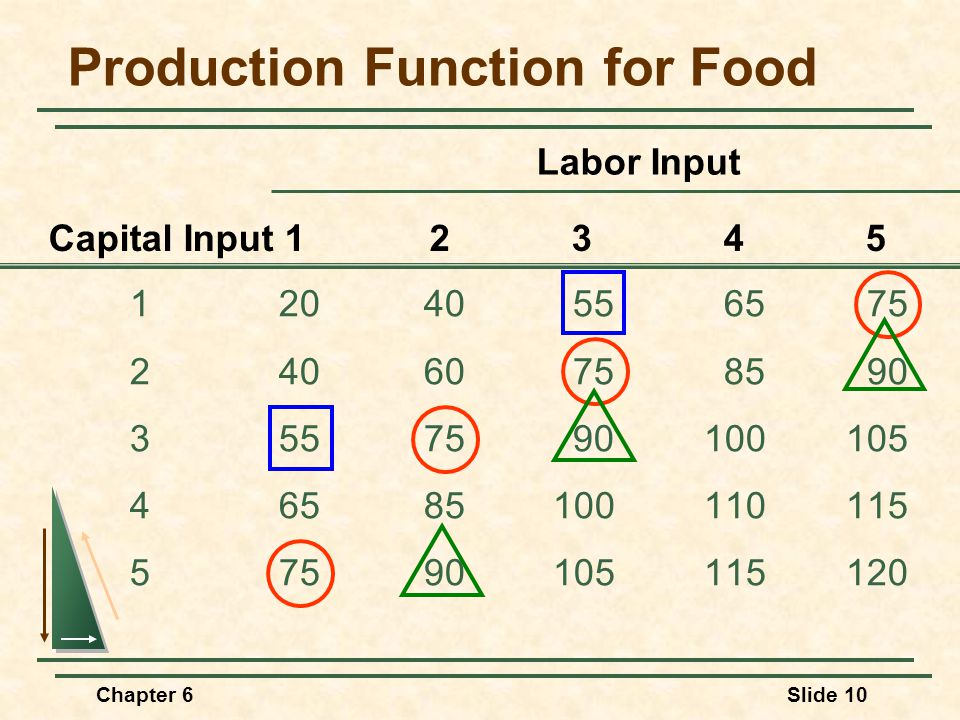

10. Chapter 6Slide 10 Production Function for Food 12040556575 24060758590 3557590100105 46585100110115 57590105115120 Capital Input12345 Labor Input

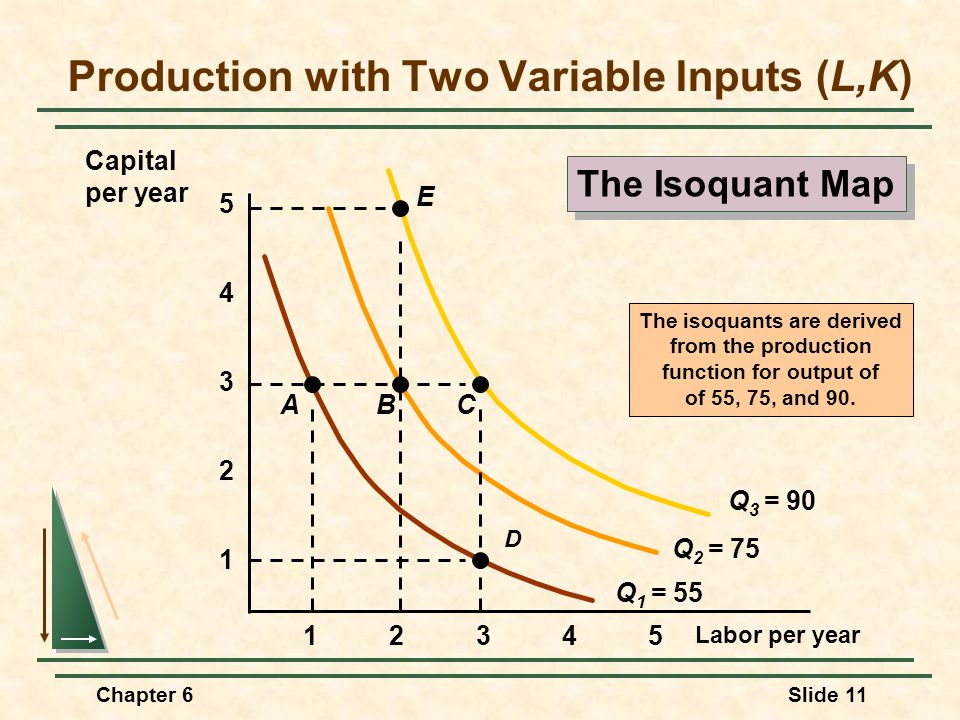

11. Chapter 6Slide 11 Production with Two Variable Inputs (L,K) Labor per year 1 2 3 4 12345 5 Q 1 = 55 The isoquants are derived from the production function for output of of 55, 75, and 90. A D B Q 2 = 75 Q 3 = 90 C E Capital per year The Isoquant Map

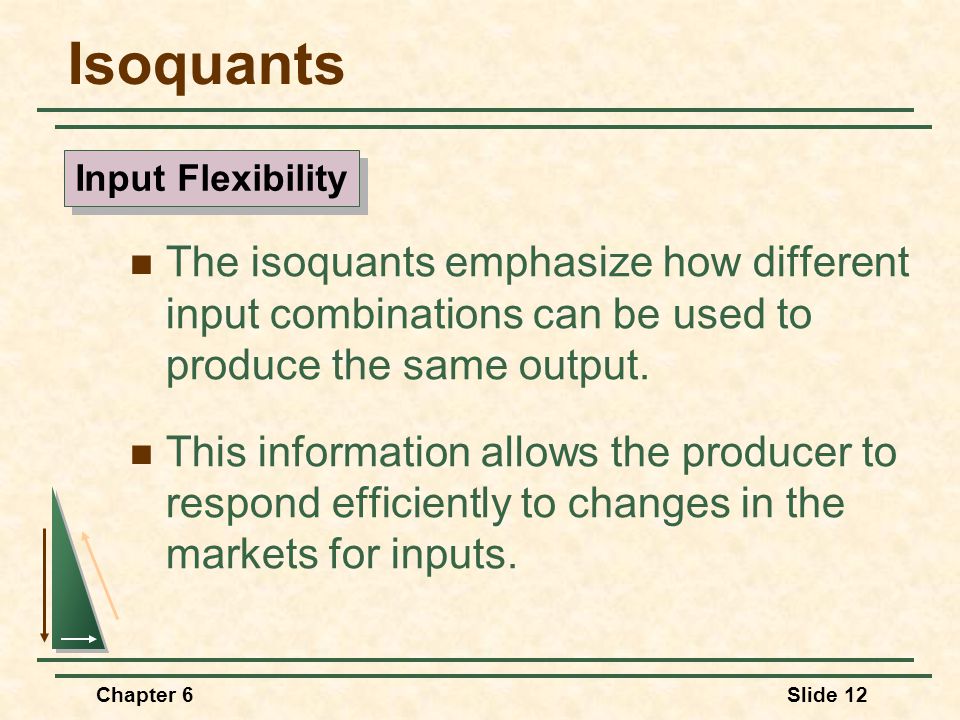

12. Chapter 6Slide 12 Isoquants The isoquants emphasize how different input combinations can be used to produce the same output. This information allows the producer to respond efficiently to changes in the markets for inputs. Input Flexibility

13. Chapter 6Slide 13 Isoquants Short-run: Period of time in which quantities of one or more production factors cannot be changed. These inputs are called fixed inputs. The Short Run versus the Long Run

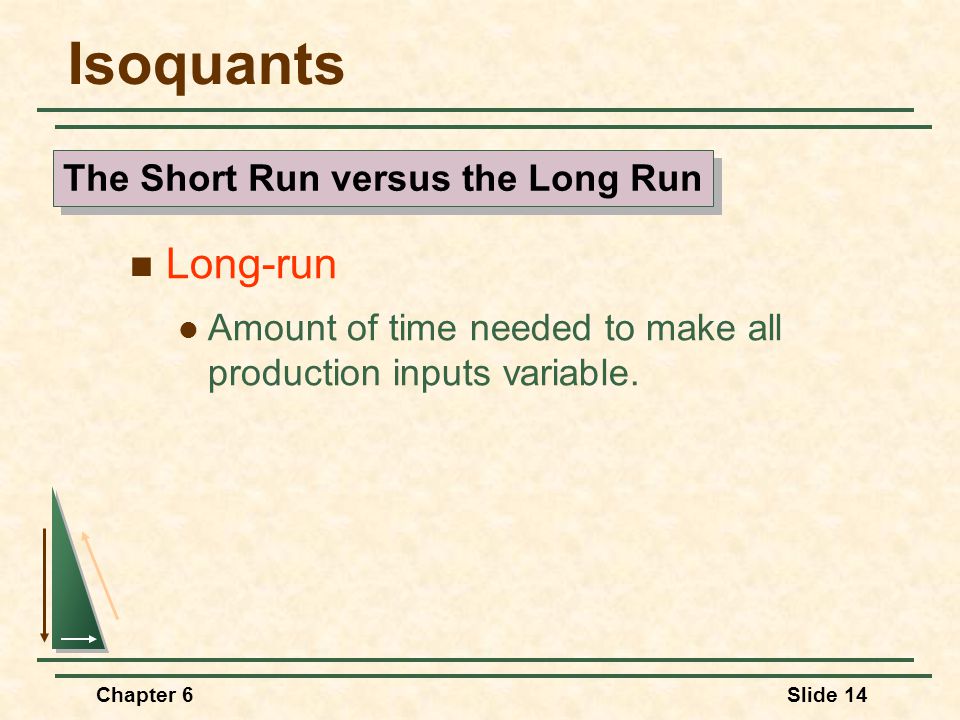

14. Chapter 6Slide 14 Isoquants Long-run Amount of time needed to make all production inputs variable. The Short Run versus the Long Run

15. Chapter 6Slide 15 AmountAmountTotalAverage Marginal of Labor (L)of Capital (K)Output (Q)ProductProduct Production with One Variable Input (Labor) 0100------ 110101010 210301520 310602030 410802020 510951915 6101081813 710112164 810112140 91010812-4 101010010-8

16. Chapter 6Slide 16 Observations: 1) With additional workers, output (Q) increases, reaches a maximum, and then decreases. Production with One Variable Input (Labor)

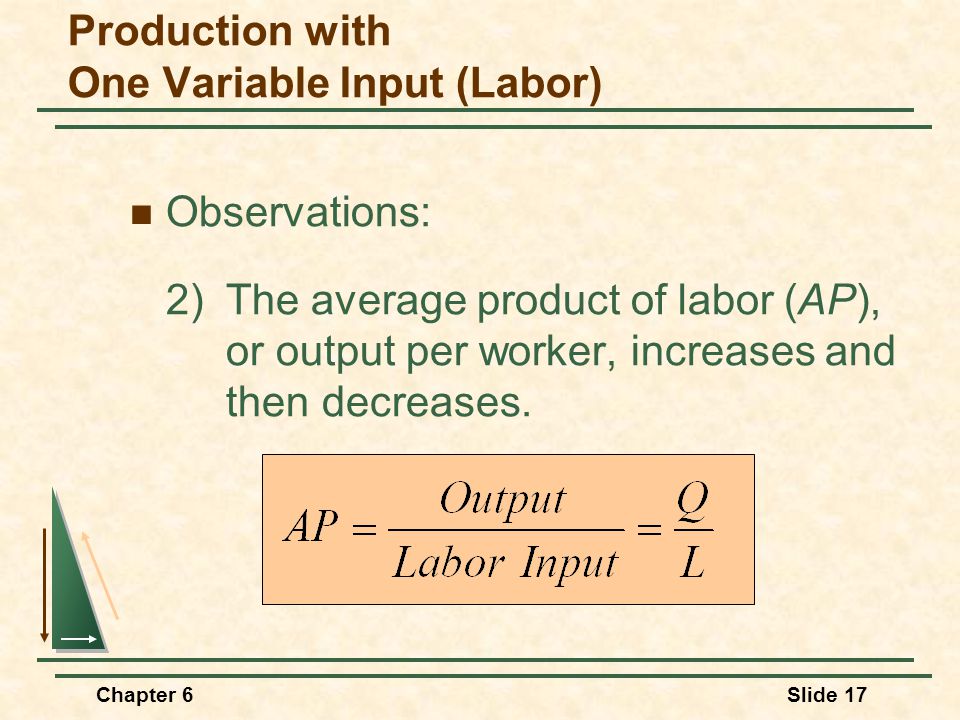

17. Chapter 6Slide 17 Observations: 2) The average product of labor (AP), or output per worker, increases and thendecreases. Production with One Variable Input (Labor)

18. Chapter 6Slide 18 Observations: 3) The marginal product of labor (MP), or output of the additional worker, increases rapidly initially and then decreases and becomes negative.. Production with One Variable Input (Labor)

19. Chapter 6Slide 19 Total Product A: slope of tangent = MP (20) B: slope of OB = AP (20) C: slope of OC= MP & AP Labor per Month Output per Month 60 112 023456789101 A B C D Production with One Variable Input (Labor)

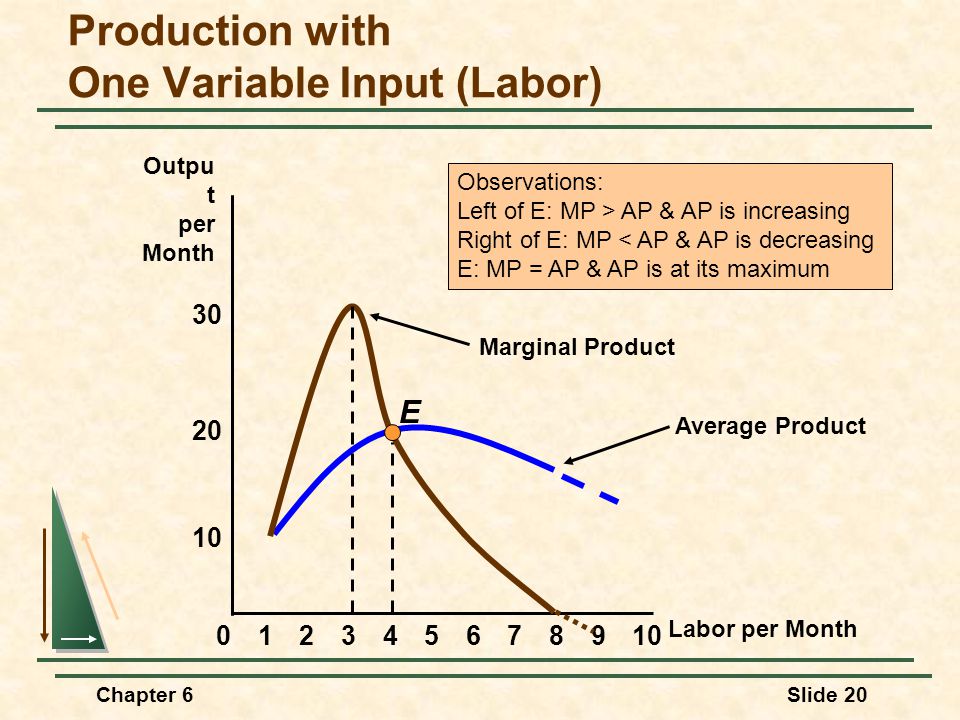

20. Chapter 6Slide 20 Average Product Production with One Variable Input (Labor) 8 10 20 Outpu t per Month 02345679101 Labor per Month 30 E Marginal Product Observations: Left of E: MP > AP & AP is increasing Right of E: MP < AP & AP is decreasing E: MP = AP & AP is at its maximum

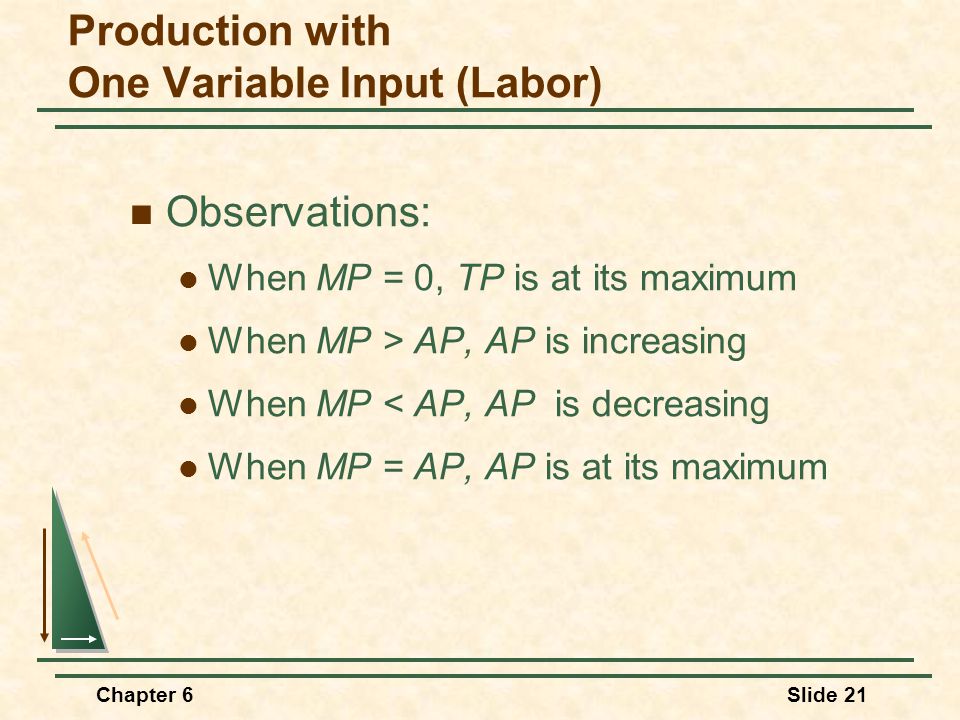

21. Chapter 6Slide 21 Observations: When MP = 0, TP is at its maximum When MP > AP, AP is increasing When MP < AP, AP is decreasing When MP = AP, AP is at its maximum Production with One Variable Input (Labor)

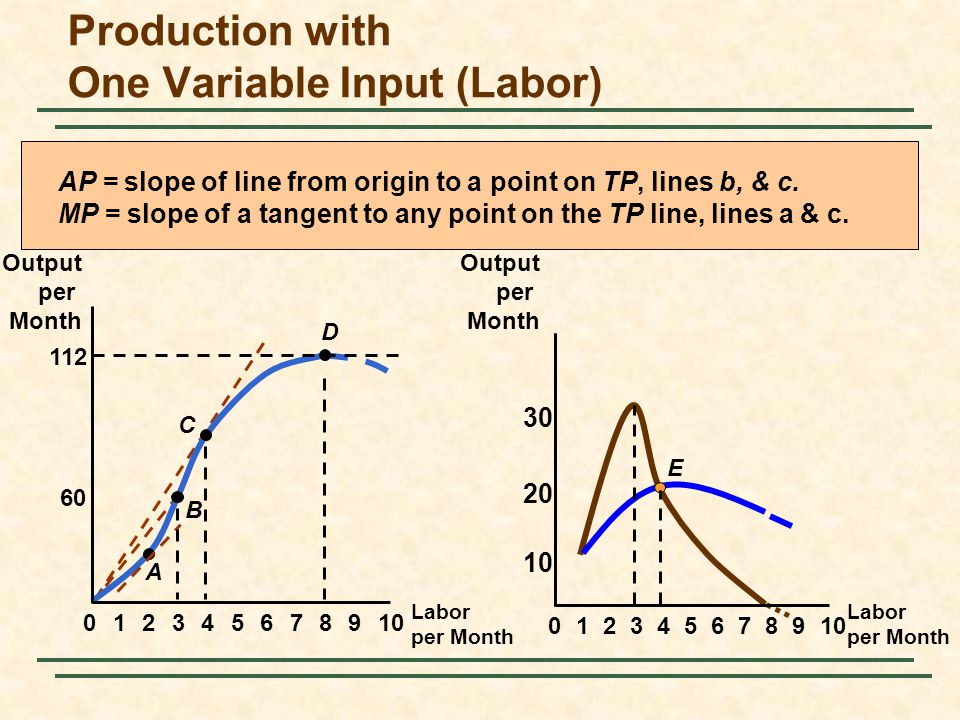

22. Labor per Month Output per Month 60 112 023456789101 A B C D 8 20 E 0234567 9 10 1 30 Output per Month Labor per Month AP = slope of line from origin to a point on TP, lines b, & c. MP = slope of a tangent to any point on the TP line, lines a & c.

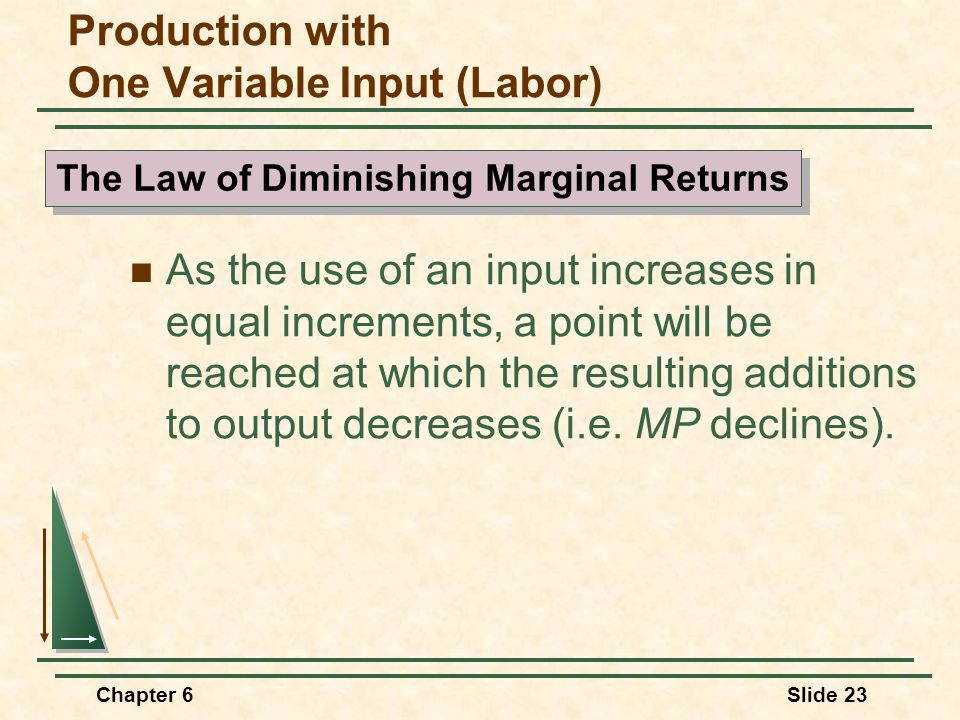

23. Chapter 6Slide 23 As the use of an input increases in equal increments, a point will be reached at which the resulting additions to output decreases (i.e. MP declines). Production with One Variable Input (Labor) The Law of Diminishing Marginal Returns

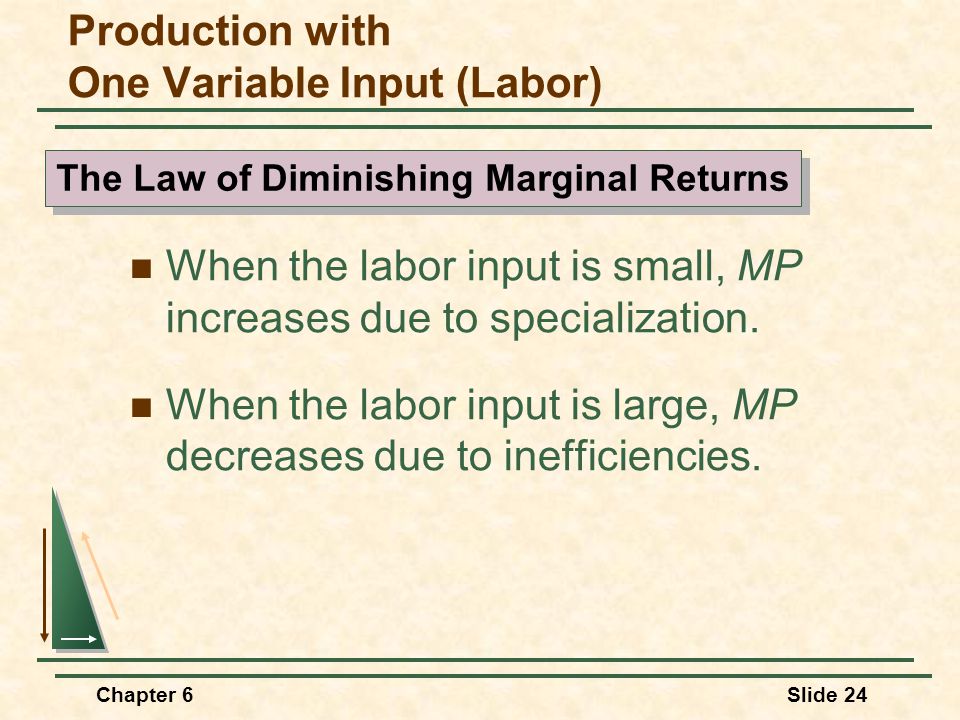

24. Chapter 6Slide 24 When the labor input is small, MP increases due to specialization. When the labor input is large, MP decreases due to inefficiencies. The Law of Diminishing Marginal Returns Production with One Variable Input (Labor)

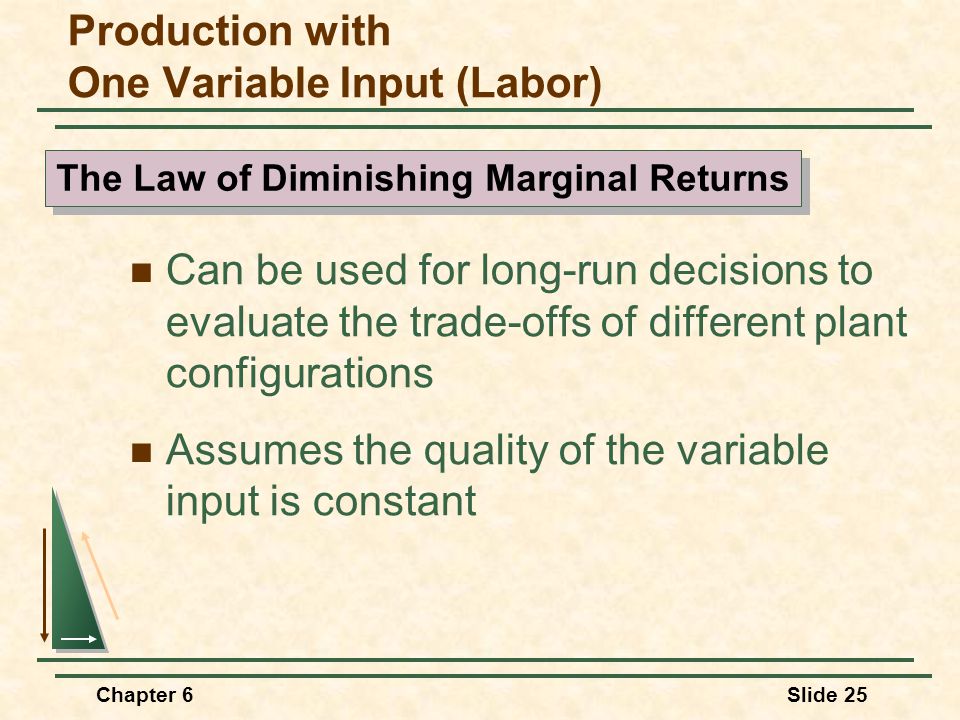

25. Chapter 6Slide 25 Can be used for long-run decisions to evaluate the trade-offs of different plant configurations Assumes the quality of the variable input is constant The Law of Diminishing Marginal Returns Production with One Variable Input (Labor)

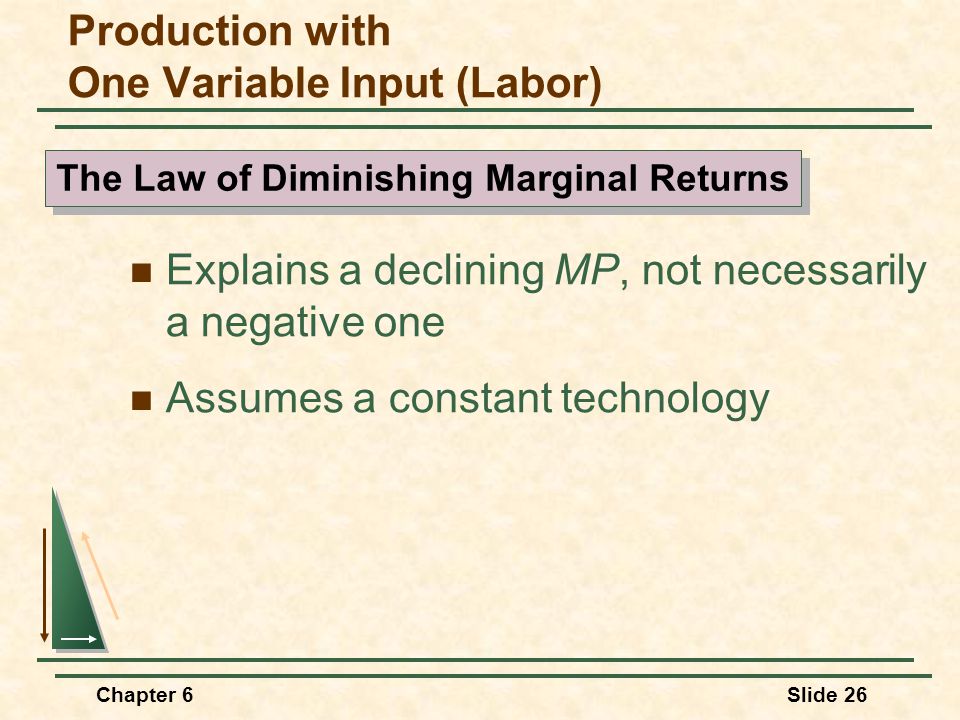

26. Chapter 6Slide 26 Explains a declining MP, not necessarily a negative one Assumes a constant technology The Law of Diminishing Marginal Returns Production with One Variable Input (Labor)

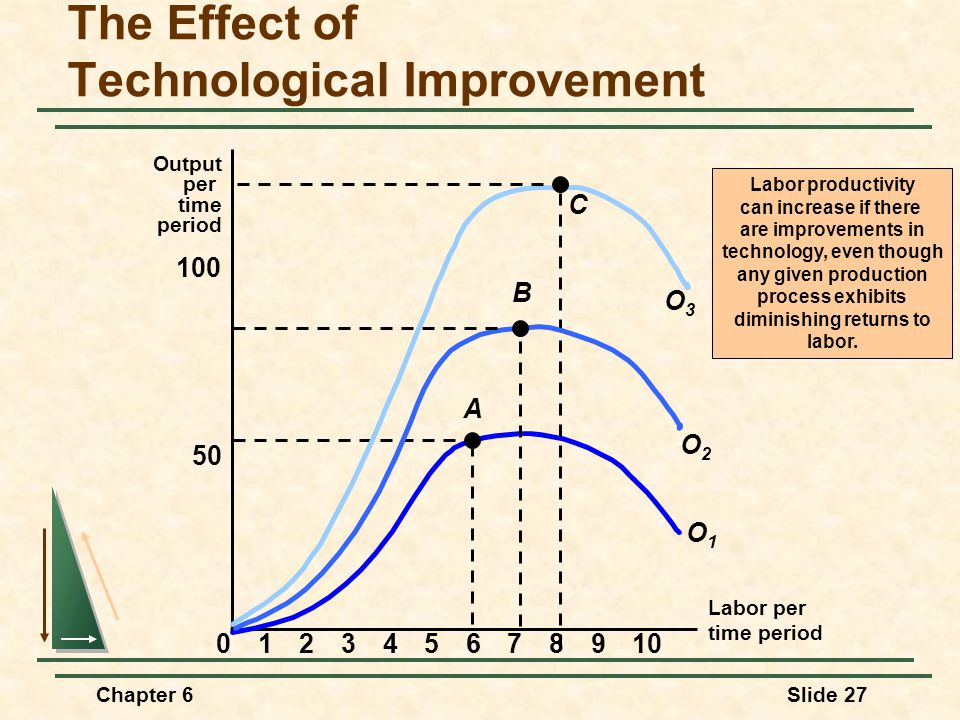

27. Chapter 6Slide 27 The Effect of Technological Improvement Labor per time period Output per time period 50 100 023456789101 A O1O1 C O3O3 O2O2 B Labor productivity can increase if there are improvements in technology, even though any given production process exhibits diminishing returns to labor.

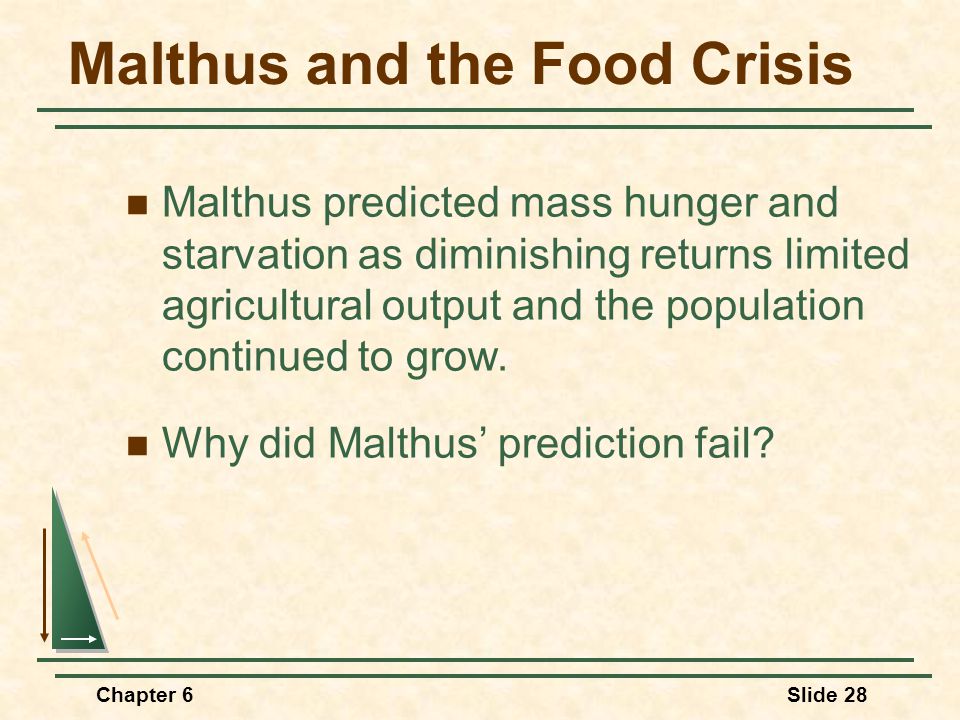

28. Chapter 6Slide 28 Malthus predicted mass hunger and starvation as diminishing returns limited agricultural output and the population continued to grow. Why did Malthus’ prediction fail? Malthus and the Food Crisis

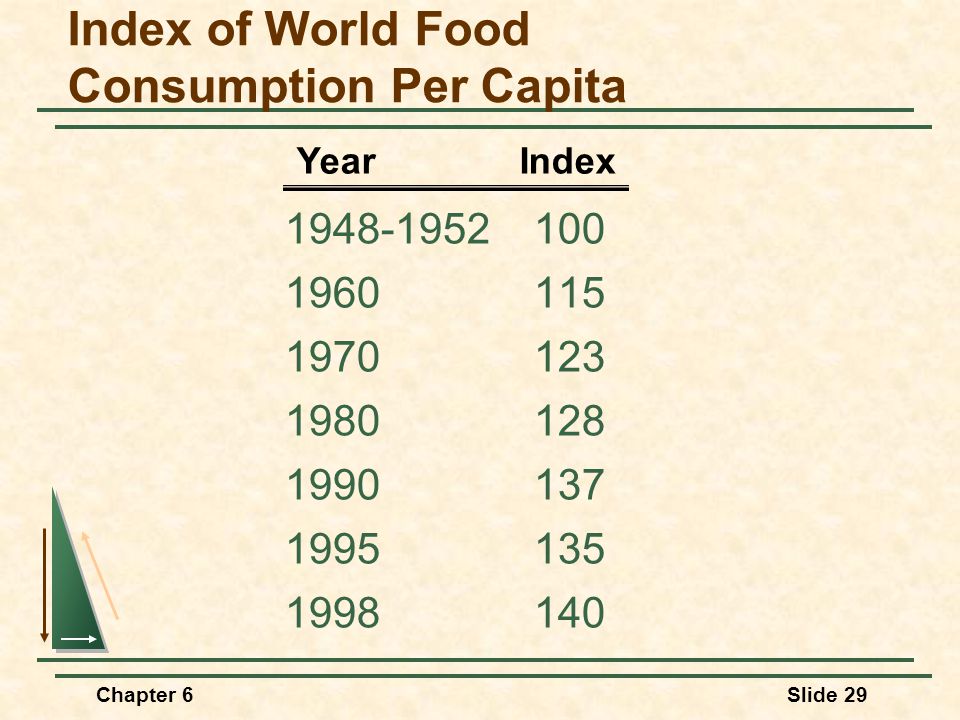

29. Chapter 6Slide 29 Index of World Food Consumption Per Capita 1948-1952100 1960115 1970123 1980128 1990137 1995135 1998140 Year Index

30. Chapter 6Slide 30 Malthus and the Food Crisis The data show that production increases have exceeded population growth. Malthus did not take into consideration the potential impact of technology which has allowed the supply of food to grow faster than demand.

31. Chapter 6Slide 31 Malthus and the Food Crisis Technology has created surpluses and driven the price down. Question If food surpluses exist, why is there hunger?

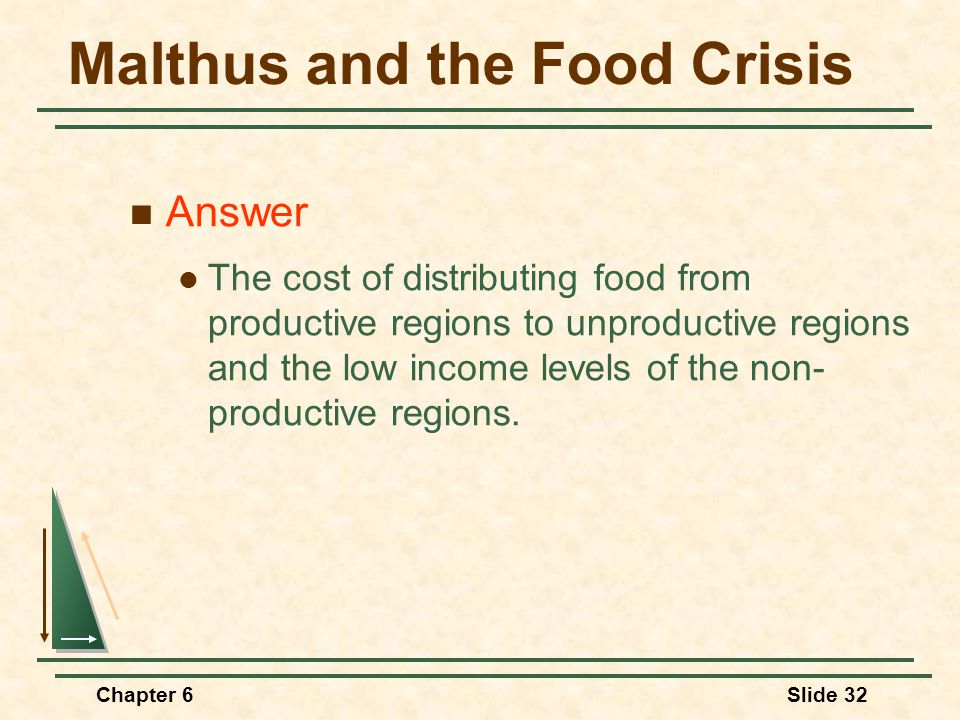

32. Chapter 6Slide 32 Malthus and the Food Crisis Answer The cost of distributing food from productive regions to unproductive regions and the low income levels of the non- productive regions.

33. Chapter 6Slide 33 Labor Productivity Production with One Variable Input (Labor)

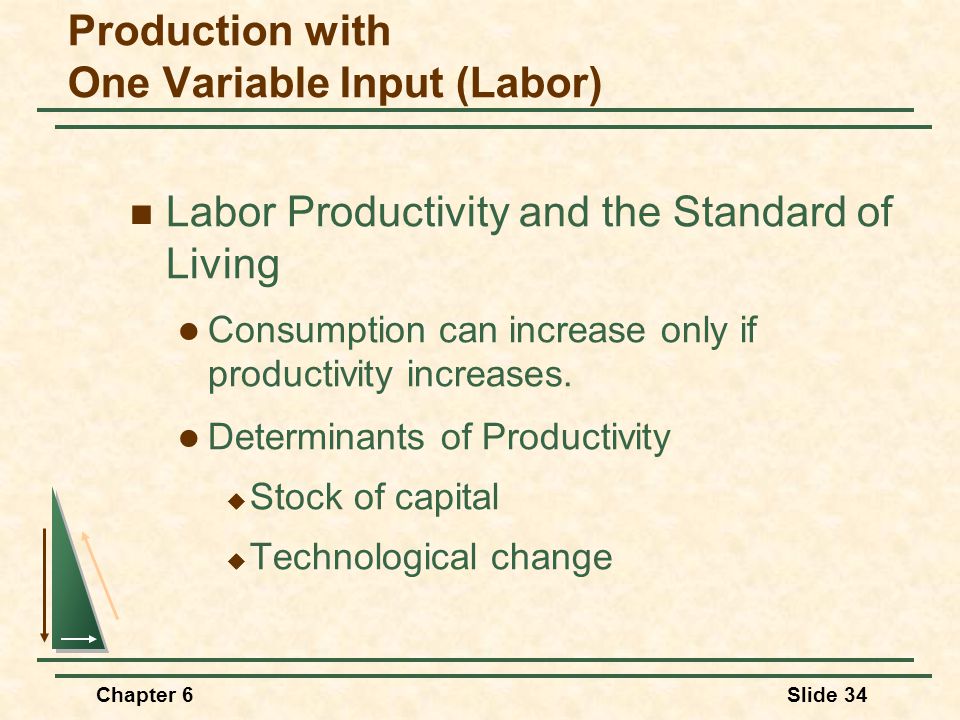

34. Chapter 6Slide 34 Labor Productivity and the Standard of Living Consumption can increase only if productivity increases. Determinants of Productivity  Stock of capital  Technological change Production with One Variable Input (Labor)

35. Chapter 6Slide 35 Labor Productivity in Developed Countries 1960-19734.754.048.302.892.36 1974-19862.101.852.501.690.71 1987-19971.482.001.941.021.09 United FranceGermanyJapanKingdomStates Annual Rate of Growth of Labor Productivity (%) $54,507$55,644$46,048$42,630$60,915 Output per Employed Person (1997)

36. Chapter 6Slide 36 Trends in Productivity 1) U.S. productivity is growing at a slower rate than other countries. 2)Productivity growth in developed countries has been decreasing. Production with One Variable Input (Labor)

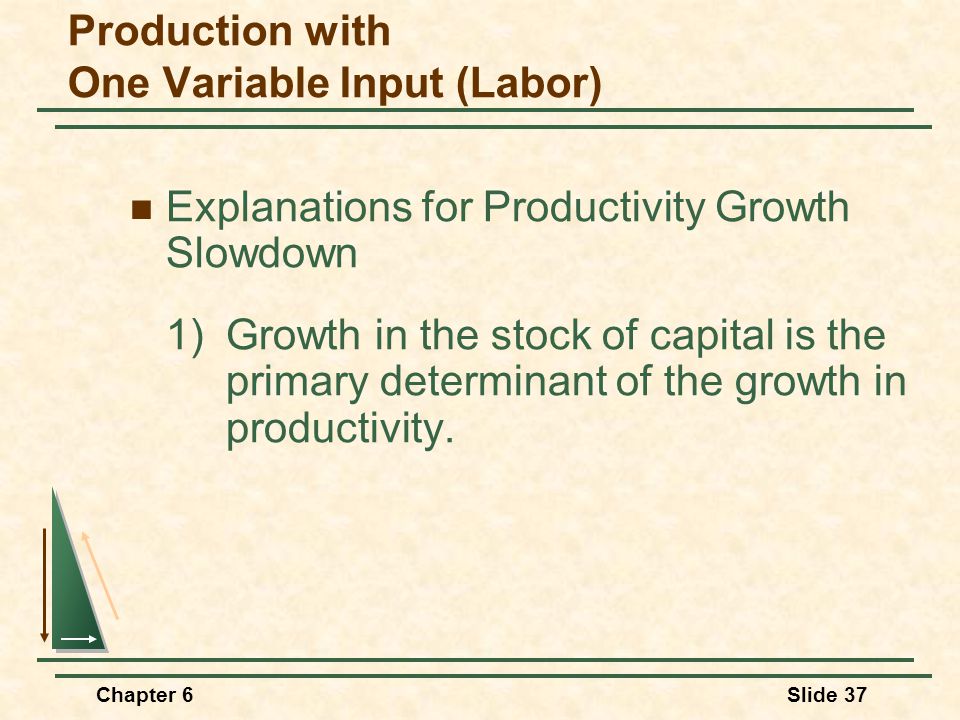

37. Chapter 6Slide 37 Explanations for Productivity Growth Slowdown 1)Growth in the stock of capital is the primary determinant of the growth in productivity. Production with One Variable Input (Labor)

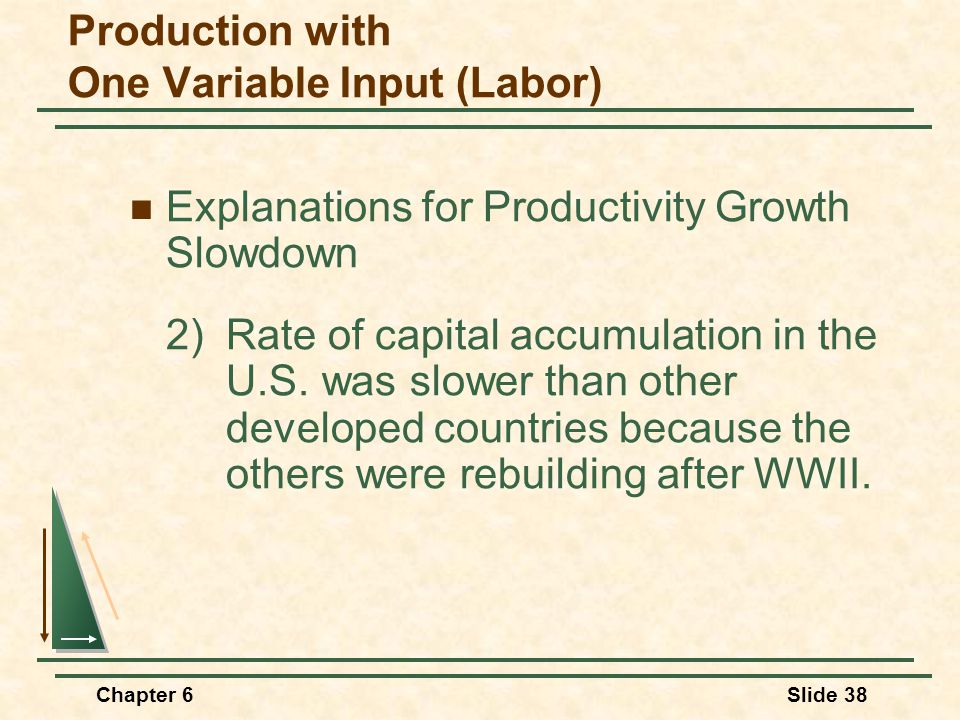

38. Chapter 6Slide 38 Explanations for Productivity Growth Slowdown 2)Rate of capital accumulation in the U.S. was slower than other developed countries because the others were rebuilding after WWII. Production with One Variable Input (Labor)

39. Chapter 6Slide 39 Explanations for Productivity Growth Slowdown 3)Depletion of natural resources 4) Environment regulations Production with One Variable Input (Labor)

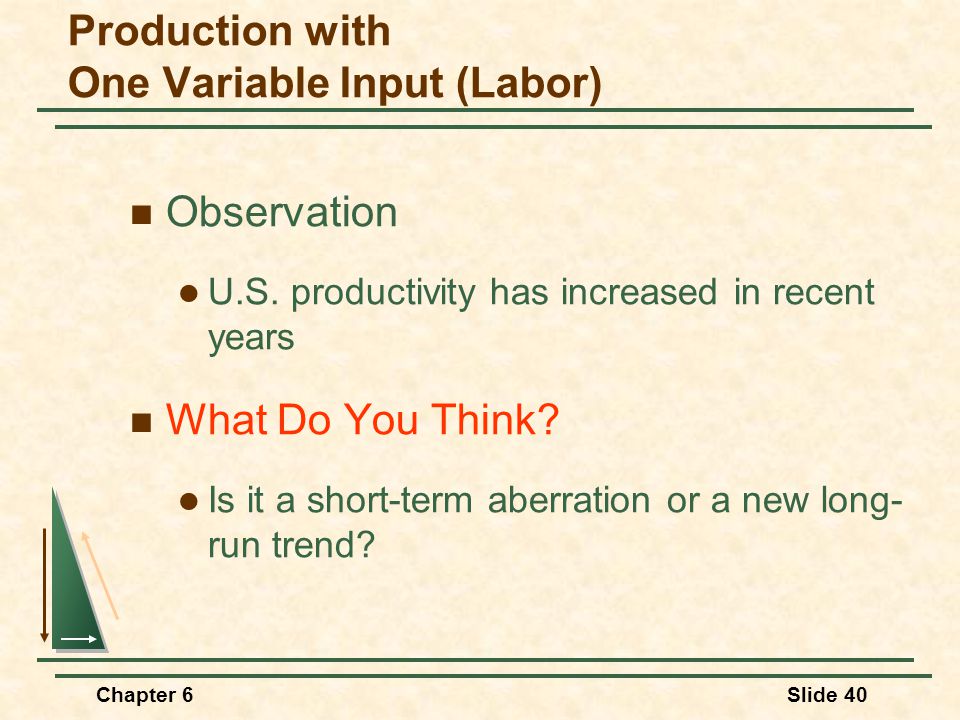

40. Chapter 6Slide 40 Observation U.S. productivity has increased in recent years What Do You Think? Is it a short-term aberration or a new long- run trend? Production with One Variable Input (Labor)

41. Chapter 6Slide 41 Production with Two Variable Inputs There is a relationship between production and productivity. Long-run production K& L are variable. Isoquants analyze and compare the different combinations of K & L and output

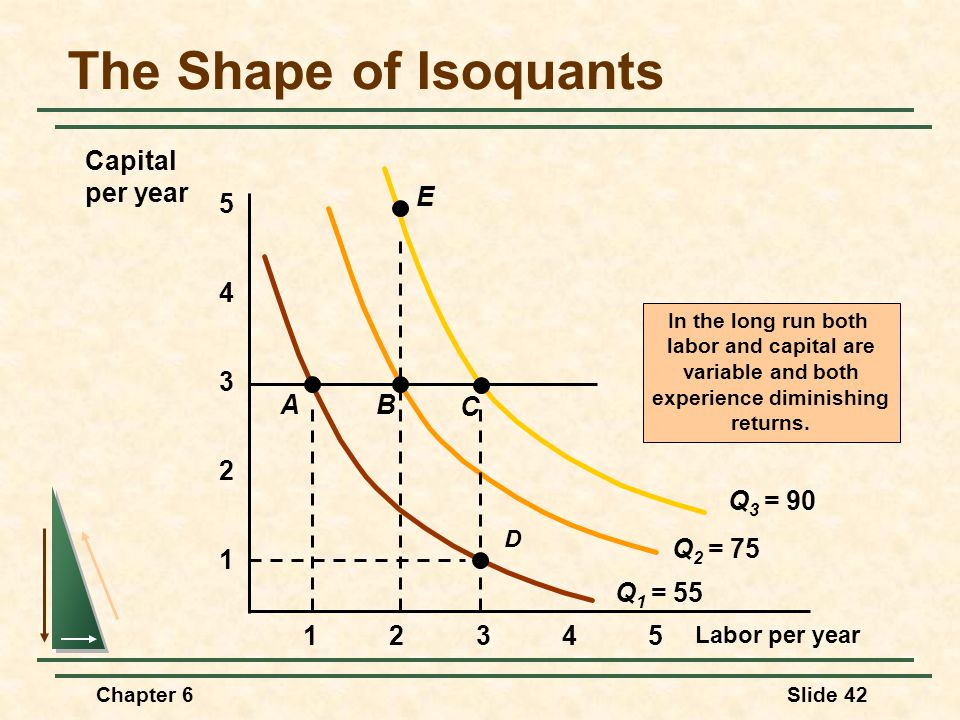

42. Chapter 6Slide 42 The Shape of Isoquants Labor per year 1 2 3 4 12345 5 In the long run both labor and capital are variable and both experience diminishing returns. Q 1 = 55 Q 2 = 75 Q 3 = 90 Capital per year A D B C E

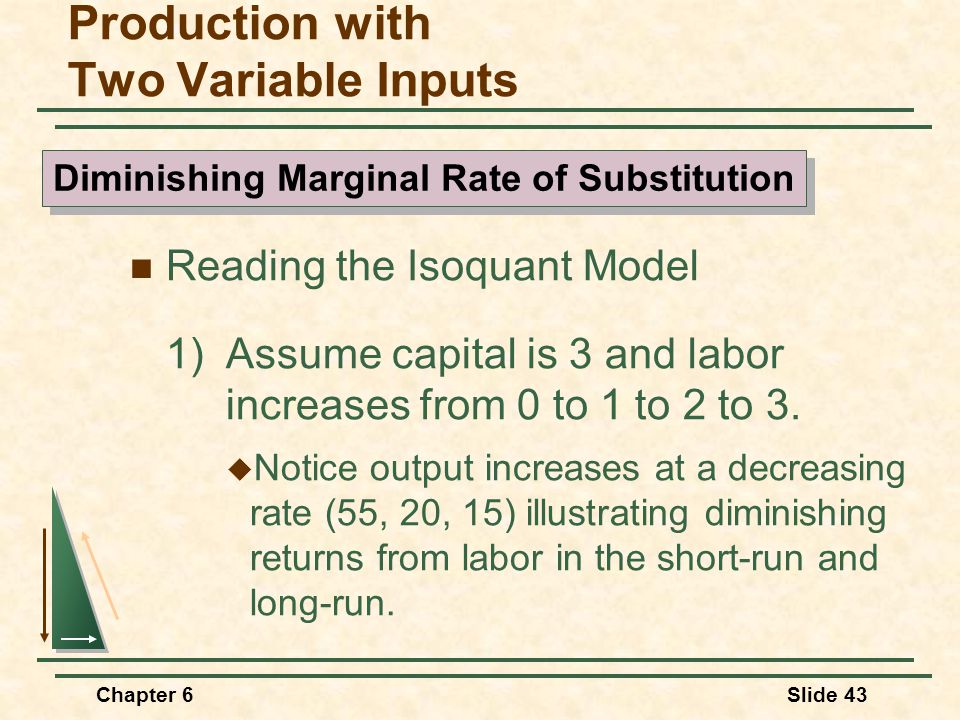

43. Chapter 6Slide 43 Reading the Isoquant Model 1)Assume capital is 3 and labor increases from 0 to 1 to 2 to 3.  Notice output increases at a decreasing rate (55, 20, 15) illustrating diminishing returns from labor in the short-run and long-run. Production with Two Variable Inputs Diminishing Marginal Rate of Substitution

44. Chapter 6Slide 44 Reading the Isoquant Model 2)Assume labor is 3 and capital increases from 0 to 1 to 2 to 3.  Output also increases at a decreasing rate (55, 20, 15) due to diminishing returns from capital. Diminishing Marginal Rate of Substitution Production with Two Variable Inputs

45. Chapter 6Slide 45 Substituting Among Inputs Managers want to determine what combination if inputs to use. They must deal with the trade-off between inputs. Production with Two Variable Inputs

46. Chapter 6Slide 46 Substituting Among Inputs The slope of each isoquant gives the trade- off between two inputs while keeping output constant. Production with Two Variable Inputs

47. Chapter 6Slide 47 Substituting Among Inputs The marginal rate of technical substitution equals: Production with Two Variable Inputs

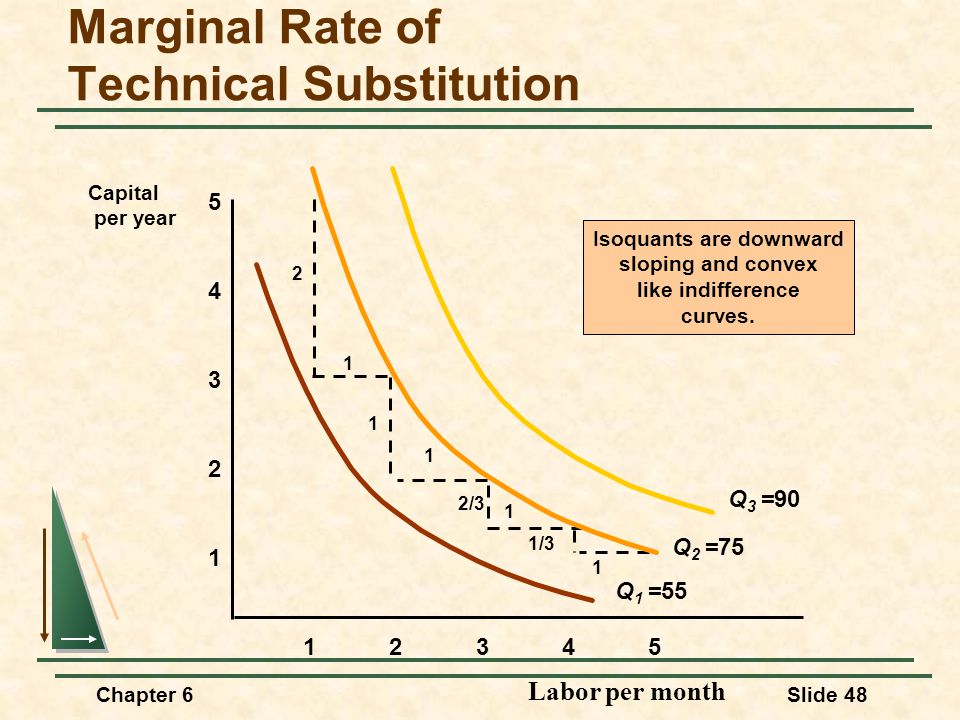

48. Chapter 6Slide 48 Marginal Rate of Technical Substitution Labor per month 1 2 3 4 12345 5 Capital per year Isoquants are downward sloping and convex like indifference curves. 1 1 1 1 2 1 2/3 1/3 Q 1 =55 Q 2 =75 Q 3 =90

49. Chapter 6Slide 49 Observations: 1)Increasing labor in one unit increments from 1 to 5 results in a decreasing MRTS from 1 to 1/2. 2) Diminishing MRTS occurs because of diminishing returns and implies isoquants are convex. Production with Two Variable Inputs

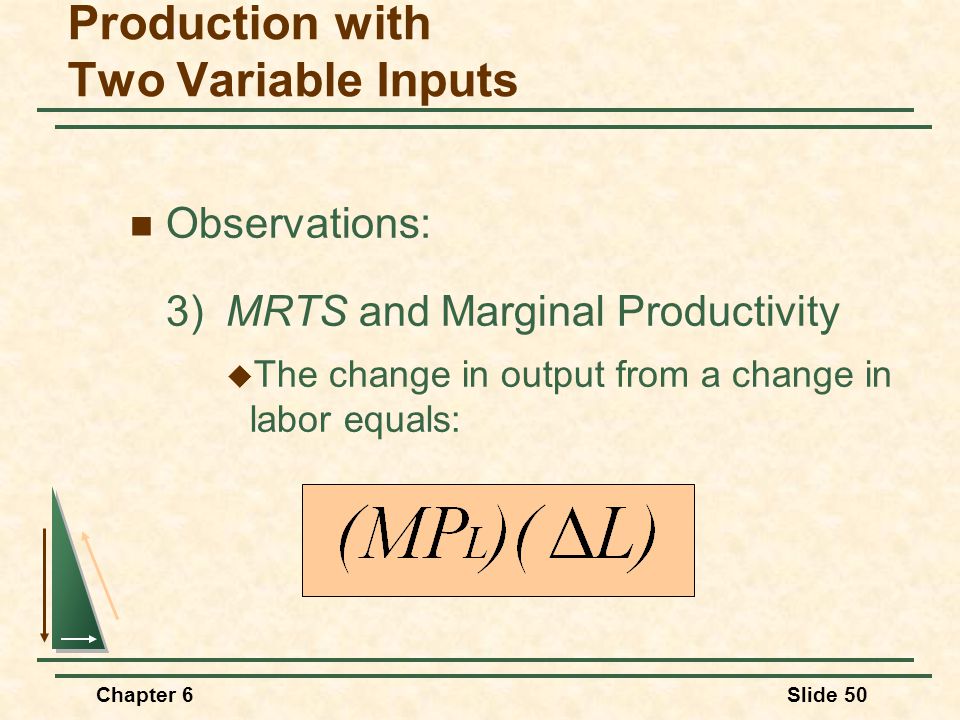

50. Chapter 6Slide 50 Observations: 3)MRTS and Marginal Productivity  The change in output from a change in labor equals: Production with Two Variable Inputs

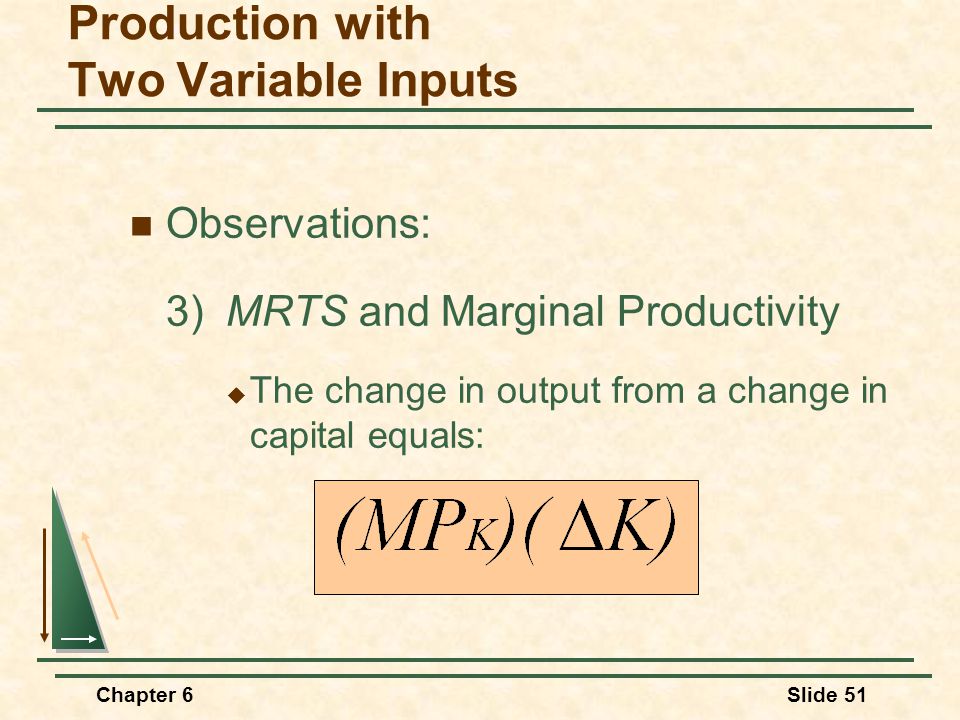

51. Chapter 6Slide 51 Observations: 3)MRTS and Marginal Productivity  The change in output from a change in capital equals: Production with Two Variable Inputs

52. Chapter 6Slide 52 Observations: 3)MRTS and Marginal Productivity  If output is constant and labor is increased, then: Production with Two Variable Inputs

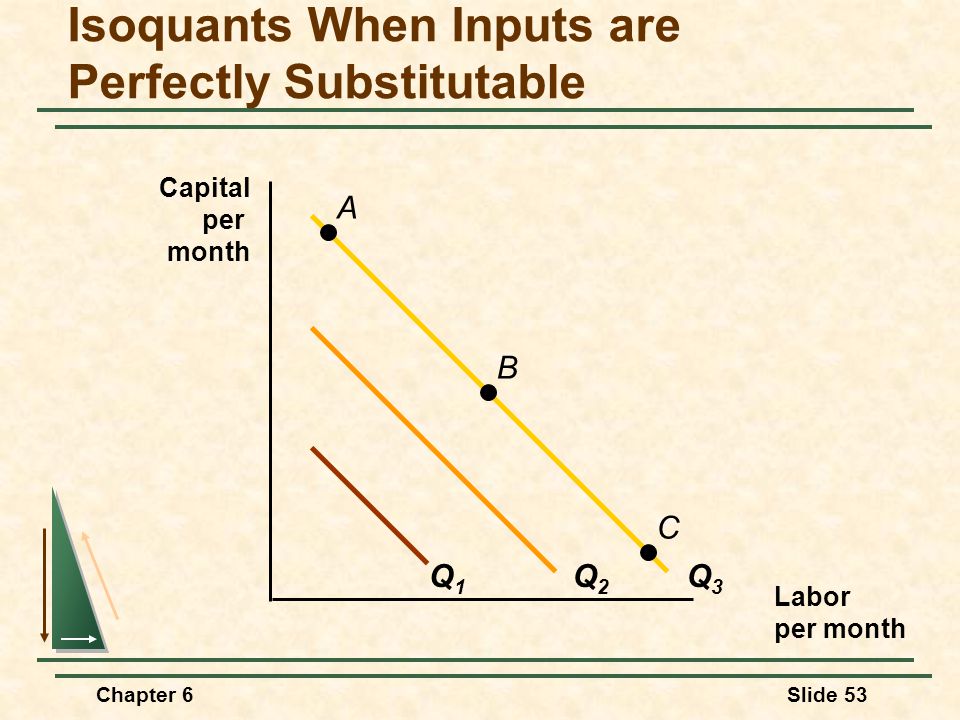

53. Chapter 6Slide 53 Isoquants When Inputs are Perfectly Substitutable Labor per month Capital per month Q1Q1 Q2Q2 Q3Q3 A B C

54. Chapter 6Slide 54 Observations when inputs are perfectly substitutable: 1)The MRTS is constant at all points on the isoquant. Production with Two Variable Inputs Perfect Substitutes

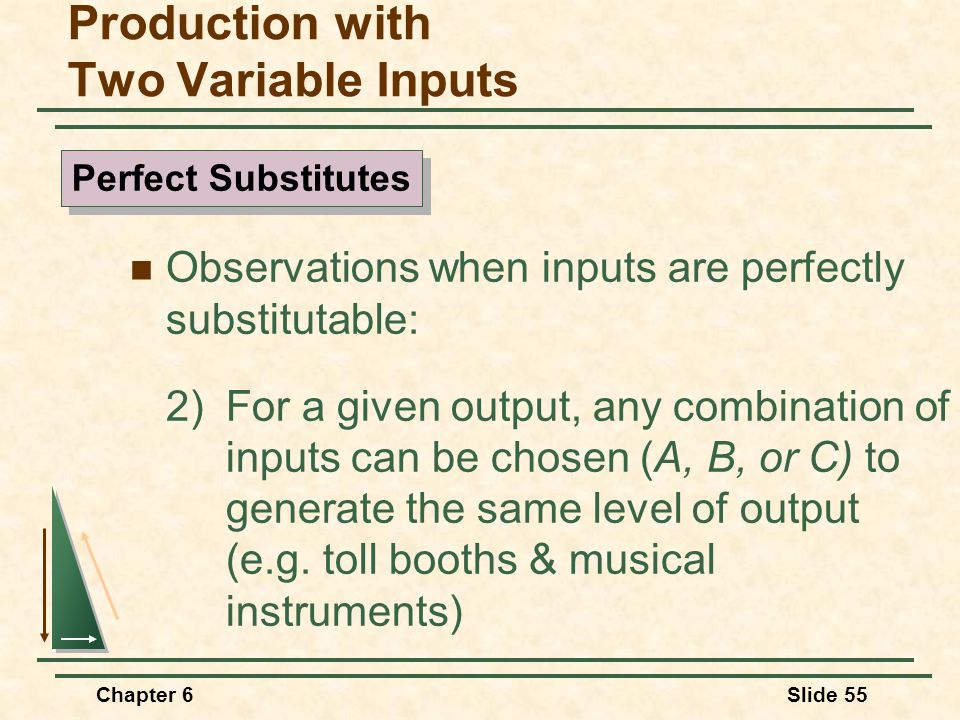

55. Chapter 6Slide 55 Observations when inputs are perfectly substitutable: 2) For a given output, any combination of inputs can be chosen (A, B, or C) to generate the same level of output (e.g. toll booths & musical instruments) Production with Two Variable Inputs Perfect Substitutes

56. Chapter 6Slide 56 Fixed-Proportions Production Function Labor per month Capital per month L1L1 K1K1 Q1Q1 Q2Q2 Q3Q3 A B C

57. Chapter 6Slide 57 Observations when inputs must be in a fixed-proportion: 1)No substitution is possible.Each output requires a specific amount of each input (e.g. labor and jackhammers). Fixed-Proportions Production Function Production with Two Variable Inputs

58. Chapter 6Slide 58 Observations when inputs must be in a fixed-proportion: 2) To increase output requires more labor and capital (i.e. moving from A to B to C which is technically efficient). Fixed-Proportions Production Function Production with Two Variable Inputs

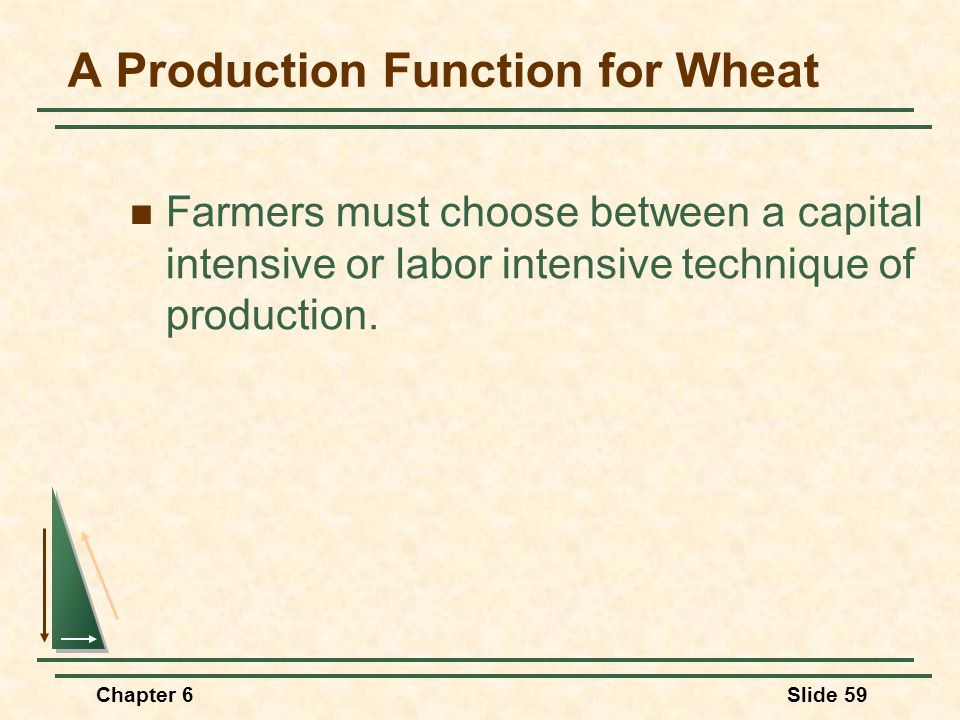

59. Chapter 6Slide 59 A Production Function for Wheat Farmers must choose between a capital intensive or labor intensive technique of production.

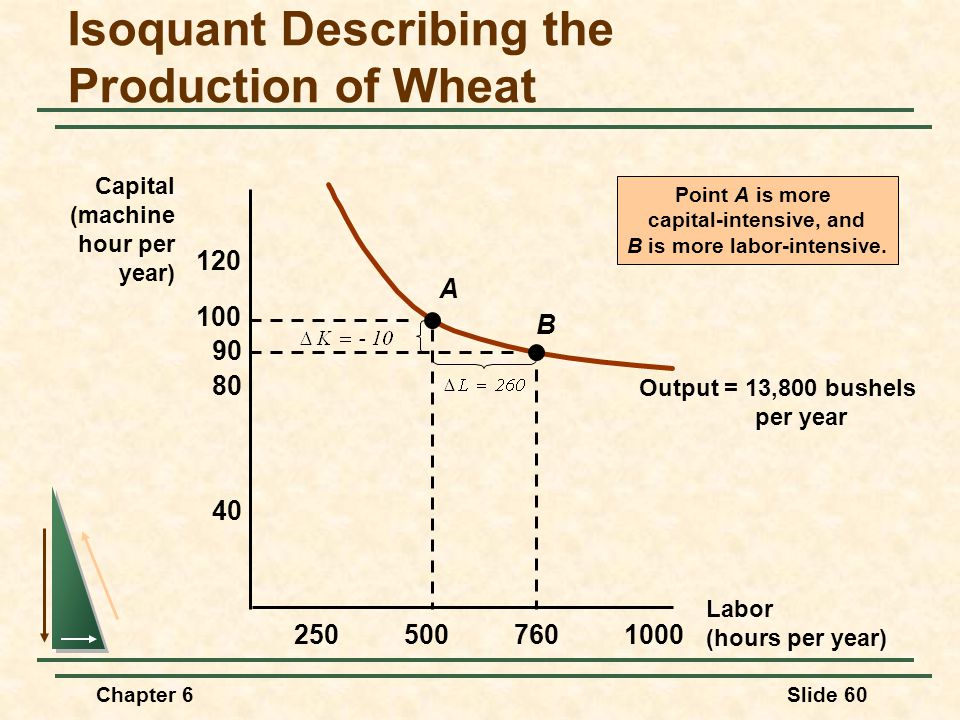

60. Chapter 6Slide 60 Isoquant Describing the Production of Wheat Labor (hours per year) Capital (machine hour per year) 2505007601000 40 80 120 100 90 Output = 13,800 bushels per year A B Point A is more capital-intensive, and B is more labor-intensive.

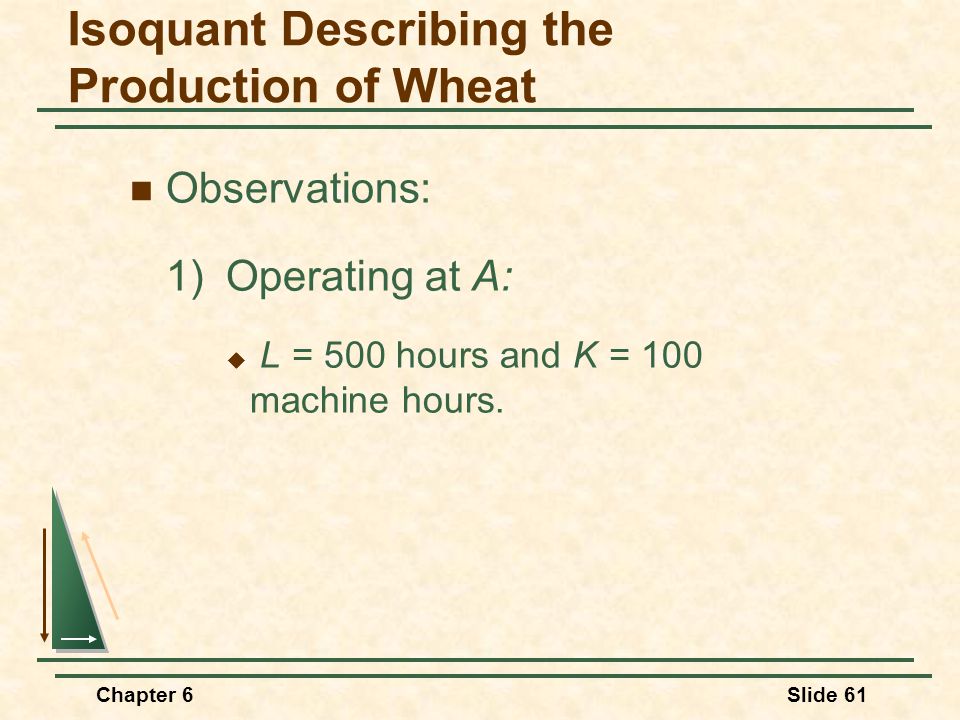

61. Chapter 6Slide 61 Observations: 1)Operating at A:  L = 500 hours and K = 100 machine hours. Isoquant Describing the Production of Wheat

62. Chapter 6Slide 62 Observations: 2)Operating at B  Increase L to 760 and decrease K to 90 the MRTS < 1: Isoquant Describing the Production of Wheat

63. Chapter 6Slide 63 Observations: 3)MRTS < 1, therefore the cost of labor must be less than capital in order for the farmer substitute labor for capital. 4)If labor is expensive, the farmer would use more capital (e.g. U.S.). Isoquant Describing the Production of Wheat

64. Chapter 6Slide 64 Observations: 5) If labor is inexpensive, the farmer would use more labor (e.g. India). Isoquant Describing the Production of Wheat

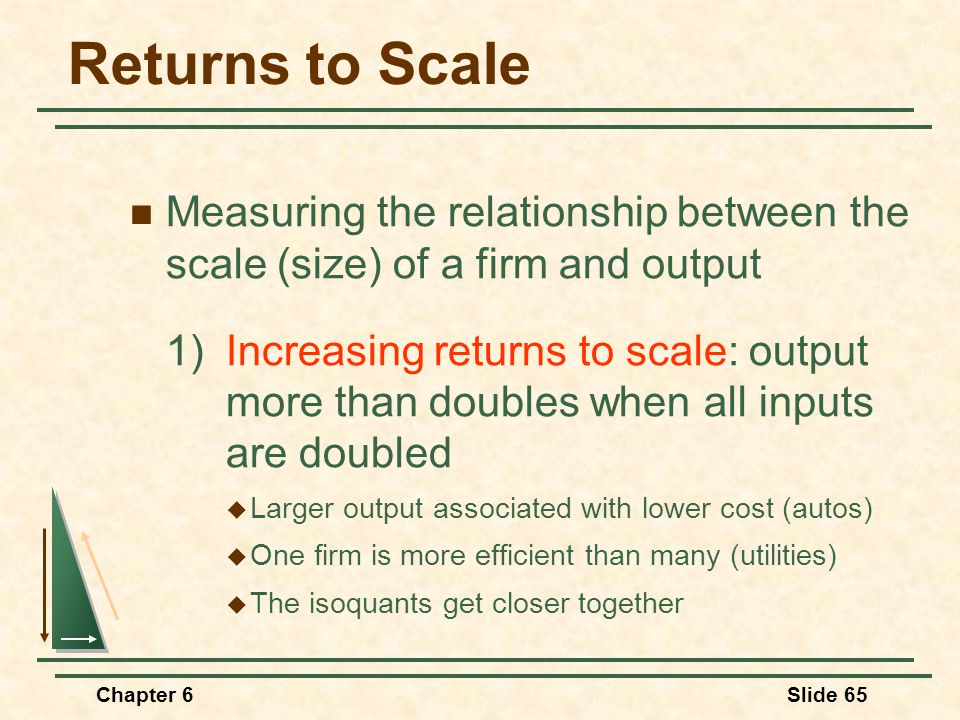

65. Chapter 6Slide 65 Returns to Scale Measuring the relationship between the scale (size) of a firm and output 1)Increasing returns to scale: output more than doubles when all inputs are doubled  Larger output associated with lower cost (autos)  One firm is more efficient than many (utilities)  The isoquants get closer together

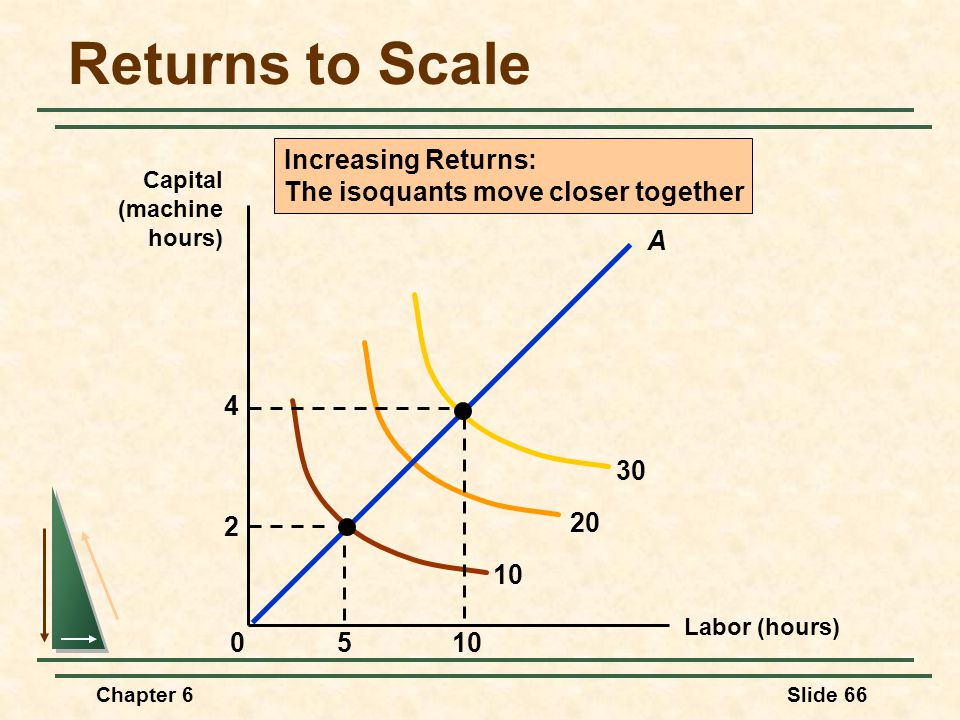

66. Chapter 6Slide 66 Returns to Scale Labor (hours) Capital (machine hours) 10 20 30 Increasing Returns: The isoquants move closer together 510 2 4 0 A

67. Chapter 6Slide 67 Returns to Scale Measuring the relationship between the scale (size) of a firm and output 2)Constant returns to scale: output doubles when all inputs are doubled  Size does not affect productivity  May have a large number of producers  Isoquants are equidistant apart

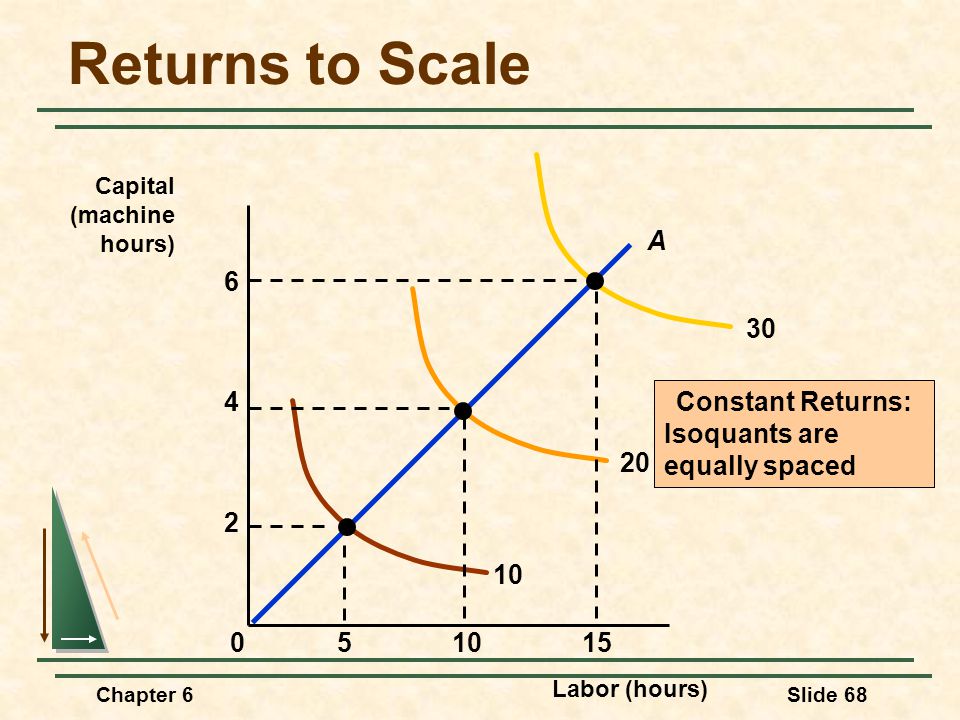

68. Chapter 6Slide 68 Returns to Scale Labor (hours) Capital (machine hours) Constant Returns: Isoquants are equally spaced 10 20 30 15510 2 4 0 A 6

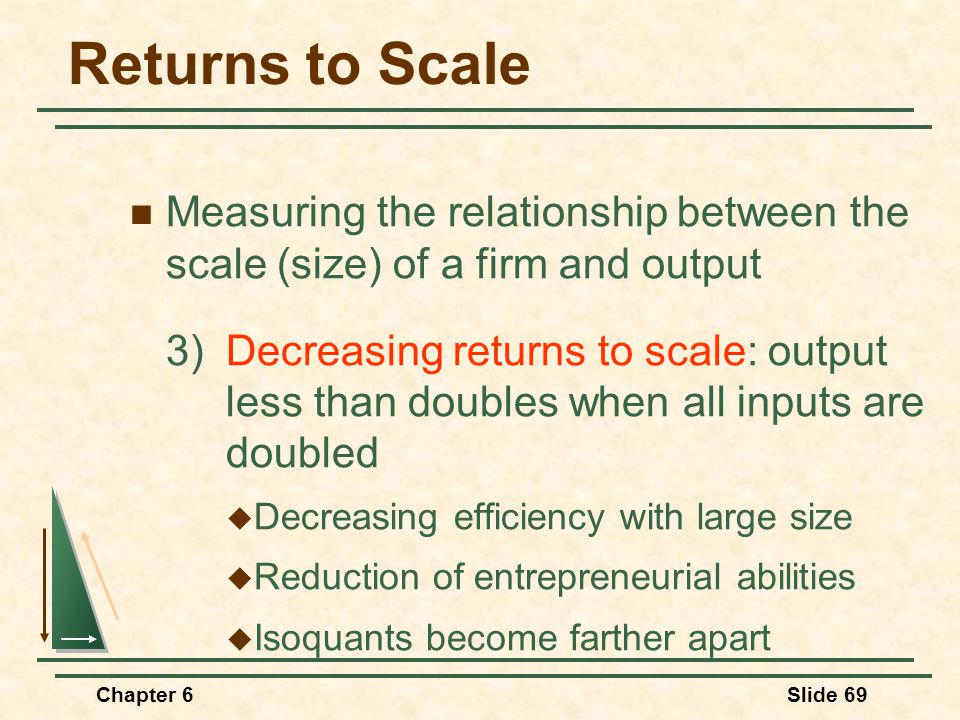

69. Chapter 6Slide 69 Returns to Scale Measuring the relationship between the scale (size) of a firm and output 3)Decreasing returns to scale: output less than doubles when all inputs are doubled  Decreasing efficiency with large size  Reduction of entrepreneurial abilities  Isoquants become farther apart

70. Chapter 6Slide 70 Returns to Scale Labor (hours) Capital (machine hours) Decreasing Returns: Isoquants get further apart 10 20 30 510 2 4 0 A

71. Chapter 6Slide 71 Returns to Scale in the Carpet Industry The carpet industry has grown from a small industry to a large industry with some very large firms.

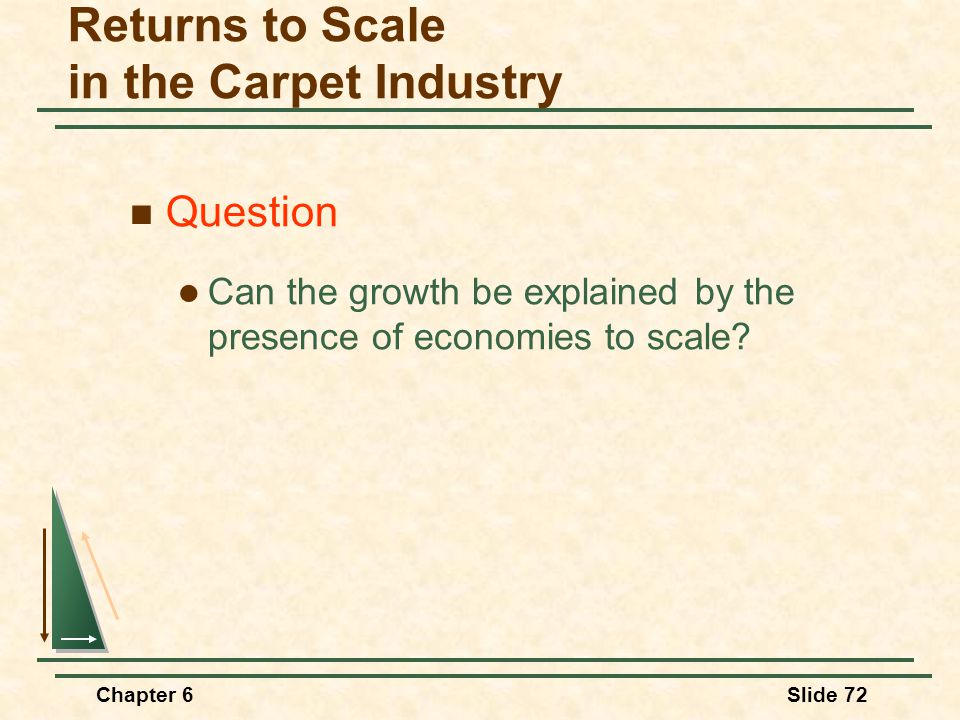

72. Chapter 6Slide 72 Returns to Scale in the Carpet Industry Question Can the growth be explained by the presence of economies to scale?

73. Carpet Shipments, 1996 (Millions of Dollars per Year) The U.S. Carpet Industry 1. Shaw Industries$3,2026. World Carpets$475 2. Mohawk Industries1,7957. Burlington Industries450 3. Beaulieu of America1,0068. Collins & Aikman418 4. Interface Flooring8209. Masland Industries380 5. Queen Carpet77510. Dixied Yarns280

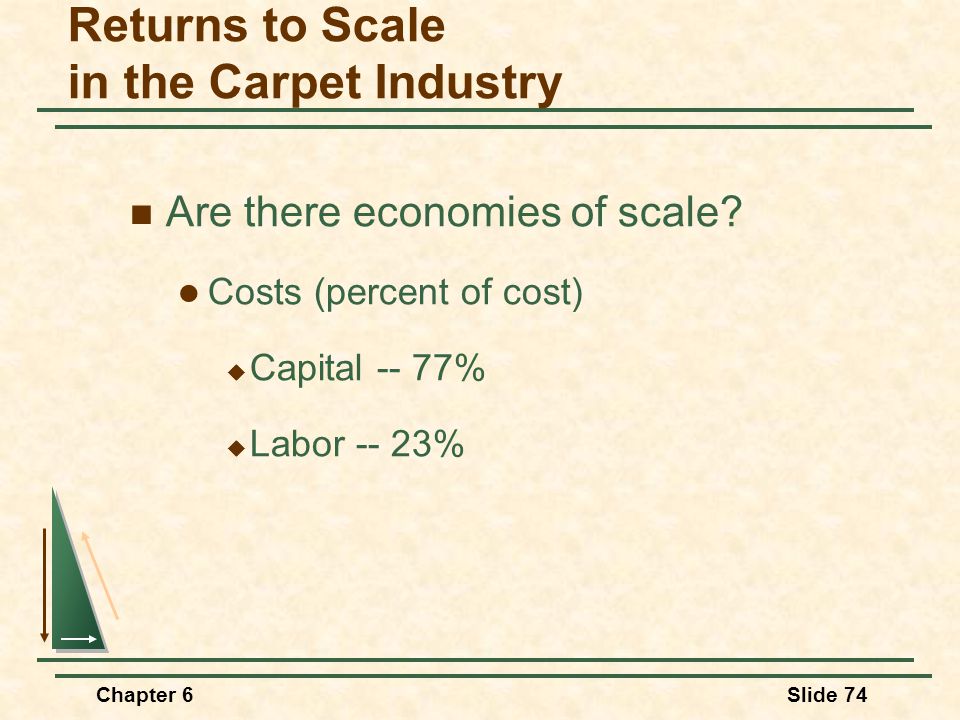

74. Chapter 6Slide 74 Returns to Scale in the Carpet Industry Are there economies of scale? Costs (percent of cost)  Capital -- 77%  Labor -- 23%

75. Chapter 6Slide 75 Returns to Scale in the Carpet Industry Large Manufacturers Increased in machinery & labor Doubling inputs has more than doubled output Economies of scale exist for large producers

76. Chapter 6Slide 76 Returns to Scale in the Carpet Industry Small Manufacturers Small increases in scale have little or no impact on output Proportional increases in inputs increase output proportionally Constant returns to scale for small producers

77. Chapter 6Slide 77 Summary A production function describes the maximum output a firm can produce for each specified combination of inputs. An isoquant is a curve that shows all combinations of inputs that yield a given level of output.

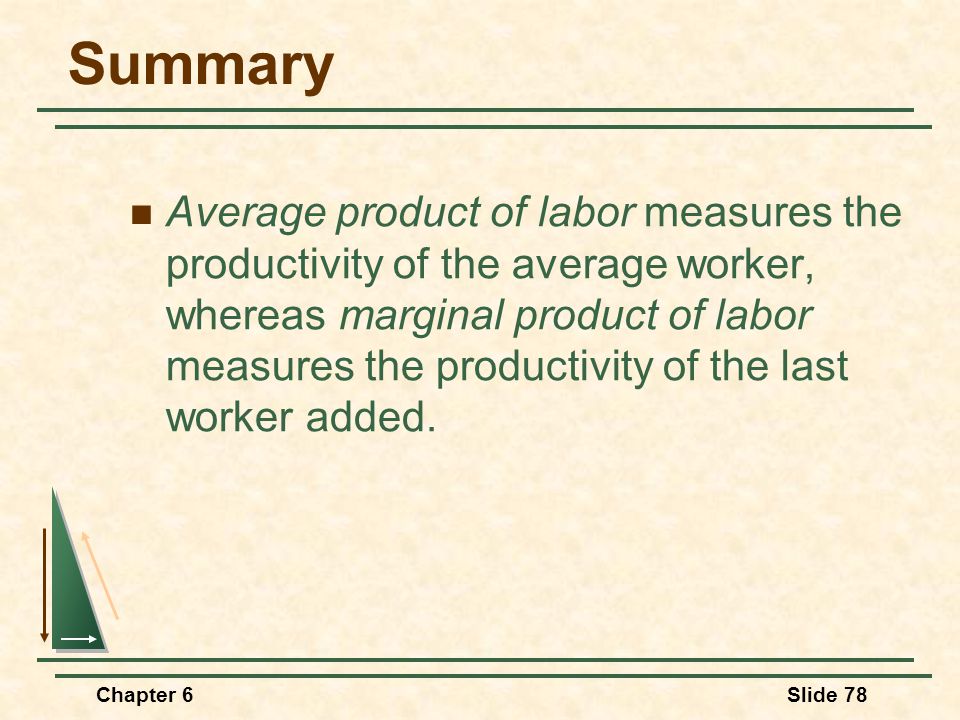

78. Chapter 6Slide 78 Summary Average product of labor measures the productivity of the average worker, whereas marginal product of labor measures the productivity of the last worker added.

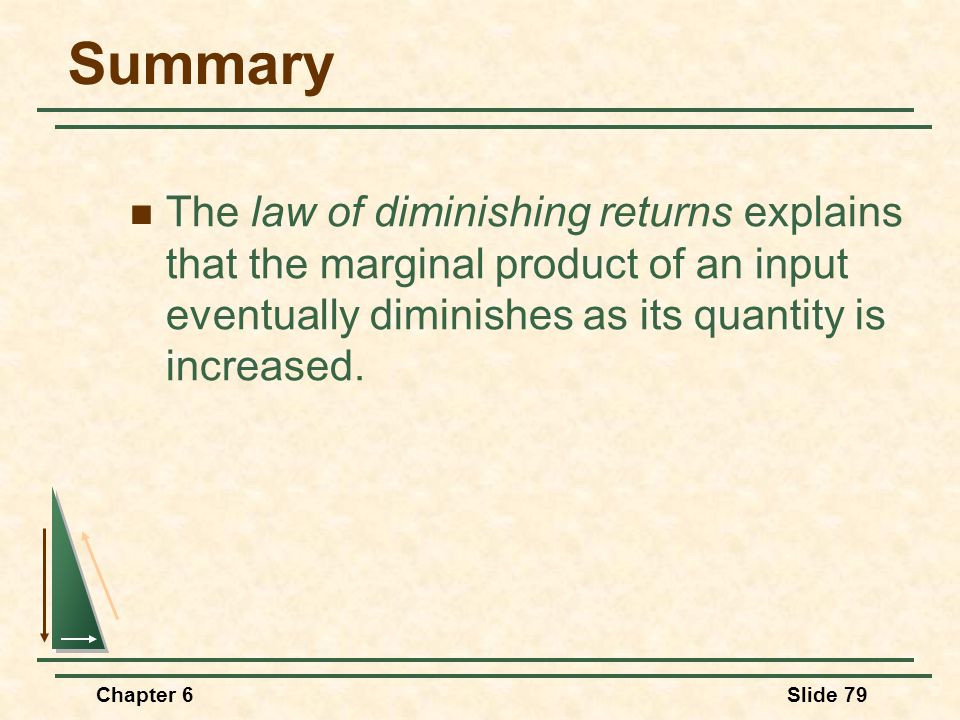

79. Chapter 6Slide 79 Summary The law of diminishing returns explains that the marginal product of an input eventually diminishes as its quantity is increased.

80. Chapter 6Slide 80 Summary Isoquants always slope downward because the marginal product of all inputs is positive. The standard of living that a country can attain for its citizens is closely related to its level of productivity.

81. Chapter 6Slide 81 Summary In long-run analysis, we tend to focus on the firm’s choice of its scale or size of operation.

82. End of Chapter 6 Production
