1. Tutorial # 9 Nov. 21, 2013 1

2. Segmentation  Isolating a region/regions of interest in an image  Useful for:  Collect more meaningful data from an image  Easier analysis  Locate objects  Locate boundaries 2

3. K-means clustering 3

4. Example – 1 Channel  Given a gray scale image, use K-means to segment the image. Choose K = 2 (Cluster A and Cluster B) 153 262 551 4

5. 1.) Calculate the histogram 5

6. 2.) Initialize centroids 6

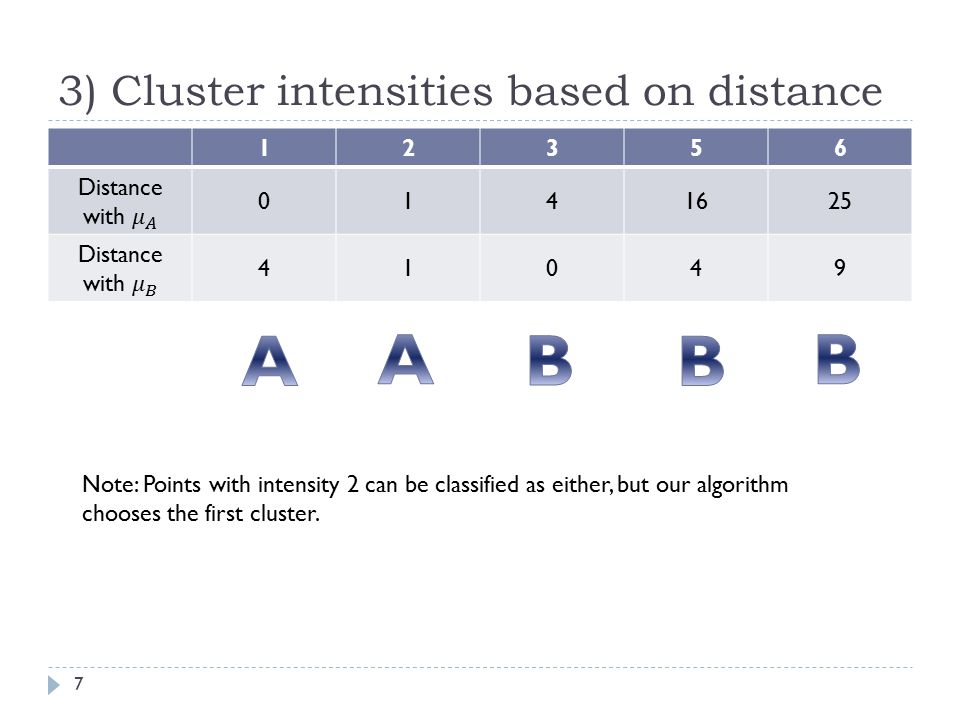

7. 3) Cluster intensities based on distance 12356 0141625 41049 Note: Points with intensity 2 can be classified as either, but our algorithm chooses the first cluster. 7

8. 4.) Recalculate centroids 8

9. 5.) Recluster intensities using new centroids 12356 0.25 2.2512.2520.25 14.447.843.240.041.44 We have a new clustering! Recalculate the centroid. 9

10. 10

11. 11 12356 0.640.041.4410.2417.64 18.06310.565.0630.630.56

12. Final Clustering/Segmentation ABA ABA BBA This answer would change if we chose K = 3. Also, the number of iterations would change depending on the starting centroids. 12

13. Real example 13

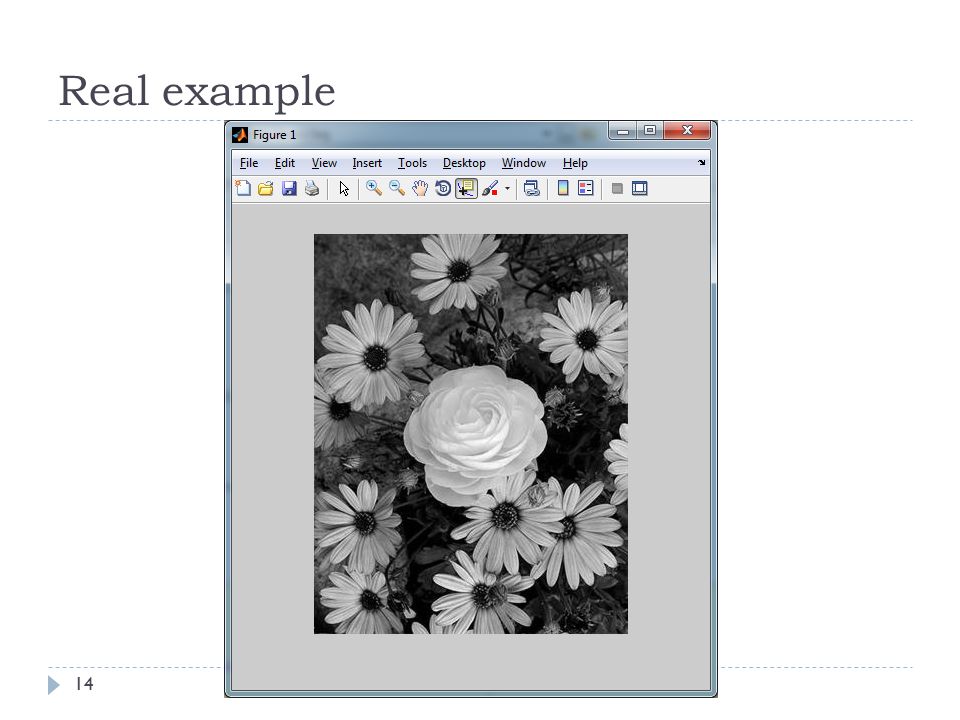

14. Real example 14

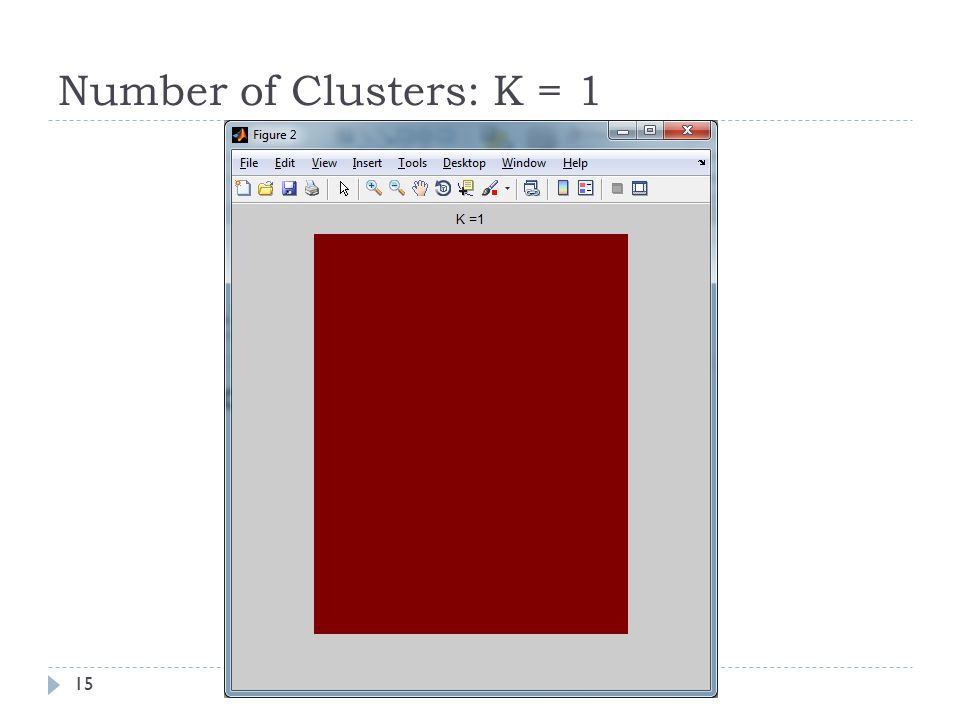

15. Number of Clusters: K = 1 15

16. Number of Clusters: K = 3 16

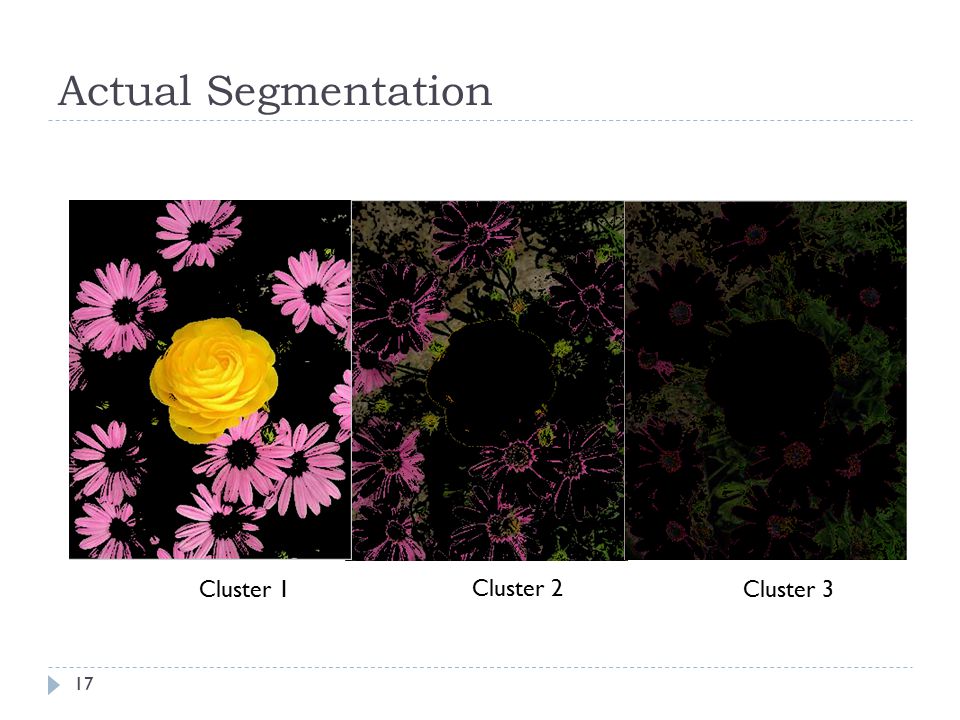

17. Actual Segmentation 17 Cluster 1 Cluster 2 Cluster 3

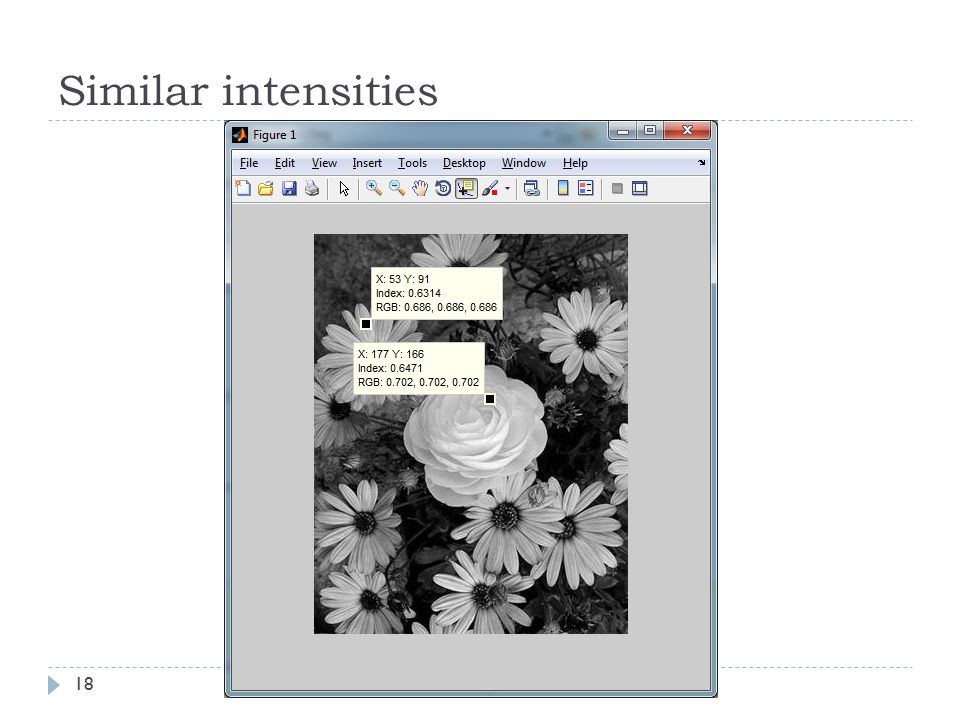

18. Similar intensities 18

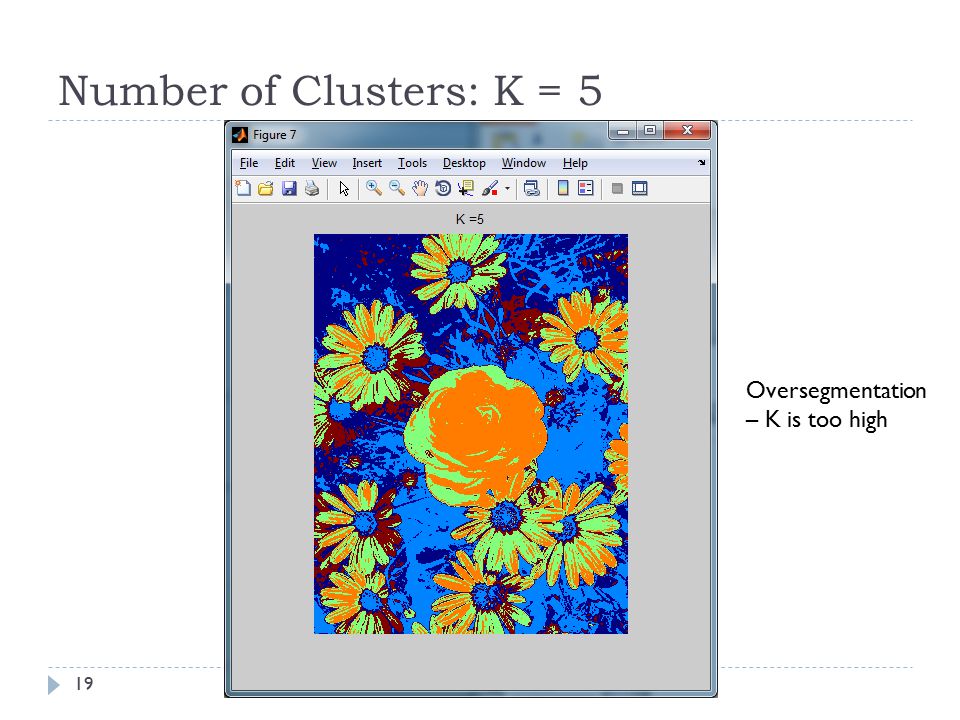

19. Number of Clusters: K = 5 Oversegmentation – K is too high 19

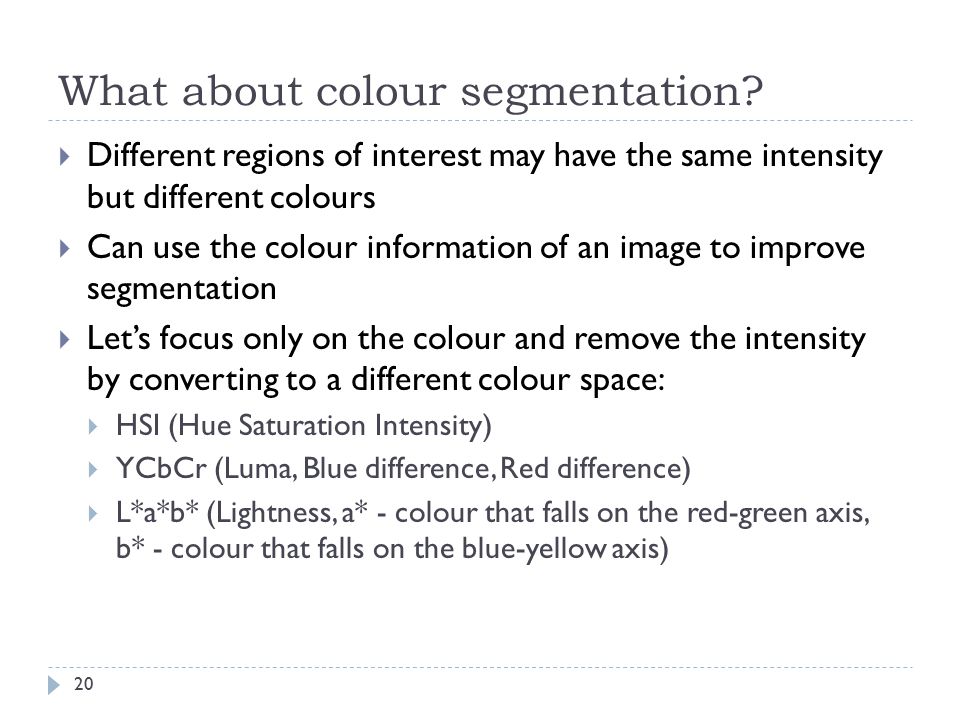

20. What about colour segmentation?  Different regions of interest may have the same intensity but different colours  Can use the colour information of an image to improve segmentation  Let’s focus only on the colour and remove the intensity by converting to a different colour space:  HSI (Hue Saturation Intensity)  YCbCr (Luma, Blue difference, Red difference)  L*a*b* (Lightness, a* - colour that falls on the red-green axis, b* - colour that falls on the blue-yellow axis) 20

21. Using L*a*b* space  Our K-means problem becomes a 2D problem  Our centroid will now have two variables, one defining the intensity of the a* channel and one defining the b* channel http://www.mathworks.com/help/releases/R201 3b/stats/kmeans.gif 21

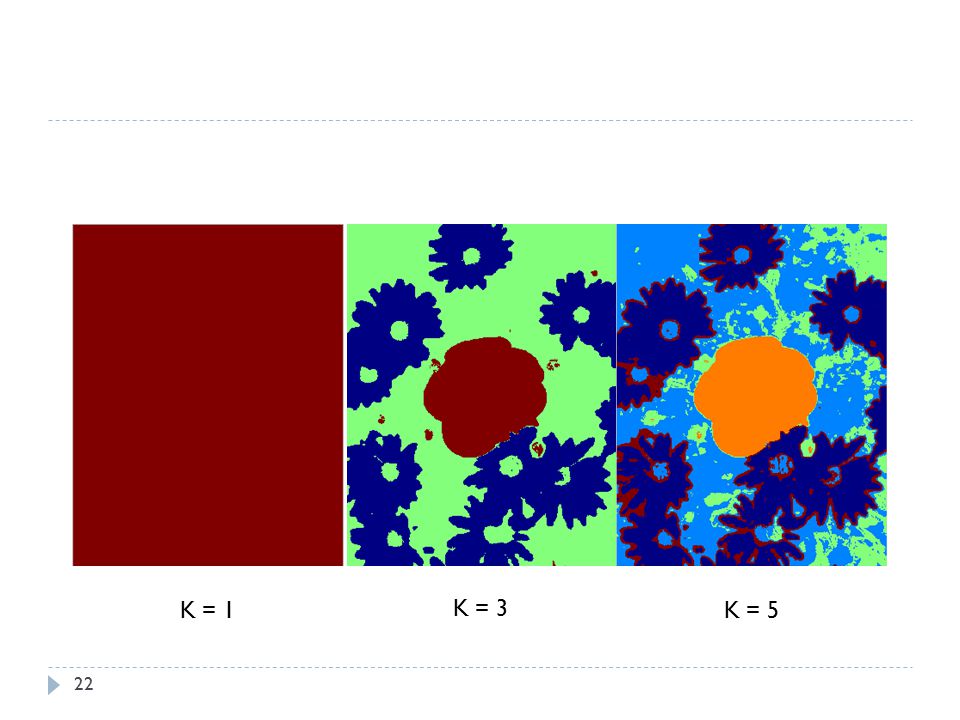

22. 22 K = 1 K = 3 K = 5

23. 23 Cluster 1 Cluster 2 Cluster 3
