2. © 2014 IBM Corporation IBM Security Systems 2 Advanced Threat Protection (ATP) Overview ATP Integration Framework is generic mechanism for IBM Security Network Protection (ISNP) to receive external alerts and act on these alerts using Quarantine

3. © 2014 IBM Corporation IBM Security Systems 3 Advanced Threat Protection Policy An alert will be mapped to one of five types Compromise a successful breach of security, currently active within the environment. This could range from subversive human behavior to automated command and control exploits. Reputation describes characteristics tied to an address or web URI and related to geography or observed content behavior. Intrusion an instance of an in progress network attack attempt Malware represents malicious software in flight on the network or at risk on a disk.

4. © 2014 IBM Corporation IBM Security Systems 4 Advanced Threat Protection Policy (cont.) Exposure/vulnerability represents an identified network weaknesses which, if successfully exploited, could result in compromises The classification of the alert into one of 3 severities – High – Medium – Low

5. © 2014 IBM Corporation IBM Security Systems 5 Advanced Threat Protection Policy (cont.)

6. © 2014 IBM Corporation IBM Security Systems 6 Web Security Appliance Uses enterprise based sandboxing to execute and profile files to identify C&C hosts Can monitor traffic and identify internal hosts that are compromised (through calls to known C&C sites) Although Malware Detection systems can raise alerts, they are not enforcement devices ISNP can provide the enforcement for Malware Detection i Sandbox Malware Detection Integration

7. © 2014 IBM Corporation IBM Security Systems 7 Malware Detection / ISNP Network Topology

8. © 2014 IBM Corporation IBM Security Systems 8 Typical Use Cases There are three supported Quarantine use cases: Compromise: A machine infected with malware, transmitting data to a Command & Control Server represents a Compromised Host in an enterprise network. Reputation: A Command & Control Server contacted by a Compromised Host or a Web Server Hosting A Web Exploit represents a Malicious Server with a poor reputation. Malware: A Malware Object being transmitted over the network to a Target Host from a Hosting Server represents a Threat-In-Flight.

9. © 2014 IBM Corporation IBM Security Systems 9 Event Log: Advanced Threat Events

10. © 2014 IBM Corporation IBM Security Systems 10 Active Quarantines

11. © 2014 IBM Corporation IBM Security Systems 11 Backup

12. © 2014 IBM Corporation IBM Security Systems 12 Menu - Advanced Threat Policy

13. © 2014 IBM Corporation IBM Security Systems 13 Advanced Threat Policy

14. © 2014 IBM Corporation IBM Security Systems 14 Menu - Advanced Threat Protection Agents

15. © 2014 IBM Corporation IBM Security Systems 15 Advanced Threat Protection Agents

16. © 2014 IBM Corporation IBM Security Systems 16 Menu - Active Quarantines

17. © 2014 IBM Corporation IBM Security Systems 17 Active Quarantines

18. © 2014 IBM Corporation IBM Security Systems 18 Menu – Event Log

19. © 2014 IBM Corporation IBM Security Systems 19 Event Log: Advanced Threat Events

20. © 2012 IBM Corporation IBM Security Systems 20 © 2014 IBM Corporation Qradar 7.2 MR1 IBM Security Network Protection (XGS) Advanced Threat Protection Integration Framework QRadar based integration

21. © 2014 IBM Corporation IBM Security Systems 21 QRadar There are four supported cases: – Compromise: If the source IP is "right clicked" this IP address is sent to the XGS. This might be used in the case when the host has been infected with malware. – Reputation: If the destination IP is “right-clicked” this IP address is sent to the XGS. This represents a malicious server such as a C&C server or one hosting Malware. – Intrusion: If a source port is “right-clicked” this IP address and port combination is sent to the XGS. This can result from that client system attacking a server. – Exposure: If the destination port is "right clicked" this IP address and port combination is sent to the XGS. This might be used in the case where the service has a vulnerability.

22. © 2014 IBM Corporation IBM Security Systems 22 QRadar “right click” Integration (source address) “on the glass” integration

23. © 2014 IBM Corporation IBM Security Systems 23 QRadar “right click” Integration (source address)

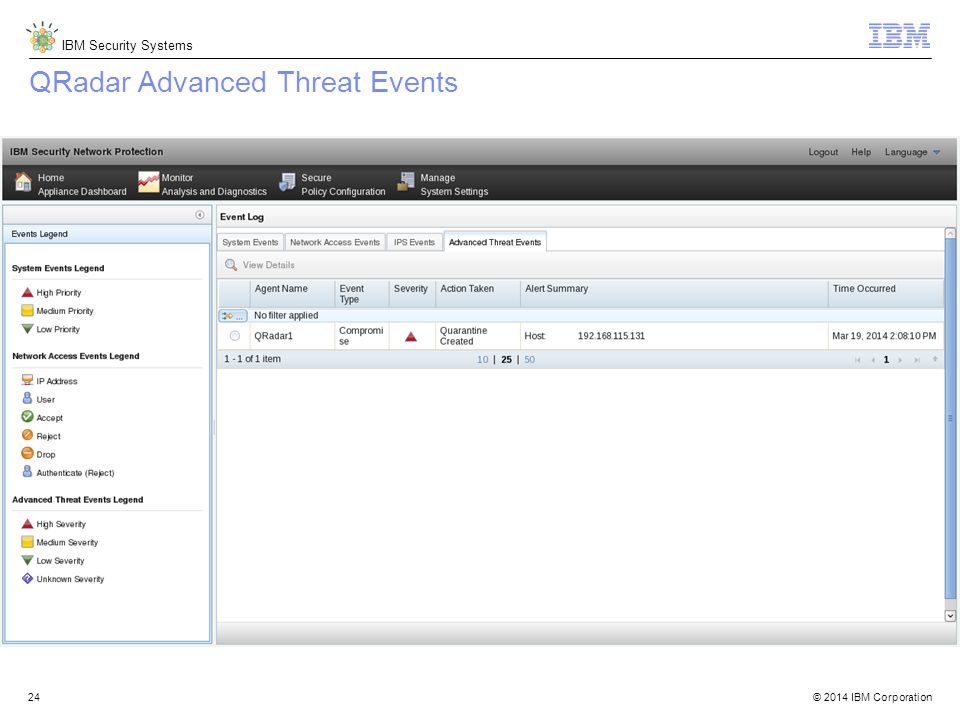

24. © 2014 IBM Corporation IBM Security Systems 24 QRadar Advanced Threat Events

25. © 2014 IBM Corporation IBM Security Systems 25 QRadar 'right click' Integration (destination port) “on the glass” integration

26. © 2014 IBM Corporation IBM Security Systems 26 QRadar 'right click' Integration (destination port)

27. © 2014 IBM Corporation IBM Security Systems 27 QRadar Advanced Threat Events
