1. INTRODUCTION TO Machine Learning ETHEM ALPAYDIN © The MIT Press, 2004 alpaydin@boun.edu.tr http://www.cmpe.boun.edu.tr/~ethem/i2ml Lecture Slides for

2. CHAPTER 13: Hidden Markov Models

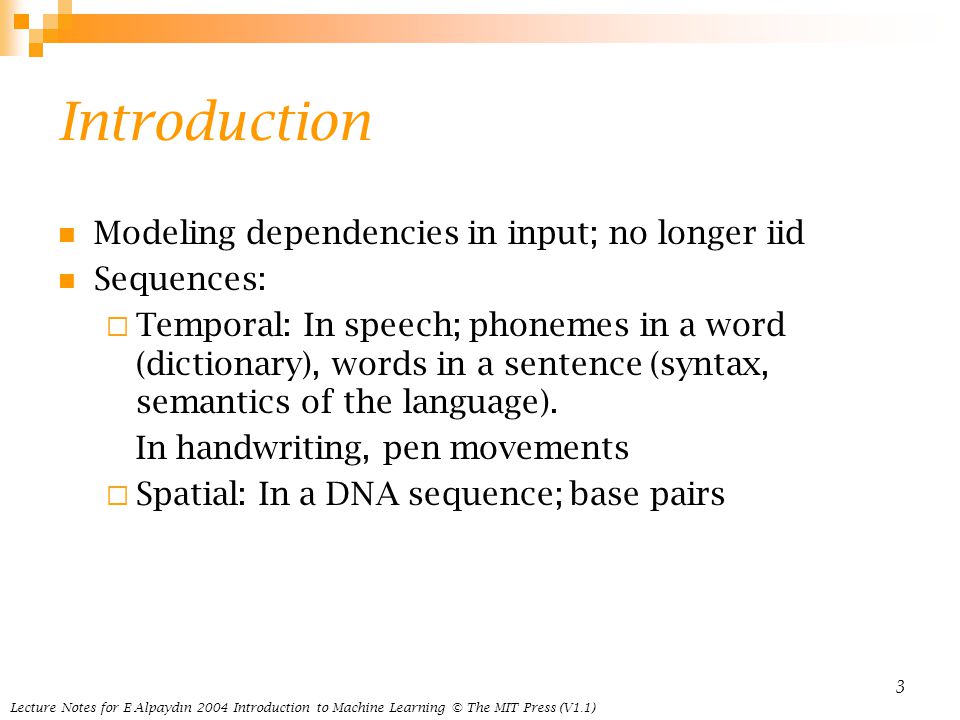

3. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 3 Introduction Modeling dependencies in input; no longer iid Sequences:  Temporal: In speech; phonemes in a word (dictionary), words in a sentence (syntax, semantics of the language). In handwriting, pen movements  Spatial: In a DNA sequence; base pairs

4. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 4 Discrete Markov Process N states: S 1, S 2,..., S N State at “time” t, q t = S i First-order Markov P(q t+1 =S j | q t =S i, q t-1 =S k,...) = P(q t+1 =S j | q t =S i ) Transition probabilities a ij ≡ P(q t+1 =S j | q t =S i ) a ij ≥ 0 and Σ j=1 N a ij =1 Initial probabilities π i ≡ P(q 1 =S i ) Σ j=1 N π i =1

5. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 5 Stochastic Automaton

6. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 6 Example: Balls and Urns Three urns each full of balls of one color S 1 : red, S 2 : blue, S 3 : green

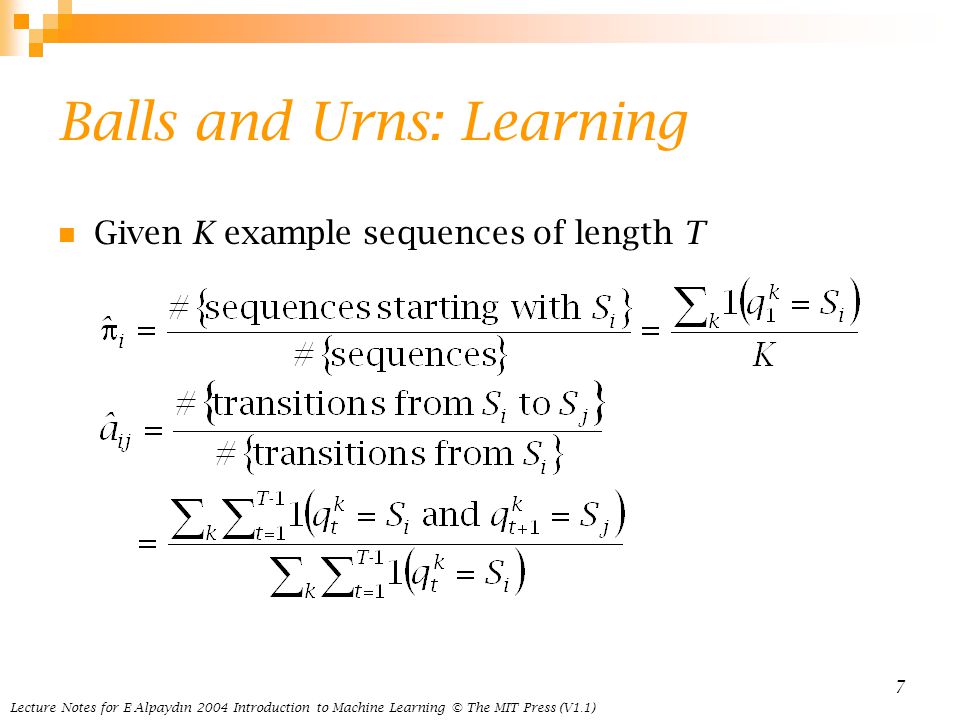

7. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 7 Balls and Urns: Learning Given K example sequences of length T

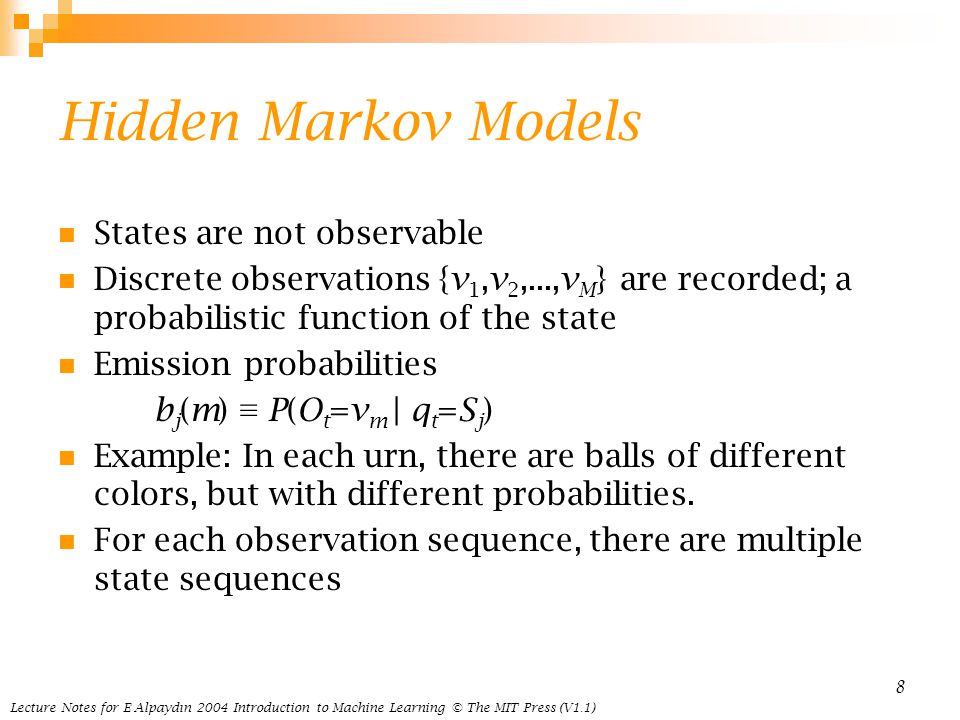

8. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 8 Hidden Markov Models States are not observable Discrete observations {v 1,v 2,...,v M } are recorded; a probabilistic function of the state Emission probabilities b j (m) ≡ P(O t =v m | q t =S j ) Example: In each urn, there are balls of different colors, but with different probabilities. For each observation sequence, there are multiple state sequences

9. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 9 HMM Unfolded in Time

10. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 10 Elements of an HMM N: Number of states M: Number of observation symbols A = [a ij ]: N by N state transition probability matrix B = b j (m): N by M observation probability matrix Π = [π i ]: N by 1 initial state probability vector λ = (A, B, Π ), parameter set of HMM

11. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 11 Three Basic Problems of HMMs 1. Evaluation: Given λ, and O, calculate P (O | λ ) 2. State sequence: Given λ, and O, find Q * such that P (Q * | O, λ ) = max Q P (Q | O, λ ) 3. Learning: Given X={O k } k, find λ * such that P ( X | λ * )=max λ P ( X | λ ) (Rabiner, 1989)

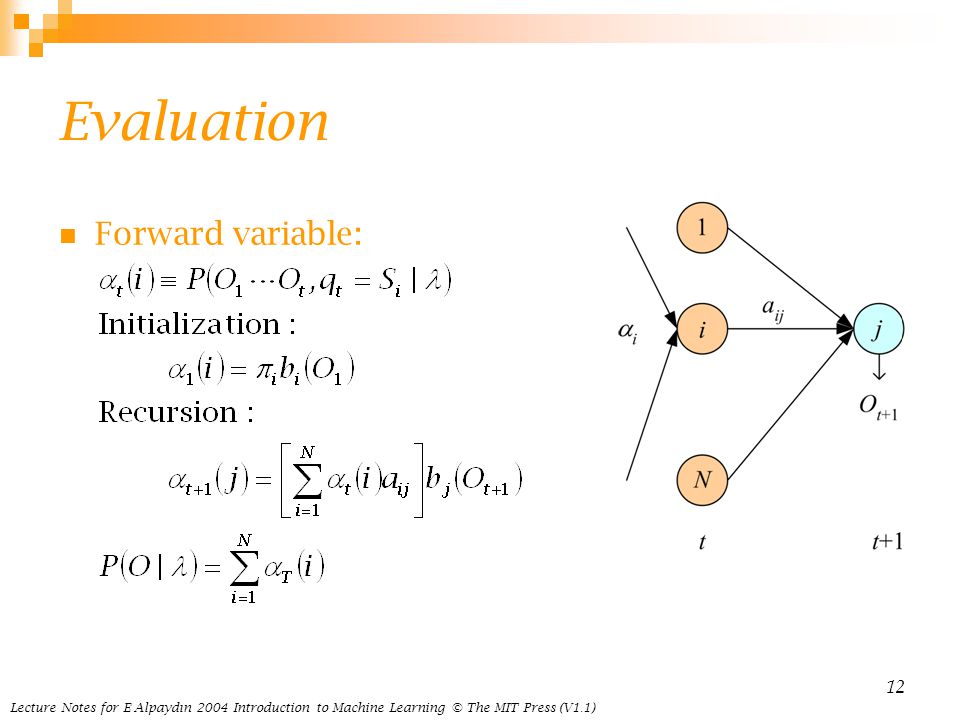

12. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 12 Evaluation Forward variable:

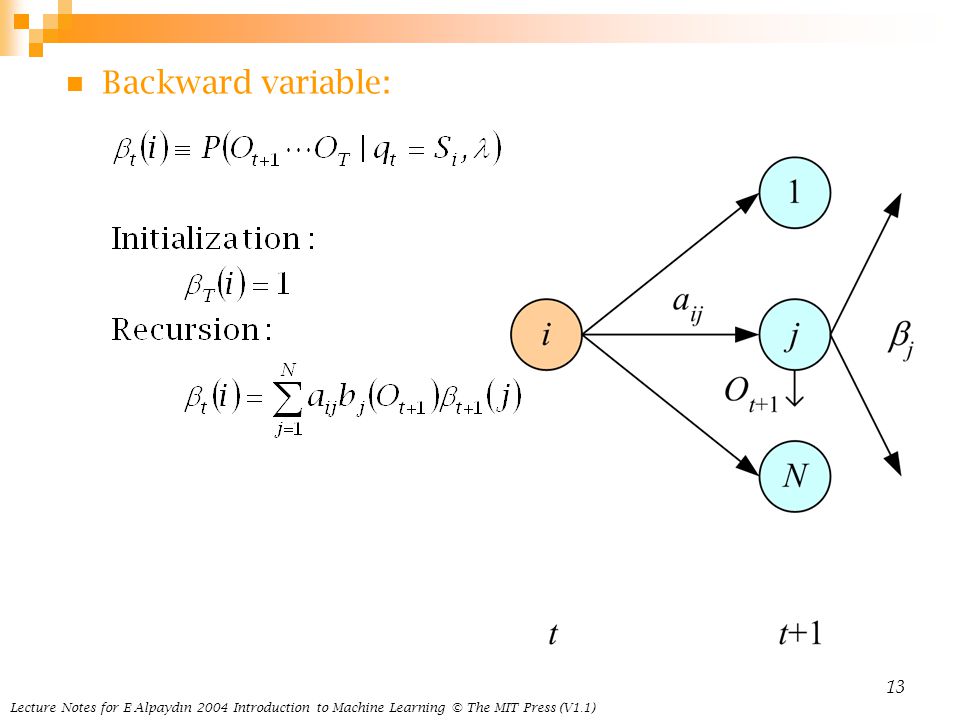

13. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 13 Backward variable:

14. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 14 Finding the State Sequence No! Choose the state that has the highest probability, for each time step: q t * = arg max i γ t (i)

15. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 15 Viterbi’s Algorithm δ t (i) ≡ max q1q2∙∙∙ qt-1 p(q 1 q 2 ∙∙∙q t-1,q t =S i,O 1 ∙∙∙O t | λ ) Initialization: δ 1 (i) = π i b i (O 1 ), ψ 1 (i) = 0 Recursion: δ t (j) = max i δ t-1 (i)a ij b j (O t ), ψ t (j) = argmax i δ t-1 (i)a ij Termination: p * = max i δ T (i), q T * = argmax i δ T (i) Path backtracking: q t * = ψ t+1 (q t+1 * ), t=T-1, T-2,..., 1

16. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 16 Learning

17. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 17 Baum-Welch (EM)

18. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 18 Continuous Observations Discrete: Gaussian mixture (Discretize using k-means): Continuous: Use EM to learn parameters, e.g.,

19. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 19 HMM with Input Input-dependent observations: Input-dependent transitions (Meila and Jordan, 1996; Bengio and Frasconi, 1996): Time-delay input:

20. Lecture Notes for E Alpaydın 2004 Introduction to Machine Learning © The MIT Press (V1.1) 20 Model Selection in HMM Left-to-right HMMs: In classification, for each C i, estimate P (O | λ i ) by a separate HMM and use Bayes’ rule
