Presentation on theme: "What is a wave? A wave is a disturbance that transfers energy through space and/or some medium. There are two main types of waves: – Electromagnetic Waves."— Presentation transcript:
What is a wave? A wave is a disturbance that transfers energy through space and/or some medium. There are two main types of waves: – Electromagnetic Waves transfer electric and magnetic energy. Can travel through empty space or a medium such as air. The sun’s energy arrives on Earth as EM radiation. – Mechanical Waves require a medium to transfer energy. Cannot travel through empty space. Examples: Sound waves, water waves, etc.
Wave Characteristics All EM waves travel at the same speed in a vacuum, but they have different wavelengths and different frequencies. Wavelength - the distance between the crest of one wave and the crest of the next wave. Frequency – the number of waves that pass a given point in a certain amount of time. – Higher frequency = more energy – Lower frequency = less energy Amplitude – the height of the wave
Electromagnetic Spectrum (EM Spectrum) Foldable Goal: Students will create a foldable that will help them understand the electromagnetic spectrum.

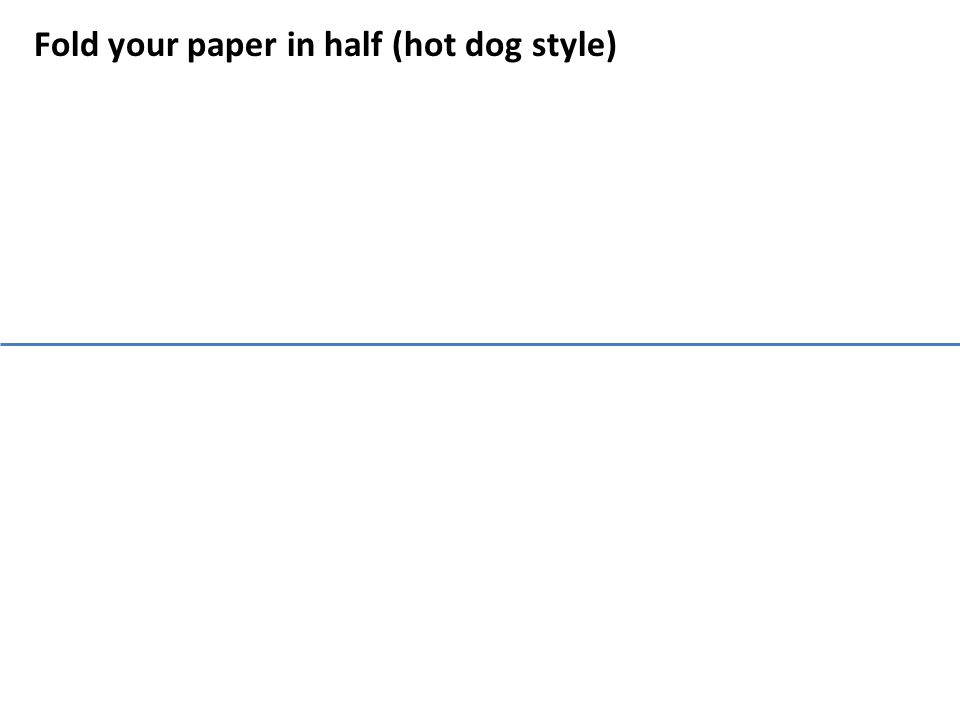

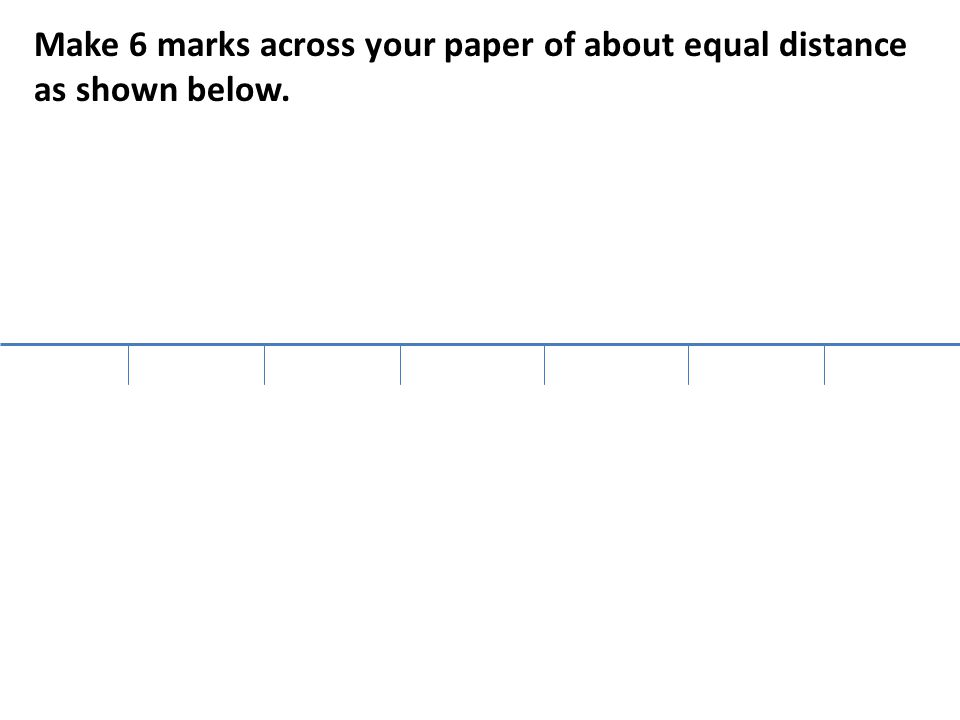

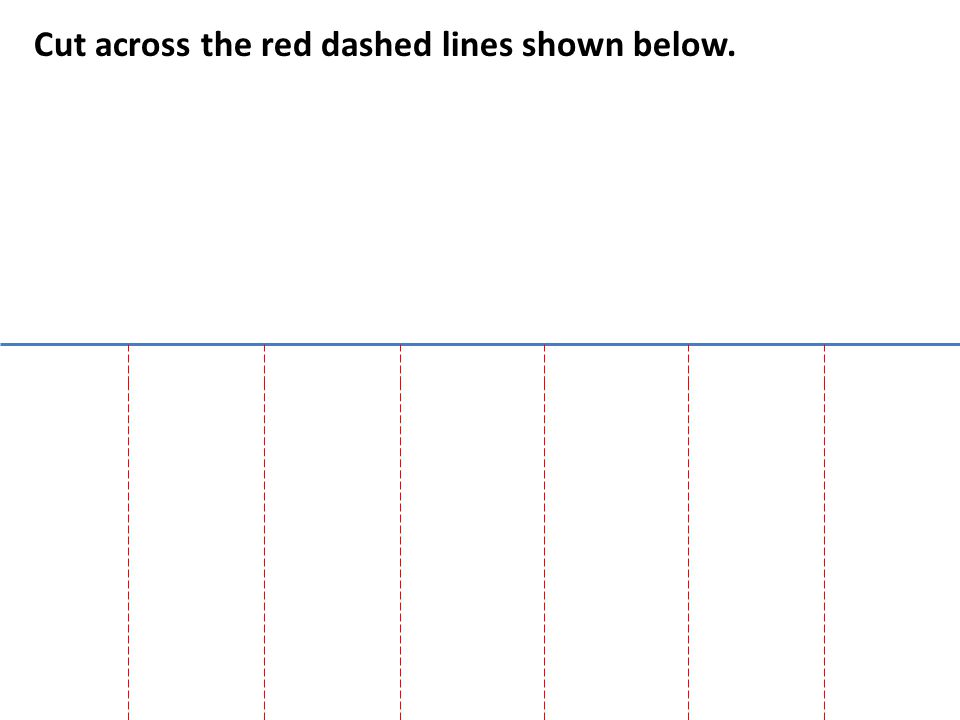

Directions Follow the next 7 slides to create your Electromagnetic Spectrum Foldable
Draw this wave on your paper. Does not need to be exactly the same. The waves do need to get closer together as you move the right.
Add the information above the EM Spectrum diagram __________ Wavelength __________ Frequency __________ Energy __________ Wavelength __________ Frequency __________ Energy
Fill in the flaps below. Radio wavesMicrowavesInfrared waves Visible light Ultraviolet waves X-rays Gamma rays __________ Wavelength __________ Frequency __________ Energy __________ Wavelength __________ Frequency __________ Energy
Electromagnetic Spectrum You will watch a short video about each kind of electromagnetic wave. While watching these videos, write down the following information about the kind of wave. Fold your foldable in half. This information should go underneath the flap of the specific kind of wave. If you are writing down information about radio waves, then flip the radio wave flap up and write down the information about radio waves. 1.Relative wavelength 2.Relative frequency 3.Uses 4.Hazards
Radio waves Longest wavelengths Lowest frequencies Used in broadcasting No known hazards
Microwaves Wavelengths are shorter than radio waves Frequencies are higher than radio waves Used in radar guns, microwave ovens, cell phones No known hazards
Infrared waves Wavelengths are shorter than microwaves Frequencies are higher than microwaves Used in heat lamps, infrared cameras, and remote controls No known hazards
Visible light Wavelengths are shorter than infrared waves Frequencies are higher than infrared waves White light can be separated into the colors red, orange, yellow, green, blue, and violet (ROY G. BIV)
Visible light Red light has the longest wavelength and shortest frequency of visible light Violet has the shortest wavelength and highest frequency of visible light Uses: We can see it! No known hazards
Ultraviolet waves Wavelengths are shorter than visible light waves Frequencies are higher than visible light waves
Ultraviolet waves Used in bug zappers, black lights, tanning beds, fluorescent bulbs, and in detecting real versus forged documents, money, and credit cards Energy is great enough to damage or kill living cells. Can cause sun burn, which may eventually lead to skin cancer.
X-rays Wavelengths are shorter than ultraviolet waves Frequencies are higher than ultraviolet waves Can penetrate most matter. Used in x-ray machines to view bones or items in luggage. Too much exposure can damage cells leading to cancer or even kill cells.
Gamma rays Shortest wavelengths Highest frequencies Most penetrating of all waves. Gamma radiation is used to kill cancer cells.
Gamma rays Exposure to good cells can damage them causing cancer or even kill them.
