July , 2012 Geocoding - Advanced Techniques Agatha Wong Brad Niemand Sergey Ivanenko

3 Outline Overview of geocoding engine and matching process
Managing performance Fine tuning locators – a few examples Sharing locators

4 What This Workshop Does Not Cover
Basic geocoding process Covered in the Geocoding: An Introduction Technical Workshop Programming with ArcObjects, Web APIs Address data model and tools * Please meet with the geocoding team at the Spatial Analysis Island to discuss about these topics or issues you may have.

5 Overview of Geocoding Engine and Matching Process
Handling of ambiguous addresses Example: 10 North Point Road No penalty for missing zone information Can parse any input field, not just Street Name Returns matching address as it is written in the reference data Single line input Supports Unicode for international geocoding Highly configurable Single XML file

6 Demo Finding a few interesting addresses

7 Geocoding Engine: Grammar
All supported forms of addresses are explicitly defined in a grammar.

8 Geocoding Engine : Grammar (continued)
Grammar example: Address: House StreetName City // 380 New York St Redlands | StreetName “&” StreetName City // Main St & 2nd Ave Springfield | SpatialOperator Address ; // 100 ft SW from 5 Main St StreetName: PreDir PreType Name SufType SufDir ; House: number // | number “-” number // | number letter ; // 100A PreDir: “N” | “E” | “W” | “S” | “NW” | “SW” | “NE” | “SE” | ; PreType: “Ave” | “Hwy” | ; SufType: “Ave” | “St” | “Rd” | ; Handles ambiguous addresses No “standardization”

9 Geocoding Engine : Aliases
Common abbreviated forms (aliases) “Mt”, “Mtn”, “Mount”, “Mountain” mean the same in the context of a City name Same for “View” vs. “Vw” There are many ways to spell “Mountain View” Mountain View Mt View Mtn View Mount View Mountain Vw Mt Vw Mtn Vw Mount. Vw

10 Locator Styles

11 Displaying Locator Contents on Internet Browser

12 Locator Styles (with XML Editor)
Aliases

13 Customizing ArcGIS 10x Locators
An Esri Geocoding Technical Paper

14 Managing Performance Multi-threading Presort data Search timeout
Search candidates Search extent

15 Locator Properties

16 Demo Managing performance Brad Niemand

17 Fine Tuning Locators – A Few Examples
Return candidates based on rank Use parity values from reference data Use multiple tables and feature classes for creating a locator

18 Demo Adding ranks

19 Ranking Incomplete or ambiguous information may result in multiple perfect matches (ties) Candidate order is undetermined

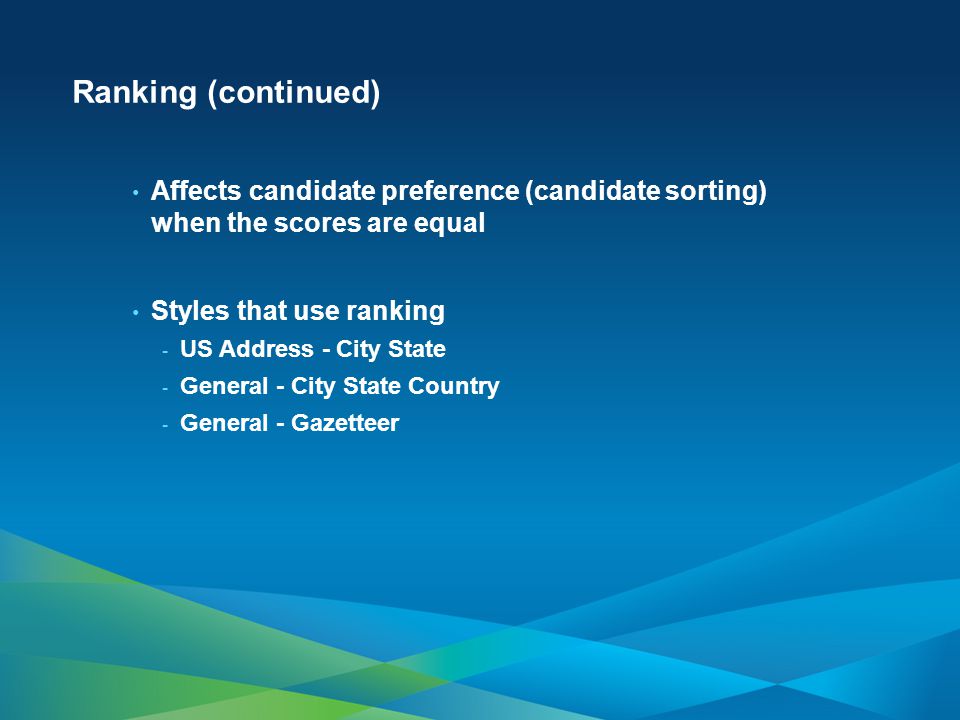

20 Ranking (continued) Affects candidate preference (candidate sorting) when the scores are equal Styles that use ranking US Address - City State General - City State Country General - Gazetteer

21 Ranking (continued) Use RANK field to enforce candidate priority

22 Ranking (continued) With RANK applied, preferred candidate returned as a match result

23 Ranking (continued) Out of the box ranking order is ascending (from smallest to the largest number) Can be changed in the *.loc.xml (or *lot.xml) configuration file

24 Demo Using parity

25 House Range Parity Applies to street centerline locators
Affects house number match score 99 Main St 1 98 2

26 House Range Parity (continued)
Default handling of range parity If both From and To houses are even, the range is assumed to have even house numbers (same rule for odd numbers) If From and To are mixed with odd and even numbers, the range is assumed to be of mixed parity Both even and odd house numbers are assumed to be present along the segment

27 House Range Parity (continued)
Main St 100 198 implied EVEN parity 150 Main St matches range 151 Main St wrong parity – score deduction Main St 101 198 implied MIXED parity (implied parity BOTH) 150 Main St matches range 151 Main St matches range

28 House Range Parity (continued)
Downloadable style Search for “locator parity” at Optional support for parity fields Parity codes D – default (implied parity) also blank value E – even O – odd B – both (mixed parity)

29 House Range Parity (continued)
Before After

30 Demo Using multiple tables for building locators

31 Fine Tuning Locators – Multiple Tables
US Bureau of Census TIGER/line files and relationship tables

32 Fine Tuning Locators – Multiple Tables
US Bureau of Census TIGER/line files

33 Fine Tuning Locators – Multiple Tables (continued)
Custom locator style to support multiple tables

34 Fine Tuning Locators – Multiple Tables (continued)
Locator style can be found in Esri Resource Center

35 Sharing Locators Locator Package ArcGIS.com Geocode services

36 Packing Locators as a File (.gcpk)

37 Packaging Locators and Sharing via ArcGIS.com

38 Demo Packaging locators

39 Geocoding with a geocode service
ArcGIS Online (arcgis.com)

40 Sharing as a Geocode Service
Geocode services published with ArcGIS Server

41 Sharing Geocode Services in Cloud

42 Summary - ArcGIS 10.1 geocoding
Easier to configure settings for locators New Locator Properties dialog box More options to manage performance Multi-threading Use map extent Set search time-out and maximum number of candidates Improve matching quality Rank Parity Sharing locators and services Locator packages ArcGIS.com Geocode services

43 Resources and References
Esri Resource Centers

44 Additional Geocoding Sessions
Geocoding – An Introduction Wednesday 1:30 PM, (Room 14A) – Offering II ESRI Showcase Software Island Demo Theater From a table of addresses to locations on the map (Tuesday 2:00 PM) Visit the Spatial Analysis Island in the Exhibit Hall

45 Thank you for attending
Have fun at UC2012 Open for Questions Please fill out the evaluation: First Offering ID: 634 Second Offering ID: 804

46 Steps to evaluate UC sessions
My UC Homepage > “Evaluate Sessions” Choose session from planner OR Search for session

47
