1 PACCON 2013 PREDICTION OF NITROGEN OXIDE GENERATED FROM GAS TURBINE ENGINE Global Chemical Sciences for Green Community NATCHANON CHAIPRASERT / AMORNCHAI ARPORNWICHANOP Department of Chemical Engineering Faculty of Engineering Chulalongkorn University. E-mail : natchanon.c@hotmail.com 1

2 Motivation 2

3 Hydro Lignite/Coal Import & Others Natural Gas Oil Ministry of Energy, Thailand, www.eppo.go.th

4 Motivation Overshooting of NOx (Thailand Regulation Limit @108ppm) Exceed 108ppm @7%O2

5 Outline - Motivation - Gas Turbine – Generator - NOx Formation Theory - Applied Simulation Technique - Variable Affecting to NOx - Summary

6 Gas Turbine - Generator 6

7 A Gas Turbine – Generator System in Natural Gas Processing Gas Turbine Engine (GTE) Power Turbine (PT) Fuel Gas Inlet Flue Gas Electricity Air Intake Exhaust

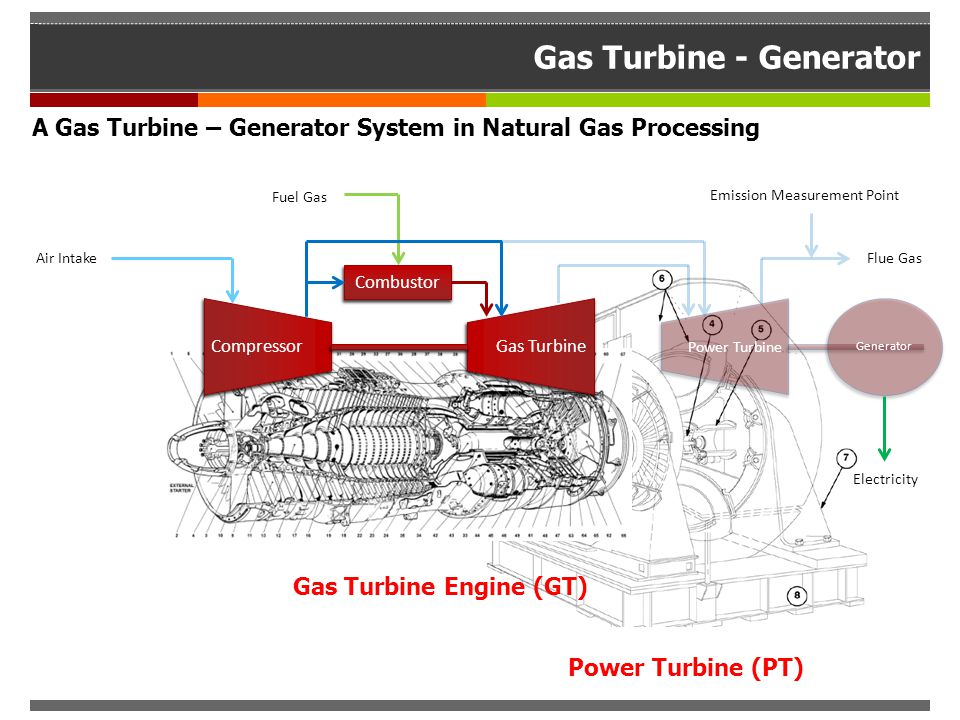

8 Gas Turbine - Generator A Gas Turbine – Generator System in Natural Gas Processing Gas Turbine Engine (GT) Power Turbine (PT) Compressor Gas Turbine Power Turbine Generator Combustor Air Intake Fuel Gas Flue Gas Electricity Emission Measurement Point

9 Gas Turbine - Generator A Gas Turbine – Generator System in Natural Gas Processing Gas Turbine Engine (GT) Power Turbine (PT) Compressor Gas Turbine Power Turbine Generator Combustor Air Intake Fuel Gas Flue Gas Electricity Emission Measurement Point

10 NOx Formation Theory 10

11 NOx Formation Theory Overall NOx pathways Thermal NOx - High Temp Combustion N2O Path - High Pressure - Oxygen Rich Prompt NOx -Low Temp - Fuel Rich

12 NOx Formation Theory NOx pathways Relating with Gas Turbine Combustion

13 NOx Formation Theory Thermal NOx Mechanism Prompt NOx Mechanism N2O Path Mechanism k f,1 = 1.8 × 108e−38370/T k f,2 = 1.8 × 104Te−4680/T k f,3 = 7.1 × 107e−450/T k r,1 = 3.8 × 107e−425/T k r,2 = 3.81 ×103Te−20820/T k r,3 = 1.7 × 108e−24560/T f = 4.75 + 0.0819 n - 23.2ø + 32ø 2 - 12.2 ø 3 k’ pr = 6.4 × 10 6 (RT / p) a+1 E’ a = 303474.125 J / gmol Refer to Zeldovich Mechanism Refer to empirical De Soete mechanism Refer to Melte and Pratt

14 Applied Simulation Technique 14

15 Applied Simulation Technique Aspens HYSYS (Process Simulation Software) Engine Control ScreenPT Control Screen

16 Applied Simulation Technique Plant Input ParameterPlant Output Parameter - Fuel Gas Composition- Compressor Discharge Pressure - Fuel Gas Supply Condition- GG Exhaust Gas Temperature - Fuel Gas Mass Flow Rate- Power Generation - Air Inlet Condition Fitted Parameter *Peng-Robinson Fluid Package- Air Mass Flow Rate - PT Sealing Air Mass Flow Rate

17 Applied Simulation Technique Boundary Condition from HYSIS to FLUENT

18 Applied Simulation Technique Boundary Condition Trend from Simulation - Combustion Air Condition- Compressor Performance Curve - Combustion Air Mass Flow Rate- Turbine Performance Curve - Inlet GG Turbine Temperature- PT Sealing air / Combustion Air - Fuel Gas Parameter

19 Applied Simulation Technique Ansys FLUENT (CFD Software)

20 Applied Simulation Technique Work flow of the applied simulation technique Aspen HYSIS Ansys FLUENT Plant Data Combustor Boundary Condition Performance Curve Temp & NOx Contour

21 Variable Affecting to NOx 21

22 Variable Affecting to NOx There are 4 major variable affecting to NOx amount generating by the engine 1.Effect of Power Generation 2.Effect of Air Inlet Temperature 3.Effect of Fuel Gas Heating Value 4.Effect of Engine Performance

23 Variable Affecting to NOx Effect of Power Generation Increasing power generation means by increasing amount of fuel gas into the combustor. It cause high flame temperature. NOx amount will be greater. Engine Load (%) Nox (ppm)

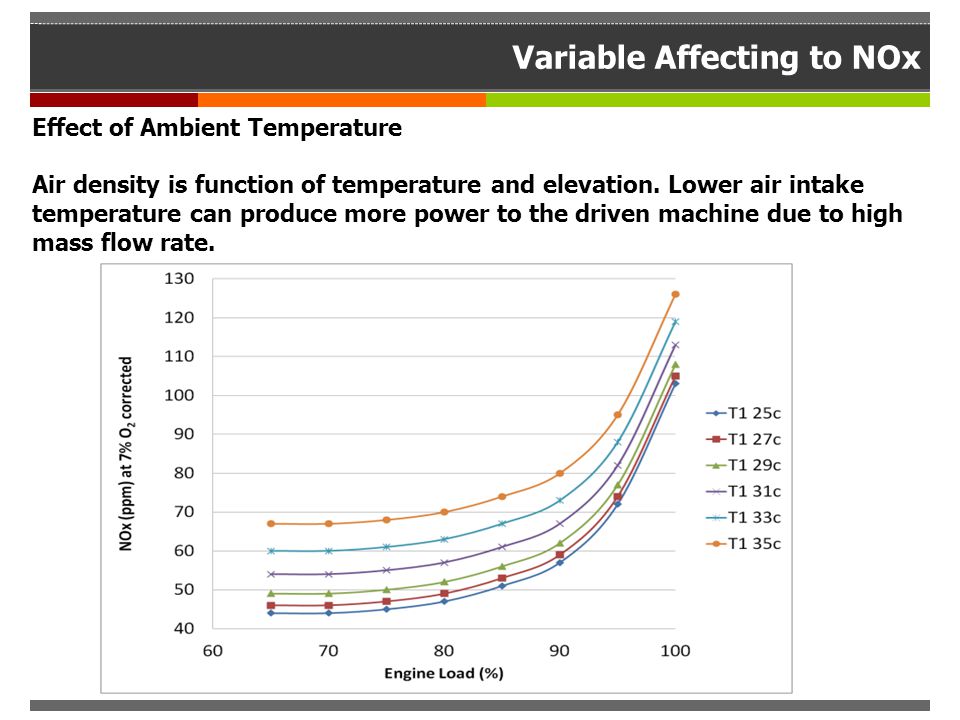

24 Variable Affecting to NOx Effect of Ambient Temperature Air density is function of temperature and elevation. Lower air intake temperature can produce more power to the driven machine due to high mass flow rate.

25 Variable Affecting to NOx Effect of Fuel Gas Heating Value In order get the same amount of energy, if we increase heating value by feeding ethane instead of methane. Less gas velocity will be required. Poor mixing through combustor geometry shall generally create more mass-weight averaged hot spot. Summary: Lower heating value  Higher heating value Lower NOx amount  Higher NOx amount 90% Ethane 10% Methane 100% Methane

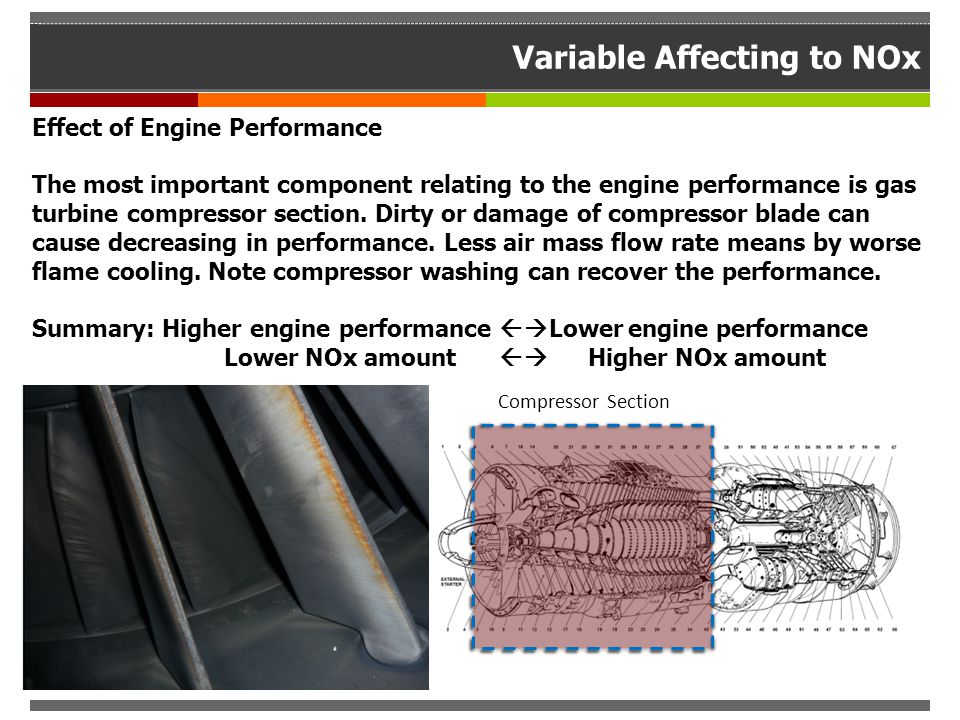

26 Variable Affecting to NOx Effect of Engine Performance The most important component relating to the engine performance is gas turbine compressor section. Dirty or damage of compressor blade can cause decreasing in performance. Less air mass flow rate means by worse flame cooling. Note compressor washing can recover the performance. Summary: Higher engine performance  Lower engine performance Lower NOx amount  Higher NOx amount Compressor Section

27 Summary 27

28 Thanks for your attention 28
