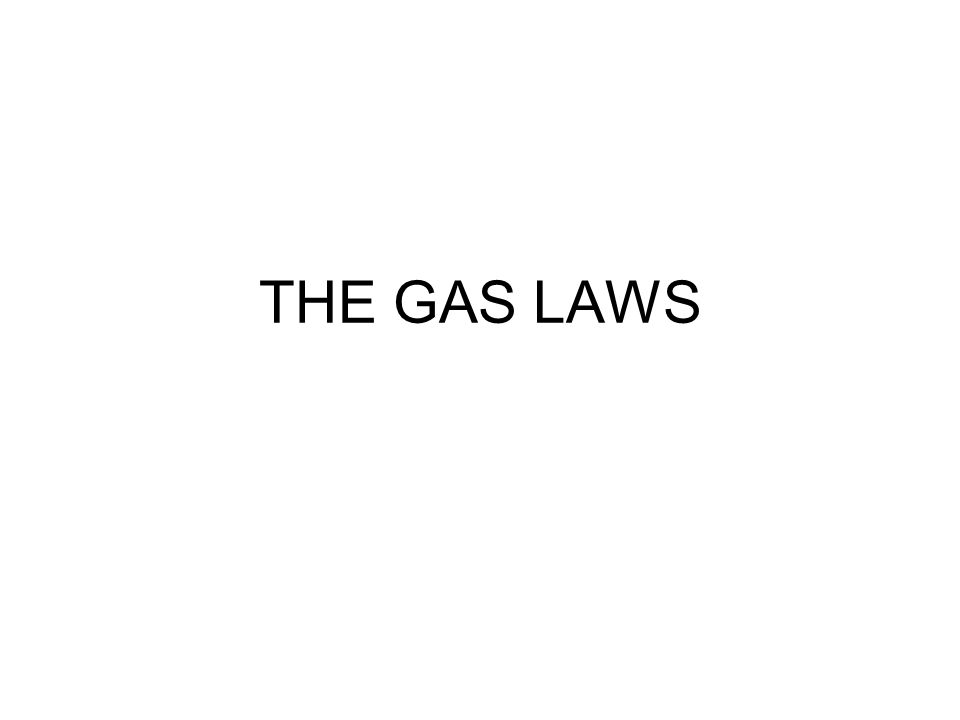

1. THE GAS LAWS

2. Kinetic Theory (Gases) Assumptions 1.Gas particles do not attract or repel each other 2. Gas particles are much smaller than the distances between them 3. Gas particles are in constant, random motion 4. No kinetic energy is lost when gas particles collide with each other or the walls of their container 5. All gases have the same average kinetic energy at a given temperature

3. The Nature of Gases Actual gases do not follow suit with the assumptions The assumptions are based on 4 factors: –1. number of particles present –2. temperature –3. pressure –4. volume of sample If one variable changes, it affects the other three

4. Boyle’s Law Named for Robert Boyle (1627-1691) –Irish Chemist –Studied the relationship between volume and pressure –Proved that volume of a gas and the pressure of the gas are inversely proportional Boyle’s Law- the volume of a given amount of gas held at constant temperature varies inversely with the pressure.

5. Boyle’s Law Cont’d Mathematically the equation is as follows: P 1 V 1 =P 2 V 2

6. Example Problem 14.1 A sample of helium gas in a balloon is compressed from 4.0 L to 2.5 L at a constant temperature. If the pressure of the gas in the 4.0 L volume is 210kPa, what will the pressure be at 2.5L? ANSWER: V1=4.0LV2= 2.5LP1=210kPaP2=??? P1V1=P2V2 P2= (P1V1) = (210kPa)(4.0L)= 340kPa V2 2.5L

7. Charles’ Law Named for Jacques Charles (French physicist) 1746-1823 Studied volume and temperature Observed that as temperature increases so does the volume of a gas in a sample; therefore, it is a direct relationship (Temperature is measured in KELVIN)

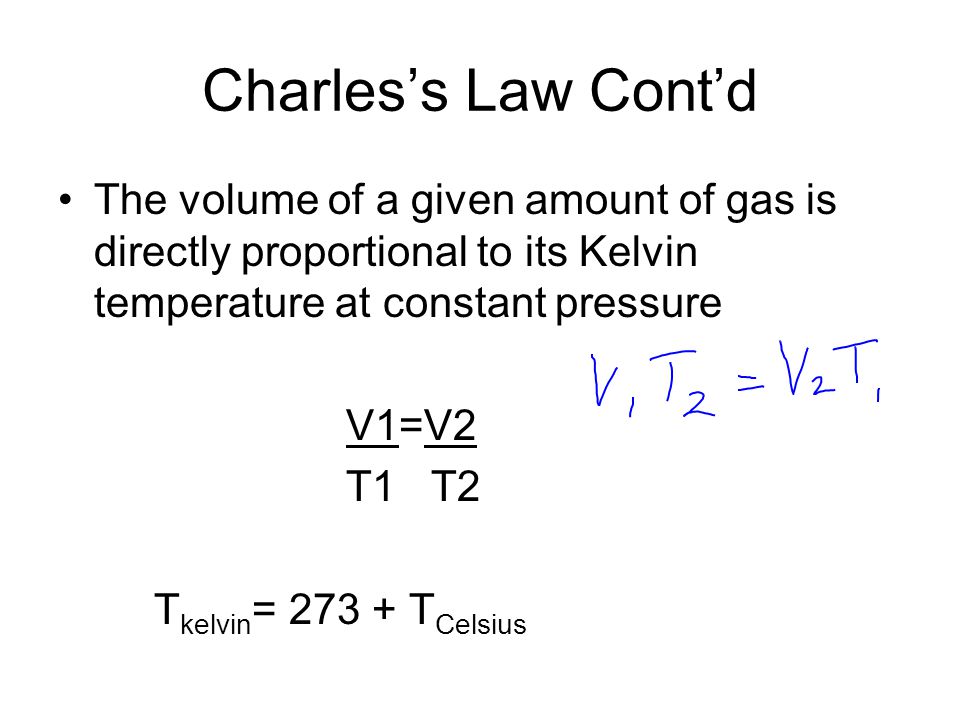

8. Charles’s Law Cont’d The volume of a given amount of gas is directly proportional to its Kelvin temperature at constant pressure V1=V2 T1 T2 T kelvin = 273 + T Celsius

9. Example Problem 14.2 A gas sample at 40 o C occupies a volume of 2.32 L. If the temperature is raised to 75 o C, what will the volume by assuming the pressure remains constant? T1=40 o C +273= 313K V1=2.32L T2= 75 o C + 273 = 348K V2= ??? V1 = V2  V2=T2V1 so V2= (348K)(2.32L)= 2.58L T1 T2 T1 313K

10. Gay-Lussac’s Law Named for Joseph Gay-Lussac Explored relationship between pressure and temperature of a gas at a fixed volume Equation: P1=P2 T1 T2

11. Gay-Lussac’s Law Example The pressure of a gas in a tank is 3.20 atm at 22 o C. If the temperature rises to 60 o C, what will be the gas pressure in the tank? P1=3.20 atmT1= 22 o C + 273 = 295K T2=60 o C + 273 = 333KP2=??? P1=P2 P2=T2P1 P2= (333K)(3.20atm) = 3.61 atm T1 T2 T1295K

12. HOMEWORK due tomorrow Page 422 1-5 Page 425 6-8 Page 427 9-13

13. 14.2 The Combined Gas Law Boyle’s, Charles’s and Gay-Lussac’s Law can be COMBINED into one law P1V1 =P2V2 T1 T2

14. Example 14.4 A gas at 110kPa and 30 o C fills a flexible container with an initial volume of 2.0L. If the temperature is raised to 80 o C and the pressure increased to 440 kPa, what is the new volume? P1=110kPaT1= 30 o C +273= 303K V1= 2.0L P2= 440 kPaT2=80 o C + 273= 353K V2=??? P1V1=P2V2 V2= P1V1T2 V2= (110kPa)(2.0L)(353K)= 0.58L T1 T2 P2T1 (440kPa)(303K)

15. Avogadro’s Principle States that equal volumes of gases at the same temperature and pressure contain equal numbers of particles Molar volume is the volume that one mole occupies at 0 o C and 1.00 atm of pressure These conditions are referred to as STP (Standard Temperature and Pressure) Conversion Factor = 22.4L/1mol

16. Example 14.5 Calculate the volume that 0.881 mol of gas at STP will occupy. X L = 0.881 mol x 22.4L = 19.7L 1mol

17. Example 14.6 Calculate the volume that 2.0kg of methane gas will occupy at STP. X L = 2.0kgx 1000g x 1mol x 22.4L = 2.8x10 3 L 1 kg 16.05g 1 mol

18. 14.4 The Ideal Gas Law In addition to temperature, pressure, and volume, the number of moles is another way to describe a gas In the previous gas laws, care was taken to observe a “fixed amount” of a gas If the number of moles of gas present is changed, one of the other variables is affected.

19. PV=nRT P = pressure V= volume n= number of moles of gas present R= ideal gas constant T= temperature The value of the ideal gas constant (R) is dependent on the units used for pressure

20. Numerical Values of R Units of RNumeri cal Value of R Units of P Units of VUnits of T Unit s of n L atm/mol K0.0821atmLKmol L kPa/mol K8.314kPaLKmol L mmHg/mol K62.4mm HgLKmol

21. Real vs. Ideal Gases Ideal gas- takes up no space and has no intermolecular attraction In the real world, no true real gas is ideal In the real world, real gases have intermolecular attraction –Length of bonds –Types of atoms

22. Example 14.7 Calculate the number of moles of gas contained in a 3.0L vessel at 300K with a pressure of 1.50 atm. P=1.50 atm V= 3.0L n=? R=0.0821Latm/molK T=300K PV=nRT n=PV/RT n= (1.50 atm)(3.0L) (0.0821Latm/molK) (300K) n= 0.18 mol
