1. PARKINSONISM Susie Ro, M.D. Movement Disorders Center Swedish Neuroscience Institute Seattle, WA September 13, 2014

2. OBJECTIVES RECOGNIZE CLINICAL FEATURES of PARKINSONISM IDENTIFY “RED FLAGS” for ATYPICAL PARKINSONISM BE VIGILANT for SECONDARY PARKINSONISM EARLY DETECTION/ PREVENTION? ALGORITHMIC APPROACH TO DIAGNOSIS AND TREATMENT of PARKINSONISM

3. WHAT IS PARKINSONISM? “PARKINSONISM” = Clinical syndrome of stiffness (rigidity), slowness (bradykinesia) +/- tremor Most commonly due to iPD, but may be due to another degenerative process, or secondary to another cause “PARKINSON DISEASE” = specific disorder (idiopathic Parkinson Disease), 2 nd most common adult onset movement disorder, affecting >1 million Americans

4. PARKINSON’S DISEASE Progressive loss of dopamine-producing neurons in the SN PC causes an imbalance in the circuits controlling movement. Motor symptoms are treated by increasing dopamine stimulation

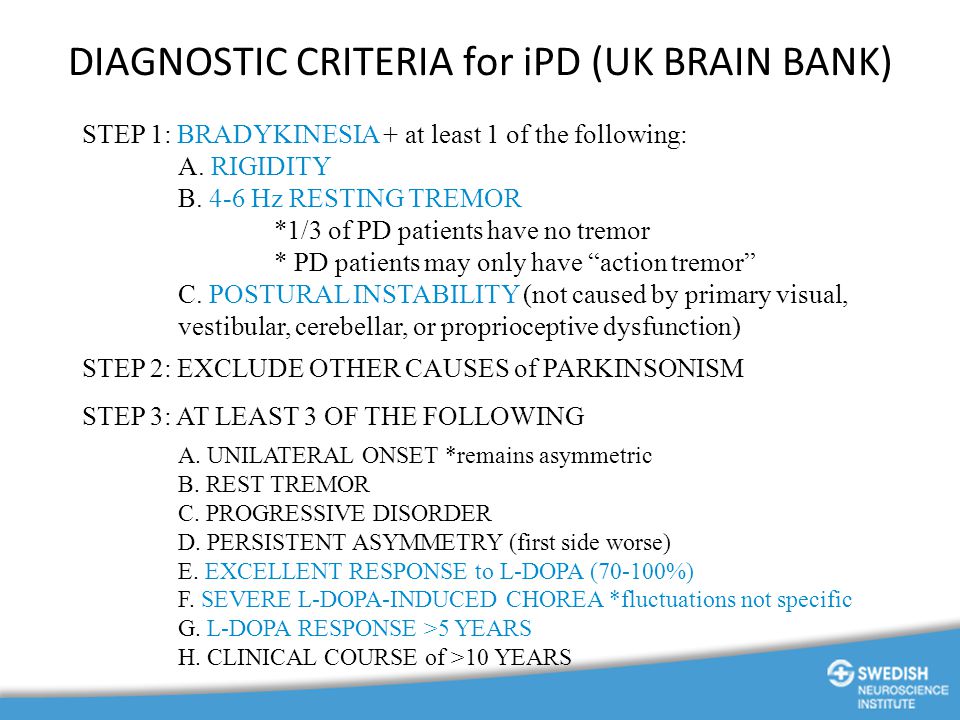

5. DIAGNOSTIC CRITERIA for iPD (UK BRAIN BANK) STEP 1: BRADYKINESIA + at least 1 of the following: A. RIGIDITY B. 4-6 Hz RESTING TREMOR *1/3 of PD patients have no tremor * PD patients may only have “action tremor” C. POSTURAL INSTABILITY (not caused by primary visual, vestibular, cerebellar, or proprioceptive dysfunction) STEP 2: EXCLUDE OTHER CAUSES of PARKINSONISM STEP 3: AT LEAST 3 OF THE FOLLOWING A. UNILATERAL ONSET *remains asymmetric B. REST TREMOR C. PROGRESSIVE DISORDER D. PERSISTENT ASYMMETRY (first side worse) E. EXCELLENT RESPONSE to L-DOPA (70-100%) F. SEVERE L-DOPA-INDUCED CHOREA *fluctuations not specific G. L-DOPA RESPONSE >5 YEARS H. CLINICAL COURSE of >10 YEARS

6. PARKINSONISM vs. ESSENTIAL TREMOR (ET)

7. PD vs. ESSENTIAL TREMOR (ET) -ET: Often familial (50-70%), slowly progressive (>20 yr Hx unlikely PD) but ET and PD may coexist (shared risk factor?) -often responsive to alcohol, worse with stress/ fatigue, smoking, and sometimes stimulants (but not specific to ET) -Action > distal postural tremor of the arms, but may also affect head, trunk. Leg tremor, marked asymmetry, or rest tremor less common. -Frequency 4-12 Hz, inverse relationship between amplitude and rate which progresses over time, not slowed by mass loading -Head/ vocal tremor may occur in isolation (also tongue/ chin), but isolated head tremor with torticollis likely dystonia Action tremor ≠ “intention tremors” ET is not the only cause of action/ intention tremors PD is not the only cause of resting tremors It is the bradykinesia/ rigidity that defines parkinsonism

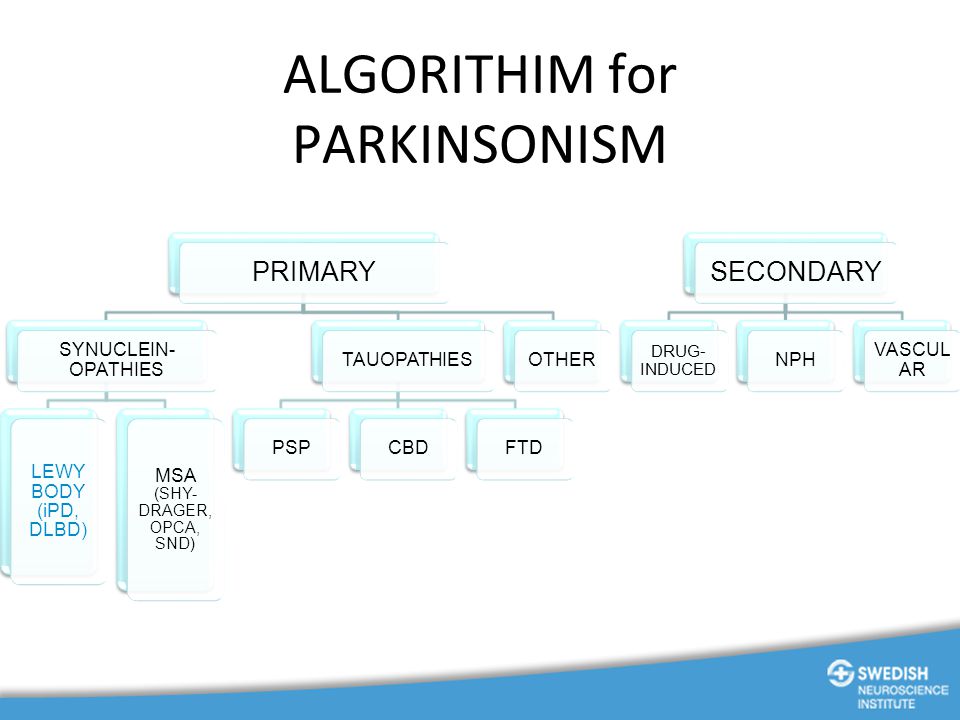

8. ALGORITHIM for PARKINSONISM PRIMARY SYNUCLEIN- OPATHIES LEWY BODY (iPD, DLBD) MSA (SHY- DRAGER, OPCA, SND) TAUOPATHIESPSPCBDFTDOTHER SECONDARY DRUG- INDUCED NPH VASCUL AR

9. DIAGNOSTIC ACCURACY: LOW AAN 2014: ProbPD (L-Dopa responsive) vs. PossPD (never treated or not clearly responsive) AZSAND: (Arizona Study of Aging and Neurodegenerative Disorders, an ongoing longitudinal clinico-neuropathologic study): PD duration 5 years, often with dyskinesia, 88% (72/82) Overall accuracy 82% (80/97) of ProbPD, 26% (9/34) of PossPD at first visit UK PD Society Brain Research Centre Brain Bank criteria 99% DATATOP: 92% at 7.6 years follow up (not all pathologically confirmed)

10. DaT SCAN Dopamine Transporter SPECT scan -FDA approved since 2011 to differentiate between ET (essential tremor) and Parkinsonian syndromes -Cannot reliably differentiate between different parkinsonian syndromes (e.g. iPD, MSA, PSP) -Can be useful to differentiate from DIP (drug-induced parkinsonism) and others (?vascular? ?psychogenic?)

11. MSA MULTIPLE SYSTEM ATROPHY: term first coined by Graham and Oppenheimer (1969) MSA = PARKINSONISM (often more rapidly progressive) + AUTONOMIC/ CEREBELLAR/ PYRAMIDAL SIGNS + SEVERE SPEECH/ SWALLOWING/ BALANCE PROBLEMS EARLY IN COURSE + POOR/ TRANSIENT RESPONSE TO L-DOPA +/- ADDITIONAL FEATURES (e.g. Peripheral neuropathy, Abnormal eye movements) Seen in iPD but rare in MSA: anosmia*, hallucinosis DYSKINESIAS ARE POSSIBLE IN MSA, ESPECIALLY CRANIOCERVICAL

12. MSA Subtypes 1.MSA-A (Autonomic) Shy and Drager (1960) a.k.a. SHY DRAGER SYNDROME 2.MSA-C (Cerebellar) Dejerine and Thomas (1900) a.k.a. SPORADIC OLIVOPONTOCEREBELLAR ATROPHY (OPCA) DDx: SCA 3, cerebellar degeneration 3.MSA-P (Parkinsonian) a.k.a. STRIATONIGRAL DEGENERATION (SND) Early onset falling Severe dysarthria and dysphonia Respiratory stridor Anterocollis Pyramidal signs

13. MSA/ PD-PATHOLOGY Papp et al. (1989): Neural and Filamentous  -synuclein containing glial cytoplasmic inclusions (GCIs) Preganglionic (vs. PD which is postganglionic) Can have REMBD but usually not anosmia

14. MSA-IMAGING  T2 signal in putamen, “hot cross bun” sign in pons, Pontocerebellar atrophy,  T2 signal in MCP (OPCA), ?Diffusion Tensor Imaging? ?PET/ SPECT?

15. MSA vs. PD SIGNMSAPD AUTONOMIC++/++++ CEREBELLAR/ PYRAMIDAL/ PERIPHERAL ++/+++ FALLSEARLYLATE DEMENTIA++/++ LEVODOPA RESPONSE + TRANSIENT +++ PERSISTENT

16. PSP (Progressive Supranuclear Palsy) Stiff, broad-based gait with slight extension of trunk/ legs armswing can be present, marked axial rigidity, rest tremor rare “Stunned” facial expression; “procerus sign” EOM/ Eyelid abnormalities (wide-eyed/ eyelids closed, can’t look down) Bulbar (dysarthria, dysphagia) and pseudobulbar palsy, Dementia (frontal dysfunction) PSP“Hummingbird Sign” Olfactory sparing No/ poor response to sinemet; motor fluctuations rare

17. PSP- “Hummingbird Sign”

18. PSP vs. PD SIGNPSPPD EYE MVTs  EYE BLINKING  FALLS +++ EARLY + LATE REST TREMOR MAJORITY AXIAL RIGIDITY ++++/++ LEVODOPA RESPONSE  +++ CONSISTENT

19. CBS CORTICOBASAL GANGLIONIC SYNDROME (a.k.a. “Parietal Pick’s Disease”) Markedly ASYMMETRIC Parkinsonism with mainly rigidity/ bradykinesia/ postural instability and DYSTONIA, can have tremor and MYOCLONUS “Alien Hand” Syndrome (“anterior”/ motor type); spontaneous elevation of limbs APRAXIA (ideomotor and ideational), the “useless hand”, cortical sensory loss Frontal/ cortical dementia, language/ speech alterations Oculomotor findings (may be confused with PSP) Onset mean age, death by 8 years, M:F 3:2

20. CBD vs. PD SIGNCBDPD ASYMMETRY++++ RIGIDITY+++++ APRAXIA+++- LEVODOPA RESPONSE +/-+++

21. FRONTOTEMPORAL DEMENTIA/ FTLD (PICK’s DISEASE) “KNIFE-EDGE” GYRI due to marked frontotemporal atrophy Prominent frontal lobe dementia Personality changes (disinhibition/ inappropriate behavior, apathy/ euphoria) Aphasia  Parkinsonian features

22. SECONDARY PARKINSONISM Infectious/ Postinfectious: Viral, Syphilis, TB, Whipple’s, Prion, fungal, etc. Drug-induced: NEUROLEPTICS, ANTIEMETICS, Monoamine depleters, Amiodarone, VPA, Li+, Ca channel blockers, etc. Metabolic: Acquired hepatocerebral degeneration, cerebrotendinous xanthomatosis, ceroid lipofuscinosis, hemochromatosis, Niemann-Pick Type C, Folate deficiency, BG calcification Toxic: CO, Manganese, MPTP, MeOH, CN, insecticides, etc. Structural: Vascular : multi-infarct, anoxic encephalopathy NPH: (Normal Pressure Hydrocephalus), etc.

23. NPH (Normal Pressure Hydrocephalus) 3 W’s: “wet, wacky, wobbly” 1.Frontal urinary incontinence 2.Subcortical dementia 3.“Magnetic gait”: wide-based, slow/ shuffly, freezing CSF acqueductal flow MRI High-volume LP or lumbar drain NPH is potentially curable…but only if treated early!

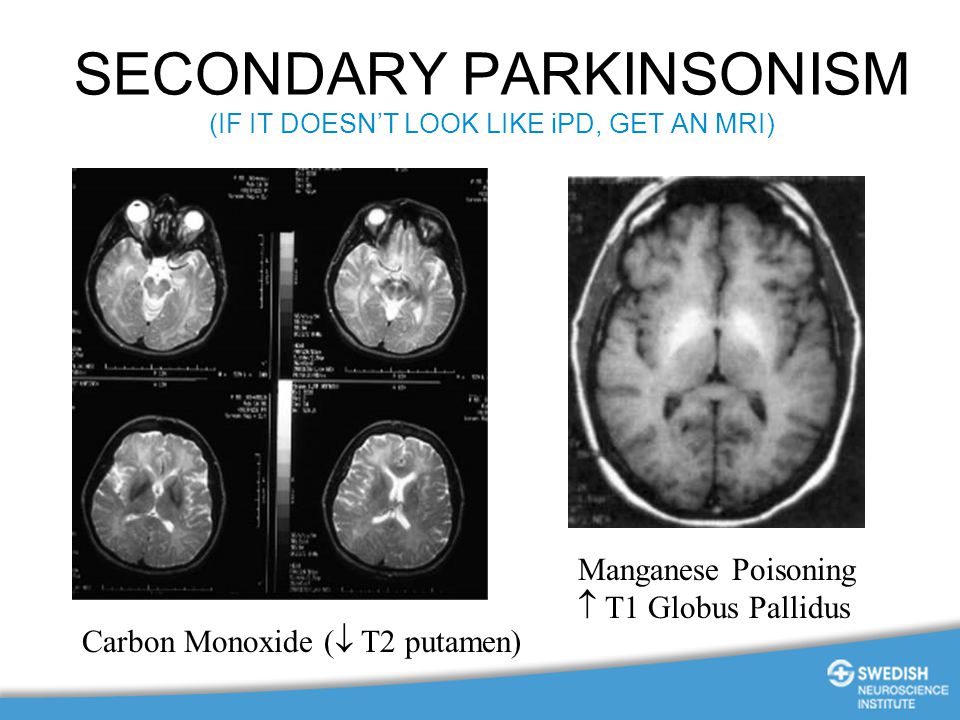

24. SECONDARY PARKINSONISM (IF IT DOESN’T LOOK LIKE iPD, GET AN MRI) Manganese Poisoning  T1 Globus Pallidus Carbon Monoxide (  T2 putamen)

25. “RED FLAGS” SUMMARY Hx of neuroleptic use, toxic exposure, stroke, etc. Supranuclear gaze abnormalities, spastic/ dysarthric speech Prominent autonomic, pyramidal, cerebellar signs or other unexplained signs (neuropathy, amyotrophy) Early or severe falls, dementia, apraxia/ aphasia, pseudobulbar palsy Marked asymmetry/ lack of asymmetry Rapid progression or stepwise clinical course POOR OR TRANSIENT RESPONSE TO LEVODOPA

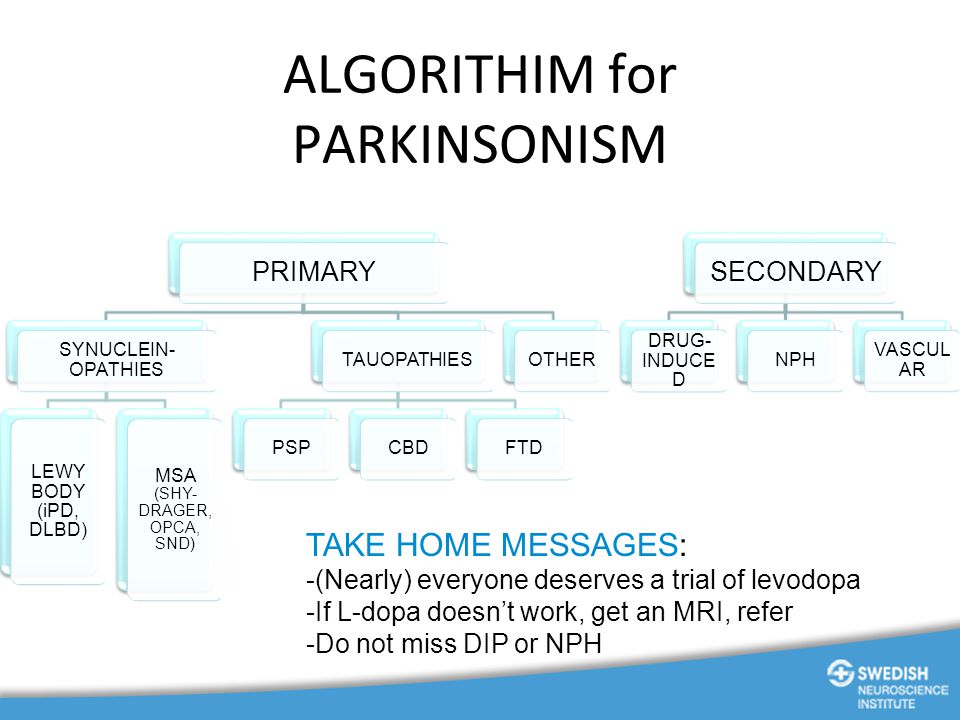

26. ALGORITHIM for PARKINSONISM PRIMARY SYNUCLEIN- OPATHIES LEWY BODY (iPD, DLBD) MSA (SHY- DRAGER, OPCA, SND) TAUOPATHIESPSPCBDFTDOTHER SECONDARY DRUG- INDUCE D NPH VASCUL AR TAKE HOME MESSAGES: -(Nearly) everyone deserves a trial of levodopa -If L-dopa doesn’t work, get an MRI, refer -Do not miss DIP or NPH

27. Parkinson’s Disease EARLY DETECTION? MEDICAL MANAGEMENT/ AVOIDING PITFALLS SURGICAL MANAGEMENT

28. PRE-MOTOR PARKINSON’S Braak H et al. Staging of brain pathology related to sporadic Parkinson’s dosease/. Neurobiol Aging 2003;24:197-211. Schapira AH et al. Perspectives on recent advances in the understanding and treatment of Parkinson’s disease. Eur J Neurol. 2009;16:1090-1099. PD is not just a motor disease…. Non-motor symptoms appear first. By the time the first motor symptoms appear, 70% of dopaminergic activity is gone

29. iPD vs. PDD vs. DLBD: lumper or splitter?

30. PRE-MOTOR DETECTION? GENETIC TESTING TISSUE BIOPSY for  -synuclein COLON SALIVARY GLAND BIOMARKERS OLFACTORY TESTING (e.g. UPSIT) OCT VOICE ANALYSIS SCREENING FOR REMBD, DEPRESSION, CONSTIPATION IMAGING DaT and other radioligands DTI (Diffusion Tensor Imaging), 7T MRI? MIBG SPECT (cardiac) Transcranial U/S

31. “SWALLOW TAIL SIGN”

32. PREVENTION? DISEASE MODIFICATION? CAUSE(S) of iPD are still not well understood. -Genetic studies: hints to abnormal protein handling -”prion-like” spread of abnormal protein aggregation (  -synuclein -> Lewy Bodies) NO KNOWN PREVENTION (and by motor stage, the “horse is out of the barn”) PREMOTOR (or PRECLINICAL?) DETECTION + DISEASE MODIFICATION (or halting progression?) vs. “replacement therapy” (i.e. stem cell implantation)

34. PREVENTION? DISEASE MODIFICATION?  -synuclein VACCINATION? Monoclonal Ab? (block “transmission” of misfolded  -synuclein EARLY MAO-B INHIBITION? EXERCISE/ DIET? CAFFEINE?

35. PD-MEDICATIONS  DOPAMINERGIC  L-Dopa (Sinemet, Stalevo, Parcopa)  DA Agonists (Pramipexole, Ropinirole, Rotigotine, Apomorphine)  MAO-B inhibitors (Selegiline, Zydis Selegiline, Rasagiline)  COMT inhibitors (Entacapone, Tolcapone)  OTHER  Anticholinergics (Trihexphenidyl, Benztropine, Procyclidine, Profenamine, Orphenadrine)  Amantadine

36. Sites of Action of Parkinson’s Disease Drugs Dopamine receptors DA Blood-Brain Barrier L-DOPA Periphery Brain 3-OMD DA Dopamineagonists *Only tolcapone inhibits COMT in brain. Neuron COMT Inhibitors Carbidopa MAO-B Inhibitors Inhibitors DOPAC DA 3-MT L-DOPA DADA AADCDADA COMT Inhibitor* Inhibitor* 3-OMD=3-O-methyldopa

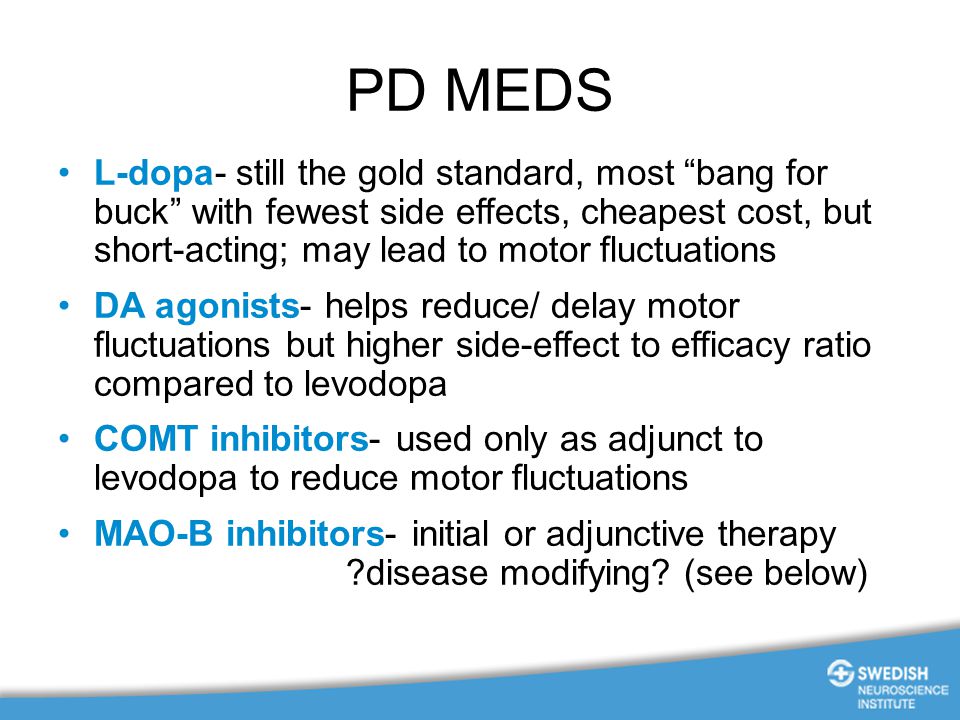

37. PD MEDS L-dopa- still the gold standard, most “bang for buck” with fewest side effects, cheapest cost, but short-acting; may lead to motor fluctuations DA agonists- helps reduce/ delay motor fluctuations but higher side-effect to efficacy ratio compared to levodopa COMT inhibitors- used only as adjunct to levodopa to reduce motor fluctuations MAO-B inhibitors- initial or adjunctive therapy ?disease modifying? (see below)

38. Sinemet (carbidopa/levodopa)- the “Gold Standard”  Dopamine precursor  Administered with carbidopa to prevent peripheral conversion of dopamine  Several formulations- KNOW DOSES and TIMES!  IR 10/100, IR 25/100, IR 25/250, CR 25/100, CR 50/200  Stalevo 50, 75, 100, 125, 150, 200  CR (controlled release) vs. IR (regular)  CR is 30% less efficacious, less predictable absorption, does not prolong ON time, but gentler profile Tolosa et al. Neurology. 1998;50 (suppl 6):S2-S10; discussion S44-S48. Olanow et al. Neurology. 2001;56 (suppl 5):S1-S88. Jankovic and Tolosa. Parkinson’s Disease and Movement Disorders. 3rd ed. Philadelphia: Lippincott Williams & Wilkins; 1998:177-190. Sinemet (carbidopa-levodopa). Complete prescribing information. Merck & Co. Inc.; Bristol-Myers Squibb Co.; April 2002. Barbosa et al. Psychiatr Clin North Am. 1997;20:769-790.

39. DOPAMINE AGONISTS Older (ergots cause cardiac valve fibrosis) –Bromocriptine and Pergolide no longer used in PD Newer –Rotigotine (Neupro patch) back on the market –Pramipexole (Mirapex) and Mirapex XR –Ropinirole (Requip) and Requip XL –Apomorphine (Apokyn) injections (nasal spray?) PROS: longer lasting, lessens/ postpones motor fluctuations and need for levodopa CONS: more dopaminergic side effects, weaker than levodopa, more expensive

40. Common Side Effects of Dopaminergic Drugs (and what to do about them!) Nausea –slow titration, small amount of non-protein food –avoid reglan, compazine, phenergan; can use lodosyn, tigan, zofran; ?sinemet CR? Drowsiness – beware “sleep attacks” and driving –slow titration, treat any sleep disorders, use stimulants Dizziness - often due to low BP (orthostatic hypotension) –lower BP meds, stop/ decrease DA agonists, smaller more frequent doses of sinemet –increase fluid/ salt intake, drink water with sinemet, compression stockings, florinef/ midodrine

41. Common Side Effects of Dopaminergic Drugs (and what to do about them!) Confusion/ Hallucinations –Decrease DA agonists, anticholinergics/ amantadine +/- sinemet –Add seroquel or memory drugs (avoid haldol, risperdal, abilify, etc.) Dyskinesias –Decrease sinemet, smaller more frequent doses –Add adjuncts such as Azilect, Comtan to lessen wearing off, or Amantadine to lessen dyskinesia Compulsive behavior –Decrease/ stop dopamine agonists –Antidepressants, counseling Leg swelling –Decrease/ stop dopamine agonists, compression stockings, diuretics

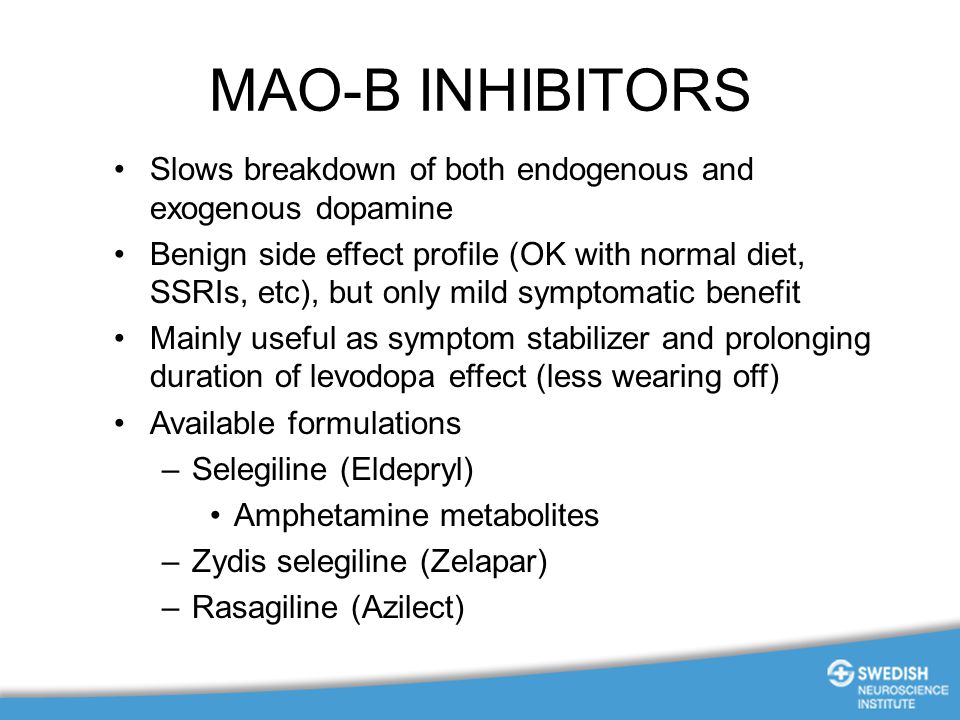

42. MAO-B INHIBITORS Slows breakdown of both endogenous and exogenous dopamine Benign side effect profile (OK with normal diet, SSRIs, etc), but only mild symptomatic benefit Mainly useful as symptom stabilizer and prolonging duration of levodopa effect (less wearing off) Available formulations –Selegiline (Eldepryl) Amphetamine metabolites –Zydis selegiline (Zelapar) –Rasagiline (Azilect)

43. * * * * * * *** 80 70 60 50 40 30 20 10 0 Mean % Change in Total UPDRS 0.00.51.03.04.05.06.02.0 Years * P<0.05 *** P<0.001 Hauser RA, et al. Mov Disord. 2008;24:562-571. 1.53.54.55.52.5 (n=404)(n=324)(n=237)(n=206)(n=164)(n=272) ITT Population (n = 404) Overall difference between Early and Delayed Start Rasagiline groups is 16% (P=0.006) Delayed Start Early treatment TEMPO: Mean Change in Total UPDRS at 6-Year Follow-Up

44. OTHER PD MEDS Amantadine- –Flu drug: helps mainly rest tremor and levodopa-induced dyskinesias, –not great in elderly- hallucinations, leg swelling, kidney problems? Anticholinergics (e.g. trihexphenidyl) –helps mainly rest tremor, slight effect on rigidity, no help to bradykinesia, –high risk of side effects (memory problems, constipation, dry mouth, blurry vision)

45. Initiation of Drug Tx for PD Treat or Wait? Mild Sx: start MAO-B inhibitor Mild-Mod Sx, no dementia: start DA agonist Mod-Severe disability, elderly or with significant comorbidity: start levodopa Very mild Sx: ?Wait and reassess periodically Adapted from Schapira AHV, Arch Neurol. Aug 2007;64(8): 1083-8

46. PD Treatment: Continuum of Interventions Modified from Giroux, ML and Farris, SF. Cleveland Clinic Foundation 2005 Cleveland Clinic Foundation, Center for Neurological Restoration Signs of levodopa “wearing-off” Dyskinesia, “On- Off” Motor Fluctuations Postural Instability, Freezing, Falls, Dementia DBS Mild Moderate Severe Levodopa, COMT inhibitors, others Treatment Patient Symptoms Disease Severity Agonists, MAOB Inhib

48. How does DBS work? Uses an implanted electrode to deliver high-frequency electrical stimulation to structures involved in the control of movement This electrical stimulation helps control motor symptoms by overriding abnormal neuronal activity within these brain regions

49. DBS lessens motor fluctuations Dyskinesia “On” Time “Off” Time This graph is only for illustrative purposes and does not represent actual “on” and “off” time. After Before

50. DBS, YES or NO? Good function on meds, but disabling motor fluctuations (wearing off, failed doses, dyskinesias) or Refractory tremor EFFECTIVE: “BETTER THAN BEST MEDICAL TX” 5 hours/day more ON time without dyskinesia, 80-90% tremor suppression5 hours/day more ON time without dyskinesia, 80-90% tremor suppression Reduce medication doses 20-70%, side effectsReduce medication doses 20-70%, side effects Can help some nonmotor symptoms such as sleep, bladder function, weight lossCan help some nonmotor symptoms such as sleep, bladder function, weight loss WHAT IT CANNOT DO:  Does NOT slow down/ cure PD, allow patients to quit all meds  Does NOT make patients better than their best ON state  Does NOT help certain symptoms of PD that do not respond to levodopa, such as memory and certain types of balance, speech problems

51. QUIZ POST 1.The diagnosis is idiopathic Parkinson’s Disease a.Yes b.No (MSA) 2.The next steps should include a.Order DaT scan (does not differentiate between PD and MSA) b.Do ON/ OFF levodopa challenge (<40% improvement with adequate dose is a red flag) 3.She is an appropriate candidate for DBS a.Yes b.No

52. SUMMARY COMMITMENTS TO CHANGE Know when MRIs, DaT scans are indicated Try levodopa on patients with parkinsonism, avoid neuroleptics (including anti-emetics) on patients with parkinsonism The best medical treatment for a PD patient evolves as disease progresses, and depends on symptoms vs. side effects. Management of non-motor symptoms just as important. Refer to specialist if you see “red flags” or if med management is suboptimal (patient may be a candidate for surgery)
