1 The Plasma Membrane The Plasma Membrane - Gateway to the Cell copyright cmassengale.

Similar presentations


Presentation on theme: "1 The Plasma Membrane The Plasma Membrane - Gateway to the Cell copyright cmassengale."— Presentation transcript:

1 1 The Plasma Membrane The Plasma Membrane - Gateway to the Cell copyright cmassengale

2 2 Cell Membrane flexible The cell membrane is flexible and allows a unicellular organism to move copyright cmassengale

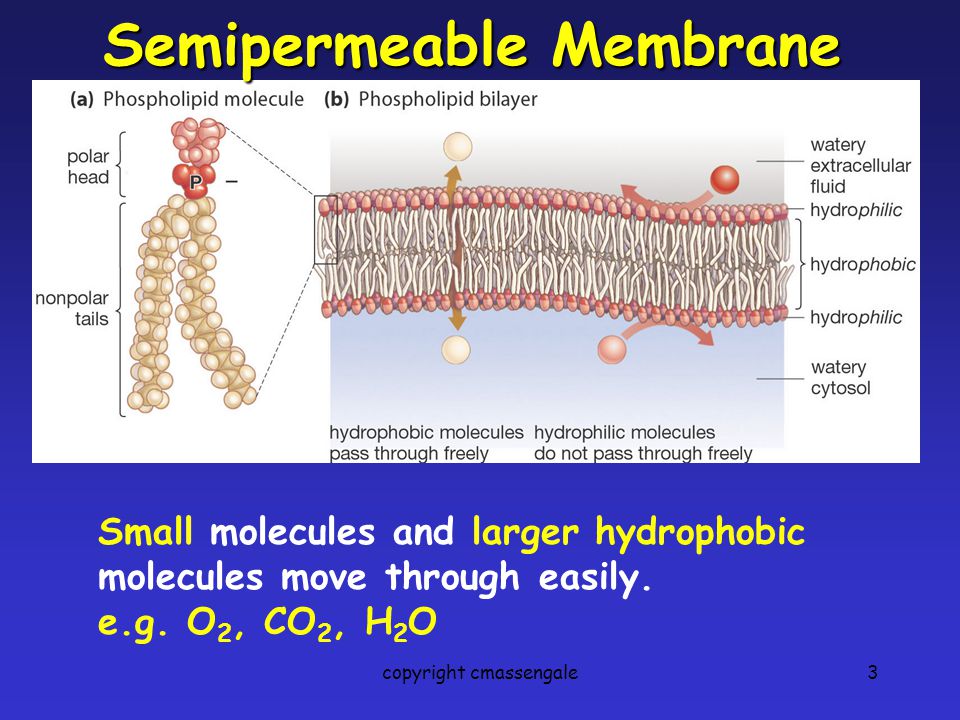

3 3 Small molecules and larger hydrophobic molecules move through easily. e.g. O 2, CO 2, H 2 O Semipermeable Membrane copyright cmassengale

4 4 Ions, hydrophilic molecules larger than water, and large molecules such as proteins do not move through the membrane on their own. Semipermeable Membrane copyright cmassengale

5 Concentration Gradient A difference in the concentration of a substance across a space. copyright cmassengale5

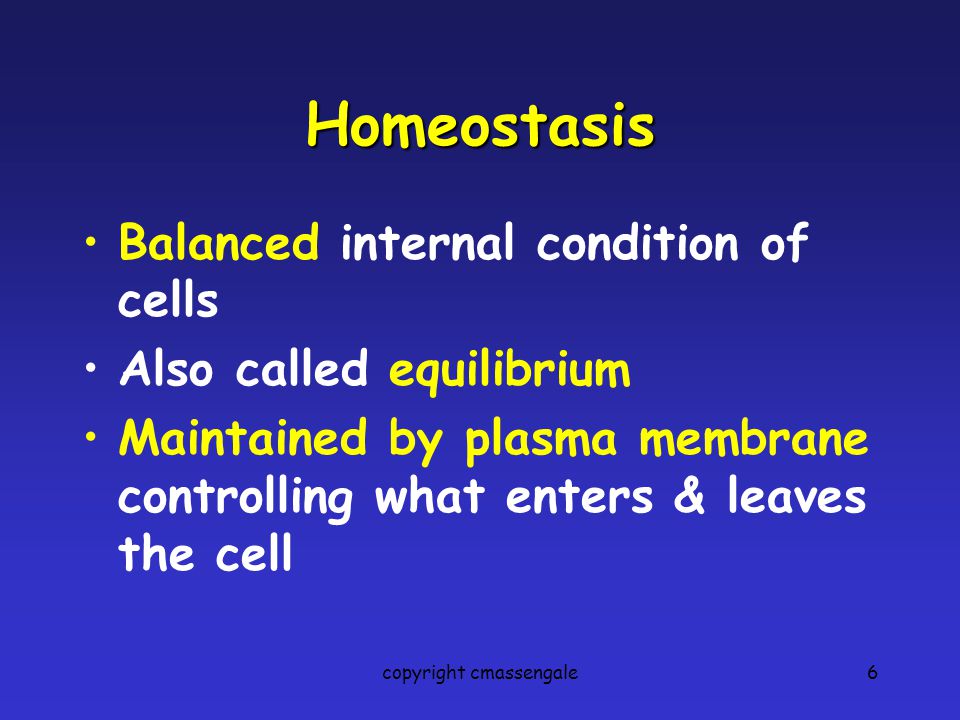

6 6 Homeostasis Balanced internal condition of cells Also called equilibrium Maintained by plasma membrane controlling what enters & leaves the cell copyright cmassengale

7 7 Types of Transport Across Cell Membranes copyright cmassengale

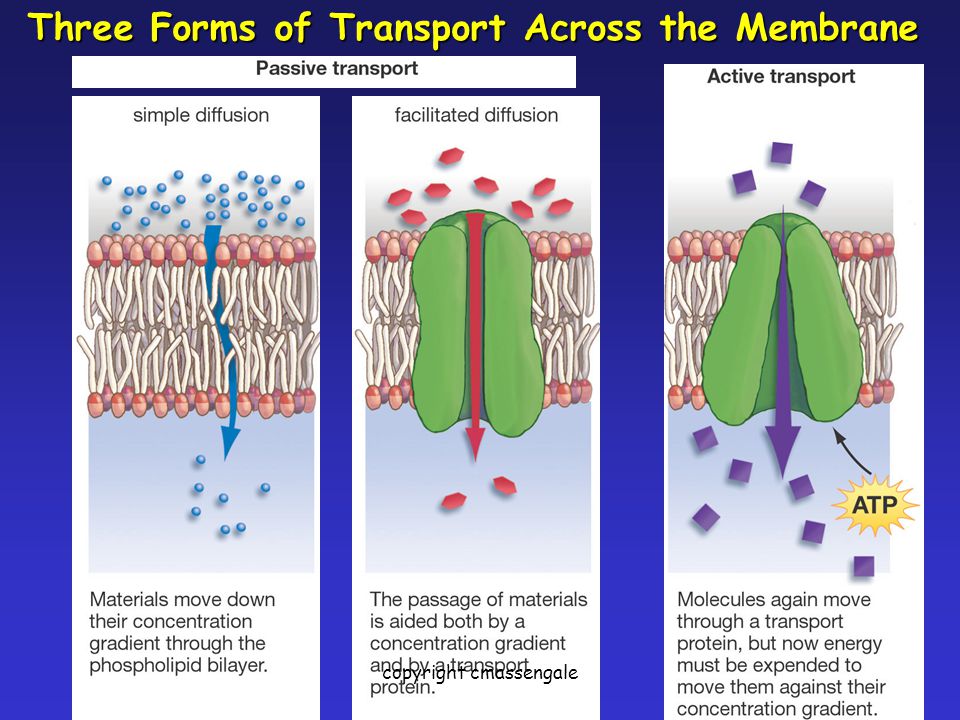

8 8 Three Forms of Transport Across the Membrane copyright cmassengale

9 9 Simple Diffusion NORequires NO energy HIGH to LOWMolecules move from area of HIGH to LOW concentration copyright cmassengale

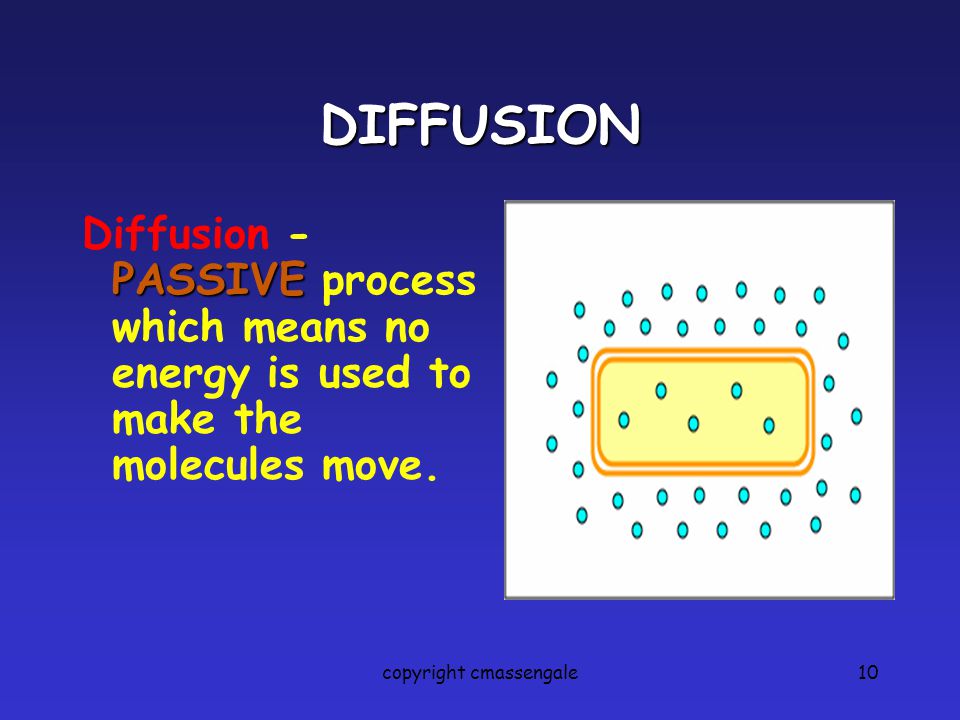

10 10 DIFFUSION PASSIVE Diffusion - PASSIVE process which means no energy is used to make the molecules move. copyright cmassengale

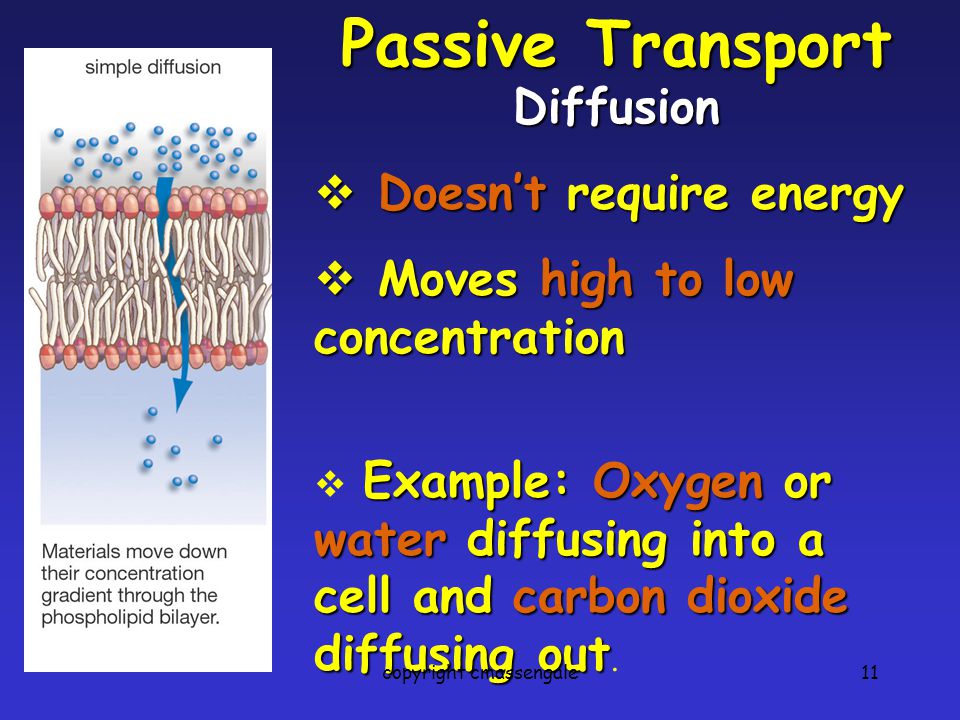

11 11 Passive Transport Diffusion  Doesn’t require energy  Moves high to low concentration Example: Oxygen or water diffusing into a cell and carbon dioxide diffusing out  Example: Oxygen or water diffusing into a cell and carbon dioxide diffusing out. copyright cmassengale

12 12 Diffusion of Liquids copyright cmassengale

13 13 Diffusion through a Membrane Cell membrane Solute moves DOWN concentration gradient (HIGH to LOW) copyright cmassengale

14 14 Osmosis Diffusion of water across a membraneDiffusion of water across a membrane Moves from HIGH water potential (low solute) to LOW water potential (high solute)Moves from HIGH water potential (low solute) to LOW water potential (high solute) Diffusion across a membrane Semipermeable membrane copyright cmassengale

15 15 Diffusion of H 2 O Across A Membrane High H 2 O potential Low solute concentration Low H 2 O potential High solute concentration copyright cmassengale

16 16 Aquaporins Water Channels Protein pores used during OSMOSIS WATER MOLECULES copyright cmassengale

17 Water Movement 1. Isotonic – Fluid outside the cell has the same concentration of particles as the cytoplasm. No net water movement. 2. Hypotonic – Fluid outside the cell has a lower concentration of particles than the cytoplasm. Water diffuses into the cell. 3. Hypertonic – The fluid outside of the cell has a higher concentration of particles than the cytoplasm. Water diffuses out of the cell. copyright cmassengale17

18 18 Cell in Isotonic Solution CELL 10% NaCL 90% H 2 O 10% NaCL 90% H 2 O What is the direction of water movement? The cell is at _______________. equilibrium ENVIRONMENT NO NET MOVEMENT copyright cmassengale

19 19 Cell in Hypotonic Solution CELL 10% NaCL 90% H 2 O 20% NaCL 80% H 2 O What is the direction of water movement? copyright cmassengale

20 20 Cell in Hypertonic Solution CELL 15% NaCL 85% H 2 O 5% NaCL 95% H 2 O What is the direction of water movement? ENVIRONMENT copyright cmassengale

21 21 Cells in Solutions copyright cmassengale

22 22 Osmosis in Red Blood Cells Isotonic Hypotonic Hypertonic copyright cmassengale

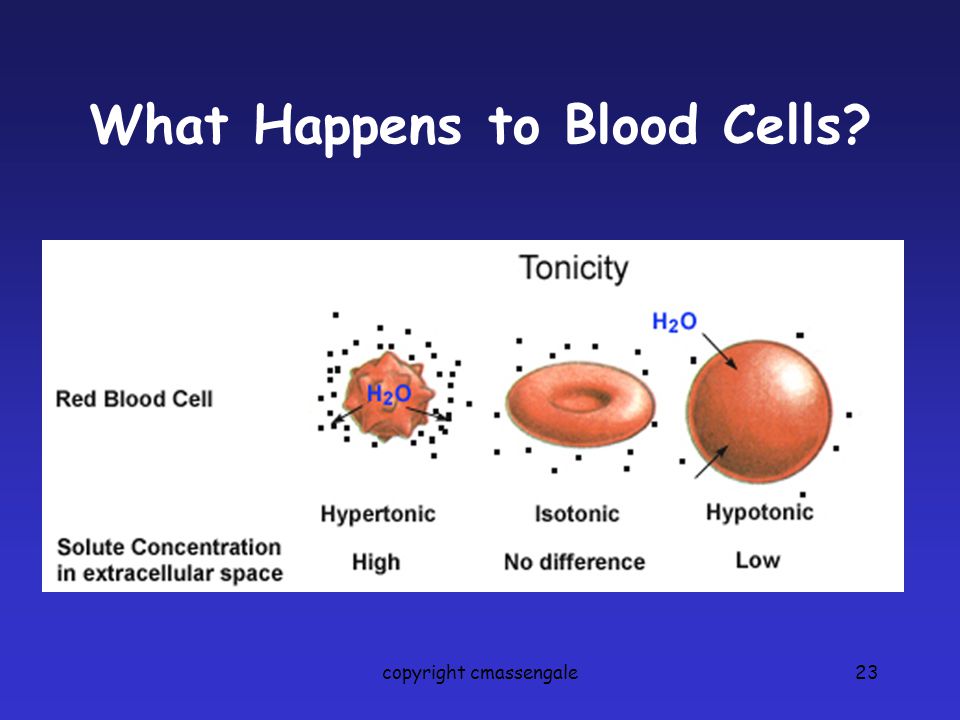

23 What Happens to Blood Cells? copyright cmassengale23

24 24 hypotonichypertonic isotonic hypertonicisotonic hypotonic copyright cmassengale

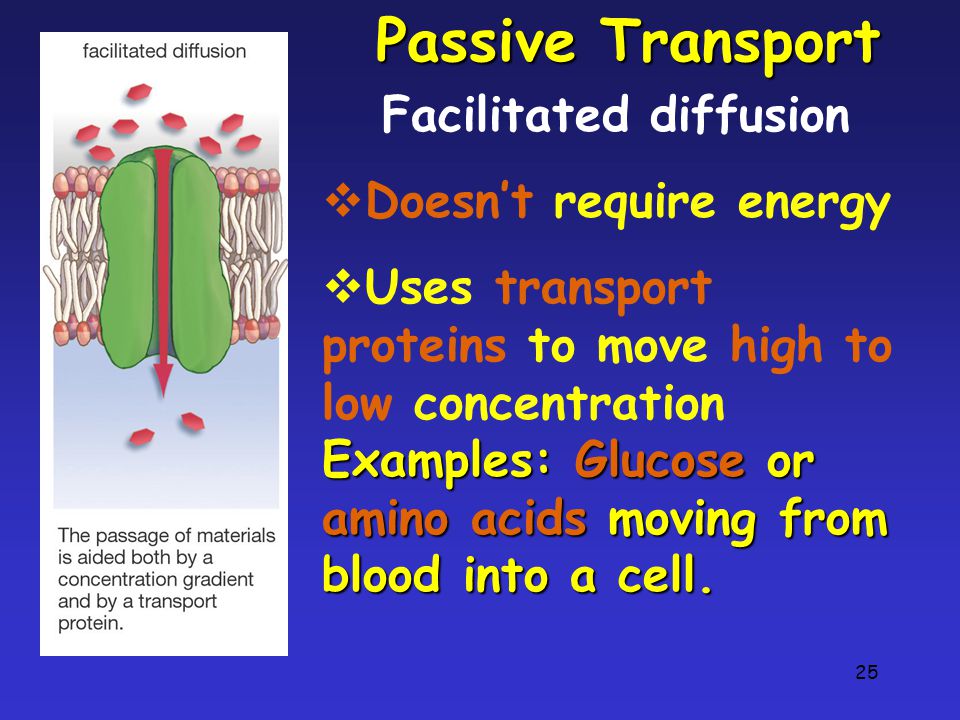

25 25 Passive Transport Facilitated diffusion  Doesn’t require energy  Uses transport proteins to move high to low concentration Examples: Glucose or amino acids moving from blood into a cell.

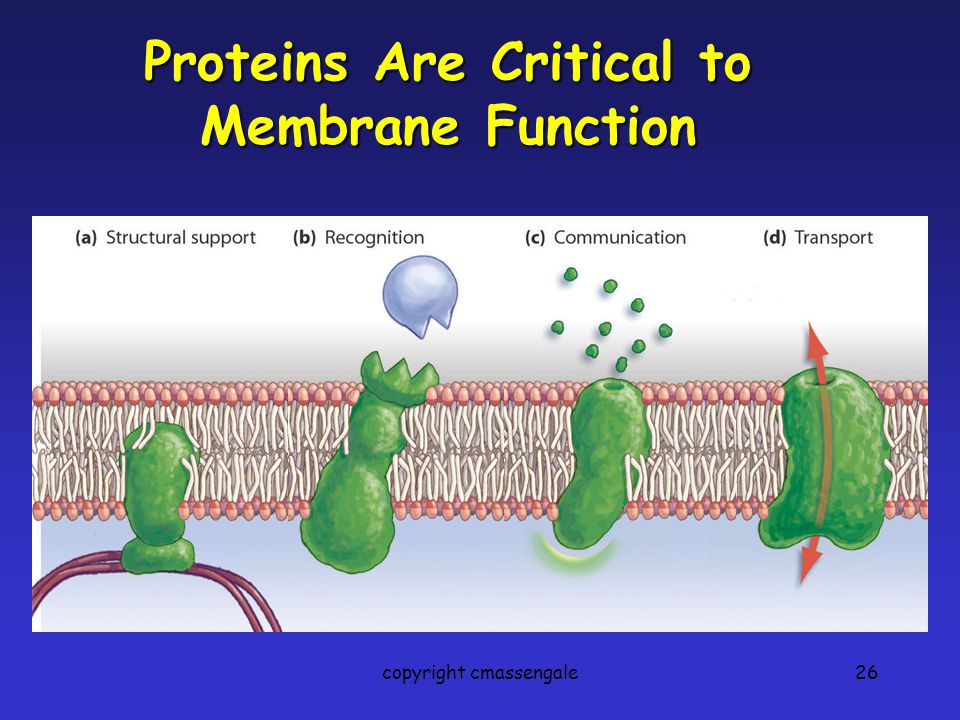

26 26 Proteins Are Critical to Membrane Function copyright cmassengale

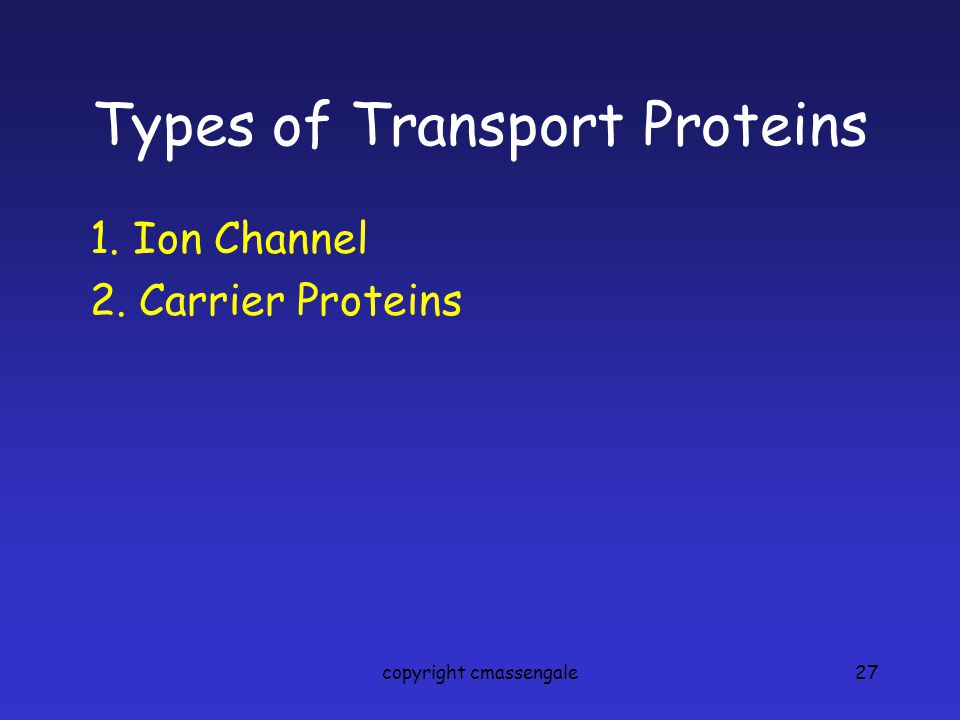

27 Types of Transport Proteins 1. Ion Channel 2. Carrier Proteins copyright cmassengale27

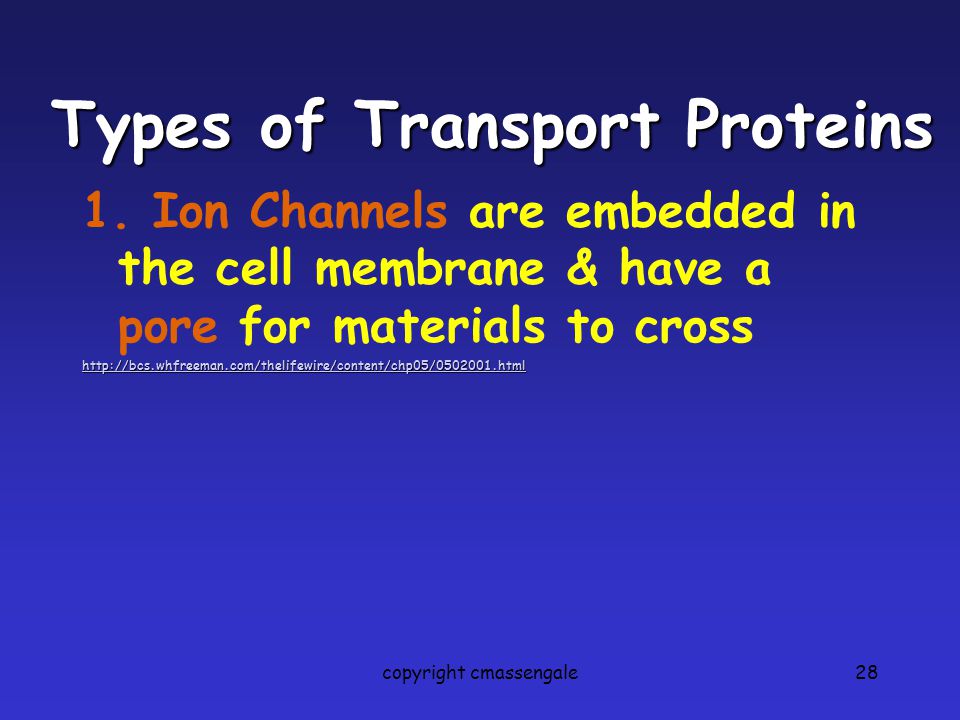

28 28 Types of Transport Proteins 1. Ion Channels are embedded in the cell membrane & have a pore for materials to cross http://bcs.whfreeman.com/thelifewire/content/chp05/0502001.html copyright cmassengale

29 29 Facilitated Diffusion Molecules will randomly move through the pores in Ion Channel. copyright cmassengale

30 Types of Transport Proteins 2. Carrier proteins can change shape to move material from one side of the membrane to the other http://bcs.whfreeman.com/thelifewire/content/chp05/0502001.html copyright cmassengale30

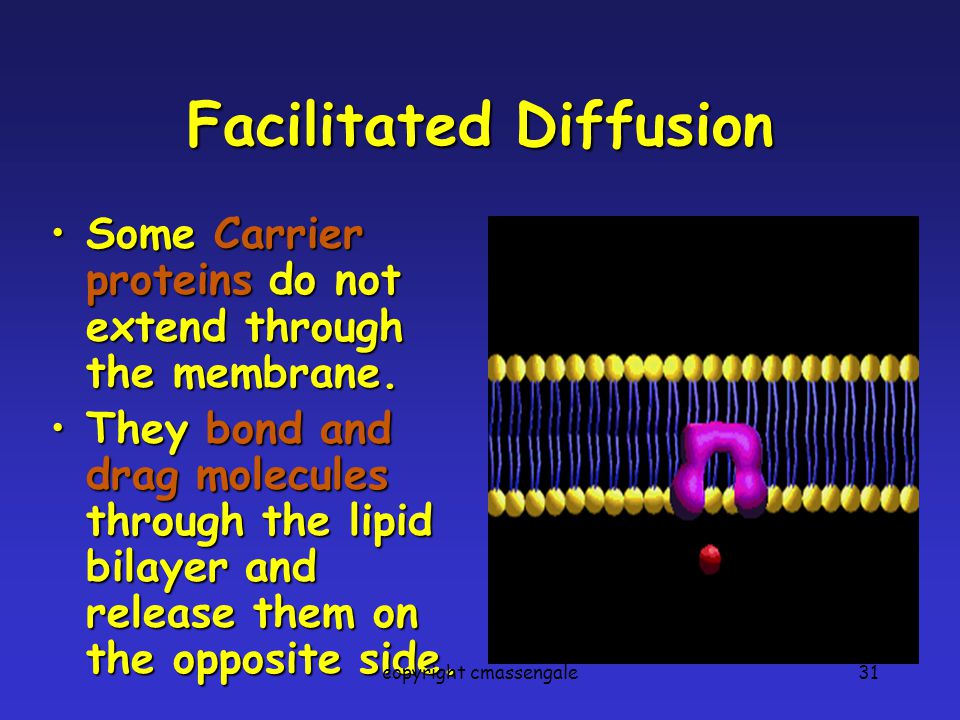

31 31 Facilitated Diffusion Some Carrier proteins do not extend through the membrane.Some Carrier proteins do not extend through the membrane. They bond and drag molecules through the lipid bilayer and release them on the opposite side.They bond and drag molecules through the lipid bilayer and release them on the opposite side. copyright cmassengale

32 32 Carrier Proteins Other carrier proteins change shape to move materials across the cell membraneOther carrier proteins change shape to move materials across the cell membrane copyright cmassengale

33 33 Active Transport  Requires energy or ATP  Moves materials from LOW to HIGH concentration  AGAINST concentration gradient copyright cmassengale

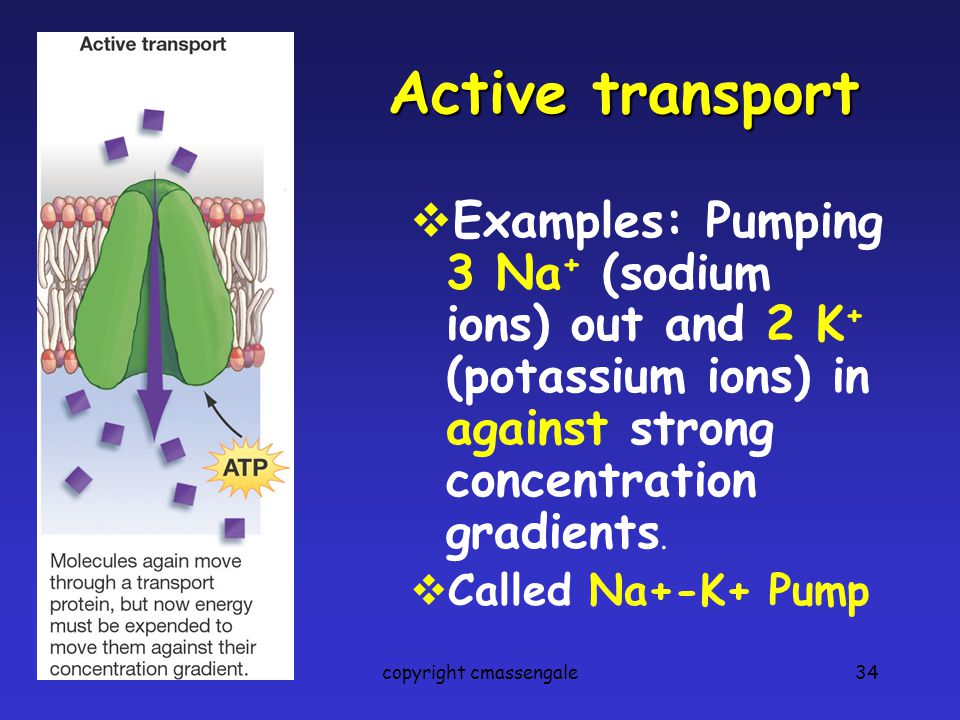

34 34 Active transport  Examples: Pumping 3 Na + (sodium ions) out and 2 K + (potassium ions) in against strong concentration gradients.  Called Na+-K+ Pump copyright cmassengale

35 35 Moving the “Big Stuff” Molecules are moved out of the cell by vesicles that fuse with the plasma membrane. Exocytosis Exocytosis - moving things out. This is how many hormones are secreted and how nerve cells communicate with one another This is how many hormones are secreted and how nerve cells communicate with one another. copyright cmassengale

36 36 Exocytosis Exocytic vesicle immediately after fusion with plasma membrane. copyright cmassengale

37 37 Moving the “Big Stuff” Large molecules move materials into the cell by one of three forms of endocytosis Large molecules move materials into the cell by one of three forms of endocytosis. copyright cmassengale

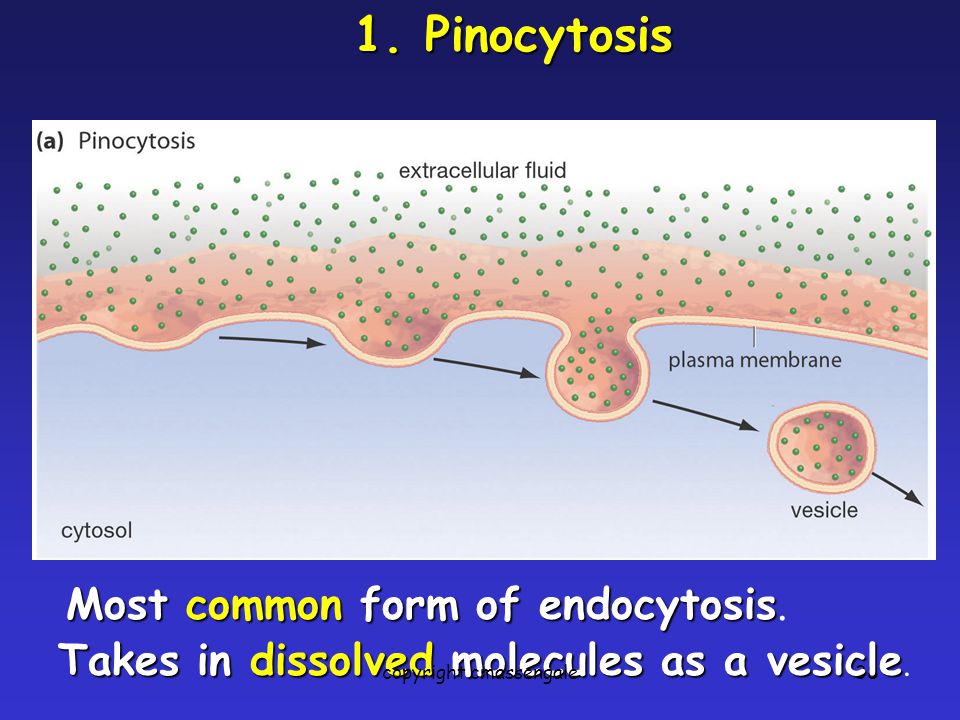

38 38 1. Pinocytosis Most common form of endocytosis Most common form of endocytosis. Takes in dissolved molecules as a vesicle Takes in dissolved molecules as a vesicle. copyright cmassengale

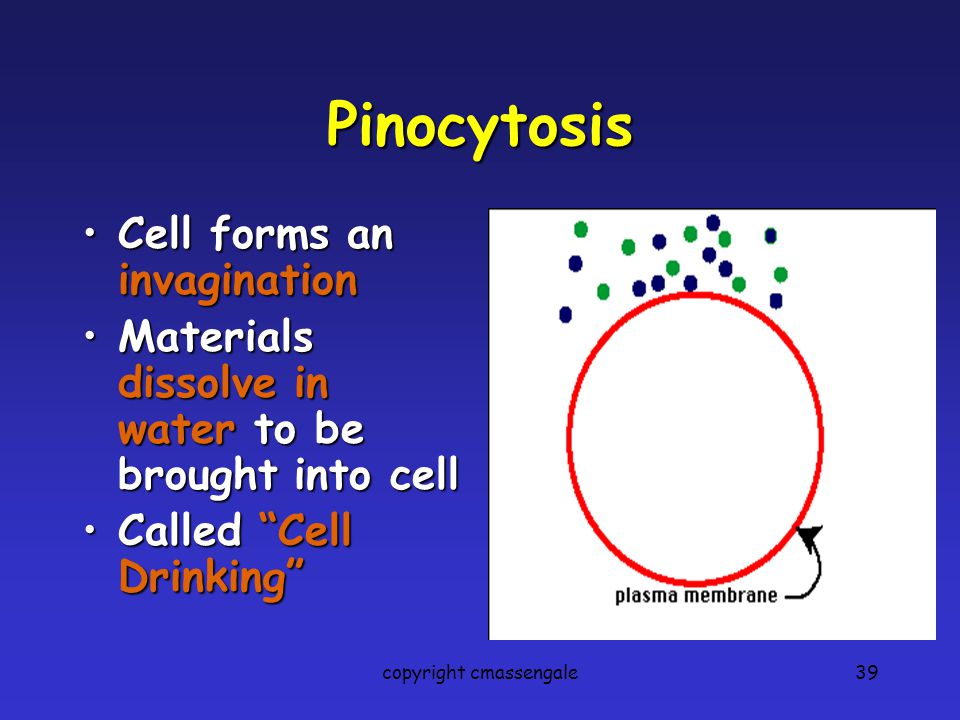

39 39 Pinocytosis Cell forms an invaginationCell forms an invagination Materials dissolve in water to be brought into cellMaterials dissolve in water to be brought into cell Called “Cell Drinking”Called “Cell Drinking” copyright cmassengale

40 40 Example of Pinocytosis pinocytic vesicles forming mature transport vesicle Transport across a capillary cell (blue). copyright cmassengale

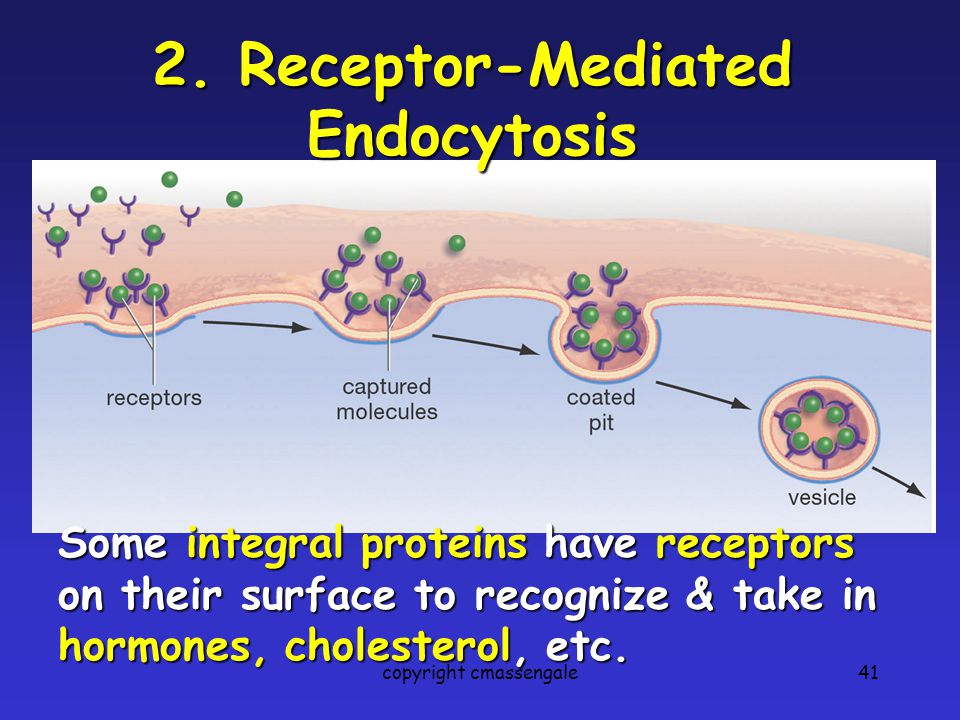

41 41 2. Receptor-Mediated Endocytosis Some integral proteins have receptors on their surface to recognize & take in hormones, cholesterol, etc. copyright cmassengale

42 42 Receptor-Mediated Endocytosis copyright cmassengale

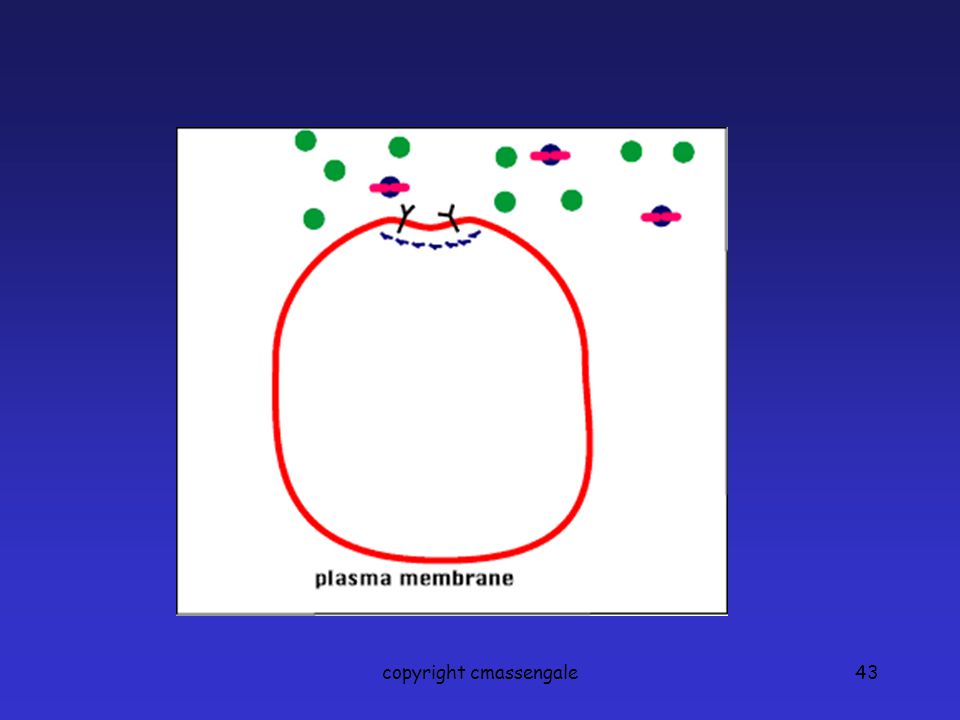

43 43

44 44 3. Phagocytosis Used to engulf large particles such as food, bacteria, etc. into vesicles Called “Cell Eating” copyright cmassengale

45 45

46 46 Phagocytosis About to Occur copyright cmassengale

47 47 Phagocytosis Phagocytosis - Capture of a Yeast Cell (yellow) by Membrane Extensions of an Immune System Cell (blue) copyright cmassengale

48 48 Exocytosis The opposite of endocytosis is exocytosis. Large molecules that are manufactured in the cell are released through the cell membrane. Inside Cell Cell environment copyright cmassengale

49 49copyright cmassengale
