1. ACER CONFIDENTIAL Acer P5515 - Product Brief - Crystal clear in any room

2. ACER CONFIDENTIAL 1 Revision Log Revision Date VersionNameDescription 2015/1/301.0Karen Y Chen, BMFirst release

3. ACER CONFIDENTIAL Contents Product segment Value proposition Key selling points Product views Specification

4. ACER CONFIDENTIAL Product segment Portable LED Carry your ideas in your pocket to share wherever you go. Large Venue Project crystal clear images with sufficient brightness at banquet halls or large conference rooms. Essential EducationPerfect for teaching and learning. Home Larger, brighter cinematic experience. Best value projectors for work and play

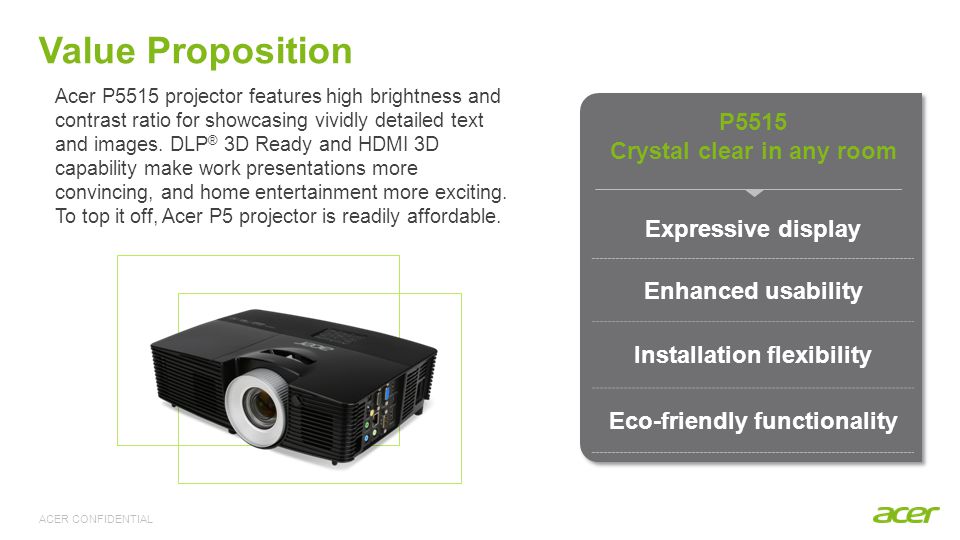

5. ACER CONFIDENTIAL P5515 Crystal clear in any room Expressive display Enhanced usability Installation flexibility Eco-friendly functionality Acer P5515 projector features high brightness and contrast ratio for showcasing vividly detailed text and images. DLP ® 3D Ready and HDMI 3D capability make work presentations more convincing, and home entertainment more exciting. To top it off, Acer P5 projector is readily affordable. Value Proposition

6. ACER CONFIDENTIAL Key Selling Points Crystal clear in any room Enhanced usability Wireless projection capability let you break free from the limitation of cables. Acer Dust Shield Design offers four guards to secure projectors to prevent damage from airborne dust and sand 20W built-in speaker provides powerful sound. Installation flexibility H/V keystone correction allows correcting both vertical and horizontal distortions up to 30- degree. 4 corner correction reforms the anamorphic projection. 4-ways ceiling mount capability, allows the max. flexibility in different way. Eco-friendly functionality Acer EcoProjection technology reduces standby power consumption by up to 90%, from 5 W to 0.5 W With the world leading ExtremeEco technology, the power consumption of the projector can be reduced up to 70% and the lamp life can be extended as well Up to 6,500 hours lamp life (ExtremeEco mode ) Expressive display 1080P Full HD high resolution brings bigger and wider viewing space, offering a comfortable viewing experience. 4000 lumens high brightness and contrast ratio project crystal- clear, vibrant images from long distances onto the screen With HDMI 3D ready, the projector enables display of a Blu-ray 3D content Acer color technology

7. ACER CONFIDENTIAL 1080P Full HD high resolution and wide format sharpen your vision Full HD (1920 x 1080) offers exquisite display and 16 : 9 aspect ratio delivering wide format for more content. Expressive Display Full screen but the contents are cropped

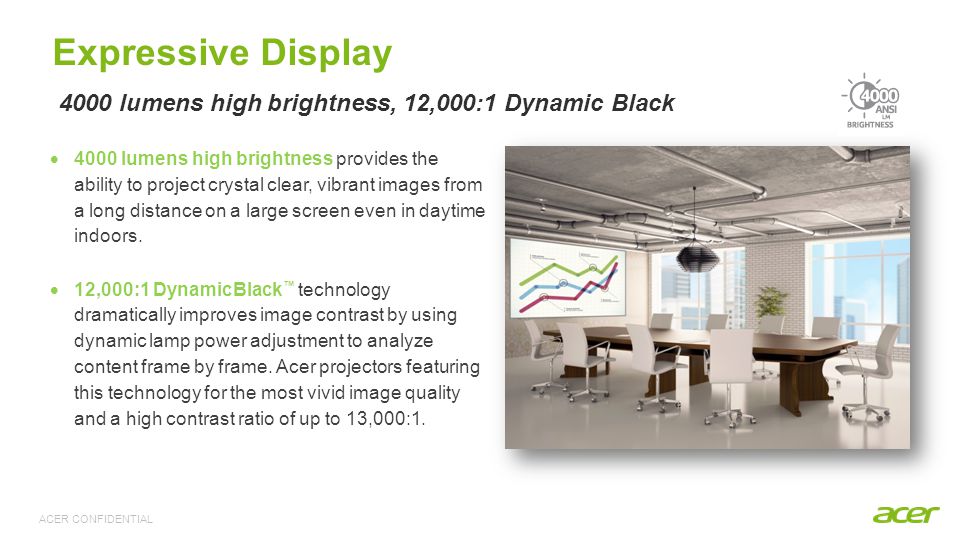

8. ACER CONFIDENTIAL 4000 lumens high brightness, 12,000:1 Dynamic Black Expressive Display  4000 lumens high brightness provides the ability to project crystal clear, vibrant images from a long distance on a large screen even in daytime indoors.  12,000:1 DynamicBlack ™ technology dramatically improves image contrast by using dynamic lamp power adjustment to analyze content frame by frame. Acer projectors featuring this technology for the most vivid image quality and a high contrast ratio of up to 13,000:1.

9. ACER CONFIDENTIAL 8 Acer projectors present nature's true colors with Acer ColorBoost3D technology for both 2D and 3D content. It features:  Optimized 6-segment color-wheel design  Advanced lamp illumination technology  Powerful image processing With ColorBoost Technology Wide Color Gamut Without ColorBoost Technology Lamp control technique TI DLP™ chip 6-segment color wheel  Improve mid-tone colors of cyan, yellow and white (CYW) based on the standard RGB (red, green, blue) color space for unsurpassed color reproduction and saturation v vv Expressive Display Acer ColorBoost3D

10. ACER CONFIDENTIAL ColorBoost3D has the ability to reduce brightness decay and color shift when displaying 3D or 2D-3D contents through enhancing color brightness. At the same time, it compensates color saturation and color temperature. Brightness decay & Color shift Due to shutter 3D glasses  Off (original content) 3D  On √3D Acer ColorBoost3D Expressive Display Acer ColorBoost3D

11. ACER CONFIDENTIAL Acer dynamic RGB gain control Greenish picture (Normal DLP® projectors) Image with corrected color fidelity ( DLP® projectors with ColorSafe II) Expressive Display Acer projectors featuring ColorSafe II technology use dynamic RGB gain control to secure color fidelity, even after prolonged use. It lowers the total cost of ownership and create to big savings. 10 Acer ColorSafe II

12. ACER CONFIDENTIAL  Pair the Acer P5 series projectors with a PC or A/V device that supports120Hz output for a amazing 3D experience. 1 DLP Link 3D glasses are optional accessary DLP® Link™ 3D glasses 3D DVD or Blu-ray disc PC supporting 120 Hz output plus 3D software player installed Acer projector  The DLP® 3D kit features DLP® Link™ 3D glasses1 for seamless 3D data transmission. Expressive Display Enjoy the 3D experience: DLP ® 3D Ready

13. ACER CONFIDENTIAL Connect a Blu-ray Disc™ player or 3D PC via HDMI ® and deliver a superb smoothly 3D viewing experience. 1 Support HDMI® 1.4a 3D specifications. A compatible 3D content playback device and 3D goggles are required to enjoy 3D content. Enjoy the 3D experience: HDMI 3D with 144Hz 24p Expressive Display HDMI 3D is an ideal solution for users playing games or films through CE consoles 3D Blu-ray game or movies HDMI 1.4a 3D glasses

14. ACER CONFIDENTIAL 3. 3. Mirroring Display 3 Direct screen projection via Android 4.2 or Windows 8.1 devices 1.Wireless projection are only available via Acer wireless adapter 2.Mirroring Display=Miracast. 3.Download eDisplayPro app for smart device and eDisplay management for PC. Multimedia Compatible Office & PDF reader PhotoVideoMusic 1. 1. Ease of Use Setup as easy as 1, 2, 3 Switch  Launch  Project 2. 2. eDisplayPro 2 Handy Applications Split quad screen Multimedia compatible:  Photo/Document projection with sketch  Music and video streaming projection Camera projection Web browser with sketch Connect Dropbox eDisplayPro app Acer WirelessCAST MWA3 Acer Wireless Projection 1 Enhanced Usability

15. ACER CONFIDENTIAL 14 Picture that you’re in a meeting, and four of your colleagues can simultaneously display four different reports from four devices to one screen. How convenient! Acer eDisplayPro allows a maximum of four users to display their contents on screen at the same time, which is mighty powerful especially for business meeting or education. Enhanced Usability Quad View: Split screen for multitasking

16. ACER CONFIDENTIAL 1 Miracast 2 Support Android 4.2 / Windows 8.1 and later. e.g. Acer S1, Google Nexus 4, Samsung S4, HTC New One, etc. Mirroring Display Enhanced Usability Mirroring Display 1 compatible devices 2 allow direct screen projection. You can show exactly what you want with no limitation. Mirroring a fun video or travel photos with friends and family without having to crowd around a small display anymore.

17. ACER CONFIDENTIAL 16 Vertical Board prevent thermal sensor from dust collection Sealed Engine protect color wheel sensor 1 1 2 2 Sealed Engine Vertical Boards Fundamental Security Dust collection on wheel sensor and thermal sensors always cause shut down. Acer Dust Resistant system offers a fundamental protection to reduce damage from airborne dust. -Less damage -Less time and cost maintenance -Long life span Enhanced Usability Acer Dust Shield Design

18. ACER CONFIDENTIAL 17 Sealed Engine Vertical Boards *3D Dust Filter *Lens Shield 3D Dust Filter Captures micro dust particles Lens Shield Prevents lens against dust collection 3 3 4 4 A forceful protection system Fall dust gathers on lens and lamp cover the light source and cause brightness degradation. Acer Dust Resistant Projector offers an optional 3D Dust Filter to stop airborne dust entering the projector along with air flow. An additional Lens Shield completely covers the lens and adjustment wheel to prevent dust falling into projectors. -Prevent brightness decay -Less time and cost maintenance -Long life span *Optional accessory Enhanced Usability Acer Dust Shield Design

19. ACER CONFIDENTIAL With built-in 10Wx2 speaker, Acer P5515 projector allows you to enjoy studio nuance and enhanced clearer sound without external speaker. No matter in meeting room or classroom, these projectors’ sound effect satisfy audiences all the time while A/V display. Enhanced Usability Built-in speaker

20. ACER CONFIDENTIAL Enhanced Usability Quick response Reliable security Smart adjustment Multi-PC connection Acer P5 series has various connectors for multiple-PC source input, including VGA and HDMI, offering flexible connectivity and instant switching RS-232 signal control A serial port for advanced control and monitoring via system manager. Full support

21. ACER CONFIDENTIAL Image distortion sometimes happens when the projector is placed with improper distance or in a wrong position. With H/V keystone correction, user can fix the distortion by adjusting not only from vertical angle but also horizontal one. The adjustment range is up to ± 30 degrees. Installation Flexibility H/V Keystone Correction

22. ACER CONFIDENTIAL 21 4 Corner Correction enables user to adjust distortion from any single corners. Even the projector is not placed in a proper position, the function makes correction process easy and time-saving. Installation Flexibility 4 Corner Correction 4 corner correction

23. ACER CONFIDENTIAL Automatically rotate When the projector is installed in the ceiling, Auto Ceiling Mount Correction can detect the projector position and automatically adjust the orientation of the image. Installation Flexibility Auto Ceiling Mount Correction

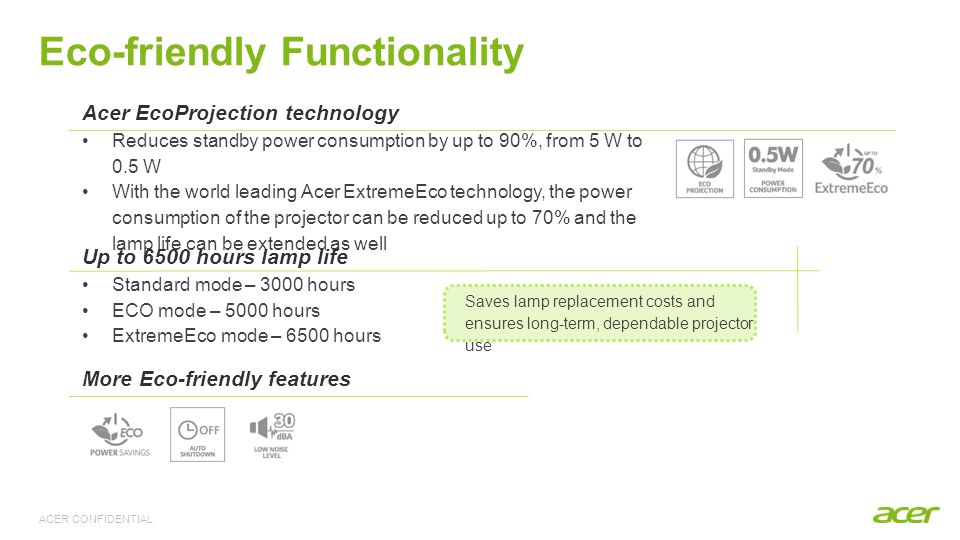

24. ACER CONFIDENTIAL Eco-friendly Functionality Acer EcoProjection technology Reduces standby power consumption by up to 90%, from 5 W to 0.5 W With the world leading Acer ExtremeEco technology, the power consumption of the projector can be reduced up to 70% and the lamp life can be extended as well Up to 6500 hours lamp life Standard mode – 3000 hours ECO mode – 5000 hours ExtremeEco mode – 6500 hours Saves lamp replacement costs and ensures long-term, dependable projector use More Eco-friendly features

25. ACER CONFIDENTIAL Product views Remote control receiver Focus ring Lamp cover Control panel Zoom lever Lens DC 5V out Composite video Audio out Audio input Audio in VGA out VGA in HDMI MHL Mini USB HDMI Power socket RS-232

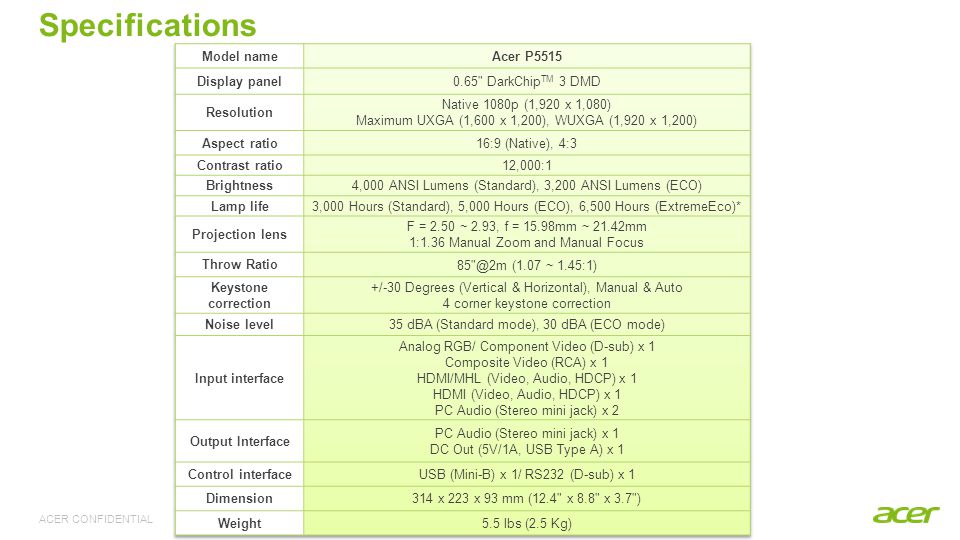

26. ACER CONFIDENTIAL Specifications

27. Thank you
