1 CMPS115 Class 6 : User Interface Design Due today –Scenarios –Decomposing paper Next class –Deliverable: Requirements look at template and at example.

Similar presentations

Presentation on theme: "1 CMPS115 Class 6 : User Interface Design Due today –Scenarios –Decomposing paper Next class –Deliverable: Requirements look at template and at example."— Presentation transcript:

1 1 CMPS115 Class 6 : User Interface Design Due today –Scenarios –Decomposing paper Next class –Deliverable: Requirements look at template and at example at link in deliverable webpage –Introduction to Software Architecture by Garlan and Shaw (read and review only pages 1-16)

2 2 User Interface Design Principles ideas for this and following slides from Pressman’s Software Engineering, 6/e 2005 Put the user in control Keep the user’s memory load controlled Consider issues of consistency

3 3 User Quote (user in control) “What I really would like is a system that reads my mind. It knows what I want to do before I need to do it and makes it very easy for me to get it done. That’s all, just that.”

4 4 Control Who’s in Control? –Does user adapt to computer’s model of task? –Does computer adapt to user’s model of task? Consider the novice user Consider the knowledgeable, intermittent user Consider the knowledgeable, frequent user

5 5 User maintains control when: You’ve provided for flexible interaction You’ve allowed for interaction to be interrupted and undoable You’ve allowed for interface to be customized to user’s skill level You’ve hidden technical internals (no OS commands needed) You don’t force user into unnecessary actions You’ve designed for direct interaction with objects on the screen

6 6 User’s memory load Make UI show state with visual cues Use meaningful defaults that can be reset/set Provide meaningful shortcuts Make visual layout reflect real world task

7 7 Consistency Use the same design standard throughout all screens Use the same input techniques throughout all screens

8 8 UI analysis and design Model the user, task, and environment Design the interface Construct the interface Validate the interface Iterate through these, with each pass elaborate additional requirements and resulting design

9 9 User analysis Interview the users or representatives of the users Interview sales, marketing, or support staff about user characteristics

10 10 Ask questions to understand the users Trained professionals, technicians, clerical, manufacturing users? Level of education Learn from written materials or is class needed? Expert typists or phobic Age range One gender predominates? Compensation for users for their work is how? Use during normal work hours or until job is done? Integral part of job or infrequent use? What is primary language of users? What are consequences of mistakes? Are users subject matter experts? Knowledge about underlying technology needed?

11 11 Environment analysis What will be the physical location of the sw? Will user be sitting, standing, walking? Will user be dedicated to this task/multi- users required for this task? Will there be noise, light, or space impairments?

12 12 Task analysis What tasks will be done while user is working? What work is performed in special circumstances? What special domains are used during work? What is the sequence of workflow?

13 13 Using use cases - identify tasks and subtasks Example - computer-aided design for interior design Tasks –Furniture layout –Fabric selection –Wall/widow coverings sel. –Presentation to user –Costing –Shopping Subtasks for furn. layout –Floor plan drawing given room dimensions –Locate windows and doors –Scaled drawings of furn. –Move furniture around floor plan –Provide 3-D view of floor plan with furniture for user

14 14 Objects derived from use cases Select physical objects from use case narratives Categorize into classes Define details of the attributes of each class Determine operations on each of these objects

15 15 Task workflow analysis When different user groups and user roles are to use software Use flow diagram called swimlane diagram Column for each role Bubbles for processes, flows for data Flows between columns represent interactions between processes of different roles Look and feel of UI for different roles may be different

16 16 Analysis for presentation of content Content may be from –Other parts of the application –Database accessible from application –External to application Format of content –Consistent location for same types? –Customizable location? –Identification of content? –Handling of large datasets? Summary available? –Color? –Error handling?

17 17 Steps for UI design Parse use cases - objects (nouns) and operations (verbs) Sketch set of screens Test UI Iterate last 2 steps

18 18 Common design issues Response time Help Error handling Command and menu labeling Consider accessibility for special needs - www consortium Web Content Accessibility Guidelines Internationalization guidelines are available -

19 19 responsiveness Length of response time –1 sec acceptable –More than that - use progress bar and ‘busy icon’ Variability –1 sec is better than from 0.2 sec to 3.0 sec

20 20 Design of help features Provided for all features or just subset? Available at all times? How to request? How presented? Window, print doc, 2-lines How to return to normal operations? How is help info structured? Flat, hierarchical, hypertext

21 21 Command and menu labels Easy to remember labels? How to remind? What is form of commands? Control seq or typed word? Will all menu items have commands? Customizable and shortcuts available? Self-explanatory labels Do submenu items fit logically under menu items?

22 22 Test the UI Review material from M. Rettig’s paper “Prototyping For Tiny Fingers”

23 23 Summary Weak UI may cause failure of acceptance of system Follow 3 principles of UI design –User in control –Reduce memory load –Consistency Development involves –Analysis (user, task, environment) –Design (use cases drive sketches) –Evaluate and iterate

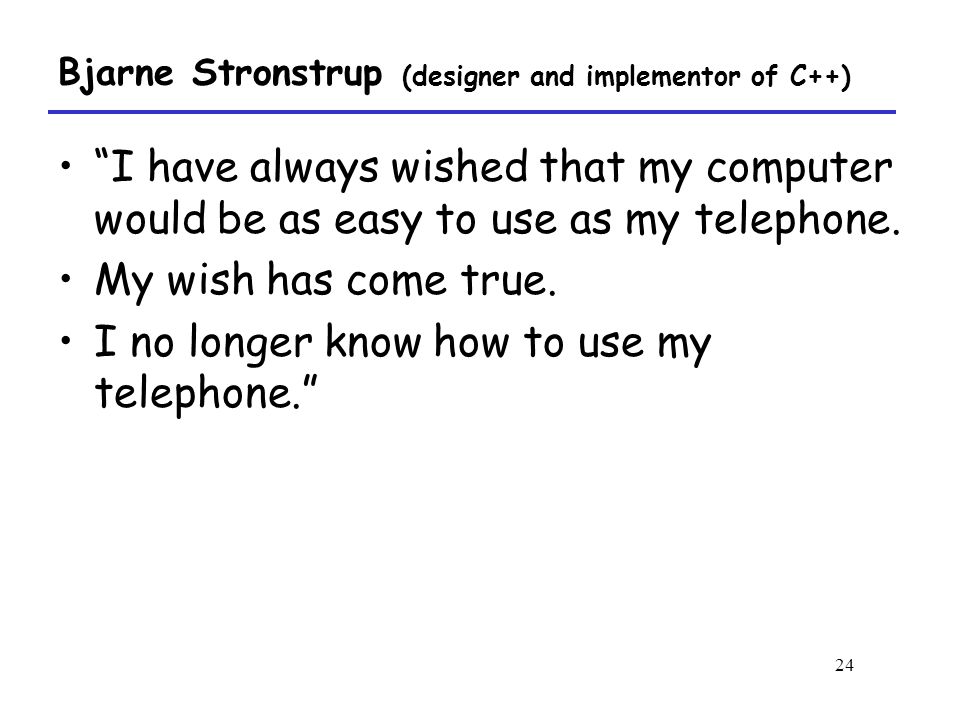

24 24 Bjarne Stronstrup (designer and implementor of C++) “I have always wished that my computer would be as easy to use as my telephone. My wish has come true. I no longer know how to use my telephone.”

25 25 Client/Server Responsiveness Design project issues Local/Remote awareness –Server may balk; client should keep running smoothly –Optimistic response (correct if server updates otherwise) Threading –User thread services UI collects events, changes control state, posts events not to be used for game action! –Game thread runs engine calculates local world based on local events and server data –I/O thread handles network
