1 Turing Machines CS 105: Introduction to Computer Science

2 Some Interesting Questions u What is a computer? What is computation? u Are there problems that some computers can solve but others can’t? u Are there problems that no computer can solve?

3 What is a Computer? u That’s a tough question. u We want to talk about the fundamental properties of computation. u We need a model that captures the essential and throws out the rest.

4 What is Computation? u Mapping an input to an output. u For the sake of concreteness: mapping a binary input to a binary output. u Problems describe a particular mapping we are interested in. u Decision problems are a subset of all problems - map from inputs to 0 or 1.

5 First model of computation: Finite State Automata… A B 1 0 10

6 Finite State Automata u A fixed number of states. u The machine moves from one state to another in response to inputs. u If it ends in an ACCEPT state it accepts, otherwise it rejects. (We’re just considering decision problems for now.) u Let’s see some examples…

7 FSA Example A B 1 0 10Triangle indicates start state. Double circle indicates accepting state. What happens on input 100101?

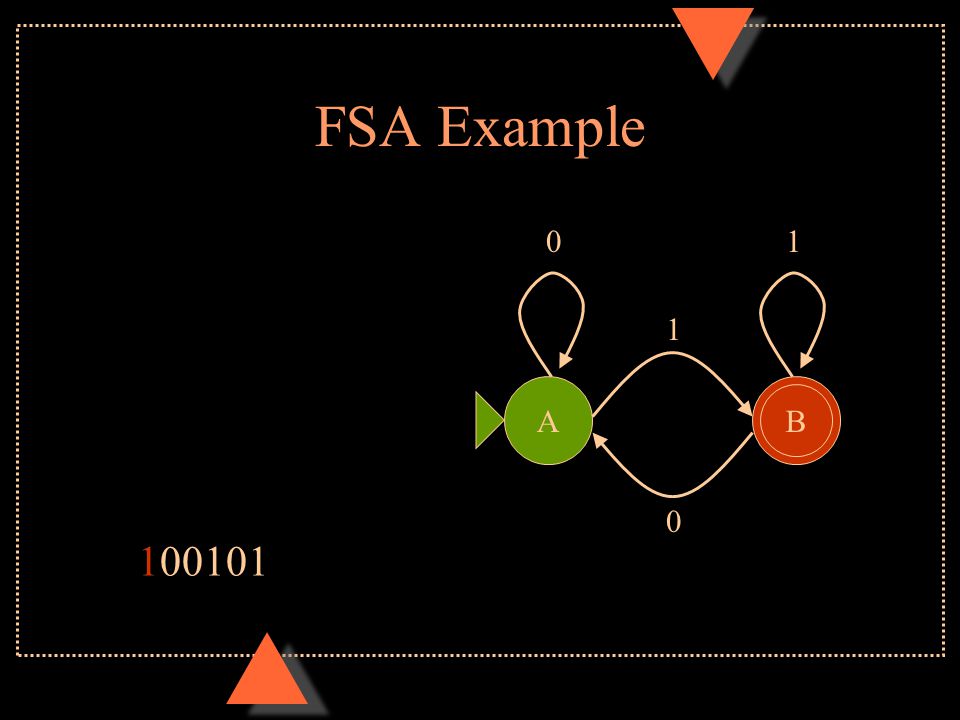

8 FSA Example A B 1 0 10 100101

9 FSA Example A B 1 0 10 100101

10 FSA Example A B 1 0 10 100101

11 FSA Example A B 1 0 10 100101

12 FSA Example A B 1 0 10 100101

13 FSA Example A B 1 0 10 100101 ACCEPT!

14 The Turing Machine u Problems with the FSA as a model of computation?? –Does an input string have matched parentheses? E.g., 01(0(10)101)110(1 u With a slight modification we get the Turing machine. u First described in 1937 by Alan Turing

15 How does it work?... Tape Read/Write Head Control Device Current State: Rules:

16 What can it do? u Write a character to the current tape cell u Move Read/Write Head one cell to the left or right u Go into a new state... Tape Read/Write Head Control Device Current State: Rules:

17 How does it decide what to do? Behavior is based on: u Input: the character in the current tape cell u State: the current state... Tape Read/Write Head Control Device Current State: Rules:

18 Let’s see one in action... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 1 Rules: 1001

19 What are current state and input?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 1 Rules: 1001

20 Which rule will the TM follow?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 1001 1 1 | 1 R 1 1

21 Write to the tape... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 1001 1 1 | 1 R 1 1

22 Move right or left... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 1001 1 1 | 1 R 1 1

23 Go to new state: Done with rule... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 1001 1 1 | 1 R 1 1

24 What are current state and input?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 1 Rules: 1001

25 Which rule will the TM follow?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 01 1 0 | 1 R 2 1 10

26 Write to the tape... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 01 1 1 0 | 1 R 2 11

27 Move right or left... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 01 1 1 0 | 1 R 2 11

28 Go to new state: Done with rule... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 01 2 1 0 | 1 R 2 11

29 What are current state and input?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 101 2 1

30 Which rule will the TM follow?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 1 2 0 | 1 R 2 10 2 1

31 Write to the tape... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 11 2 0 | 1 R 2 1 2 1

32 Move right or left... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 11 2 0 | 1 R 2 1 2 1

33 Go to new state: Done with rule... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 11 2 0 | 1 R 2 1 2 1

34 What are current state and input?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 111 2 1

35 Which rule will the TM follow?... Tape Read/Write Head Control Device Current State: State Symbol | Write Move State 1 1 | 1 R 1 1 0 | 1 R 2 2 0 | 1 R 2 Rules: 111 2 1

36 Is the Turing Machine The Right Model? u The Church Turing Thesis: –Any reasonable model of computation is equivalent to the Turing machine. u “Equivalence” here refers to what can be computed, not how fast it can be done. u Not something that can be proved.

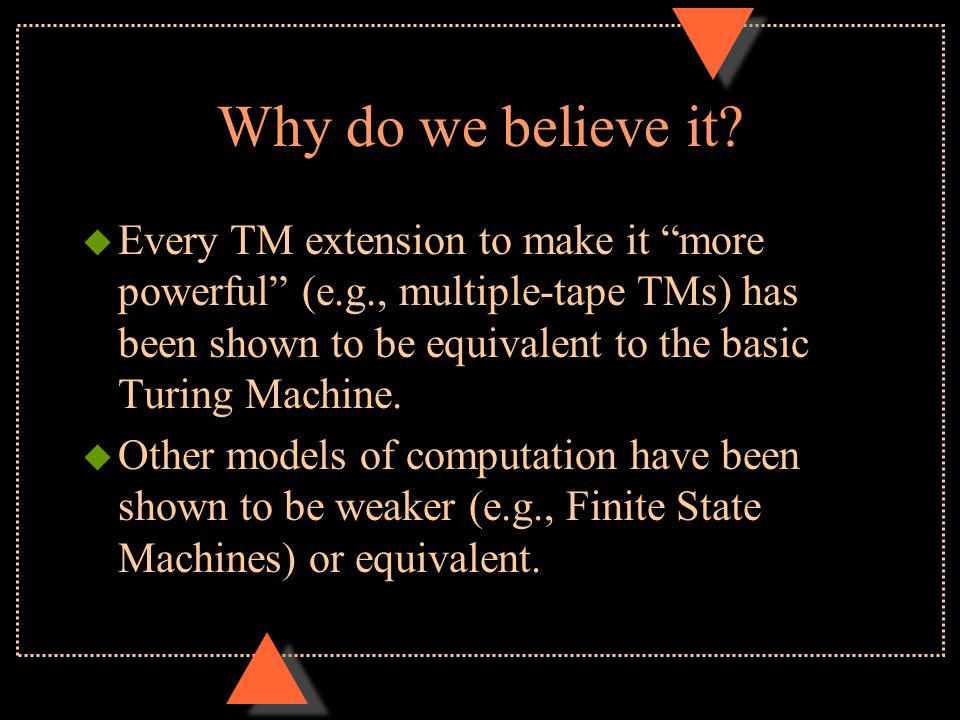

37 Why do we believe it? u Every TM extension to make it “more powerful” (e.g., multiple-tape TMs) has been shown to be equivalent to the basic Turing Machine. u Other models of computation have been shown to be weaker (e.g., Finite State Machines) or equivalent.

38 What is the significance of the Church-Turing Thesis? u Church-Turing Thesis: Anything you can do on any computer you can do with a Turing Machine. u So, no computer is more “powerful” (can compute more) than a TM.

39 Is my computer LESS powerful than a Turing Machine? u No. u Given an infinite input device (infinite tape, infinite number of floppies, infinite keyboard input), you can simulate a TM. u Therefore, anything that can be computed on a TM can be computed on your computer.

40 The Important Implication u If there’s anything that we CAN’T do with a Turing Machine then... we can’t do it on any computer now or in the future.

41 Are there things we can’t compute on a Turing Machine? YES An Example: The Halting Problem

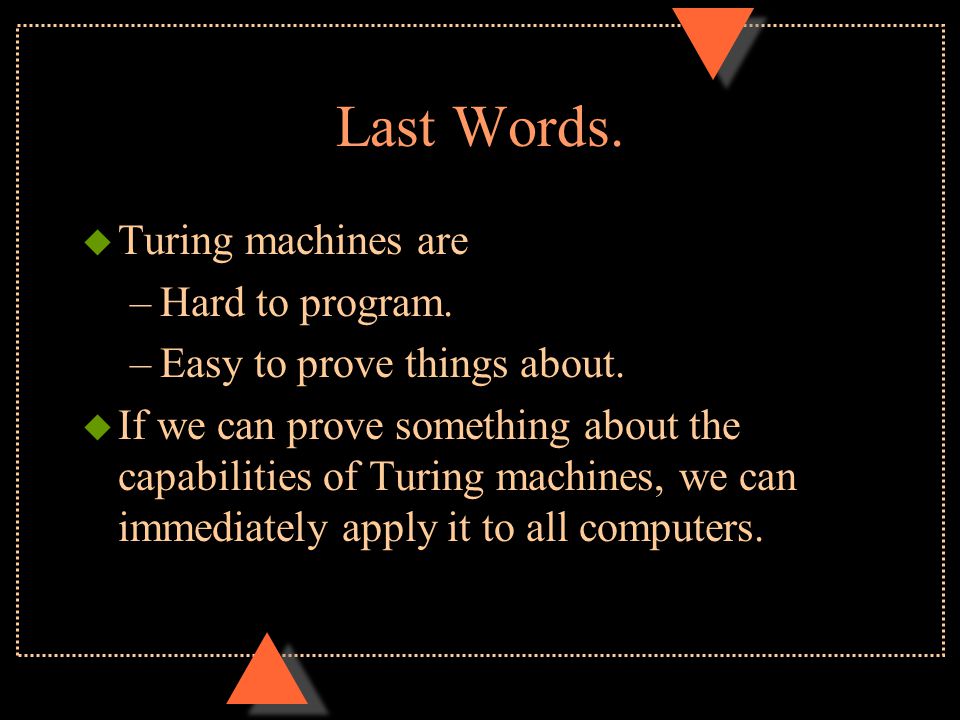

42 Last Words. u Turing machines are –Hard to program. –Easy to prove things about. u If we can prove something about the capabilities of Turing machines, we can immediately apply it to all computers.

43 Regular Expressions u Another formalism for selecting strings to accept or reject. u Intimately related to FSAs u Practical applications in searching through strings.

44 Three Operators u Union: (0+1) –accepts/matches either 0 or 1. u Concatenation: 01 –matches 0 followed by 1 u Repetition: 0* –Matches any number of zeros (including 0)

45 Examples u These operators can be applied to regular expressions: –(0+1)*1 (matches any string that ends in a 1) –(0+1)(0+1))* (matches any even length string)
