2. Technical Workshops | Esri International User Conference San Diego, California Military Planning and Operations Dave Mitchell Derek Foll July 26, 2012

3. Goals of the workshop Briefly review ArcGIS for the Military Land Ops concept Explain how ArcGIS is configured to support - Sharing & collaboration - Connected vs mobile environments - Planning & Analysis - Current Operations Highlight ArcGIS.com resources Recommendations and best practices

4. The Operations Process PREPARE EXECUTE PLAN ASSESS ASSESS BATTLE COMMAND BATTLE COMMAND

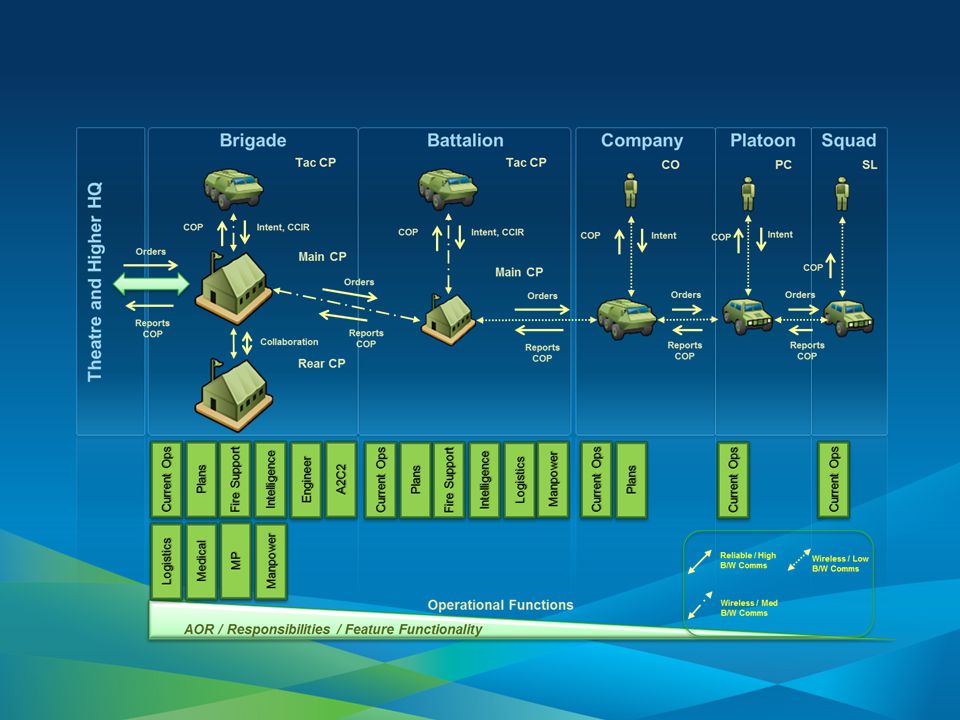

6. ArcGIS for the Military – Land Operations Planning COP Mounted Dismounted Provisioning Intelligence Operations Server Sensors

7. Operations Server Staff Products Operations Content Template Users Operations Server Data Appliance Operational Environment Content Mobile Apps WebApps Desktop Apps Services Feeds

8. ConnectedMobile PlanningOperations Sharing Solution Patterns

9. High speed network Range of devices ArcGIS 10.1 Server and Portal GeoEvent Server Web applications Desktop Runtime Viewer Connected

10. Mobile Connected over tactical radio Small form factor devices ArcGIS Runtime clients Peer to Peer Messaging File based provisioning & update Services if available

11. Sharing Maps Users share information with each other as packages - Packages encapsulate all aspects of a GIS - Symbology - Tools - Data Users share GIS with everyone through services - Shared across the web and mobile devices through web maps and apps - Web maps define the layers/popups for the services - Apps bring the map to life in browsers and devices

12. Planning HQs Product Groups Tools & Templates Groups Functional Product Group Map Templates Tools Published Products Published Options

13. EVENTEMP Development OPERATIONAL ENVIRONMENT ISR PLANNING ISR OPS NAI Template ENEMY COA MCOO NAI Options OPS/INTEL

14. EVENTEMP Decision Support Template

15. Package Workflow Open Map Template (Map Package) - Contains user task layers & tools - Can reference useful services - Can contain default data – ORBAT, standard plan features Add data to support decision - Layer packages or services from portal Create own product - Update task layers - Standard procedures for updating other users layers Deliver product as layer pack Share tradecraft, save working environment as map package

16. Lightweight Planning – Observation Post Layout OPERATION Group COP Plans Connected or disconnected Tactical planning, reconnaissance, survey

17. Lightweight Planning

18. Planning Key Points Ad-hoc process, multiple options & versions Support different theaters and mission types Mobile and HQ environments Document style workflow, portal groups & packages Limited structure

19. Operations Operations Server

20. Operations Server Components GeoMessage ArcGIS for the Military GeoEvent Server Template ArcGIS for the Military GeoEvent Server Template Squad Leader ArcGIS Viewer Dashboards ArcGIS Server GeoEvent Server Vehicle Commander

21. Publish Plans Operations Server Selected Option (Layer or Map Package) Published Options Service Authoring Map OPERATION Group

22. Provisioning & Update Operations Server Basemaps (TPKs) Mission Maps (MPKs) Configuration File

23. Mounted & Dismounted Apps

24. Sensor Observations Track Reports Spot Reports Chemlights Local Tactical Group 1 Operations Server Commanders Local Tactical Group 2 Analysts NAIs, TAIs GeoEvent Services

25. Operations Server Configuration

26. Services Control Measures ISR Plan Ops Locations Ops Reporting Tactical Locations Tactical Reporting

27. ArcGIS GeoEvent Server Input Output GeoEvent Services ArcGIS Server Input 1 TCP CSV ArcGIS GeoEvent Server Input 2 UDP JSON Input 3 JMS JSON Input 4 Database Model 5 Model 2 Model 1 Model 3 Model 4 Output 4 CSV UDP Output 3 CSV File Output 2 Database Output 1 Feature Service Transports Adapters Tools GeoEvent Services are configured to connect Inputs, GeoEvent Models, and resulting output: - GeoEvent Models : perform continuous Processing and Analysis of GeoEvents received from Inputs. Analyzing GeoEvent Streams

28. Supported Message Formats GeoEvent Server - VMF - CoT GeoMessages - Trackrep - Chemlight - Spotrep / SALUTE - SLANT report - SITREP - BEDAVAIL - MEDEVAC - EOD 9 LINE

29. Track Processing Filter SIDC Mapping Tactical Location (Update) Tactical Location Log (Append)

30. SPOTREP Processing FilterSPOTREPSPOTREP in NAIEventsSPOTREP in TAIEventsHVT FilterHVT in TAIEmail AlertEvents ISR Plan - NAI & TAI AGES Defense Template

31. User Groups and Roles

32. Current Operations Applications

33. Summary Reviewed ArcGIS for the Military Land Ops concept Explained how ArcGIS is configured to support - Sharing & collaboration - Connected vs mobile environments - Planning & Analysis - Current Operations Highlighted ArcGIS.com resources - resources.arcgis.com Suggested best practices

34. Questions
