1. Or Getting Worms for < $50 Babby’s First Honeypot Noah Nadeau NN

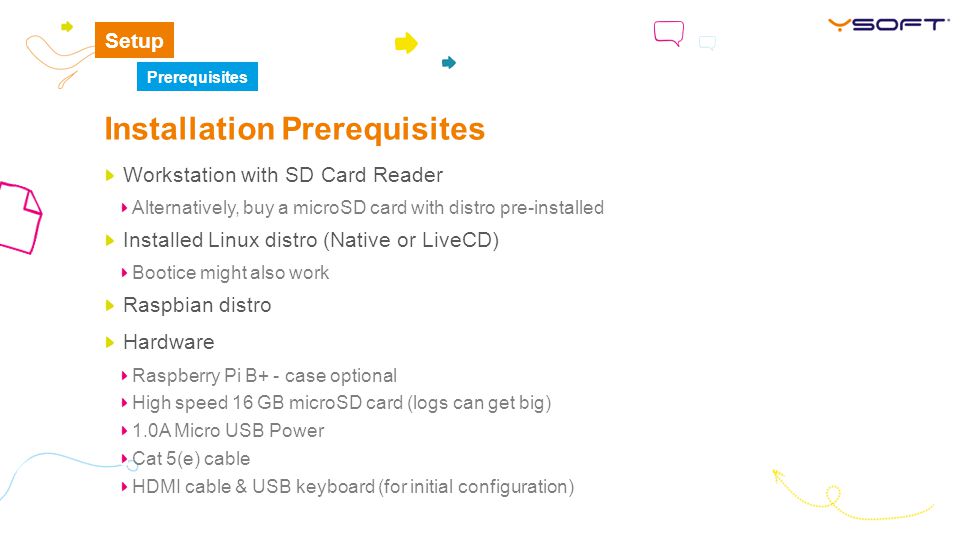

2. Installation Prerequisites Workstation with SD Card Reader Alternatively, buy a microSD card with distro pre-installed Installed Linux distro (Native or LiveCD) Bootice might also work Raspbian distro Hardware Raspberry Pi B+ - case optional High speed 16 GB microSD card (logs can get big) 1.0A Micro USB Power Cat 5(e) cable HDMI cable & USB keyboard (for initial configuration) Prerequisites Setup

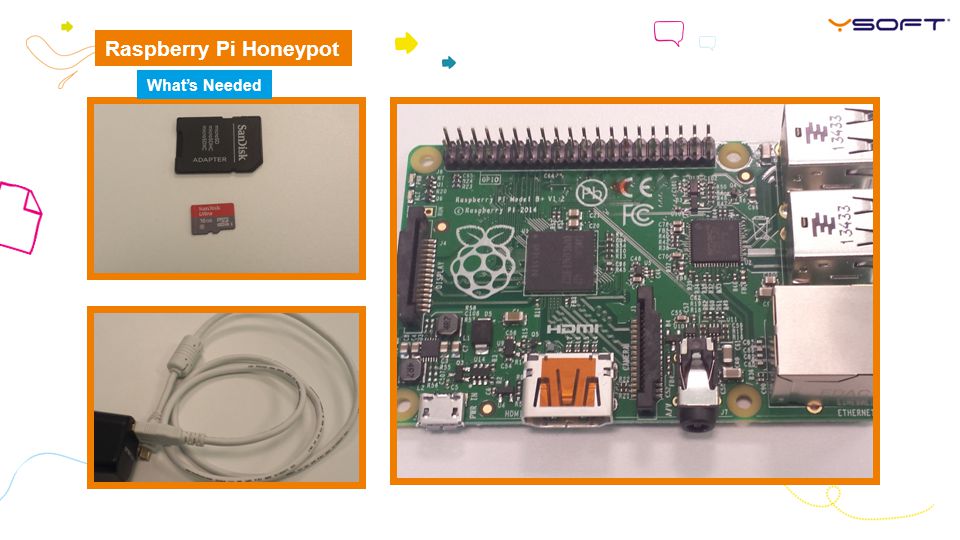

3. What’s Needed Raspberry Pi Honeypot

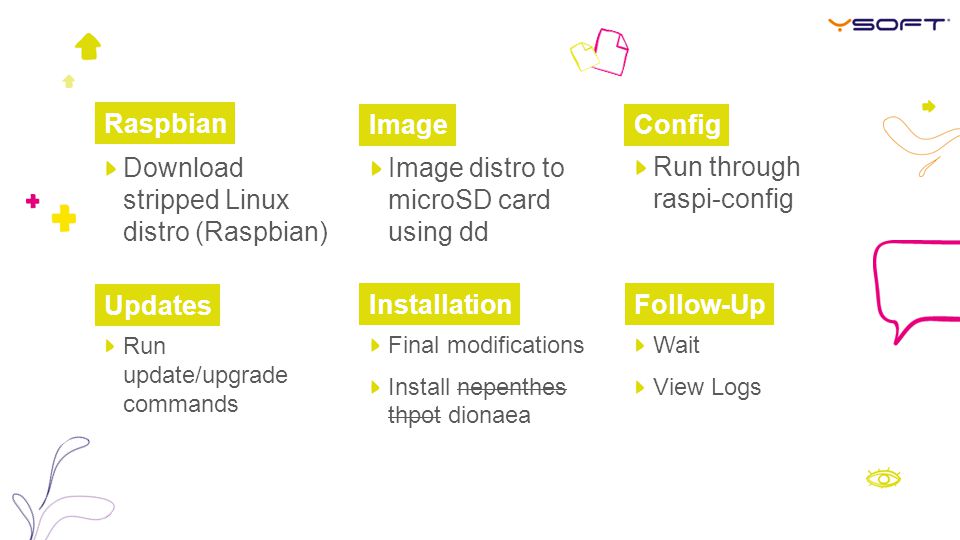

4. Raspbian Download stripped Linux distro (Raspbian) Image distro to microSD card using dd Run through raspi-config Run update/upgrade commands Final modifications Install nepenthes thpot dionaea Wait View Logs ImageConfig Updates Installation Follow-Up

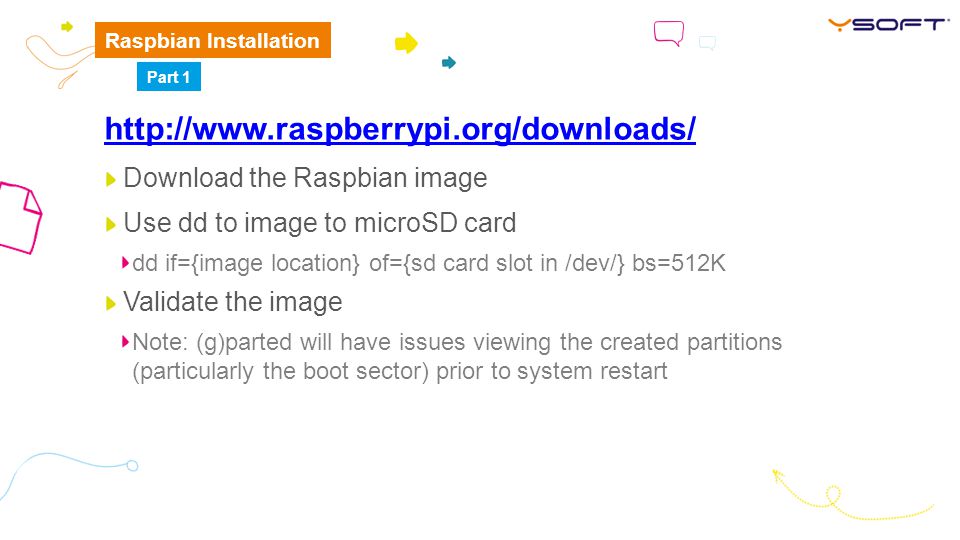

5. http://www.raspberrypi.org/downloads/ Download the Raspbian image Use dd to image to microSD card dd if={image location} of={sd card slot in /dev/} bs=512K Validate the image Note: (g)parted will have issues viewing the created partitions (particularly the boot sector) prior to system restart Part 1 Raspbian Installation

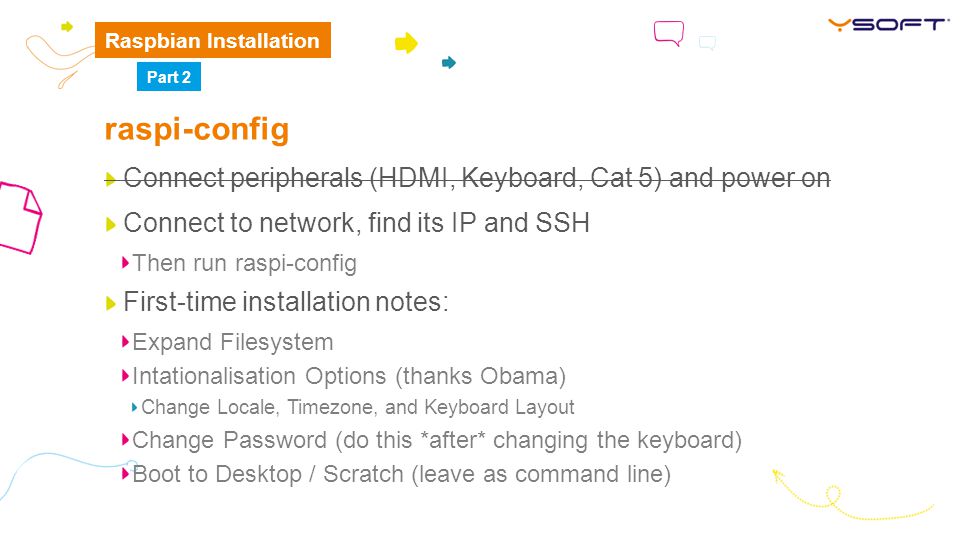

6. raspi-config Connect peripherals (HDMI, Keyboard, Cat 5) and power on Connect to network, find its IP and SSH Then run raspi-config First-time installation notes: Expand Filesystem Intationalisation Options (thanks Obama) Change Locale, Timezone, and Keyboard Layout Change Password (do this *after* changing the keyboard) Boot to Desktop / Scratch (leave as command line) Part 2 Raspbian Installation

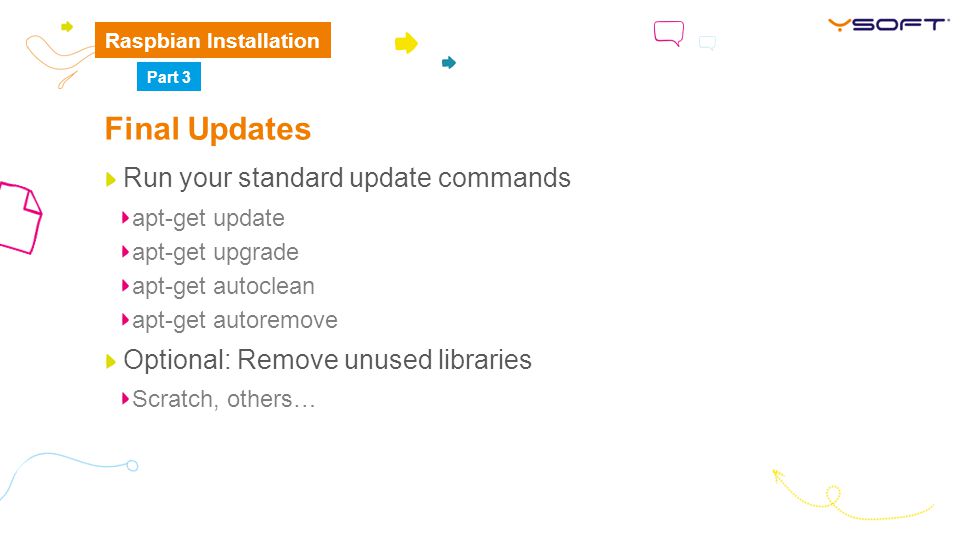

7. Final Updates Run your standard update commands apt-get update apt-get upgrade apt-get autoclean apt-get autoremove Optional: Remove unused libraries Scratch, others… Part 3 Raspbian Installation

8. Basic Steps # mkdir /var/log/hpot # chown nobody:nobody /var/log/hpot # chmod 700 /var/log/hpot #./iptables.rules # cp./xinetd.d/* /etc/xinetd.d/ # service portmap restart # pmap_set < /usr/local/thp/fakerpc # service xinetd restart Simple, low-configuration honeypot tinyhoneypot

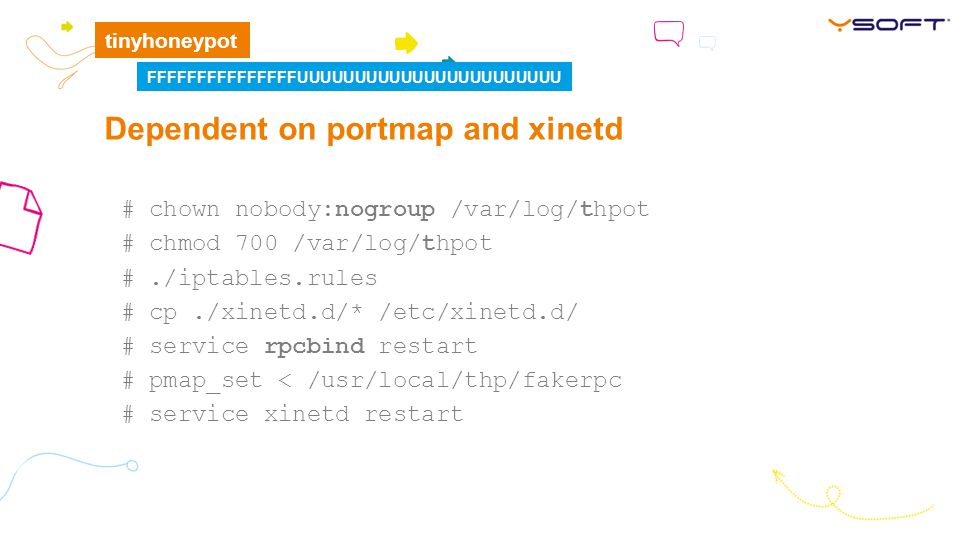

9. Dependent on portmap and xinetd # chown nobody:nogroup /var/log/thpot # chmod 700 /var/log/thpot #./iptables.rules # cp./xinetd.d/* /etc/xinetd.d/ # service rpcbind restart # pmap_set < /usr/local/thp/fakerpc # service xinetd restart FFFFFFFFFFFFFFFUUUUUUUUUUUUUUUUUUUUUUU tinyhoneypot

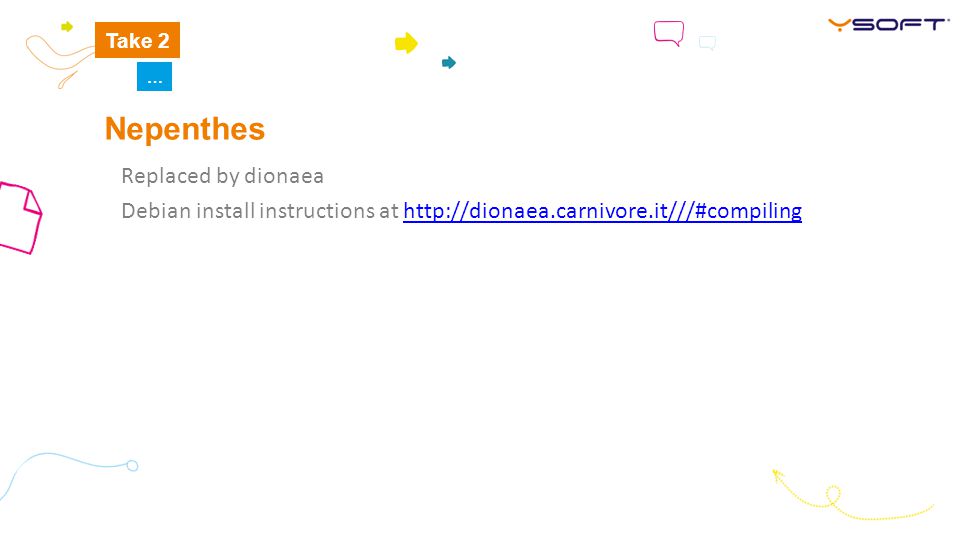

10. Nepenthes Replaced by dionaea Debian install instructions at http://dionaea.carnivore.it///#compilinghttp://dionaea.carnivore.it///#compiling … Take 2

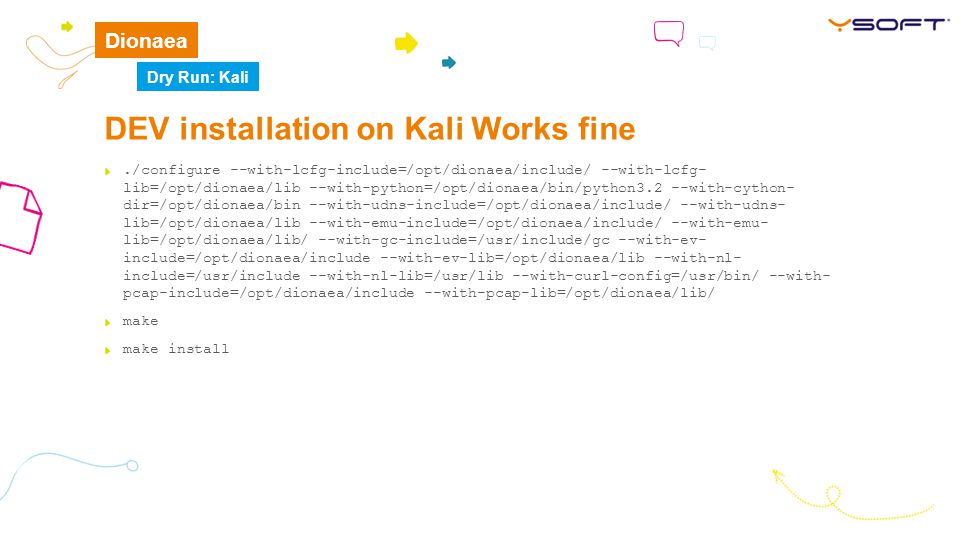

11. DEV installation on Kali Works fine./configure --with-lcfg-include=/opt/dionaea/include/ --with-lcfg- lib=/opt/dionaea/lib --with-python=/opt/dionaea/bin/python3.2 --with-cython- dir=/opt/dionaea/bin --with-udns-include=/opt/dionaea/include/ --with-udns- lib=/opt/dionaea/lib --with-emu-include=/opt/dionaea/include/ --with-emu- lib=/opt/dionaea/lib/ --with-gc-include=/usr/include/gc --with-ev- include=/opt/dionaea/include --with-ev-lib=/opt/dionaea/lib --with-nl- include=/usr/include --with-nl-lib=/usr/lib --with-curl-config=/usr/bin/ --with- pcap-include=/opt/dionaea/include --with-pcap-lib=/opt/dionaea/lib/ make make install Dry Run: Kali Dionaea

12. Raspbian Dionaea

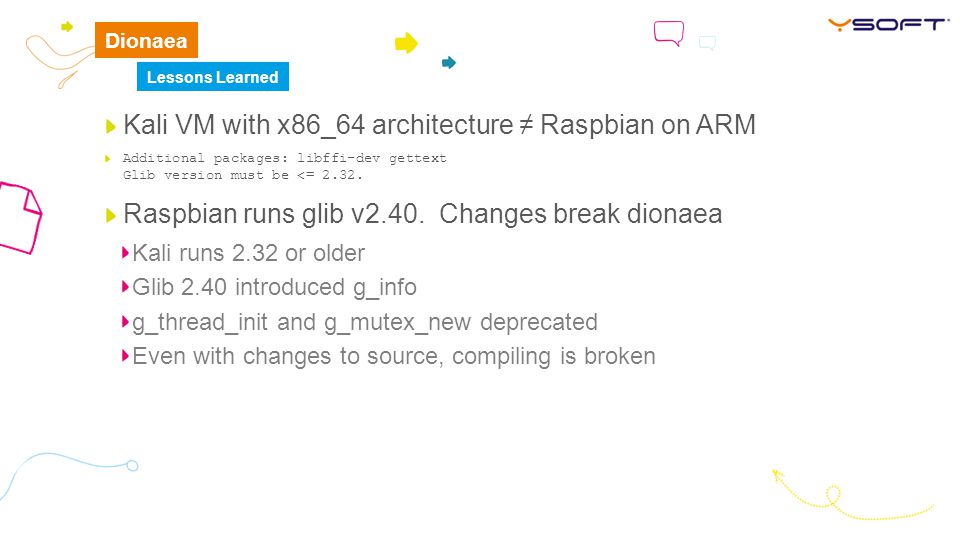

13. Kali VM with x86_64 architecture ≠ Raspbian on ARM Additional packages: libffi-dev gettext Glib version must be <= 2.32. Raspbian runs glib v2.40. Changes break dionaea Kali runs 2.32 or older Glib 2.40 introduced g_info g_thread_init and g_mutex_new deprecated Even with changes to source, compiling is broken Lessons Learned Dionaea

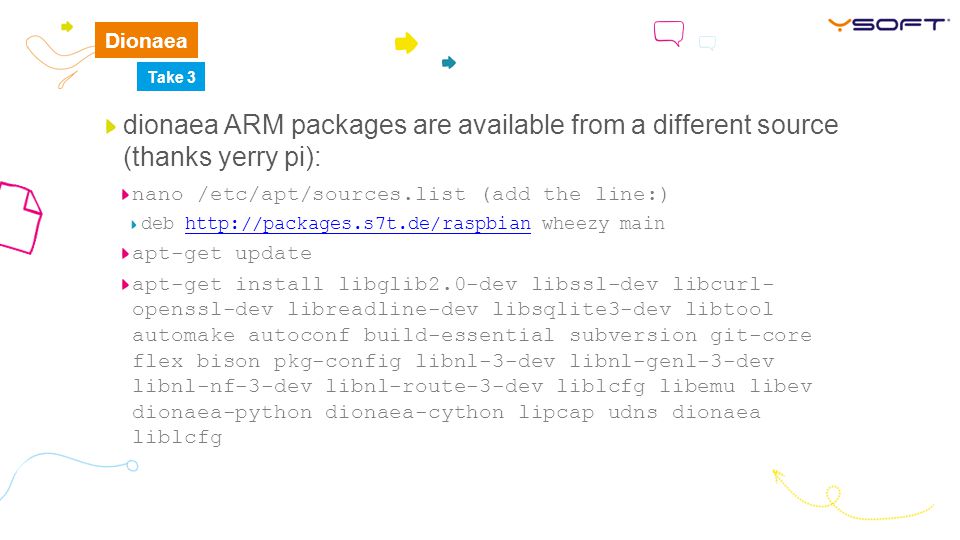

14. dionaea ARM packages are available from a different source (thanks yerry pi): nano /etc/apt/sources.list (add the line:) deb http://packages.s7t.de/raspbian wheezy mainhttp://packages.s7t.de/raspbian apt-get update apt-get install libglib2.0-dev libssl-dev libcurl- openssl-dev libreadline-dev libsqlite3-dev libtool automake autoconf build-essential subversion git-core flex bison pkg-config libnl-3-dev libnl-genl-3-dev libnl-nf-3-dev libnl-route-3-dev liblcfg libemu libev dionaea-python dionaea-cython lipcap udns dionaea liblcfg Take 3 Dionaea

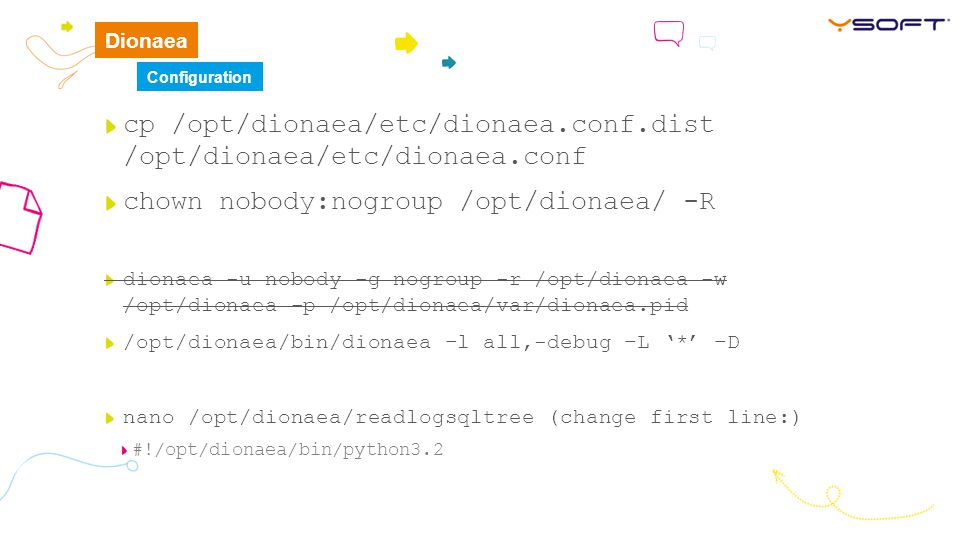

15. cp /opt/dionaea/etc/dionaea.conf.dist /opt/dionaea/etc/dionaea.conf chown nobody:nogroup /opt/dionaea/ -R dionaea -u nobody -g nogroup -r /opt/dionaea -w /opt/dionaea -p /opt/dionaea/var/dionaea.pid /opt/dionaea/bin/dionaea –l all,-debug –L ‘*’ –D nano /opt/dionaea/readlogsqltree (change first line:) #!/opt/dionaea/bin/python3.2 Configuration Dionaea

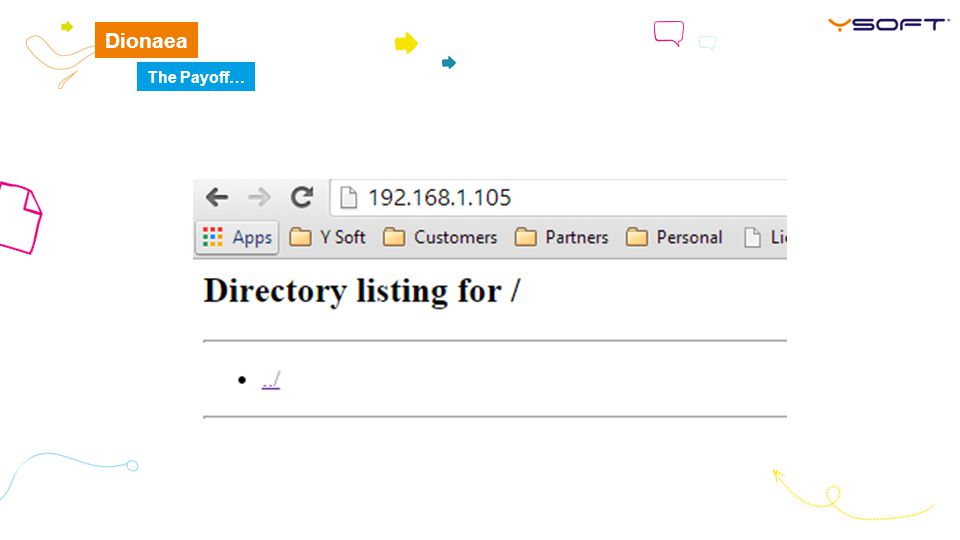

16. The Payoff… Dionaea

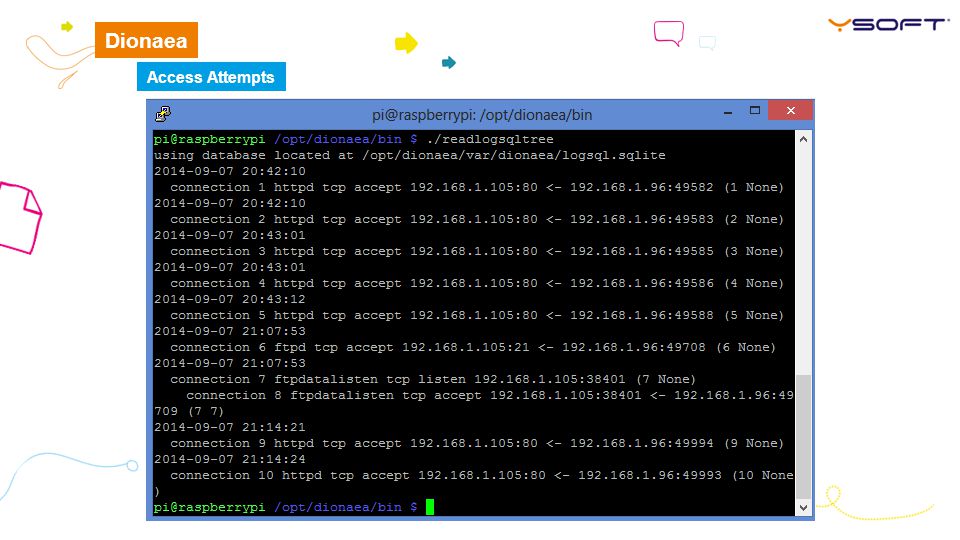

17. Access Attempts Dionaea

19. Technical: Found 3 rogue systems at work (with DEV Kali deployment alone) 2 in LAN, 1 at HQ First probe on PROD within 90 minutes of setting up. First active attack 14 hours later (mssql) Academic: Going the long way around, you’ll learn / remember more about C/C++ and makefiles than you wish you could Social: When playing Crash and Compile: 1) do it with your own sourcecode; 2) don’t try to beat your old score. Lessons Learned Dionaea

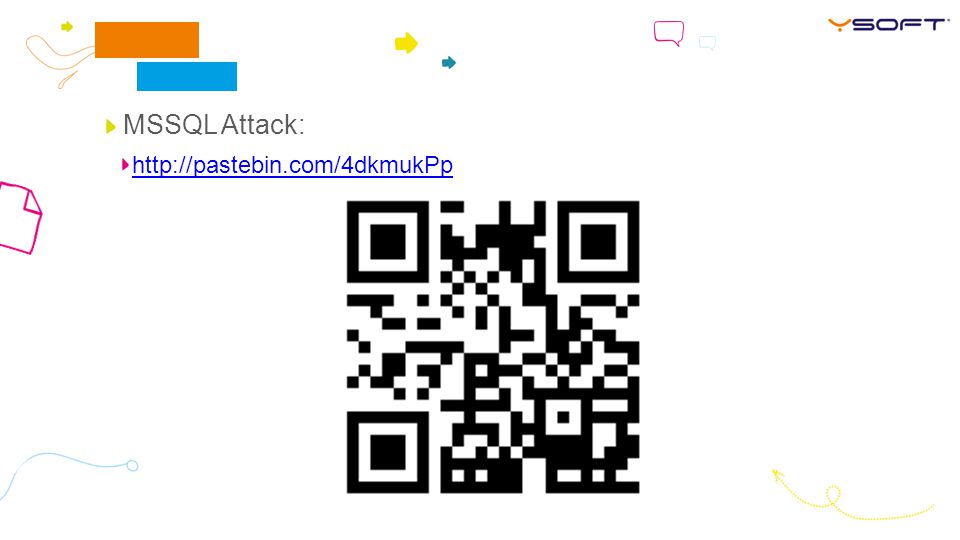

20. MSSQL Attack: http://pastebin.com/4dkmukPp

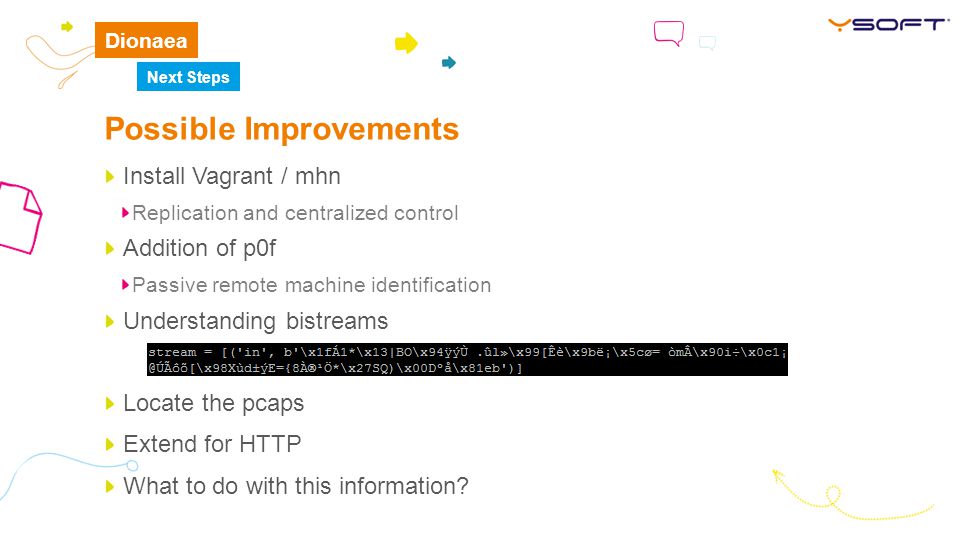

21. Possible Improvements Install Vagrant / mhn Replication and centralized control Addition of p0f Passive remote machine identification Understanding bistreams Locate the pcaps Extend for HTTP What to do with this information? Next Steps Dionaea

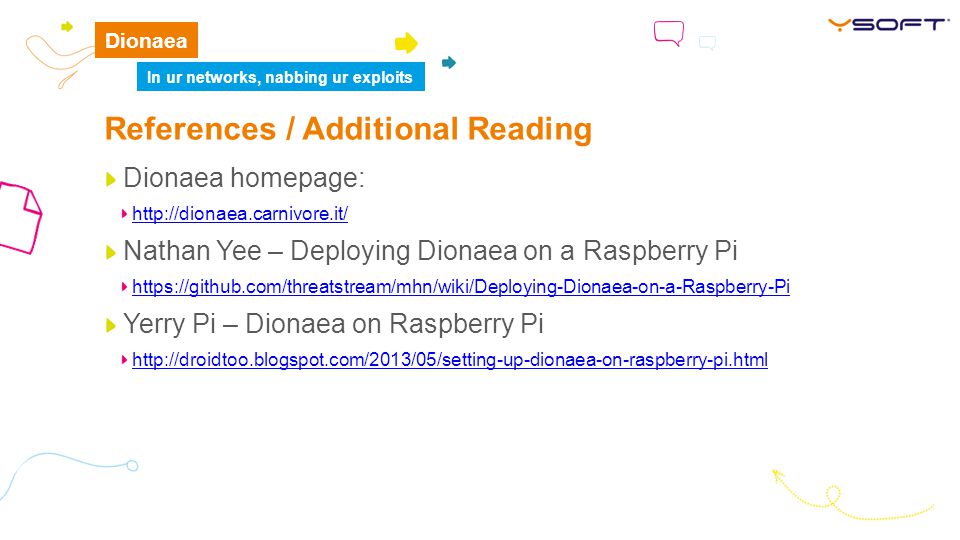

22. References / Additional Reading Dionaea homepage: http://dionaea.carnivore.it/ Nathan Yee – Deploying Dionaea on a Raspberry Pi https://github.com/threatstream/mhn/wiki/Deploying-Dionaea-on-a-Raspberry-Pi Yerry Pi – Dionaea on Raspberry Pi http://droidtoo.blogspot.com/2013/05/setting-up-dionaea-on-raspberry-pi.html In ur networks, nabbing ur exploits Dionaea

23. Questions?
