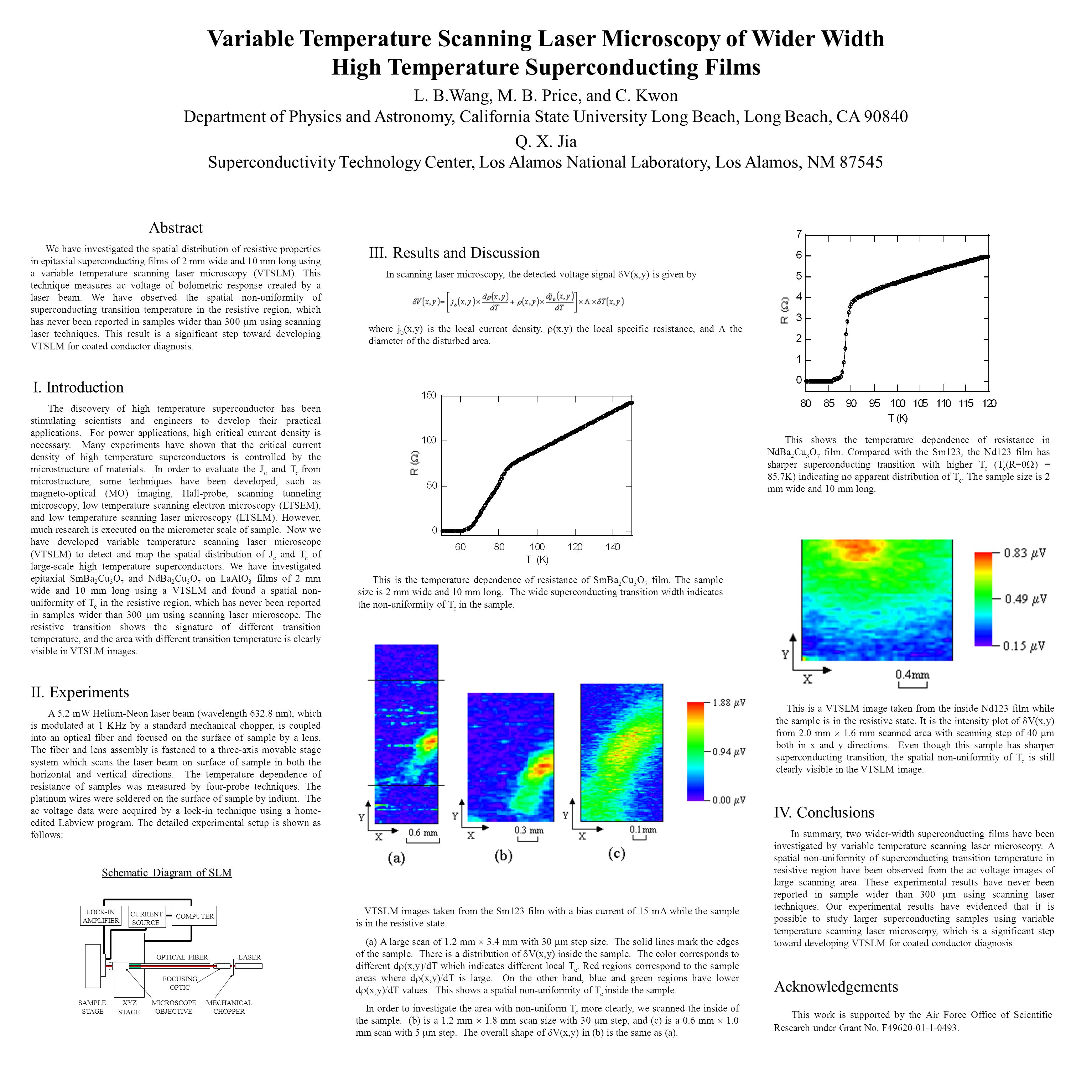

1 III. Results and Discussion In scanning laser microscopy, the detected voltage signal  V(x,y) is given by where j b (x,y) is the local current density,  (x,y) the local specific resistance, and  the diameter of the disturbed area. Variable Temperature Scanning Laser Microscopy of Wider Width High Temperature Superconducting Films L. B.Wang, M. B. Price, and C. Kwon Department of Physics and Astronomy, California State University Long Beach, Long Beach, CA 90840 Q. X. Jia Superconductivity Technology Center, Los Alamos National Laboratory, Los Alamos, NM 87545 Abstract We have investigated the spatial distribution of resistive properties in epitaxial superconducting films of 2 mm wide and 10 mm long using a variable temperature scanning laser microscopy (VTSLM). This technique measures ac voltage of bolometric response created by a laser beam. We have observed the spatial non-uniformity of superconducting transition temperature in the resistive region, which has never been reported in samples wider than 300  m using scanning laser techniques. This result is a significant step toward developing VTSLM for coated conductor diagnosis. I. Introduction The discovery of high temperature superconductor has been stimulating scientists and engineers to develop their practical applications. For power applications, high critical current density is necessary. Many experiments have shown that the critical current density of high temperature superconductors is controlled by the microstructure of materials. In order to evaluate the J c and T c from microstructure, some techniques have been developed, such as magneto-optical (MO) imaging, Hall-probe, scanning tunneling microscopy, low temperature scanning electron microscopy (LTSEM), and low temperature scanning laser microscopy (LTSLM). However, much research is executed on the micrometer scale of sample. Now we have developed variable temperature scanning laser microscope (VTSLM) to detect and map the spatial distribution of J c and T c of large-scale high temperature superconductors. We have investigated epitaxial SmBa 2 Cu 3 O 7 and NdBa 2 Cu 3 O 7 on LaAlO 3 films of 2 mm wide and 10 mm long using a VTSLM and found a spatial non- uniformity of T c in the resistive region, which has never been reported in samples wider than 300  m using scanning laser microscope. The resistive transition shows the signature of different transition temperature, and the area with different transition temperature is clearly visible in VTSLM images. II. Experiments A 5.2 mW Helium-Neon laser beam (wavelength 632.8 nm), which is modulated at 1 KHz by a standard mechanical chopper, is coupled into an optical fiber and focused on the surface of sample by a lens. The fiber and lens assembly is fastened to a three-axis movable stage system which scans the laser beam on surface of sample in both the horizontal and vertical directions. The temperature dependence of resistance of samples was measured by four-probe techniques. The platinum wires were soldered on the surface of sample by indium. The ac voltage data were acquired by a lock-in technique using a home- edited Labview program. The detailed experimental setup is shown as follows: Acknowledgements This work is supported by the Air Force Office of Scientific Research under Grant No. F49620-01-1-0493. VTSLM images taken from the Sm123 film with a bias current of 15 mA while the sample is in the resistive state. (a) A large scan of 1.2 mm  3.4 mm with 30  m step size. The solid lines mark the edges of the sample. There is a distribution of  V(x,y) inside the sample. The color corresponds to different d  (x,y)/dT which indicates different local T c. Red regions correspond to the sample areas where d  (x,y)/dT is large. On the other hand, blue and green regions have lower d  (x,y)/dT values. This shows a spatial non-uniformity of T c inside the sample. In order to investigate the area with non-uniform T c more clearly, we scanned the inside of the sample. (b) is a 1.2 mm  1.8 mm scan size with 30  m step, and (c) is a 0.6 mm  1.0 mm scan with 5  m step. The overall shape of  V(x,y) in (b) is the same as (a). This shows the temperature dependence of resistance in NdBa 2 Cu 3 O 7 film. Compared with the Sm123, the Nd123 film has sharper superconducting transition with higher T c (T c (R=0  ) = 85.7K) indicating no apparent distribution of T c. The sample size is 2 mm wide and 10 mm long. This is a VTSLM image taken from the inside Nd123 film while the sample is in the resistive state. It is the intensity plot of  V(x,y) from 2.0 mm  1.6 mm scanned area with scanning step of 40  m both in x and y directions. Even though this sample has sharper superconducting transition, the spatial non-uniformity of T c is still clearly visible in the VTSLM image. IV. Conclusions In summary, two wider-width superconducting films have been investigated by variable temperature scanning laser microscopy. A spatial non-uniformity of superconducting transition temperature in resistive region have been observed from the ac voltage images of large scanning area. These experimental results have never been reported in sample wider than 300  m using scanning laser techniques. Our experimental results have evidenced that it is possible to study larger superconducting samples using variable temperature scanning laser microscopy, which is a significant step toward developing VTSLM for coated conductor diagnosis. This is the temperature dependence of resistance of SmBa 2 Cu 3 O 7 film. The sample size is 2 mm wide and 10 mm long. The wide superconducting transition width indicates the non-uniformity of T c in the sample. Schematic Diagram of SLM XYZ STAGE SAMPLE STAGE MICROSCOPE OBJECTIVE MECHANICAL CHOPPER OPTICAL FIBER FOCUSING OPTIC LASER COMPUTER CURRENT SOURCE LOCK-IN AMPLIFIER
