1. Composting of Municipal Solid Waste (MSW) Caitriona Gaffney Deirdre Mulchrone Teresa Conway

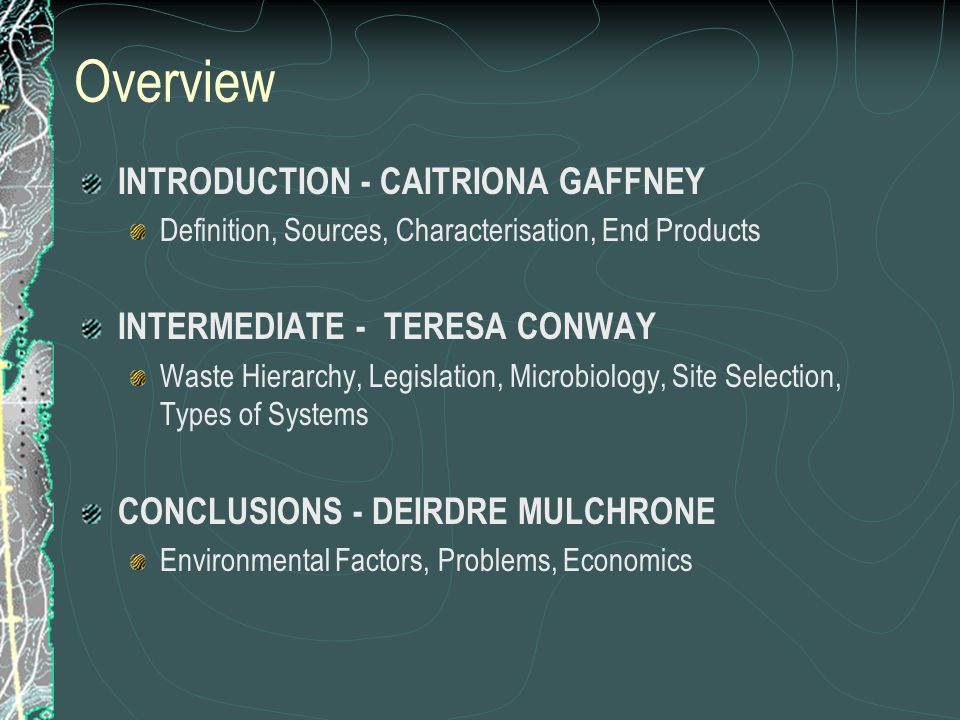

2. Overview INTRODUCTION - CAITRIONA GAFFNEY Definition, Sources, Characterisation, End Products INTERMEDIATE - TERESA CONWAY Waste Hierarchy, Legislation, Microbiology, Site Selection, Types of Systems CONCLUSIONS - DEIRDRE MULCHRONE Environmental Factors, Problems, Economics

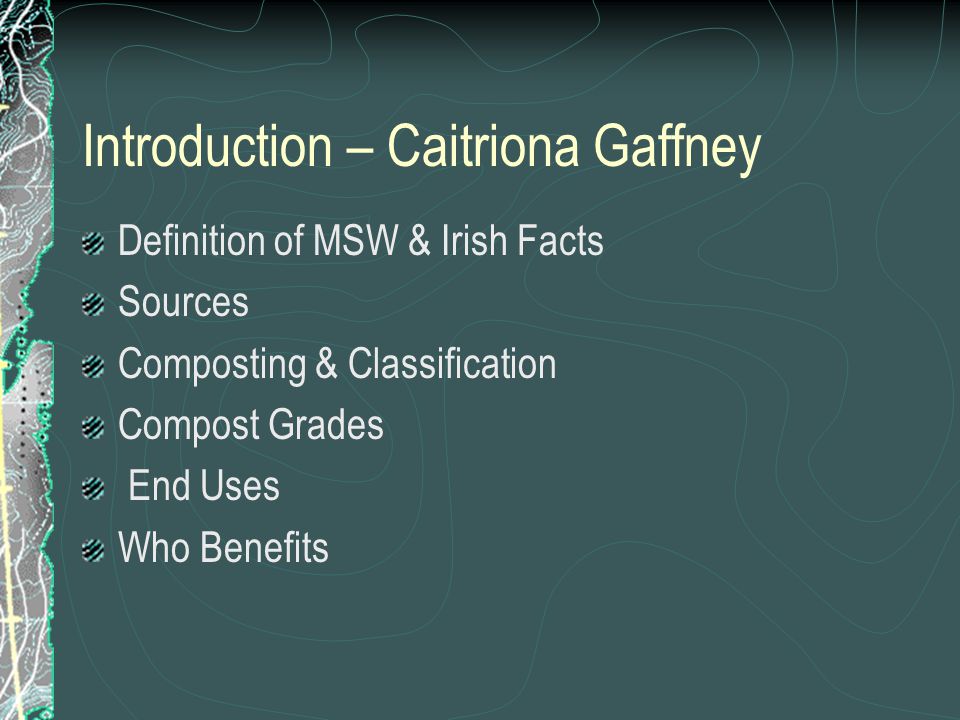

3. Introduction – Caitriona Gaffney Definition of MSW & Irish Facts Sources Composting & Classification Compost Grades End Uses Who Benefits

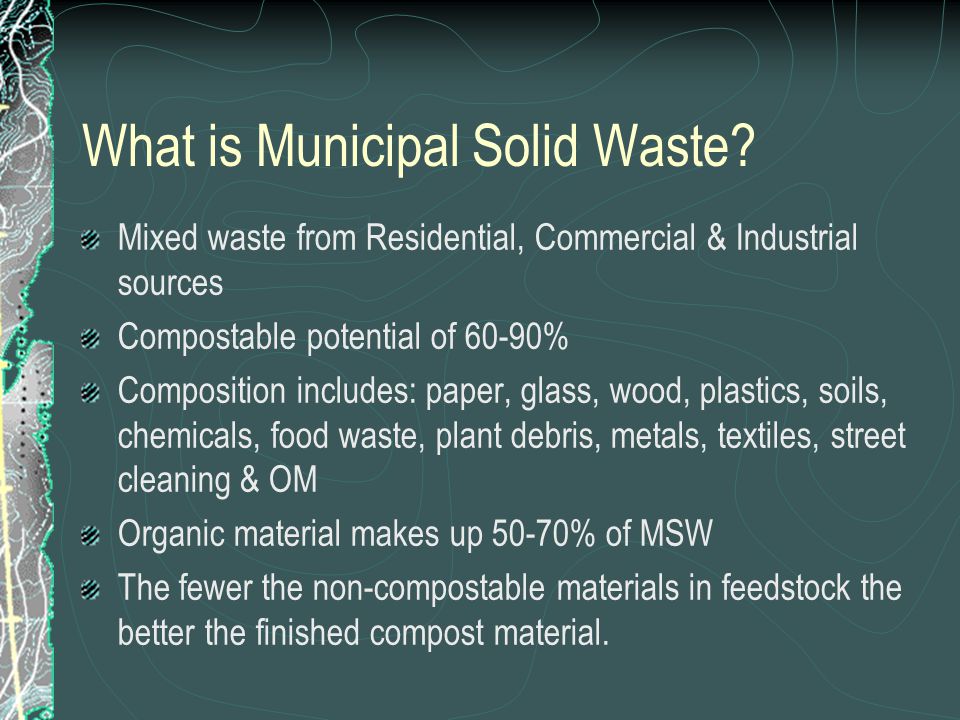

4. What is Municipal Solid Waste? Mixed waste from Residential, Commercial & Industrial sources Compostable potential of 60-90% Composition includes: paper, glass, wood, plastics, soils, chemicals, food waste, plant debris, metals, textiles, street cleaning & OM Organic material makes up 50-70% of MSW The fewer the non-compostable materials in feedstock the better the finished compost material.

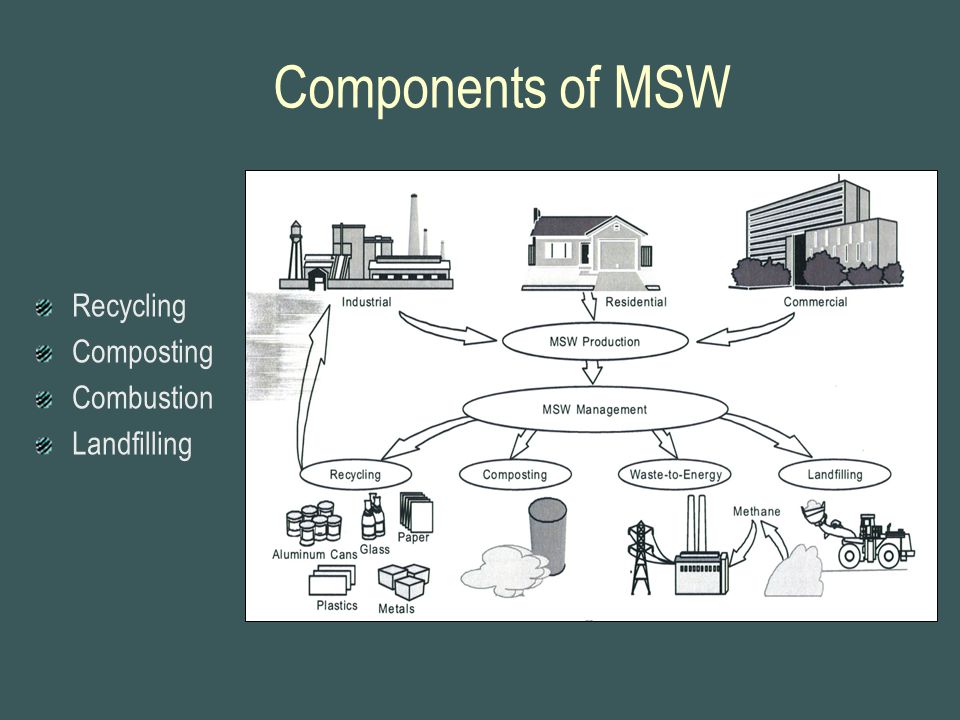

5. Components of MSW Recycling Composting Combustion Landfilling

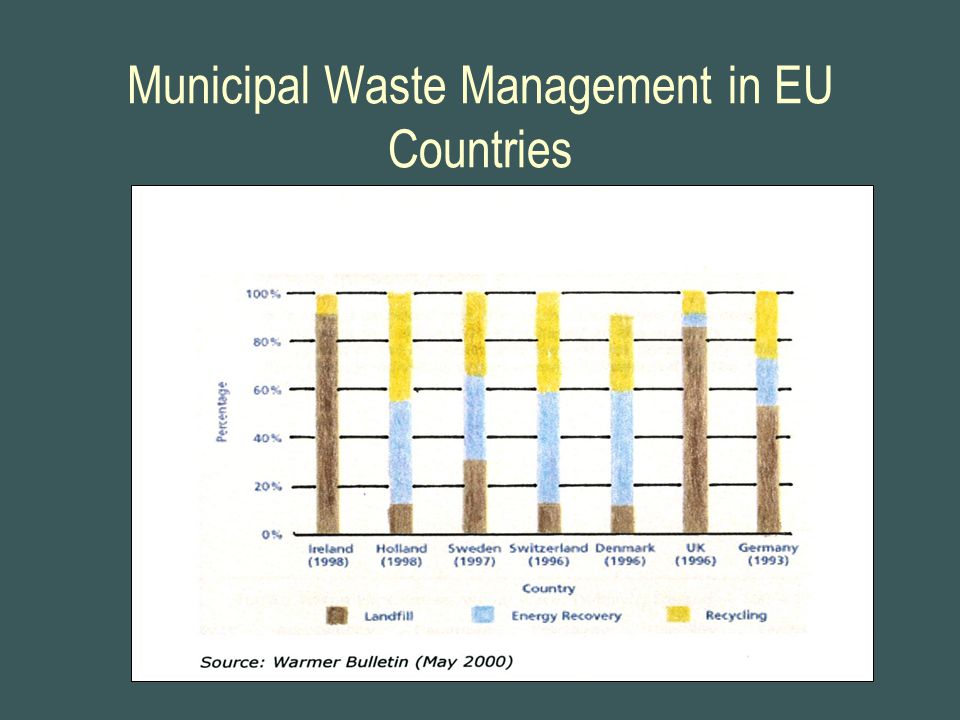

6. Municipal Waste Management in EU Countries

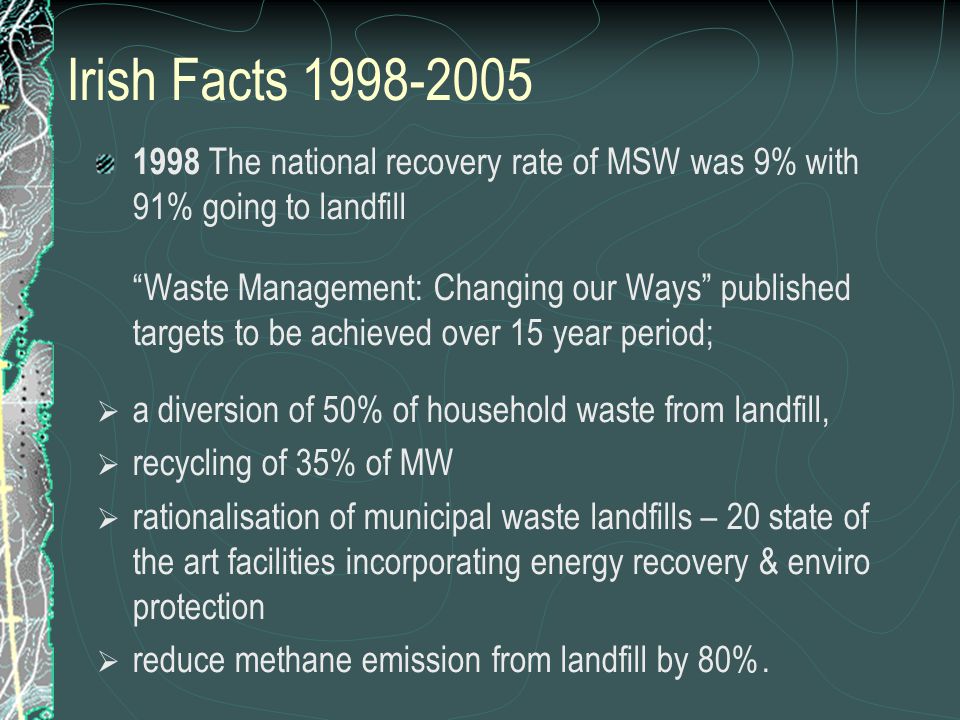

7. Irish Facts 1998-2005 1998 The national recovery rate of MSW was 9% with 91% going to landfill “Waste Management: Changing our Ways” published targets to be achieved over 15 year period;  a diversion of 50% of household waste from landfill,  recycling of 35% of MW  rationalisation of municipal waste landfills – 20 state of the art facilities incorporating energy recovery & enviro protection  reduce methane emission from landfill by 80%.

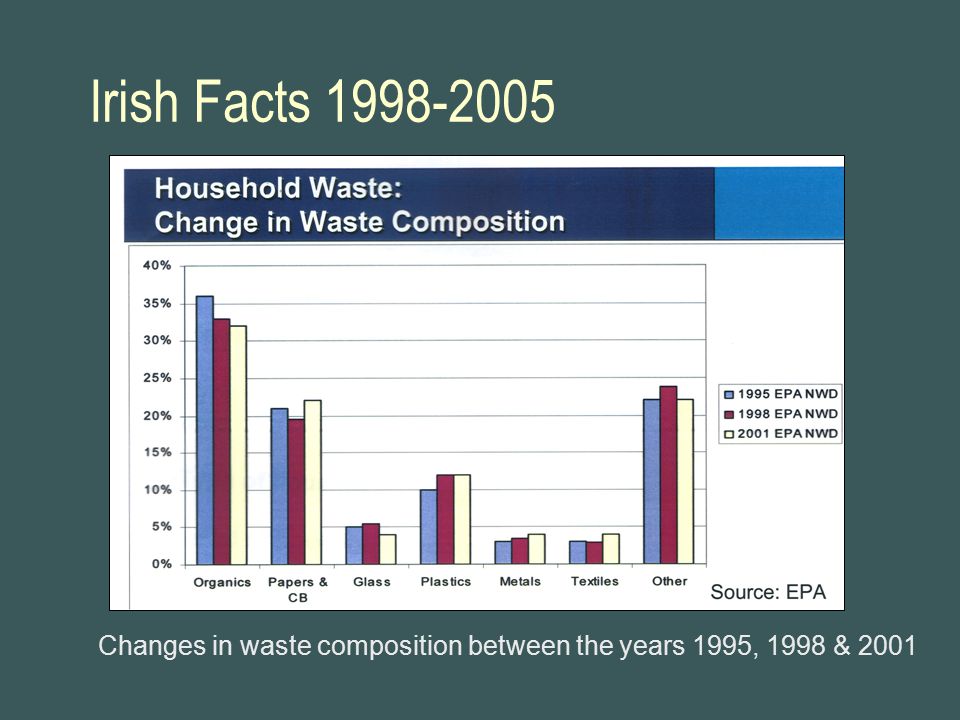

8. Irish Facts 1998-2005 Changes in waste composition between the years 1995, 1998 & 2001

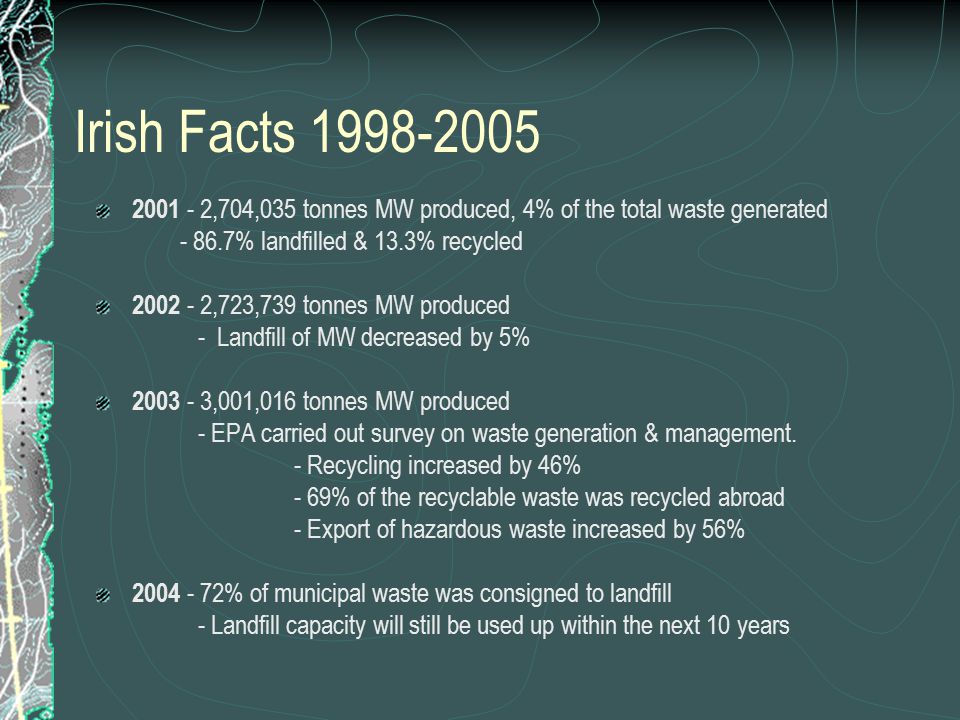

9. Irish Facts 1998-2005 2001 - 2,704,035 tonnes MW produced, 4% of the total waste generated - 86.7% landfilled & 13.3% recycled 2002 - 2,723,739 tonnes MW produced - Landfill of MW decreased by 5% 2003 - 3,001,016 tonnes MW produced - EPA carried out survey on waste generation & management. - Recycling increased by 46% - 69% of the recyclable waste was recycled abroad - Export of hazardous waste increased by 56% 2004 - 72% of municipal waste was consigned to landfill - Landfill capacity will still be used up within the next 10 years

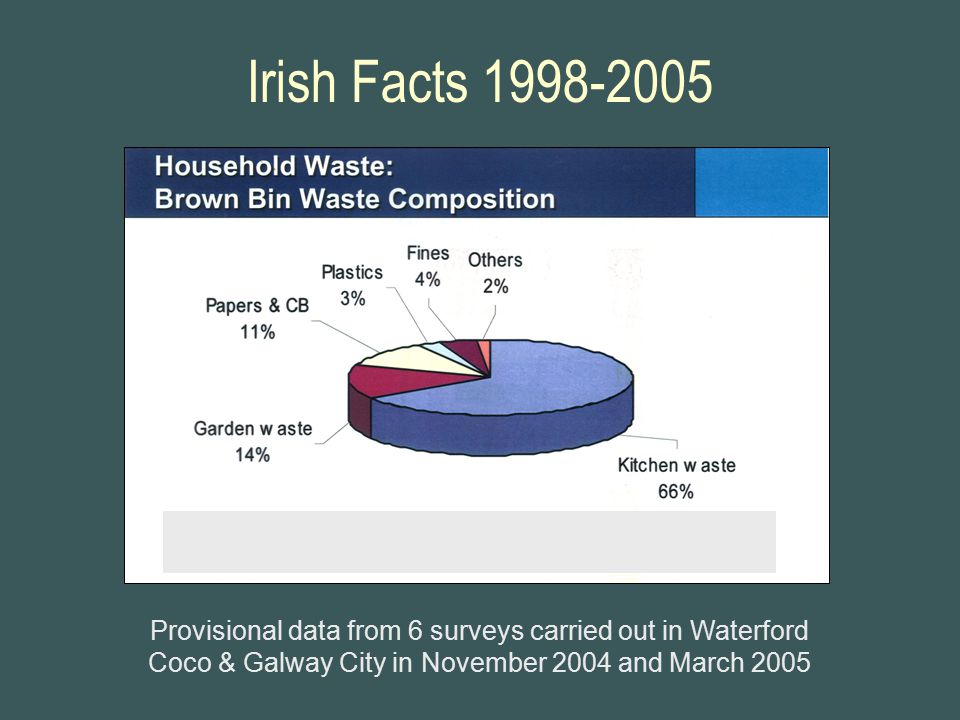

10. Irish Facts 1998-2005 Provisional data from 6 surveys carried out in Waterford Coco & Galway City in November 2004 and March 2005

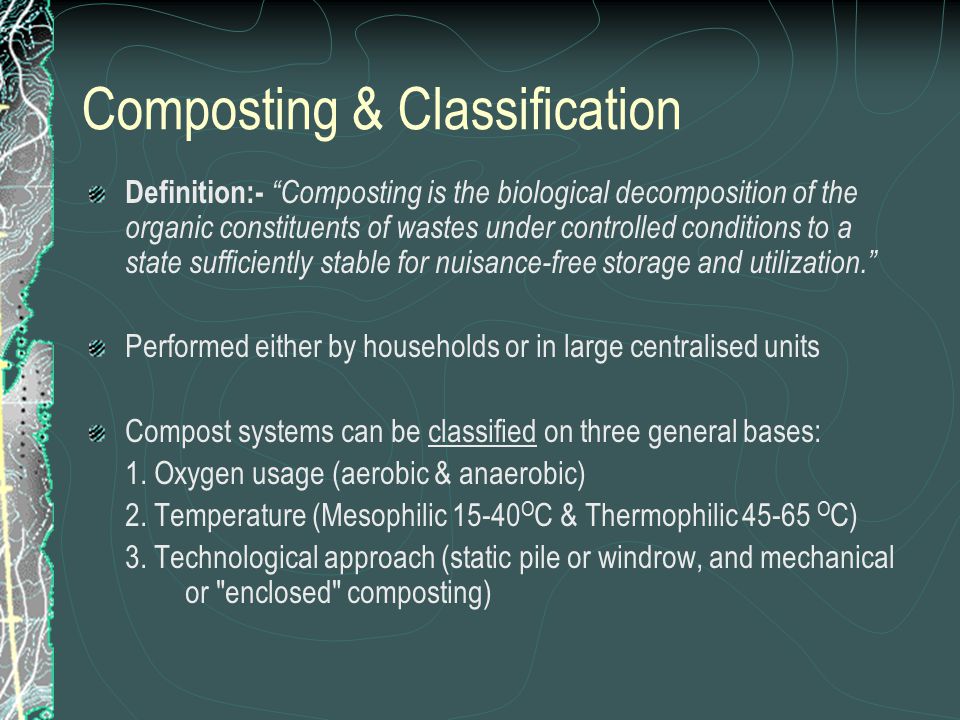

11. Composting & Classification Definition:- “Composting is the biological decomposition of the organic constituents of wastes under controlled conditions to a state sufficiently stable for nuisance-free storage and utilization.” Performed either by households or in large centralised units Compost systems can be classified on three general bases: 1. Oxygen usage (aerobic & anaerobic) 2. Temperature (Mesophilic 15-40 O C & Thermophilic 45-65 O C) 3. Technological approach (static pile or windrow, and mechanical or "enclosed" composting)

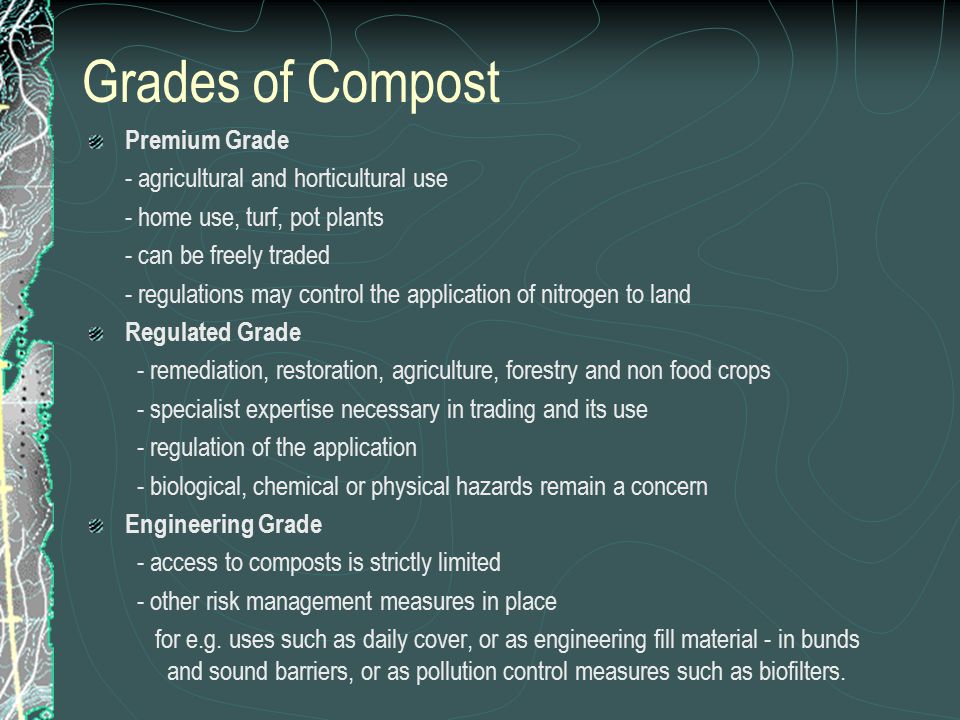

12. Grades of Compost Premium Grade - agricultural and horticultural use - home use, turf, pot plants - can be freely traded - regulations may control the application of nitrogen to land Regulated Grade - remediation, restoration, agriculture, forestry and non food crops - specialist expertise necessary in trading and its use - regulation of the application - biological, chemical or physical hazards remain a concern Engineering Grade - access to composts is strictly limited - other risk management measures in place for e.g. uses such as daily cover, or as engineering fill material - in bunds and sound barriers, or as pollution control measures such as biofilters.

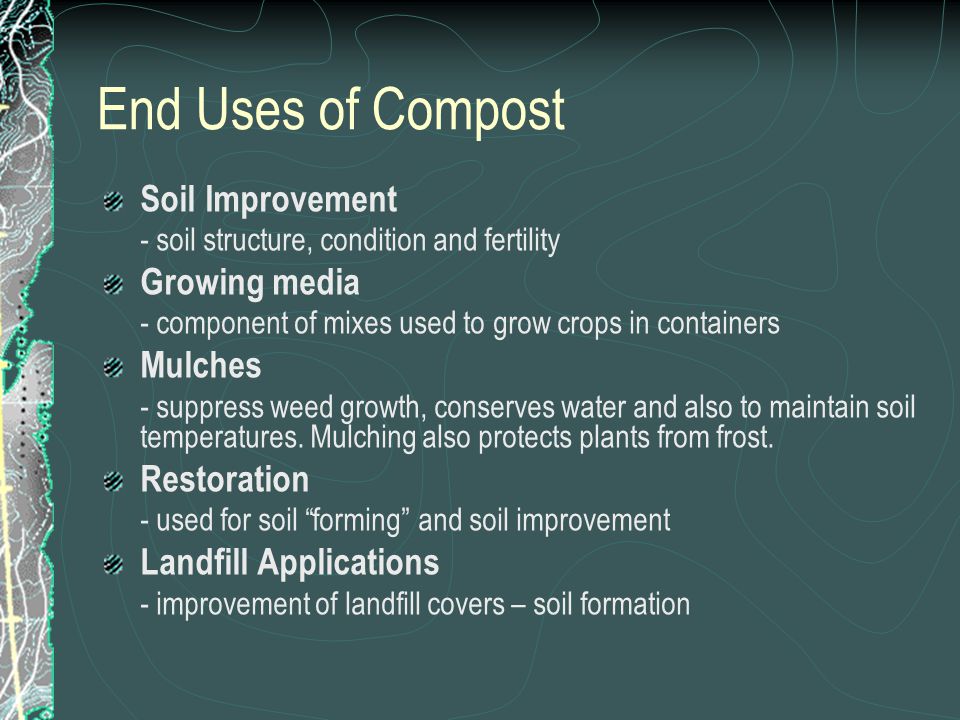

13. End Uses of Compost Soil Improvement - soil structure, condition and fertility Growing media - component of mixes used to grow crops in containers Mulches - suppress weed growth, conserves water and also to maintain soil temperatures. Mulching also protects plants from frost. Restoration - used for soil “forming” and soil improvement Landfill Applications - improvement of landfill covers – soil formation

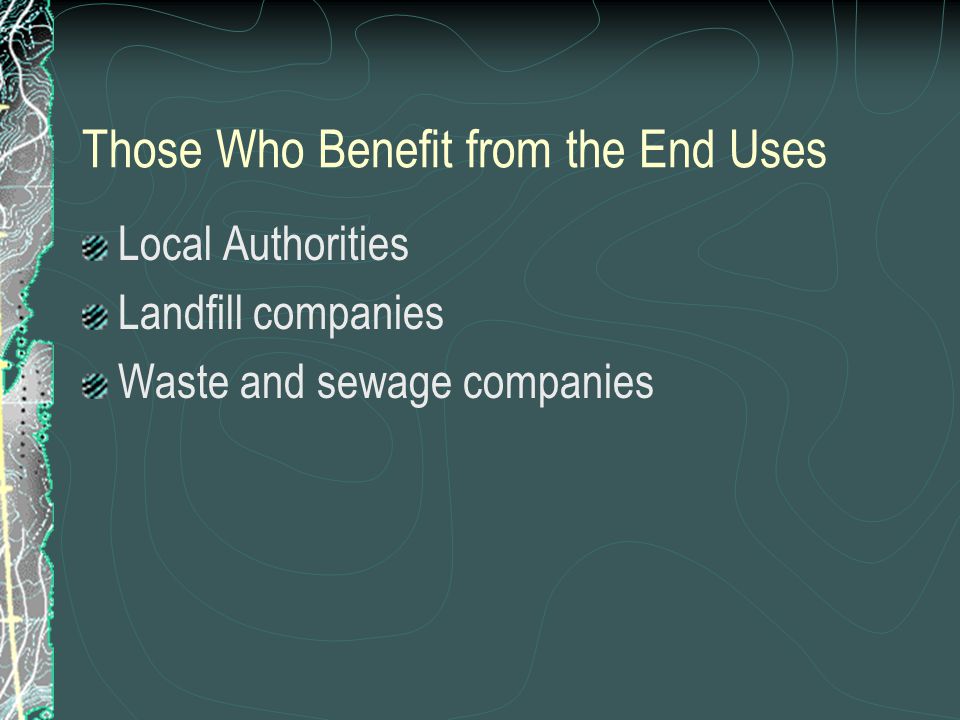

14. Local Authorities Landfill companies Waste and sewage companies Those Who Benefit from the End Uses

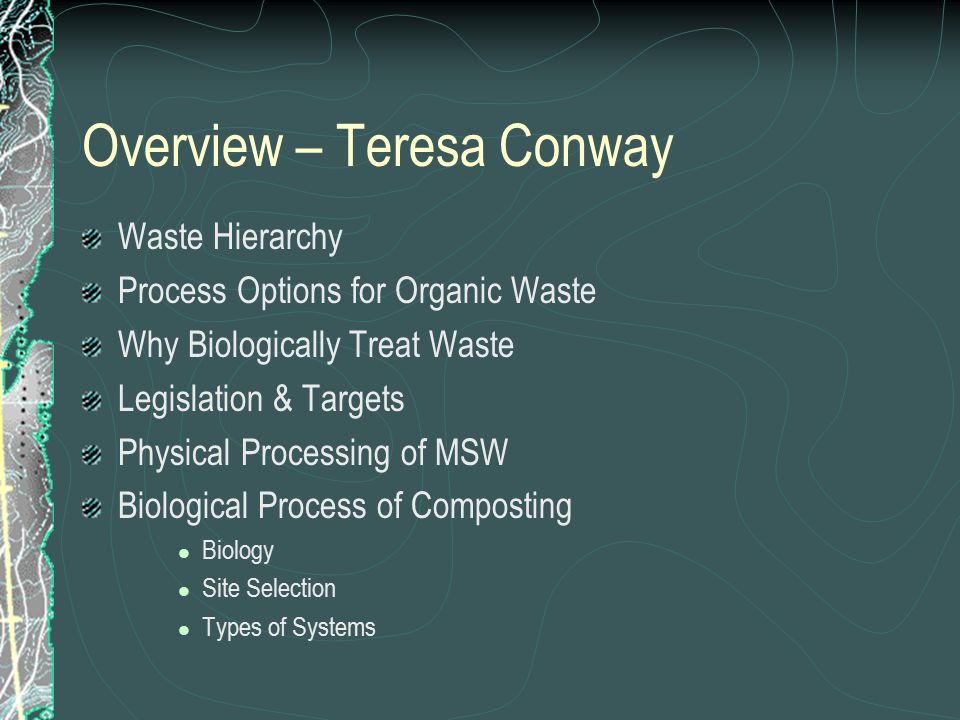

15. Overview – Teresa Conway Waste Hierarchy Process Options for Organic Waste Why Biologically Treat Waste Legislation & Targets Physical Processing of MSW Biological Process of Composting Biology Site Selection Types of Systems

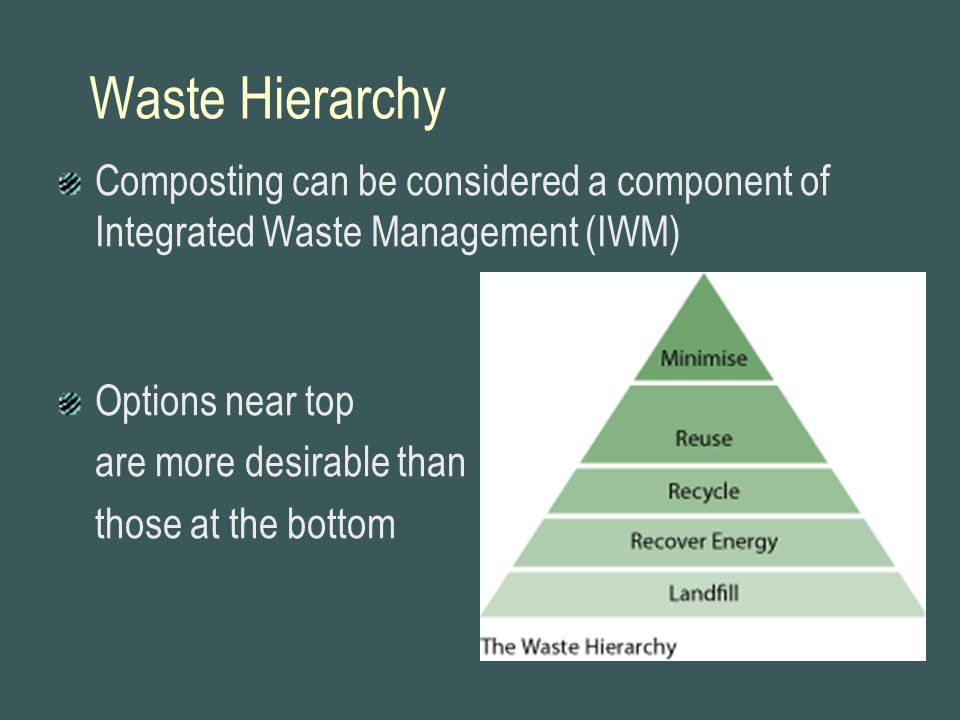

16. Waste Hierarchy Composting can be considered a component of Integrated Waste Management (IWM) Options near top are more desirable than those at the bottom

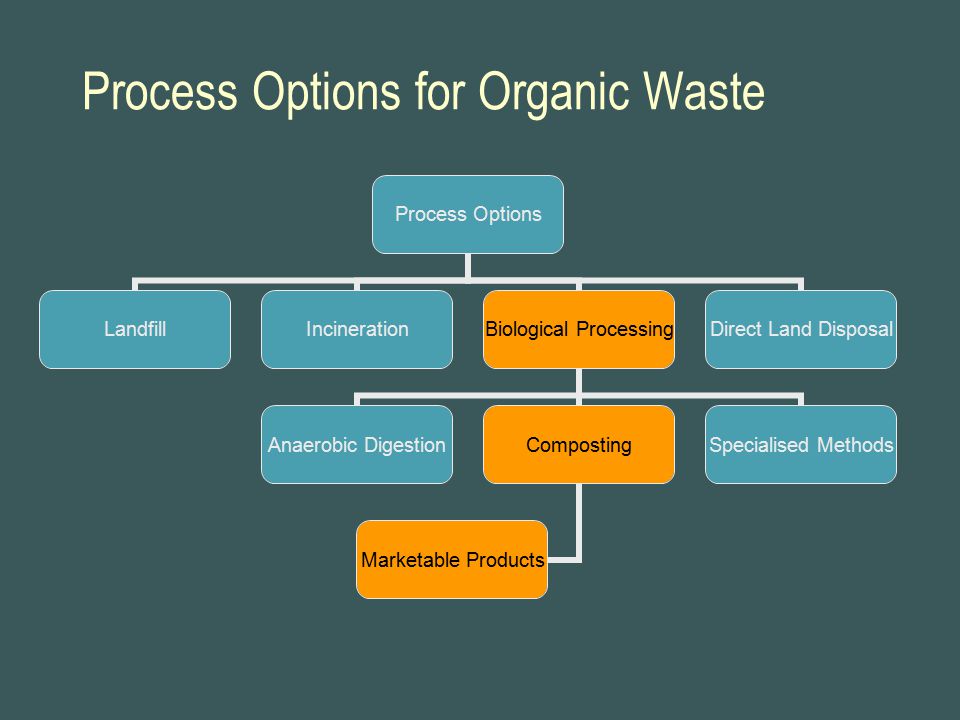

17. Process Options for Organic Waste Process Options LandfillIncineration Biological Processing Anaerobic Digestion Composting Marketable Products Specialised Methods Direct Land Disposal

18. Why Biologically Treat MSW? Reduces waste going to landfill Estimated to be 10 years’ remaining landfill capacity available for municipal waste (Nationally in 2004) Could be the first step in Ireland meeting its waste challenge

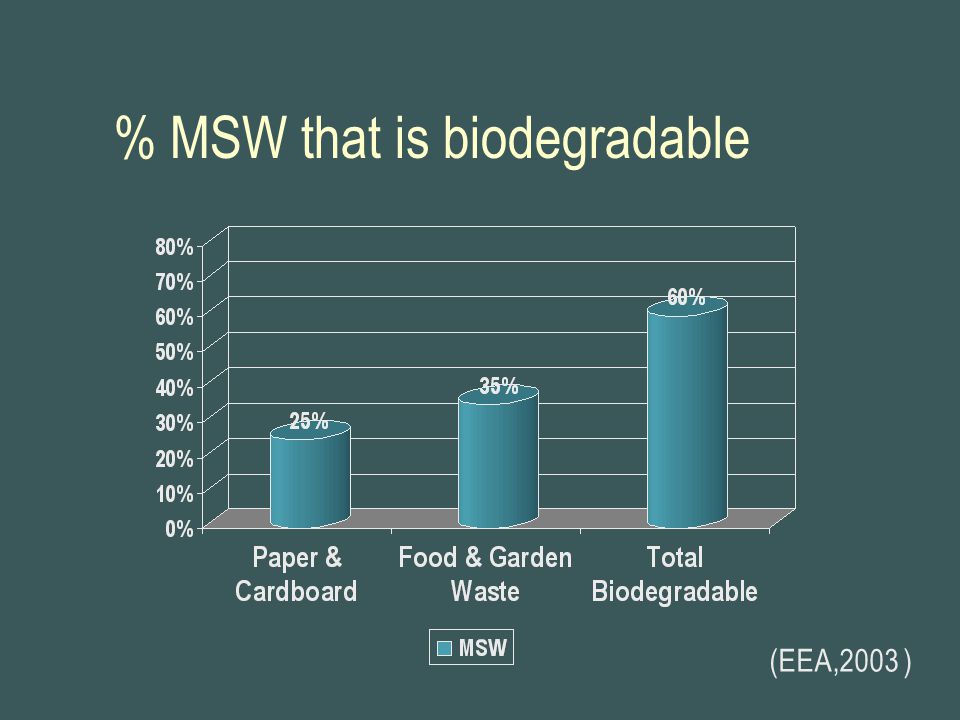

19. % MSW that is biodegradable (EEA,2003 )

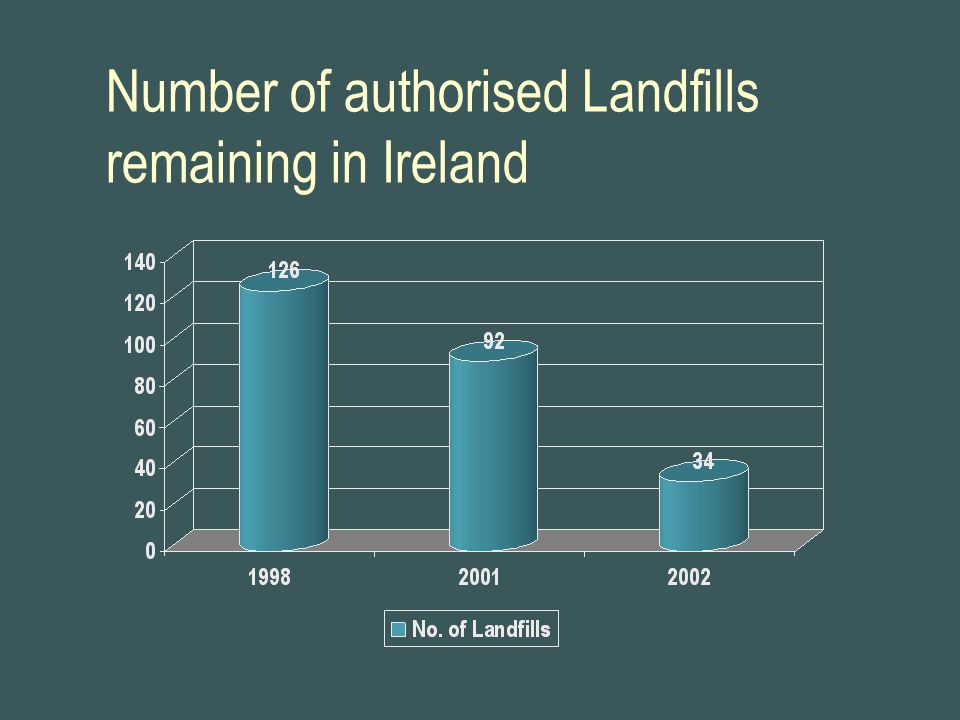

20. Number of authorised Landfills remaining in Ireland

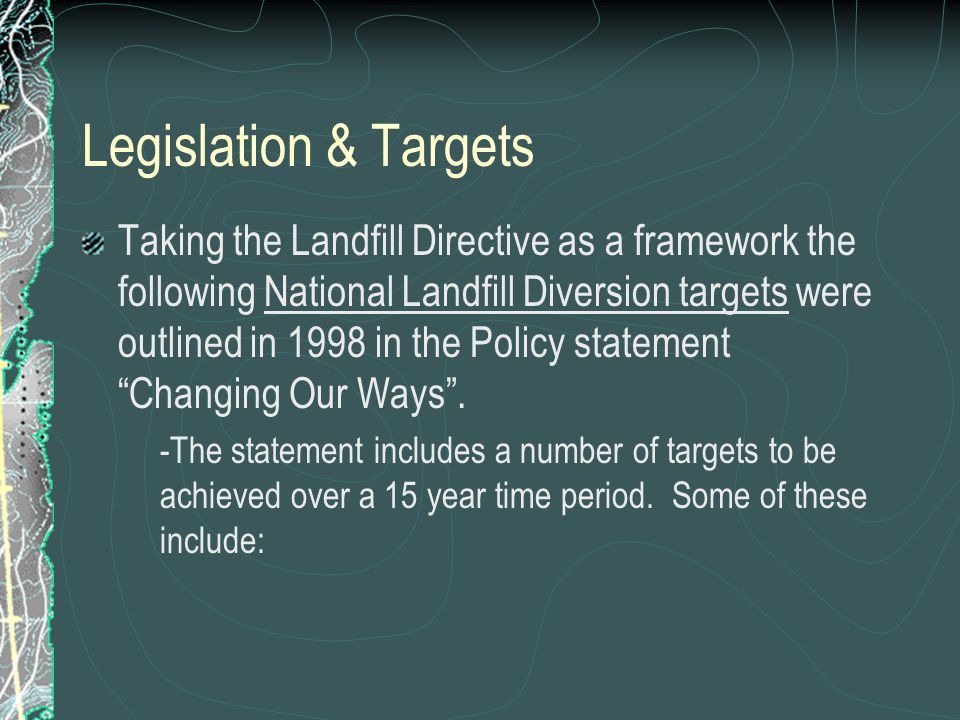

21. Taking the Landfill Directive as a framework the following National Landfill Diversion targets were outlined in 1998 in the Policy statement “Changing Our Ways”. -The statement includes a number of targets to be achieved over a 15 year time period. Some of these include: Legislation & Targets

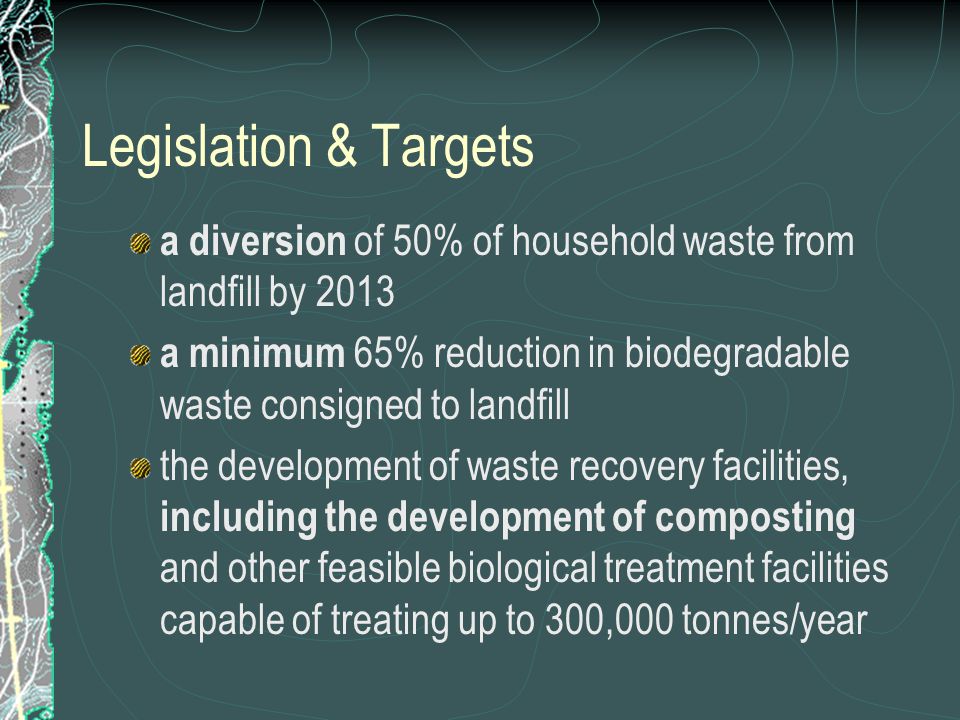

22. a diversion of 50% of household waste from landfill by 2013 a minimum 65% reduction in biodegradable waste consigned to landfill the development of waste recovery facilities, including the development of composting and other feasible biological treatment facilities capable of treating up to 300,000 tonnes/year Legislation & Targets

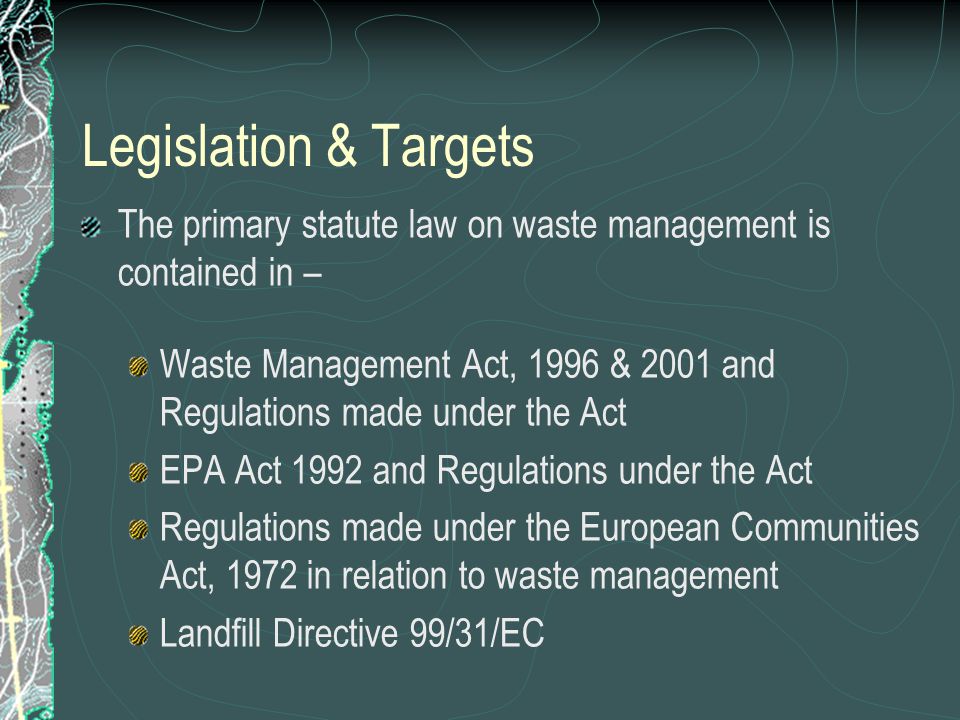

23. The primary statute law on waste management is contained in – Waste Management Act, 1996 & 2001 and Regulations made under the Act EPA Act 1992 and Regulations under the Act Regulations made under the European Communities Act, 1972 in relation to waste management Landfill Directive 99/31/EC Legislation & Targets

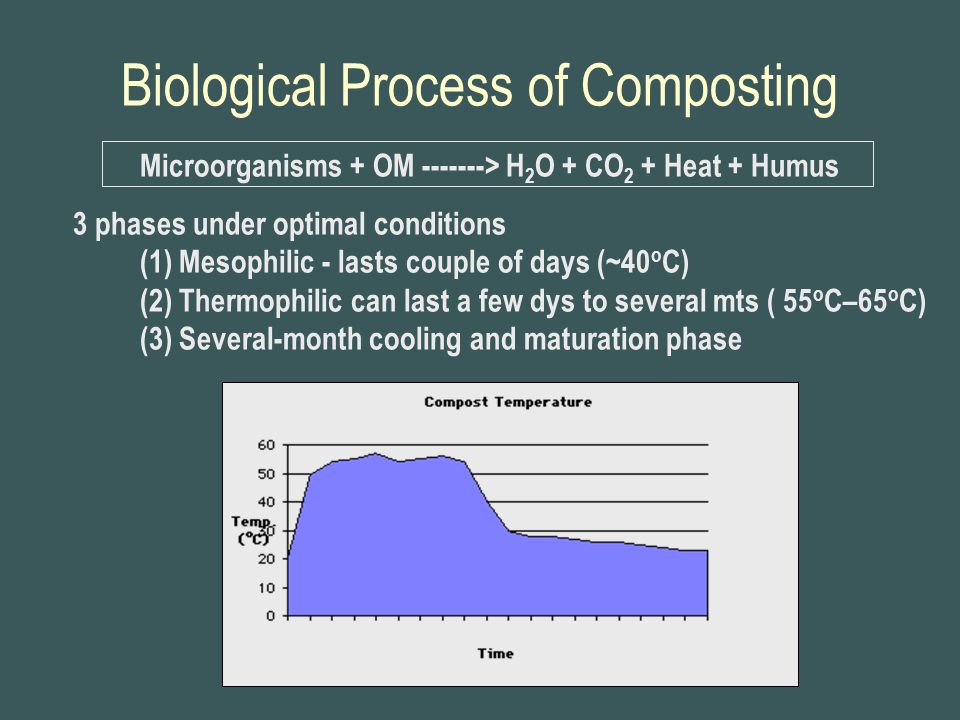

24. Biological Process of Composting Microorganisms + OM -------> H 2 O + CO 2 + Heat + Humus 3 phases under optimal conditions (1) Mesophilic - lasts couple of days (~40 o C) (2) Thermophilic can last a few dys to several mts ( 55 o C–65 o C) (3) Several-month cooling and maturation phase

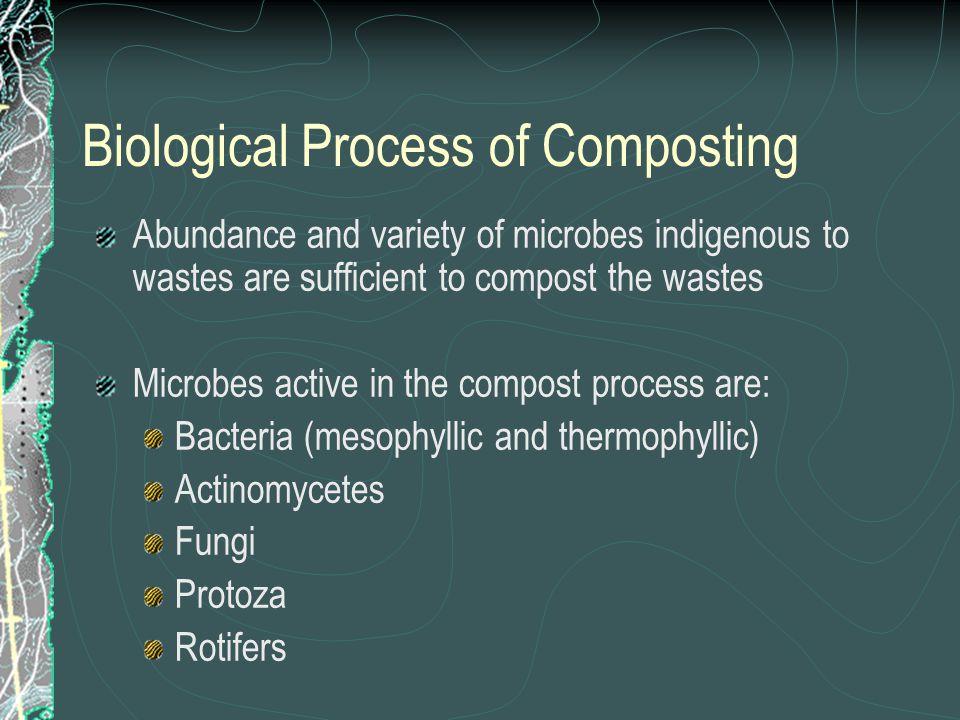

25. Abundance and variety of microbes indigenous to wastes are sufficient to compost the wastes Microbes active in the compost process are: Bacteria (mesophyllic and thermophyllic) Actinomycetes Fungi Protoza Rotifers Biological Process of Composting

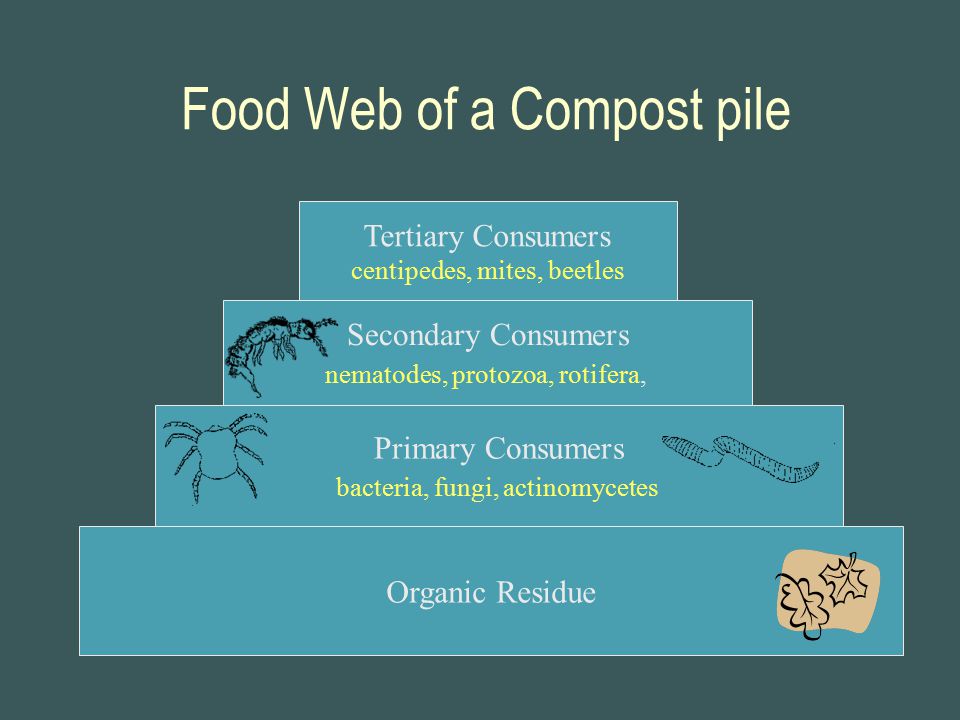

26. Food Web of a Compost pile Organic Residue Primary Consumers bacteria, fungi, actinomycetes Secondary Consumers nematodes, protozoa, rotifera, Tertiary Consumers centipedes, mites, beetles

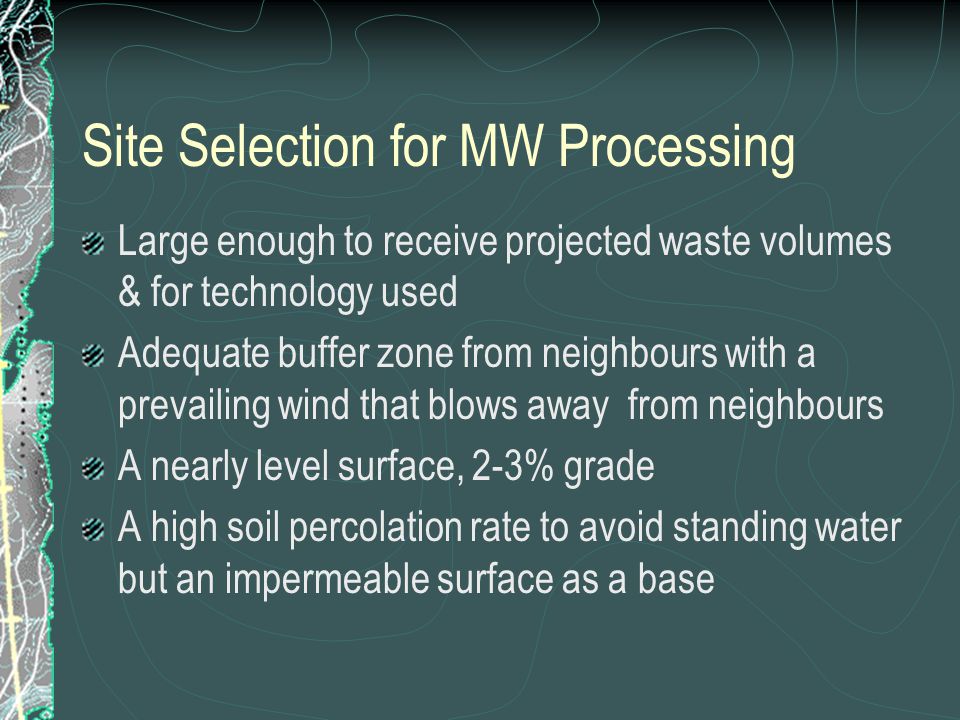

27. Site Selection for MW Processing Large enough to receive projected waste volumes & for technology used Adequate buffer zone from neighbours with a prevailing wind that blows away from neighbours A nearly level surface, 2-3% grade A high soil percolation rate to avoid standing water but an impermeable surface as a base

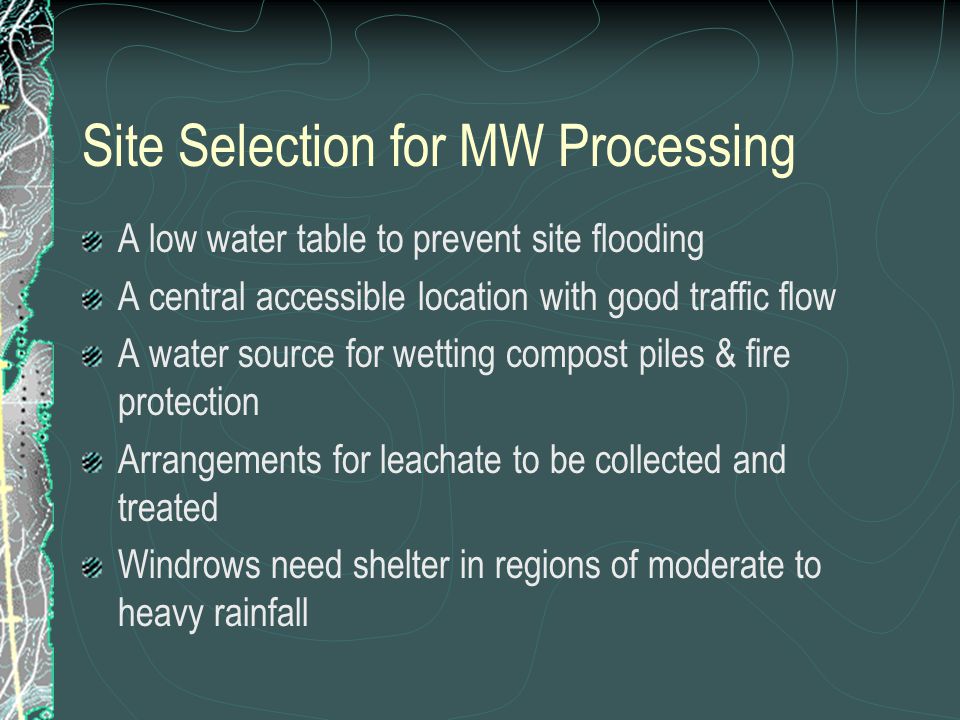

28. A low water table to prevent site flooding A central accessible location with good traffic flow A water source for wetting compost piles & fire protection Arrangements for leachate to be collected and treated Windrows need shelter in regions of moderate to heavy rainfall Site Selection for MW Processing

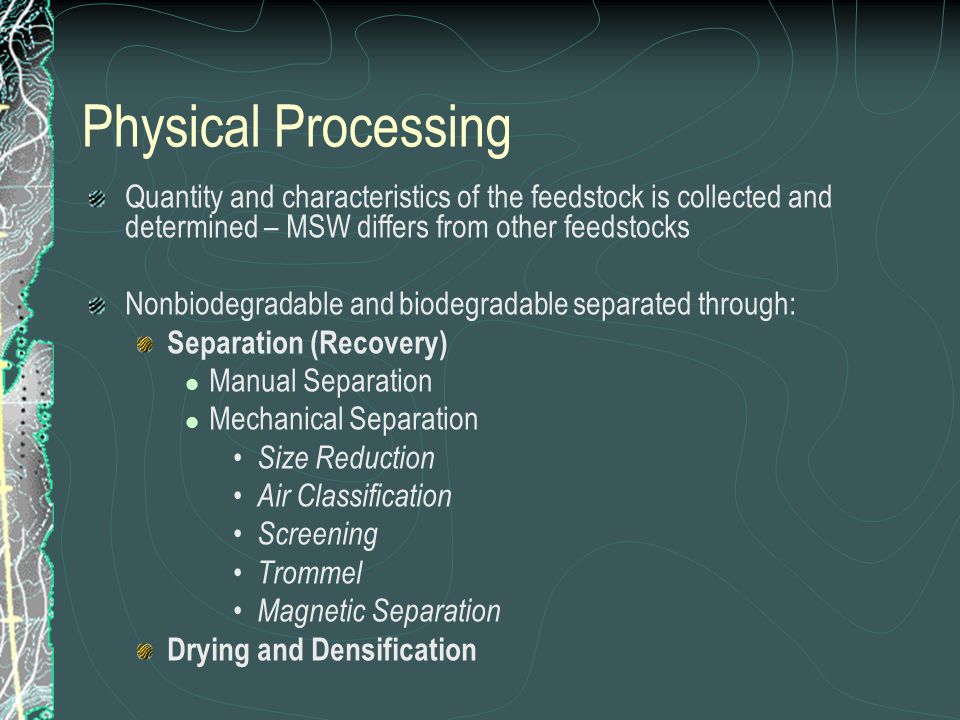

29. Quantity and characteristics of the feedstock is collected and determined – MSW differs from other feedstocks Nonbiodegradable and biodegradable separated through: Separation (Recovery) Manual Separation Mechanical Separation Size Reduction Air Classification Screening Trommel Magnetic Separation Drying and Densification Physical Processing

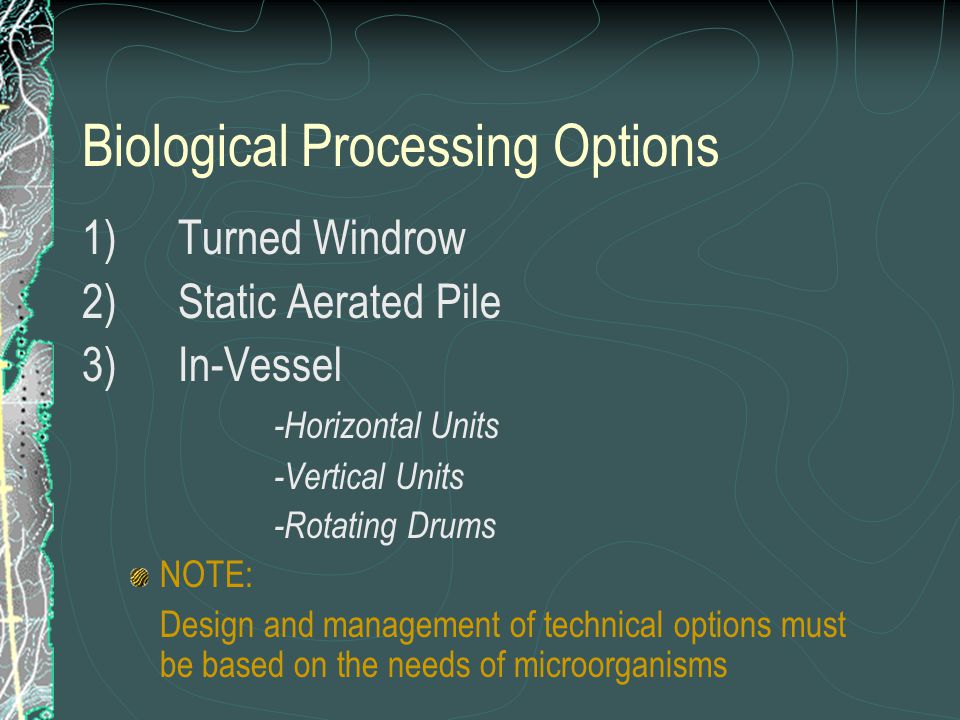

30. 1)Turned Windrow 2)Static Aerated Pile 3)In-Vessel -Horizontal Units -Vertical Units -Rotating Drums NOTE: Design and management of technical options must be based on the needs of microorganisms Biological Processing Options

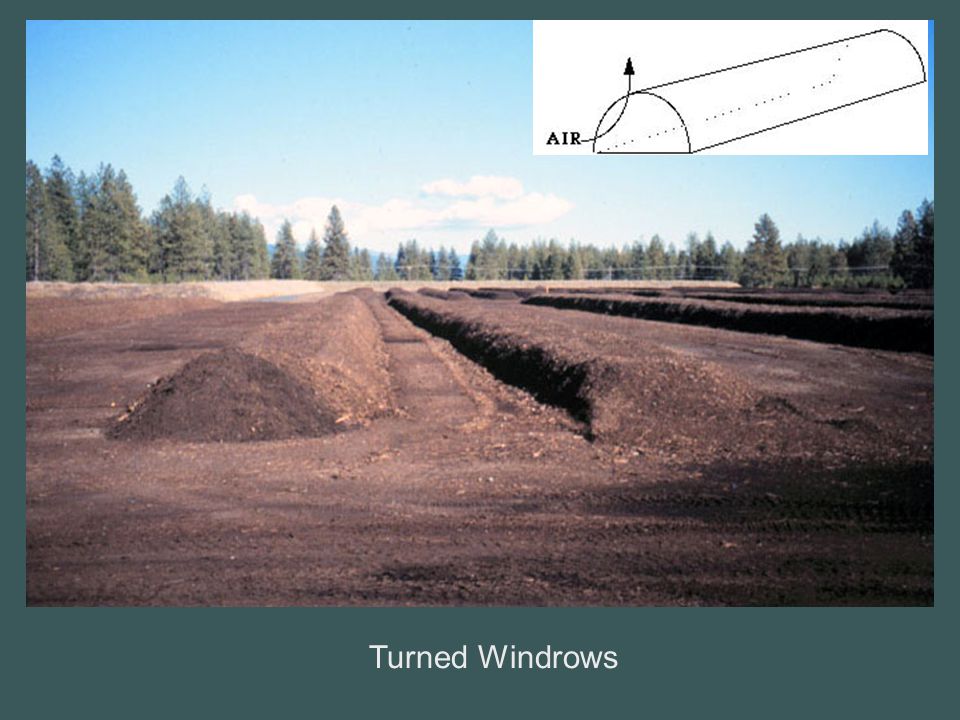

31. Turned Windrows

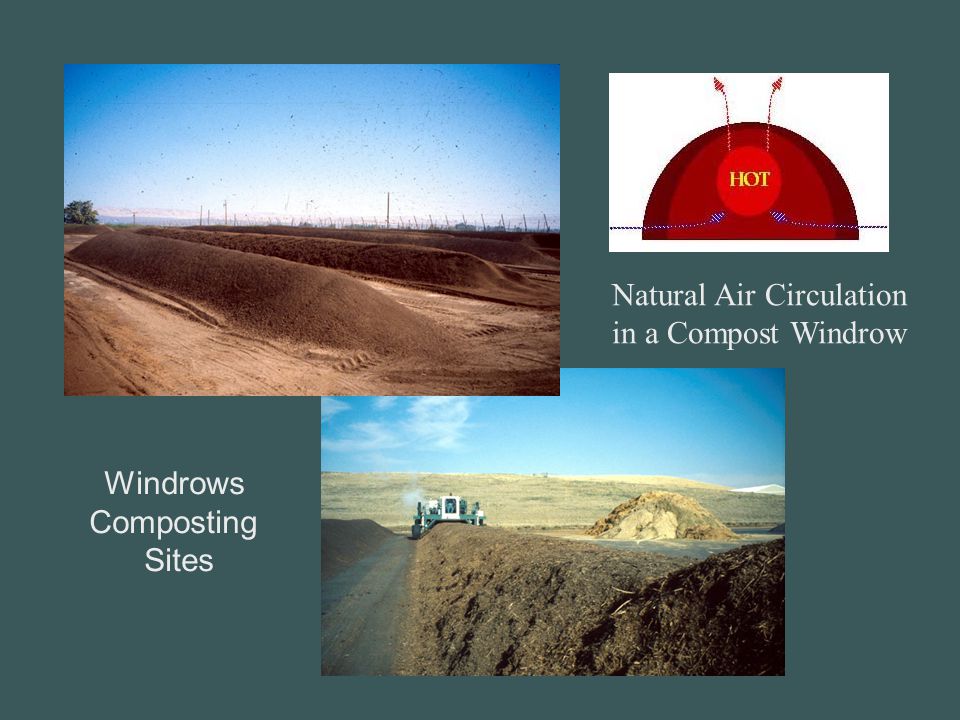

32. Windrows Composting Sites Natural Air Circulation in a Compost Windrow

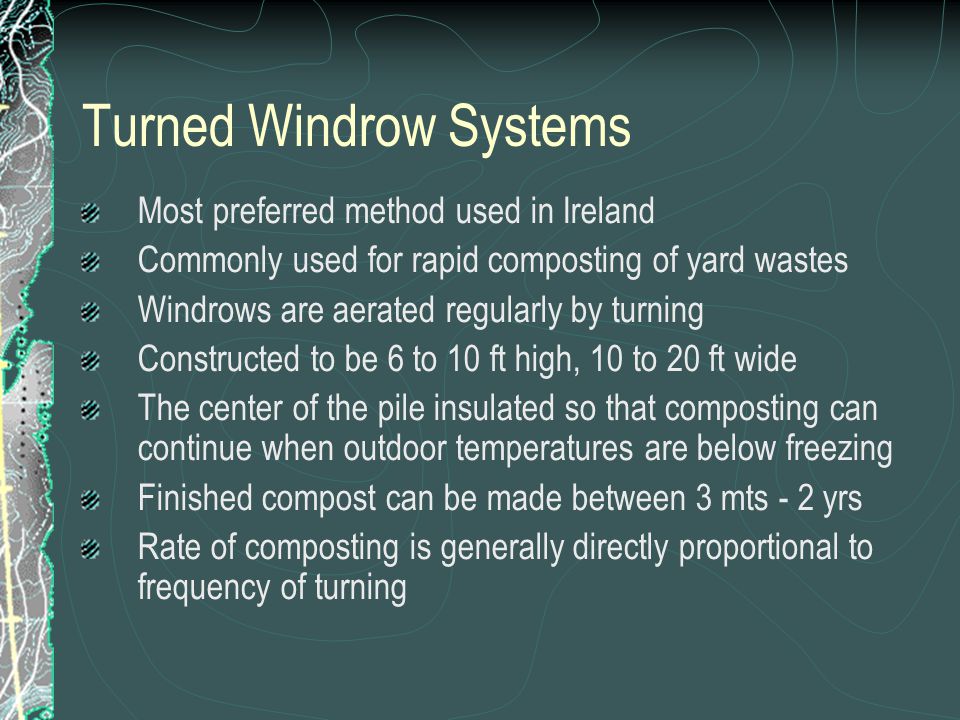

33. Most preferred method used in Ireland Commonly used for rapid composting of yard wastes Windrows are aerated regularly by turning Constructed to be 6 to 10 ft high, 10 to 20 ft wide The center of the pile insulated so that composting can continue when outdoor temperatures are below freezing Finished compost can be made between 3 mts - 2 yrs Rate of composting is generally directly proportional to frequency of turning Turned Windrow Systems

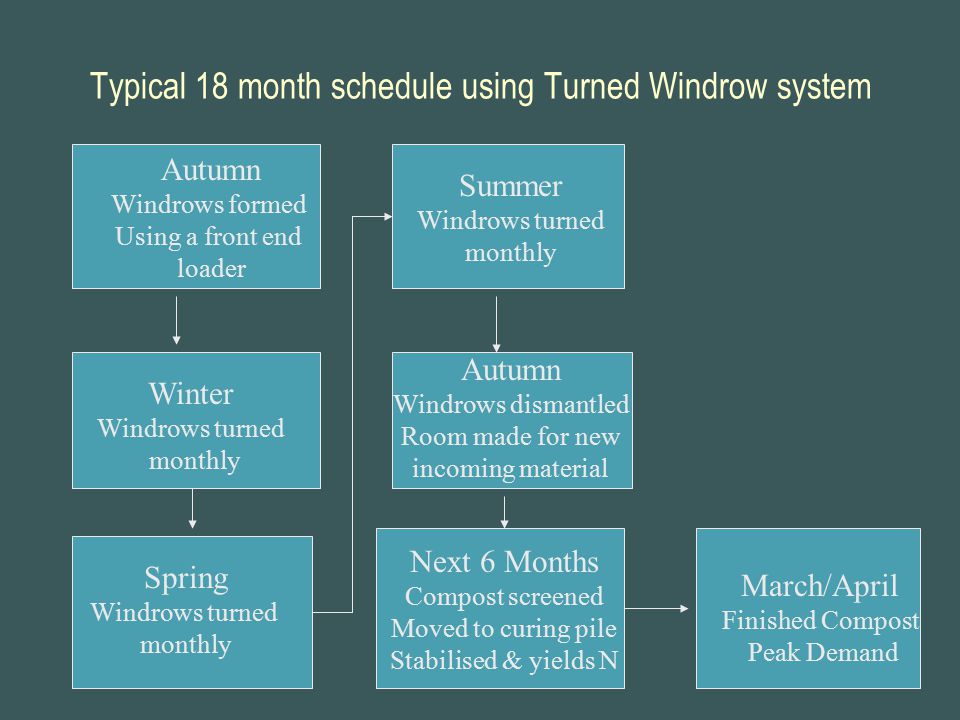

34. Typical 18 month schedule using Turned Windrow system Summer Windrows turned monthly Autumn Windrows dismantled Room made for new incoming material Autumn Windrows formed Using a front end loader Spring Windrows turned monthly Winter Windrows turned monthly Next 6 Months Compost screened Moved to curing pile Stabilised & yields N March/April Finished Compost Peak Demand

35. Static Aerated Pile Does not employ turning – ‘static’ Air is drawn or blown through a network of perforated plastic pipes under the windrows Faster than windrow systems Used where aeration and temperature control are crucial, (i.e. sludge or food processing wastes) Works best with a material that is relatively uniform in particle size ( not > 1.5 to 2 in. in any dimension)

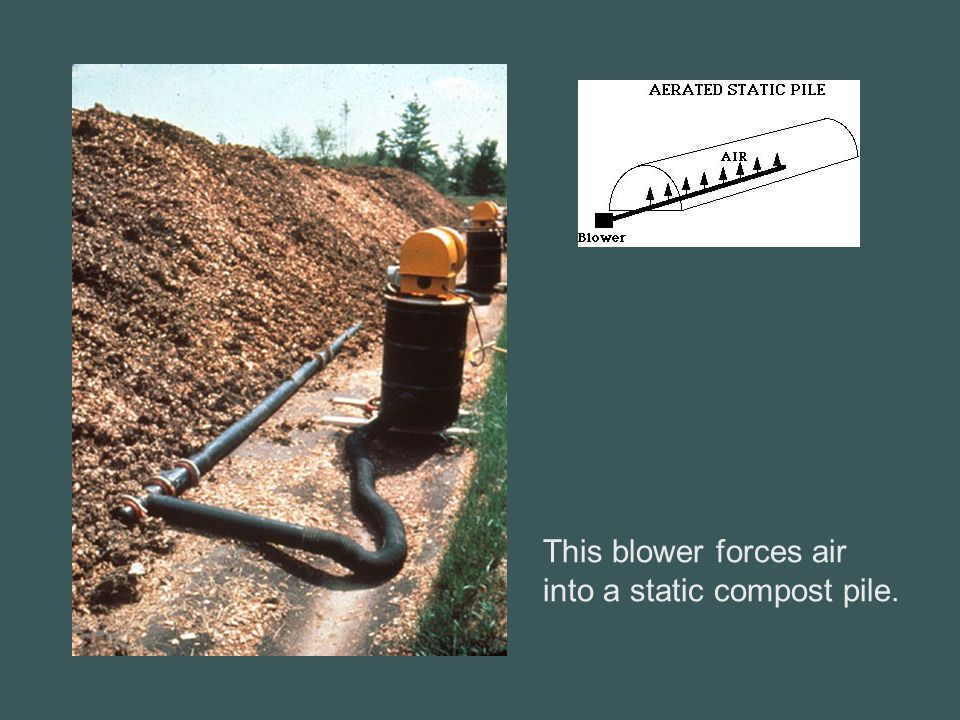

36. This blower forces air into a static compost pile.

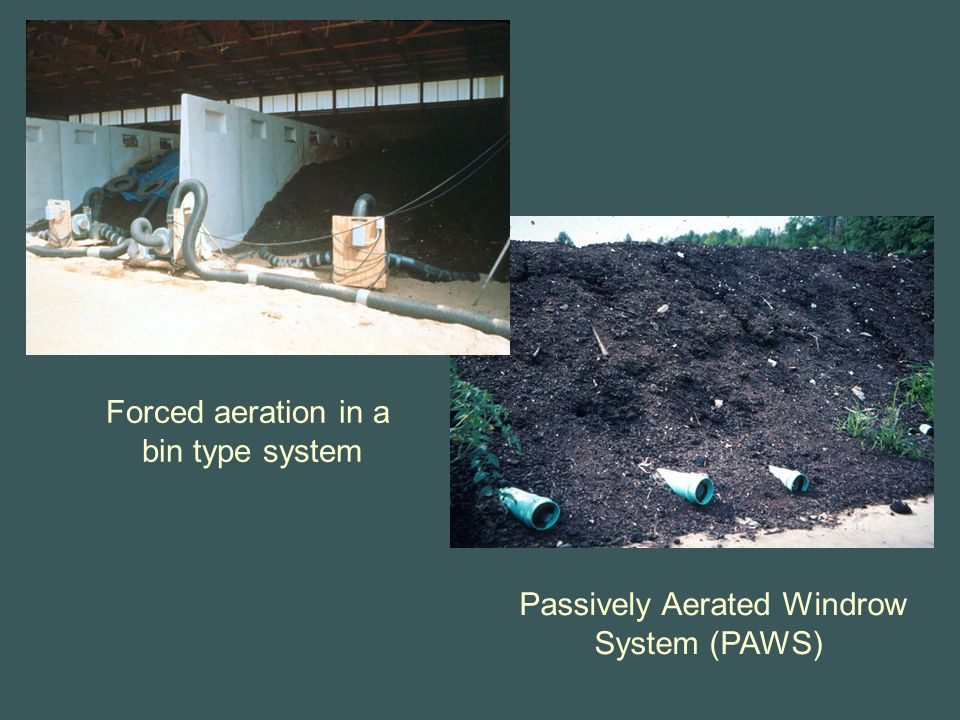

37. Forced aeration in a bin type system Passively Aerated Windrow System (PAWS)

38. Permanent air outlets in the pad for an aerated static pile at a site in Washington

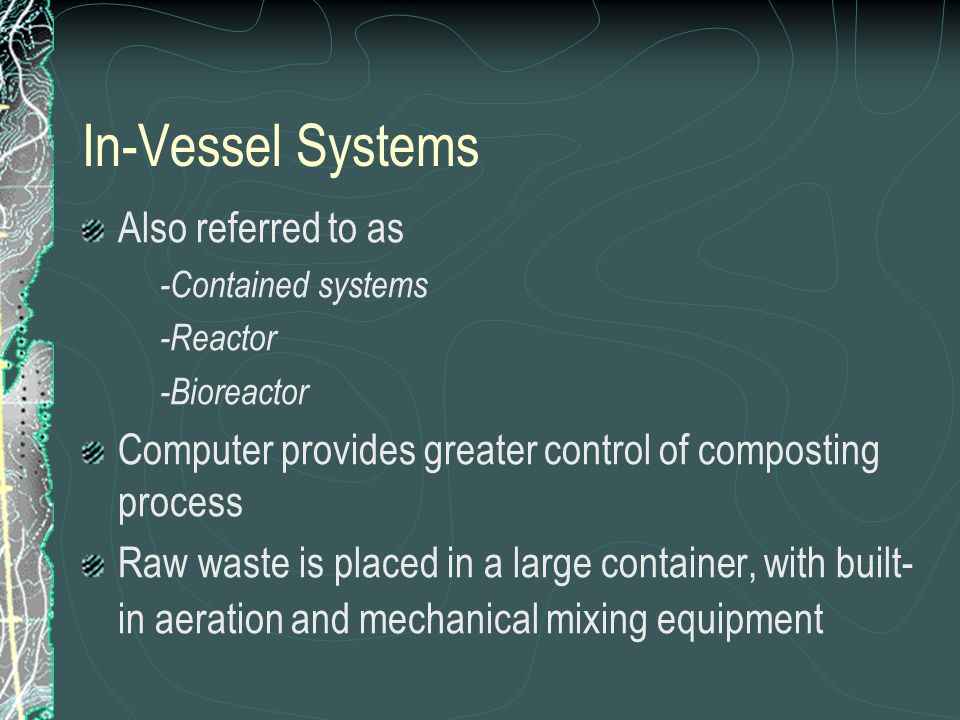

39. In-Vessel Systems Also referred to as -Contained systems -Reactor -Bioreactor Computer provides greater control of composting process Raw waste is placed in a large container, with built- in aeration and mechanical mixing equipment

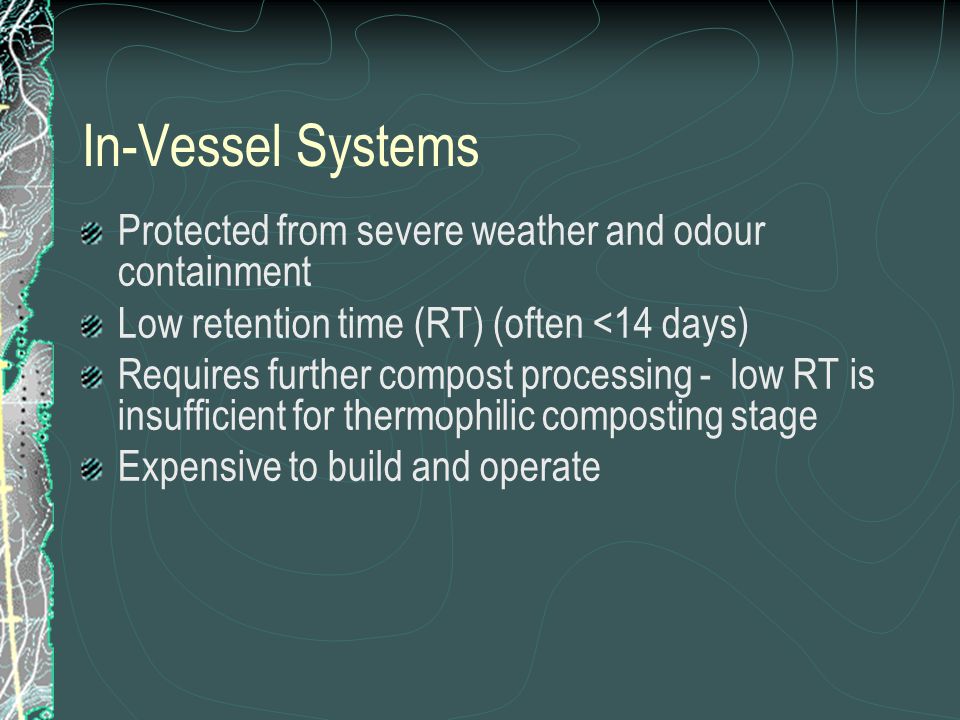

40. In-Vessel Systems Protected from severe weather and odour containment Low retention time (RT) (often <14 days) Requires further compost processing - low RT is insufficient for thermophilic composting stage Expensive to build and operate

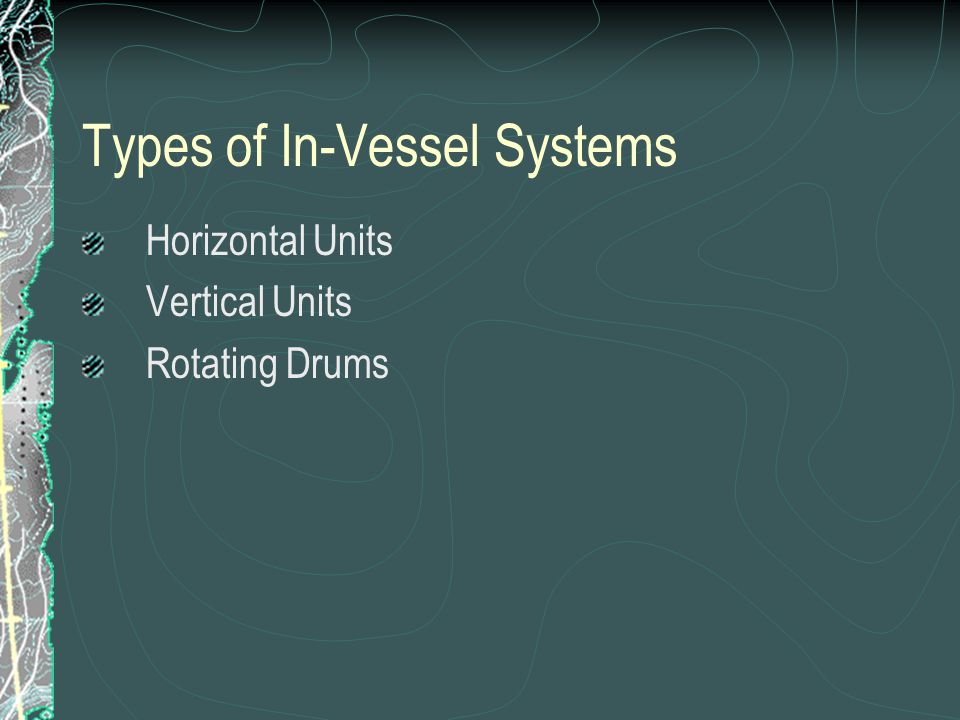

41. Types of In-Vessel Systems Horizontal Units Vertical Units Rotating Drums

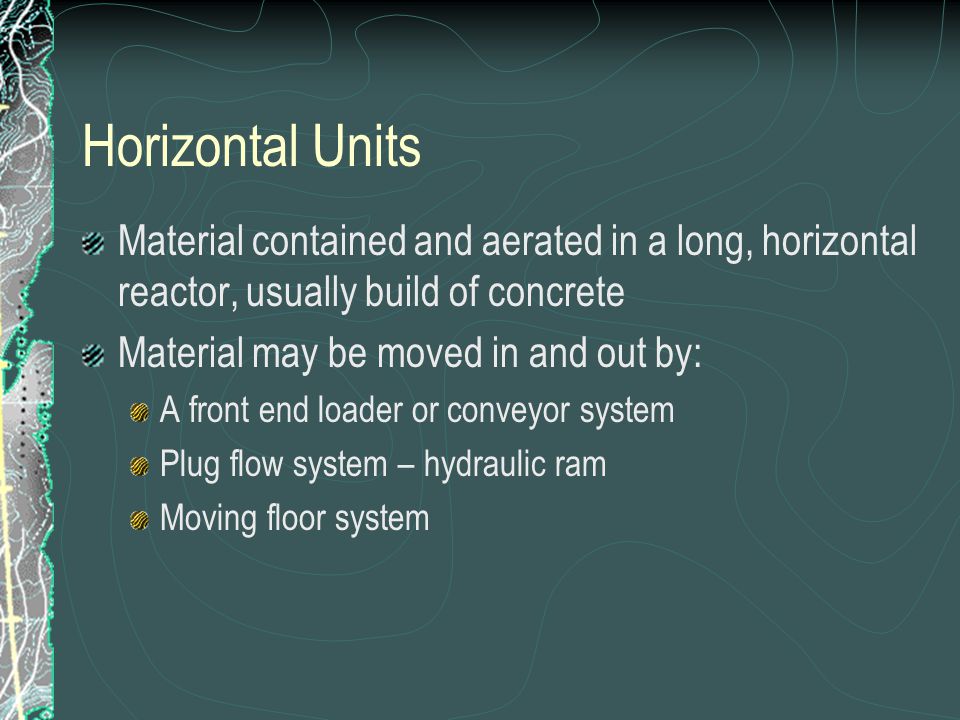

42. Horizontal Units Material contained and aerated in a long, horizontal reactor, usually build of concrete Material may be moved in and out by: A front end loader or conveyor system Plug flow system – hydraulic ram Moving floor system

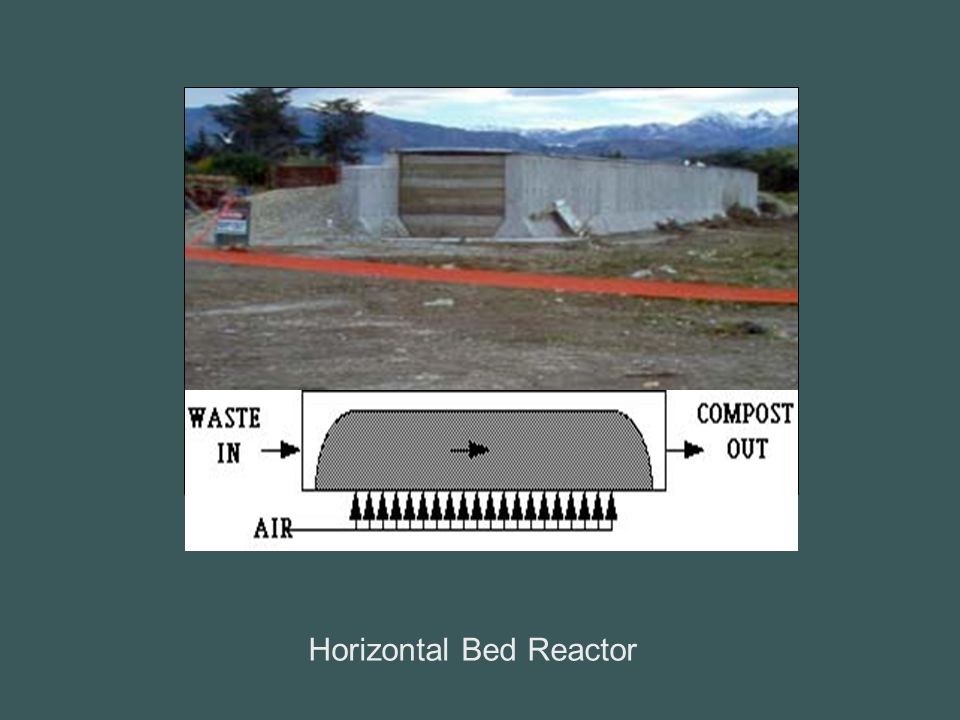

43. Horizontal Bed Reactor

44. Vertical Units Small land area Enclosed and aerated in a vertical reactor known as “silos” or “towers”. Compaction of material at the base reactor - impedes aeration - anaerobic regions developing Good for Sludge composting industry but not MSW

45. A vertical in-reactor composting system

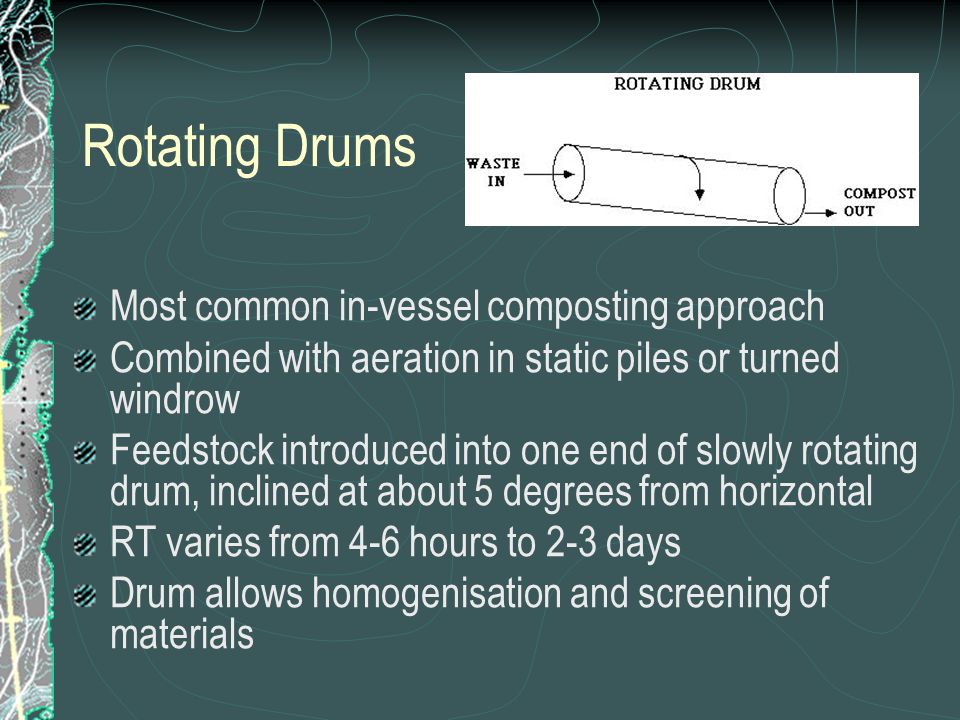

46. Rotating Drums Most common in-vessel composting approach Combined with aeration in static piles or turned windrow Feedstock introduced into one end of slowly rotating drum, inclined at about 5 degrees from horizontal RT varies from 4-6 hours to 2-3 days Drum allows homogenisation and screening of materials

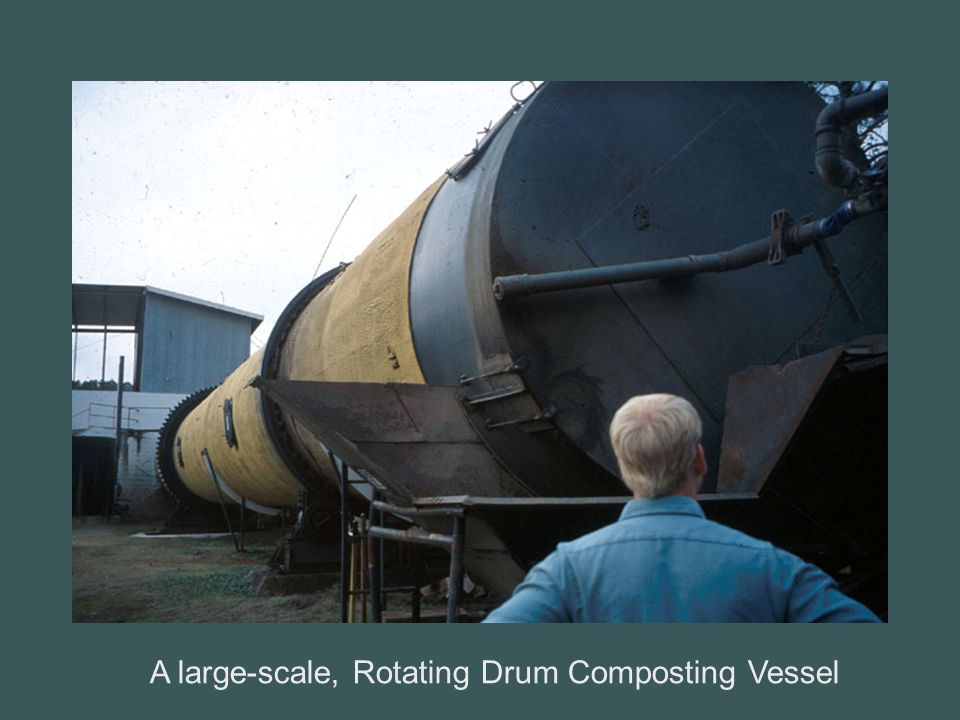

47. A large-scale, Rotating Drum Composting Vessel

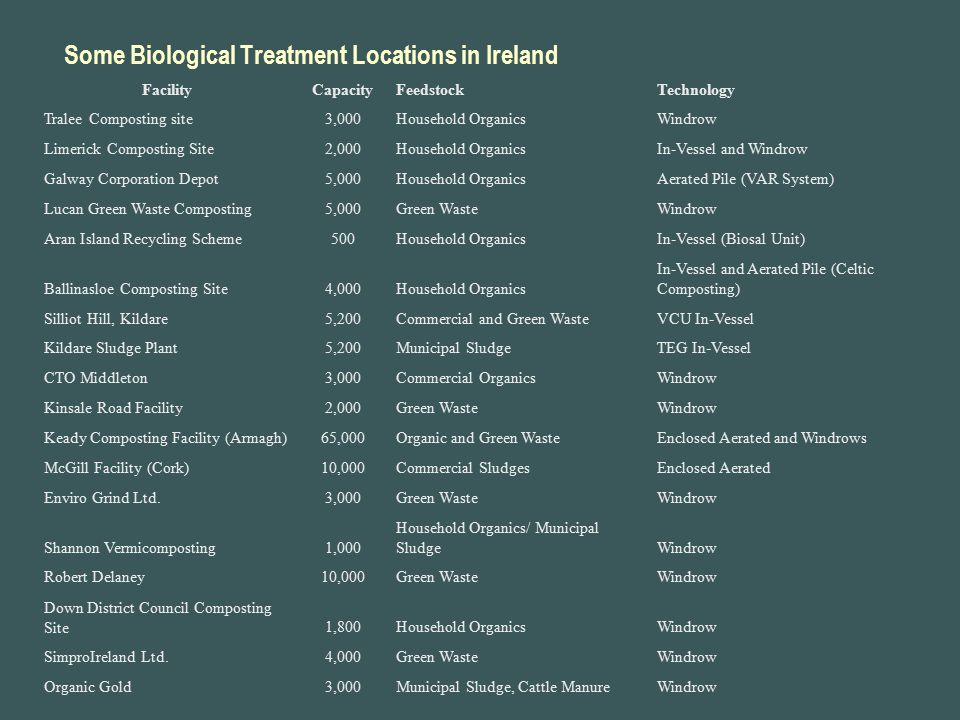

48. FacilityCapacityFeedstockTechnology Tralee Composting site3,000Household OrganicsWindrow Limerick Composting Site2,000Household OrganicsIn-Vessel and Windrow Galway Corporation Depot5,000Household OrganicsAerated Pile (VAR System) Lucan Green Waste Composting5,000Green WasteWindrow Aran Island Recycling Scheme500Household OrganicsIn-Vessel (Biosal Unit) Ballinasloe Composting Site4,000Household Organics In-Vessel and Aerated Pile (Celtic Composting) Silliot Hill, Kildare5,200Commercial and Green WasteVCU In-Vessel Kildare Sludge Plant5,200Municipal SludgeTEG In-Vessel CTO Middleton3,000Commercial OrganicsWindrow Kinsale Road Facility2,000Green WasteWindrow Keady Composting Facility (Armagh)65,000Organic and Green WasteEnclosed Aerated and Windrows McGill Facility (Cork)10,000Commercial SludgesEnclosed Aerated Enviro Grind Ltd.3,000Green WasteWindrow Shannon Vermicomposting1,000 Household Organics/ Municipal SludgeWindrow Robert Delaney10,000Green WasteWindrow Down District Council Composting Site1,800Household OrganicsWindrow SimproIreland Ltd.4,000Green WasteWindrow Organic Gold3,000Municipal Sludge, Cattle ManureWindrow Some Biological Treatment Locations in Ireland

49. Problems associated with Composting of Municipal Waste 1. Leachate Odours Vector for organisms supports the proliferation of insects Odour & VOC’s 2. Odour & VOC’s Feedstock Enhanced under anaerobic conditions Dust 3. Dust Agitation of composting materials Bioaerosols

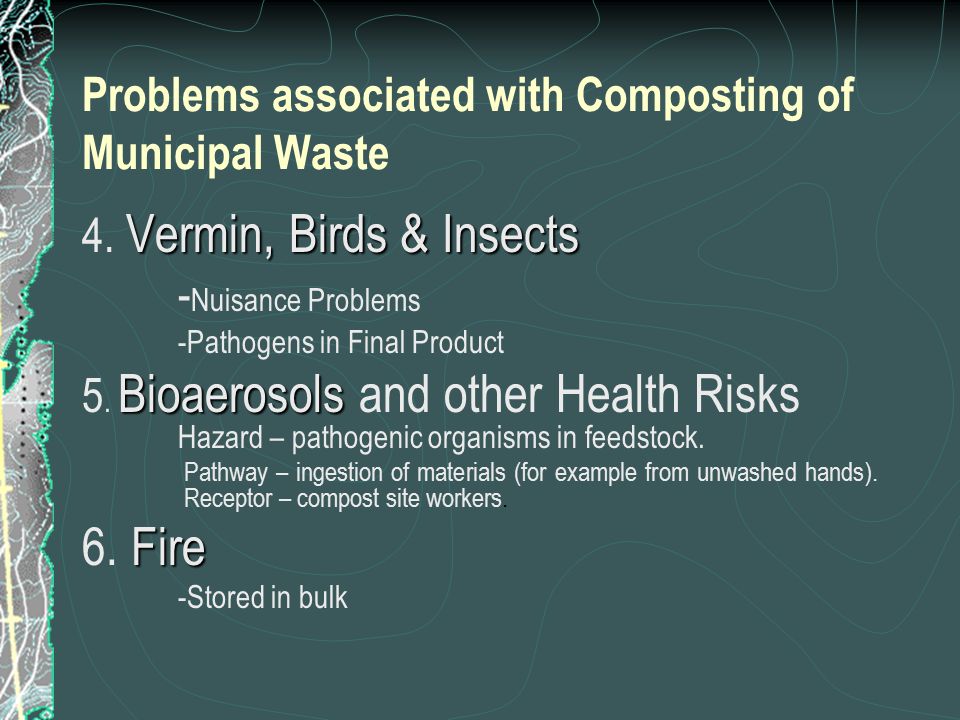

50. Problems associated with Composting of Municipal Waste Vermin, Birds & Insects 4. Vermin, Birds & Insects - Nuisance Problems -Pathogens in Final Product Bioaerosols 5. Bioaerosols and other Health Risks Hazard – pathogenic organisms in feedstock. Pathway – ingestion of materials (for example from unwashed hands). Receptor – compost site workers. Fire 6. Fire -Stored in bulk

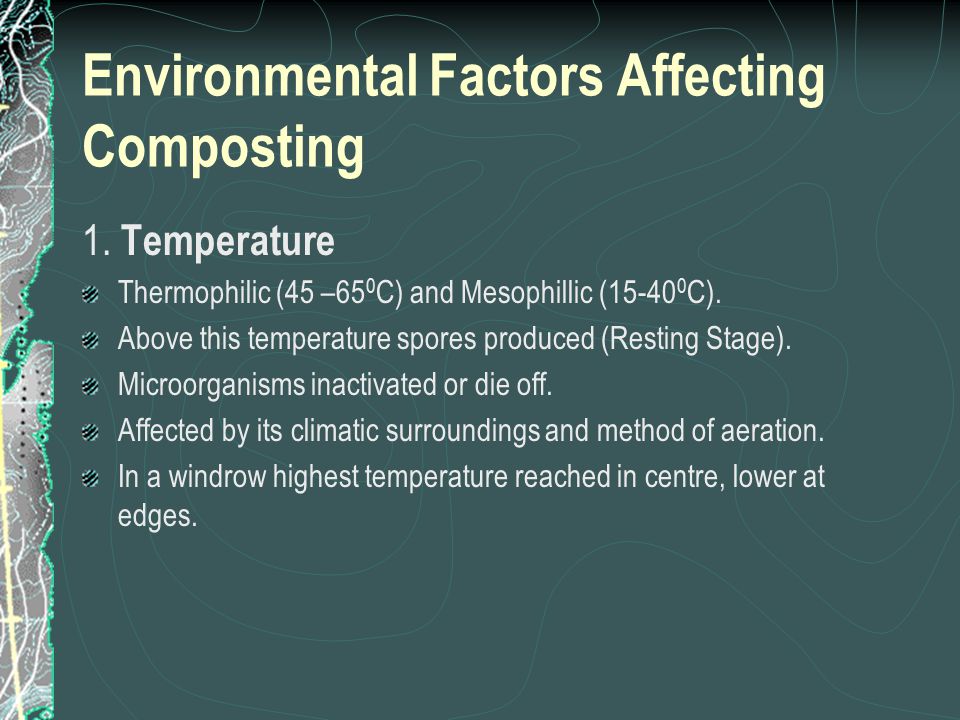

51. 1. Temperature Thermophilic (45 –65 0 C) and Mesophillic (15-40 0 C). Above this temperature spores produced (Resting Stage). Microorganisms inactivated or die off. Affected by its climatic surroundings and method of aeration. In a windrow highest temperature reached in centre, lower at edges. Environmental Factors Affecting Composting

52. 2. pH Anaerobic digestion the pH level covers a narrow range (pH 6.5 to 7.5) Aerobic- pH so broad difficulties rarely encountered with too high or too low pH in composting. During the early stages the pH usually drops (down to about pH 5.0) because of organic acid formation. An exception which can reduce the pH is fruit wastes which can reduce the pH to 4.5. calcium hydroxide (lime) can be used as a buffer but it also lead to a loss in ammonium nitrogen. Environmental Factors Affecting Composting

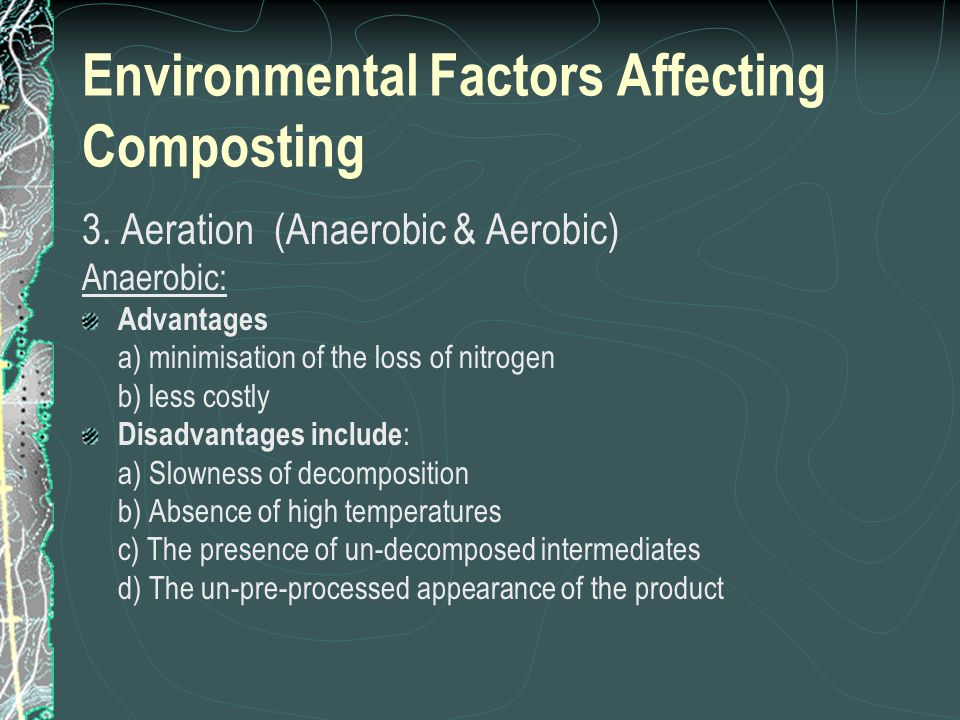

53. 3. Aeration(Anaerobic & Aerobic) Anaerobic: Advantages a) minimisation of the loss of nitrogen b) less costly Disadvantages include : a) Slowness of decomposition b) Absence of high temperatures c) The presence of un-decomposed intermediates d) The un-pre-processed appearance of the product Environmental Factors Affecting Composting

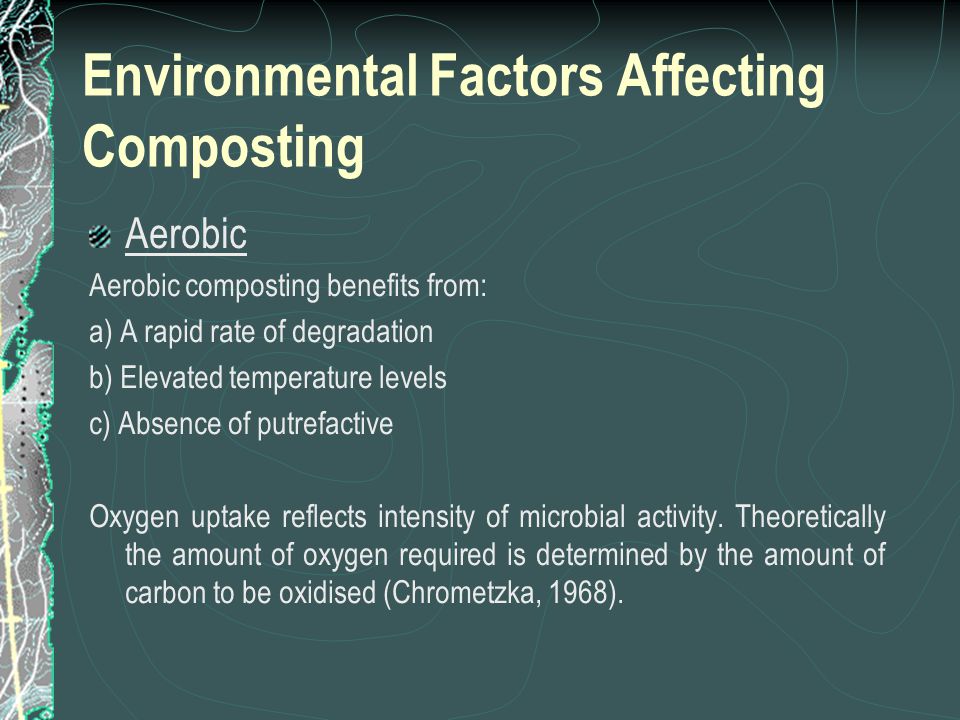

54. Aerobic Aerobic composting benefits from: a) A rapid rate of degradation b) Elevated temperature levels c) Absence of putrefactive Oxygen uptake reflects intensity of microbial activity. Theoretically the amount of oxygen required is determined by the amount of carbon to be oxidised (Chrometzka, 1968). Environmental Factors Affecting Composting

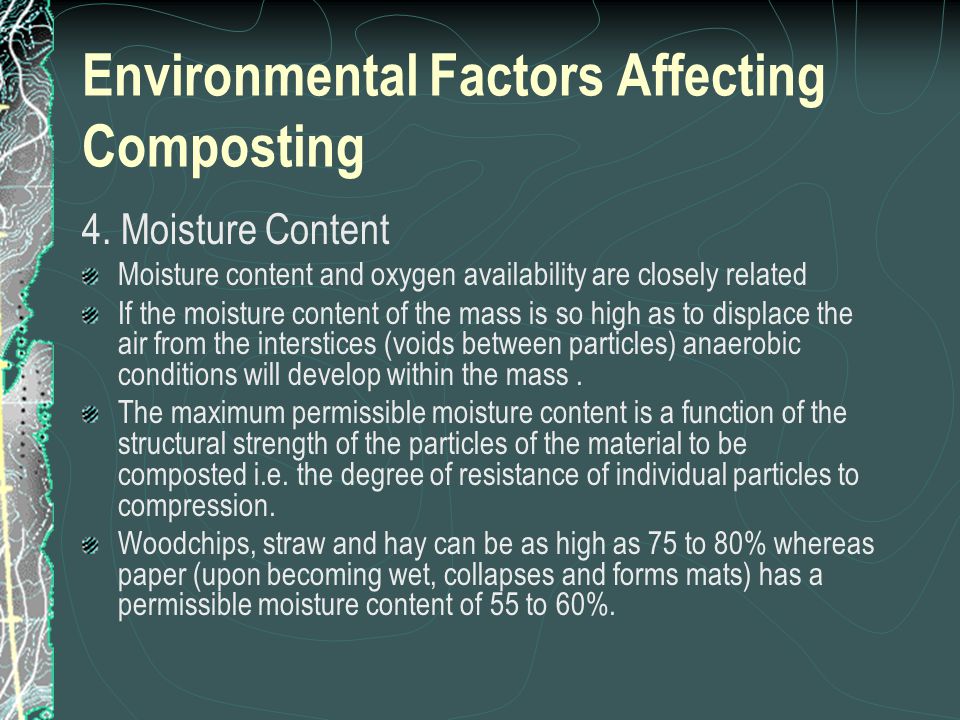

55. 4. Moisture Content Moisture content and oxygen availability are closely related If the moisture content of the mass is so high as to displace the air from the interstices (voids between particles) anaerobic conditions will develop within the mass. The maximum permissible moisture content is a function of the structural strength of the particles of the material to be composted i.e. the degree of resistance of individual particles to compression. Woodchips, straw and hay can be as high as 75 to 80% whereas paper (upon becoming wet, collapses and forms mats) has a permissible moisture content of 55 to 60%. Environmental Factors Affecting Composting

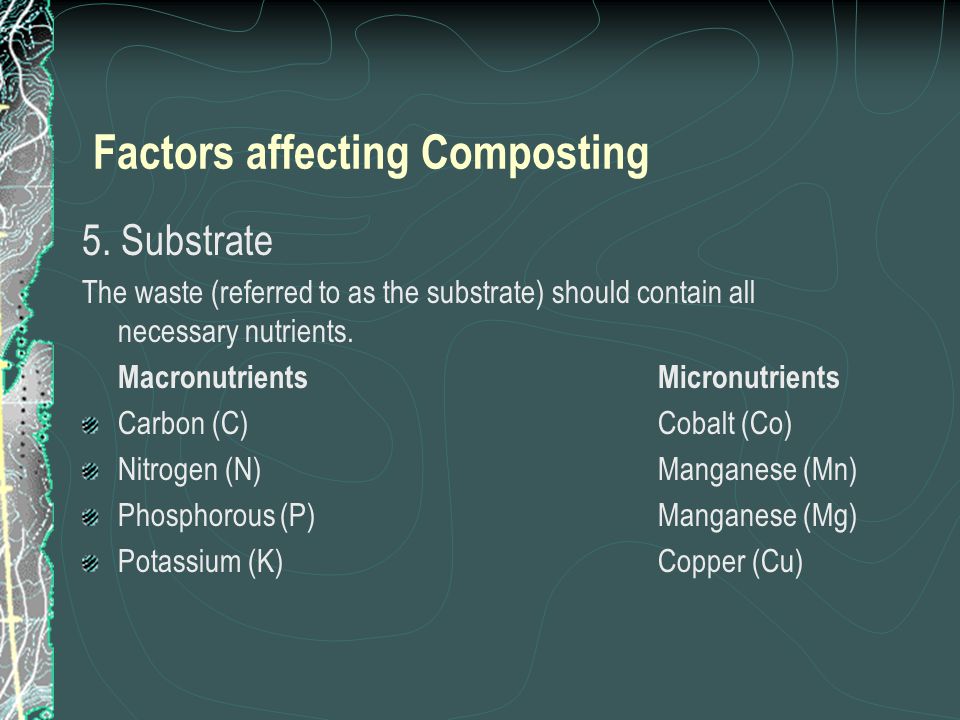

56. Factors affecting Composting 5. Substrate The waste (referred to as the substrate) should contain all necessary nutrients. MacronutrientsMicronutrients Carbon (C)Cobalt (Co) Nitrogen (N)Manganese (Mn) Phosphorous (P)Manganese (Mg) Potassium (K)Copper (Cu)

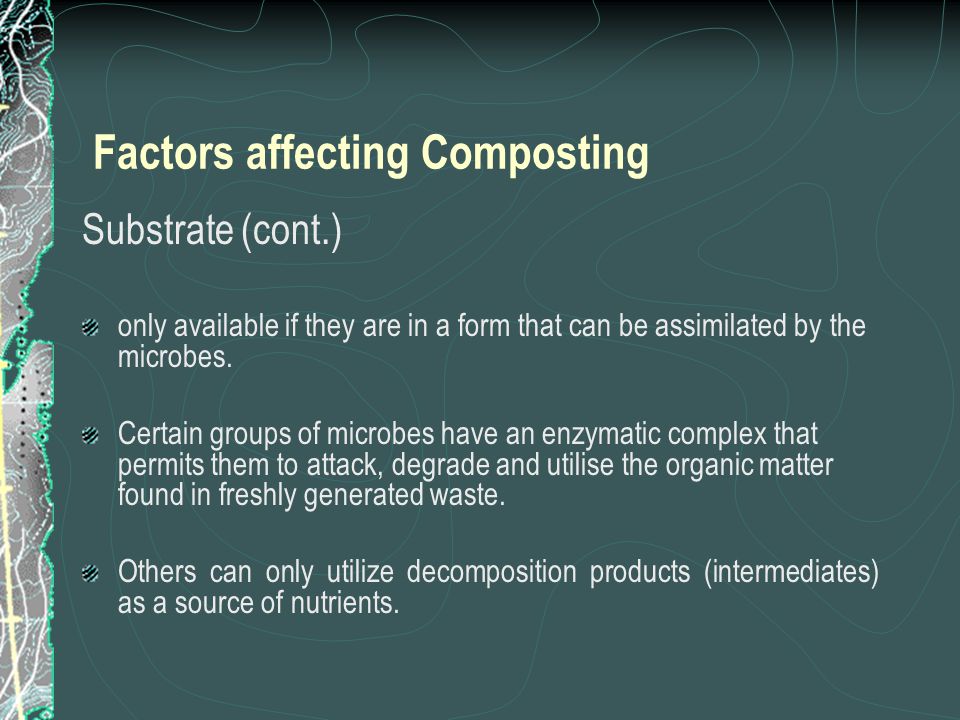

57. Factors affecting Composting Substrate (cont.) only available if they are in a form that can be assimilated by the microbes. Certain groups of microbes have an enzymatic complex that permits them to attack, degrade and utilise the organic matter found in freshly generated waste. Others can only utilize decomposition products (intermediates) as a source of nutrients.

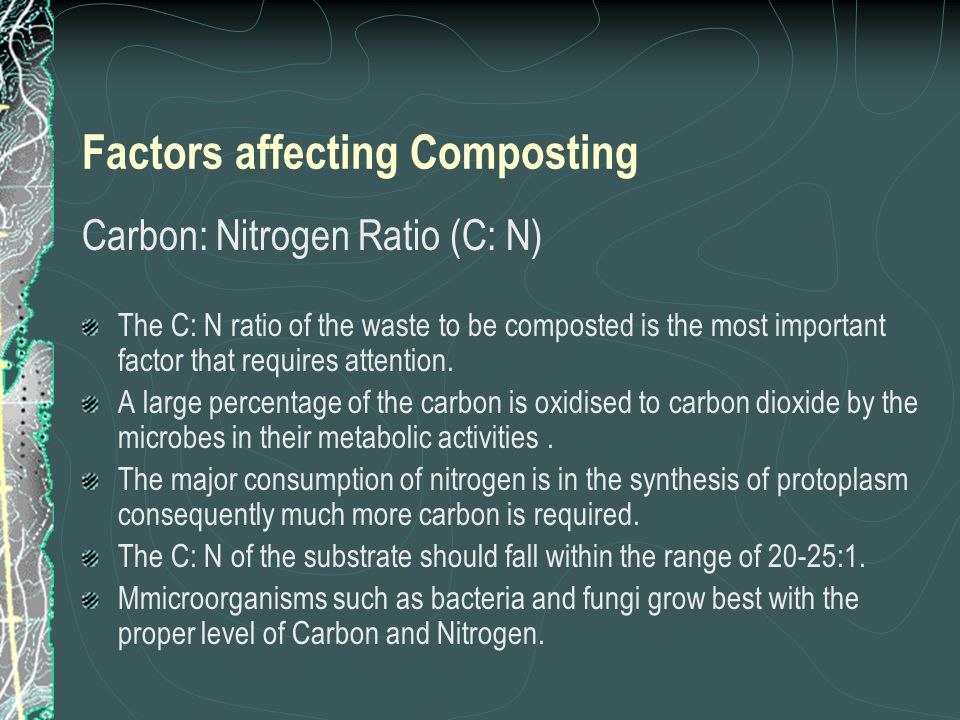

58. Factors affecting Composting Carbon: Nitrogen Ratio (C: N) The C: N ratio of the waste to be composted is the most important factor that requires attention. A large percentage of the carbon is oxidised to carbon dioxide by the microbes in their metabolic activities. The major consumption of nitrogen is in the synthesis of protoplasm consequently much more carbon is required. The C: N of the substrate should fall within the range of 20-25:1. Mmicroorganisms such as bacteria and fungi grow best with the proper level of Carbon and Nitrogen.

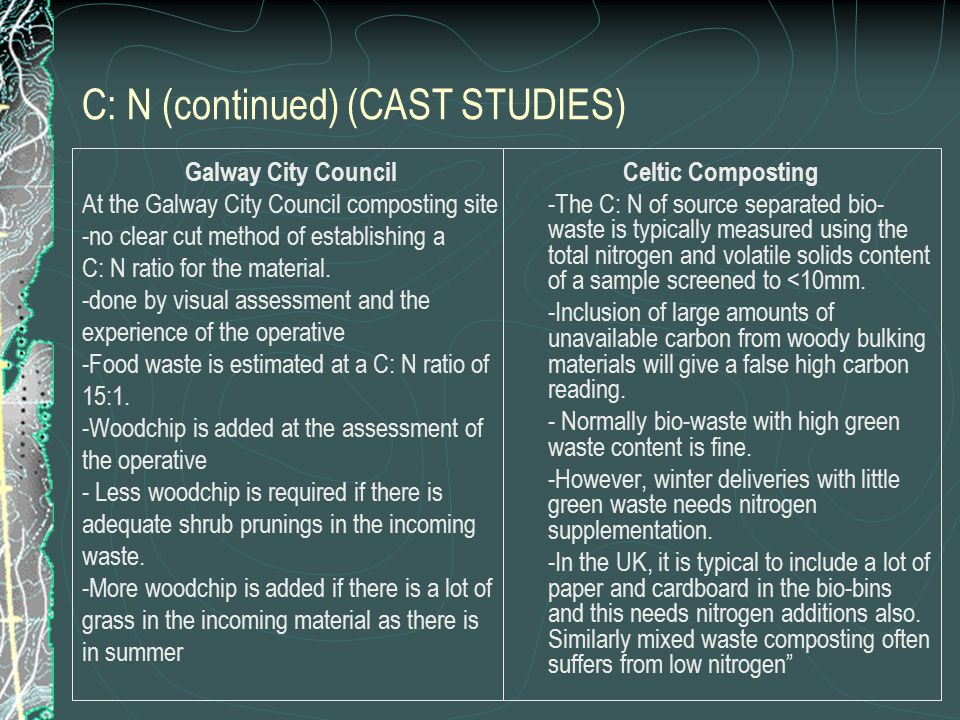

59. C: N (continued) (CAST STUDIES) Galway City Council At the Galway City Council composting site -no clear cut method of establishing a C: N ratio for the material. -done by visual assessment and the experience of the operative -Food waste is estimated at a C: N ratio of 15:1. -Woodchip is added at the assessment of the operative - Less woodchip is required if there is adequate shrub prunings in the incoming waste. -More woodchip is added if there is a lot of grass in the incoming material as there is in summer Celtic Composting -The C: N of source separated bio- waste is typically measured using the total nitrogen and volatile solids content of a sample screened to <10mm. -Inclusion of large amounts of unavailable carbon from woody bulking materials will give a false high carbon reading. - Normally bio-waste with high green waste content is fine. -However, winter deliveries with little green waste needs nitrogen supplementation. -In the UK, it is typical to include a lot of paper and cardboard in the bio-bins and this needs nitrogen additions also. Similarly mixed waste composting often suffers from low nitrogen”

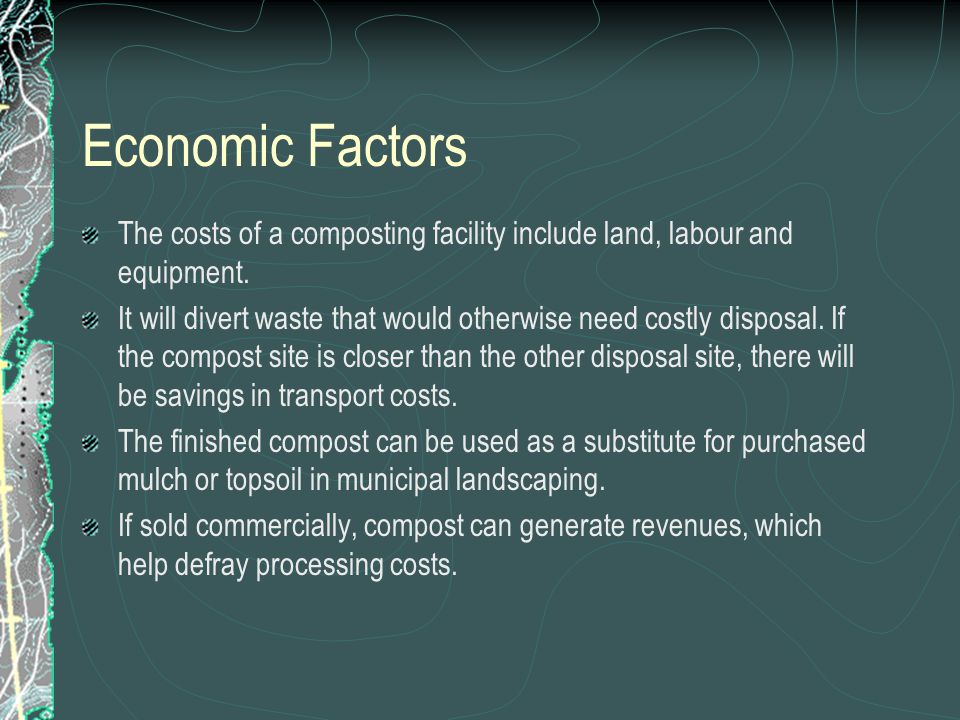

60. The costs of a composting facility include land, labour and equipment. It will divert waste that would otherwise need costly disposal. If the compost site is closer than the other disposal site, there will be savings in transport costs. The finished compost can be used as a substitute for purchased mulch or topsoil in municipal landscaping. If sold commercially, compost can generate revenues, which help defray processing costs. Economic Factors

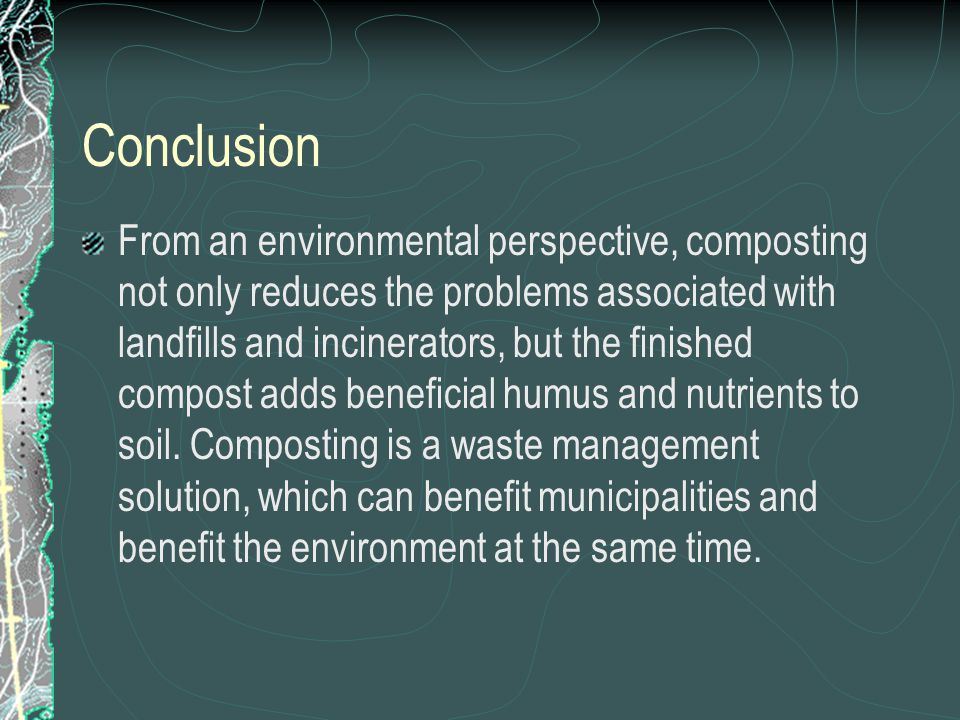

61. Conclusion From an environmental perspective, composting not only reduces the problems associated with landfills and incinerators, but the finished compost adds beneficial humus and nutrients to soil. Composting is a waste management solution, which can benefit municipalities and benefit the environment at the same time.

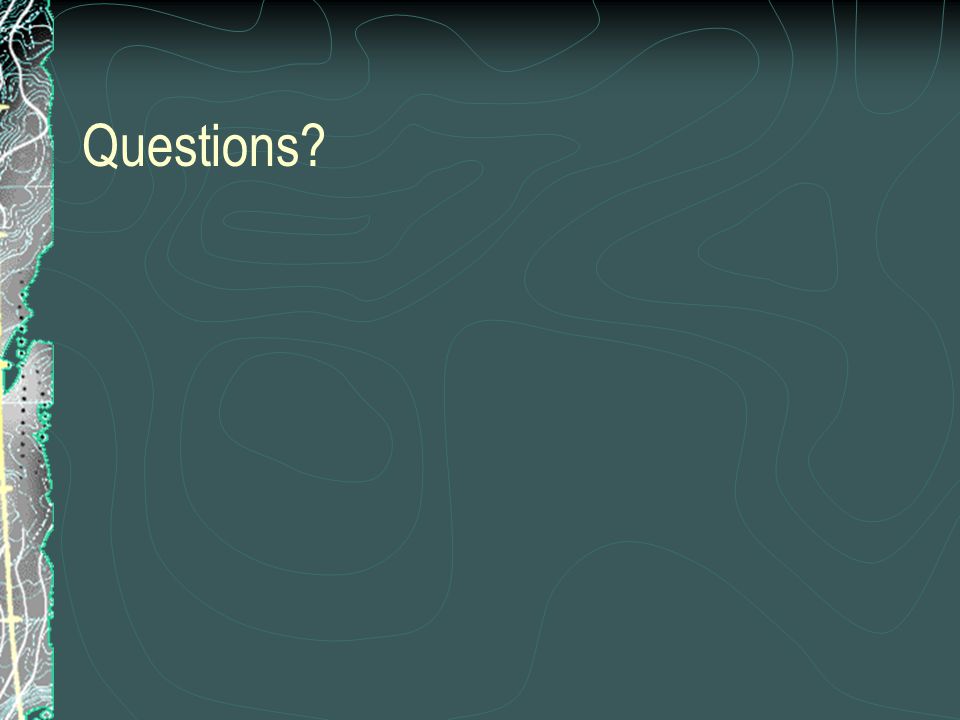

62. Questions?
