1. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 1 CSci 8980: Data Mining (Fall 2002) Vipin Kumar Army High Performance Computing Research Center Department of Computer Science University of Minnesota http://www.cs.umn.edu/~kumar

2. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 2 Hierarchical Clustering l Two main types of hierarchical clustering algorithms. –Agglomerative  Start with the points as individual clusters  Merge clusters until only one is left –Divisive  Start with all the points as one cluster  Split clusters until only only singleton clusters –Agglomerative is more popular l Traditional hierarchical algorithms use a similarity or distance matrix. –Merge or split one cluster at a time

3. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 3 Hierarchical Clustering l Produces a set of nested clusters organized as a hierarchical tree. l Can be visualized as a dendrogram –Tree like diagram –Records the sequences of merges or splits l Can ‘cut’ the dendrogram to get a partitional clustering

4. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 4 Basic Agglomerative Clustering Algorithm l Algorithm is straightforward 1.Compute the proximity matrix, if necessary 2.Let each data point by a cluster 3.Repeat 4.Merge the two closest clusters 5.Update the proximity matrix 6.Until only a single cluster remains l Key operation is the computation of the proximity of two clusters. l Different approaches to defining the distance between clusters distinguishes the different algorithms.

5. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 5 l For agglomerative hierarchical clustering we start with clusters of individual points and a proximity matrix. Agglomerative Hierarchical Clustering: Starting Situation p1 p3 p5 p4 p2 p1p2p3p4p5......... Proximity Matrix

6. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 6 C2C1 l After some merging steps, we have some clusters. Agglomerative Hierarchical Clustering: Intermediate Situation C1 C3 C5 C4 C2 C3C4C5 C1 C4 C2 C5 C3 Proximity Matrix

7. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 7 C2C1 l We want to merge the two closest clusters (C2 and C5) and update the proximity matrix. Agglomerative Hierarchical Clustering: Intermediate Situation C1 C3 C5 C4 C2 C3C4C5 C1 C4 C2 C5 C3 Proximity Matrix

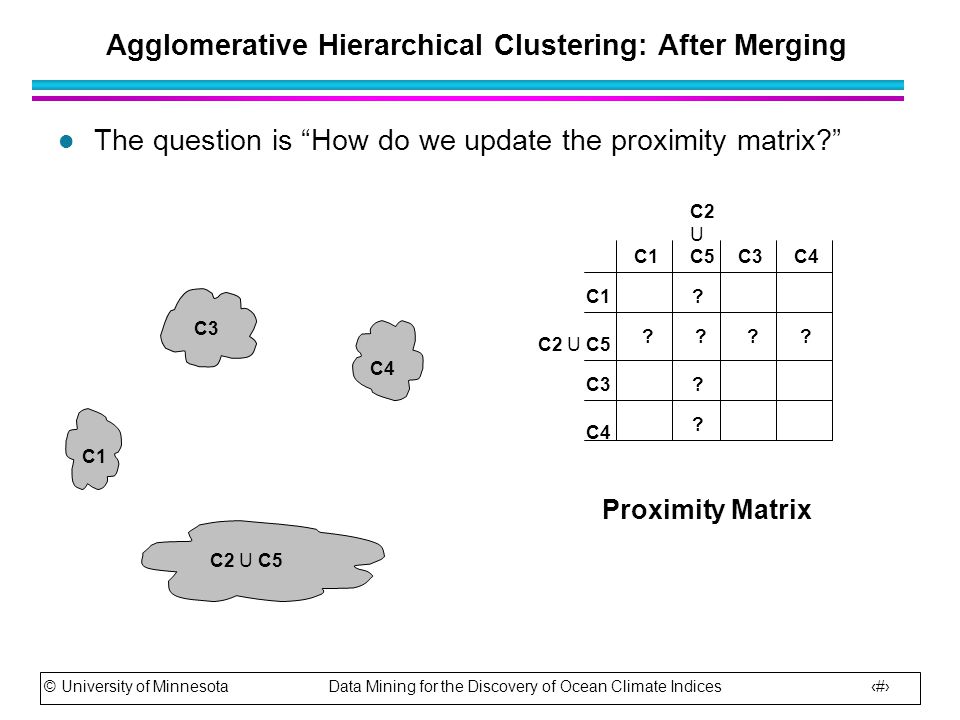

8. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 8 l The question is “How do we update the proximity matrix?” Agglomerative Hierarchical Clustering: After Merging C1 C4 C2 U C5 C3 ? ? ? ? ? C2 U C5 C1 C3 C4 C2 U C5 C3C4 Proximity Matrix

9. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 9 How to Define Inter-Cluster Similarity p1 p3 p5 p4 p2 p1p2p3p4p5......... Similarity? l MIN l MAX l Group Average l Distance Between Centroids l Other methods driven by an objective function –Ward’s Method uses squared error Proximity Matrix

10. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 10 How to Define Inter-Cluster Similarity p1 p3 p5 p4 p2 p1p2p3p4p5......... Proximity Matrix l MIN l MAX l Group Average l Distance Between Centroids l Other methods driven by an objective function –Ward’s Method uses squared error

11. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 11 How to Define Inter-Cluster Similarity p1 p3 p5 p4 p2 p1p2p3p4p5......... Proximity Matrix l MIN l MAX l Group Average l Distance Between Centroids l Other methods driven by an objective function –Ward’s Method uses squared error

12. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 12 How to Define Inter-Cluster Similarity p1 p3 p5 p4 p2 p1p2p3p4p5......... Proximity Matrix l MIN l MAX l Group Average l Distance Between Centroids l Other methods driven by an objective function –Ward’s Method uses squared error

13. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 13 l Similarity of two clusters is based on the two closest points in the different clusters. –Determined by one pair of points, i.e., by one link in the proximity graph. l Can handle non-elliptical shapes. l Sensitive to noise and outliers. Cluster Similarity: MIN or Single Link

14. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 14 Hierarchical Clustering: MIN Nested ClustersDendrogram 1 2 3 4 5 6 1 2 3 4 5

15. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 15 Strength of MIN Original PointsTwo Clusters

16. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 16 Limitations of MIN Original PointsTwo Clusters

17. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 17 l Similarity of two clusters is based on the two most distant points in the different clusters. –Determined by all pairs of points in the two clusters. l Tends to break large clusters. l Less susceptible to noise and outliers. l Biased towards globular clusters. Cluster Similarity: MAX or Complete Linkage

18. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 18 Hierarchical Clustering: MAX Nested ClustersDendrogram 1 2 3 4 5 6 1 2 5 3 4

19. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 19 Strength of MAX Original PointsTwo Clusters

20. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 20 Limitations of MAX Original PointsTwo Clusters

21. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 21 l Distance of two clusters is the average of pairwise distance between points in the two clusters. l Compromise between Single and Complete Link. l Need to use average connectivity for scalability since total connectivity favors large clusters. l Less susceptible to noise and outliers. l Biased towards globular clusters. Cluster Similarity: Group Average

22. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 22 Hierarchical Clustering: Group Average Nested ClustersDendrogram 1 2 3 4 5 6 1 2 5 3 4

23. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 23 l Similarity of two clusters is based on the increase in squared error when two clusters are merged. –Similar to group average if distance between points is distance squared. l Less susceptible to noise and outliers. l Biased towards globular clusters. l Hierarchical analogue of K-means –But Ward’s method does not correspond to a local minimum –Can be used to initialize K-means Cluster Similarity: Ward’s Method

24. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 24 Hierarchical Clustering: Group Average Nested ClustersDendrogram 1 2 3 4 5 6 1 2 5 3 4

25. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 25 Hierarchical Clustering: Comparison Group Average Ward’s Method 1 2 3 4 5 6 1 2 5 3 4 MINMAX 1 2 3 4 5 6 1 2 5 3 4 1 2 3 4 5 6 1 2 5 3 4 1 2 3 4 5 6 1 2 3 4 5

26. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 26 l O(N 2 ) space since it uses the proximity matrix. –N is the number of points. l O(N 3 ) time in many cases. –There are N steps and at each step the size, N 2, proximity matrix must be updated and searched. –By being careful, the complexity can be reduced to O(N 2 log(N) ) time for some approaches. Hierarchical Clustering: Time and Space requirements

27. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 27 l Once a decision is made to combine two clusters, it cannot be undone. l No objective function is directly minimized. l Different schemes have problems with one or more of the following: –Sensitivity to noise and outliers. –Difficulty handling different sized clusters and convex shapes. –Breaking large clusters. Hierarchical Clustering: Problems and Limitations

28. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 28 DBSCAN l DBSCAN is a density based algorithm. –Density = number of points within a specified radius (Eps) –A point is a core point if it has more than a specified number of points (MinPts) within Eps  These are points that are at the interior of a cluster. –A border point has fewer than MinPts within Eps, but is in the neighborhoold of a core point –A noise point is any point that is not a core point or a border point.

29. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 29 DBSCAN: Core, Border, and Noise Points

30. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 30 When DBSCAN Works Well Original Points Clusters

31. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 31 DBSCAN: Core, Border and Noise Points Original Points Point types: core, border and noise Eps = 10, MinPts = 4

32. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 32 DBSCAN: Determining EPS and MinPts l Idea is that for points in a cluster, there k th nearest neighbors are at roughly the same distance. l Noise points have the k th nearest neighbor at at farther distance. l So, plot sorted distance of every point to its k th nearest neighbor. (k=4 used for 2D points.

33. © University of Minnesota Data Mining for the Discovery of Ocean Climate Indices 33 When DBSCAN Does NOT Work Well Original Points (MinPts=4, Eps=9.75). (MinPts=4, Eps=9.92)
