1. David Overton – Partner Account Manager

2. Defining VDI V-alliance and VDI General Microsoft licensing principles for VDI Key questions you need to answer to enable correct licensing

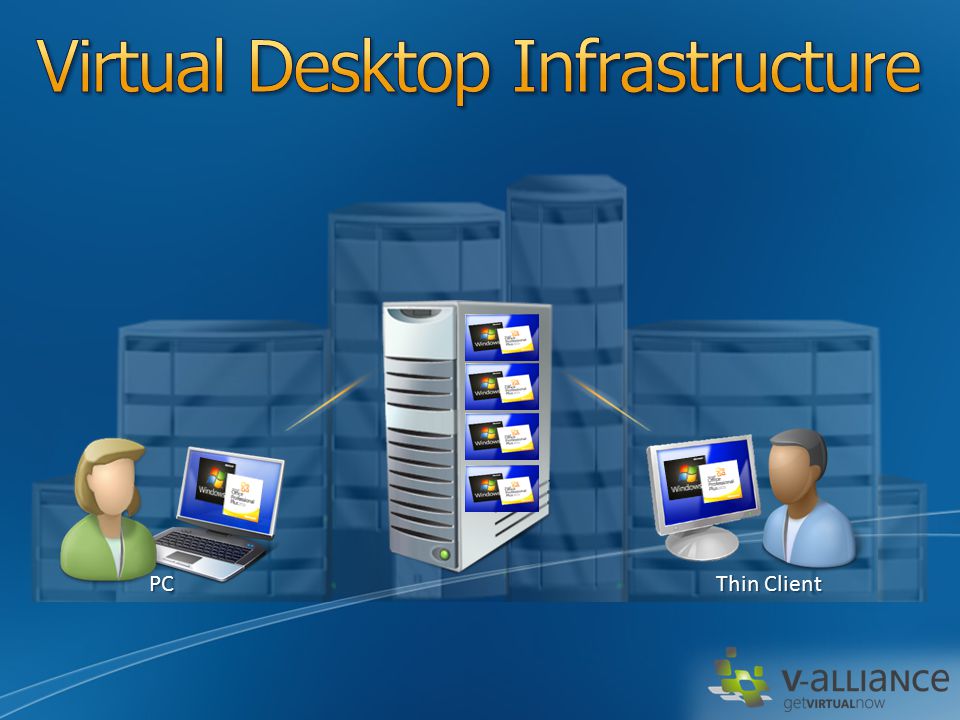

3. PC Thin Client

4. Windows and Office are delivered in a virtual machine Windows is delivered in a virtual machine and Office is delivered over RDS Windows is delivered in a virtual machine and Office is delivered through App-V PC Thin client PC Thin client PC

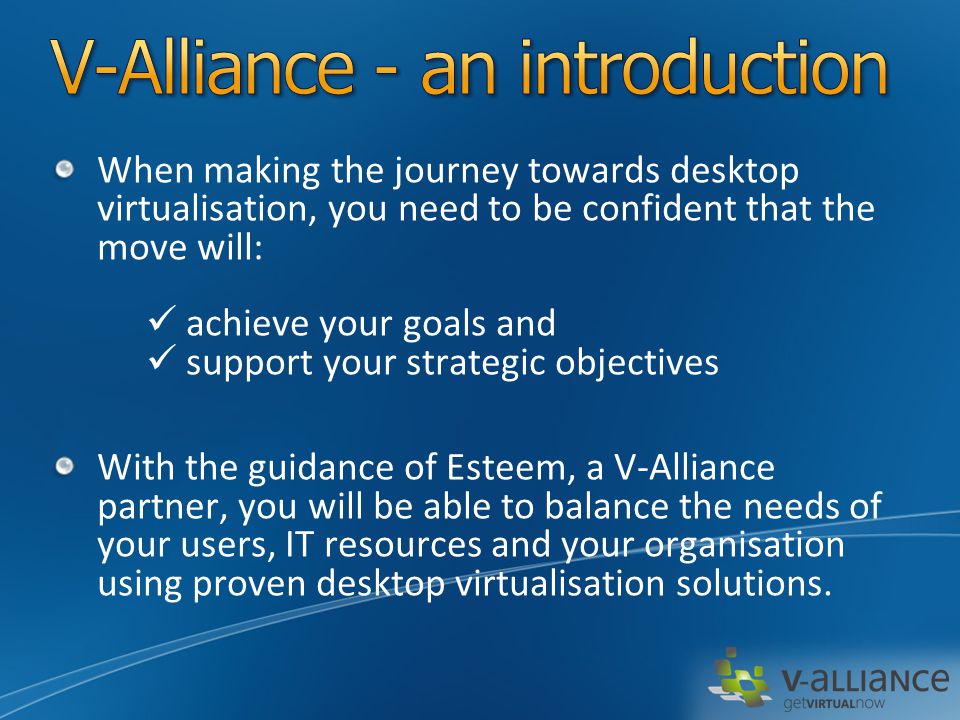

5. When making the journey towards desktop virtualisation, you need to be confident that the move will: achieve your goals and support your strategic objectives With the guidance of Esteem, a V-Alliance partner, you will be able to balance the needs of your users, IT resources and your organisation using proven desktop virtualisation solutions.

6. V-Alliance solutions offers an integrated end-to-end suite of technologies; a comprehensive and cost- effective virtual desktop infrastructure (VDI) with on-demand applications. Citrix XenDesktop Citrix XenApp Citrix HDX Citrix FlexCast Microsoft Windows 7 Microsoft App-V, Configuration Manager & Operations Manager Microsoft Windows Server 2008 R2 with Hyper-V Microsoft System Center Virtual Machine Manager

7. License the client for Windows and Office License for server access License for any required management technologies

8. Required for all non-SA devices inside the corporate network Required for any device outside the corporate network where the user is not the nominated primary user of device licensed inside the corporate network A subscription licence tied to the term of the VL agreement it’s purchased through Not available through the Open program Counts towards the enterprise-wide commitment in an Enterprise Agreement Licenses Windows 7 for use in a virtual OSE only on the licensed device

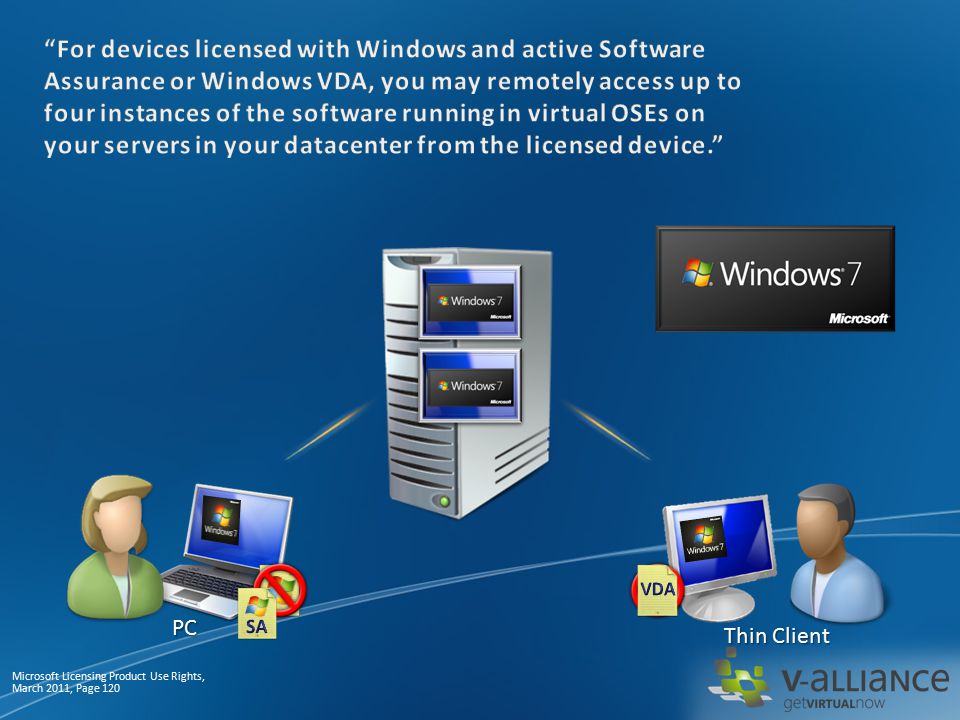

9. Thin Client Microsoft Licensing Product Use Rights, March 2011, Page 120 PC

10. Microsoft Licensing Product Use Rights, March 2011, Page 17 PC Thin Client

11. Remote Desktop Services Standard Suite: Restricted Use Rights CAL allowing access to desktops deployed through VDI Premium Suite: Full Use Rights CAL allowing access to VDI and session-based desktops, and use of App-V for RDS System Center Virtual Machine Manager VMM Server licence Special Use Rights CML to manage up to 4 virtual client OSEs stored on up to 4 different VDI hosts System Center Configuration Manager SCCM Server licence Special Use Rights Standard SML to manage the physical OSE on VDI hosts System Center Operations Manager SCOM Server licence Special Use Rights Standard SML to manage the physical OSE on VDI hosts

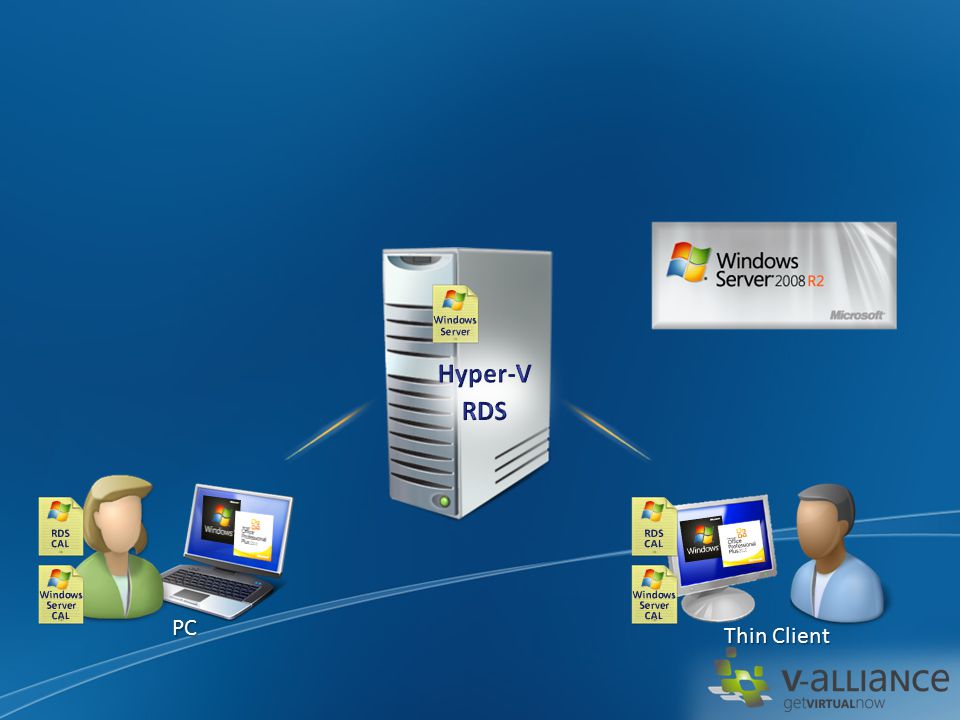

12. Thin Client PC

14. Windows Client + SA or VDA Windows CALs Company Wide licenses Office RDS (potentially) System Center (potentially) Office + SA VDI Suite Core / e-CAL Windows Server / Hyper-V 2008 R2 (potentially) On-Premise Only Including Roaming

15. How many devices will access the VDI infrastructure Within the corporate network? Covered by Windows Software Assurance Non-SA devices (BYOD, iPad, Android slates etc) From outside the corporate network? Where the user is the nominated user of a computer covered by Windows Software Assurance inside the corporate network All others Whose Broker and Hypervisor will you use? Citrix and Hyper-V Others Will you be using an Remote Desktop Services feature? Broker, RemoteFX, RDS protocol, RDS server Will you be using App-V Remember that VDA devices count towards company wide commitments

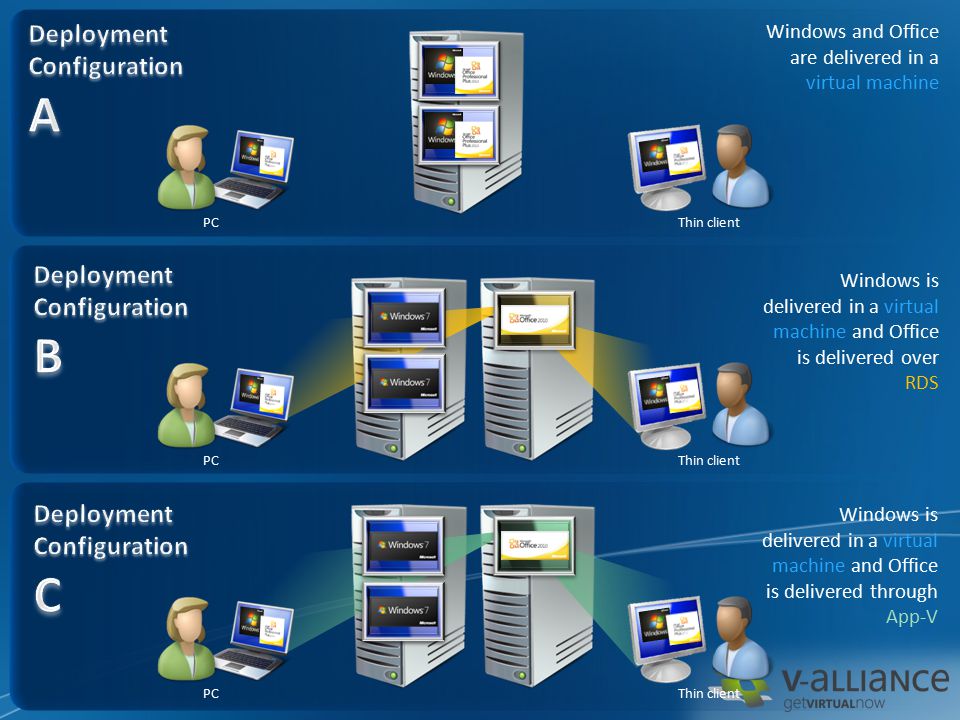

16. Windows and Office are delivered in a virtual machine Windows is delivered in a virtual machine and Office is delivered over RDS Windows is delivered in a virtual machine and Office is delivered through App-V PC Thin client PC Thin client PC

17. Windows and Office are delivered in a virtual machine PC Thin client Microsoft System Center Microsoft VDI To license delivery of Windows and Office: Hyper-V Server 2008 R2 Windows Server 2008 with Remote Desktop Services To license System Center: SC Config Manager Server, and Server ML SC Ops Manager Server, and Server ML SC Virtual Machine Manager Server, and Client ML Primary User of PC : To license Windows and Office for the device: Windows 7 + SA or VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user) Primary User of Thin Client: To license Windows and Office for the device: VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user)

18. Windows and Office are delivered in a virtual machine PC Thin client Microsoft System Center Microsoft VDI To license delivery of Windows and Office: Hyper-V Server 2008 R2 Windows Server 2008 with Remote Desktop Services To license System Center: SC Config Manager Server, and Server ML SC Ops Manager Server, and Server ML SC Virtual Machine Manager Server, and Client ML Primary User of PC : To license Windows and Office for the device: Windows 7 + SA or VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user) Primary User of Thin Client: To license Windows and Office for the device: VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user)

19. Windows and Office are delivered in a virtual machine Microsoft System Center Microsoft VDI To license delivery of Windows and Office: Hyper-V Server 2008 R2 Windows Server 2008 with Remote Desktop Services To license System Center: SC Config Manager Server, and Server ML SC Ops Manager Server, and Server ML SC Virtual Machine Manager Server, and Client ML Primary User of PC : To license Windows and Office for the device: Windows 7 + SA or VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user) Primary User of Thin Client: To license Windows and Office for the device: VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user) Add SA to Office + SA

20. Windows and Office are delivered in a virtual machine Microsoft System Center Microsoft VDI To license delivery of Windows and Office: Hyper-V Server 2008 R2 Windows Server 2008 with Remote Desktop Services To license System Center: SC Config Manager Server, and Server ML SC Ops Manager Server, and Server ML SC Virtual Machine Manager Server, and Client ML Primary user of a corporate- owned VDI-licensed device Licences required for non-corporate owned device: To license Windows and Office for the device: Windows 7 + SA or VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user) User not currently licensed for a corporate-owned VDI-licensed device Licences required for non-corporate owned device: To license Windows and Office for the device: Windows 7 + SA or VDA Office 2010 Professional Plus To license the delivery of Windows and Office: Windows CAL (device/user) RDS CAL (device/user)

21. V-alliance partners provide the best understanding of a Microsoft and Citrix solution VDI licensing is only available as a subscription Different deployment scenarios change the licenses you require Bring your own device impacts licensing Microsoft partners are here to help
