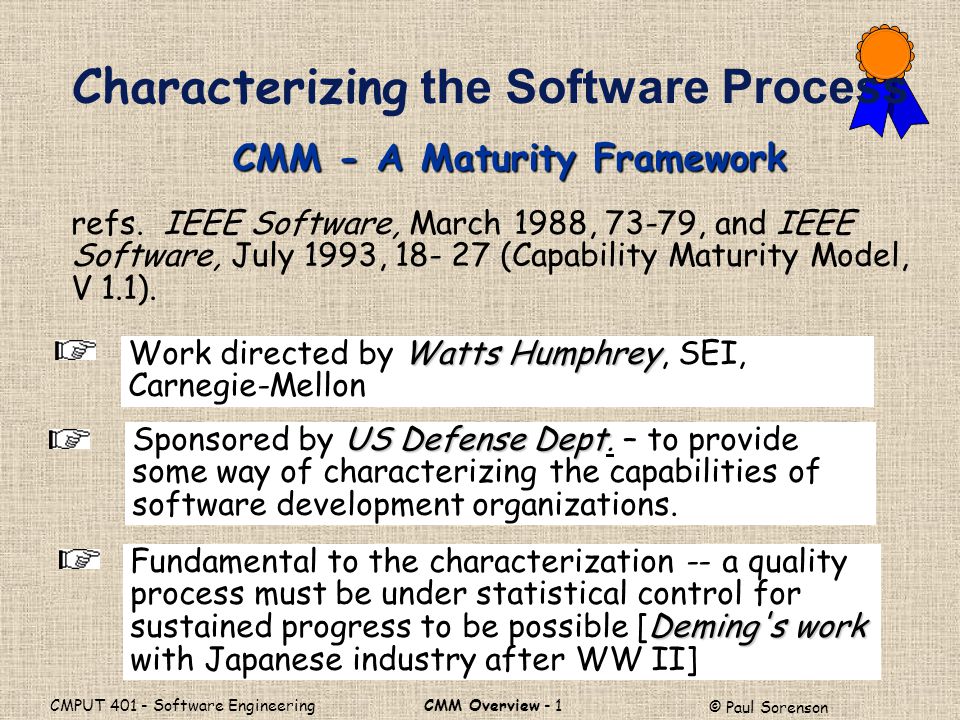

1. CMM Overview - 1 © Paul Sorenson CMPUT 401 - Software Engineering refs. IEEE Software, March 1988, 73-79, and IEEE Software, July 1993, 18- 27 (Capability Maturity Model, V 1.1). Watts Humphrey Work directed by Watts Humphrey, SEI, Carnegie-Mellon US Defense Dept Sponsored by US Defense Dept. – to provide some way of characterizing the capabilities of software development organizations. Fundamental to the characterization -- a quality Deming's work process must be under statistical control for sustained progress to be possible [Deming's work with Japanese industry after WW II] CMM - A Maturity Framework Characterizing the Software Process

2. CMM Overview - 2 © Paul Sorenson CMPUT 401 - Software Engineering Lord Kelvin said a century ago... "When you can measure what you are speaking about, and express it in numbers, you [may] know something about it; but when you cannot measure it, when you cannot express it in numbers, your knowledge is of a meager and unsatisfactory kind; it may be the beginning of knowledge, but you have scarcely in your thoughts advanced to the stage of Science."

3. CMM Overview - 3 © Paul Sorenson CMPUT 401 - Software Engineering highest level (5) defined and documented process measured and controlled focused on process improvement supported by technology Macro-measure of an organization's capability for continuous process improvement Five-stage progressive model lowest level (1) crisis driven and poorly controlled highly dependent on current practitioners unpredictable cost, schedule and quality

4. CMM Overview - 4 © Paul Sorenson CMPUT 401 - Software Engineering Initial (1) Repeatable (2) Defined (3) Managed (4) Optimized (5) In Out In Out In Out In Out In Out

5. CMM Overview - 5 © Paul Sorenson CMPUT 401 - Software Engineering Optimizing(5) Process change management Technology change management Defect prevention Software quality management Quantitative process management Managed(4) Peer reviews Intergroup coordination Software product engineering Integrated software management Training program Organization process definition Organization process focus Defined(3) Software config management Software quality assurance Software subcontract management Software project tracking & oversight Software project planning Requirements management Repeatable(2) Initial(1)

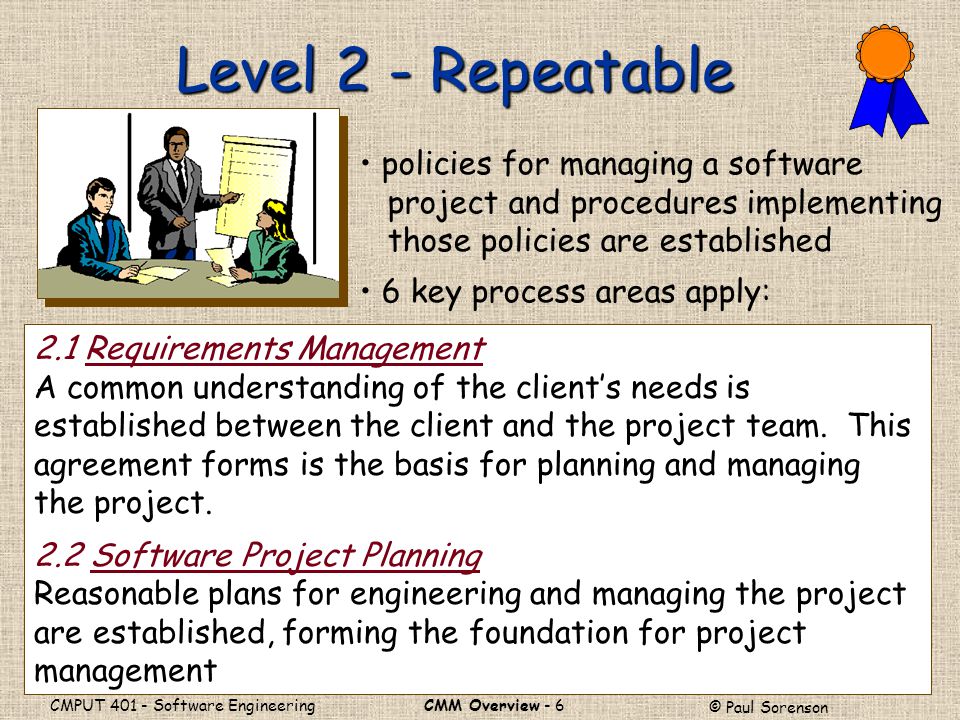

6. CMM Overview - 6 © Paul Sorenson CMPUT 401 - Software Engineering Level 2 - Repeatable policies for managing a software project and procedures implementing those policies are established 6 key process areas apply: 2.1 Requirements Management A common understanding of the client’s needs is established between the client and the project team. This agreement forms is the basis for planning and managing the project. 2.2 Software Project Planning Reasonable plans for engineering and managing the project are established, forming the foundation for project management

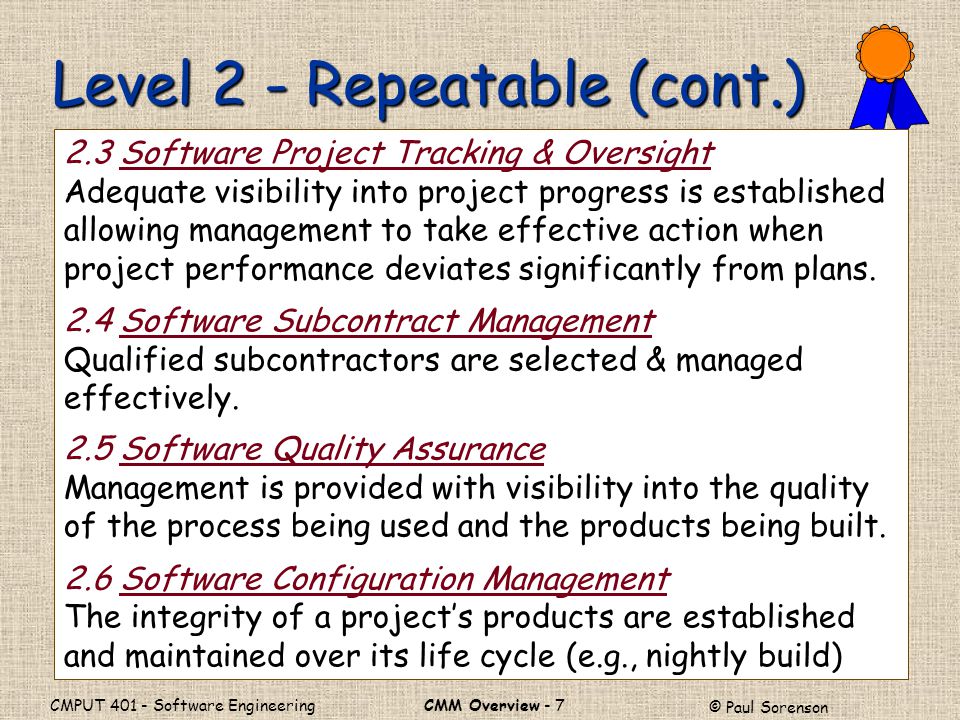

7. CMM Overview - 7 © Paul Sorenson CMPUT 401 - Software Engineering Level 2 - Repeatable (cont.) 2.3 Software Project Tracking & Oversight Adequate visibility into project progress is established allowing management to take effective action when project performance deviates significantly from plans. 2.4 Software Subcontract Management Qualified subcontractors are selected & managed effectively. 2.5 Software Quality Assurance Management is provided with visibility into the quality of the process being used and the products being built. 2.6 Software Configuration Management The integrity of a project’s products are established and maintained over its life cycle (e.g., nightly build)

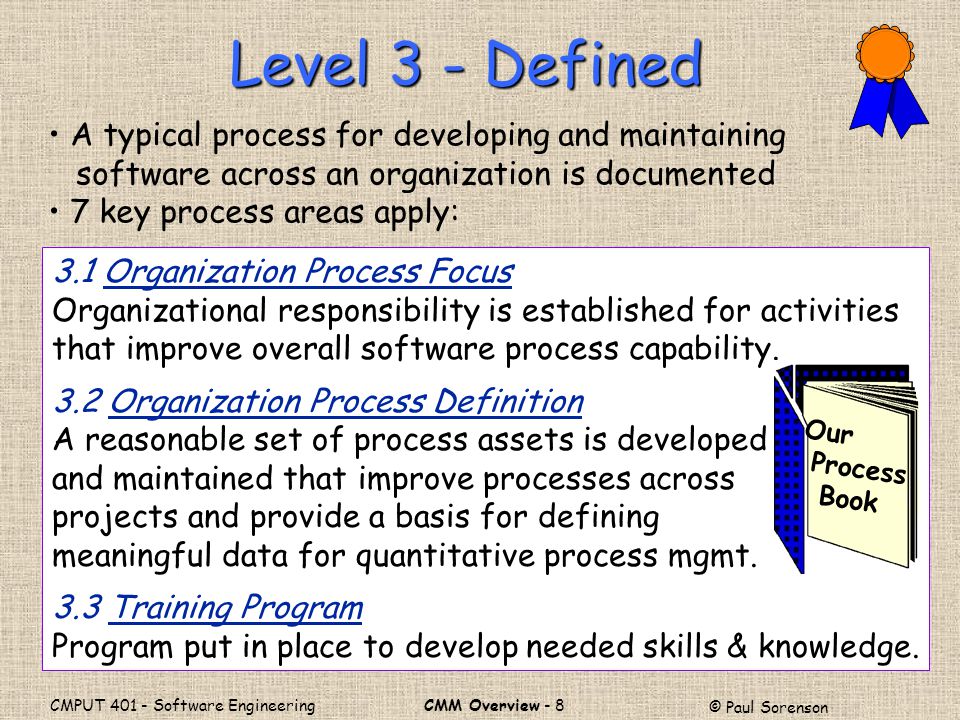

8. CMM Overview - 8 © Paul Sorenson CMPUT 401 - Software Engineering Level 3 - Defined A typical process for developing and maintaining software across an organization is documented 7 key process areas apply: 3.1 Organization Process Focus Organizational responsibility is established for activities that improve overall software process capability. 3.2 Organization Process Definition A reasonable set of process assets is developed and maintained that improve processes across projects and provide a basis for defining meaningful data for quantitative process mgmt. 3.3 Training Program Program put in place to develop needed skills & knowledge. Our Process Book

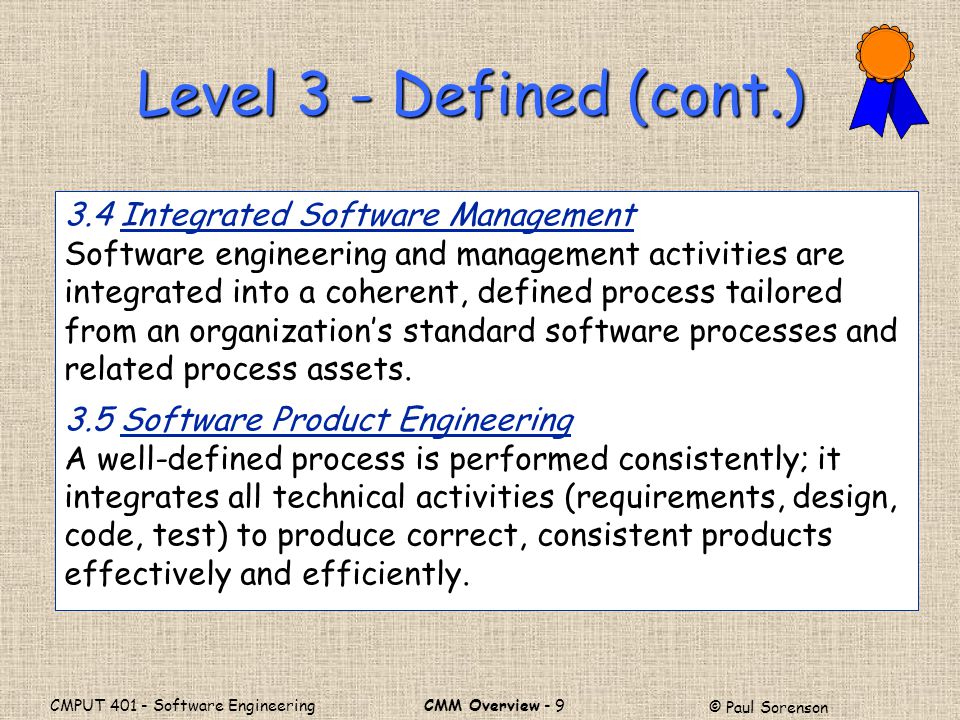

9. CMM Overview - 9 © Paul Sorenson CMPUT 401 - Software Engineering Level 3 - Defined (cont.) 3.4 Integrated Software Management Software engineering and management activities are integrated into a coherent, defined process tailored from an organization’s standard software processes and related process assets. 3.5 Software Product Engineering A well-defined process is performed consistently; it integrates all technical activities (requirements, design, code, test) to produce correct, consistent products effectively and efficiently.

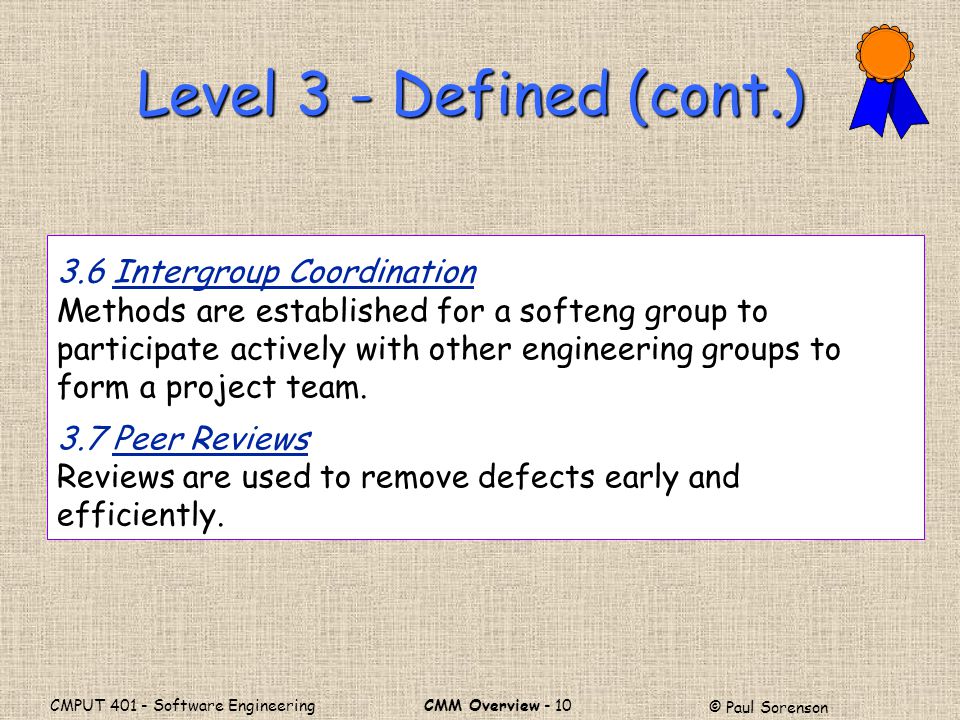

10. CMM Overview - 10 © Paul Sorenson CMPUT 401 - Software Engineering Level 3 - Defined (cont.) 3.6 Intergroup Coordination Methods are established for a softeng group to participate actively with other engineering groups to form a project team. 3.7 Peer Reviews Reviews are used to remove defects early and efficiently.

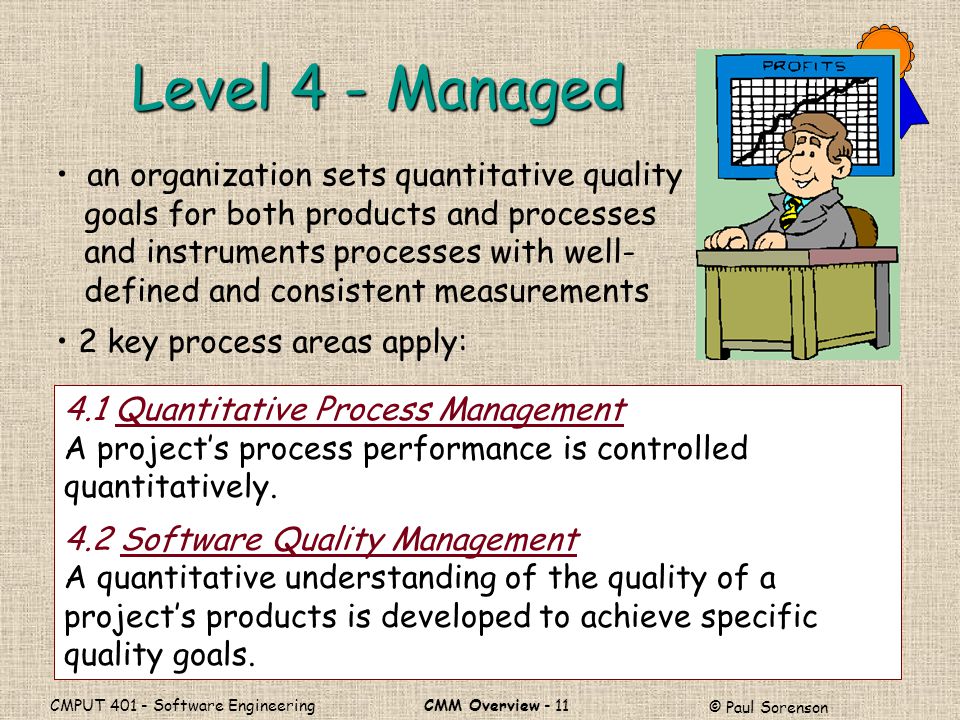

11. CMM Overview - 11 © Paul Sorenson CMPUT 401 - Software Engineering Level 4 - Managed an organization sets quantitative quality goals for both products and processes and instruments processes with well- defined and consistent measurements 2 key process areas apply: 4.1 Quantitative Process Management A project’s process performance is controlled quantitatively. 4.2 Software Quality Management A quantitative understanding of the quality of a project’s products is developed to achieve specific quality goals.

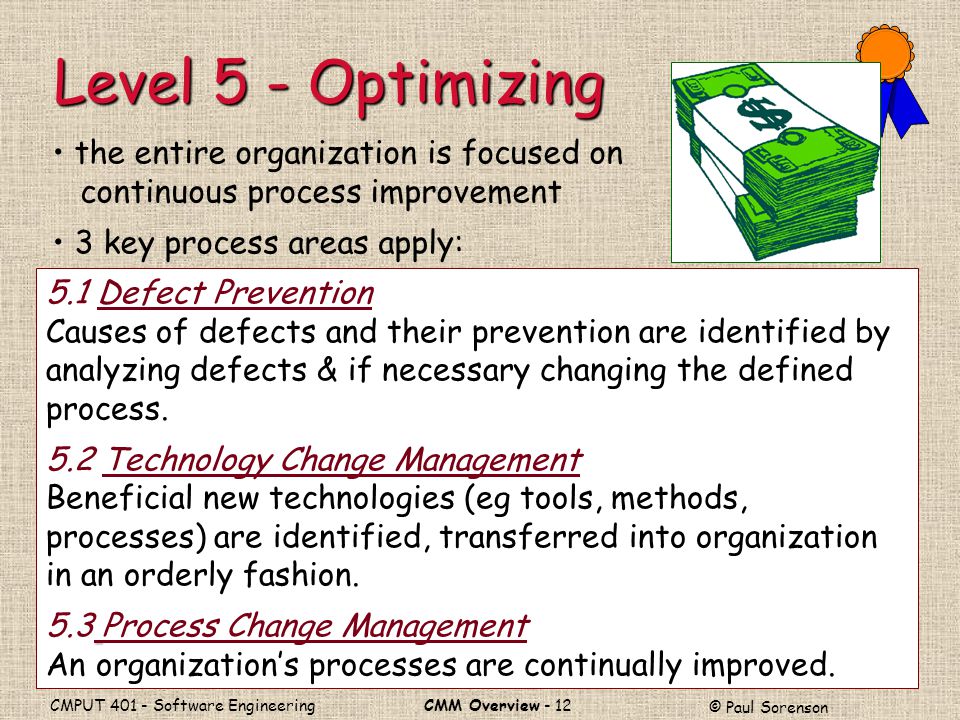

12. CMM Overview - 12 © Paul Sorenson CMPUT 401 - Software Engineering Level 5 - Optimizing the entire organization is focused on continuous process improvement 3 key process areas apply: 5.1 Defect Prevention Causes of defects and their prevention are identified by analyzing defects & if necessary changing the defined process. 5.2 Technology Change Management Beneficial new technologies (eg tools, methods, processes) are identified, transferred into organization in an orderly fashion. 5.3 Process Change Management An organization’s processes are continually improved.

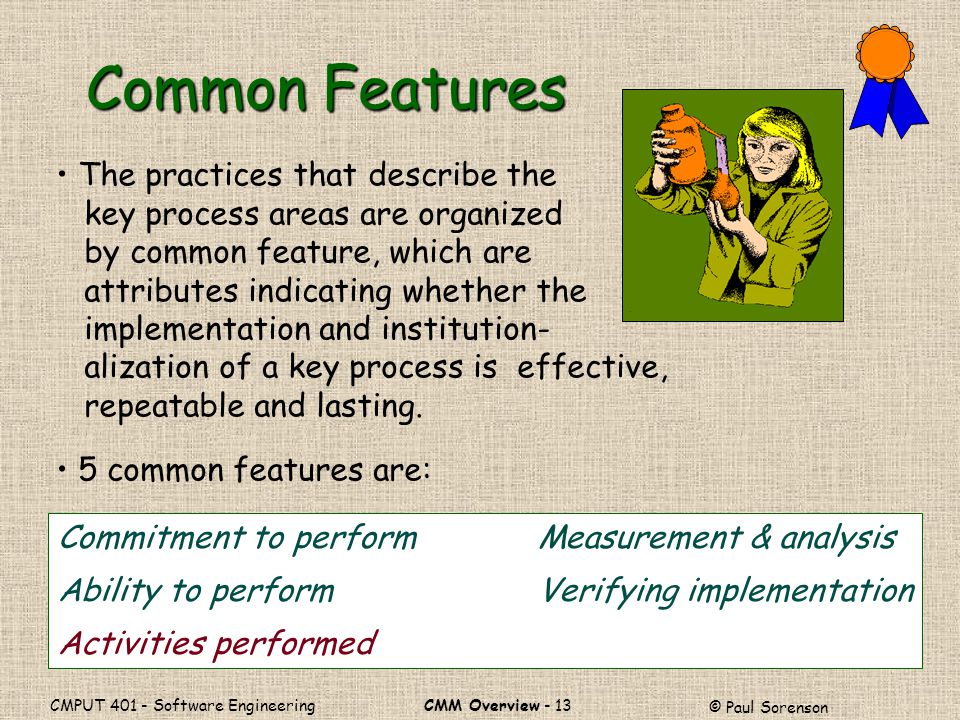

13. CMM Overview - 13 © Paul Sorenson CMPUT 401 - Software Engineering Common Features The practices that describe the key process areas are organized by common feature, which are attributes indicating whether the implementation and institution- alization of a key process is effective, repeatable and lasting. 5 common features are: Commitment to performMeasurement & analysis Ability to performVerifying implementation Activities performed

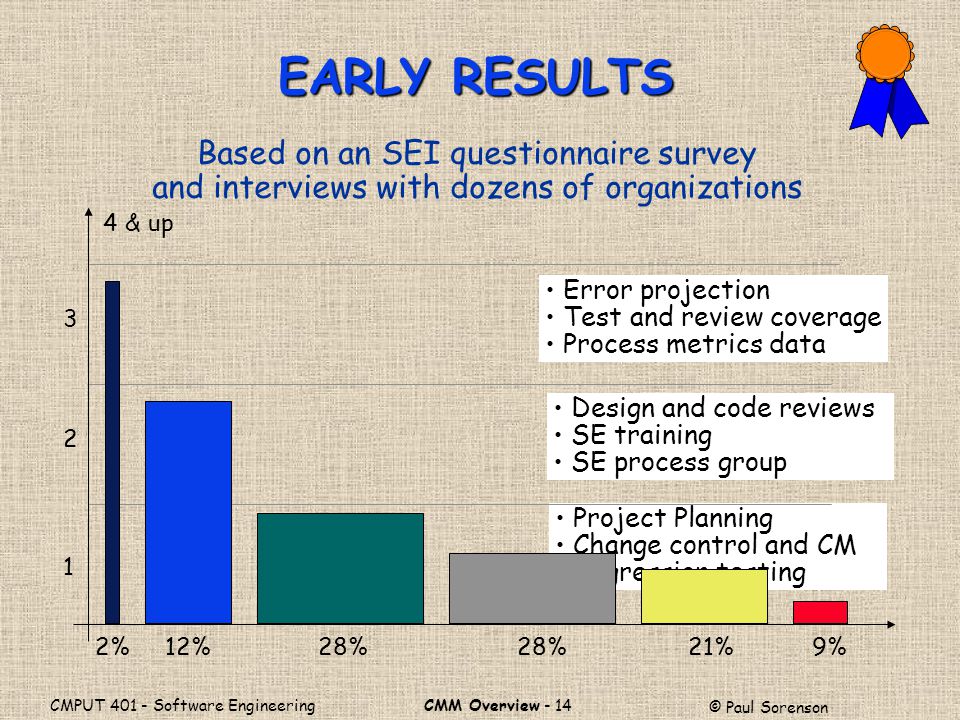

14. CMM Overview - 14 © Paul Sorenson CMPUT 401 - Software Engineering Project Planning Change control and CM Regression testing Based on an SEI questionnaire survey and interviews with dozens of organizations 3 2 1 4 & up Error projection Test and review coverage Process metrics data Design and code reviews SE training SE process group 2% 12% 28% 28% 21% 9% EARLY RESULTS

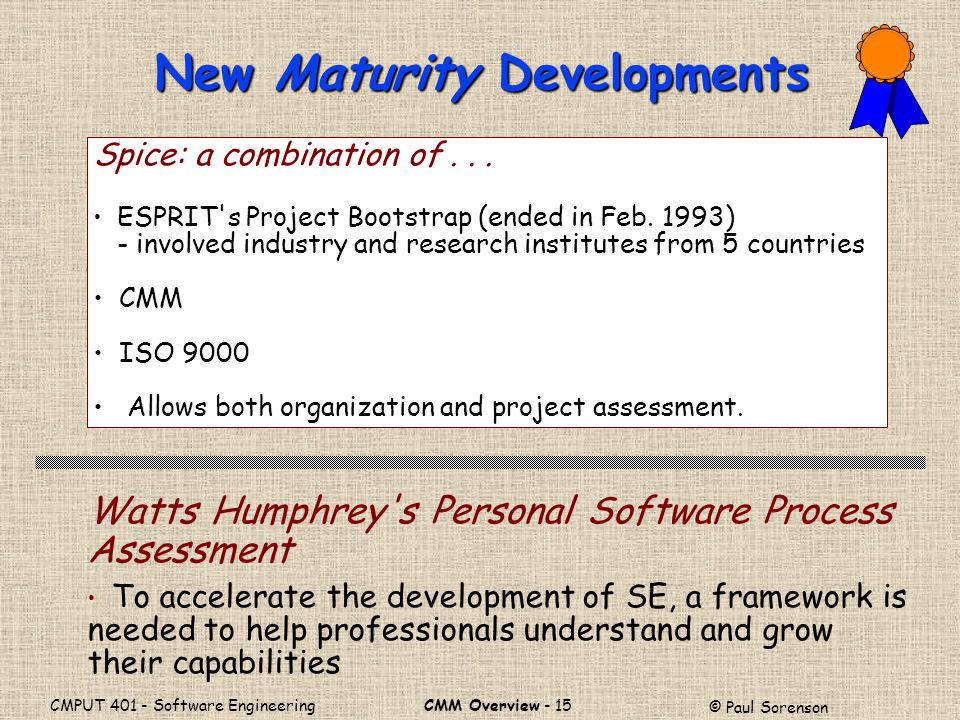

15. CMM Overview - 15 © Paul Sorenson CMPUT 401 - Software Engineering New Maturity Developments Spice: a combination of... ESPRIT's Project Bootstrap (ended in Feb. 1993) - involved industry and research institutes from 5 countries CMM ISO 9000 Allows both organization and project assessment. Watts Humphrey's Personal Software Process Assessment To accelerate the development of SE, a framework is needed to help professionals understand and grow their capabilities
