Inherent Uncertainties in Nearshore Fisheries: The Biocomplexity of Flow, Fish and Fishing Dave Siegel 1, Satoshi Mitarai 1, Crow White 1, Heather Berkley.

Similar presentations


Presentation on theme: "Inherent Uncertainties in Nearshore Fisheries: The Biocomplexity of Flow, Fish and Fishing Dave Siegel 1, Satoshi Mitarai 1, Crow White 1, Heather Berkley."— Presentation transcript:

1 Inherent Uncertainties in Nearshore Fisheries: The Biocomplexity of Flow, Fish and Fishing Dave Siegel 1, Satoshi Mitarai 1, Crow White 1, Heather Berkley 1, Chris Costello 1, Steve Gaines 1, Ray Hilborn 2, Bruce Kendall 1, Steve Polasky 3, Bob Warner 1 & Kraig Winters 4 1 = [UCSB], 2 = [UW], 3 = [UMn] & 4 = [SIO/UCSD] Flow, Fish & Fishing (F3) Biocomplexity

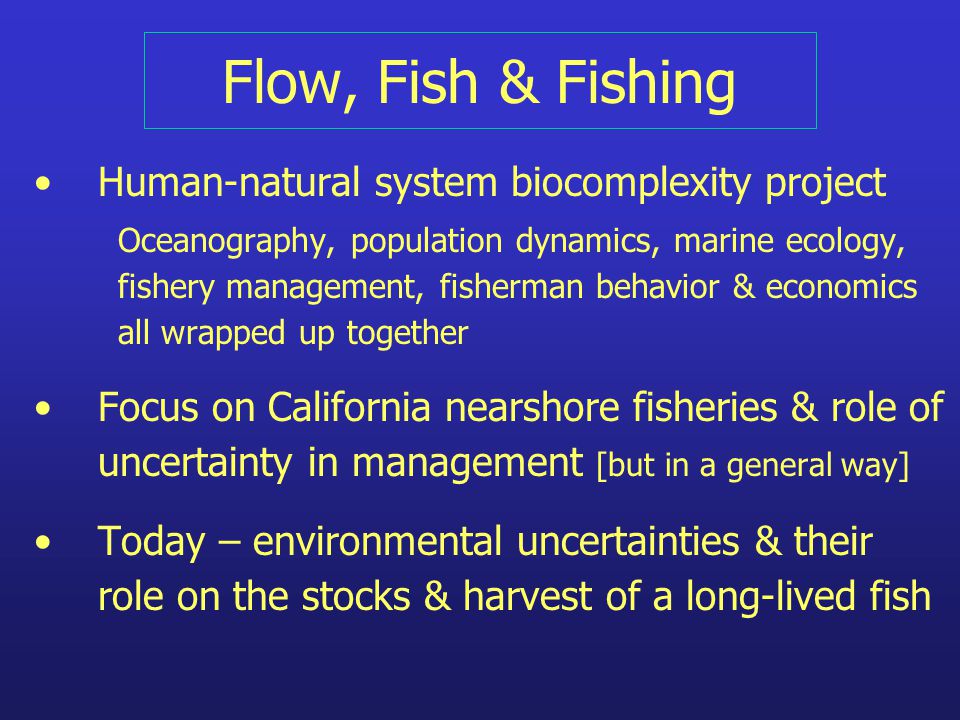

2 Flow, Fish & Fishing Human-natural system biocomplexity project Oceanography, population dynamics, marine ecology, fishery management, fisherman behavior & economics all wrapped up together Focus on California nearshore fisheries & role of uncertainty in management [but in a general way] Today – environmental uncertainties & their role on the stocks & harvest of a long-lived fish

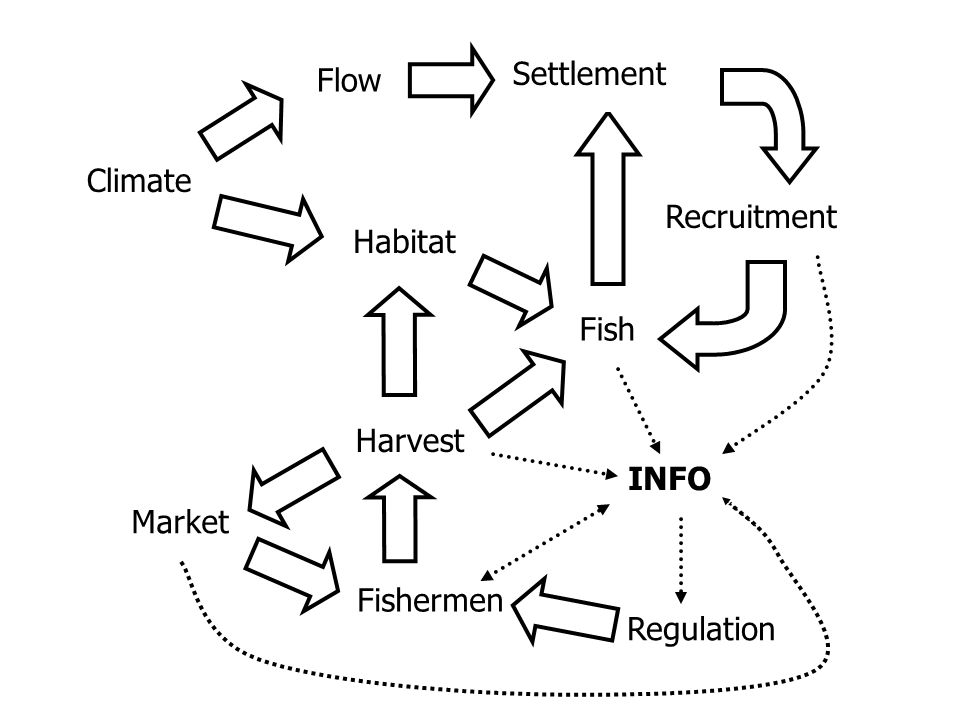

3 Flow Fish Settlement Habitat Recruitment Harvest Regulation Fishermen Market INFO Climate

4 Flow Fish Settlement Habitat Recruitment Harvest Regulation Fishermen Market INFO Climate

5 Stock / Harvest Modeling Next generation stocks = survivors - harvest + new recruits SURVIVORS are surviving adults from previous time HARVEST are those extracted from the fishery NEW RECRUITS are a function of fecundity of the survivors, larval dispersal & mortality, settlement & recruitment to adult stages

6 Model System Long lived, sessile, harvested fish –M = 0.05 y -1, density dependence parameterized using Beverton-Holt on larval settling densities Larval dispersal scales (Gaussian kernel) –PLD = 60 d, D d = 150 km & T spawn = 60 d Virgin carrying capacity set to 100 units –Fixes fecundity 1-D coastline domain –2000 km long,  x = 5 km & absorbing BC

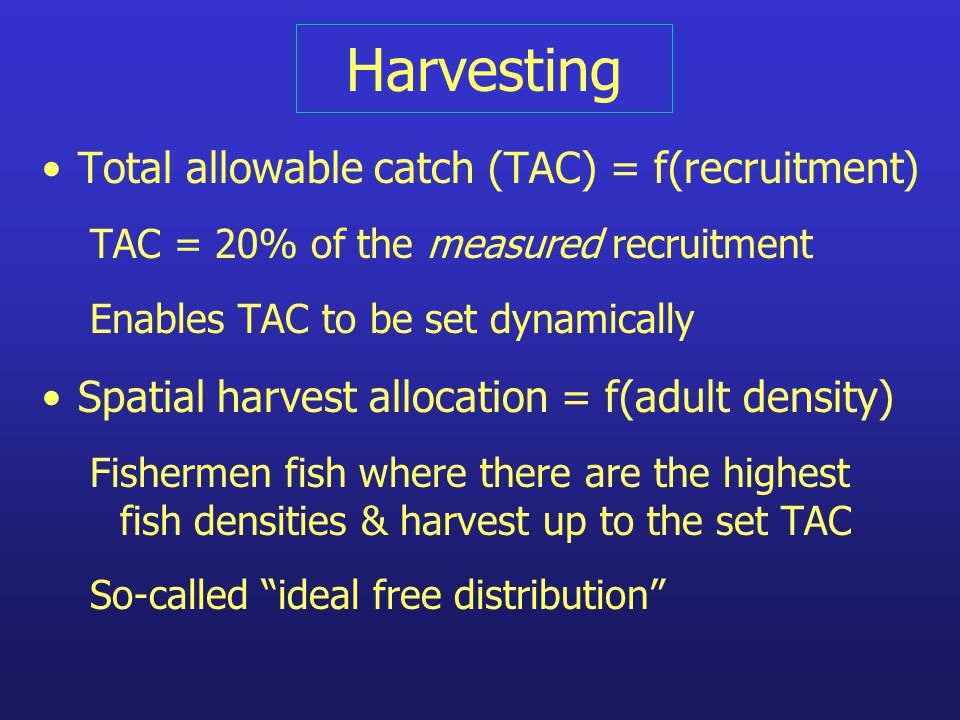

7 Harvesting Total allowable catch (TAC) = f(recruitment) TAC = 20% of the measured recruitment Enables TAC to be set dynamically Spatial harvest allocation = f(adult density) Fishermen fish where there are the highest fish densities & harvest up to the set TAC So-called “ideal free distribution”

8 Base Case Diffusive larval kernel, no sources of uncertainty Adults (~60) Recruitment (~4) Settlement (~6) Harvest (~0.9)

9 Flow Fish Settlement Habitat Recruitment Harvest Regulation Fishermen Market INFO Climate Variability in Fecundity CV = 50%

10 Climate Case Adults Recruitment Settlement Harvest Diffusive larval kernel - fecundity variability (CV = 50%)

11 Regional means are same as the base case Adults (~60) Recruitment (~4) Settlement (~6) Harvest (~0.9) Recruitment variability sets TAC

12 Flow Fish Settlement Habitat Recruitment Harvest Regulation Fishermen Market INFO Climate Short time scales of the process makes larval transport stochastic

13 ROMS simulations from Mitarai et al. JMS [2006]

14 Larval Connectivity is a Stochastic Driven by flow scales, short spawning durations & the low probability of survival Model stochastically which matches Gaussian kernel when # of settlement events is large Siegel et al. [in review] Mitarai et al. [in prep.] Destination Location (km) Source Location (km) Self settlement

15 Patchy Settlement Case Adults Recruitment Settlement Harvest Patchy larval kernel - PLD = 60 d, D d = 150 km & T spawn = 60 d

16 Adult densities are lower, why?

17 Climate Case Patchy Case Settling densities are 2x the base case due to the spatial focusing of successful settlement events Larval density dependence on post-settlement recruitment rates reduces overall adult populations Role of Density Dependence

18 Flow Fish Settlement Habitat Recruitment Harvest Regulation Fishermen Market INFO Climate Sample recruitment at only 5% of the sites to set the TAC

19 Uncertainty Case Adults Recruitment Settlement Harvest Patchy larval kernel, varying fecundity & assessment area = 5%

20 Regional scale harvest & recruitment are weakly correlated Times when fishery is closed when TAC = 0 Increases risk to sustainability of the stock & fishing profits Uncertainty Case

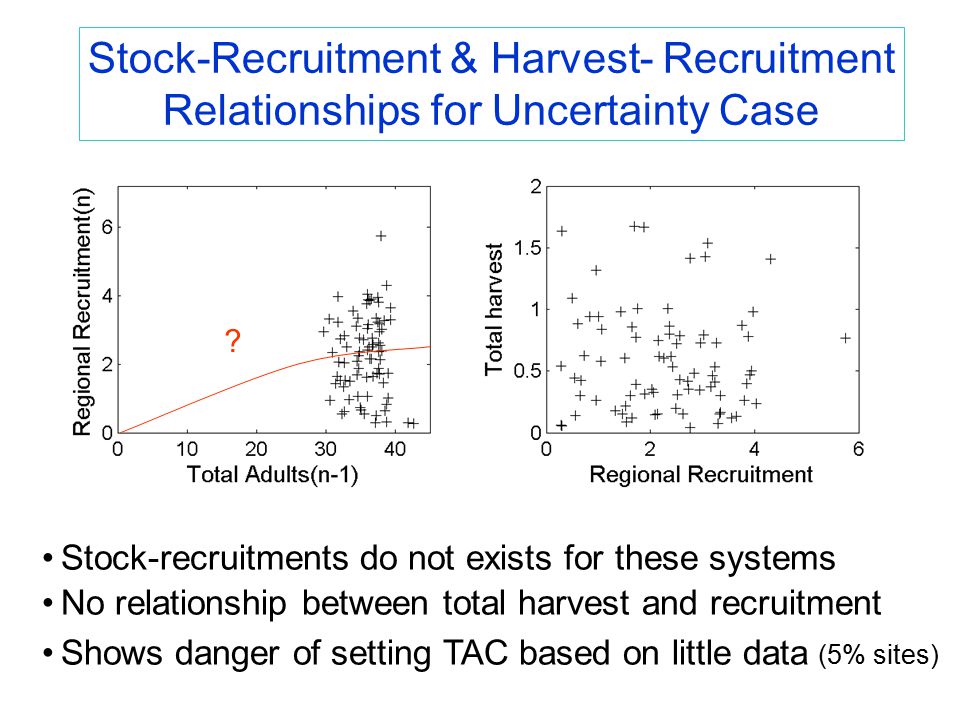

21 Stock-recruitments do not exists for these systems No relationship between total harvest and recruitment Shows danger of setting TAC based on little data (5% sites) Stock-Recruitment & Harvest- Recruitment Relationships for Uncertainty Case ?

22 Conclusions to Date Created a caricature of a CA nearshore fishery Climate forcing creates temporal variations though its effects are linear (time average = base case) Flow-induced stochastic settlement creates spatial- temporal variability to stocks, recruitment & harvest Larvae/larvae density dependence mitigates extreme settlement event densities Information is critical Poor information leads to overfishing & profit losses

23 Thank You!! Berkley et al. Spatiotemporal scales of stocks & recruitment – Poster Today OS36K-12 Mitarai et al. Role of larval behavior on dispersal scales – Talk Tomorrow OS43I-01 1pm HCC318 www.icess.ucsb.edu/~satoshi/f3 Photo credit: Steve Churchill

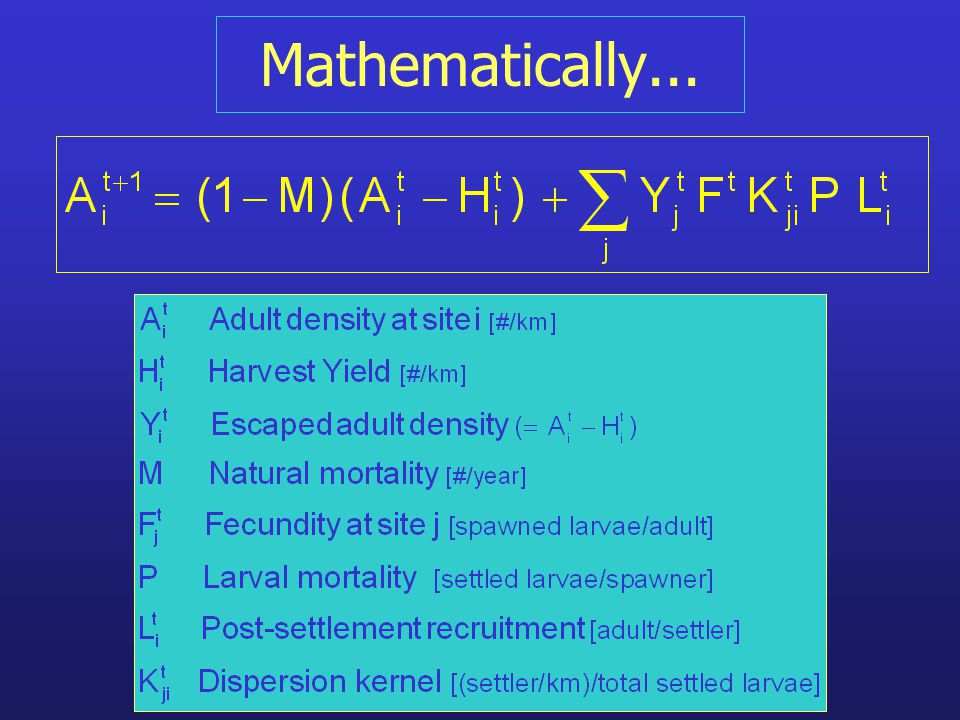

24 Mathematically...

25 Determine # of settlement packets N = (T/  ) (L/ ) f NUMBER OF SETTLEMENT PACKETS T: Larval release duration  : Lagrangian correlation time L: domain size : Rossby radius f: survivability of packet Siegel et al. [in rev.], Mitarai et al. [in prep.]

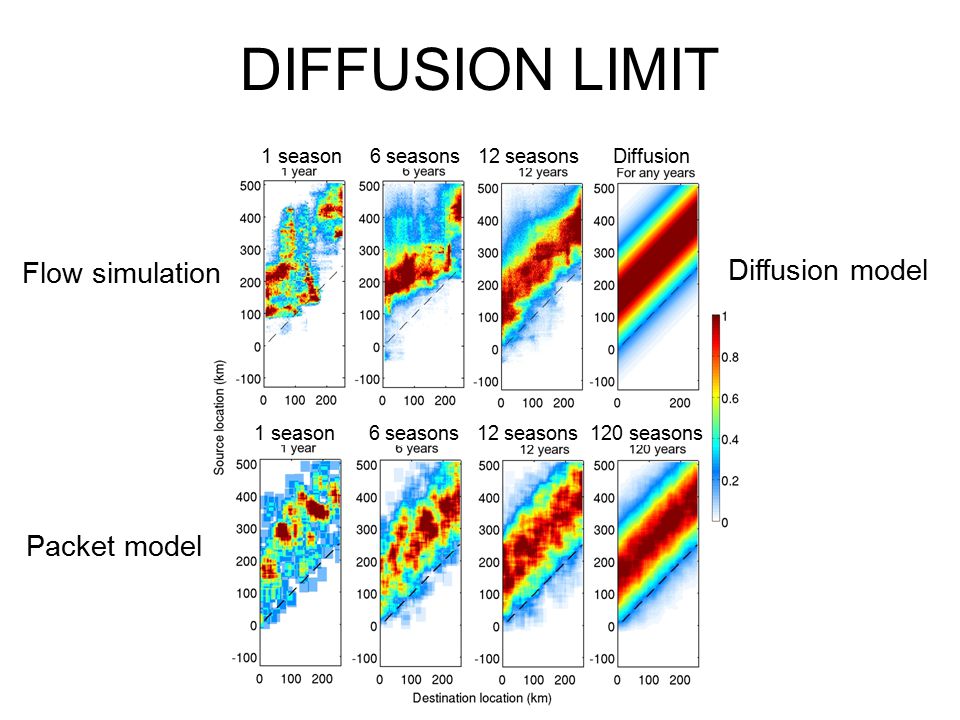

26 DIFFUSION LIMIT Packet model 1 season 6 seasons 12 seasons 120 seasons 1 season 6 seasons 12 seasons Diffusion Flow simulation Diffusion model

27 MODEL PREDICTIONS SummerWinter Accounts for spatial structures

28 CONNECTIVITY MATRIX Summer Winter

29

30 Larval Transport & Fish Life Cycles
