1

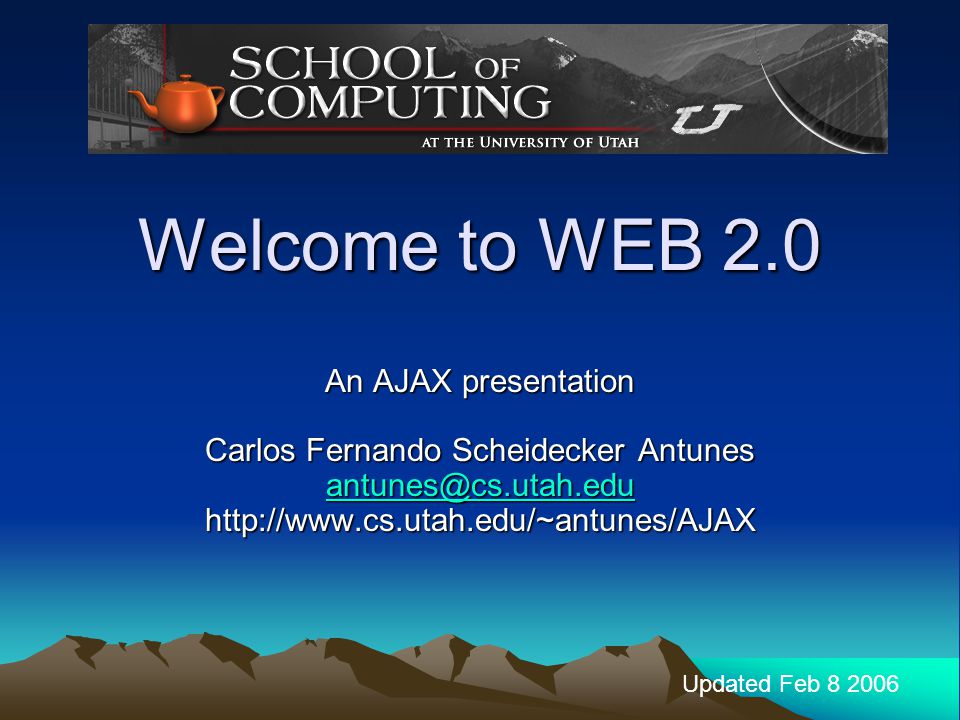

Welcome to WEB 2.0 An AJAX presentation Carlos Fernando Scheidecker Antunes antunes@cs.utah.edu http://www.cs.utah.edu/~antunes/AJAX antunes@cs.utah.edu Updated Feb 8 2006
2

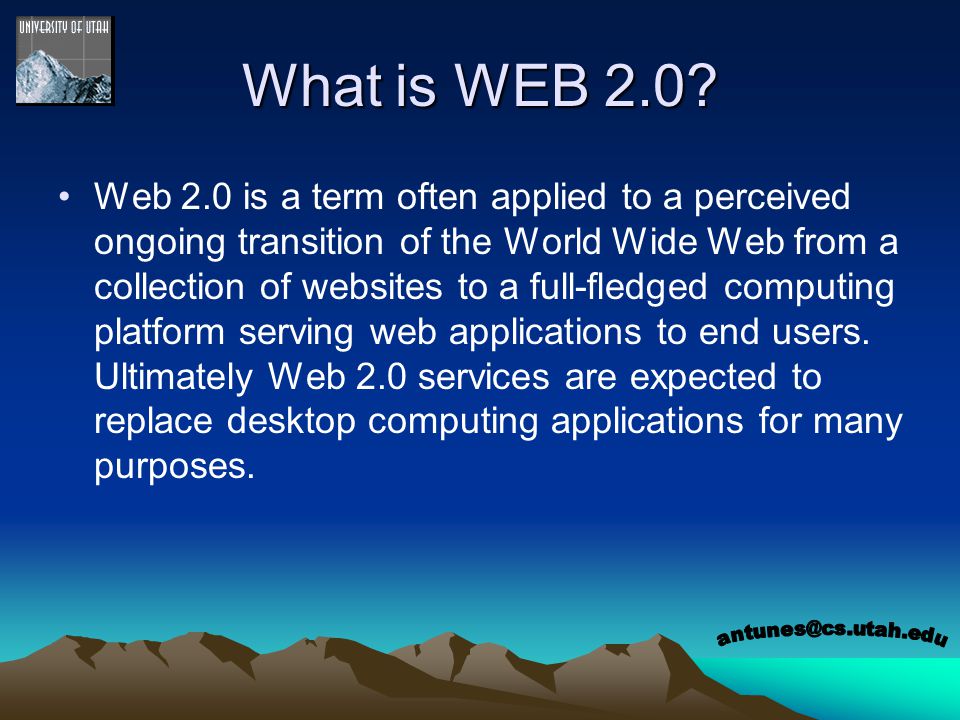

What is WEB 2.0? Web 2.0 is a term often applied to a perceived ongoing transition of the World Wide Web from a collection of websites to a full-fledged computing platform serving web applications to end users. Ultimately Web 2.0 services are expected to replace desktop computing applications for many purposes.
3
What is AJAX ?
4

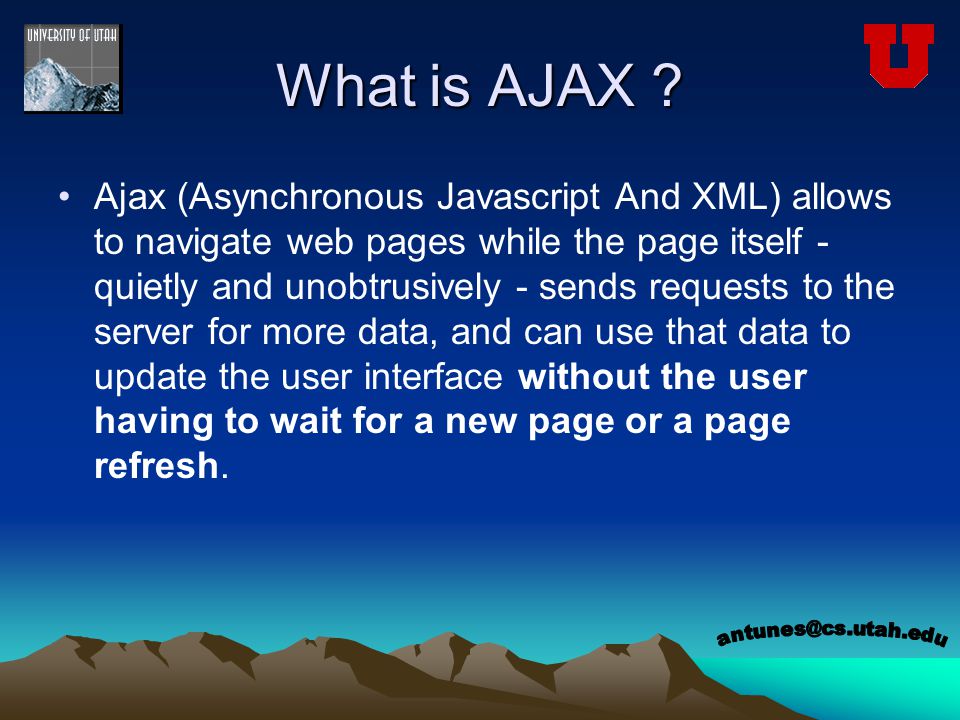

Ajax (Asynchronous Javascript And XML) allows to navigate web pages while the page itself - quietly and unobtrusively - sends requests to the server for more data, and can use that data to update the user interface without the user having to wait for a new page or a page refresh.
5

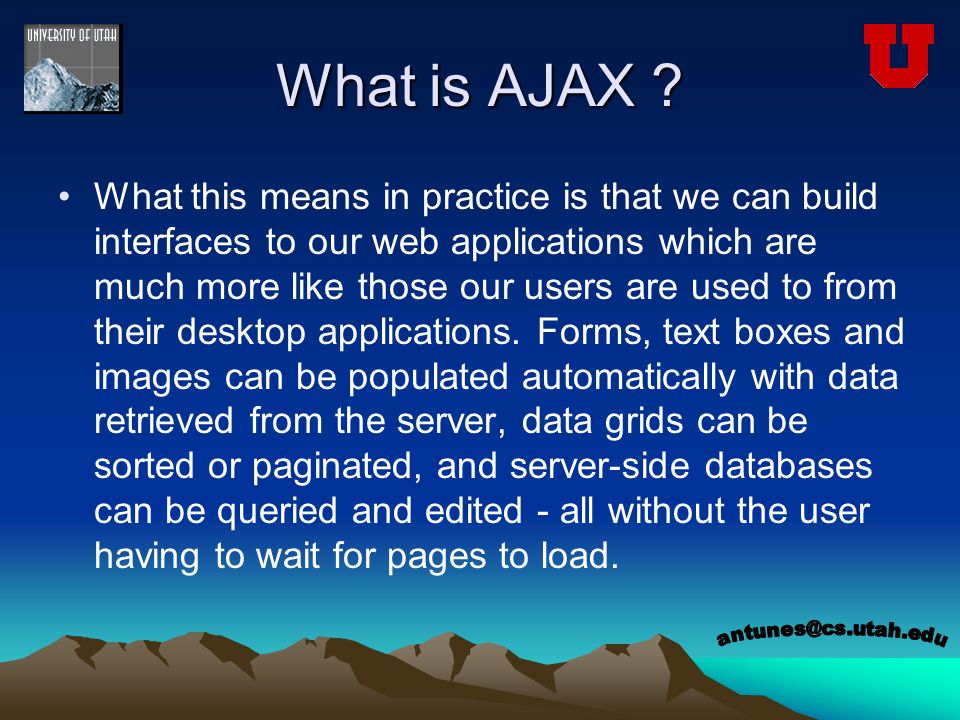

What is AJAX ? What this means in practice is that we can build interfaces to our web applications which are much more like those our users are used to from their desktop applications. Forms, text boxes and images can be populated automatically with data retrieved from the server, data grids can be sorted or paginated, and server-side databases can be queried and edited - all without the user having to wait for pages to load.
6

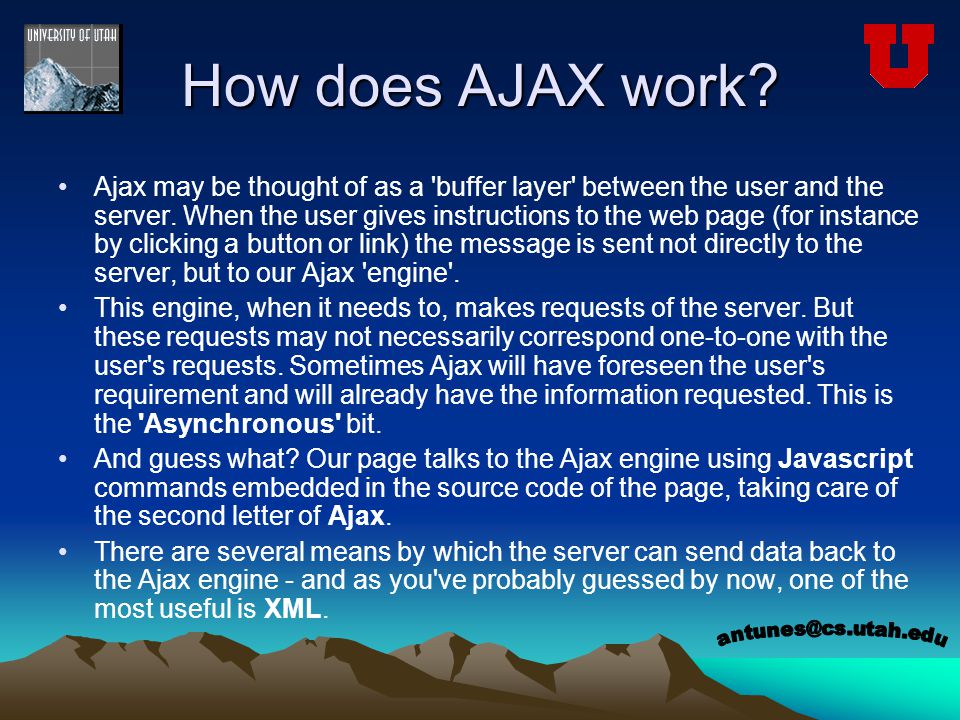

How does AJAX work? Ajax may be thought of as a 'buffer layer' between the user and the server. When the user gives instructions to the web page (for instance by clicking a button or link) the message is sent not directly to the server, but to our Ajax 'engine'. This engine, when it needs to, makes requests of the server. But these requests may not necessarily correspond one-to-one with the user's requests. Sometimes Ajax will have foreseen the user's requirement and will already have the information requested. This is the 'Asynchronous' bit. And guess what? Our page talks to the Ajax engine using Javascript commands embedded in the source code of the page, taking care of the second letter of Ajax. There are several means by which the server can send data back to the Ajax engine - and as you've probably guessed by now, one of the most useful is XML.
7

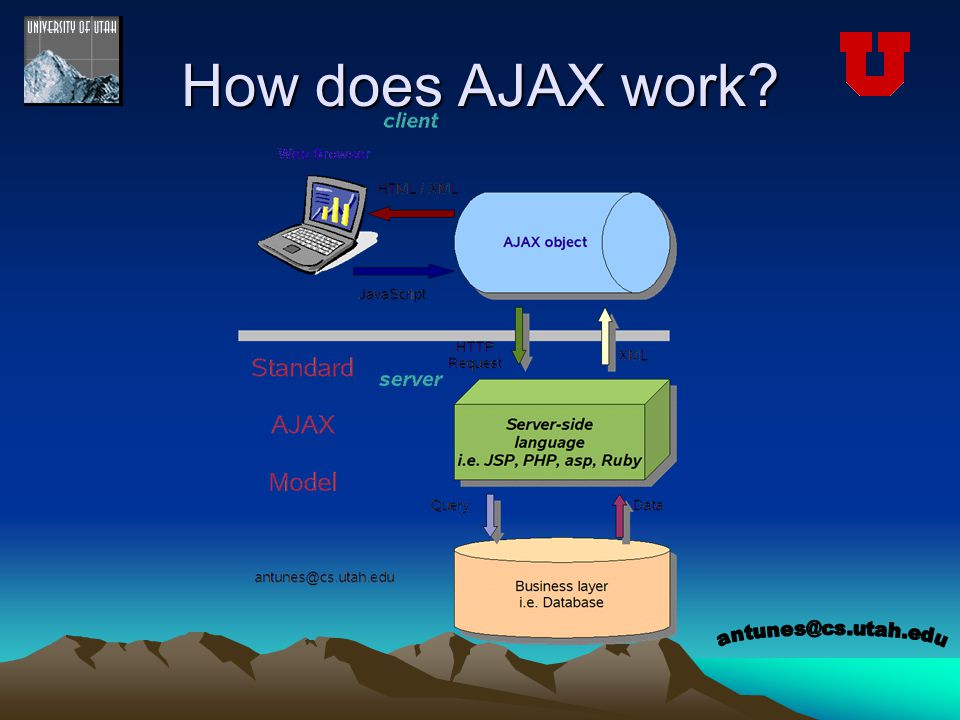

How does AJAX work?
8

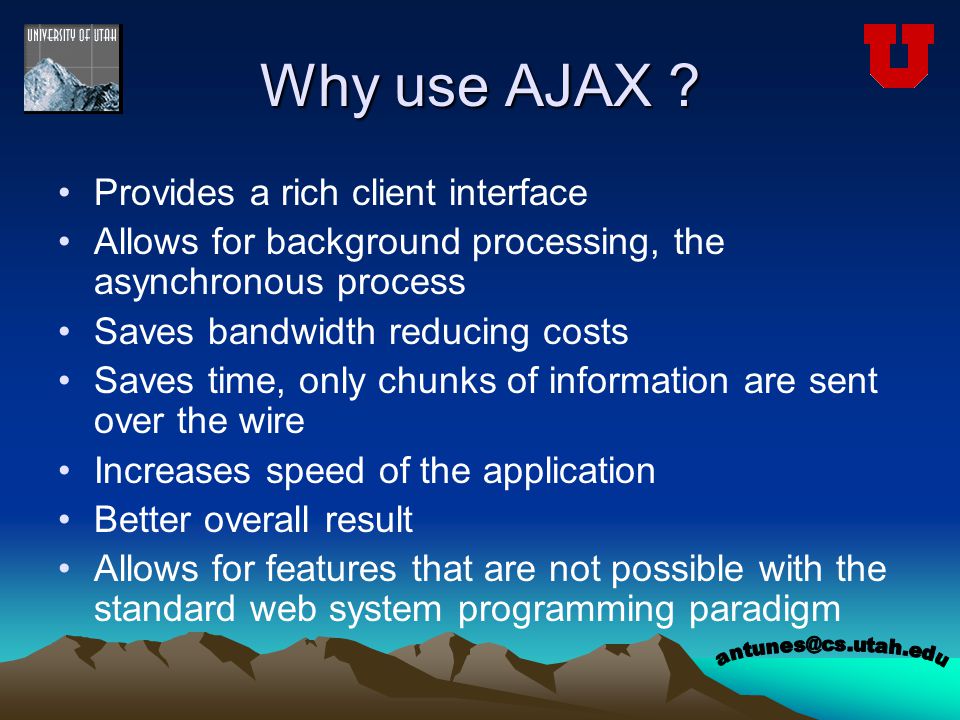

Why use AJAX ? Provides a rich client interface Allows for background processing, the asynchronous process Saves bandwidth reducing costs Saves time, only chunks of information are sent over the wire Increases speed of the application Better overall result Allows for features that are not possible with the standard web system programming paradigm

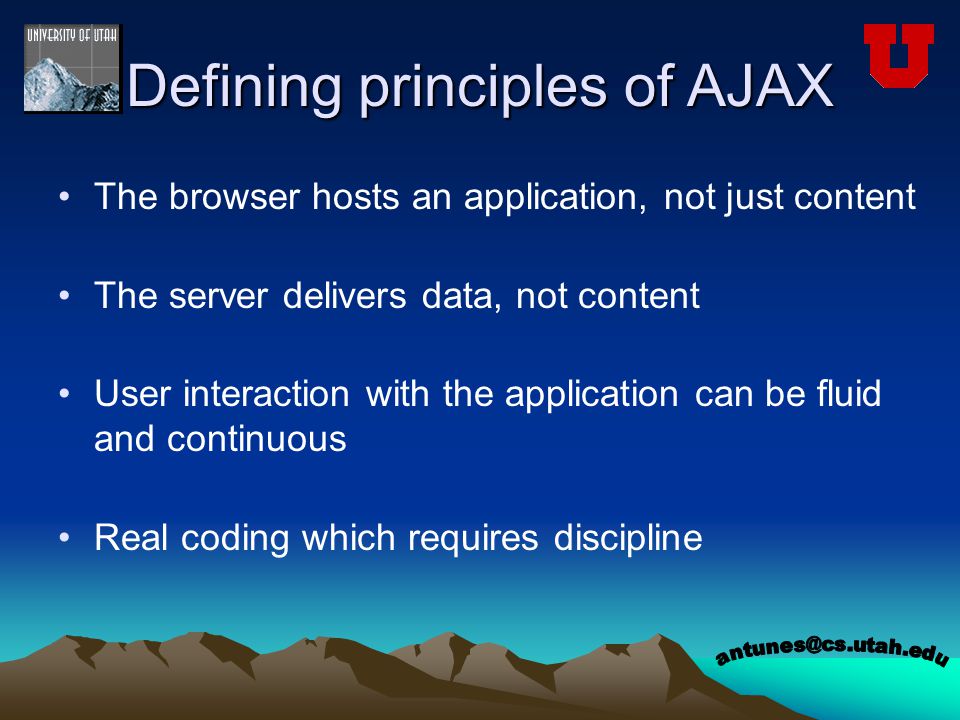

9
Defining principles of AJAX The browser hosts an application, not just content The server delivers data, not content User interaction with the application can be fluid and continuous Real coding which requires discipline
10

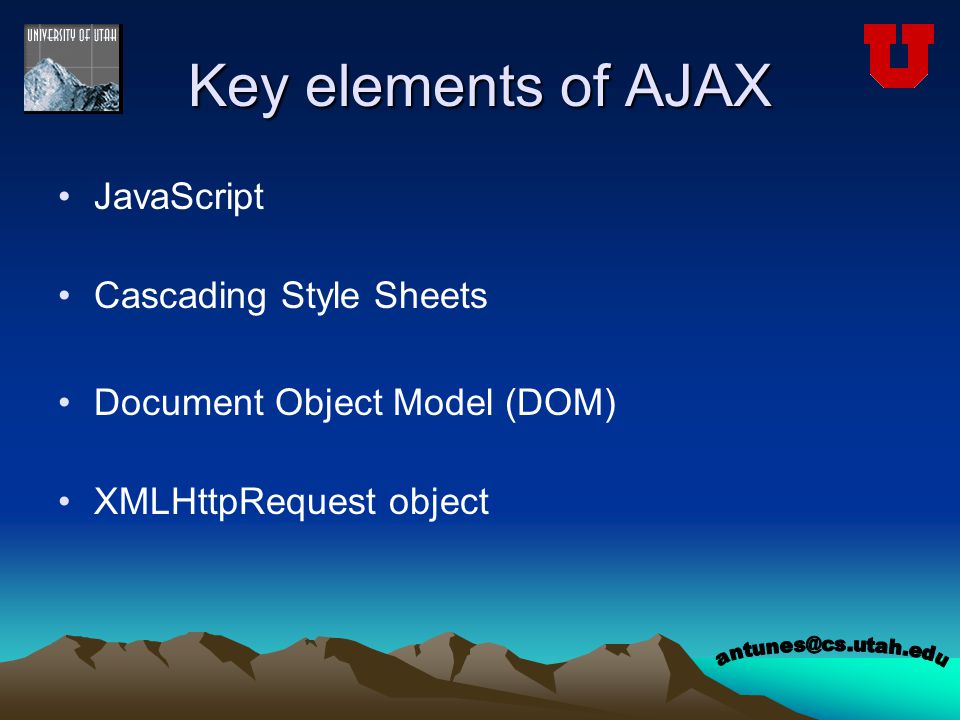

Key elements of AJAX JavaScript Cascading Style Sheets Document Object Model (DOM) XMLHttpRequest object
11

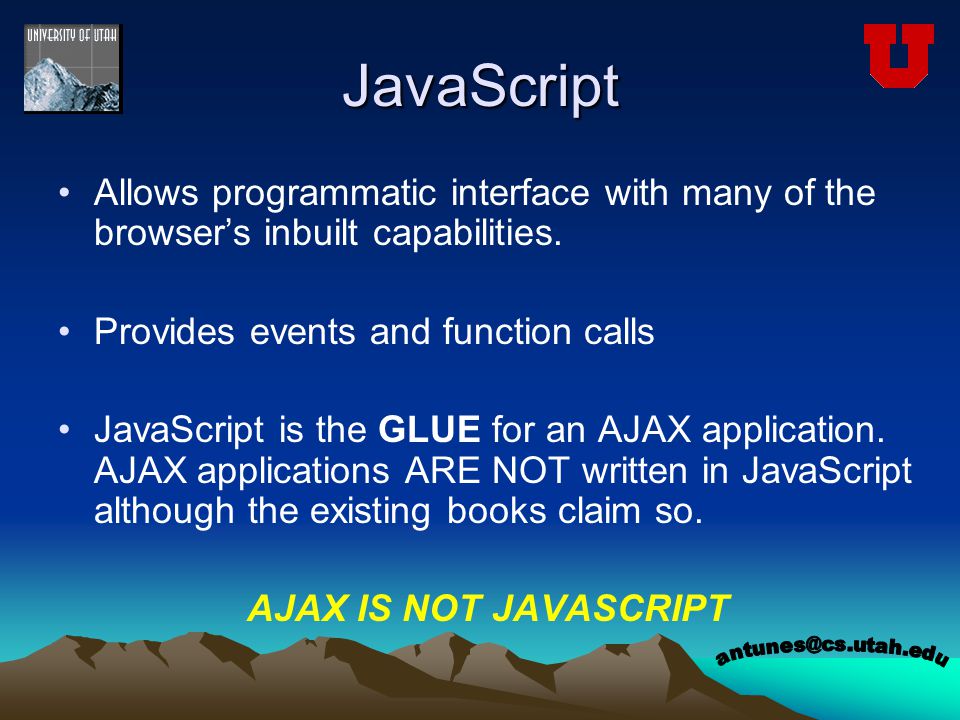

JavaScript Allows programmatic interface with many of the browser’s inbuilt capabilities. Provides events and function calls JavaScript is the GLUE for an AJAX application. AJAX applications ARE NOT written in JavaScript although the existing books claim so. AJAX IS NOT JAVASCRIPT
12

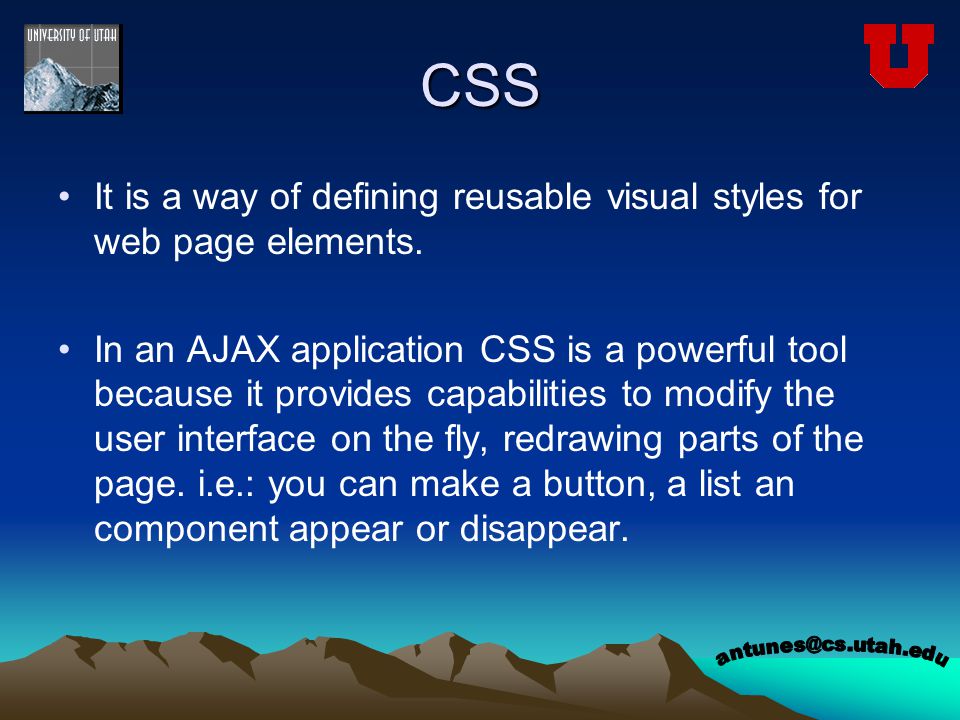

CSS It is a way of defining reusable visual styles for web page elements. In an AJAX application CSS is a powerful tool because it provides capabilities to modify the user interface on the fly, redrawing parts of the page. i.e.: you can make a button, a list an component appear or disappear.
13
CSS example You can embed CSS within a HTML document, or an external file which allows for better coding and maintenance. Example of a CSS style property:.coolstyle { font-size: 14pt; font-family: courier new, courier, monospace; font-weight: bold; color: gray; }
14

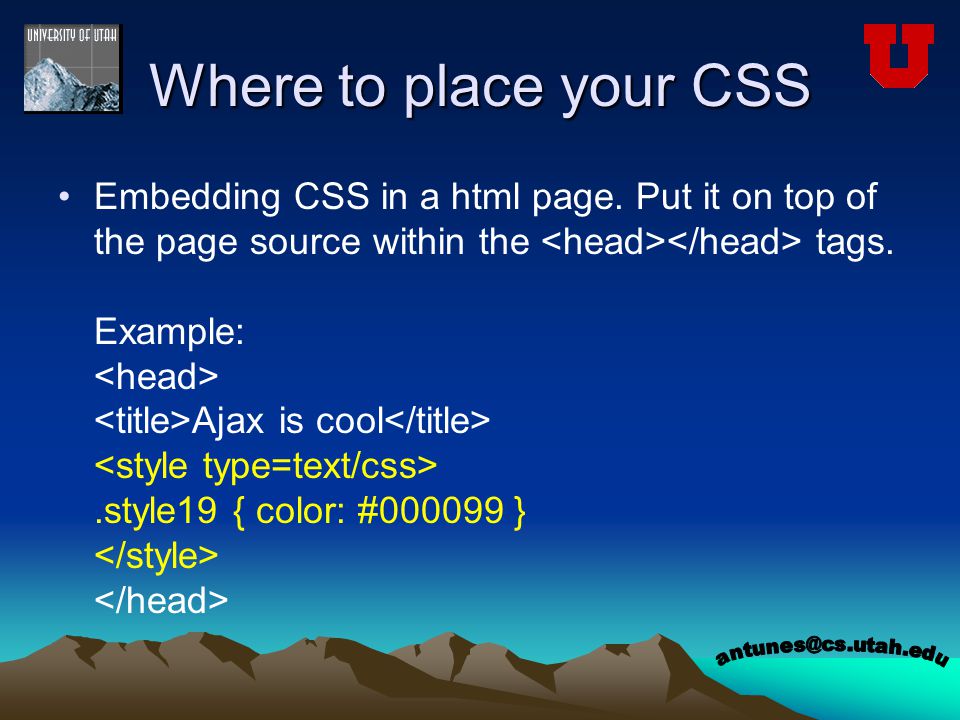

Where to place your CSS Embedding CSS in a html page. Put it on top of the page source within the tags. Example: Ajax is cool.style19 { color: #000099 }
15

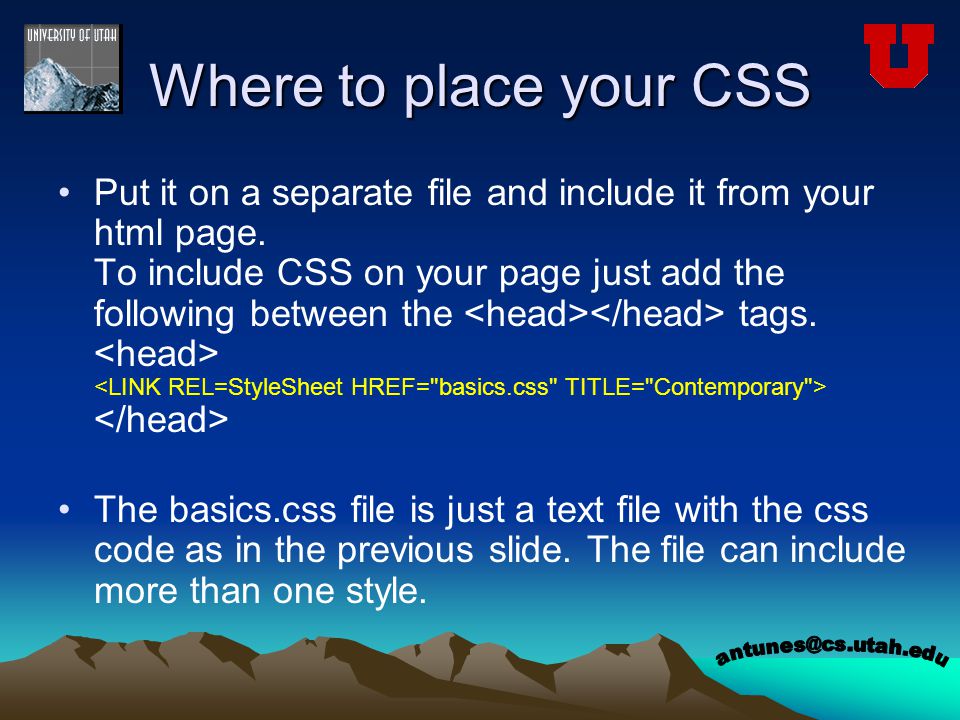

Where to place your CSS Put it on a separate file and include it from your html page. To include CSS on your page just add the following between the tags. The basics.css file is just a text file with the css code as in the previous slide. The file can include more than one style.
16

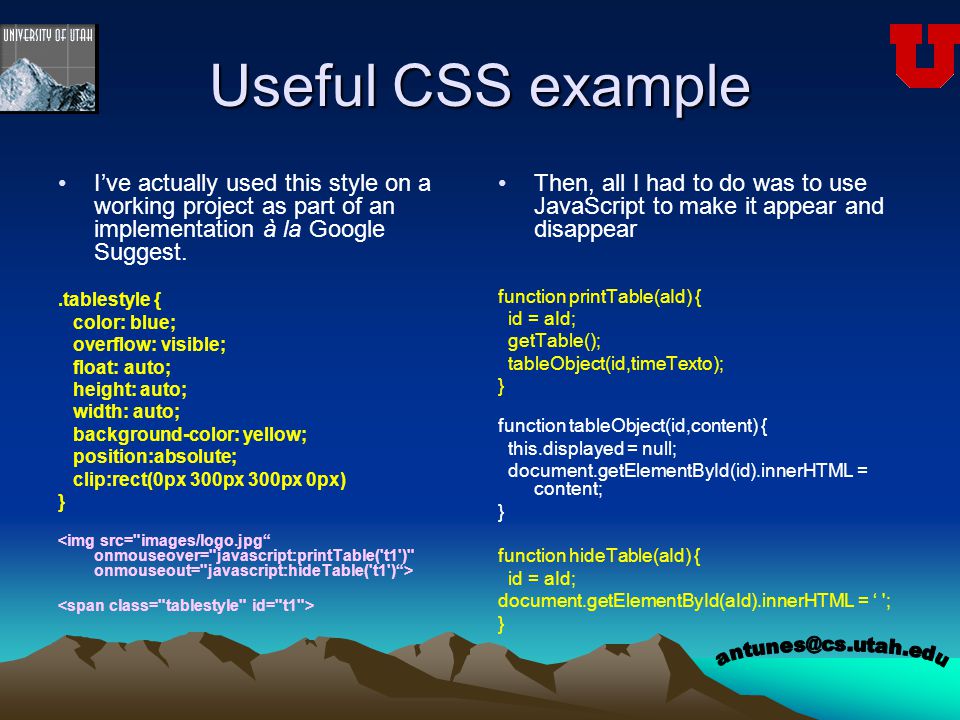

Useful CSS example I’ve actually used this style on a working project as part of an implementation à la Google Suggest..tablestyle { color: blue; overflow: visible; float: auto; height: auto; width: auto; background-color: yellow; position:absolute; clip:rect(0px 300px 300px 0px) } Then, all I had to do was to use JavaScript to make it appear and disappear function printTable(aId) { id = aId; getTable(); tableObject(id,timeTexto); } function tableObject(id,content) { this.displayed = null; document.getElementById(id).innerHTML = content; } function hideTable(aId) { id = aId; document.getElementById(aId).innerHTML = ‘ '; }
17

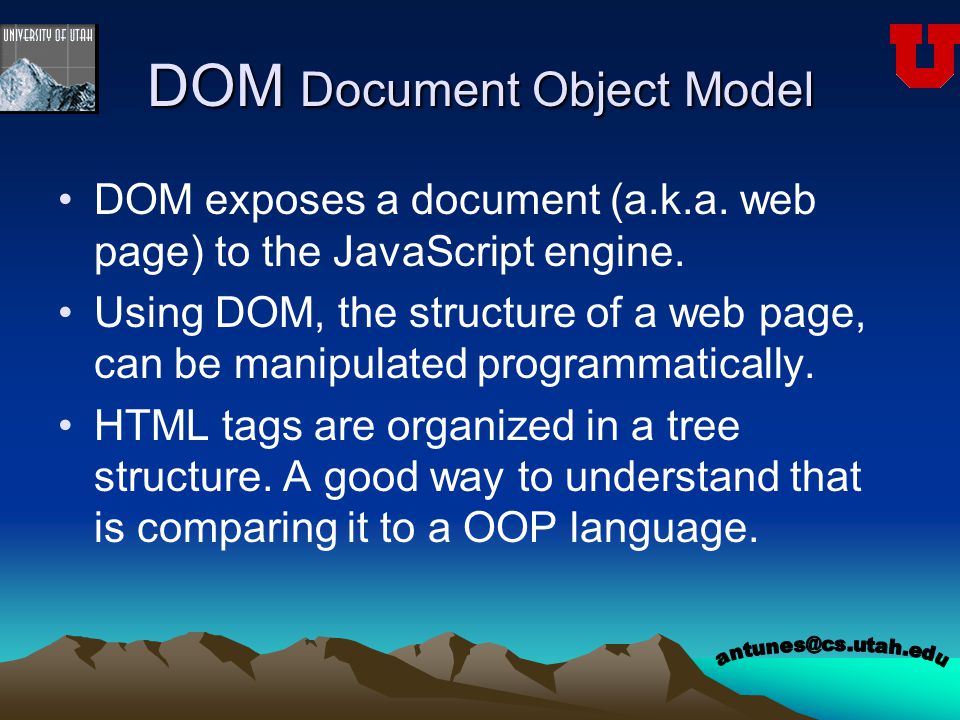

DOM Document Object Model DOM exposes a document (a.k.a. web page) to the JavaScript engine. Using DOM, the structure of a web page, can be manipulated programmatically. HTML tags are organized in a tree structure. A good way to understand that is comparing it to a OOP language.

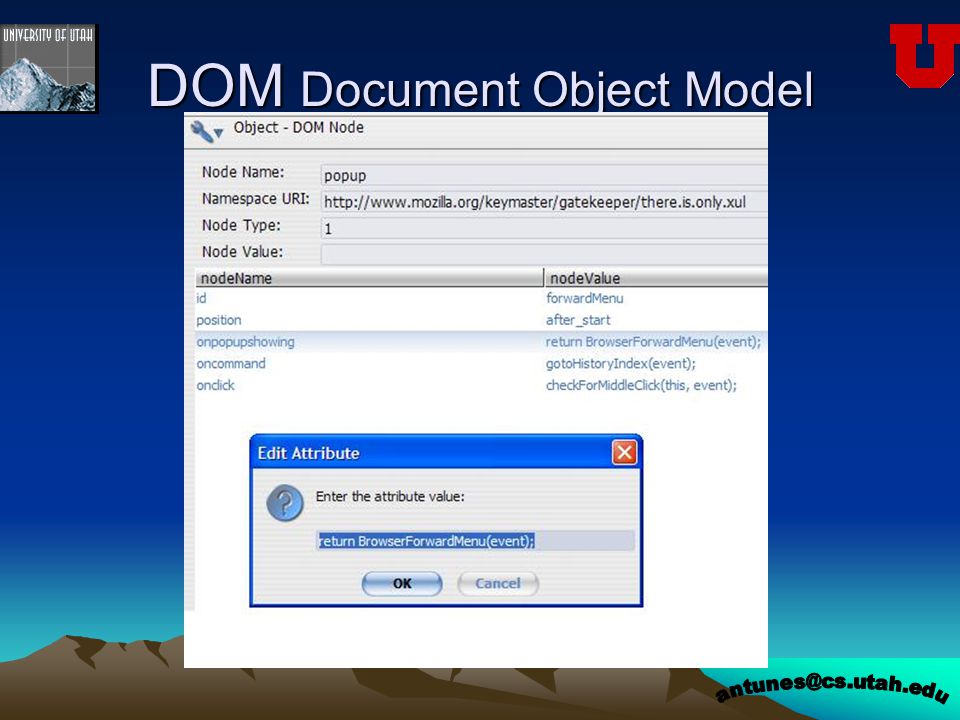

18
DOM Document Object Model
21

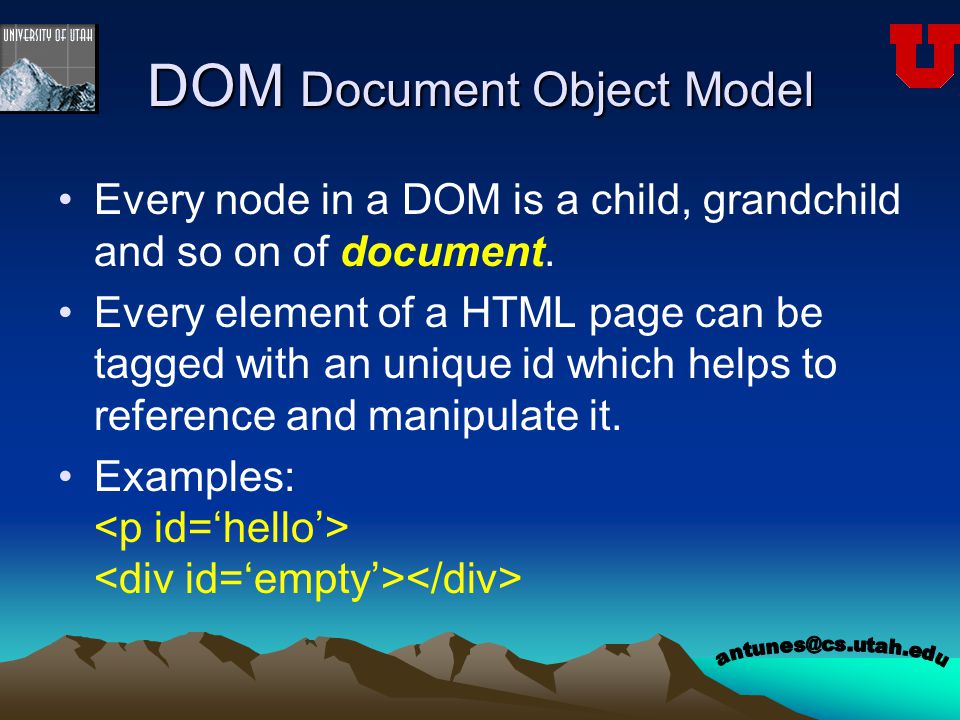

Every node in a DOM is a child, grandchild and so on of document. Every element of a HTML page can be tagged with an unique id which helps to reference and manipulate it. Examples:

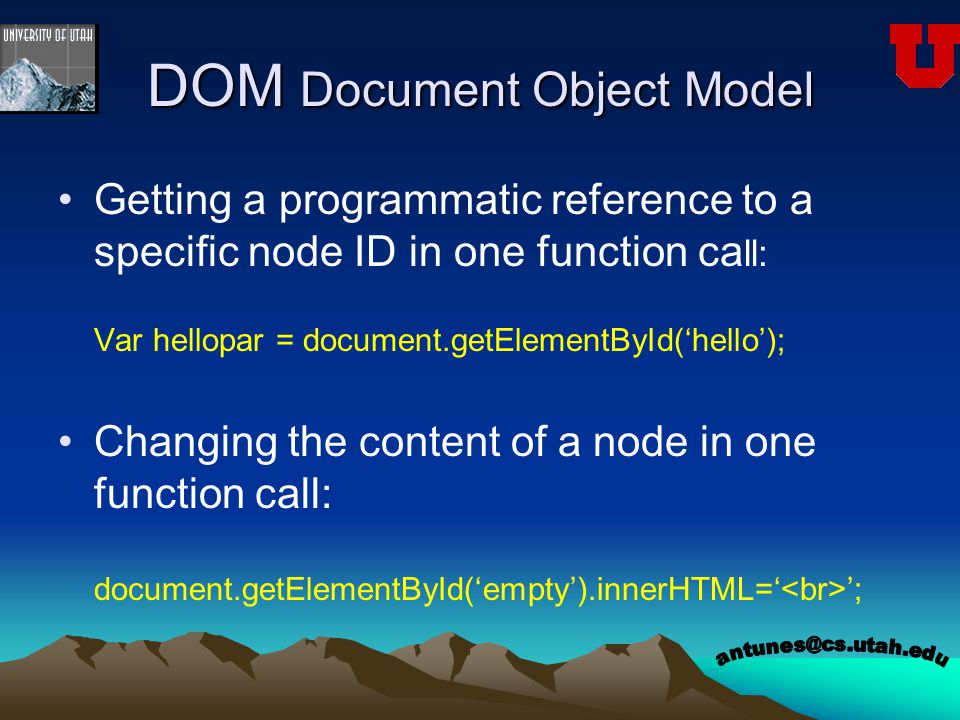

22
DOM Document Object Model Getting a programmatic reference to a specific node ID in one function ca ll: Var hellopar = document.getElementById(‘hello’); Changing the content of a node in one function call: document.getElementById(‘empty’).innerHTML=‘ ’;
23

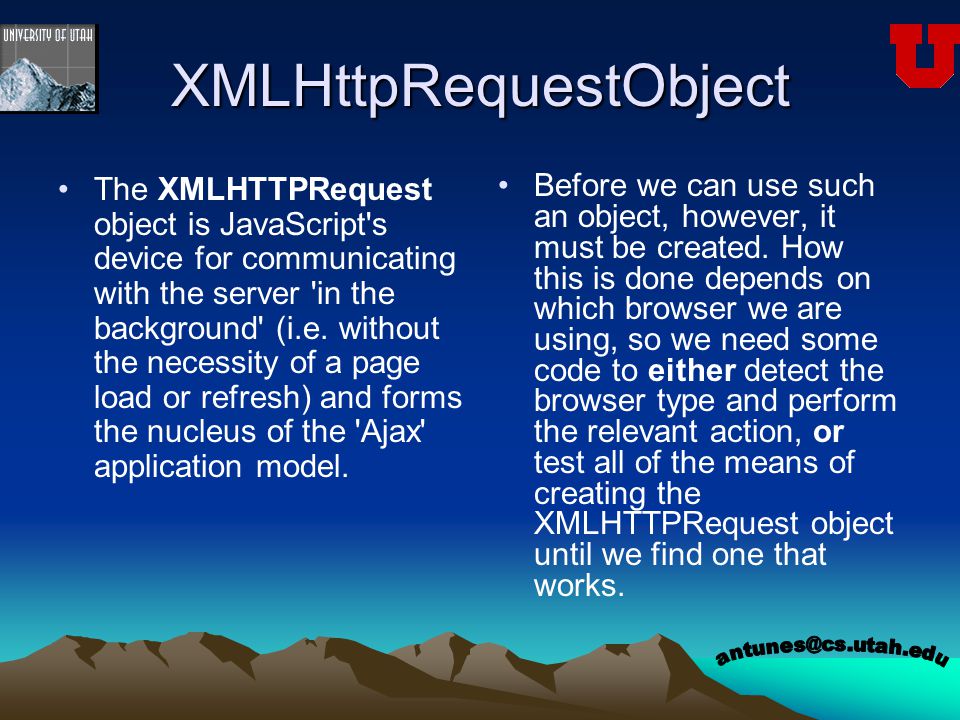

XMLHttpRequestObject The XMLHTTPRequest object is JavaScript's device for communicating with the server 'in the background' (i.e. without the necessity of a page load or refresh) and forms the nucleus of the 'Ajax' application model. Before we can use such an object, however, it must be created. How this is done depends on which browser we are using, so we need some code to either detect the browser type and perform the relevant action, or test all of the means of creating the XMLHTTPRequest object until we find one that works.
24
XMLHttpRequestObject Example of how to create an XMLHttpRequestObject: if (window.XMLHttpRequest) { // Non-IE browsers req = new XMLHttpRequest(); } else if (window.ActiveXObject) { // IE req = new ActiveXObject("Microsoft.XMLHTTP"); } Here I am testing before creating the object. This is how I usually code my AJAX apps.
25

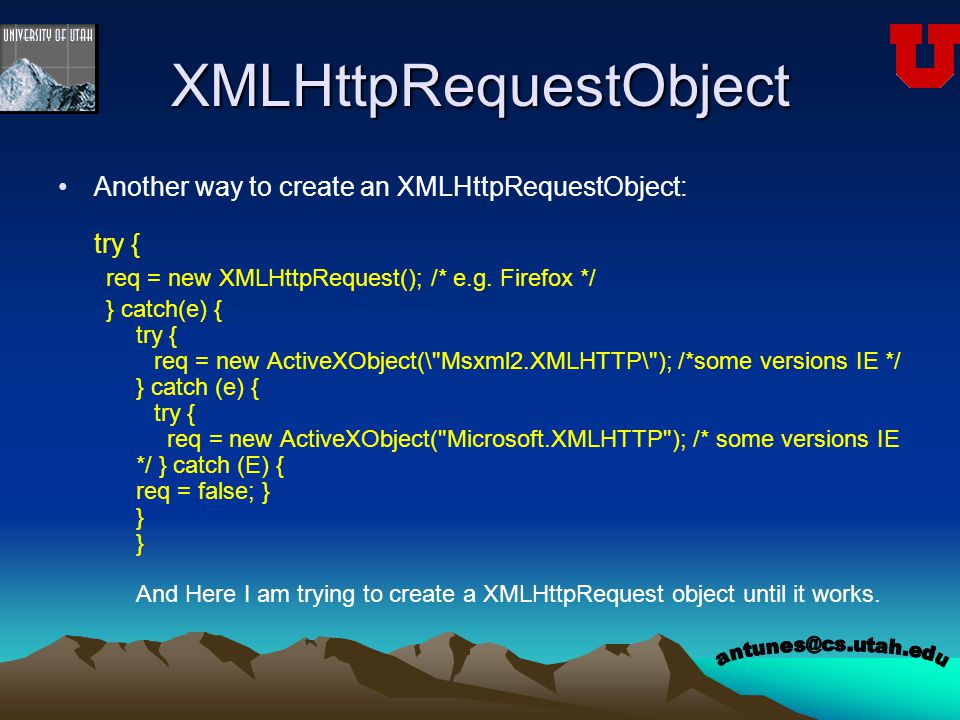

XMLHttpRequestObject Another way to create an XMLHttpRequestObject: try { req = new XMLHttpRequest(); /* e.g. Firefox */ } catch(e) { try { req = new ActiveXObject(\"Msxml2.XMLHTTP\"); /*some versions IE */ } catch (e) { try { req = new ActiveXObject("Microsoft.XMLHTTP"); /* some versions IE */ } catch (E) { req = false; } } } And Here I am trying to create a XMLHttpRequest object until it works.
26

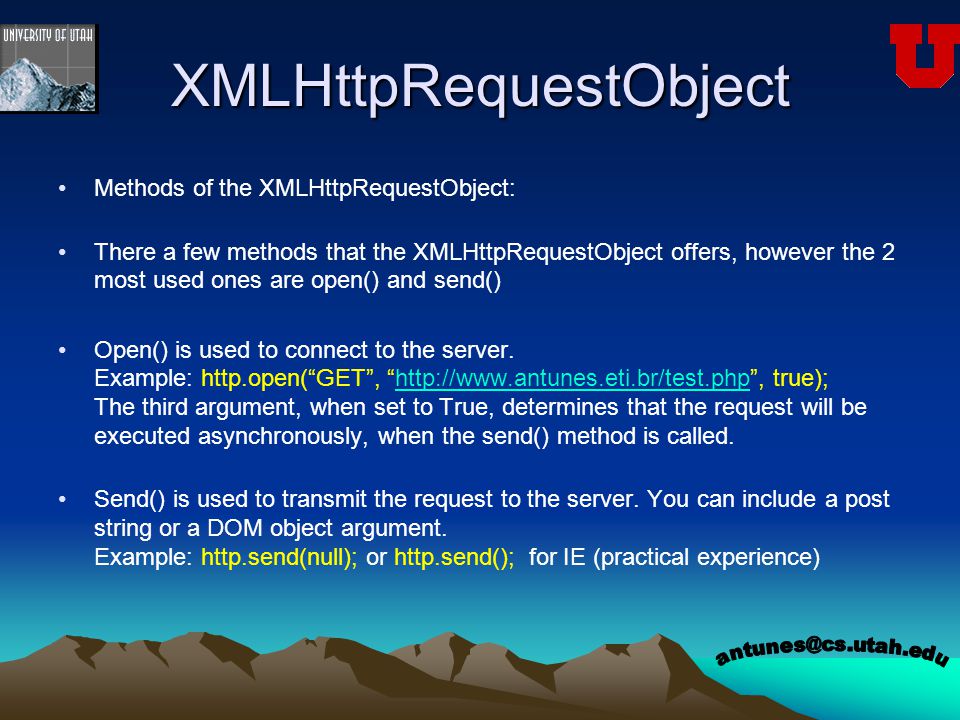

XMLHttpRequestObject Methods of the XMLHttpRequestObject: There a few methods that the XMLHttpRequestObject offers, however the 2 most used ones are open() and send() Open() is used to connect to the server. Example: http.open(“GET”, “http://www.antunes.eti.br/test.php”, true); The third argument, when set to True, determines that the request will be executed asynchronously, when the send() method is called.http://www.antunes.eti.br/test.php Send() is used to transmit the request to the server. You can include a post string or a DOM object argument. Example: http.send(null); or http.send(); for IE (practical experience)

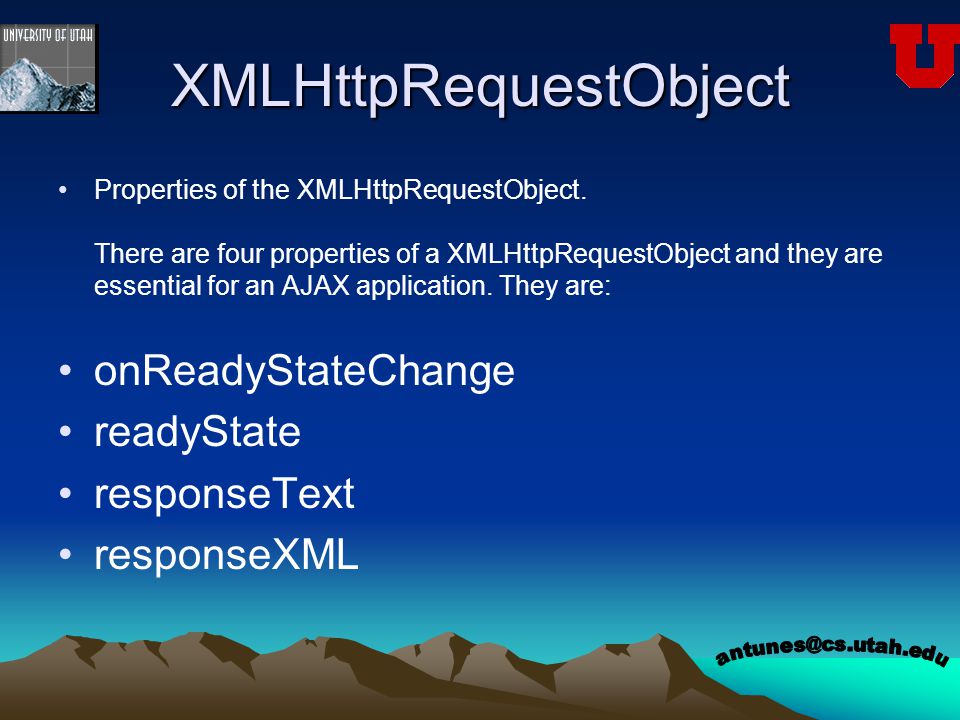

27
XMLHttpRequestObject Properties of the XMLHttpRequestObject. There are four properties of a XMLHttpRequestObject and they are essential for an AJAX application. They are: onReadyStateChange readyState responseText responseXML

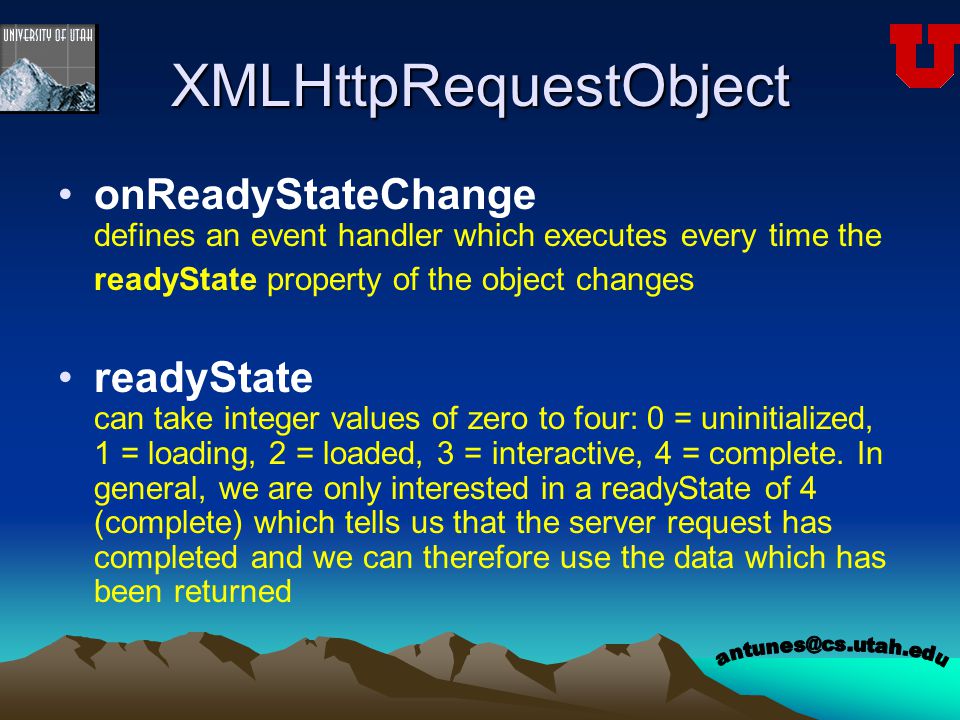

28
XMLHttpRequestObject onReadyStateChange defines an event handler which executes every time the readyState property of the object changes readyState can take integer values of zero to four: 0 = uninitialized, 1 = loading, 2 = loaded, 3 = interactive, 4 = complete. In general, we are only interested in a readyState of 4 (complete) which tells us that the server request has completed and we can therefore use the data which has been returned
29

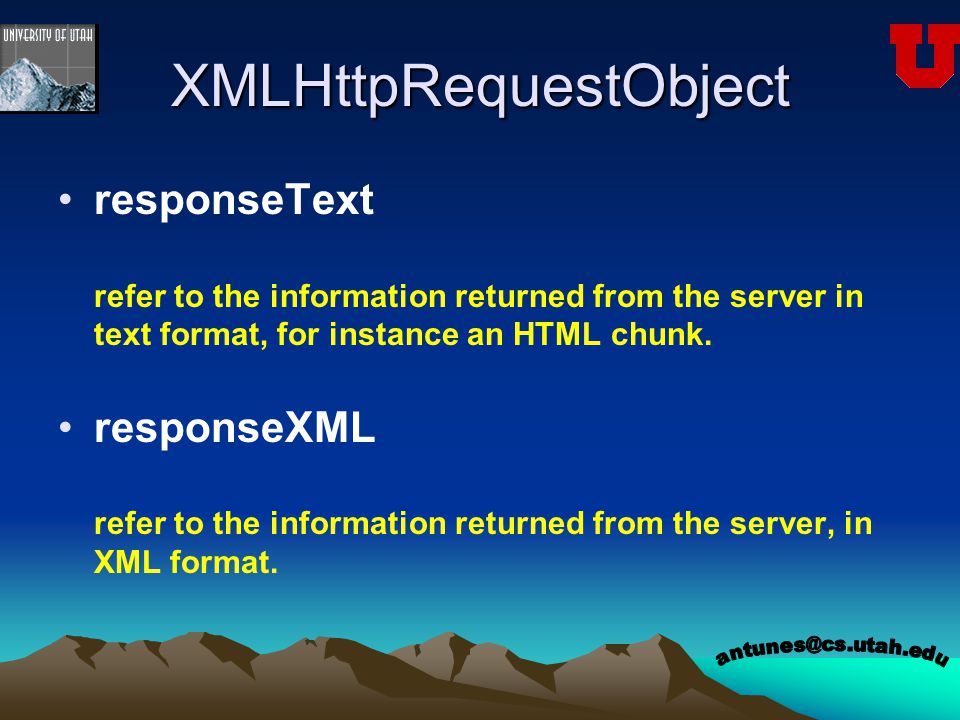

XMLHttpRequestObject responseText refer to the information returned from the server in text format, for instance an HTML chunk. responseXML refer to the information returned from the server, in XML format.
30
XMLHttpRequestObject PropertyDescription onReadyStateChange Event handler which is fired at every event change. (http event) readyState Here are the possible status: 0 – uninitialized 1 – loading 2 – loaded 3 – interactive 4 – complete (we’ll focus on this one) responseText Data returned from server in String form responseXML Data returned from server in XML form. DOM compatible status These are the HTTP status codes such as 200, 404, 500 etc. statusText This is a string message which is associated with its respective HTTP status code.

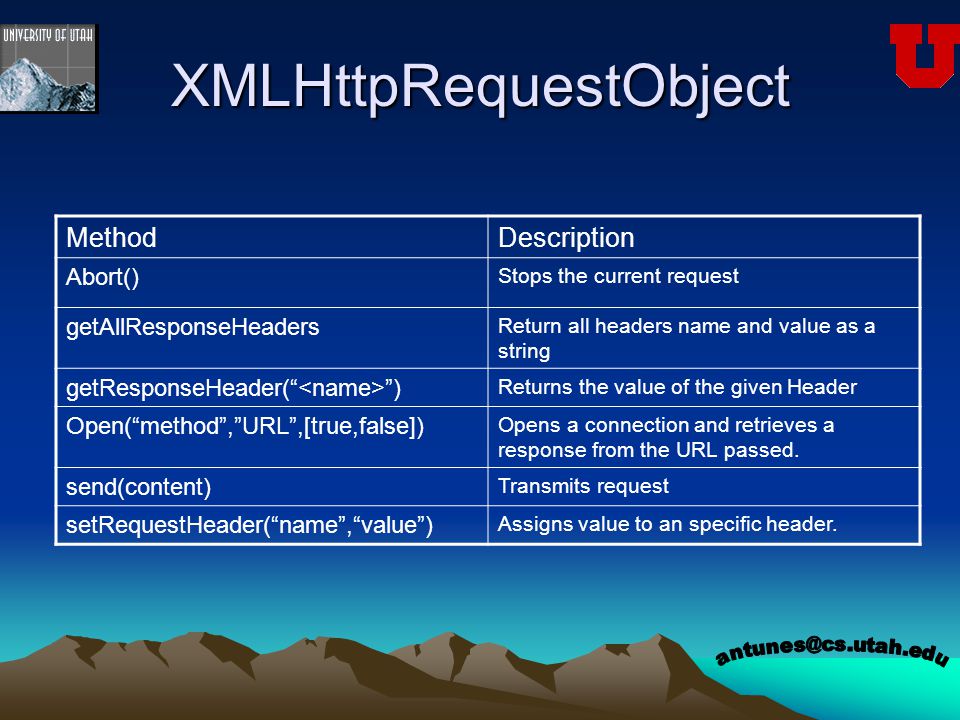

31
XMLHttpRequestObject MethodDescription Abort() Stops the current request getAllResponseHeaders Return all headers name and value as a string getResponseHeader(“ ”) Returns the value of the given Header Open(“method”,”URL”,[true,false]) Opens a connection and retrieves a response from the URL passed. send(content) Transmits request setRequestHeader(“name”,“value”) Assigns value to an specific header.
32

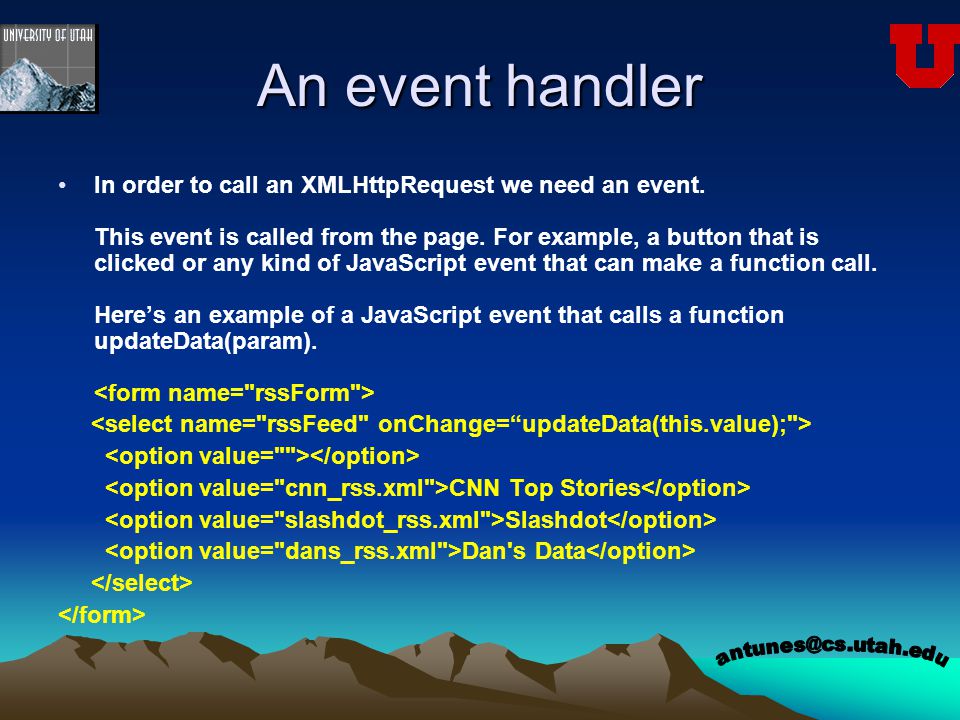

An event handler In order to call an XMLHttpRequest we need an event. This event is called from the page. For example, a button that is clicked or any kind of JavaScript event that can make a function call. Here’s an example of a JavaScript event that calls a function updateData(param). CNN Top Stories Slashdot Dan's Data

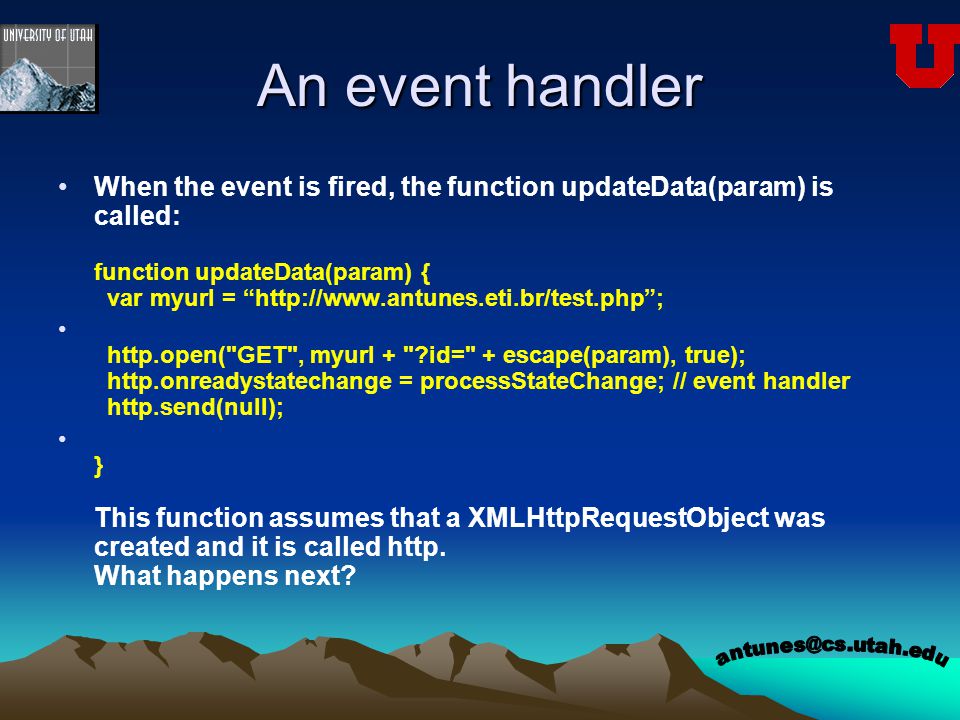

33
An event handler When the event is fired, the function updateData(param) is called: function updateData(param) { var myurl = “http://www.antunes.eti.br/test.php”; http.open("GET", myurl + "?id=" + escape(param), true); http.onreadystatechange = processStateChange; // event handler http.send(null); } This function assumes that a XMLHttpRequestObject was created and it is called http. What happens next?

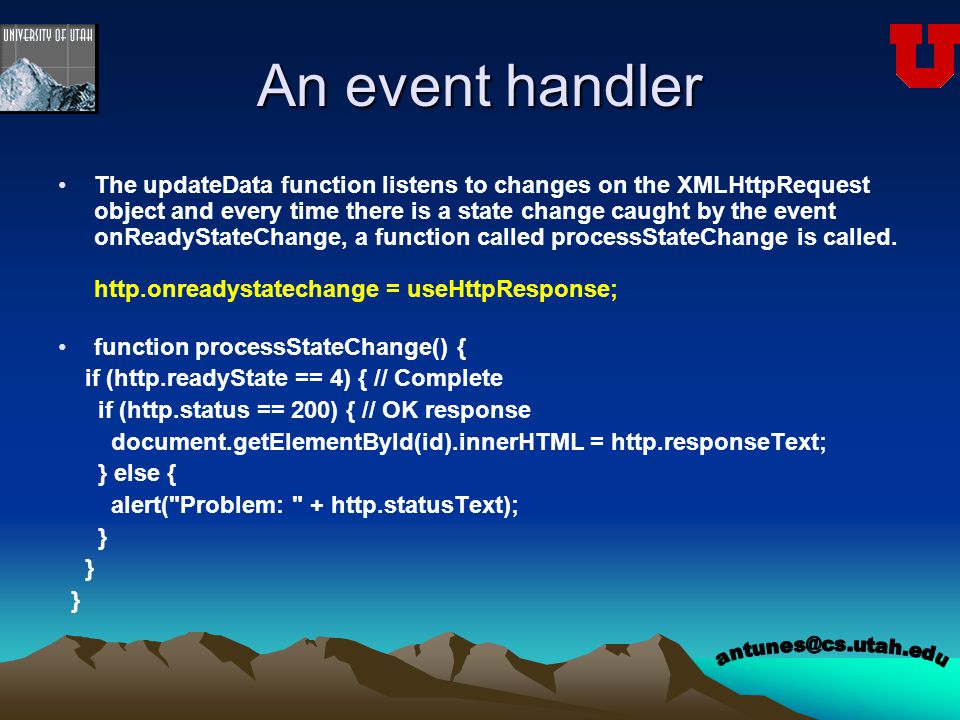

34
An event handler The updateData function listens to changes on the XMLHttpRequest object and every time there is a state change caught by the event onReadyStateChange, a function called processStateChange is called. http.onreadystatechange = useHttpResponse; function processStateChange() { if (http.readyState == 4) { // Complete if (http.status == 200) { // OK response document.getElementById(id).innerHTML = http.responseText; } else { alert("Problem: " + http.statusText); }
35
Sample application The following is a very simple Hello world! Application in AJAX to illustrate what we have seen so far. We will start with the html part of it. Hello world! Example Hello world!. This example shows how a piece of this document can be built and displayed on-the-fly.

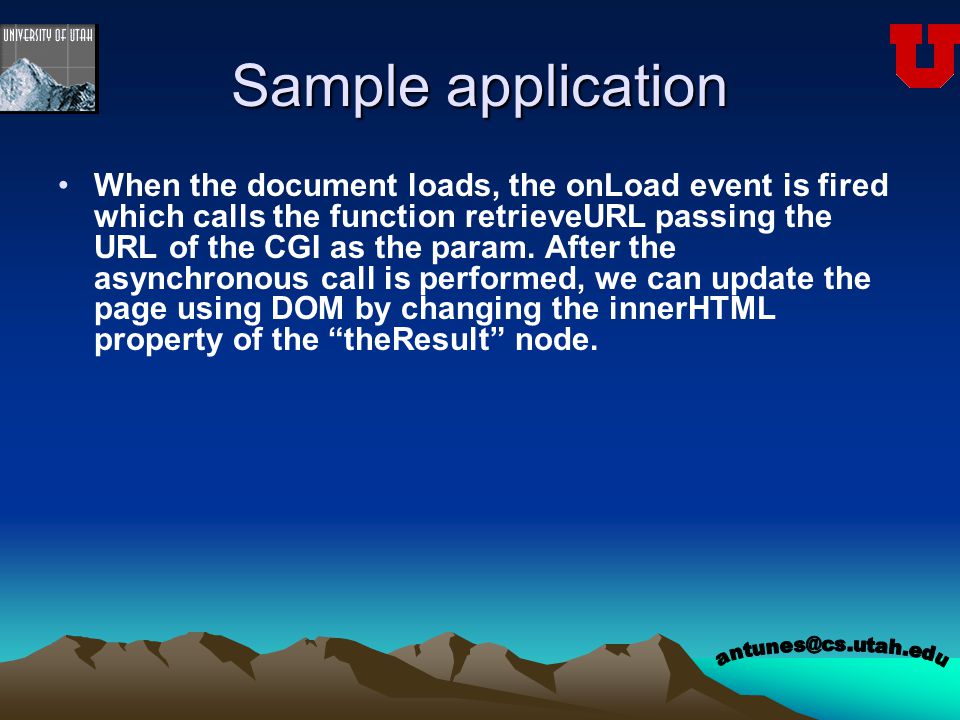

36
Sample application When the document loads, the onLoad event is fired which calls the function retrieveURL passing the URL of the CGI as the param. After the asynchronous call is performed, we can update the page using DOM by changing the innerHTML property of the “theResult” node.
37

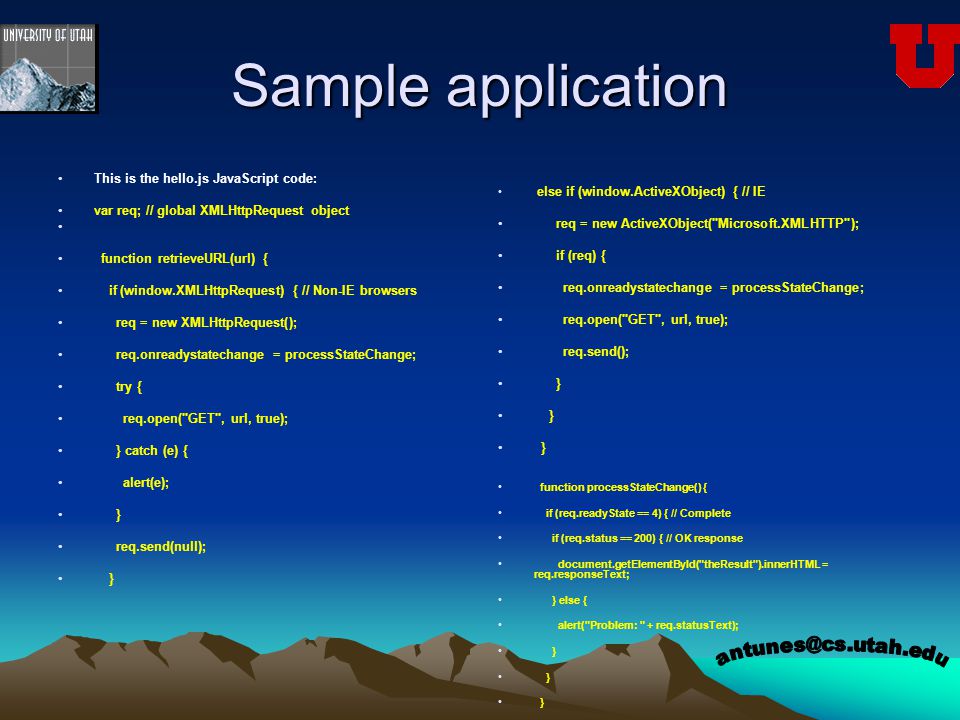

Sample application This is the hello.js JavaScript code: var req; // global XMLHttpRequest object function retrieveURL(url) { if (window.XMLHttpRequest) { // Non-IE browsers req = new XMLHttpRequest(); req.onreadystatechange = processStateChange; try { req.open("GET", url, true); } catch (e) { alert(e); } req.send(null); } else if (window.ActiveXObject) { // IE req = new ActiveXObject("Microsoft.XMLHTTP"); if (req) { req.onreadystatechange = processStateChange; req.open("GET", url, true); req.send(); } function processStateChange() { if (req.readyState == 4) { // Complete if (req.status == 200) { // OK response document.getElementById("theResult").innerHTML = req.responseText; } else { alert("Problem: " + req.statusText); }
38

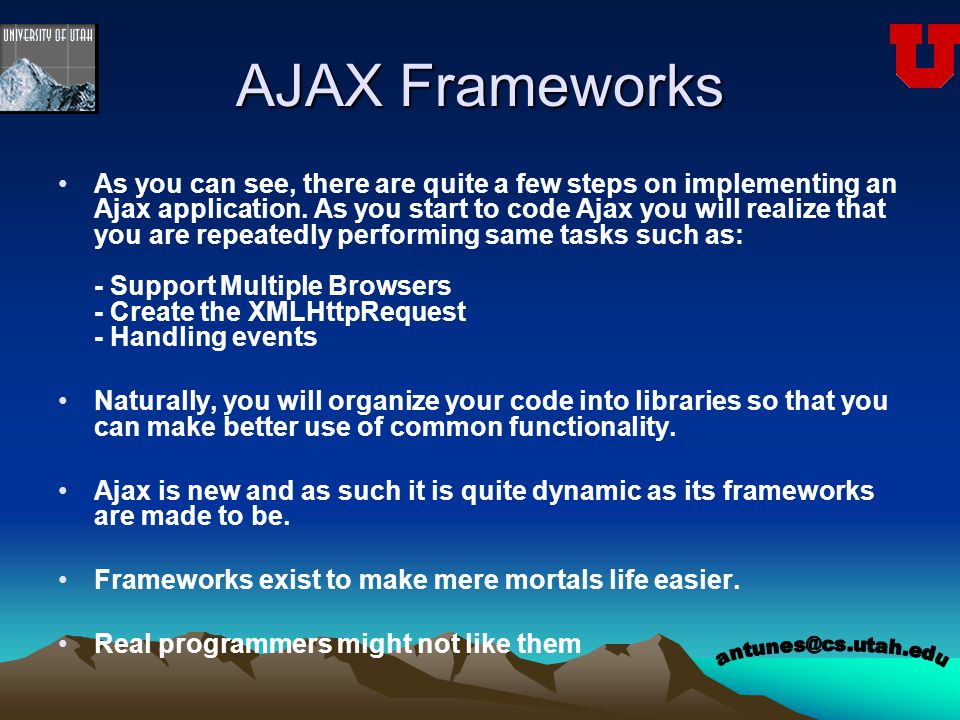

AJAX Frameworks As you can see, there are quite a few steps on implementing an Ajax application. As you start to code Ajax you will realize that you are repeatedly performing same tasks such as: - Support Multiple Browsers - Create the XMLHttpRequest - Handling events Naturally, you will organize your code into libraries so that you can make better use of common functionality. Ajax is new and as such it is quite dynamic as its frameworks are made to be. Frameworks exist to make mere mortals life easier. Real programmers might not like them
39

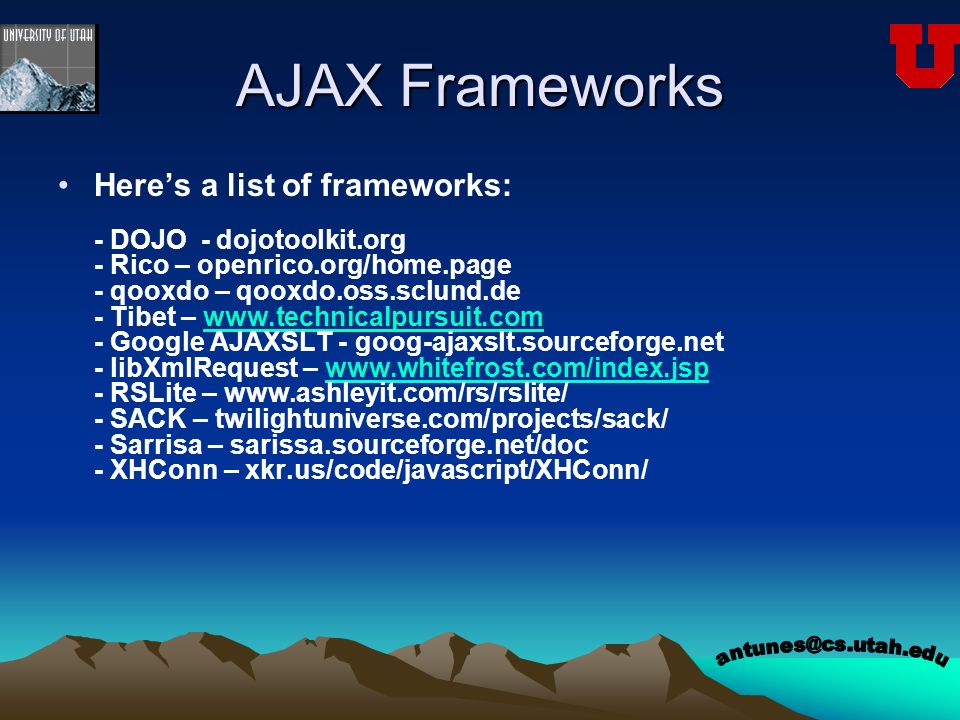

AJAX Frameworks Here’s a list of frameworks: - DOJO - dojotoolkit.org - Rico – openrico.org/home.page - qooxdo – qooxdo.oss.sclund.de - Tibet – www.technicalpursuit.com - Google AJAXSLT - goog-ajaxslt.sourceforge.net - libXmlRequest – www.whitefrost.com/index.jsp - RSLite – www.ashleyit.com/rs/rslite/ - SACK – twilightuniverse.com/projects/sack/ - Sarrisa – sarissa.sourceforge.net/doc - XHConn – xkr.us/code/javascript/XHConn/www.technicalpursuit.comwww.whitefrost.com/index.jsp
40

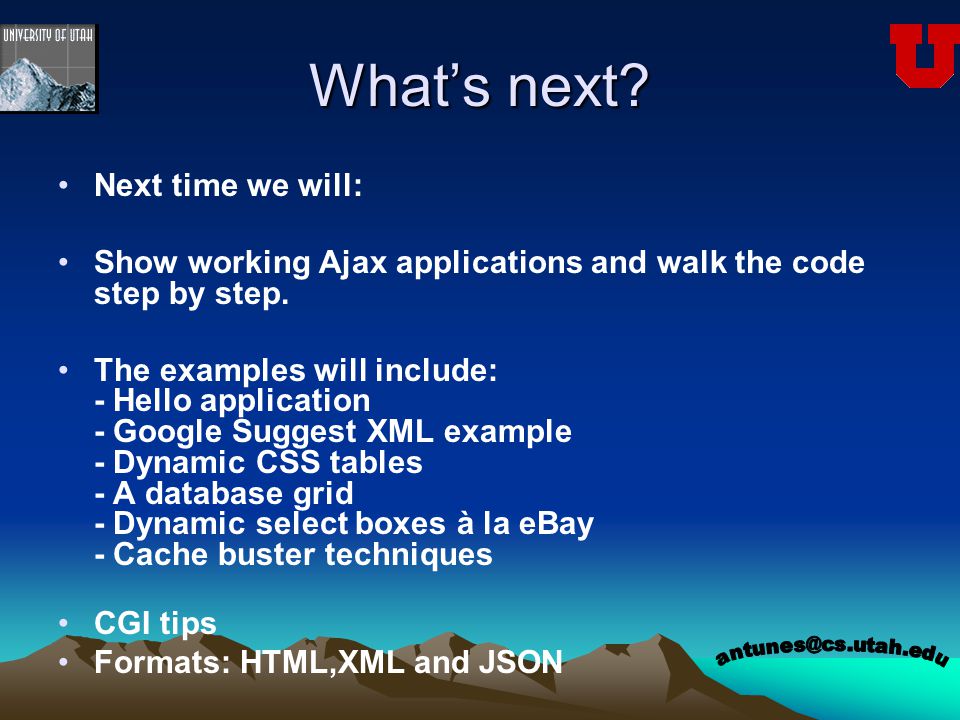

What’s next? Next time we will: Show working Ajax applications and walk the code step by step. The examples will include: - Hello application - Google Suggest XML example - Dynamic CSS tables - A database grid - Dynamic select boxes à la eBay - Cache buster techniques CGI tips Formats: HTML,XML and JSON
41

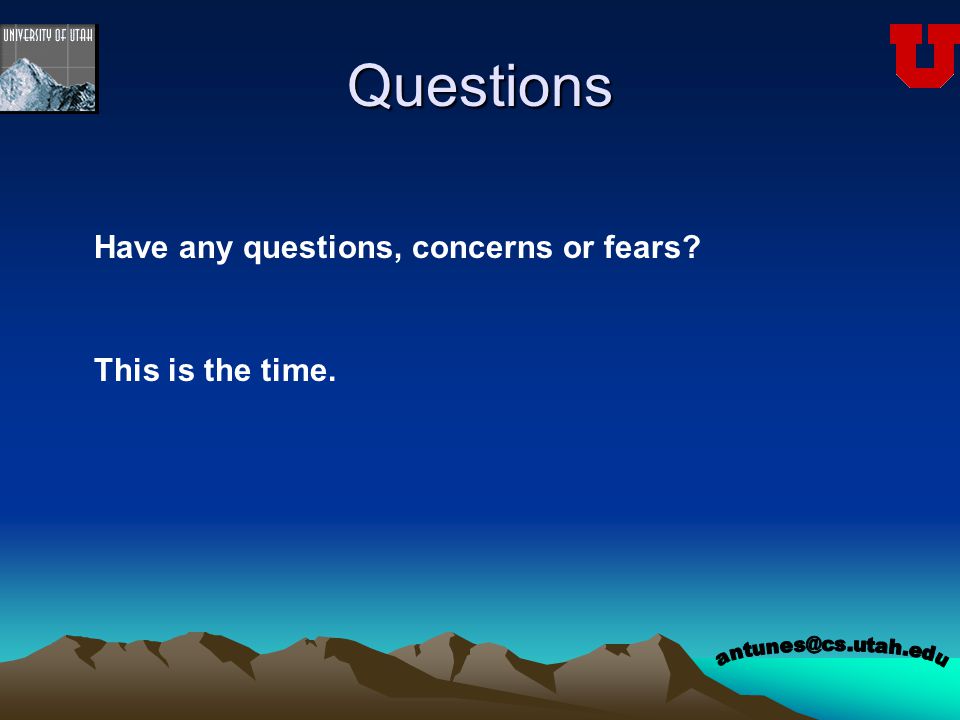

Questions Have any questions, concerns or fears? This is the time.
42

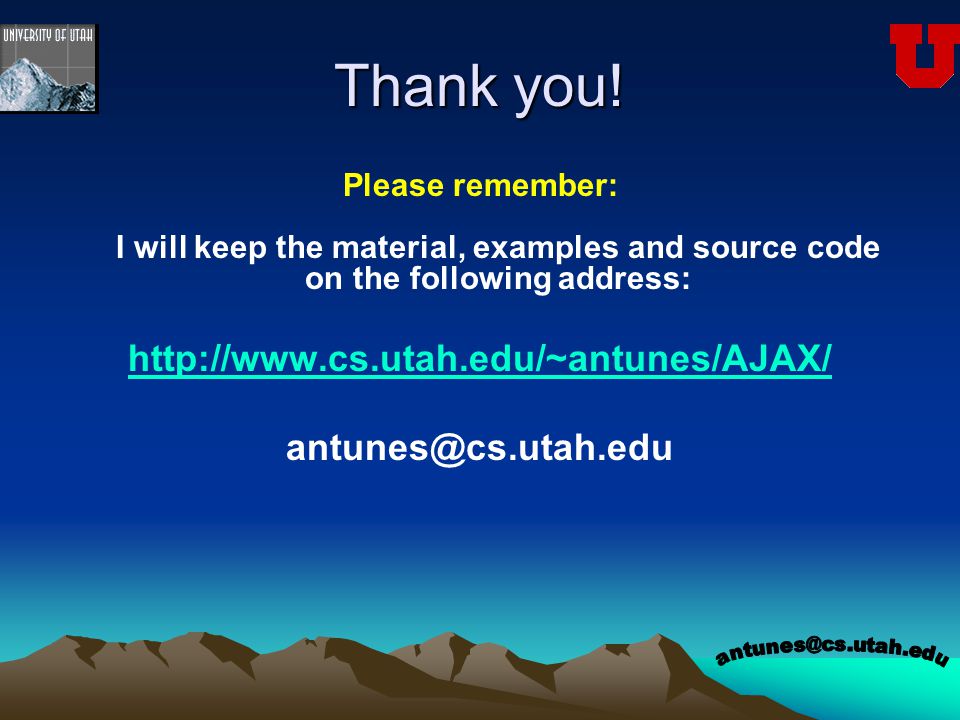

Thank you! Please remember: I will keep the material, examples and source code on the following address: http://www.cs.utah.edu/~antunes/AJAX/ antunes@cs.utah.edu
