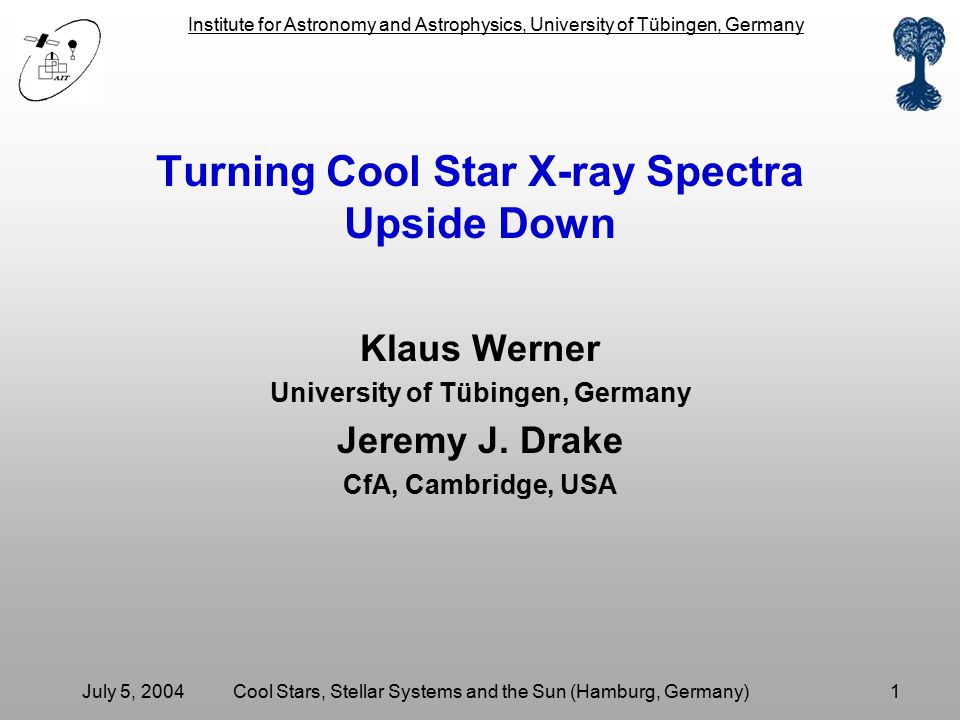

1. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)1 Turning Cool Star X-ray Spectra Upside Down Klaus Werner University of Tübingen, Germany Jeremy J. Drake CfA, Cambridge, USA

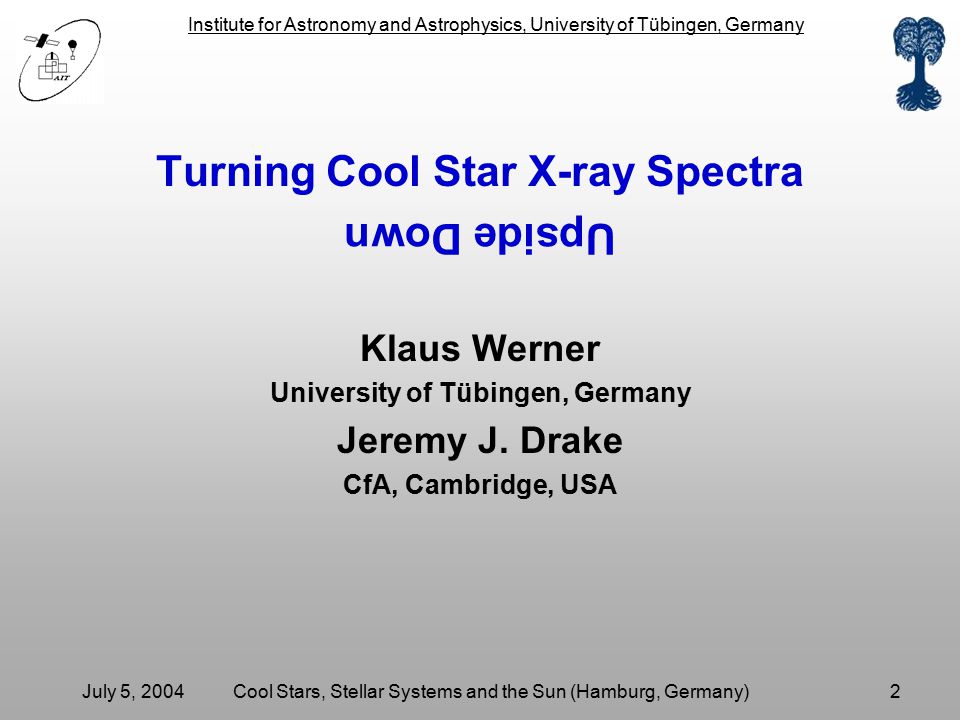

2. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)2 Turning Cool Star X-ray Spectra Klaus Werner University of Tübingen, Germany Jeremy J. Drake CfA, Cambridge, USA Upside Down

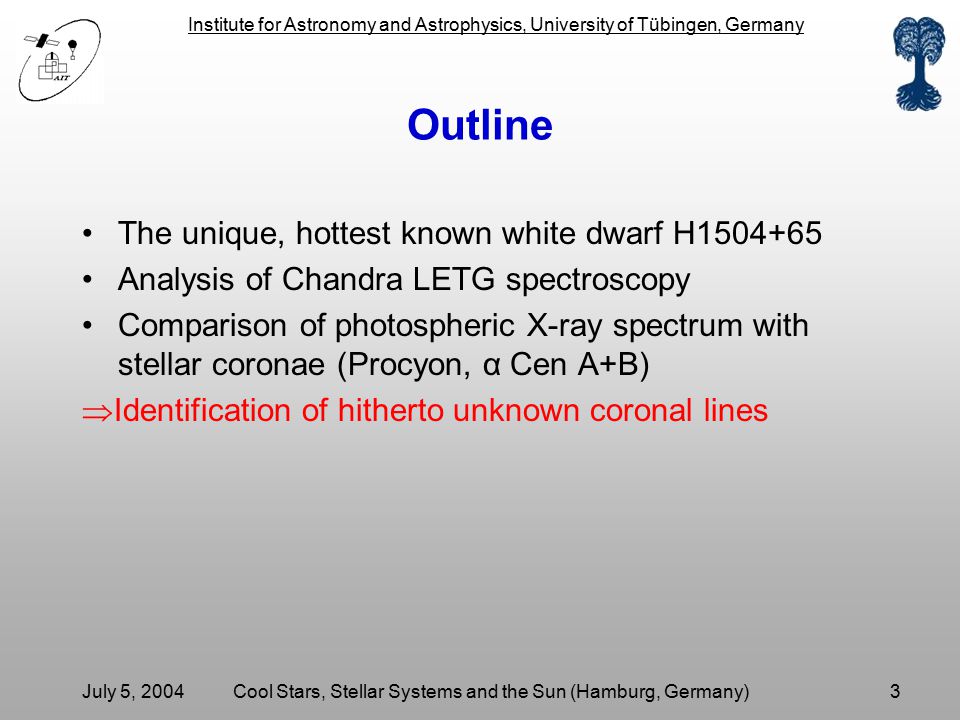

3. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)3 Outline The unique, hottest known white dwarf H1504+65 Analysis of Chandra LETG spectroscopy Comparison of photospheric X-ray spectrum with stellar coronae (Procyon, α Cen A+B)  Identification of hitherto unknown coronal lines

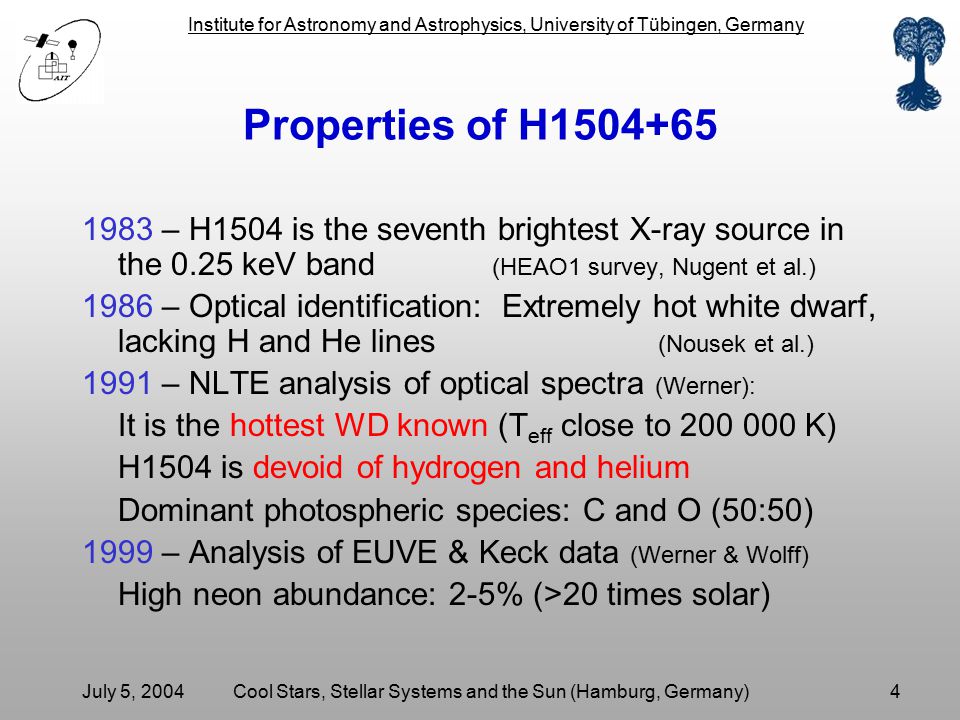

4. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)4 Properties of H1504+65 1983 – H1504 is the seventh brightest X-ray source in the 0.25 keV band (HEAO1 survey, Nugent et al.) 1986 – Optical identification: Extremely hot white dwarf, lacking H and He lines (Nousek et al.) 1991 – NLTE analysis of optical spectra (Werner): It is the hottest WD known (T eff close to 200 000 K) H1504 is devoid of hydrogen and helium Dominant photospheric species: C and O (50:50) 1999 – Analysis of EUVE & Keck data (Werner & Wolff) High neon abundance: 2-5% (>20 times solar)

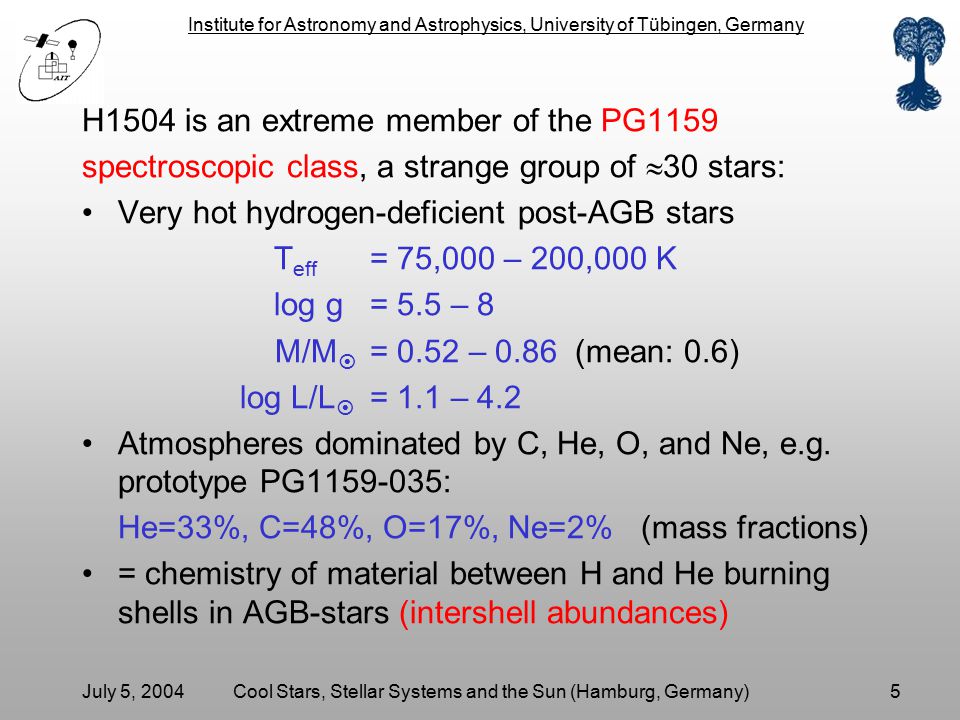

5. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)5 H1504 is an extreme member of the PG1159 spectroscopic class, a strange group of  30 stars: Very hot hydrogen-deficient post-AGB stars T eff = 75,000 – 200,000 K log g= 5.5 – 8 M/M  = 0.52 – 0.86 (mean: 0.6) log L/L  = 1.1 – 4.2 Atmospheres dominated by C, He, O, and Ne, e.g. prototype PG1159-035: He=33%, C=48%, O=17%, Ne=2% (mass fractions) = chemistry of material between H and He burning shells in AGB-stars (intershell abundances)

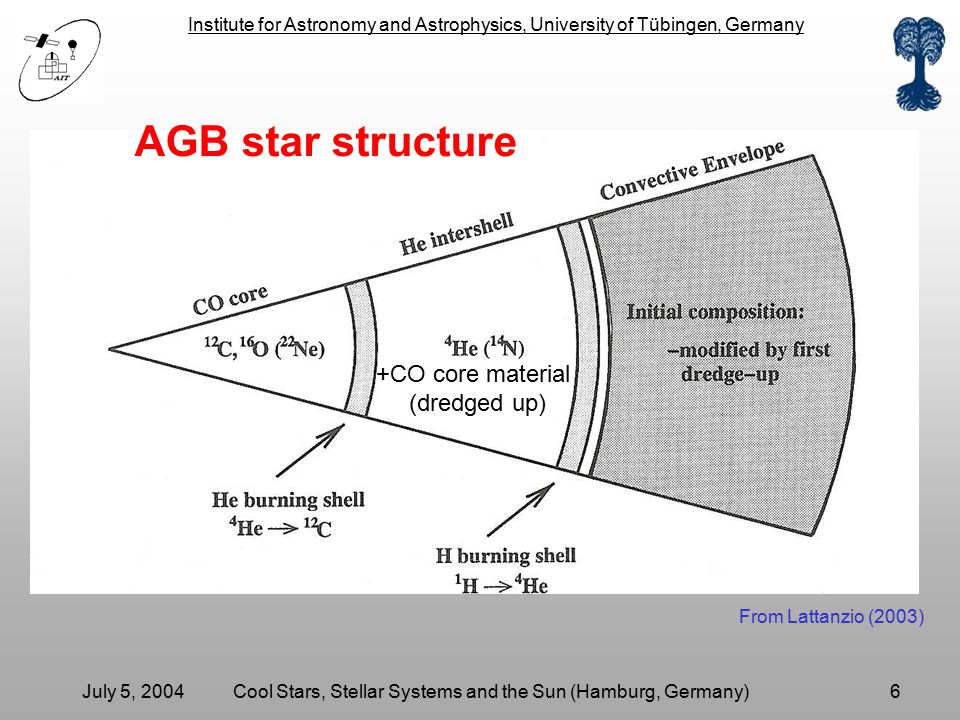

6. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)6 AGB star structure +CO core material (dredged up) From Lattanzio (2003)

7. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)7 Loss of H-rich envelope probably consequence of late He-shell flash (like Sakurai’s object and FG Sge); strong support by stellar evolution models (Herwig 2001) H-deficient evolutionary post-AGB sequence identified: Wolf-Rayet type central stars of planetary nebulae → PG1159 stars → non-DA white dwarfs

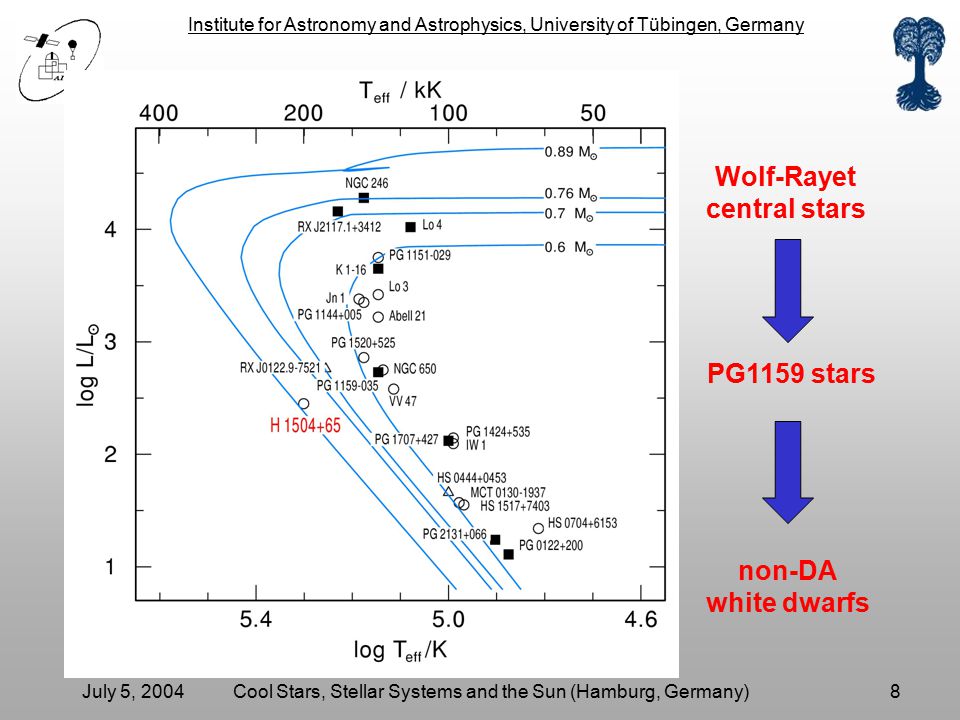

8. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)8 Wolf-Rayet central stars PG1159 stars non-DA white dwarfs

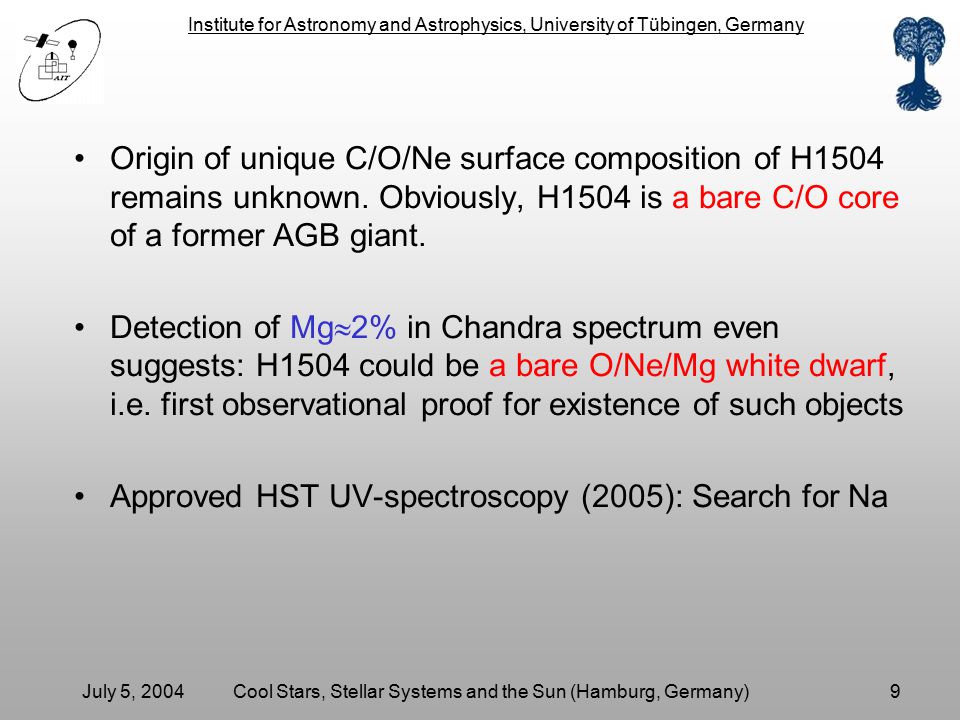

9. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)9 Origin of unique C/O/Ne surface composition of H1504 remains unknown. Obviously, H1504 is a bare C/O core of a former AGB giant. Detection of Mg  2% in Chandra spectrum even suggests: H1504 could be a bare O/Ne/Mg white dwarf, i.e. first observational proof for existence of such objects Approved HST UV-spectroscopy (2005): Search for Na

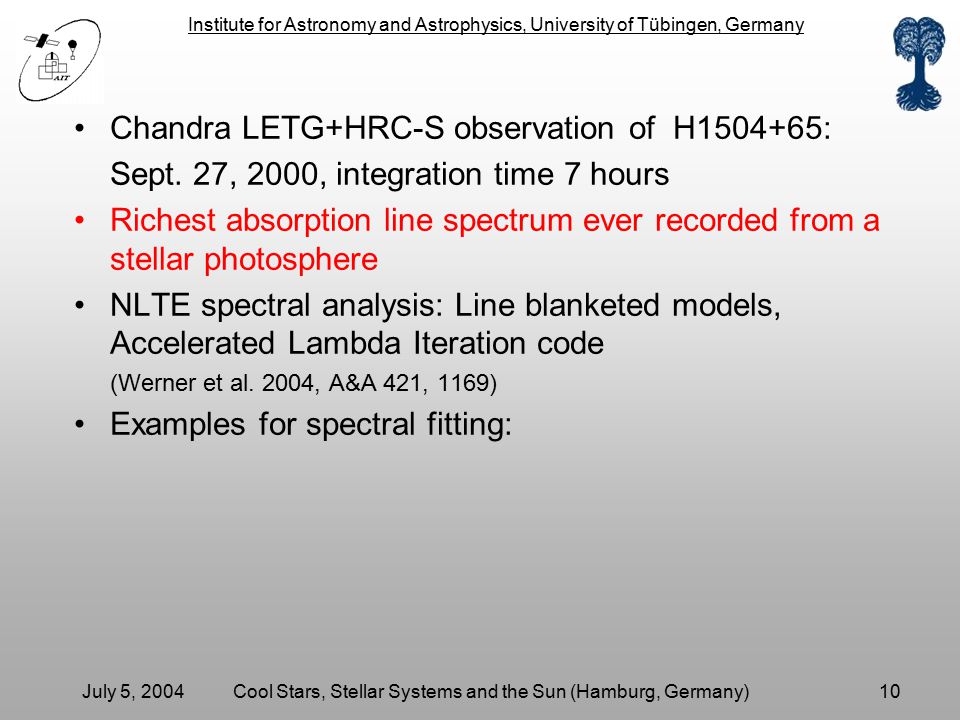

10. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)10 Chandra LETG+HRC-S observation of H1504+65: Sept. 27, 2000, integration time 7 hours Richest absorption line spectrum ever recorded from a stellar photosphere NLTE spectral analysis: Line blanketed models, Accelerated Lambda Iteration code (Werner et al. 2004, A&A 421, 1169) Examples for spectral fitting:

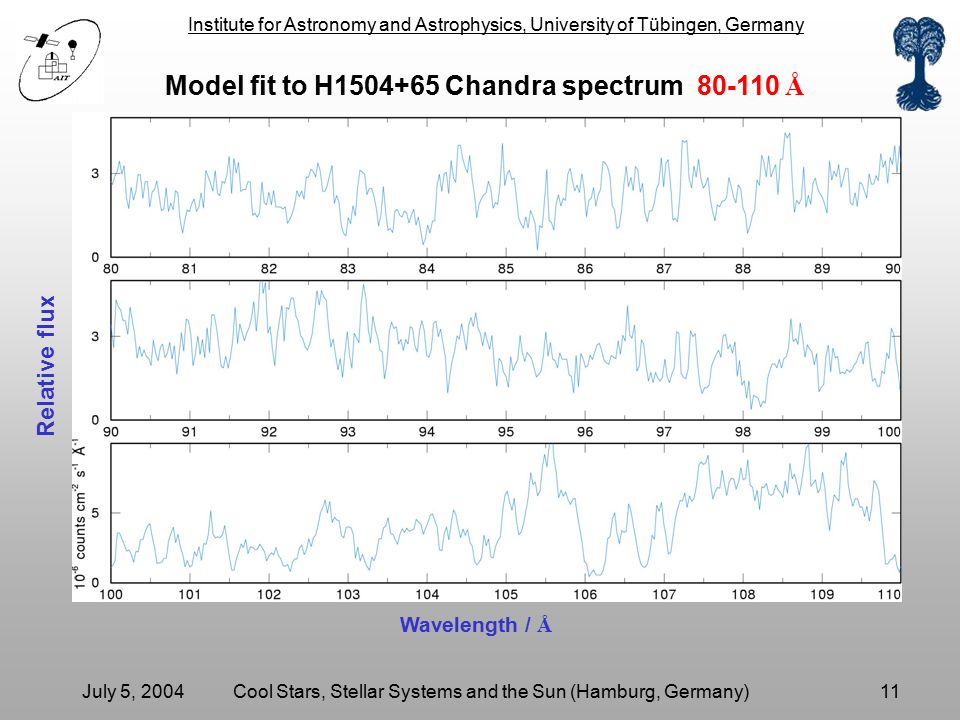

11. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)11 Model fit to H1504+65 Chandra spectrum 80-110 Å Wavelength / Å Relative flux

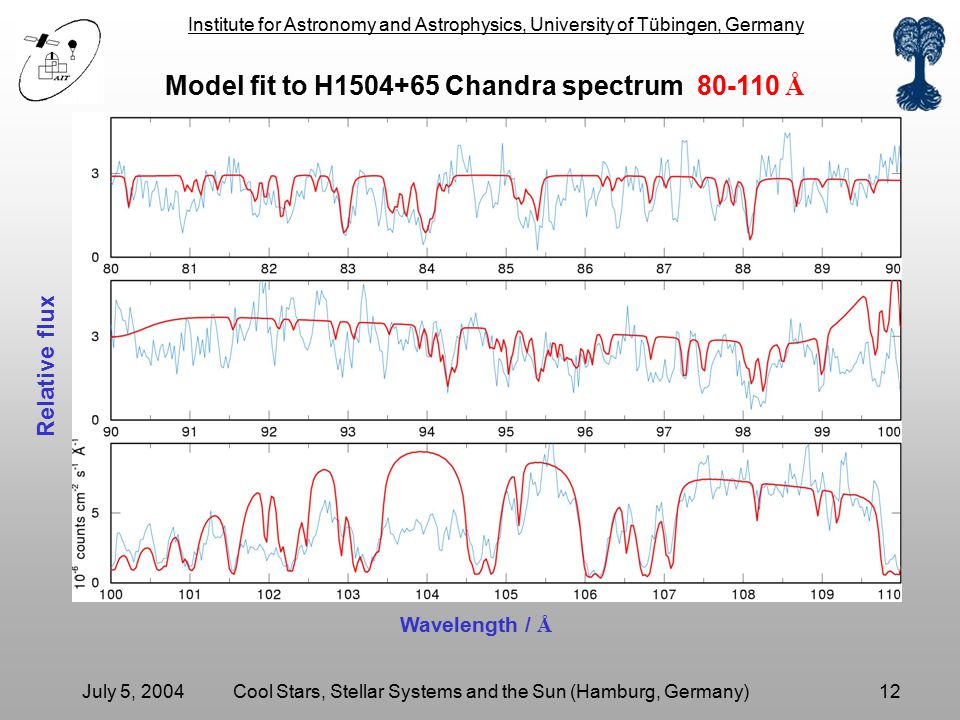

12. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)12 Model fit to H1504+65 Chandra spectrum 80-110 Å Wavelength / Å Relative flux

13. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)13 Model fit to H1504+65 Chandra spectrum 80-110 Å Wavelength / Å Relative flux

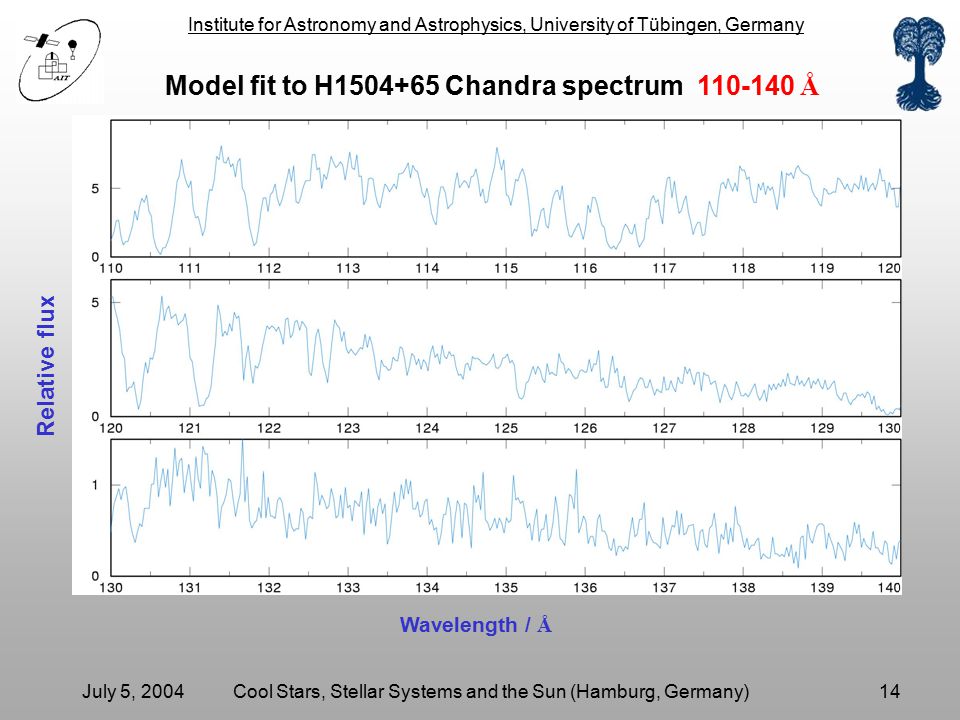

14. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)14 Model fit to H1504+65 Chandra spectrum 110-140 Å Wavelength / Å Relative flux

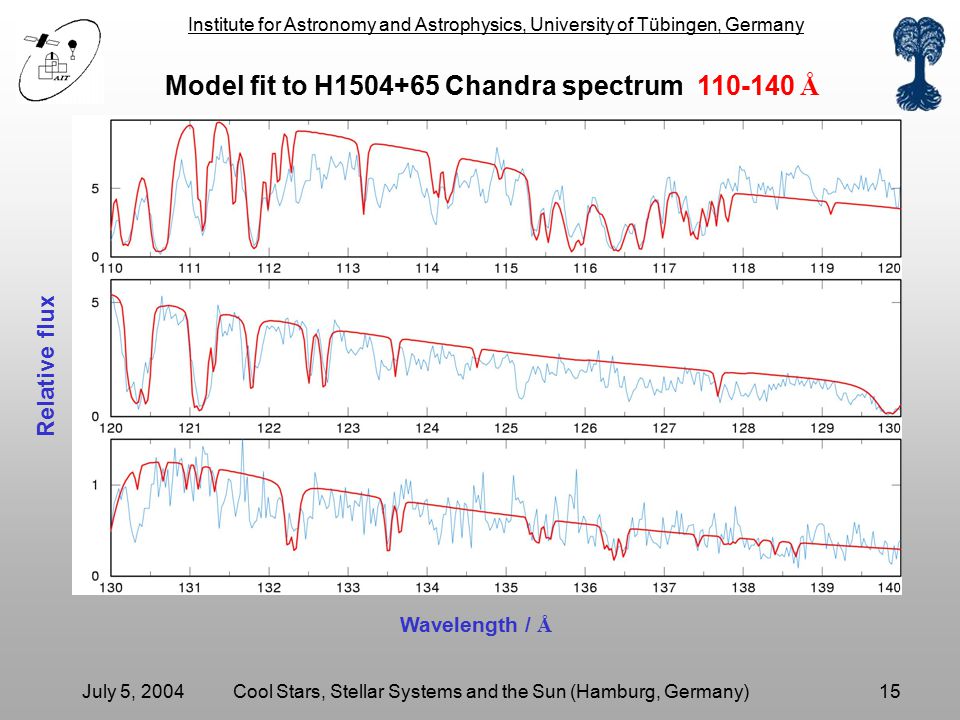

15. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)15 Model fit to H1504+65 Chandra spectrum 110-140 Å Wavelength / Å Relative flux

16. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)16 Model fit to H1504+65 Chandra spectrum 110-140 Å Wavelength / Å Relative flux

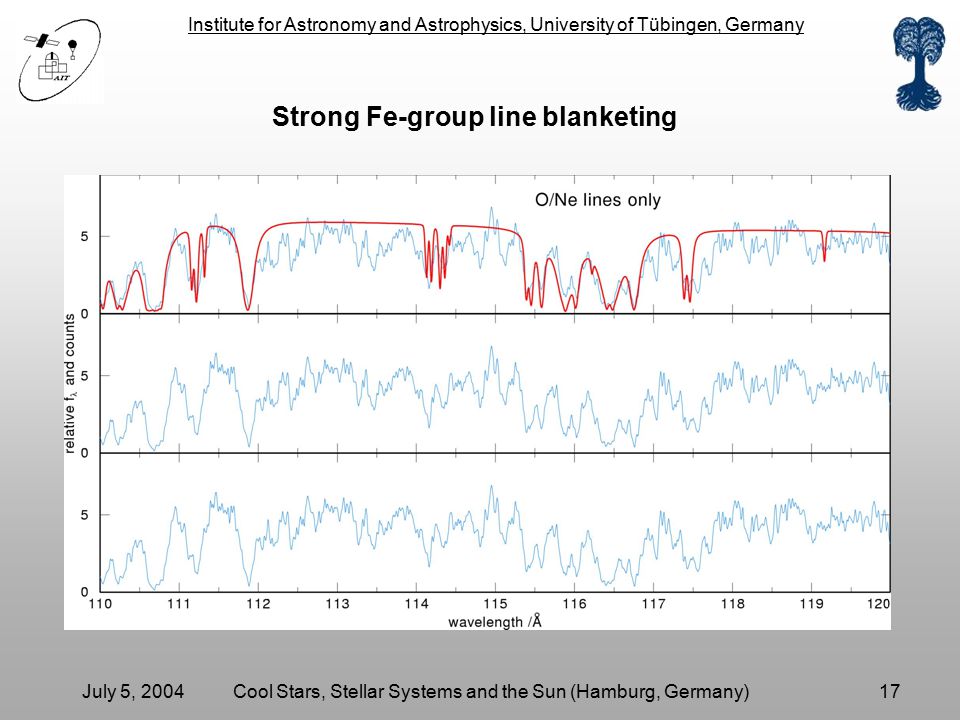

17. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)17 Strong Fe-group line blanketing

18. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)18 Strong Fe-group line blanketing

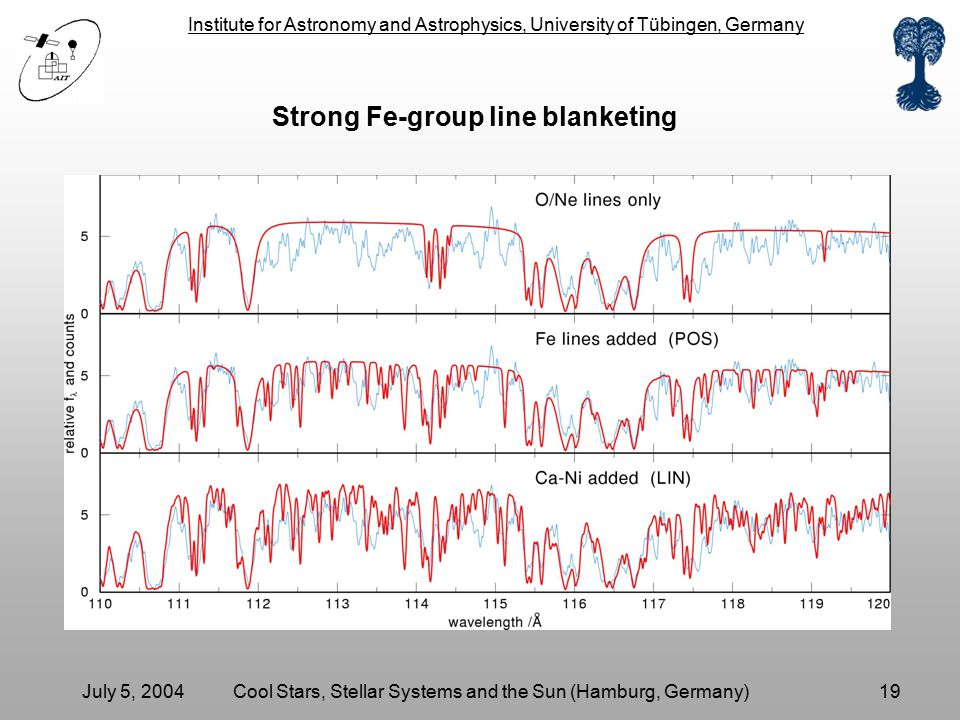

19. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)19 Strong Fe-group line blanketing

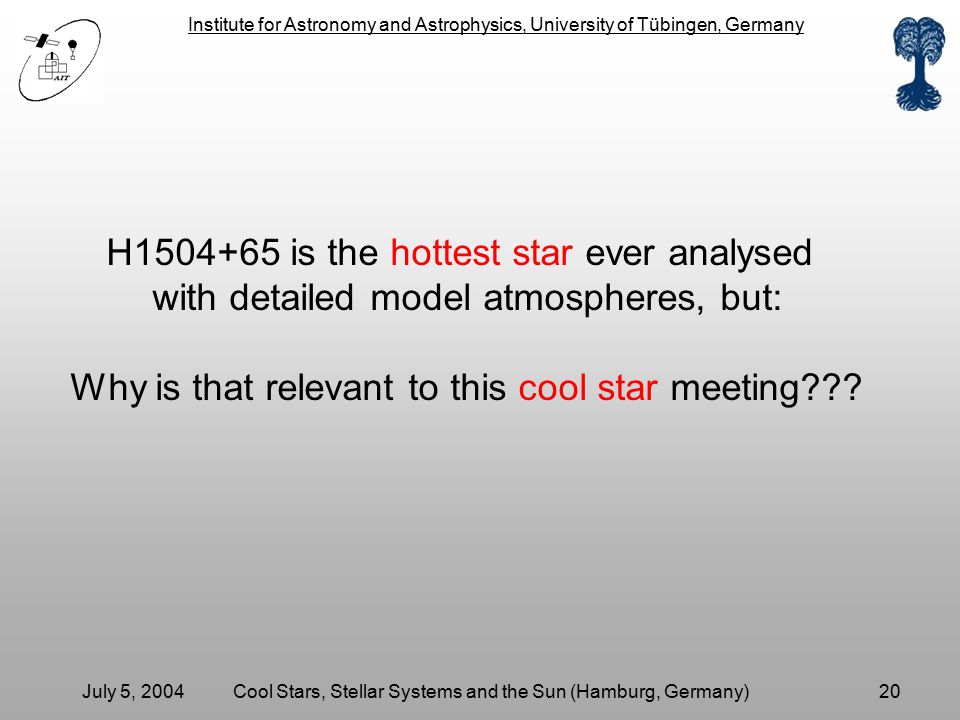

20. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)20 H1504+65 is the hottest star ever analysed with detailed model atmospheres, but: Why is that relevant to this cool star meeting???

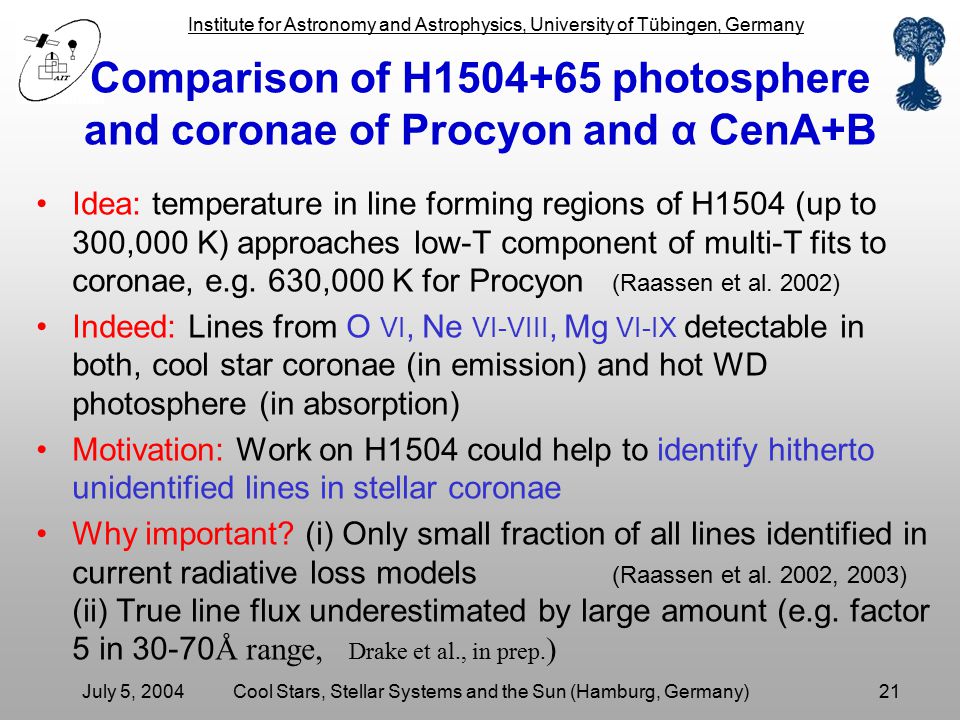

21. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)21 Comparison of H1504+65 photosphere and coronae of Procyon and α CenA+B Idea: temperature in line forming regions of H1504 (up to 300,000 K) approaches low-T component of multi-T fits to coronae, e.g. 630,000 K for Procyon (Raassen et al. 2002) Indeed: Lines from O VI, Ne VI-VIII, Mg VI-IX detectable in both, cool star coronae (in emission) and hot WD photosphere (in absorption) Motivation: Work on H1504 could help to identify hitherto unidentified lines in stellar coronae Why important? (i) Only small fraction of all lines identified in current radiative loss models (Raassen et al. 2002, 2003) (ii) True line flux underestimated by large amount (e.g. factor 5 in 30-70 Å range, Drake et al., in prep. )

22. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)22

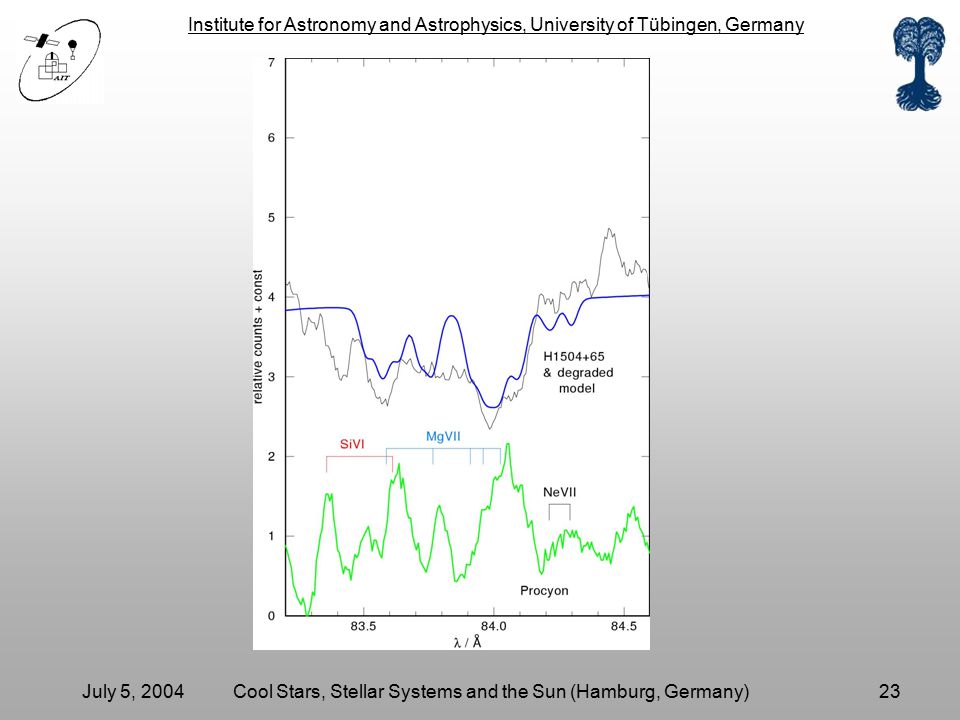

23. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)23

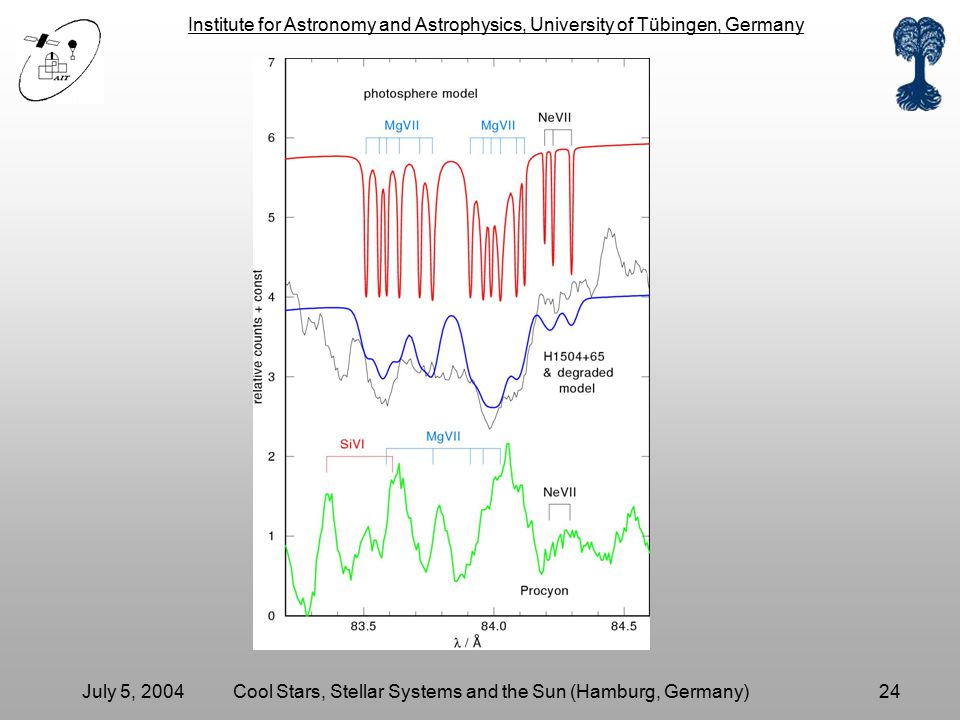

24. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)24

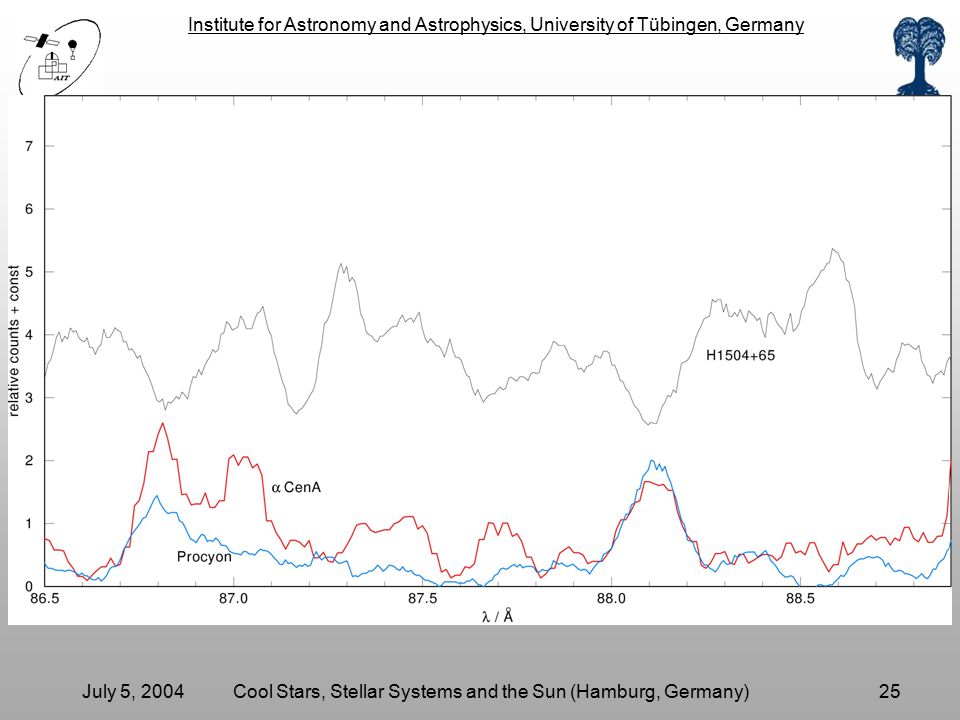

25. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)25

26. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)26

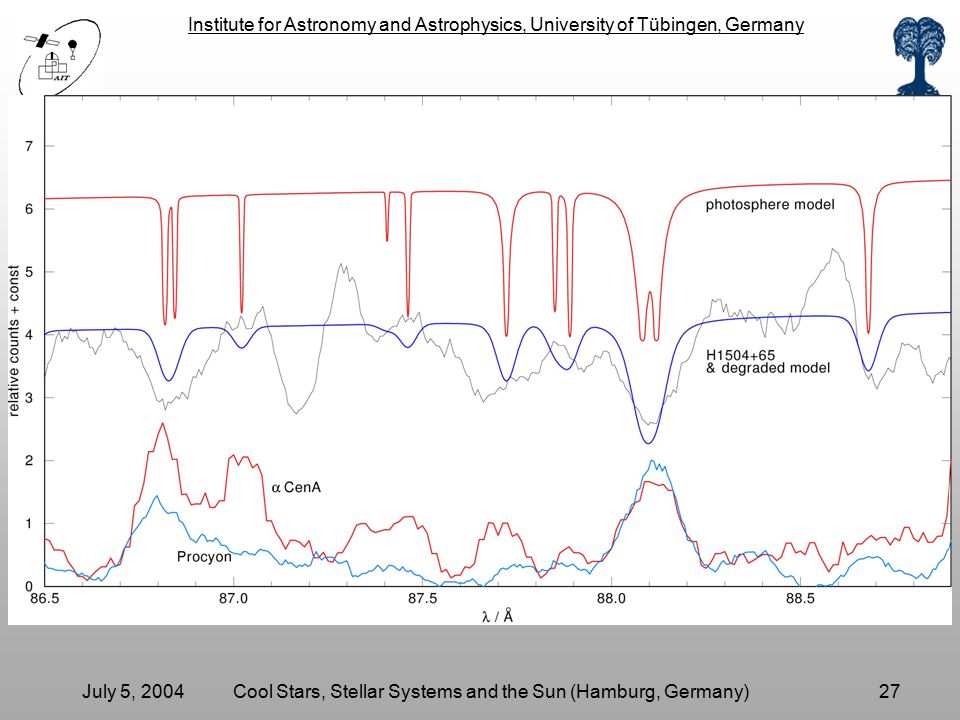

27. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)27

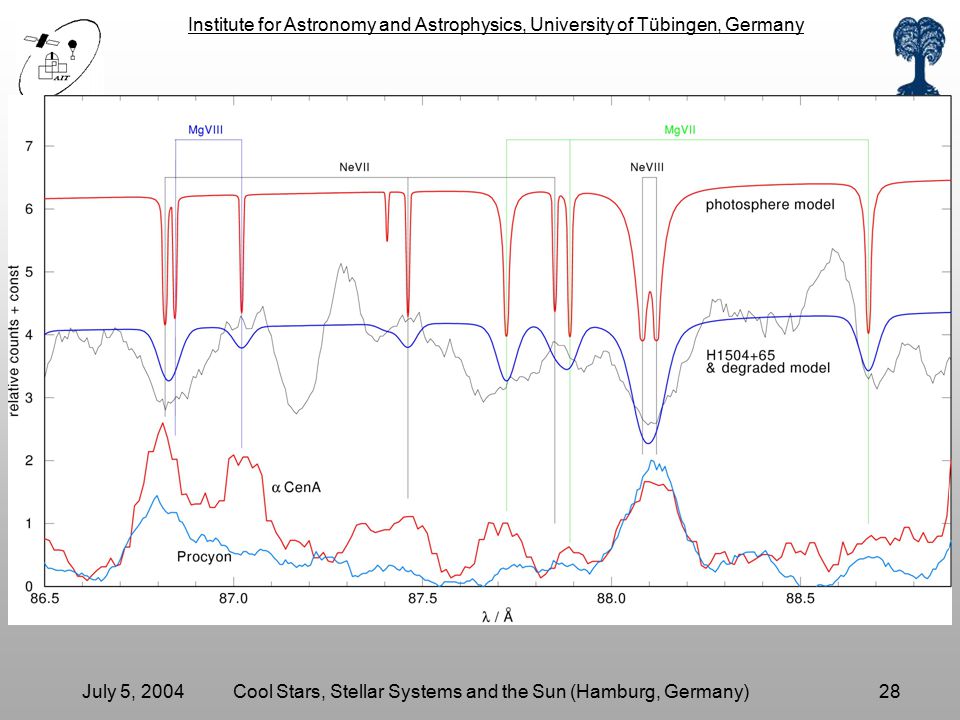

28. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)28

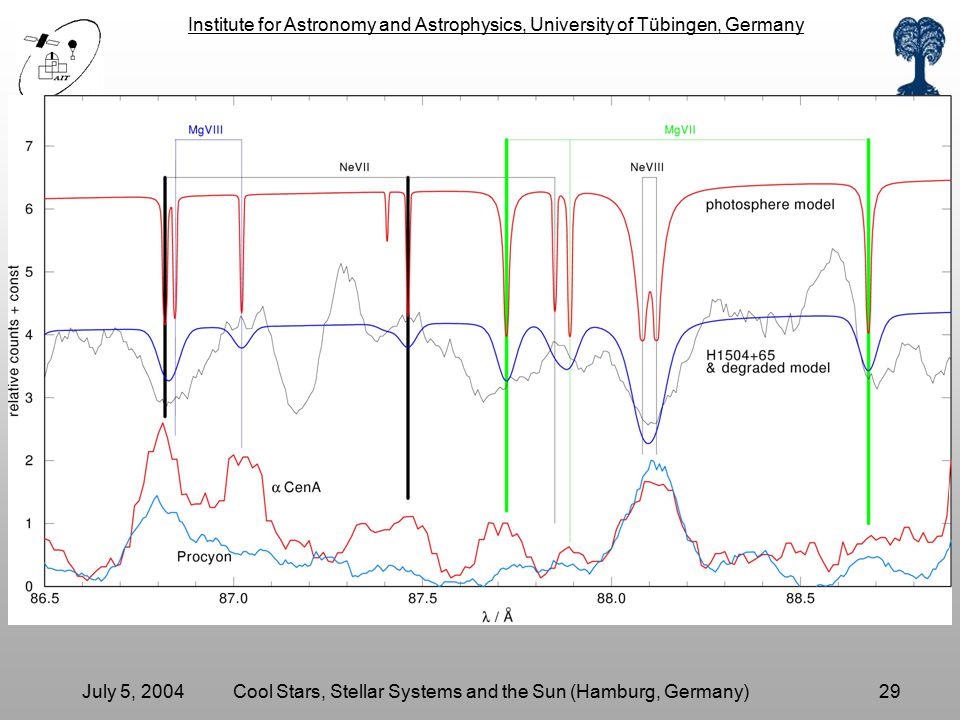

29. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)29

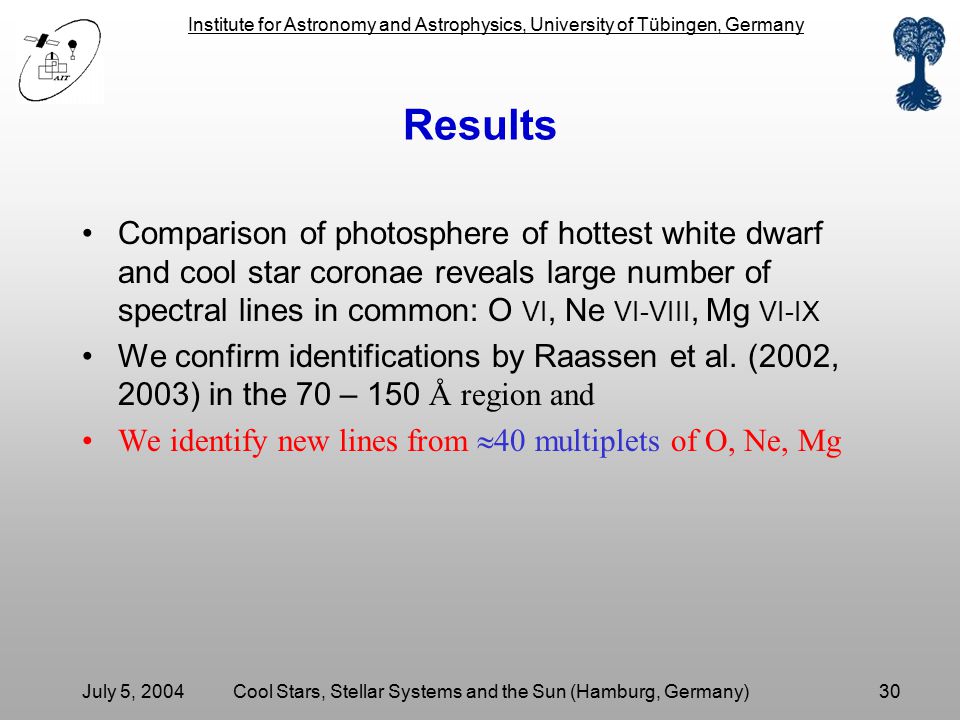

30. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)30 Results Comparison of photosphere of hottest white dwarf and cool star coronae reveals large number of spectral lines in common: O VI, Ne VI-VIII, Mg VI-IX We confirm identifications by Raassen et al. (2002, 2003) in the 70 – 150 Å region and We identify new lines from  40 multiplets of O, Ne, Mg

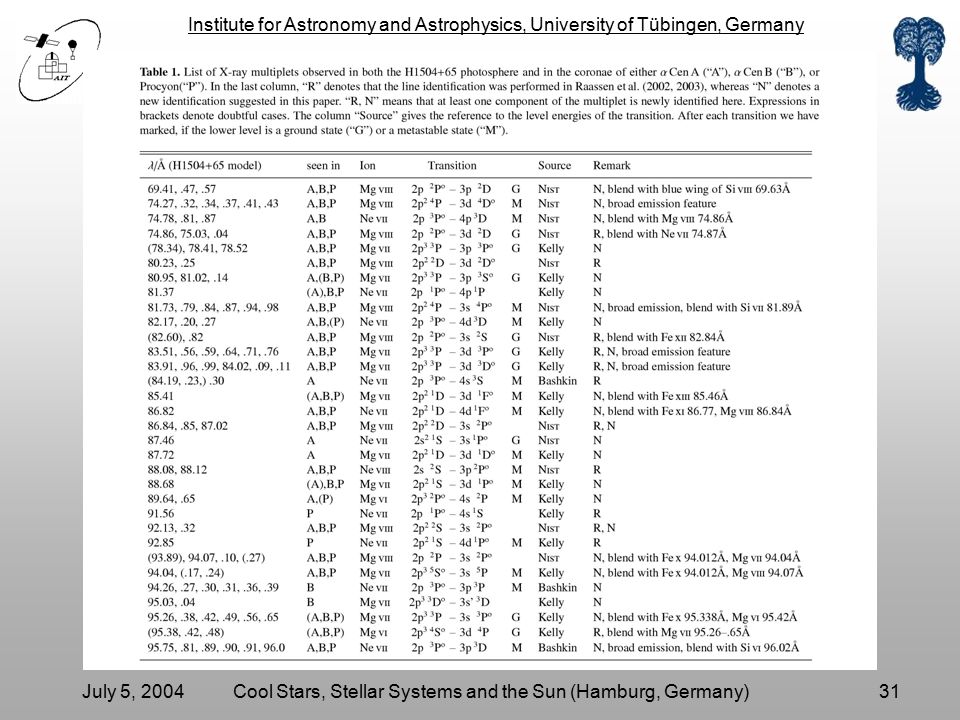

31. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)31

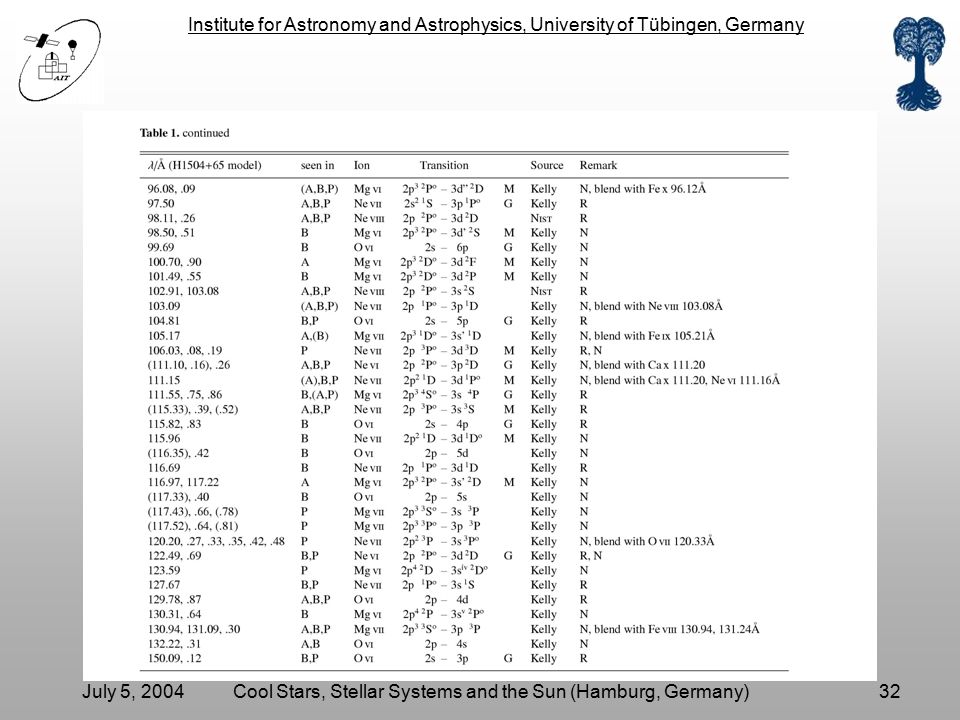

32. Institute for Astronomy and Astrophysics, University of Tübingen, Germany July 5, 2004Cool Stars, Stellar Systems and the Sun (Hamburg, Germany)32
