1. Slide 1 Lecture 4 – Constraints, Triggers, Views, Application Development

2. Slide 2 Lecture 4 ALTER TABLE Integrity Constraints –Primary Key, Foreign Key –Check –Domain –Assertion Triggers Views Levels of Abstraction Data Independence Embedded SQL –Cursors

3. Slide 3 Learning Objectives Be able to: –LO4.1: Write ALTER TABLE statements –LO4.2: Describe what an integrity constraint or a trigger accomplishes. –LO4.3: Construct a view to support a new environment.

4. Slide 4 Fixing COBOL Format* Look at http://www.fec.gov/finance/disclosure/ftpdet.shtml : –"The amount field is in COBOL format…if the amount is 20] …The correct amount is –200 " Look at the table iclcobol to see what the FEC data looks like before it is corrected. How would you correct it? Look very briefly at the code in DDL.sql – we will go over it in detail later.

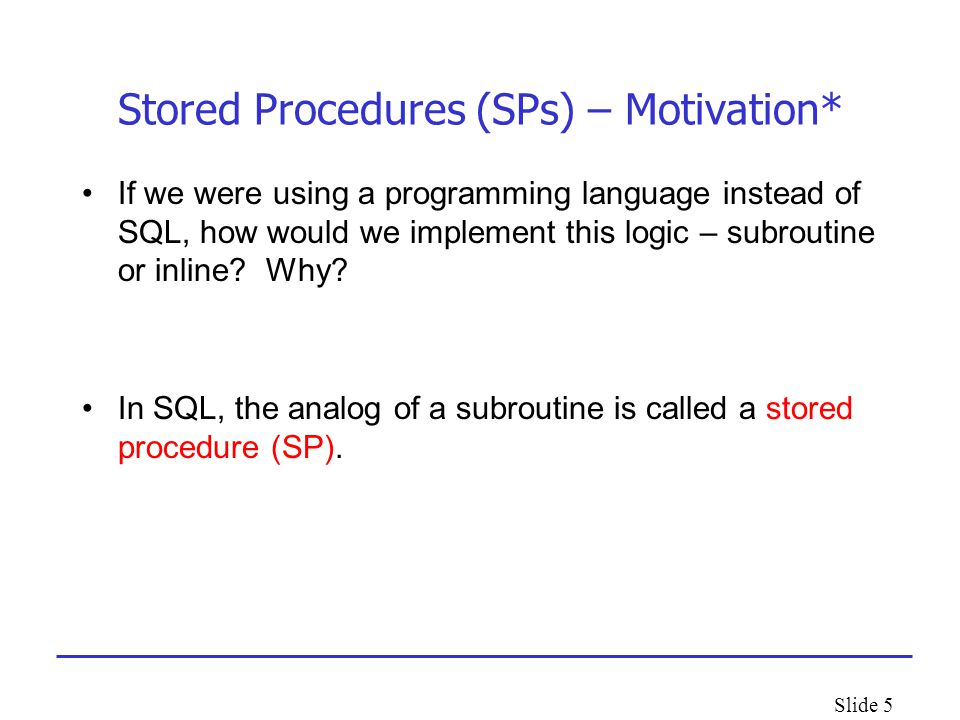

5. Slide 5 Stored Procedures (SPs) – Motivation* If we were using a programming language instead of SQL, how would we implement this logic – subroutine or inline? Why? In SQL, the analog of a subroutine is called a stored procedure (SP).

6. Slide 6 SPs vs. Subroutines* Similarities between SPs and subroutines –SPs can be written in many languages Most common: dialects of SQL –In Postgresql this is SQL or PL/pgSQL (nonstandard) In Postgres, you can register any language for writing SPs (nonstandard) –http://www.postgresql.org/docs/8.3/interactive/plhandler.html –An SP returns a structure In SQL-land this means a table A call to an SP can appear in the FROM clause of a query Difference between SPs and subroutines –An SP executes in the DBMS's address space, not the clients' This has huge performance implications.

7. Slide 7 Bad news, Good news Stored Procedures are not in any SQL standard –Each vendors' implementation is different But each vendor gives porting advice, e.g., http://www.postgresql.org/docs/8.3/interactive/plpgsql-porting.html –Some shops don't allow stored procedures for this reason Stored Procedures can be very efficient compared to SQL –Suppose a program's logic is S1;S2;…;Sn, each Si is a SQL statement ServerClient S1 S2 … Sn :query :answer Implemented as SQL ServerClient S1 S2 … Sn Implemented as SP

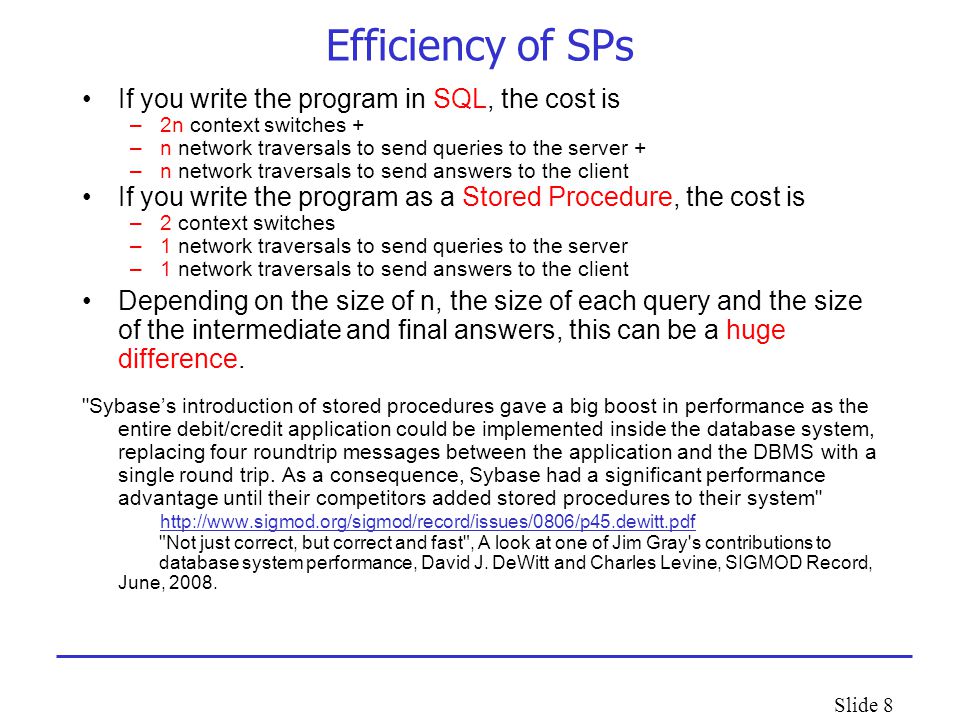

8. Slide 8 Efficiency of SPs If you write the program in SQL, the cost is –2n context switches + –n network traversals to send queries to the server + –n network traversals to send answers to the client If you write the program as a Stored Procedure, the cost is –2 context switches –1 network traversals to send queries to the server –1 network traversals to send answers to the client Depending on the size of n, the size of each query and the size of the intermediate and final answers, this can be a huge difference. "Sybase’s introduction of stored procedures gave a big boost in performance as the entire debit/credit application could be implemented inside the database system, replacing four roundtrip messages between the application and the DBMS with a single round trip. As a consequence, Sybase had a significant performance advantage until their competitors added stored procedures to their system" http://www.sigmod.org/sigmod/record/issues/0806/p45.dewitt.pdf "Not just correct, but correct and fast", A look at one of Jim Gray's contributions to database system performance, David J. DeWitt and Charles Levine, SIGMOD Record, June, 2008.

9. Slide 9 A Real Stored Procedure* Look at COBOLint(file text) in DDL.sql Notice The SP is written in PL/pgSQL, not in SQL. –You can see this from the last few lines or because of the EXECUTE statements. (nonstandard) The reason is that PostgreSQL precompiles SPs (for efficiency) written in SQL, and, as we shall see, this wreaks havoc with COBOLint. (nonstandard) Now look at how the SP parallels your algorithm for changing COBOL to integer format. Don't worry about the details of syntax, like the ||'s used to escape names. (nonstandard) What's important about SP's is on the 3 preceeding slides.

10. Slide 10 ALTER TABLE ALTER TABLE… is a standard DML statement used to change the schema of a table You've see how it can be used to add and drop columns and add foreign key declarations. Here are some other uses. -- If you INSERT a cand record and do not give a value -- for princomm, the DBMS inserts the value ‘P00000000’ ALTER TABLE cand ALTER COLUMN princomm DEFAULT ‘P00000000’; -- This drops default values from a column ALTER TABLE cand ALTER COLUMN princomm DROP DEFAULT;

11. Slide 11 Integrity Constraints (ICs) An IC describes conditions that every legal instance of a table must satisfy. – Inserts/deletes/updates that violate IC’s are typically disallowed. – ICs can be used to ensure application semantics (e.g., candid is a key), or prevent inconsistencies (e.g., candid has to be an integer, amount must be >= 200) Types of IC’s: Primary key constraints, foreign key constraints, general (check) constraints, domain constraints.

12. Slide 12 Key Constraints – with Names For efficiency one usually creates ICs seperately from CREATE TABLE statements, using ALTER TABLE. But it can be done in one statement, e.g: CREATE TABLE cand (… princomm char(9)… CONSTRAINT cand_fkey FOREIGN KEY (princomm)REFERENCES comm(commid) ON UPDATE… ); The advantages of using named constraints (like cand_fkey) are –Error messages are more meaningful missing value for constraint “cand_fkey” –You can drop or defer the constraint

13. Slide 13 General Constraints* CHECK constraints can cover extremely general situations. They can use arbitrary queries, for example: CONSTRAINT limit_check CHECK(2300 >= SELECT MAX(totamt) FROM ( SELECT donorname, occup, zip, commid, SUM(amount) AS totamt FROM indiv GROUP BY donorname,occup,zip, commid) AS foo; ); What does this accomplish?

14. Slide 14 Domain, Type Constraints Here’s a typical mistake : -- This is a legal SQL query! SELECT candname FROM cand JOIN comm ON candid = commid; SQL ’92 allowed the creation of domains CREATE DOMAIN canddom Char(9) ; But this won’t help – the above query is still legal using canddom for the domain of candid. SQL ’99 introduced Types. CREATE TYPE candtype AS Char(9); Using candtype as the domain of candid, the above query will give a parse error, which is what we want.

15. Slide 15 Assertions: ICs over several tables* Any logical expression involving an SQL statement can be used to constrain tables in the database. What does this accomplish? CREATE ASSERTION salary_mgr CHECK (NOT EXISTS ( SELECT * FROM Employee E, Employee M WHERE E.salary > M.salary AND E.mgr = M.id ) ) Employee( id, name, address, mgr, salary )

16. Slide 16 Triggers (Not a constraint) Trigger: procedure that executes if specified changes occur to the DBMS Three parts: – Event (activates the trigger) This will be an insert, delete and/or update to a table – Condition (tests whether the triggers should run) A logical statement or a query – Action (what happens if the trigger runs) Can execute queries, execute data-definition commands, transaction-oriented commands, and host-language procedures When does the Action execute? – Specified with Event (BEFORE, AFTER)

17. Slide 17 Triggers: Example* Assume one donation has been inserted to indiv, for simplicity CREATE TRIGGER overmax ON indiv AFTER INSERT AS IF 2300 < SELECT MAX(totamt) FROM (SELECT i.donorname, i.commid, SUM(i.amount) AS totamt FROM indiv i GROUP BY i.donorname, i.commid WHERE i.donorname = new.donorname) DELETE comm c WHERE c.commid = new.commid What does this accomplish?

18. Slide 18 Triggers vs Constraints Triggers are harder to understand –If multiple triggers apply, their order of execution is unspecified –One trigger can activate another, causing a chain of actions –A trigger can activate itself Triggers are more powerful than constraints –They can make changes to tables –They can take action before or after a data modification

19. Slide 19 Views students(sid, name, address, gpa) completed( sid, course, grade) This material is scattered in the first few chapters. A view is a query stored in the database –Think of it as a table definition for future use Example view definition: CREATE VIEW gstudents AS SELECT * FROM students WHERE gpa >= 2.5 Views can be used like base tables, in any query or in any other view. Like a Macro. Different from INTO.

20. Slide 20 Example view use: simpler queries Suppose you want to retrieve good students who have completed CS386. SELECT S.name, S.phone FROM gstudents S JOIN completed C USING (sid) WHERE C.course = ‘CS386’; It’s easier to write the query using the view.

21. Slide 21 Views for Security This is the student table without the gpa field. CREATE VIEW sstudents AS SELECT sid, name, address FROM students Can you think of some other security examples?

22. Slide 22 Views for Extensibility (most impt!) An old company’s database includes a table: Part (PartID, Name, Weight) Weight is stored in pounds The company is purchased by a new firm that uses metric weights The two databases, old and new, must be integrated and use Kg. But there’s lots of old software using pounds. Solution: views!

23. Slide 23 Views for extensibility (ctd) Solution: 1.Base table with kilograms becomes NewPart, for new integrated company. 2.CREATE VIEW Part AS SELECT PartID, Name, 2.2046*Weight FROM NewPart; 3.Old programs still call the table “Part”

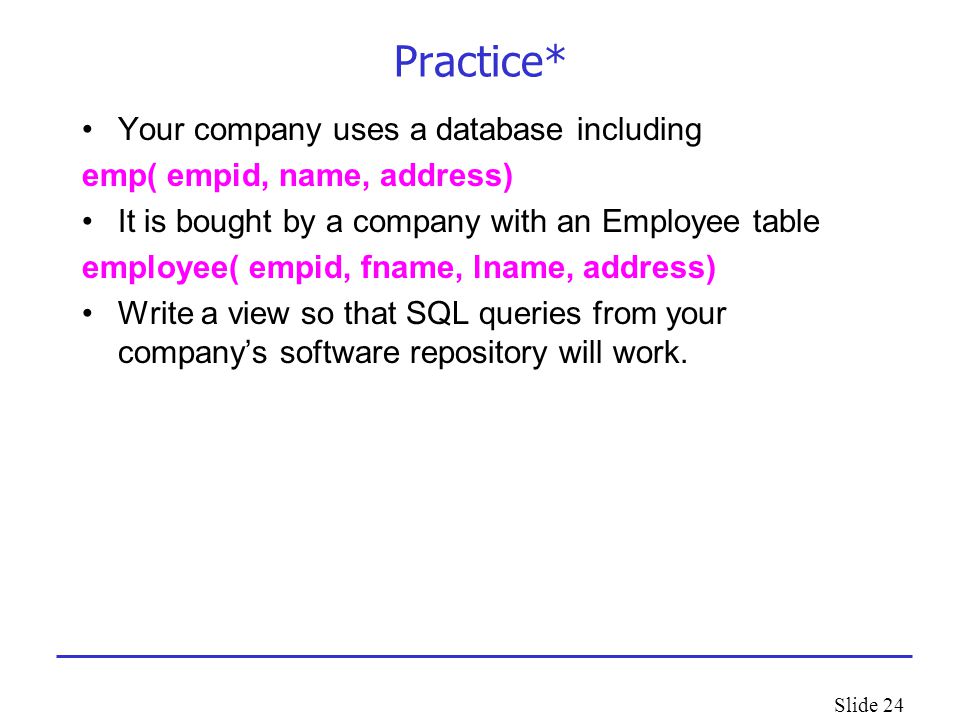

24. Slide 24 Practice* Your company uses a database including emp( empid, name, address) It is bought by a company with an Employee table employee( empid, fname, lname, address) Write a view so that SQL queries from your company’s software repository will work.

25. Slide 25 But there’s one problem with views: update Views cannot always be updated unambiguously. Consider emp(empid, ename, address, deptid) dept(deptid, dname) CREATE VIEW empdept AS SELECT ename, dname FROM emp JOIN dept USING (deptid) EMPDEPT ename dname jim shoe joe suit I want to delete (jim, shoe) from EMPDEPT. How can I do that?

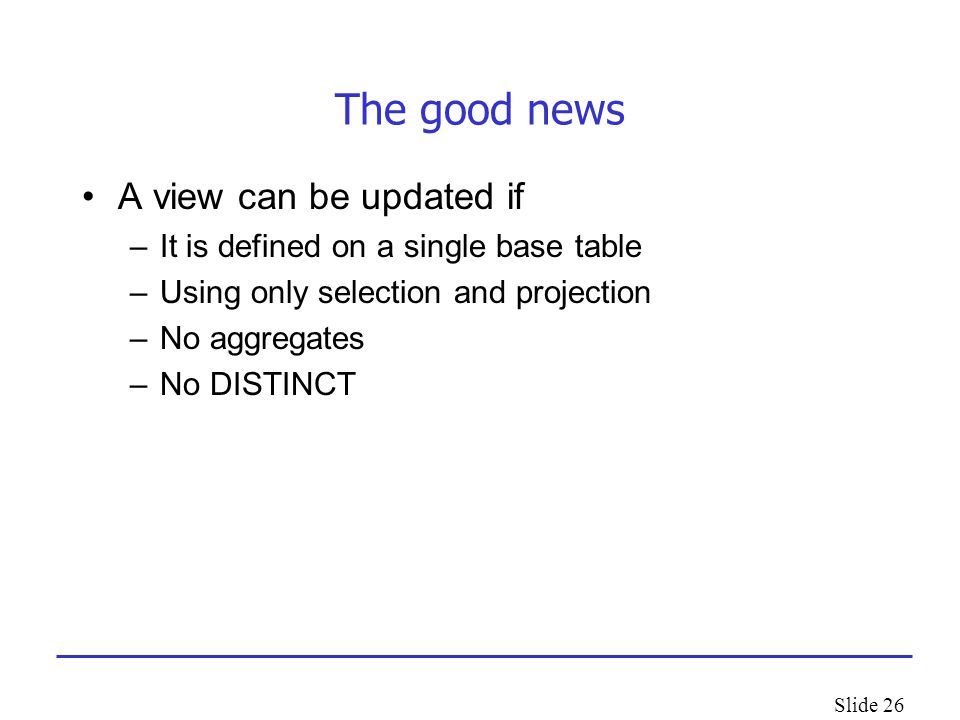

26. Slide 26 The good news A view can be updated if –It is defined on a single base table –Using only selection and projection –No aggregates –No DISTINCT

27. Slide 27 Levels of Abstraction Physical Schema Conceptual Schema ES 1ES 2ES 3 Physical storage; DBA Logical storage; data designer External view; user and data designer

28. Slide 28 Physical Schema The physical schema is a description of how the data is physically stored in the database. It includes –Where the data is located –File structures –Access methods –Indexes The physical schema is managed by the DBA.

29. Slide 29 Conceptual Schema The conceptual schema is a logical description of how the data is stored. It consists of the schemas we have described with CREATE TABLE statements. It is managed by the data designer.

30. Slide 30 External Schemas Each external schema is a combinaton of base tables and views, tailored to the needs of a single user. It is managed by the data designer and the user.

31. Slide 31 Data Independence A database model possesses data independence if application programs are immune to changes in the conceptual and physical schemas. Why is this important? Everything changes. How does the relational model achieve logical (conceptual) data independence? –Through views –If the conceptual schema changes, a view can be defined to preserve existing applications

32. Slide 32 Data Independence (ctd.) How does the relational model achieve physical data independence? 1.Conceptual level contains no physical info 2.SQL can program against the conceptual level –Earlier DBMSs (network, hierarchical) did not have these properties. –Their languages had physical properties embedded in them. That is the primary reason for the success of the relational model

33. Slide 33 Views: Summary A view is a stored query definition Views can be very useful –Easier query writing, security, extensibility But views cannot be unambiguously updated Three levels of abstraction in a relational DBMS –Yields data independence: logical and physical

34. Slide 34 6. Embedded SQL SQL is not enough! Needs to be embedded in a general purpose language to get –GUI –Flow of control –Generate SQL dynamically based on user input SQL commands can be called from within a host language (e.g., C/C++, Basic,.NET or Java ) program or scripting language (e.g., PHP, Ruby). A query answer is a bag of records - with arbitrarily many rows! No such data structure in most languages. Called impedance mismatch. The SQL standard supports a cursor to handle this

35. Slide 35 Cursors You can declare a cursor on a table or query statement (which generates a table). You can open a cursor, and repeatedly fetch a tuple then move the cursor, until all tuples have been retrieved. You can modify/delete a tuple pointed to by a cursor. SQL must be able to report data-generated errors.

36. Slide 36 Cursor that gets names of candidates who have a principal committee, in alphabetical order EXEC SQL DECLARE cinfo CURSOR FOR SELECT N.candname FROM cand N JOIN commM ON (N.princomm = M.commid) ORDER BY N.candname; OPEN cinfo; FETCH cinfo INTO :c-name; (probably in a loop in your program) CLOSE cinfo; Notice the colon in :cname – it refers to a variable that has been declared in the surrounding program

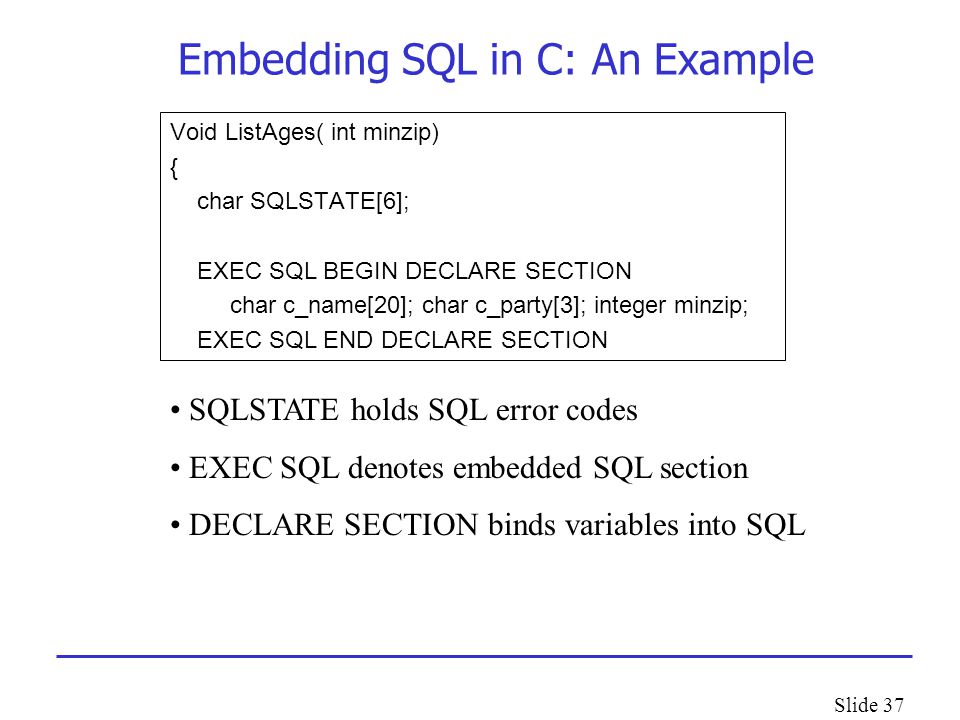

37. Slide 37 Embedding SQL in C: An Example Void ListAges( int minzip) { char SQLSTATE[6]; EXEC SQL BEGIN DECLARE SECTION char c_name[20]; char c_party[3]; integer minzip; EXEC SQL END DECLARE SECTION SQLSTATE holds SQL error codes EXEC SQL denotes embedded SQL section DECLARE SECTION binds variables into SQL

38. Slide 38 Embedding in C: An Example DECLARE cinfo CURSOR defines a name for the cursor SELECT … is the SQL whose results the cursor will point to :minzip – Note the colon referring to a C variable declared previously EXEC SQL DECLARE cinfo CURSOR FOR SELECT N. candname, N.party FROM cand N WHERE zip > :minzip ORDER BY N.candname;

39. Slide 39 Embedding in C: An Example OPEN cinfo - Executes the query and positions the cursor before the first row of the output FETCH cinfo INTO – assigns the data of the first row (if it exists) into C program variables CLOSE cinfo – Free the cursor’s resources EXEC SQL OPEN cinfo; EXEC SQL FETCH cinfo INTO :c_name; While(SQLSTATE != “02000”) { printf(“Candidate name is %s\n”, candname); EXEC SQL FETCH cinfo INTO :c_name; } ; EXEC SQL CLOSE cinfo;

40. Slide 40 Midterm Thursday's Midterm will be open books and notes At least 80% of the points will cover the Learning Objectives from the lectures.

41. Slide 41 LO4.1: Alter Table* Write SQL statements to eliminate the filler attributes in the original candidate table Write the statements necessary to declare that pas.candid is a foreign key. Assume the data has been cleaned.

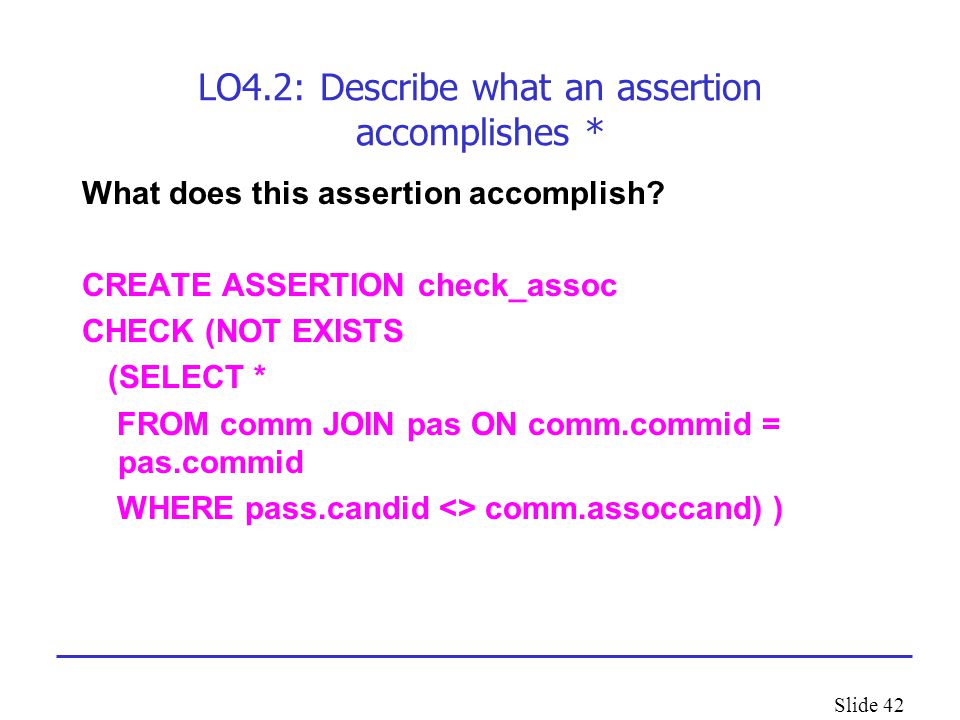

42. Slide 42 LO4.2: Describe what an assertion accomplishes * What does this assertion accomplish? CREATE ASSERTION check_assoc CHECK (NOT EXISTS (SELECT * FROM comm JOIN pas ON comm.commid = pas.commid WHERE pass.candid <> comm.assoccand) )

43. Slide 43 LO4.3* In next year’s election cycle, the FEC decides to store committee data in two tables, newcomm1(commid,commname,treasname,street1,street2,city,stat e,zip) and newcomm2(commid,commdesig,commtype,party,filingfreq,intgrp,co mmorg,assoccand) Write a view so that SQL queries over the current year’s database will work.
