1 Laminar Incompressible Flow over a Rotating Disk Numerical Analysis for Engineering John Virtue December 1999

2 Problem Description The Navier Stokes Momentum Equations Can be transformed into the following System of Non-Linear Second Order Differential Equations as a function of Zeta only

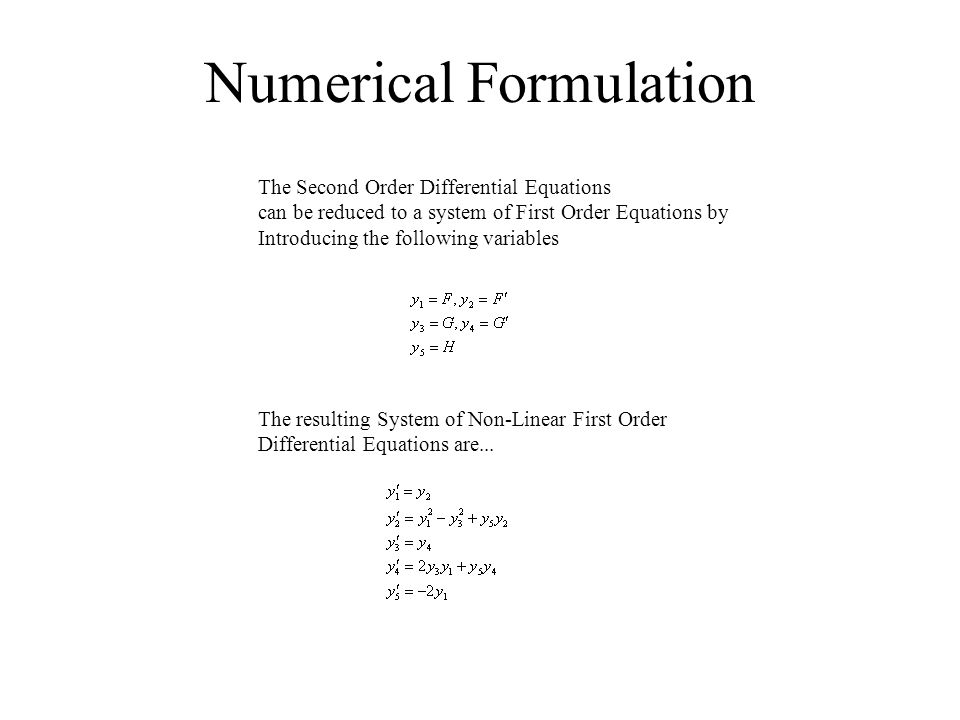

3 Numerical Formulation The Second Order Differential Equations can be reduced to a system of First Order Equations by Introducing the following variables The resulting System of Non-Linear First Order Differential Equations are...

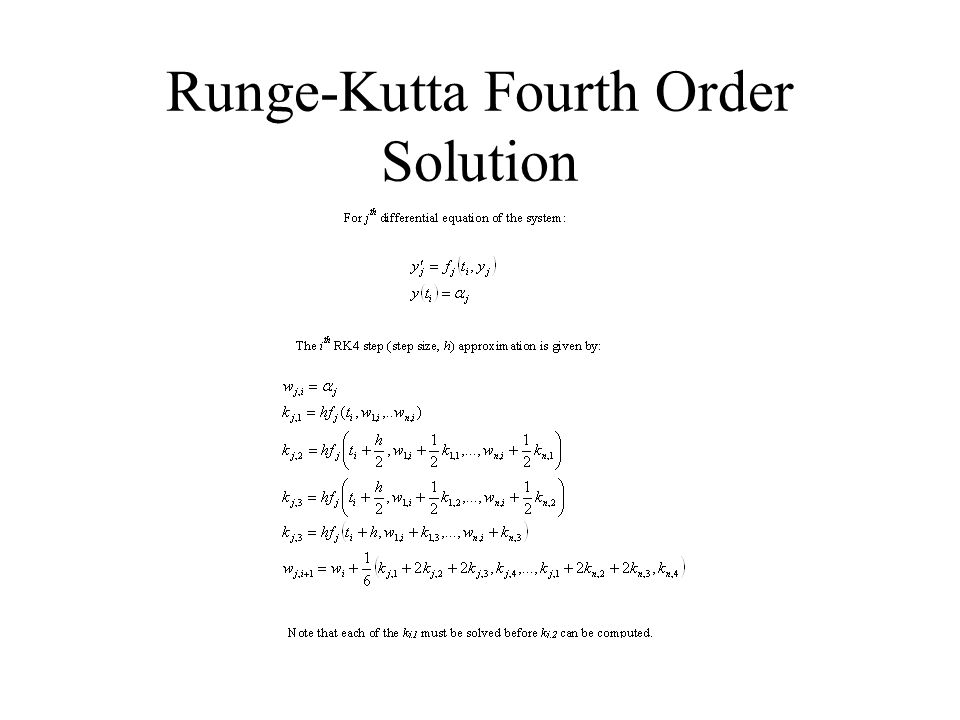

4 Runge-Kutta Fourth Order Solution

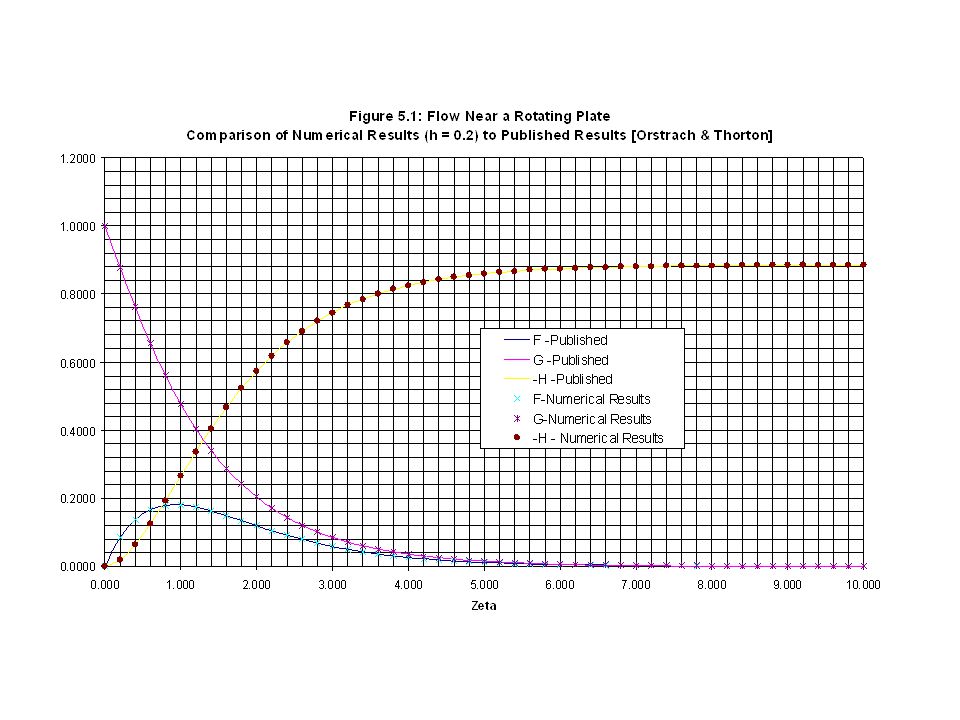

5
