Delia Hasch TMDs & friends from lepton scattering -experimental overview- INT workshop on “3D parton structure of the nucleon encoded in GPDs & TMDs”, Seattle, Sept. 14-18 2009 outline: introduction: some reminders… status Sivers DF Collins DF azimuthal dependence of unpolarised xsection the ‘soon to come’ menu

2
experimental prerequisites 190 GeV ≈6 GeV e 27 GeV e till 2007 HALL A longitudinally polarised d long.+transv. polarised p ~full hadron ID CLAS: long. polarised effective p HallA: long.+transv. polarised effective n main players in the game: long.+transv. polarised effective d long.+transv. polarised effective p ~full hadron ID 1/7/07@ 1:09:56 am

3
deep-inelastic scattering Q2Q2 factorisation: 1 GeV 2

4
hadron production @ RHIC 0 and jet production xsection vs pT compared to theory

5
hadron production no SIDIS xsection measurements @HERMES and CLAS pion multiplicities [deFlorian,Sassot,Stratmann arXiv:0708.0769] compared to theory: DSS: fragmentation functions from combined NLO analysis of single- inclusive hadron production in e+e-, pp and SIDIS

6
hadron production no SIDIS xsection measurements @HERMES and CLAS pion multiplicities CLAS 0 compared to HERMES and to DSS:

7
SIDIS cross section XYXY beam: target: S L,S T

8
SIDIS cross section

9
leading-tw distribution functions chiral-odd pdf & FF ‘Amsterdam notation’

10
leading-tw distribution functions on the menu today

11
@leading twist, integrated over pT: leading-tw distribution functions ‘transversity’

12
leading-tw distribution functions @leading twist, no pT integration: ‘transversity’ ‘Kotzinian- Mulders’ ‘pretzelosity’ ‘Boer- Mulders’ ‘Sivers’

13
asymmetries and amplitudes + …

14
asymmetries and amplitudes taking also into account of the unpolarised cross section Collins moment Sivers moment

15
spin-orbit correlations Sivers function: [Matthias Burkardt] a non-zero Sivers fct. requires non-zero orbital angular momentum !

16
Sivers amplitudes ep h X [PRL94(2005)] first observation of T-odd Sivers effect in SIDIS u quark dominance suggests sizable u quark orbital motion

17
Sivers amplitudes ep h X first observation of T-odd Sivers effect in SIDIS u quark dominance suggests sizable u quark orbital motion [arXiv:0906.3918]

18
Sivers amplitudes for [arXiv:0906.3918 ] clear rise with z rise at low P h plateau at high P h T T dominated by u-quarks u-quark Sivers DF < 0

19
Sivers amplitudes for [arXiv:0906.3918 ] clear rise with z rise at low P h T plateau at high P h T dominated by u-quarks u-quark Sivers DF < 0 cancellation for : u and d quark Sivers DF of opposite sign

20
Sivers amplitudes for [arXiv:0906.3918 ] clear rise with z rise at low P h plateau at high P h T T dominated by u-quarks u-quark Sivers DF < 0 cancellation for : u and d quark Sivers DF of opposite sign all asymmetries on deuterium target ≈ zero! [PLB673(2009)]

21
Sivers amplitudes for [arXiv:0906.3918 ] proton data ?

22
Sivers amplitudes for [arXiv:0906.3918 ] T T ? ?? proton data

23
Sivers distribution for valence quarks transverse SSA of pion cross section difference: Sivers distribution for u- valence is large & <0 or Sivers distr. for d- valence >> u-valence (unlikely)

24

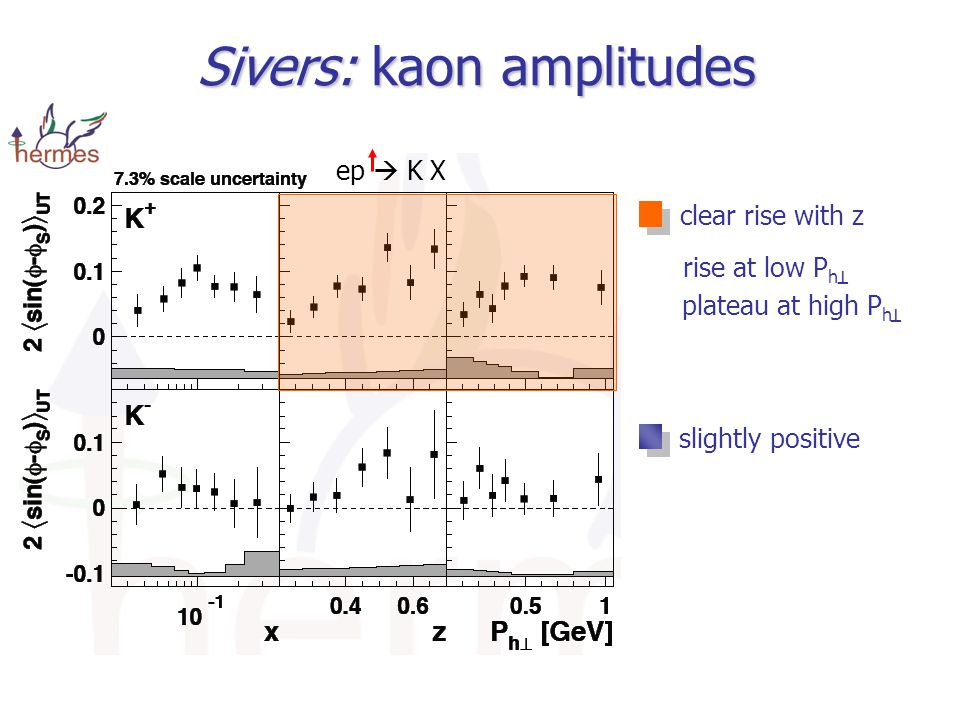

Sivers: kaon amplitudes ep K X clear rise with z rise at low P h T plateau at high P h T slightly positive

25

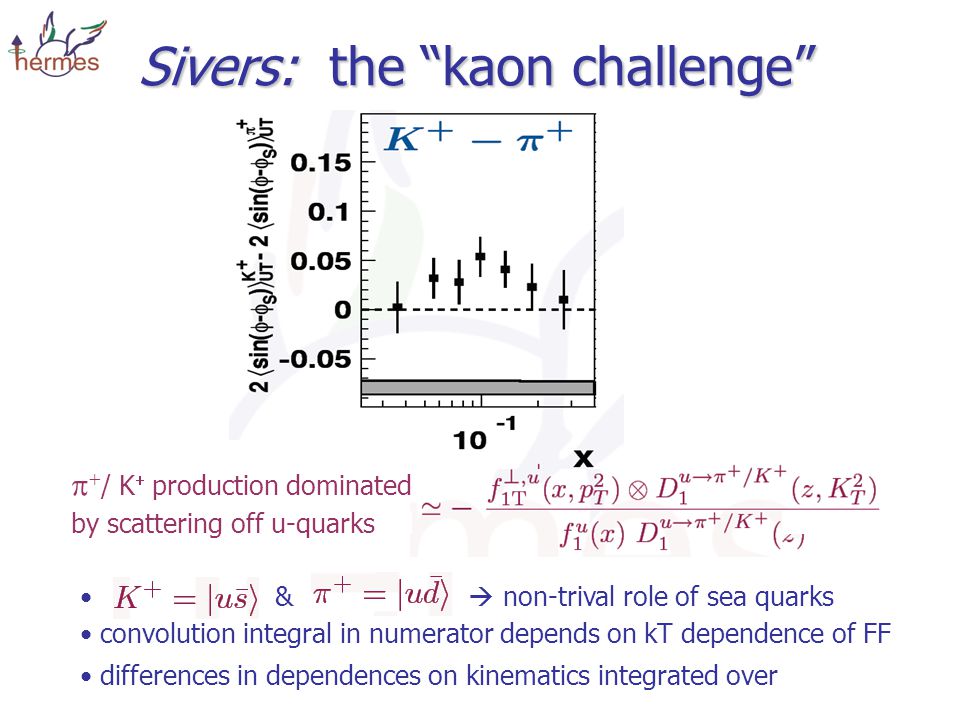

Sivers: the “kaon challenge” / K production dominated by scattering off u-quarks

26
& non-trival role of sea quarks convolution integral in numerator depends on kT dependence of FF differences in dependences on kinematics integrated over Sivers: the “kaon challenge” / K production dominated by scattering off u-quarks

27
role of sea quarks differences biggest in region where strange sea is most different from light sea [PLB666(2008), 446] strange sea pdf

28
extracting the Sivers function extracting the Sivers function use parametrisations of unpolarised fragmentation functions see talk by A. Prokudin

29
[Anselmino et al., EPJA(2009),89] combined analysis: extracting the Sivers function extracting the Sivers function anti-quark L≠0 favoured

30
[Anselmino et al., EPJA(2009),89] combined analysis: extracting the Sivers function extracting the Sivers function Lattice [Haegeler et al.] L u >0 L d <0

31
transverse nucleon structure transversity via Collins fragmentation fct. h h qq

32
Collins amplitudes positive ≈zero negative ep X distinctive pattern: isospin relation for triplet fulfilled

33
Collins amplitudes positive ≈zero negative ep X distinctive pattern: approximation: u-quark dominance Collins FF has favoured ( u ) and unfavoured ( u - ) transitions of similar size and opposite sign

34
Collins amplitudes positive ≈zero negative ep X distinctive pattern: approximation: u-quark dominance Collins FF has favoured ( u ) and unfavoured ( u - ) transitions of similar size and opposite sign all asymmetries on deuterium target ≈ zero! proton data [note sign change due to different angle definition ]

35
Collins amplitudes positive ≈zero negative ep X distinctive pattern: approximation: u-quark dominance Collins FF has favoured ( u ) and unfavoured ( u - ) transitions of similar size and opposite sign all asymmetries on deuterium target ≈ zero! [PLB673(2009)]

36
Collins amplitudes ep h X K + amplitudes consistent with amplitudes as expected from u- quark dominance K of opposite sign from (K is all-sea object)

37
extraction of transversity e-e- e+e+ from Collins asymmetries from Collins asymmetries see talk by A. Prokudin

38
Collins amplitudes -- extras: 2D binning -- kinematic dependencies often don’t factorise bin in as many independent variables as possible: z @`fixed’ x P h @`fixed’ z z @`fixed’ P h x @`fixed’ z T T

39
Collins amplitudes -- extras: 2D binning -- kinematic dependencies often don’t factorise bin in as many independent variables as possible:

40
alternative probe for transversity: 2-hadrons

41
2-hadron production: interference fragmentation function between pions in s-wave and p-wave only relative momentum of hadron pair relevant integration over transverse momentum of hadron pair simplifies factorisation (collinear!) and Q 2 evolution however cross section becomes very complicated (depends on 9! variables) sensitive to detector acceptance effects

42

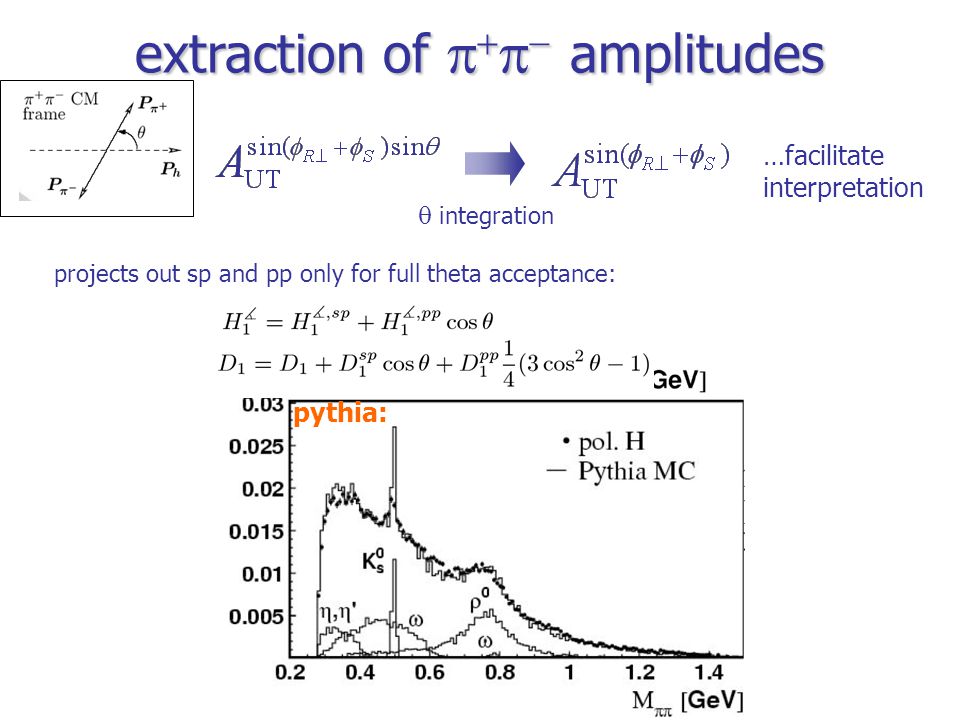

extraction of amplitudes pythia: integration …facilitate interpretation projects out sp and pp only for full theta acceptance:

43
extraction of amplitudes integration …facilitate interpretation projects out sp and pp only for full theta acceptance:

44
extraction of amplitudes integration …facilitate interpretation projects out sp and pp only for full theta acceptance: acceptance is momentum dependent: full acceptance

45
extraction of amplitudes symmeterization around fit bin data in in addition: &

46
amplitudes [JHEP 0806.017]

47
h + h - amplitudes [JHEP 0806.017] [note sign change due to different angle definition]

48
h + h - amplitudes [JHEP 0806.017] [note sign change due to different angle definition]

49
models for 2-hadron asymmetries M (GeV) [Bacchetta, Radici PRD74(2006)]

50
models for 2-hadron asymmetries M (GeV) [Bacchetta, Radici PRD74(2006)] [note sign change due to different angle definition]

51
azimuthal dependence of the unpolarised cross section spin-orbit effect (Boer-Mulders DF): correlation between quark transverse motion and transverse spin

52
unpolarised cross section access to intrinsic quark transverse momentum

53
analysis challenge Monte Carlo: generated in 4 measured inside acceptance acceptance and radiative effects generate cos(n ) moments

54
analysis challenge Monte Carlo: generated in 4 measured inside acceptance acceptance and radiative effects generate cos(n ) moments 5D unfolding of detector and radiative effects:

55
analysis challenge

58

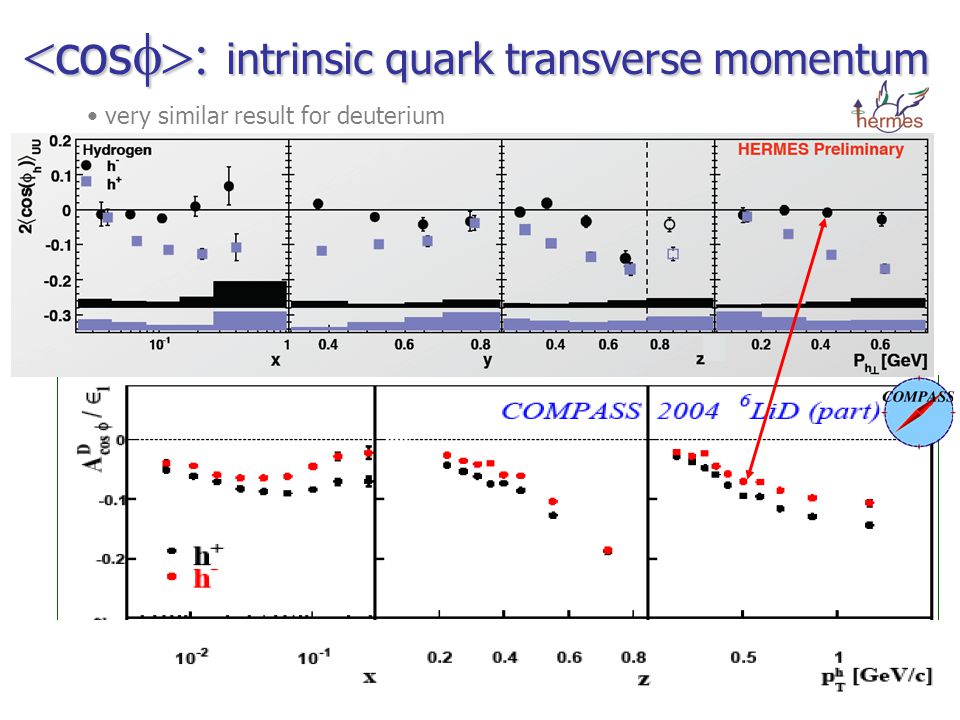

cos intrinsic quark transverse momentum very similar result for deuterium

59
cos intrinsic quark transverse momentum very similar result for deuterium

60

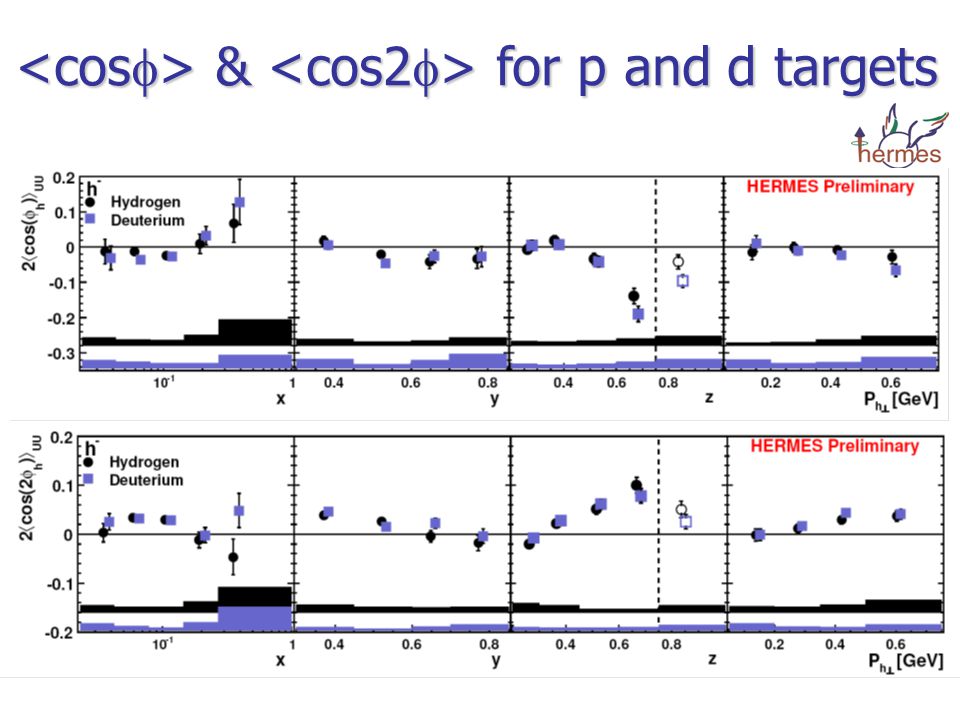

& for p and d targets & for p and d targets

61
cos2 spin-orbit correlations very similar result for deuterium

62
models for Boer-Mulders DF diquark spectator model same sign for u & d quark BM-DF

63
models for Boer-Mulders DF diquark spectator model compares well to HERMES data w/o inclusion of tw-4 Cahn effect

64
models for Boer-Mulders DF scaled Sivers fct. inclusion of tw-4 Cahn effect [V. Barone, A. Prokudin, Bo-Quiang Ma, PRD78 (2008)]

65
models for Boer-Mulders DF

66
work in progress for tw-4 Cahn effect [V. Barone, S. Mellis, A. Prokudin]

67
models for Boer-Mulders DF

68
transversely polarised quarks in longitudinally polarised nucleons Kotzinian-Mulders fct.

69
transversely polarised quarks in longitudinal polarised nucleons

70
next @Jlab

71
next @HERMES pT weighted Sivers & Collins moments resolve convolution integral ! extraction of all 8 leading tw modulations ++

72
next @HERMES pT weighted Sivers & Collins moments resolve convolution integral ! extraction of all 8 leading tw modulations ++ next @COMPASS request to CERN: 2010 full year run (140 days) with transversely polarised protons [… investigation of upgrade for higher muon beam intensity and spectrometer upgrades]

73
theo ry [by Naomi Makins] looking forward to new projects: Jlab12, EIC, PAX@FAIR see talks by H. Avakian & R. Ent on friday

74
BACKUP SLIDES [courtesy of A. Bacchetta]

75
Sivers: Q 2 dependence factor 2 factor 3

76
Experimental status: EMC E665 ZEUS c) Negative results in all the existing measurements No distinction between hadron type or charge

77
Experimental status: EMC ZEUS collaboration ZEUS Drell-Yan Positive results in all the existing measurements No distinction between hadron type or charge (in SIDIS experiments) Indication of small Boer-Mulders function for the sea quark (from Drell-Yan experiments)
